Search Results (16)

To investigate the flow characteristics of a novel dual-slot overflow channel, a research approach integrating physical experiments and numerical simulations was adopted. A three-dimensional model of the overflow channel was developed, employing the RNG k-ε turbulence model and the VOF two-phase flow model to optimize the numerical simulation of the high-low dual-slot flow field. Physical experiments were conducted to verify and analyze the hydraulic characteristics of the high-low overflow channel, including the longitudinal water surface profile and flow patterns. The numerical simulation results aligned well with the physical model test results. By analyzing the flow field of the dual-slot counterflow spillway, the flow characteristics at both the spillway and outlet sections were identified. This study focused on the water surface profile along the spillway, the pressure distribution, and the counterflow characteristics of the protruding water tongue, and explored optimization strategies for the WES surface and spillway design. Physical model tests were conducted on the final optimized design, yielding good agreement between the theoretical predictions and experimental results, thereby confirming the feasibility of the energy dissipation methods for both high and low spillways. The research outcomes offer valuable references for related engineering applications. Full article

This study utilizes the MIKE 11 hydrodynamic model developed by the Danish Hydraulic Institute to simulate flood behavior downstream of Karot Dam under multi-year in-flow conditions. The key parameters analyzed include breach characteristics, flood duration, water depth, flow velocity, discharge rate, and downstream distance. After dam failure, the peak discharge reaches 33,171 m³/s, exceeding the 10,000-year recurrence peak flow of 32,300 m³/s, with a breach duration of 2 h. The estimated peak discharge after simulation using empirical equations and comparative analyses showed maximum flood discharges of 28,187 m³/s, 28,922 m³/s, and 29,769 m³/s, with breach widths of 181 m, 256 m, and 331 m, respectively. The peak discharge predicted to reach the outlet with travel time ranging from 4 h 25 min to 4 h 40 min. Under multi-year average inflow conditions, Mangla Dam faces no risk of failure, with a maximum outflow of 12,097 m³/s and a spillway capacity of 30,147 m³/s. The model accurately predicted discharge values, with a strong correlation coefficient of R² = 0.9653, indicating strong agreement between the actual water level data and predicted discharge. These insights are essential for developing effective emergency response strategies to mitigate the risks associated with dam failure. Full article

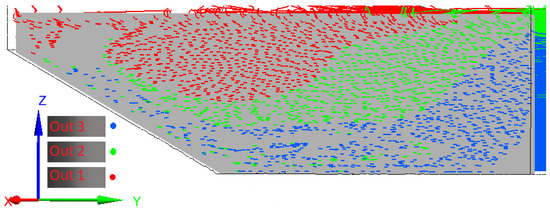

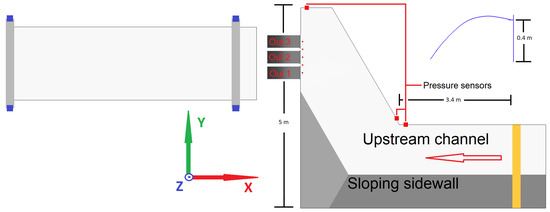

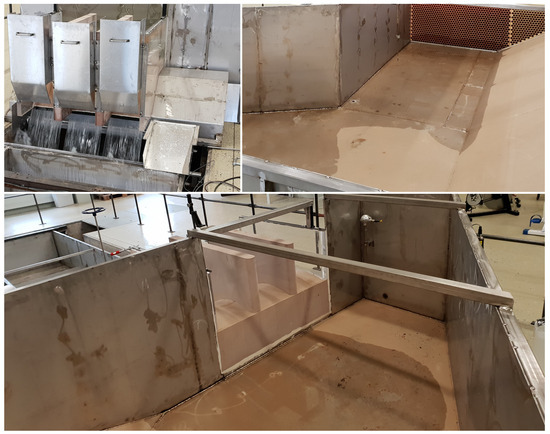

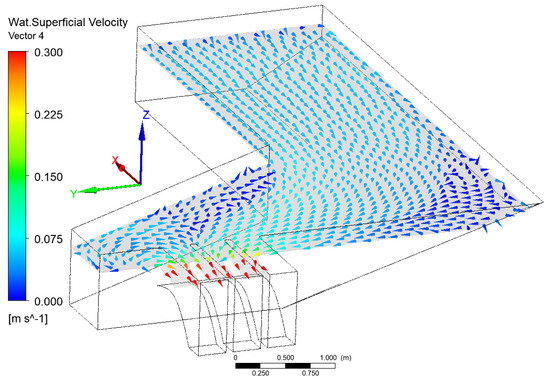

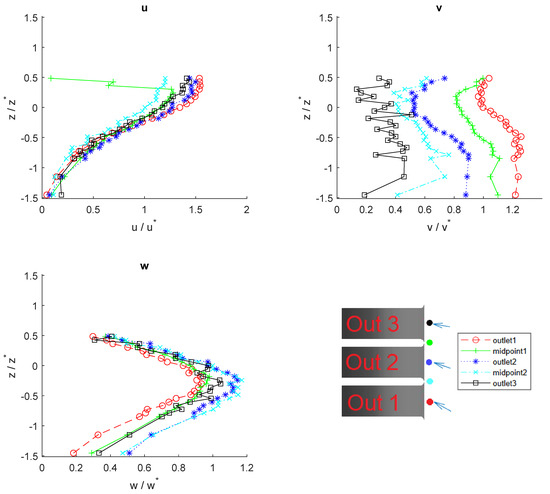

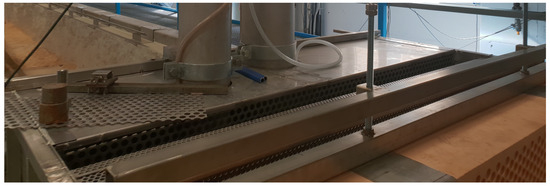

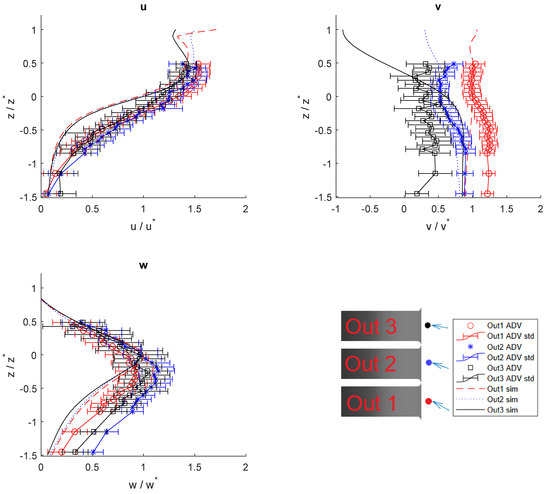

Measurements of mass flow through a three-outlet spillway modeled after a scaled-down spillway were conducted. The inlet and channel leading up to the outlets were placed to lead the water toward the outlet at an angle. With this, measurements of the water level at three locations were recorded by magnetostrictive sensors. The volumetric flow rates for each individual outlet were recorded separately to study the differences between them. Additionally, Acoustic Doppler Velocimetry was used to measure water velocities close to the outlets. The conditions changed were the inlet volume flow rate and the flow distribution was measured at 90, 100, 110, and 200 L per second. Differences between the outlets were mostly within the error margin of the instruments used in the experiments with larger differences shown for the 200 L test. The results produced together with a CAD model of the setup can be used for verification of CFD methods. A simulation with the k-epsilon turbulence model is included and compared to earlier experiments and the new experimental results. Larger differences are seen in the new experiments. Differing inlet conditions are assumed as the principal cause for the differences seen. Full article

The piano key (PK) weir is a cost-effective structure for flood discharge. Its typical layout comprises a rectangularly cranked crest in planform with up- and downstream overhangs. With the intention to enhance its hydraulic efficiency, the conventional weir is improved. The sloping floor of each key is modified with a downward semi-circle in the cross-section; each overhanging apex is thus assigned an elliptical crest. Thus, the developed crest length of the resulting weir becomes considerably extended. Experiments are performed to compare the hydraulic behaviors of the improved weir with a reference one. The models are 3D-printed to attain high manufacture precision. For the model dimensions chosen in the study, the developed crest is ~36% longer. The study demonstrates that the improvements in geometry lead to appreciably enhanced flow discharge capacity. Within the hydraulic range examined, the augment in flow discharge varies within a range from 30% to 53%. In terms of both discharge capacity and flow patterns, the improved weir clearly outperforms the conventional one. The elliptical overhang apexes noticeably extend the developed crest length. The streamlined upstream overhang without singularity and the lowered inlet key floor reduce the entrance energy loss and improve the inflow to the inlet key and the flow over the crest. The lowered floor also gives rise to extra water volume, which administers to the flow motion towards the crest. For the outlet key, its lowered floor facilitates the outflow and alleviates the liableness of local submergence at high discharges. If the footprint for spillway construction is limited or the increase in the reservoir water stage must be controlled, the use of a more effective PK weir for flood discharge has significant engineering implications. Full article

Over the past decades, significant advances have been achieved in hydraulic structures for dams, namely in water release structures such as spillway weirs, chutes, and energy dissipators. This editorial presents a brief overview of the eleven papers in this Special Issue, Advances in Spillway Hydraulics: From Theory to Practice, and frames them in current research trends. This Special Issue explores the following topics: spillway inlet structures, spillway transport structures, and spillway outlet structures. For the first topic of spillway inlet structures, this collection includes one paper on the hydrodynamics and free-flow characteristics of piano key weirs with different plan shapes and another that presents a theoretical model for the flow at an ogee crest axis for a wide range of head ratios. Most of the contributions address the second topic of spillway transport structures as follows: a physical modeling of a beveled-face stepped chute; the description and recent developments of the generalized, energy-based, water surface profile calculation tool SpillwayPro; an application of the SPH method on non-aerated flow over smooth and stepped converging spillways; a physical model study of the effect of stepped chute slope reduction on the bottom-pressure development; an assessment of a spillway offset aerator with a comparison of the two-phase volume of fluid and complete two-phase Euler models included in the OpenFOAM^® toolbox; an evaluation of the performance and design of a stepped spillway aerator based on a physical model study. For the third topic of spillway outlet structures, physical model studies are presented on air–water flow in rectangular free-falling jets, the performance of a plain stilling basin downstream of 30° and 50° inclined smooth and stepped chutes, and scour protection for piano key weirs with apron and cutoff wall. Finally, we include a brief discussion about some research challenges and practice-oriented questions. Full article

Dam reliability analysis is performed to determine the structural integrity of dams and, hence, to prevent dam failure. The Chenderoh Dam structure is divided into five parts: the left bank, right bank, spillway, intake section, and bottom outlet, with each element performing standalone functions to maintain the overall Dam’s continuous operation. This study presents a numerical reliability analysis of water dam reservoir banks using fluid–structure interaction (FSI) simulation of the bottom outlet structures operated at different discharge conditions. Three-dimensional computer-aided drawings were used to view the overall Chenderoh Dam. Next, a two-way fluid–structure interaction (FSI) model was developed to explore the influence of fluid flow and structural deformation on dam systems. The FSI modeling consists of Ansys Fluent and Ansys Structural modules to consider the boundary conditions separately. The reliability and performance of the reservoir bottom outlet structure was effectively simulated and recognised using FSI. The maximum stress on the bottom outlet section is 18.4 MPa, which is lower than the yield stress of mild steel of 370 MPa. Therefore, there will be no structural failure being observed on the bottom outlet section when the butterfly valve is fully closed. With a few exceptions, the FSI models projected that bottom outlet structures would be able to run under specified conditions without structural collapse or requiring interventions due to having lower stress than the material’s yield strength. Full article

One of the main glacier-related natural hazards that are common to alpine locations is the occurrence of glacial lake outburst floods (GLOFs), which can seriously harm downstream towns and infrastructure. GLOFs have increased in frequency in the central Himalayas in recent years as a result of global warming, and careful management of glacial lakes is a crucial step in catastrophe prevention. In this study, field surveys were conducted on 28 August 2020 and 1 August 2021 with the help of an unmanned aerial vehicle (UAV) and a boat bathymetric system on an unmanned surface vessel (USV), combined with 22 years of Landsat series imagery and Sentinel-2 MSI imagery data. Spatial analysis was then used to investigate changes in lake surface conditions, dam stability, and surrounding topography before and after an integrated project of the Jialong Co lake. The results show that: (1) from 2000 to 2020 (before engineering management), the area of the Jialong Co glacial lake increased from 0.2148 ± 0.0176 km² to 0.5921 ± 0.0003 km². The glacial lake expansion rate from 2000 to 2010 (0.0145 km²/a) was greater than the rate from 2011 to 2020 (6.92 $\times$ 10⁻⁶ km²/a). In 2021 (after engineering treatment), the glacial lake perimeter, area, and volume decreased by 0.6014 km, 0.1136 km², and 1.90 × 10⁷ m³, respectively. The amount of excavation during the project treatment was 8.13 million square meters, and the amount of filling was 1.24 million square meters. According to the results of the unmanned surface vessel (USV), the elevation of the lake surface dropped from 4331 m to 4281 m, and the water level dropped by 50 m (the designed safe water level line dropped by 30 m). (2) The results of the UAV topographic survey and geomorphological analysis showed that the engineered reinforcement of the outlet channel and surrounding dam effectively mitigated severe scouring of the foot of the final moraine at the outlet of the spillway, as well as the likelihood of glacial lake outbursts caused by ice avalanches and landslides. (3) The comprehensive engineering treatment of this typical glacial lake effectively lowered the water level and improved the stability of the moraine ridge and lake dam, providing a scientific foundation for other glacial lake outburst risk assessments and disaster mitigation and management measures. Thus, it is critical to evaluate the impact of comprehensive engineering management of key glacial lakes to support glacial lake management. Full article

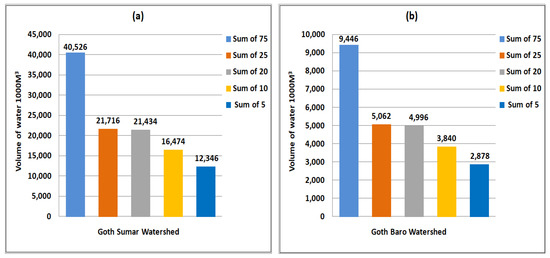

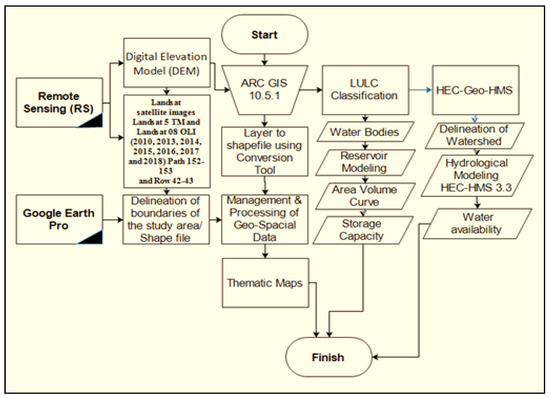

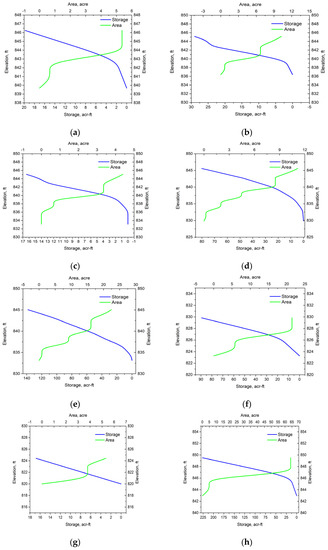

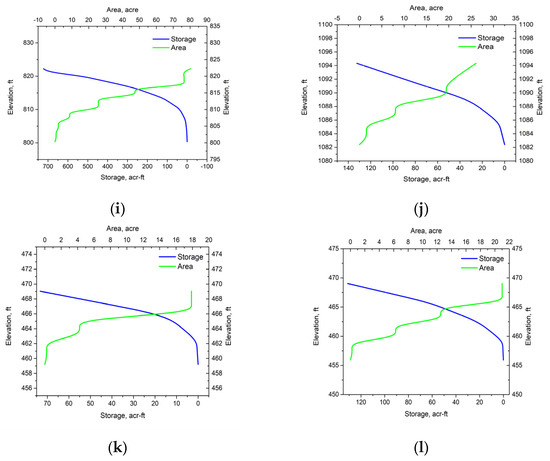

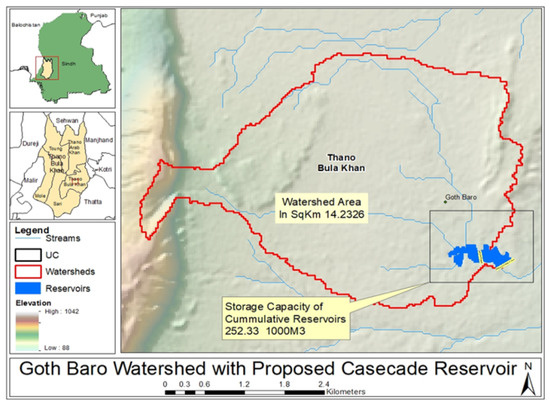

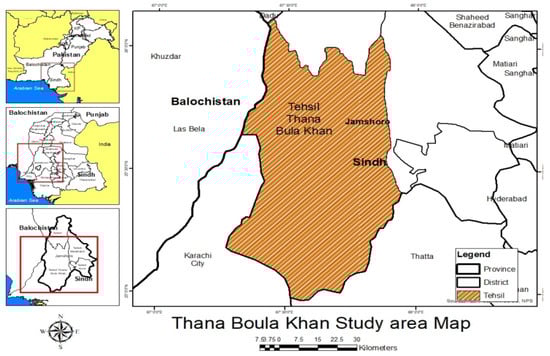

Torrents play an essential role in water resources through rainfall in arid to semi-arid mountainous regions, serving large populations worldwide, and are also crucial in maintaining the downstream environment. The natural flows (floods, ephemeral flows) in arid hill regions result in potential hydrological fluctuations caused by climate change. However, the feasibility of eventual storage in remote hilly catchments would force a more sudden change. The current study was conducted in the lower part of the Khirthar National Range in the Sindh province of Pakistan, with the aim to explore spatial runoff storage sites for sustainable development to mitigate the impacts of climate change in arid areas. In total, 83 years of precipitation data were used to estimate water availability, along with satellite imagery for LULC pre- and post-monsoon conditions, delineation of watersheds, and identification of potential runoff storage locations and return periods, using Remote Sensing (RS)/Geographical Information System (GIS) 10.5.1, HEC-HMS 3.1, and Origin Pro 9.0 for statistical approaches. The model delineated two potential watersheds: Goth Sumar, covering an area of 61.0456 km², wherein ten cascading reservoirs were identified, and Goth Baro, covering an area of 14,236 km², wherein two cascading reservoirs were identified. Different storage capacities were determined for the cascade-type reservoirs. The maximum live volumetric potential storage of the reservoirs varies from 0.25 to 1.32 million cubic meters (MCM) in the villages of Baro and Sumar. The return periods have been estimated at 5, 10, 20, 25, 50, and 75 years, corresponding to 12.35, 16.47, 21.43, 21.72, 25.21, and 40.53 MCM for Goth Sumar, while Goth Baro’s storage capacity has been estimated at 2.88, 3.84, 5.00, 5.06, 5.88, and 9.45 MCM, respectively. All results obtained were authenticated using accuracy assessment, validation, and sensitivity analysis. The proposed potential storage sites were recommended for a planning period of five years. The live storage capacity of the identified cascade reservoirs can be improved by raising the marginal banks and developing the spillways to control inlet and outlet flow in order to maintain internal pressure on the reservoir banks. The stored water can be used for climate-friendly agricultural activities to increase crop production and productivity. The proposed study area has extensive experience with flood irrigation systems and rainwater harvesting to sustain agriculture due to rainfall being the only water resource (WR) in the region. However, the study area has enormous potential for surface runoff WRs, especially during the rainy season (monsoon); the current 2022 monsoon is showing flooding. The modeling approaches of Remote Sensing, GIS, and HEC-HMS play an important role in delineating watershed areas, developing hydrographs, and simulating water availability for different return periods by minimizing cost and time. Full article

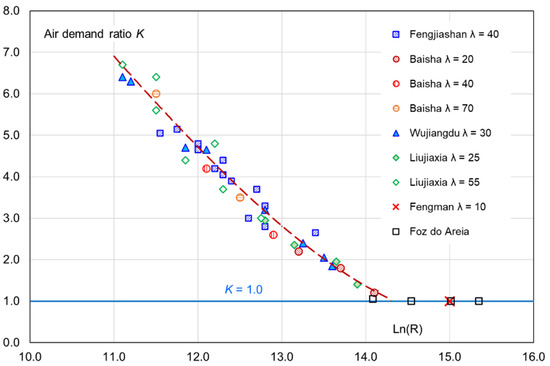

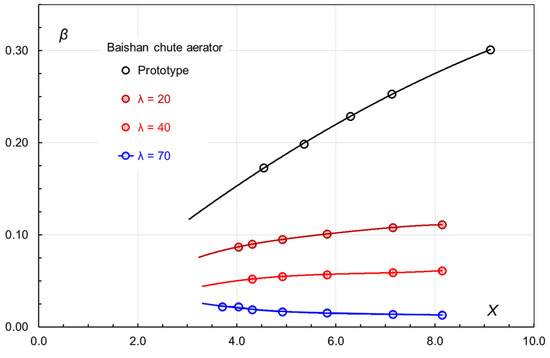

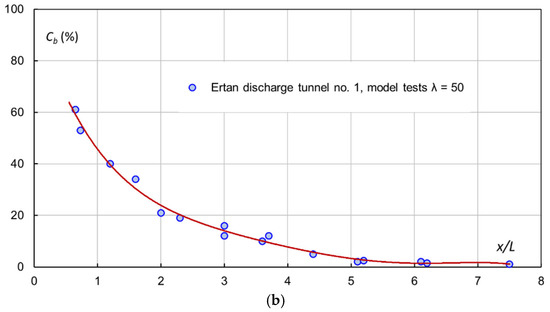

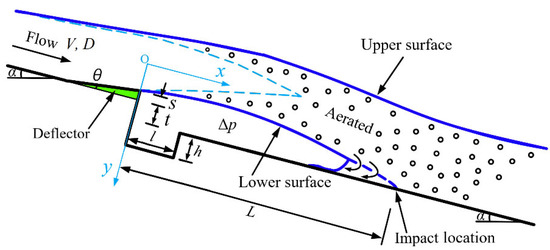

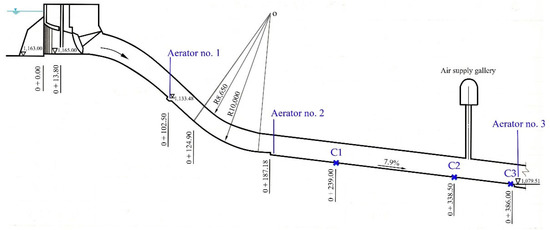

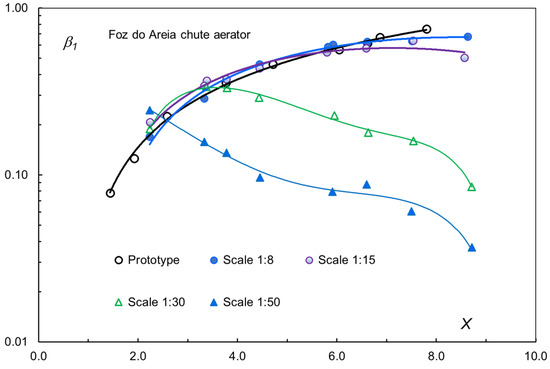

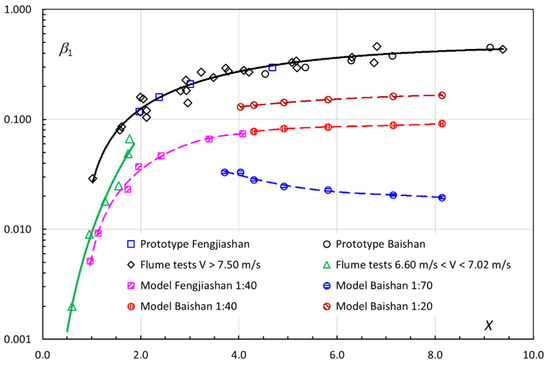

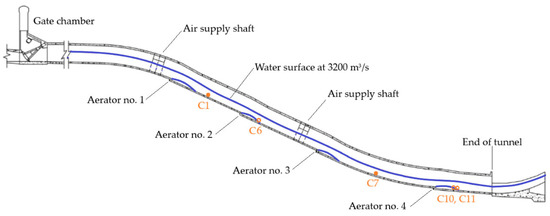

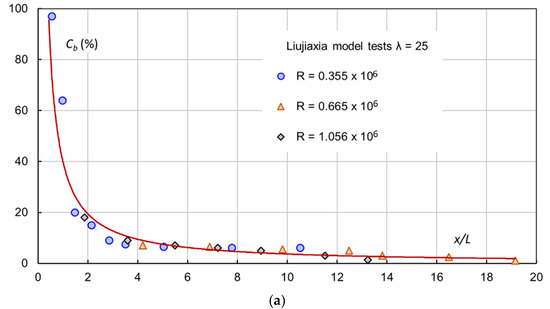

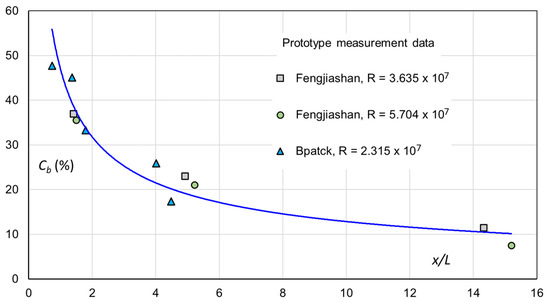

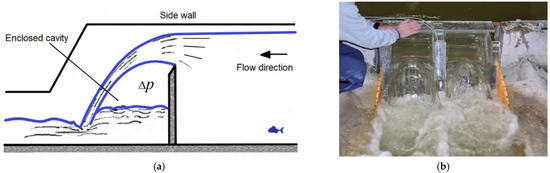

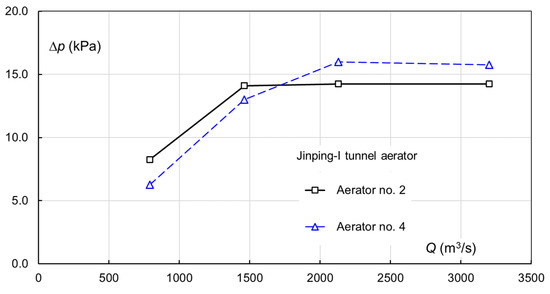

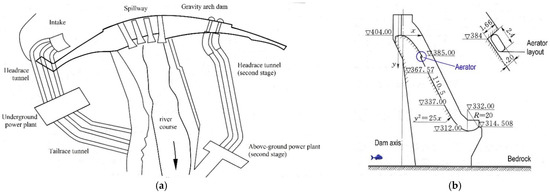

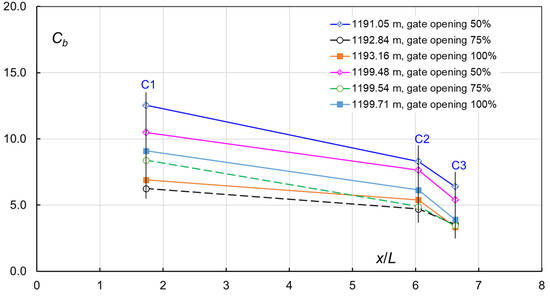

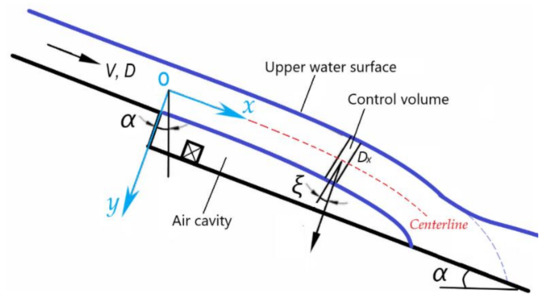

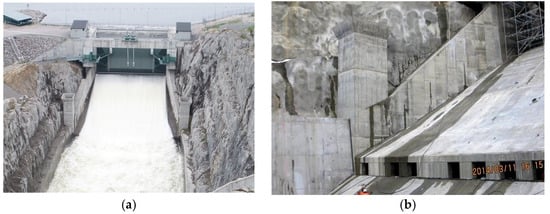

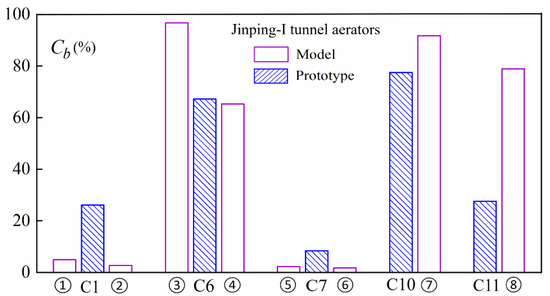

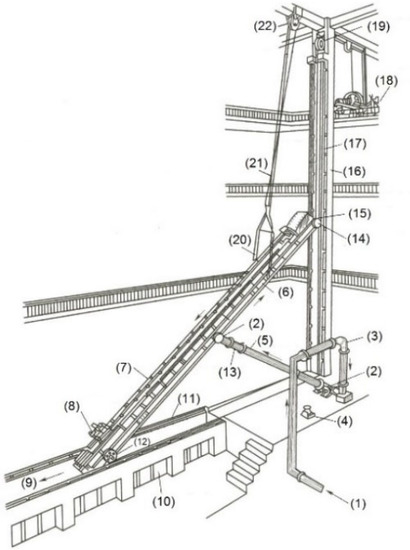

An aerator, installed to prevent cavitation damages in spillways and outlet works, generates a typical two-phase flow affected by its configuration and flow conditions. The major parameters of concern include air demand, jet trajectory and streamwise changes of air concentration near chute bottom. This study reviews the theoretical basis and deals with several aspects of physical scale modeling, supported exclusively by field measurements. Analyses reveal that the sub-atmospheric pressure generated in the air cavity should also be scaled in physical modeling, which is seldom the case in the laboratory environment. Thus, the conventional approach to upscale the air demand is controversial. With the data from both fields and laboratories, it is demonstrated that a direct conversion of air flow from model to prototype is justified only if the approach flow velocity in the model exceeds 7.0–7.5 m/s or the Reynolds number exceeds 1.58 × 10⁶. Failing to meet this premise would bring about errors for prototype predictions; the error extent depends on both model scale and flow magnitude. In terms of cavity pressure drop, the prototype differs by a factor of less than 10 from its scale model with sufficient air supply. In a model, the air concentration along the chute bottom drops considerably within one to two trajectory lengths. The prototype differs from its model in such a way that the air concentration decay is much slower, with a higher level that is maintained over a longer distance downstream of the impact location. This study is intended to provide insight for laboratory studies and engineering design. Full article

This paper focuses on Piano Key Weirs (PKWs) as an effective solution for improving the discharge capacity of spillway systems. The flow behavior in inlet and outlet keys is experimentally studied to analyze the discharge capacity of PKWs with different plan shapes (i.e., rectangular, trapezoidal, and triangular). The results show that in outlet keys, the flow aeration regimes extend to higher values of headwater ratios (H_o/P) by increasing the length magnification ratio (B/w) and apex width ratio (A/w). In addition, the local submergence length is a decreasing function of A/w, especially in high flow heads. While the total interference length enlarges by reducing A/w in lower H_o/P values (H_o/P < 0.5), a reverse trend is observed in higher headwater ratios. PKW performance may also be impacted by the flow contraction and recirculation zone in inlet keys, which intensify in higher values of H_o/P, B/w, and A/w. According to the obtained results, while the discharge coefficient is a decreasing function of A/w in H_o/P > 0.4, it may have a reverse trend in lower head conditions. In addition, a trapezoidal PKW has the highest discharge efficiency in a wide range of the studied domain (H_o/P > 0.25 and B/w ≥ 2). It can improve the discharge efficiency by around 5%, while its body volume is almost 7% smaller than the traditional rectangular PKW. However, for low-length and high-head conditions (B/w = 1 and H_o/P > 0.5), the efficiency a rectangular PKW exceeds that of the other shapes. Full article

Self-aerated flows in flat chutes are encountered downstream of the bottom outlet, in spillways with a small slope and in storm waterways. In the present study, the development of self-aeration in flat chute flow is described and new experiments are performed in a long flat chute with a pressure outlet for different flow discharge rates. The distribution of air concentration, time mean velocity and velocity fluctuation in flow direction in the self-aerated developing region—where air bubbles do not diffuse next to the channel bottom—were measured and analyzed. The region of self-aeration from free surface was about 27.16% to 51.85% of the water depth in the present study. The analysis results revealed that the maximum distance of air bubble diffusion to the channel bottom increased with the development of self-aeration along the flow direction. This indicates that for flat chute flow, the process of air bubble diffusion from free surface to channel bottom was relatively long. Cross-section velocities increased along the flow direction in the self-aerated developing region, and this trend was much more remarkable in the area near water free surface. The velocity fluctuations in flow direction in cross-sections flattened and increased with the development of self-aerated flow. Higher velocity fluctuations in flow direction corresponded to the presence of much stronger turbulence, which enhanced air bubble diffusion from the water free surface to channel bottom along the flow direction. Full article

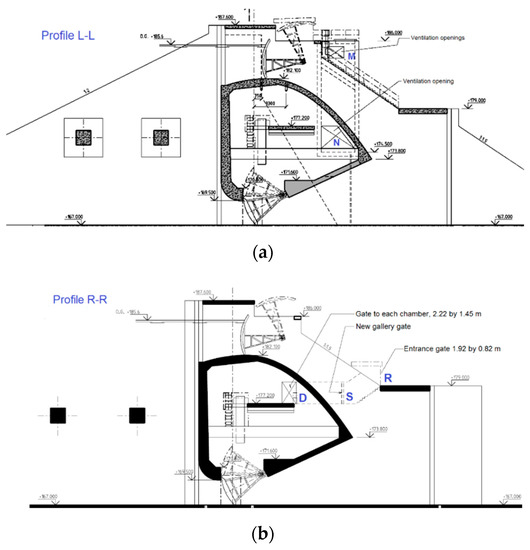

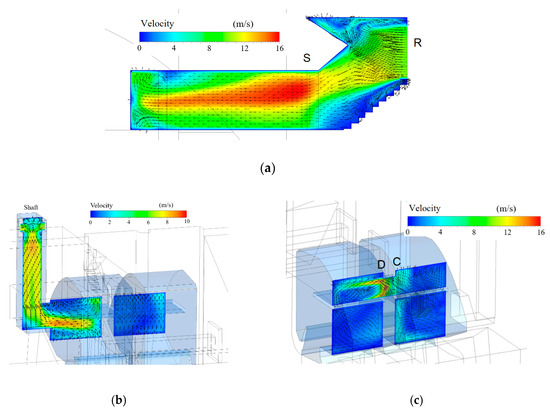

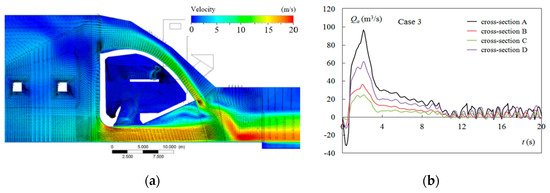

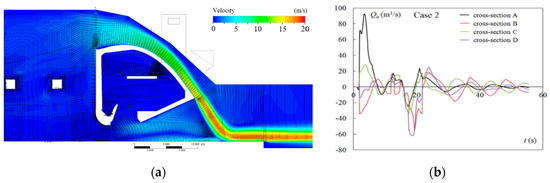

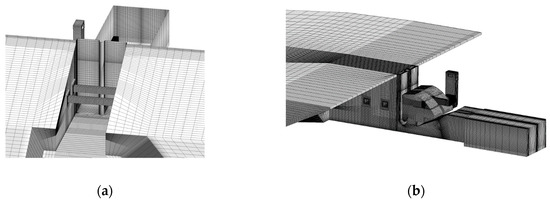

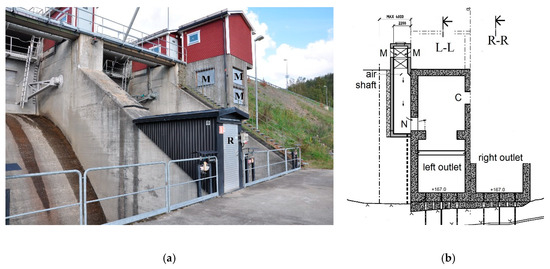

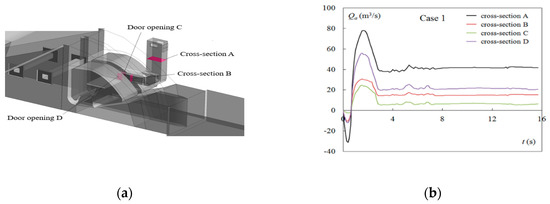

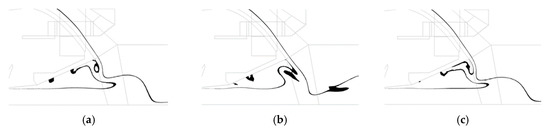

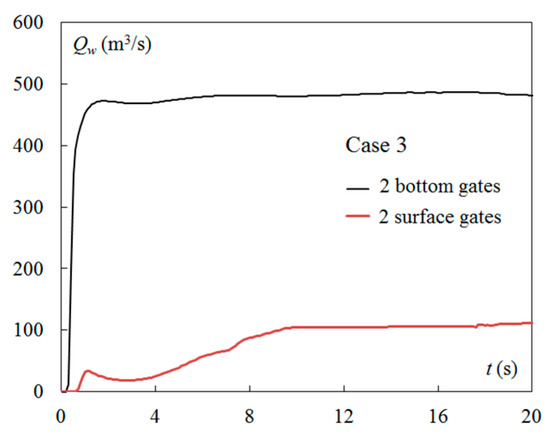

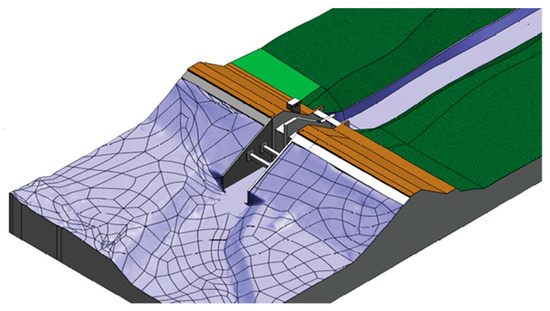

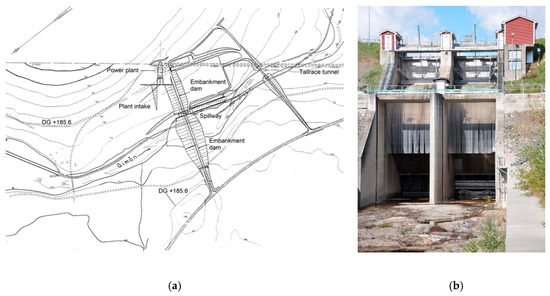

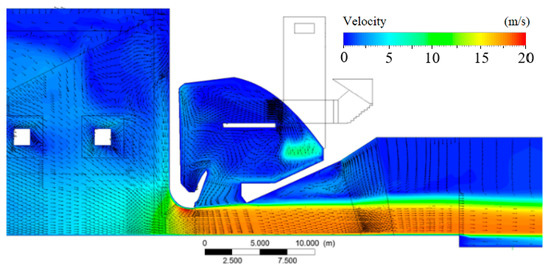

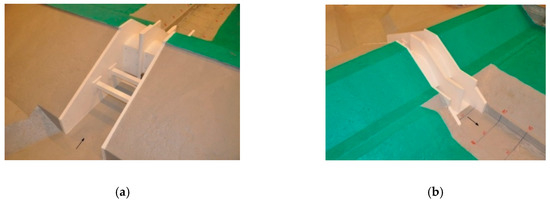

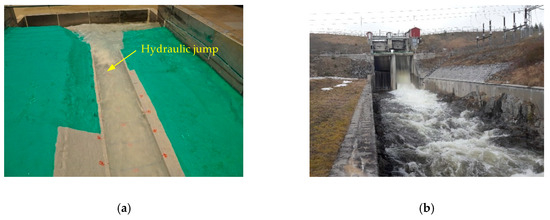

For safe spillway discharge of floods, attention is paid to the water flow. The resulting air flow inside the facility, an issue of personnel security, is sometimes disregarded. The spillway in question comprises two surface gates and two bottom outlet gates lying right below. Air passages to the outlet gates include an original gallery and a recently constructed vertical shaft. To understand water-air flow behavior, 3D CFD modelling is performed in combination with the physical model tests. The simulations are made with fully opened radial gates and at the full pool water level (FPWL). The results show that the operation of only the bottom outlets leads to an air supply amounting to ~57 m³/s, with the air flow rates 35 and 22 m³/s to the left and right outlets. The air supply to the right outlet comes from both the shaft and the gallery. The averaged air velocity in the shaft and the gallery are approximately 5 and 7 m/s. If only the surface gates are fully open, the water jet impinges upon the canal bottom, which encloses the air space leading to the bottom outlets; the air flow rate fluctuates about zero. If all the four gates are open, the total air demand is limited to ~10 m³/s, which is mainly attributable to the shear action of the meeting jets downstream. The air demand differs significantly among the flow cases. It is not the simultaneous discharge of all openings that results in the largest air demand. The flood release from only the two outlets is the most critical situation for the operation of the facility. The findings should provide reference for spillways with the same or similar layout. Full article

Most of the hydropower dams in Sweden were built before 1980. The present dam-safety guidelines have resulted in higher design floods than their spillway discharge capacity and the need for structural upgrades. This has led to renewed laboratory model tests. For some dams, even computational fluid dynamics (CFD) simulations are performed. This provides the possibility to compare the spillway discharge data between the model tests performed a few decades apart. The paper presents the hydropower development, the needs for the ongoing dam rehabilitations and the history of physical hydraulic modeling in Sweden. More than 20 spillways, both surface and bottom types, are analyzed to evaluate their discharge modeling accuracy. The past and present model tests are compared with each other and with the CFD results if available. Discrepancies do exist in the discharges between the model tests made a few decades apart. The differences fall within the range −8.3%–+11.2%. The reasons for the discrepancies are sought from several aspects. The primary source of the errors is seemingly the model construction quality and flow measurement method. The machine milling technique and 3D printing reduce the source of construction errors and improve the model quality. Results of the CFD simulations differ, at the maximum, by 3.8% from the physical tests. They are conducted without knowledge of the physical model results in advance. Following the best practice guidelines, CFD should generate results of decent accuracy for discharge prediction. Full article

So-called “Type IX” chute spillways with impact baffle blocks have been used successfully around the globe for over 50 years. A key advantage of the chute spillway is the elimination of a costly stilling basin allowing for a more simplistic outlet works design. The current design process is based upon physical models developed in the 1950s and observation of completed projects over the last 50 years. The design procedure is empirical and provides the designer with a range of workable layouts, baffle heights, and baffle spacing. Unfortunately, this approach may not be optimal. This first study of a longer research effort focus uses Monte Carlo simulations and computational fluid dynamics (CFD) to examine the design methodology and physical model basis for the current design procedure. Initially, the study examined the design procedure with a Monte Carlo simulation to explore the range of acceptable designs that can be realized. Then, using CFD, full-scale prototype (located in Gila, Arizona USA) physical model results that were a key basis for the current design procedure were recreated. The study revealed that a wide range of acceptable chute designs can result from following the current design procedure but that some of these may be better than others. The study also outlines future research efforts needed to revise the current design methodology. Full article

Spillway outlet design is a major issue in hydraulic engineering with high head and large discharge conditions. A new type of design for a streamwise-lateral spillway is proposed for ski-jump flow discharge and energy dissipation in hydraulic engineering. The water in the spillway outlet is constrained by three solid walls with an inclined floor, a horizontal floor on the bottom and a deflected side wall in the lateral direction. The water flow releases in a lateral direction into the plunge pool along the streamwise direction. It generates a free jet in the shape of “∩” in a limited area, causing the water to fully diffuse and stretch in the air simultaneously, and drop into the plunge pool to avoid excessive impact in the plunge pool. The formation mechanism for the flow pattern is analyzed, and the results show that the optimum inclination is an angle range of 30°~45° for a good performance of free ski-jump jet diffusion shape. Full article
