Search Results (188)

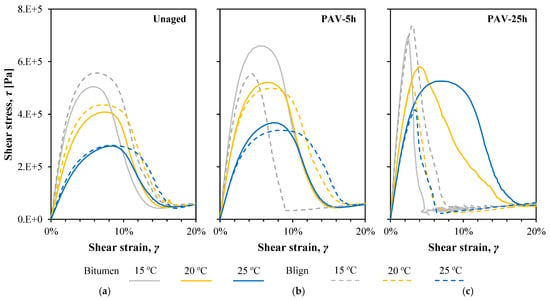

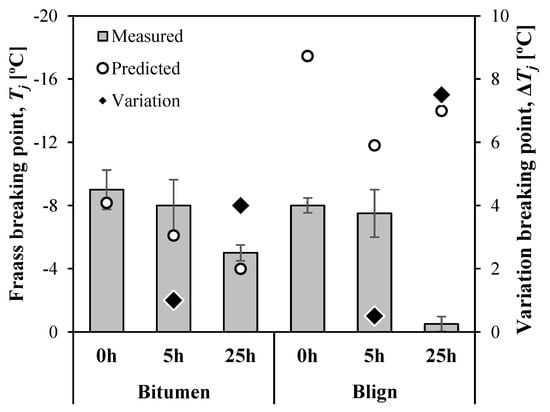

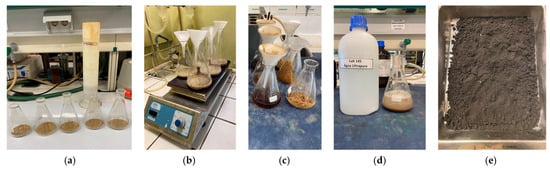

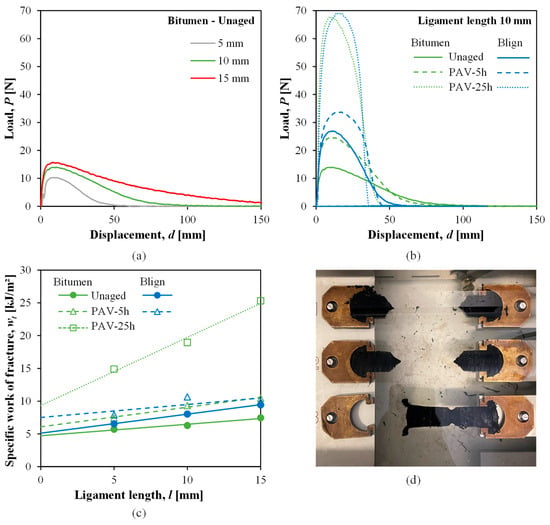

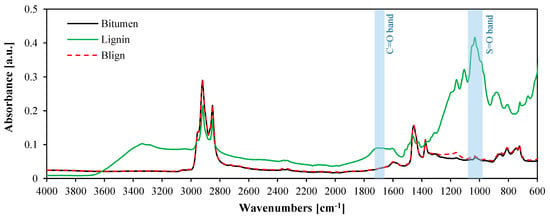

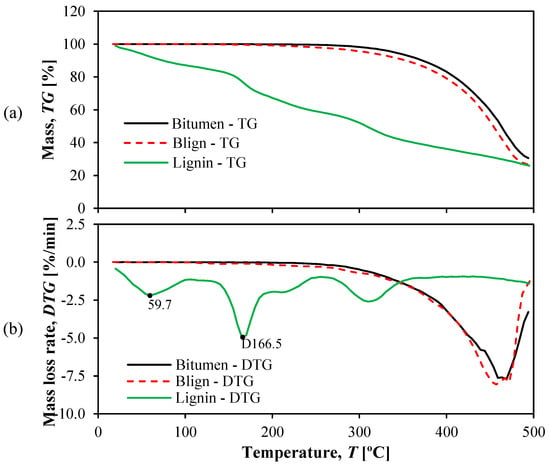

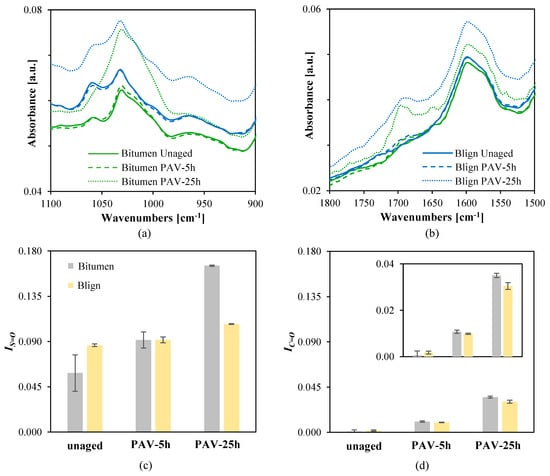

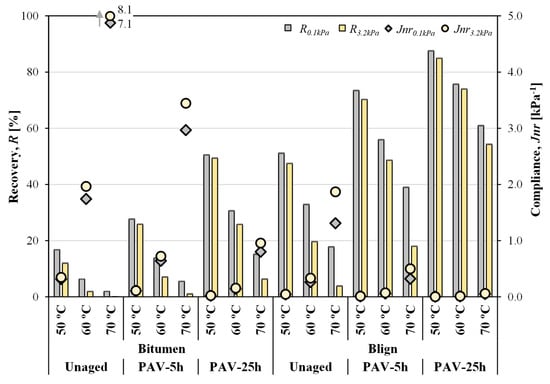

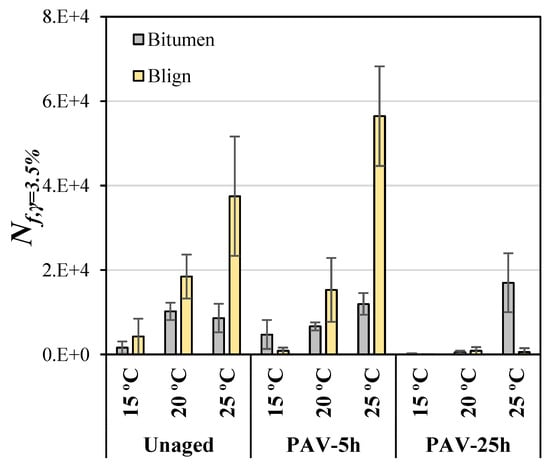

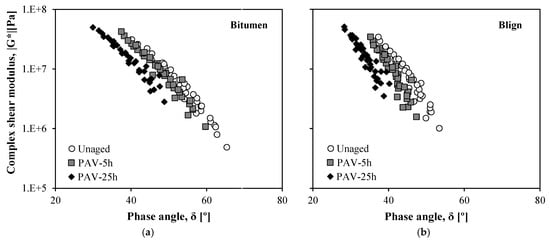

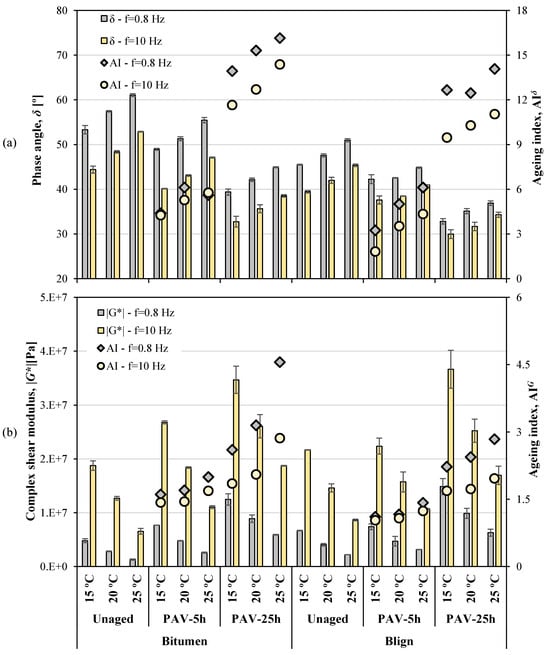

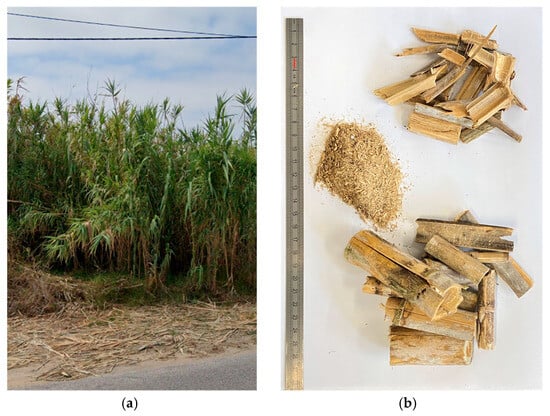

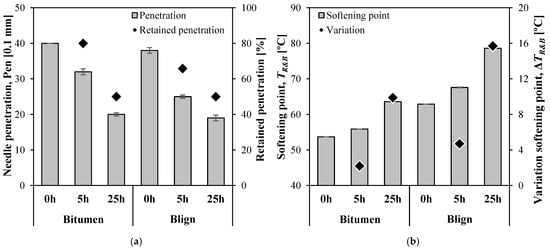

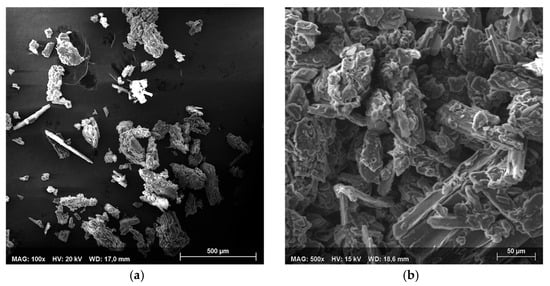

This study investigates the effect of Arundodonax L.-derived lignin on the rheological behaviour, mechanical performance and oxidative ageing resistance of bitumen. Arundo donax is a fast-growing invasive grass with high lignin content, representing a promising sustainable biomass source for bitumen modification. Lignin was extracted via the Acid Detergent Lignin method, yielding a fine powder (50–300 μm). The incorporation of 6 wt% lignin into a 35/50 paving-grade bitumen induced significant changes in binder behaviour. Infrared spectroscopy (FTIR) confirmed the polyaromatic and oxygenated nature of lignin and indicated that its interaction with bitumen is primarily physical, involving polar intermolecular interactions rather than chemical bonding. Lignin modification significantly increased stiffness, elasticity, and rutting resistance, as evidenced by higher softening point, complex modulus, and recovery after creep loading. Furthermore, FTIR analysis confirmed a reduced susceptibility to oxidative ageing, demonstrated by lower increases in carbonyl and sulfoxide indexes after ageing. This suggests distinct antioxidant activity associated with the phenolic structures of lignin. Despite these benefits, severe long-term ageing led to a marked reduction in fatigue life, ductility, low-temperature cracking resistance, and adhesive properties. Overall, these results demonstrate that Arundo donax-derived lignin is a promising sustainable modifier for bitumen, though optimisation of the dosage and blending conditions is necessary to balance durability against long-term fracture performance. Full article

High reclaimed asphalt pavement (RAP) contents are often limited by insufficient restoration of field-aged SBS-modified asphalt and the lack of a comprehensive method for rejuvenator dosage selection. This study aimed to develop a multi-performance-based approach for determining the dosage of an epoxy-based reactive rejuvenator under high-RAP conditions. Rejuvenated binders with different dosages were evaluated using conventional tests, DSR, MSCR, BBR, and LAS tests. Continuous low-temperature grading temperature, dissipated energy ratio, and entropy-weight TOPSIS were used for comprehensive evaluation, while GPC was employed to characterize molecular-weight distribution. The rejuvenator improved low-temperature relaxation, fatigue resistance, energy dissipation, and workability, whereas excessive dosages reduced rutting resistance and elastic recovery. Entropy-weight TOPSIS ranked RA-6 highest, with a relative closeness coefficient of 0.66504, and this ranking was consistent with the overall trends obtained from individual performance tests, supporting the feasibility of the proposed evaluation method. GPC results showed systematic changes in molecular-weight distribution after rejuvenation. For the investigated material system, 6% is recommended among the tested dosages. The proposed framework provides a practical basis for dosage determination when material characteristics and performance requirements vary. Full article

Recycled micro-surfacing is a sustainable pavement maintenance technique, yet using fine Reclaimed Asphalt Pavement (RAP) is challenging due to aged asphalt and particle agglomeration. This study aimed to develop cold recycled micro-surfacing with waste edible oil (WEO) and Waterborne Epoxy Resin (WER)-modified emulsified asphalt and proposed a novel pre-regeneration method using ultrasonic–mechanical mixing for fine RAP with WEO before preparing mixtures. Molecular dynamics (MD) simulation and Dynamic Shear Rheometer (DSR) tests were conducted to assess rejuvenator diffusion and rheological recovery. In addition, mixtures with 0–25% WER were tested for wear, rutting, low-temperature splitting, and water resistance to optimize the WEO content, mixing time, and WER dosage. The results of MD simulation showed that WEO diffused faster than aged asphalt molecules and mutually interacted. DSR results indicated that 4% WEO (by mass of aged asphalt) gradually restored the complex modulus and phase angle to the levels of matrix asphalt. The recycled mixtures with 4 min ultrasonic–mechanical mixing had a minimum WTAT of 136.86 g/m², which was a 9.6% decrease compared to the mixture without ultrasonic–mechanical mixing. The 1 h WTAT, PVD, PLD, 6d WTAT, and tensile strength of recycled mixtures with 20% WER were improved by 72.6%, 68.9%, 68.8%, 75.0%, and 88.7% compared with those of the matrix asphalt mixtures. Although WER weakened the low-temperature performance of the mixtures, the tensile strain was smaller than the maximum specification requirement of 2500 με when the WER content was less than 20%. In summary, pre-regeneration with 0.4% WEO (by mass of mixtures) and 4 min ultrasonic–mechanical mixing effectively activated the fine RAP. Considering the balance of properties of fine RAP micro-surfacing mixtures, the optimum dosage of 20% WER was recommended to provide sustainable high-performance cold recycled micro-surfacing. Full article

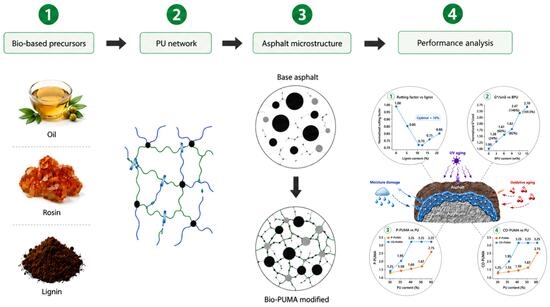

Driven by the goals of carbon peaking and carbon neutrality, as well as the increasing demand for green construction materials, traditional petroleum-based asphalt can no longer fully meet the requirements of long-life and low-carbon road construction due to its strong resource dependence, susceptibility to aging, and difficulty in balancing high- and low-temperature performance. Bio-based polyurethane-modified asphalt (Bio-PUMA) uses renewable or waste biomass to construct high-performance polyurethane (PU) networks, providing a new way to improve pavement performance, reduce carbon emissions, and support the sustainable development of road materials. This paper reviews the molecular structural characteristics of bio-based precursors, including vegetable oil, rosin, and lignin, and summarizes their effects on PU network formation, asphalt microphase morphology, and pavement performance. Existing studies show that the functionality, molecular backbone, hydroxyl value, and soft-to-hard segment ratio of bio-based polyols govern the crosslinking density, phase continuity, and asphalt compatibility of polyurethane networks, thereby influencing rutting resistance, cracking resistance, aging resistance, interfacial adhesion, and mixture performance. Current challenges include unstable biomass feedstocks, difficulty in balancing low-temperature toughness and high-temperature strength, limited long-term service data, and incomplete life-cycle assessment. Future studies should focus on precursor standardization, precise molecular design, multiscale performance evaluation, and engineering validation to promote the application of Bio-PUMA in long-life, low-carbon, and large-scale road infrastructure. Full article

During long-term service, asphalt pavements undergo environmental stress and ageing, which cause cracking, rutting, and other distresses and raise maintenance costs. Polyurethane (PU) has high mechanical strength, elastic recovery, and ageing resistance due to its unique molecular structure. As an asphalt modifier, PU has been reported to improve high-temperature stability, moisture resistance, and durability. However, PU and asphalt differ greatly in polarity, density, viscosity, and phase structure, and these differences often lead to segregation and phase separation. The prepolymer method can mitigate these compatibility limitations by adjusting molecular weight, terminal-group activity, and soft/hard segment ratio before dispersion, chain extension, crosslinking, and post-curing in asphalt, resulting in better compatibility and more controllable processing. This review discusses PU soft/hard segment structures, asphalt composition, prepolymer synthesis and curing, microstructural evolution, pavement performance, storage stability, and use in other systems to clarify modification mechanisms and potential applications. This critical review aims to clarify material–reaction–process–performance relationships within the prepolymer route, with scope limited to molecular design, preparation mechanisms, performance, storage stability, and representative engineering applications. Future work should consider real service conditions and build multiscale evaluation frameworks that jointly optimise prepolymer design, processing, storage stability, and pavement performance, helping translate laboratory findings into low-carbon, long-life road materials that can be produced at scale. Full article

In order to promote the sustainable development of road engineering, this study used waste tire rubber powder (RP) and surface organic layered double hydroxide (SOM-LDHs) to modify 70# matrix asphalt. The Box–Behnken design response surface method with three factors (rubber powder content, surface organic layered double hydroxide content, shear temperature) and three responses (penetration, ductility, softening point) was used to optimize the preparation parameters. The optimum formula was determined to be 21.7% rubber powder content, 4.8% surface organic layered double hydroxide content, and 160 °C shear temperature. The effect of the modifier on the surface morphology was analyzed using a rotating film oven test and ultraviolet aging test. The high and low temperature rheological properties of asphalt were evaluated by dynamic shear rheometer (DSR), bending beam rheometer (BBR), and the multi-stress creep recovery test (MSCR). The microstructure was observed by scanning electron microscopy (SEM) and atomic force microscopy (AFM). The aging mechanism was investigated by Fourier transform infrared spectroscopy (FTIR) and gel permeation chromatography (GPC). The results show that after aging, the complex shear modulus of rubber powder/surface organic layered double hydroxide composite modified asphalt is the highest, which is 27.35% higher than that of matrix asphalt. The rutting factor reaches 79.86 kPa at 46 °C, the phase angle decreases by 11.83% after UV aging, and the high temperature plastic deformation resistance is the best. In the low temperature range of −18 °C to −24 °C, the creep stiffness of the composite modified asphalt is about 30% lower than that of the matrix asphalt, while the m value is increased by about 15%, and the low temperature stress relaxation performance is significantly improved. The strain recovery rate of composite modified asphalt under 3.2 kPa stress reaches 78.5%, and the unrecoverable creep compliance is as low as 0.18 kPa⁻¹, which is better than that of matrix asphalt and single rubber powder modified asphalt. Full article

The use of reclaimed asphalt pavement (RAP) has been increasing due to its economic benefits and environmental sustainability. Adding RAP materials introduces age-hardened binder, which tends to increase the rutting resistance but decrease cracking resistance. This study aims to evaluate the effects of various RAP contents and binder additives on asphalt performance using the Hamburg wheel tracking test, the Semi-Circular Bending-Illinois Flexibility Index Test (SCB-IFIT) and the Indirect Tensile Asphalt Cracking Test (IDEAL-CT). Asphalt mixtures with RAP contents of 0%, 20%, 30%, 40%, and 50% were prepared using two different binder additives of Zero-M polymer cool mix asphalt additive (PCMA) and Anova vegetable oil-based rejuvenator. Based on the Hamburg test results, the rutting resistance significantly increased by adding 20% RAP but did not increase the rutting resistance any further when RAP increased from 20% to 50%. However, the increase in RAP content exhibited a negative impact on cracking resistance by lowering Flexibility Index (FI) based on the SCB-IF test by 50% or more and CT Index (CTindex) based on IDEAL-CT test by 60% or more. For each RAP content, asphalt mixtures incorporating two different additives were tested: (1) Zero-M additive at a dosage rate of 10% of the total binder with mixing/compaction temperature of 110 °C and (2) Anova additive at a dosage rate of 5% of the RAP binder with mixing/compaction temperature of 135 °C. Compared to the control specimens without additive, asphalt mixtures with Zero-M additive increased FI and CTindex by 50% except CTindex of 30% RAP mix. Zero-M additive increased the rut depth from 3 mm to 10 mm for 20% and 30% RAP mixes but, for 40% and 50% RAP contents, the rutting was less than 5 mm after 20,000 repetitions. Anova rejuvenator did not increase FI and CTindex of 30% and 50% RAP mixes but increased FI and CTindex by 50% for 40% RAP mix. Anova additive did not increase the rutting of the control mix. The SCB-IFIT test results exhibited an average coefficient of variation (COV) of 0.25 whereas the IDEAL-CT test results had a COV of 0.20. The IDEAL-CT test, with its simpler preparation process and more consistent results, is recommended as the preferred test procedure over the SCB-IFIT test. Full article

High reclaimed asphalt pavement (RAP) mixtures can improve pavement sustainability by reducing virgin binder and aggregate demand, but high RAP contents may increase mixture stiffness and reduce cracking tolerance. This study evaluates whether commercially available para-aramid fibers can improve the intermediate-temperature cracking resistance of high-RAP hot-mix asphalt using the IDEAL-CT test. Two para-aramid fiber products, a wax-coated fiber and an emulsion-treated fiber, were evaluated at dosages of 0.05%, 0.10%, and 0.15% by total mixture weight in asphalt mixtures containing 15%, 25%, and 40% RAP. The results showed that fiber effectiveness depended strongly on RAP content, fiber treatment, and dosage. The 25% RAP mixture had the lowest control CTIndex and showed the greatest improvement from fiber addition. In this group, 0.10% wax-coated fiber increased CTIndex by 170%, while 0.15% emulsion-treated fiber increased CTIndex by 263%. For the 15% RAP mixture, 0.05% emulsion-treated fiber and 0.10% wax-coated fiber produced statistically significant improvements. For the 40% RAP mixture, 0.10% emulsion-treated fiber produced the highest mean CTIndex among all mixtures tested, but the improvement was not statistically significant because of high specimen variability. Overall, the findings indicate that para-aramid fibers can improve laboratory cracking resistance in RAP mixtures, but the optimum dosage is mixture-specific and should not be applied uniformly across RAP contents. Because this study was limited to Ideal-CT, additional rutting, fatigue, aging, workability analysis and field validation are recommended before broad implementation. Full article

As the core binder material of asphalt pavement, the rheological properties of asphalt directly determine the service performance and service life of the pavement. Under actual service conditions, asphalt is constantly exposed to a multi-coupling environment involving temperature variation, vehicle load, and ultraviolet aging, which easily leads to irreversible rheological deterioration and induces diseases such as rutting and cracking. Aiming at the insufficient research on the rheological evolution law and microscopic damage mechanism under the coupling of the above three factors, this study took 70# base asphalt as the research object and adopted a combination of macro-performance testing and microstructure characterization. The high- and low-temperature rheological properties, permanent deformation resistance, and fatigue resistance of asphalt under multi-coupling effects were systematically evaluated through three conventional index tests: dynamic shear rheology (DSR), multiple stress creep recovery (MSCR), linear amplitude sweep (LAS) and bending beam rheology (BBR). Combined with gel permeation chromatography (GPC) and thin-layer chromatography with flame ionization detection (TLC–FID), the evolution laws of molecular distribution and chemical components were revealed, and the deterioration mechanism of multi-coupling effects was clarified. The results show that compared with the control group, after 72 h of coupling treatment, the penetration decreases by 32.6%, the softening point increases by 18.3%, and the ductility decreases by 45.8%. The high-temperature complex modulus decreases by 51.2%, the low-temperature creep stiffness increases by 76.4%, and the fatigue life decreases by 58.6% on average. At the microscopic level, obvious molecular polymerization and component weight gain occur in asphalt: the content of macromolecular components rises from 18.7% to 32.1%, asphaltene content increases from 12.3% to 25.8%, and aromatic content decreases from 42.6% to 28.3%. Temperature variation, load, and ultraviolet aging present significant deterioration effects, rather than a simple superposition of single factors. Prolonged aging and increased load aggravate the hardening of asphalt, while extreme temperature variation further weakens the rheological properties through microscopic damage. This study clarifies the internal relationship between the microscopic structure and macroscopic properties of asphalt under multi-coupling effects, improves the theory of anti-coupling damage to asphalt, and provides an important theoretical basis and experimental support for damage-resistant design, material selection, and service life prediction of asphalt pavement. Full article

The growing use of reclaimed asphalt pavement (RAP) in hot mix asphalt (HMA) is an important practice to achieve more sustainable pavements, as it reduces the consumption and environmental impact of virgin materials. However, aging induces binder stiffening that requires effective rejuvenation to restore overall performance. This study provides a comprehensive comparative analysis of ten chemically different waste oils—waste engine oil (WEO), waste cooking oil (WCO), yellow grease (YG), waste hydraulic oil (WHO) waste electric transformer oil (WETO), slop oil (SO), sludge-derived bio-oil (SDBO), tire pyrolysis oil (TPO), plastic pyrolysis oil (PPO), and algal residue oil (ARO)—as recycled HMA mixture rejuvenators, linking oil composition to binder regeneration and mixture performance. Binder properties were determined by rotational viscosity (RV), dynamic shear rheometer (DSR) and bending beam rheometer (BBR), whereas mixture performance was assessed in terms of Superpave mechanical properties, Hamburg wheel-tracking test (HWTT) for rutting resistance and mixture BBR for low-temperature cracking resistance. Performance grade (PG) evaluations showed that WETO and WEO restored the 50% and 75% RAP binders, respectively, to a grade close to PG 64-16 at the lowest dosages. The Superpave volumetric properties of all restored mixtures were similar to those of the control mixture, denoting corrected mixture balance and compaction level. HWTT results indicated that WETO-recycled mixtures revealed the lowest rut depth at 50% RAP, while WEO-recycled mixtures exhibited the lowest rut depth at 75% RAP after 20000 passes. Additional evidence supporting these results can be found in BBR mixture data, which demonstrated that WETO at 50% RAP and WEO/WETO at 75% RAP showed the most reduction in creep stiffness and improvement in creep rate. The correlation, regression, and PI analyses were in good agreement with the experimental results, where WETO and WEO exhibited the best overall performance at 50% and 75% RAP, respectively. In summary, these results indicate that the performance of waste oil rejuvenator in recycled HMA mixtures is highly dependent on RAP content and point to WETO and WEO as feasible, environmentally friendly options for high-RAP recycled HMA. Full article

The integration of biochar into asphalt binders represents a significant advancement toward global sustainability in pavement engineering. Produced through biomass pyrolysis, biochar enables the valorization of agricultural and industrial waste while reducing dependence on petroleum-derived binder constituents. This review critically synthesizes current research regarding the impact of biochar on the physical, rheological, and aging performance of bitumen. The evidence consistently shows that biochar improves binder stiffness, raises softening points, and strengthens rutting resistance at elevated temperatures, largely due to its porous microstructure and high carbon content. Biochar-modified binders also exhibit enhanced aging resistance through the adsorption of volatile light fractions. These improvements are primarily ascribed to the carbonaceous composition and high porosity of the biochar particles. However, systemic challenges, including phase stability at high concentrations, long-term oxidative aging, and a lack of standardized characterization protocols, hinder widespread implementation. By identifying consistent findings, contradictions, and critical research gaps across the literature, this review provides a consolidated foundation to guide the transition of biochar-modified bitumen from laboratory investigation to large-scale pavement infrastructure applications. Full article

The need for potentially more sustainable road rehabilitation solutions has driven the use of reclaimed asphalt pavement (RAP) in bituminous mixtures. However, high-RAP content remains a technical challenge due to binder ageing, which increases mixture stiffness and adversely affects its mechanical performance. The aim of this research is to evaluate three strategies for correcting aged binder in asphalt concrete (AC) 16 surf S mixtures containing 50% RAP: rejuvenator, regenerator, and softer virgin bitumen. To this end, four asphalt mixtures were evaluated through tests on air void content, water sensitivity, resistance to permanent deformation, and stiffness modulus, in accordance with European standards. The results show that the reference mixture without binder correction exhibits excessive stiffness, whereas the mixture incorporating a rejuvenator showed the most favorable combination of the mechanical indicators evaluated, combining a significant reduction in stiffness modulus with high water resistance and adequate rutting resistance. The mixture with regenerator showed an intermediate response, while the exclusive use of a softer bitumen did not achieve satisfactory overall performance. The results confirm that the use of high-RAP contents in AC 16 surf S mixtures can be feasible, provided that an appropriate strategy for rheological correction of the aged binder is applied. Full article

To investigate the rheological properties and compositional changes in SBS-modified bitumen under different aging conditions in the unique environmental conditions of the Xinjiang region, this study selected a local 70# base bitumen from Xinjiang and prepared modified bitumen by adding 4.0%, 4.5%, and 5.0% SBS modifier, respectively. RTFOT and PAV were used to simulate the short-term thermal-oxidative aging and long-term oxidative pressure aging processes of the bitumen samples, respectively. The three key indicators and dynamic rheological properties of the bitumen were tested for the original sample, as well as before and after short-term thermal-oxidative aging and long-term oxidative pressure aging. Thin-layer chromatography/flame ionization detection (TLC/FID) was used to analyze the migration patterns of the samples’ chemical components, and a random forest model was employed to establish a quantitative mapping between the four components of the modified bitumen and the rutting factor over a wide temperature range. The results indicate that aging weakens the improvement effect of SBS on the high-temperature performance of bitumen. However, 4.5% SBS-modified bitumen subjected to long-term oxidative pressure aging still maintains the best high- and low-temperature performance, elastic recovery capacity, and fatigue resistance compared to other dosage levels. It also has the highest bitumen content, which verifies the high-temperature performance of this dosage at the component level. Therefore, the optimal SBS dosage is recommended to be 4.5%. Notably, as the SBS content increases, it significantly regulates the increase in heavy fraction content during the aging process, while the decrease in light fraction content is not significantly affected by the content. Based on the random forest algorithm, a mapping relationship between fractions and properties under fully aged conditions was established. This study provides a theoretical basis for research on the modification and aging mechanisms of Xinjiang bitumen. Full article

The pavement surface temperatures in Iraq are remarkably high, causing the asphalt to deteriorate quickly, shortening its service life. While a large amount of corn husk, an agricultural waste, is available for use as an asphalt modifier, researchers have not yet fully investigated this option. In this study, the use of corn husk fiber powder (CHFP) as a long-term modifier for asphalt binders and mixtures that are exposed to high-temperature conditions is evaluated. CHFP was mixed into a 40–50 penetration grade asphalt binder at concentrations ranging from 0.0% to 0.6% by weight. Performance was assessed using laboratory tests such as penetration, softening point, rotating viscosity, dynamic shear rheometer (DSR), aging (RTFOT and PAV), and wheel tracking. The findings revealed that CHFP greatly lowers penetration while increasing the softening point, indicating increased stiffness and high-temperature stability. Rheological research showed an increase in the rutting parameter (G*/sinδ) and viscosity, as well as reduced temperature susceptibility. At the mixed level, CHFP reduced rut depth while improving dynamic stability, indicating increased resistance to permanent deformation. The best performance was obtained at 0.3% CHFP, after which, improvements decreased due to probable dispersion constraints. The performance improvement is related to the creation of a reinforcing fiber network and the absorption of light asphalt components. Overall, CHFP is a promising, environmentally friendly and cost-effective addition for increasing asphalt pavement performance and promoting sustainable waste management. Full article

The degradation of styrene-butadiene-styrene (SBS) modified asphalt under thermal-oxidative aging can reduce pavement service life. Lignin is a renewable material with active phenolic hydroxyl groups. Incorporating lignin into SBS modified asphalt may provide a potential bio-based auxiliary modification route. To investigate the antioxidative effect and rheological properties of SBS modified asphalt after adding lignin, a molecular dynamics test and experimental tests were employed. The molecular simulation results suggested that lignin preferentially associated with asphaltene and resin molecules and changed the molecular mobility of asphalt components in a component-dependent manner. The SBS/lignin composite modified asphalt was evaluated by temperature sweep (TS), Multiple Stress Creep and Recovery (MSCR), Linear Amplitude Sweep (LAS) and Fourier transform infrared spectroscopy (FTIR). Rheological tests showed that lignin increased the complex shear modulus and rutting factor. LAS results showed that lignin reduced the fatigue life of SBS-modified asphalt in the unaged state due to increased stiffness and embrittlement. However, after long-term aging, the lignin-containing binders retained higher fatigue resistance than the SBS-only control, which may be related to the slower evolution of oxidation-related functional groups and SBS-related spectral indices. FTIR analysis provided semi-quantitative evidence that lignin addition reduced the growth of sulfoxide-related bands and helped maintain the polybutadiene-related index during aging. Overall, lignin may serve as a potential auxiliary antioxidant modifier for SBS modified asphalt, while its exact source-specific molecular mechanism requires further verification. Full article
