Search Results (85)

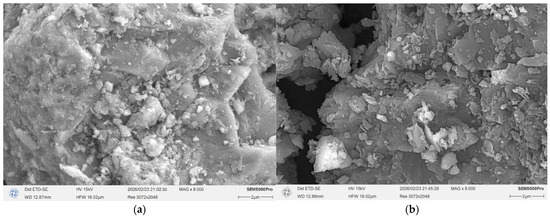

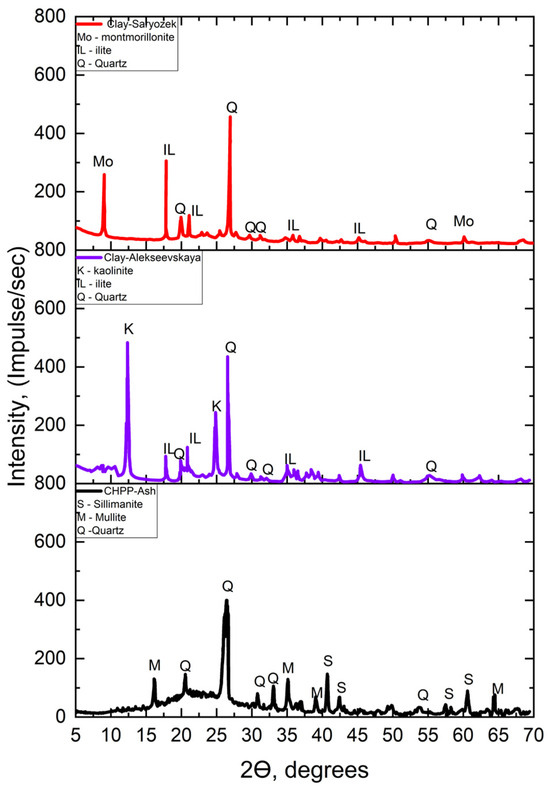

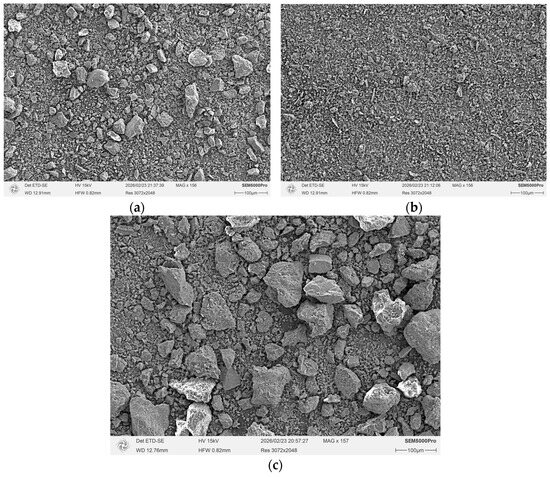

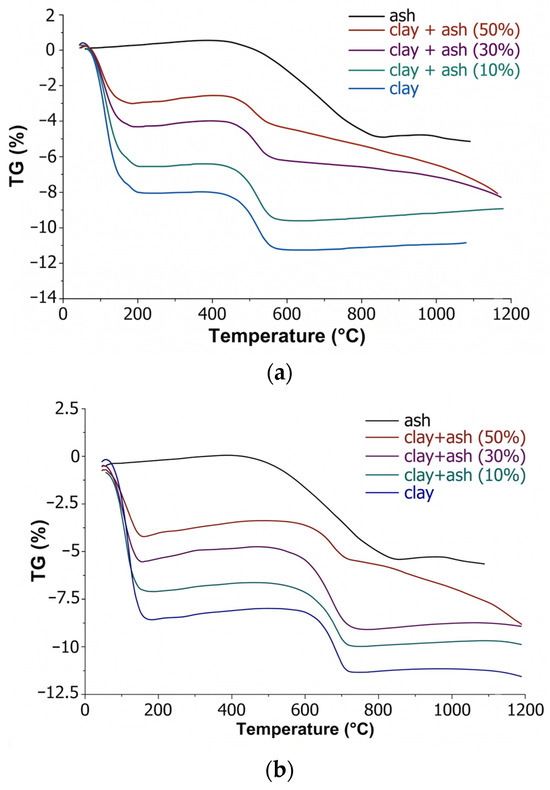

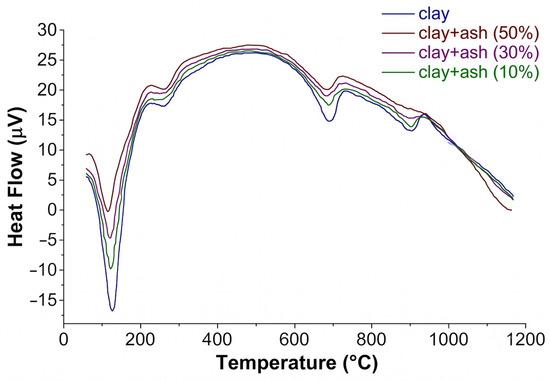

This study presents a comparative analysis of the effect of the structural–mineralogical type of clay matrices on the phase and structure formation in composite aluminosilicate materials within the multi-component Fe-Al-C-Si system. Highly plastic Saryozek montmorillonite clay and moderately plastic Alekseevskaya kaolinite–illite clay were investigated as binding matrices to consolidate iron–aluminosilicate fly ash from the Almaty CHPP-2. The raw materials and binary batches containing 10 to 50 wt.% fly ash were evaluated using XRD, XRF, TG/DTA, and SEM techniques. The results demonstrate that the superior plastic and binding properties of the Saryozek clay ensure enhanced consolidation of the non-plastic, fragmented ash particles. Simultaneous thermal analysis reveals that increasing the compaction pressure from 20 to 30 MPa induces a kinetic shift in the montmorillonite dehydroxylation interval toward higher temperatures (580–720 °C) due to increased partial water vapor pressure within the dense green body. This thermal shift scientifically necessitates introducing an isothermal dwell at 600 °C to mitigate firing defects. The optimal composite properties are achieved at a molding pressure of 30 MPa, a firing temperature of 1050 °C, and a fly ash concentration of 10–20 wt.%, yielding a peak compressive strength of 38.4 MPa. SEM confirmed that under these conditions, the locally formed silicate melt uniformly encapsulates the crystalline mullite and quartz microparticles, whereas increasing the ash content to 50 wt.% results in a loose, highly porous structure that degrades strength down to 17.9 MPa. These findings lay a scientifically substantiated foundation for optimizing composite ceramic synthesis and reducing structural defects. Full article

Polymer infiltration and pyrolysis (PIP) is a versatile route for densifying carbon–carbon composites (C/CCs) and ultra-high-temperature ceramic matrix composites (UHTCMCs), particularly SiC and UHTC-based systems. It operates at comparatively low temperatures, accommodates complex shapes, and is more cost-effective than chemical vapor infiltration (CVI). However, conventional PIP has intrinsic limitations, including low ceramic or char yield, significant shrinkage and gas evolution during pyrolysis, and the need for many infiltration–pyrolysis cycles to reach useful densities. Recent strategies to reduce these drawbacks include graded-concentration and high-pressure PIP, as well as hybrid CVI–PIP and PIP–reactive melt infiltration (RMI) schemes. In parallel, a separate body of work has shown that vacuum-assisted and vibration-assisted infiltration can improve impregnation quality in carbon or ceramic fiber preforms and in carbon-based UHTCMCs. Yet, these advances are rarely synthesized from a PIP-centered, manufacturing-focused perspective or systematically extended to the densification of porous C/C structures, particularly when high-viscosity modified phenolic or particle-laden preceramic precursors are used. This review summarizes the state of the art in PIP densification and processing–structure–property relationships in modified C/CCs or UHTCMCs and related high-temperature composites. It then examines vacuum- and vibration-assisted infiltration concepts, extracts the underlying fluid- and pore-scale mechanisms, and proposes design principles for enhanced PIP equipment and processes tailored to porous and modified C/C systems for space and defense thermal protection. Full article

This study presents an initial effort to develop Low-Temperature Cofired Ceramics (LTCC) using local bio-sourced materials: Saint Jacques shells and slate tiles. Chemical analysis confirms that the Saint Jacques shells provide CaO and CaCO₃, while slate supplies the needed SiO₂ and Al₂O₃. The constituents, processed from a formulation targeting 70 wt% slate and 20 wt% shell fragments are crushed and ball-milled, mixed with 10 wt% boron trioxide (B₂O₃), and calcinated at 700 °C for two hours to remove organics, followed by a second milling. An aqueous slurry is then prepared and manually tape-cast to form tapes that are processed through standard LTCC process steps. Initial green-state mechanical tests showed elongation values up to ~7.8% and tensile break forces in the range of ~0.5–1.0 N, with lamination performed successfully using standard isostatic conditions. Cofiring yielded limited lateral shrinkage (~6%) but substantial vertical shrinkage (27%). Two-line method measurements indicate a relative permittivity of approximately 4.3 with a comparatively high loss tangent of 0.03, suggesting a vitreous phase and/or porous, inhomogeneous microstructure. A final resonator prototype is fabricated, yielding somewhat encouraging results for the feasibility of this bio-sourced LTCC route while highlighting the need to reduce dielectric losses in future work. Full article

Large-scale high-value utilization of industrial solid waste is urgently required worldwide. Porous ceramics prepared from single-type solid waste face great limitations in balancing mechanical properties and thermal insulation performance. In this work, various types of industrial solid wastes—red mud, waste electric porcelain, and coal gangue—were fully adopted as primary raw materials, while SiC was employed as a foaming agent to prepare porous ceramics. Results show that at 3% SiC addition and 1140 °C sintering temperature, the apparent porosity of the ceramics reaches to 21.8%, with thermal conductivity of 0.08 W/(m·K). Moreover, favorable pore-size distribution and desirable crystalline phases (Mg–Fe–Al spinel and sodium calcium feldspar) are obtained under this optimal condition, accompanied by a favorable compressive strength of 2.91 MPa, making it a promising low-cost, high-performance high-temperature insulation material. Full article

The present study addresses the fabrication of porous gyroid architectures by additive manufacturing from preceramic polymer feedstocks. Photocurable emulsions were engineered by combining a silicone powder with acrylate monomers and dispersing an emulsified secondary phase of calcium nitrate. The formulations showed light-curing behaviour compatible with digital light processing vat photopolymerization (DLP-VPP), enabling high-fidelity replication of triply periodic minimal surface (TPMS) gyroids (designed porosity: 85 vol.%). After pyrolysis in nitrogen at 700 °C, the lattices converted into CaO–SiO₂-derived amorphous matrices embedding an in situ turbostratic/pyrolytic carbon fraction, as suggested by the photothermal response and preliminary impedance behaviour, although the latter was measured in liquid electrolyte and therefore does not isolate electronic transport. To improve robustness during polymer-to-ceramic conversion, pharmaceutical borosilicate waste glass (BASG) was added as a passive filler (30–70 wt.%). The waste-glass phase acts as a passive filler that improves processing robustness and can mitigate shrinkage-induced damage during pyrolysis, while remaining electrically insulating (dielectric) and therefore not directly contributing to electronic conduction. The resulting structures combine high surface-to-volume ratio, controlled open porosity, and structural integrity with electrochemical responsiveness under the adopted test conditions, making them promising architected platforms for electrochemical components where interconnected porosity is advantageous. Full article

The three-phase region of Mo₃Si-Mo₅Si₃-Mo₅SiB₂(MoSiB) exhibits excellent high-temperature oxidation resistance and is considered a highly promising high-temperature structural material. However, the presence of porous structures significantly increases the surface area exposed to oxidation. Metallic porous materials often suffer from inadequate corrosion resistance and insufficient high-temperature oxidation resistance, whereas ceramic porous materials are plagued by high brittleness. Intermetallic compounds offer a combination of the advantages of both metals and ceramics. Nevertheless, the high-temperature oxidation behavior of porous MoSiB has not yet been systematically elucidated. The study systematically investigates the effect of pore structure on the high-temperature oxidation behavior of porous MoSiB at 1000 °C and 1300 °C, with a focus on oxidation kinetics, phase evolution, surface and cross-sectional morphology and underlying oxidation mechanisms. The effects of porosity and temperature on the oxidation process are also analyzed. The results indicate that at 1000 °C, the material exhibits uniform oxidation, with lower porosity contributing to better oxidation resistance. At 1300 °C, oxidation is limited to the surface layer, where low-viscosity SiO₂(B) rapidly seals the pores to form a dense protective layer. This research reveals the high-temperature oxidation mechanism and phase evolution of porous MoSiB, providing a theoretical foundation for its application in high-temperature structural fields. Full article

This article presents preliminary research on the development of a cast iron–ceramic composite for modern braking systems, such as brake discs. The composite matrix is gray cast iron with flake graphite (EN-GJL-150). The reinforcing phase is a porous ceramic composed of SiC and Al₂O₃ particles introduced separately (10% each) and together (70% SiC + 30% Al₂O₃). These particles were applied as a suspension onto polyurethane foam, yielding a ceramic structure with a pore density of up to 10 ppi. The resulting insert was placed in a mold cavity, and cast iron was poured into it. The resulting samples were treated as brake disc material, with a pad made of the commercial friction material P50094 serving as the countersample. Tribological tests showed that the lowest sample wear (average 2.23 mg/5000 m) was achieved for the composite reinforced with SiC + Al₂O₃ particles. This is probably due to the synergy between the antifriction properties of these particles and the lower friction coefficient (µ = 0.180–0.22). Similar mass loss values and the smallest difference between the tested samples were observed for composites with SiC particles (3.01 mg/5000 m) and Al₂O₃ (3.30 mg/5000 m). The second part consisted of microstructural studies. Microstructural analysis of the EN-GJL-150 + SiC + Al₂O₃ composite revealed a previously unobserved nucleation phenomenon at the cast iron–ceramic interface. This confirmed the general assumptions of Riposan’s theory regarding the involvement of oxide microinclusions and complex manganese sulfides of the (Mn, X)S type in the nucleation and crystallization of graphite precipitates. It was also found that, in the case of “in situ” GJL-150 + SiC + Al₂O₃ composites, this theory should account for the beneficial role of ceramic particles in promoting the uniform distribution of type A graphite flakes, which nucleate on their surfaces in the transition zone. Thus, the nucleating role of oxide microinclusions (the first stage of Riposan’s theory) could be taken over by SiC and Al₂O₃ particles, constituting a substrate for the heterogeneous nucleation of (Mn, X)S sulfides. Full article

This study investigates the ballistic performance and energy-absorption behavior of advanced multilayer ceramic composite armor systems composed of silicon carbide (SiC) ceramics, composite metal foam (CMF), rolled homogeneous armor (RHA), ultra-high-molecular-weight polyethylene (UHMWPE), aluminum, and rubber interlayers. The objective is to enhance impact resistance and optimize energy dissipation efficiency against armor-piercing (AP) projectiles. Ballistic tests were performed following the NIJ Standard 0101.06 Level IV specifications using .30” caliber AP M2 rounds with an impact velocity of 784–844 m/s. Experimental results revealed that the SiC front layer effectively fragmented the projectile and dispersed its kinetic energy, while the CMF and UHMWPE layers were the primary energy absorbers, dissipating approximately 70% of the total impact energy (≈3660 J). The aluminum and RHA layers provided additional reinforcement, and the rubber interlayer significantly reduced stress-wave propagation and suppressed crack growth in the ceramic. The most efficient configuration 0.5 mm RHA + 7 mm SiC + 7 mm EPDM + 7 mm CMF + 5 mm UHMWPE achieved an areal density absorption of 77.2 J·m²/kg and a unit thickness absorption of 190.6 J/mm. These findings establish a quantitative layer-wise energy dissipation framework, highlighting the synergistic interaction between brittle, porous, and ductile layers. This work provides practical design principles for developing lightweight, high-efficiency composite armor systems applicable to defense, aerospace, and personal protection fields. Moreover, this study not only validates the NIJ Standard 0101.06 ballistic performance experimentally but also establishes a reproducible methodology for quantitative, layer-wise energy analysis of hybrid ceramic-CMF-fiber armor systems, offering a scientific framework for future model calibration and optimization. Full article

This study demonstrates a high-value pathway for fabricating porous ceramics by utilizing gold tailings (GT) as the principal raw material, with silicon carbide (SiC) as a high-temperature foaming agent. The microstructure, mechanical strength, and thermal conductivity were tailored by adjusting GT content, sintering temperature, raw material particle size, and foaming agent dosage. The optimized ceramics exhibit a total porosity of 60.1–83.7%, a compressive strength of 3.25–7.18 MPa, and a thermal conductivity of 0.15–0.32 W·m⁻¹·K⁻¹. These properties not only meet, but in fact exceed the key requirements specified in the Chinese National Standard GB/T 16533-1996 for porous thermal insulation ceramics. Notably, the materials achieve an optimal balance between high porosity and adequate mechanical strength. The findings confirm that gold tailings can be effectively valorized to produce standardized, porous ceramics suitable for industrial thermal insulation applications. Full article

Aluminum and its alloys are widely used in aerospace and industrial sectors due to their high specific strength, low density, and abundance. However, their low hardness, high corrosion susceptibility, and poor wear resistance limit broader applications. Surface treatments such as electroplating, PVD/CVD, and anodizing have been used to enhance surface properties. Plasma electrolytic oxidation (PEO), also known as micro-arc oxidation (MAO), has emerged as a promising technique for producing durable ceramic coatings on light metals like Al, Mg, and Ti alloys. In this study, PEO was applied to AA6061 aluminum alloy using an AC power source in potentiostatic mode at 350 V and 400 V, 1000 Hz, and 80% duty cycle for 30 min in a silicate-based electrolyte (5 g/L Na₂SiO₃ + 5 g/L KOH) maintained at 25–40 °C. The effect of voltage on the coating morphology, thickness, and corrosion resistance was investigated. The coatings exhibited porous structures with pancake-like, crater, and nodular features, and thicknesses ranged from 0.053 to 83.64 µm. XRD analysis confirmed the presence of Al, α-Al₂O₃, Ƴ-Al₂O₃, and mullite. The 400 V-coated sample showed superior corrosion resistance ( $E_{corr}= -0.77 \mathrm{V}$; $i_{corr}=0.28 \mu \mathrm{A}/{\mathrm{c}\mathrm{m}}^2$) and improved hardness (up to 233 HV), compared to 89 HV for the bare AA6061. Full article

SiC nanowires (SiC_nw), due to their excellent dielectric properties, are promising high-temperature absorbing materials. However, the mechanism of their high-temperature absorption still requires further research. Therefore, porous SiC_nw/Si₃N₄ and SiC/Si₃N₄ ceramics with different SiC phase morphologies were fabricated using a simple precursor impregnation and pyrolysis method. The Fe impurity content of the Si₃N₄ powder raw material significantly affects the generation of SiC nanowires. When SiC exists in the form of nanowires, the excellent conductivity brought by the conductive network of the nanowires causes a significant response of the material’s permittivity to temperature. When the test temperature is room temperature, SiC_nw/Si₃N₄ has excellent absorption performance with a minimum reflection loss of −29.75 dB at 2.16 mm and an effective absorption bandwidth of 3.72 GHz at 2.54 mm. As the test temperature increases to 300 °C, the effective absorption bandwidth of SiC_nw/Si₃N₄ covers the entire X-band. The porous SiC_nw/Si₃N₄ ceramics exhibit excellent electromagnetic wave absorption performance, demonstrating significant application potential for high-temperature environments. Full article

Wood-derived ceramics represent a novel class of bio-based composite materials that integrate the hierarchical porous architecture of natural wood with high-performance ceramic phases such as silicon carbide (SiC). This review systematically summarizes recent advances in the fabrication of SiC woodceramics via two predominant sintering routes—reactive infiltration sintering and hot-press sintering—and elucidates their effects on the resulting microstructure and mechanical properties. This review leverages the intrinsic anisotropic vascular network and multiscale porosity and mechanical strength, achieving ultralightweight yet mechanically robust ceramics with tunable anisotropy and dynamic energy dissipation capabilities. Critical process–structure–property relationships are highlighted, including the role of ceramic reinforcement phases, interfacial engineering, and multiscale toughening mechanisms. The review further explores emerging applications spanning extreme protection (e.g., ballistic armor and aerospace thermal shields), multifunctional devices (such as electromagnetic shielding and tribological components), and architectural innovations including seismic-resistant composites and energy-efficient building materials. Finally, key challenges such as sintering-induced deformation, interfacial bonding limitations, and scalability are discussed alongside future prospects involving low-temperature sintering, nanoscale interface reinforcement, and additive manufacturing. This mini overview provides essential insights into the design and optimization of wood-derived ceramics, advancing their transition from sustainable biomimetic materials to next-generation high-performance structural components. This review synthesizes data from over 50 recent studies (2011–2025) indexed in Scopus and Web of Science, highlighting three key advancements: (1) bio-templated anisotropy breaking the porosity–strength trade-off, (2) reactive vs. hot-press sintering mechanisms, and (3) multifunctional applications in extreme environments. Full article

The technological potential and sustainability of red clays from the Taveiro region (Coimbra, Portugal) for structural ceramic applications have been investigated. Thirteen representative samples granulometric, mineralogical, chemical analysis, and technological characterization were conducted to determine the suitability for extrusion-based ceramics, aligned with circular economy and climate goals (e.g., PNEC2030, RNC2050). The samples exhibited a high fine fraction content (<0.002 mm up to 76%) and plasticity index (PI; up to 41%), associated with significant smectite, illite, and kaolinite content. Bulk mineralogy was dominated by Σ phyllosilicates (up to 77%) and quartz (12%–29%), while chemical analyses showed high SiO₂ and Al₂O₃ content, moderate Fe₂O₃, and low CaO/MgO, typical of aluminosilicate clays for red ceramics. High cation exchange capacity (CEC; up to 49 meq/100 g) and specific surface area (SSA; up to 83 m²/g) reflected smectite-rich samples. Firing tests at 900 and 1000 °C demonstrated decreasing water absorption and shrinkage with increased temperature, with some samples yielding lower porosity and higher strength (~12 MPa), confirming suitability for bricks and tiles. Two samples showed higher plasticity but greater shrinkage and porosity, suggesting applicability in porous ceramics or blends. This work highlights the role of mineralogical and technological indicators in guiding the eco-efficient use of georesources for ceramic manufacturing. Full article

This study demonstrates the successful fabrication of high-performance reaction-bonded silicon carbide (RBSC) ceramics through an optimized liquid silicon infiltration (LSI) process employing multi-modal SiC particle gradation and nano-carbon black (0.6 µm) additives. By engineering porous preforms with hierarchical SiC distributions and tailored carbon sources, the resulting ceramics achieved a compressive strength of 2393 MPa and a flexural strength of 380 MPa, surpassing conventional RBSC systems. Microstructural analyses revealed homogeneous β-SiC formation and crack deflection mechanisms as key contributors to mechanical enhancement. Ultrafine SiC particles (0.5–2 µm) refined pore architectures and mediated capillary dynamics during infiltration, enabling nanoscale dispersion of residual silicon phases and minimizing interfacial defects. Compared to coarse-grained counterparts, the ultrafine SiC system exhibited a 23% increase in compressive strength, attributed to reduced sintering defects and enhanced load transfer efficiency. This work establishes a scalable strategy for designing RBSC ceramics for extreme mechanical environments, bridging material innovation with applications in high-stress structural components. Full article

Microstructural, mechanical and qualitative phase identification of durable mullite-based ceramics obtained by utilization of waste clay–diatomite has been studied. Mullite-based ceramics were fabricated using waste clay–diatomite from the Baroševac open-cast coal mine, Kolubara (Serbia). The raw material consists mainly of SiO₂ (70.5 wt%) and a moderately high content of Al₂O₃ (13.8 wt%). In order to achieve the stoichiometric mullite composition (3Al₂O₃-2SiO₂), the raw material was mixed with an appropriate amount of Al(NO₃)₃·9H₂O. After preparing the precursor powder, the green compacts were sintered at 1300, 1400 and 1500 °C for 2 h. During the process, rod-shaped mullite grains were formed, measuring approximately 5 µm in length and a diameter of 500 nm (aspect ratio 10:1). The microstructure of the sample sintered at 1500 °C resulted in a well-developed, porous, nest-like morphology. According to the X-ray diffraction analysis, the sample at 1400 °C consisted of mullite, cristobalite and corundum phases, while the sample sintered at 1500 °C contained mullite (63.24 wt%) and an amorphous phase that reached 36.7 wt%. Both samples exhibited exceptional compressive strength—up to 188 MPa at 1400 °C. However, the decrease in compressive strength to 136 MPa at 1500 °C is attributed to changes in the phase composition, the disappearance of the corundum phase and alterations in the microstructure. This occurred despite an increase in bulk density to 2.36 g/cm³ (approximately 82% of theoretical density) and a complete reduction in open porosity. The residual glassy phase (36.7 wt% at 1500 °C) is probably the key factor influencing the mechanical properties at room temperature in these ceramics produced from waste clay–diatomite. However, the excellent mechanical stability of the samples sintered at 1400 and 1500 °C, achieved without binders or additives and using mined diatomaceous earth, supports further research into mullite-based insulating materials. Mullite-based materials obtained from mining waste might be successfully used in the field of energy-efficient refractory materials and thermal insulators. for high-temperature applications Full article
