Search Results (77)

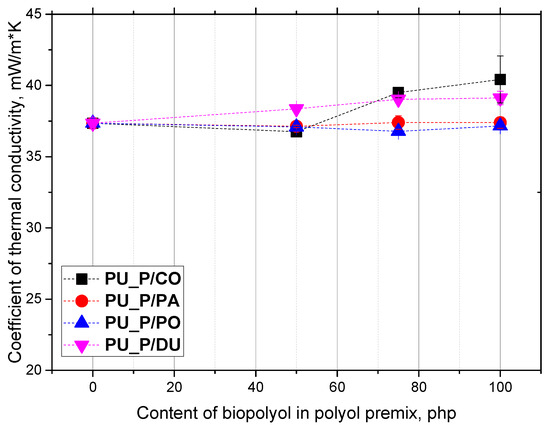

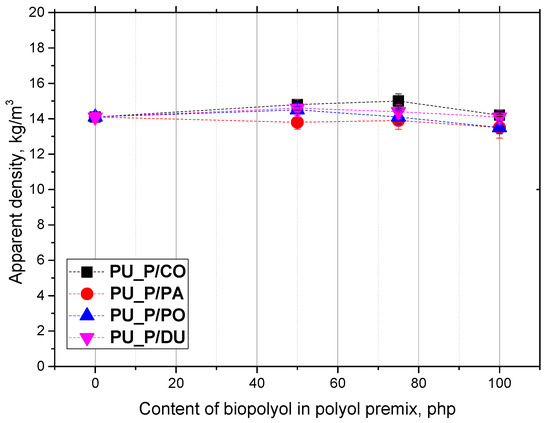

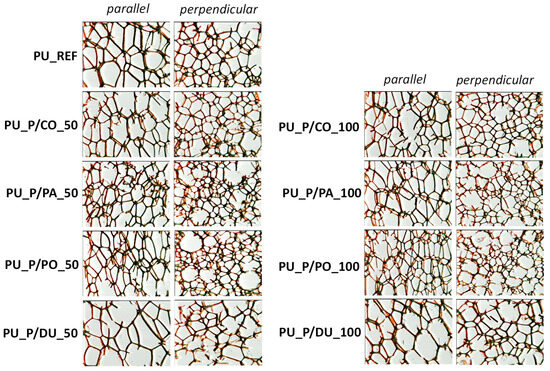

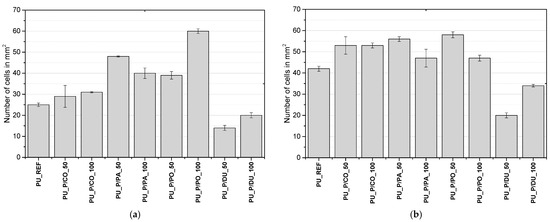

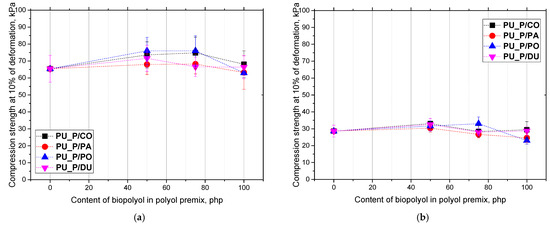

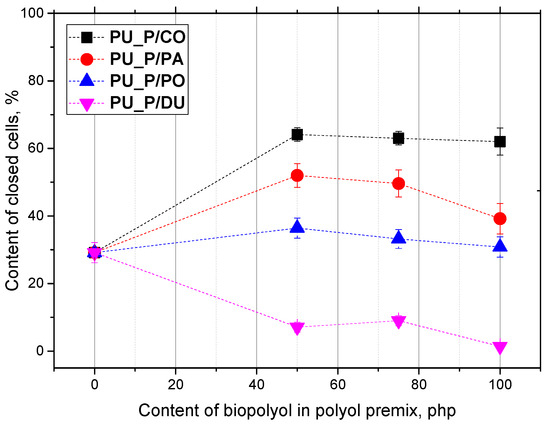

Biopolyols derived from solid fats of both vegetable origin (coconut oil (P/CO) and palm oil (P/PA)) and animal origin (pork fat (P/PO) and duck fat (P/DU)) were used to produce thermal insulation polyurethane foams. The biopolyols were characterized by hydroxyl numbers in the range of 341–396 mgKOH/g, a viscosity of 60–88 mPa·s, and a functionality of 2.3–3.4. Open-cell polyurethane foams were obtained by replacing from 50 to 100 wt.% of a petrochemical polyol with the biopolyols from solid fats. The most advantageous properties were found for the materials modified with the biopolyol based on pork fat, which was attributed to its high degree of cell openness. At a low apparent density, the foam materials were characterized by good dimensional stability. The use of solid fats offers new possibilities for modifying thermal insulation polyurethane foams. Full article

We aimed to evaluate the effects of unit cell design and the volume fraction of 3D-printed lattice structures with relative densities of 30% or 45% on compressive response and orthopedics screw pullout strength. All 3D lattice models were created using FLatt Pack software (version 3.31.0.0). The unit cell size of sheet-based triply periodic minimal surfaces (TPMSs)—Gyroid and Schwarz Diamond—was 5.08 mm, whereas that of skeletal TPMS—Skeletal Gyroid, Skeletal Schwarz Diamond, and Skeletal Schoen I-Wrapped Package—was scaled down to 3.175 and 2.54 mm. Two photopolymer resin types—Rigid 10k and Standard Grey—were used. In uniaxial compression tests, Rigid 10k resin lattices failed at relatively lower strains (<0.11), while Standard Grey lattices endured higher strains (>0.60) and experienced less softening effects, resulting in stress–strain curve plateauing followed by lattice densification. ANOVA revealed significant effects of design and volume fraction at p < 0.001 on compressive modulus, screw pullout strength, and screw withdrawal stiffness of the 3D-printed lattice. The pullout load from 3D-printed lattices (61.00–2839.42 N) was higher than that from open-cell polyurethane foam (<50 N) and lower than that of human bone of similar volume fraction (1134–2293 N). These findings demonstrate that 3D-printed lattices can be tailored to approximate different bone densities, enabling more realistic orthopedic and dental training models. Full article

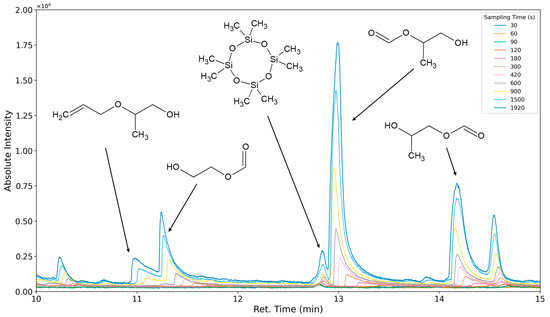

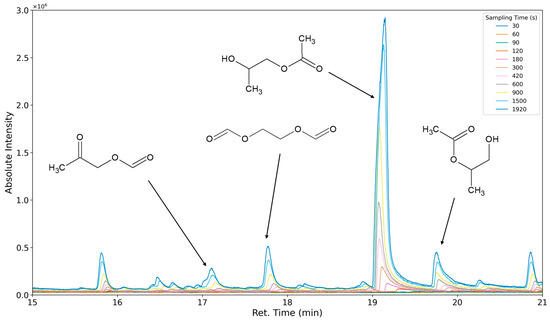

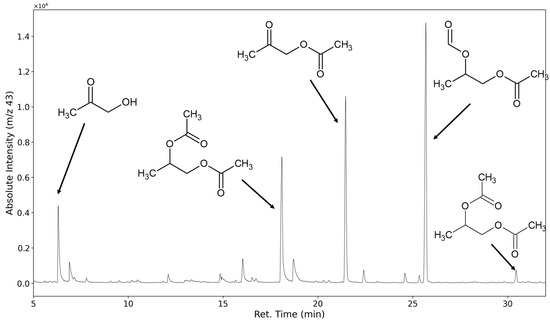

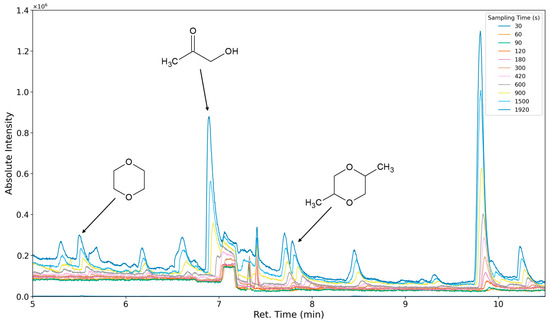

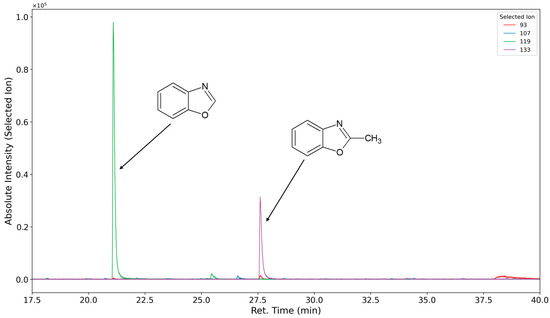

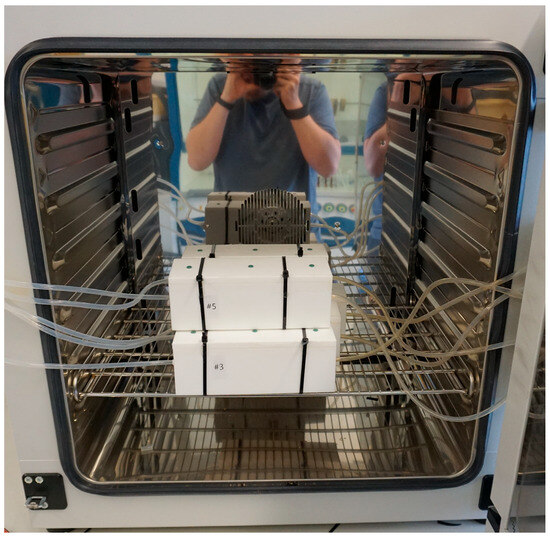

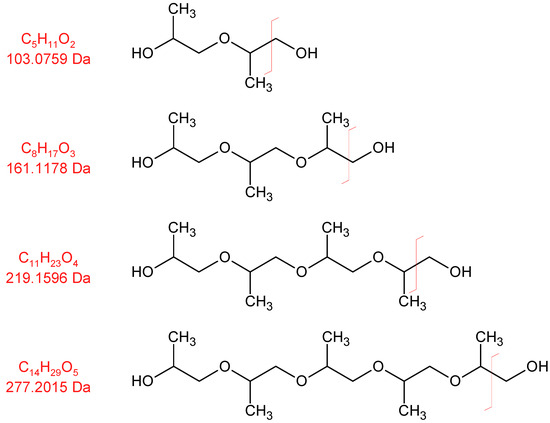

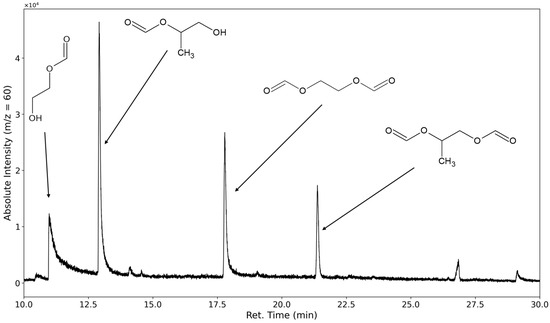

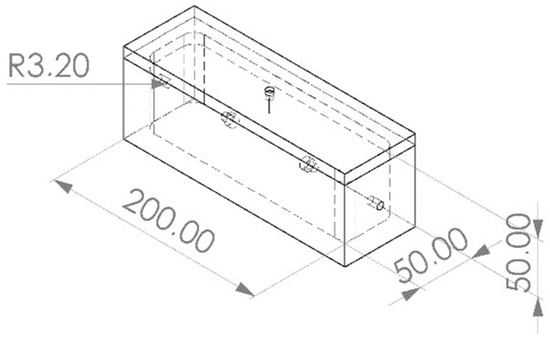

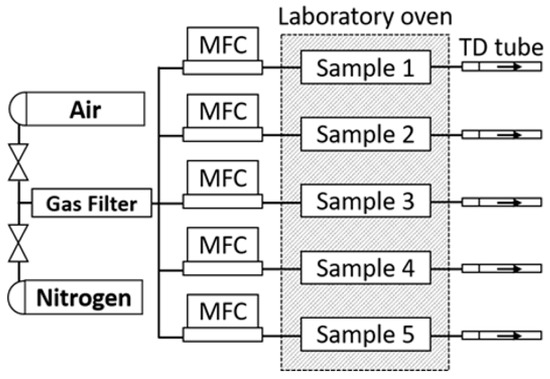

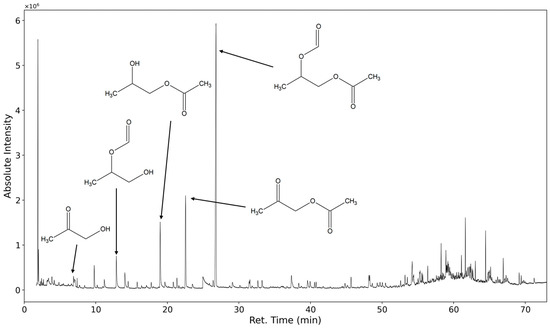

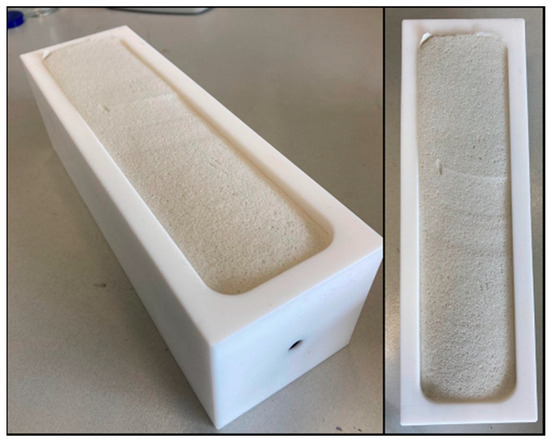

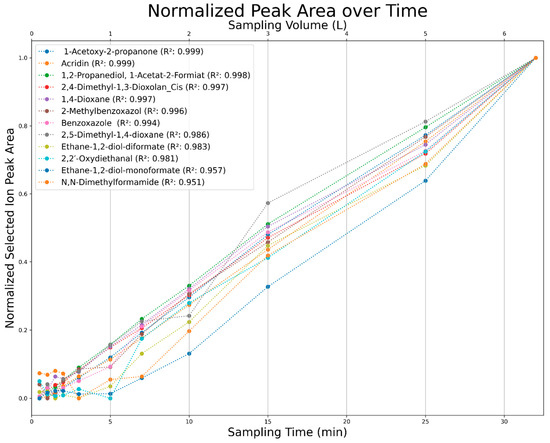

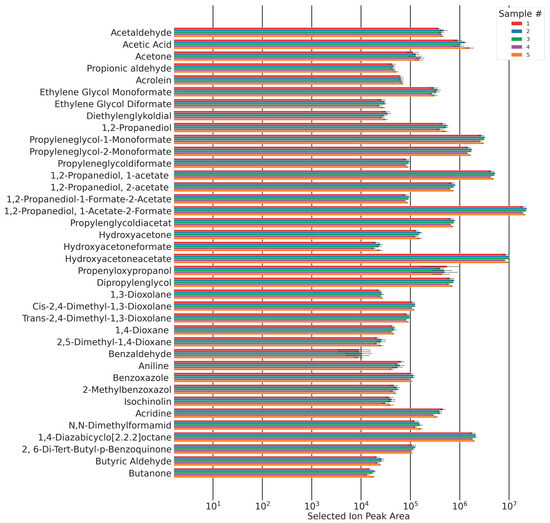

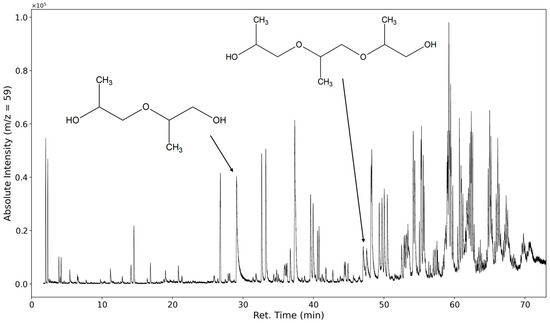

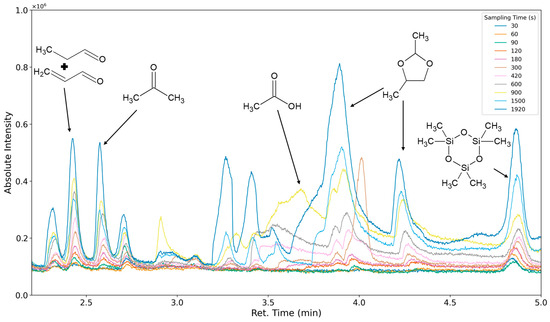

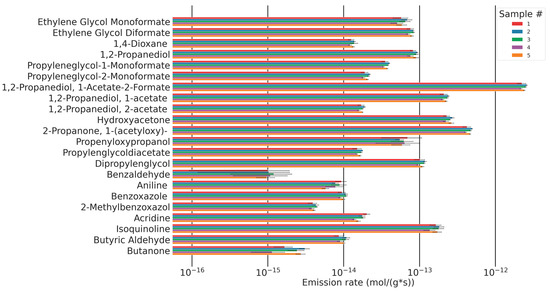

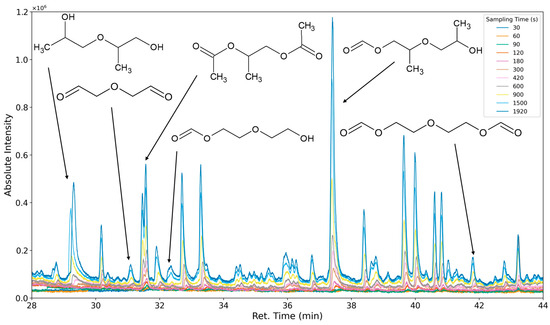

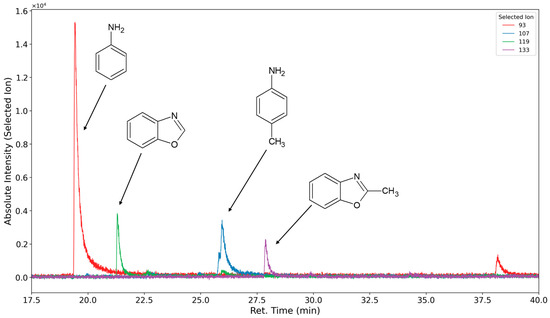

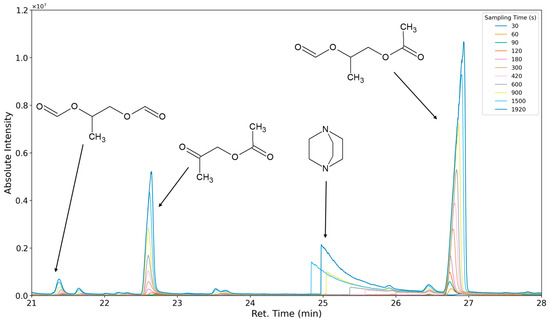

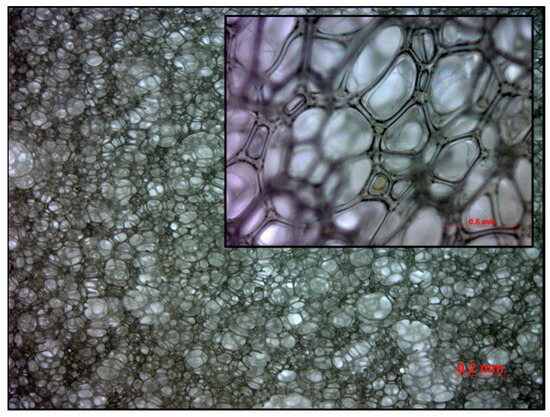

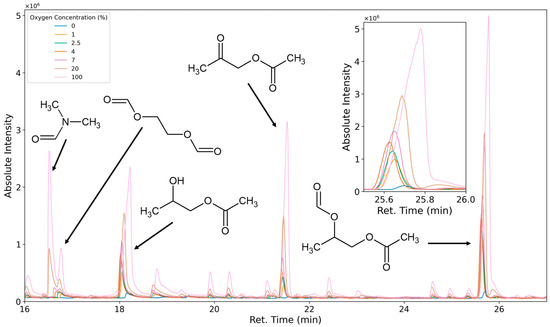

Polyurethane (PUR) soft foams release malodorous and potentially toxic compounds when exposed to oxidative conditions. Current chamber test methods cannot distinguish between pre-existing volatiles and those formed during oxidation, nor can they assess the formation rates of oxidation products. We subjected PUR soft foam to oxidative treatment in a continuous air flow at 120 °C. Emissions were convectively transferred from the foam to an exhaust port and analyzed using a thermodesorption–gas chromatography–mass spectrometry (TD-GC-MS) system, with external calibration employed for the quantification of selected analytes. The study identified hydroperoxide formation and degradation as key mechanisms in the breakdown of the polyether soft segments. This process predominantly produces volatiles, such as carboxylic acids, formates, acetates, alpha-hydroxy-ketones, (unsaturated) aldehydes, substituted dioxolanes and dioxanes, glycols, and allyl ethers. Volatiles associated with the degradation of the hard segments include aniline, benzoxazole, 2-methylbenzoxazole, and benzaldehyde. This experimental setup enables reproducible qualitative and quantitative analysis of volatiles formed during the oxidative degradation of PUR soft foams, providing new insights into the segment-dependent chemical pathways of the polymer’s molecular breakdown. Full article

Nanocomposite flexible polyurethane foams (nFPUfs) were obtained by modifying the polyurethane formulation by adding a halloysite nano-filler in the amount of one to five parts by weight per hundred parts of used polyol (php). Flexible polyurethane (PU) foams with an open-cell structure and with a beneficial SAG factor were obtained. Premixes with nano-filler had a lower reactivity than the reference PU system. This favored the production of smaller cells, but with a more rounded shape in comparison with the REF foam without the nano-filler. During the study, the morphology and physical and mechanical properties were characterized, including apparent density, compressive stress, rebound flexibility, SAG factor, closed-cell content, and thermal stability, and compared with the properties of the unmodified reference foam. Scanning electron microscopy (SEM) showed that the cell structures of all prepared foams were open, and the cell size decreased with increasing nano-filler content. Apparent densities, SAG factors and rebound flexibilities of the foams increased with the increase of nano-filler content, while the resistance to permanent deformation showed the opposite trend. The proper selection of raw materials and optimally developed polyurethane formulations allow for obtaining environmentally friendly foams with favorable functional properties, taking into account price and the needs of sustainable development in the synthesis of flexible foams dedicated to the upholstery industry. Full article

The preparation and application of non-isocyanate polyurethane (NIPU) from biomass raw materials as a substitute for traditional polyurethane (PU) has recently become a research hot topic as it avoids the toxicity and moisture sensitivity of isocyanate-based PU. In the work presented here, self-blowing GNIPU non-isocyanate polyurethane (NIPU) rigid foams were prepared at room temperature, based on glucose, with acids as catalysts and glutaraldehyde as a cross-linker. The effects of different acids and glutaraldehyde addition on foam morphology and properties were investigated. The water absorption, compressive resistance, fire resistance, and limiting oxygen index (LOI) were tested to evaluate the relevant properties of the foams, and scanning electron microscopy (SEM) was used to observe the foams’ cell structure. The results show that all these foams have a similar apparent density, while their 24 h water absorption is different. The foam prepared with phosphoric acid as a catalyst presented a better compressive strength compared to the other types prepared with different catalysts when above 65% compression. It also presents the best fire resistance with an LOI value of 24.3% (great than 22%), indicating that it possesses a good level of flame retardancy. Thermogravimetric analysis also showed that phosphoric acid catalysis slightly improved the GNIPU foams’ thermal stability. This is mainly due to the flame-retardant effect of the phosphate ion. In addition, scanning electron microscopy (SEM) results showed that all the GNIPU foams exhibited similar open-cell morphologies with the cell pore sizes mainly distributed in the 200–250 μm range. Full article

This paper presents the results of research on polyurethane viscoelastic foams (PUVFs) modified with biomaterials. This investigation looked at the effect of the biomaterials on the foaming processes, as well as the acoustical and selected physical-mechanical properties of the foams. Various types of rapeseed oil biopolyols and microcellulose were used to modify the materials. The analysis of properties covered a reference biopolyol-free sample and materials containing 10 wt.%, 20 wt.%, and 30 wt.% of different types of biopolyols in the mixture of polyol components. The biopolyols differed in terms of functionality and hydroxyl value (OH_v). Next, a selected formulation was modified with various microcellulose biofillers in the amount of 0.5–2 wt.%. The PUVFs, with apparent densities of more than 210 kg/m³ and open-cell structures (more than 85% of open cells), showed a slow recovery to their original shape after deformation when the pressure force was removed. They were also characterized by a tensile strength in the range of 156–264 kPa, elongation at break of 310–510%, hardness of 8.1–23.1 kPa, and a high comfort factor of 3.1–7.1. The introduction of biopolyols into the polyurethane system resulted in changes in sound intensity levels of up to 31.45%, while the addition of fillers resulted in changes in sound intensity levels of up to 13.81%. Full article

Despite the mechanical and physical properties of polyurethane foams (PUF), their application is still hindered by high inflammability. The elaboration of effective, low-cost, and environmentally friendly fire retardants remains a pressing issue that must be addressed. This work aims to show the feasibility of the successful application of natural nanomaterials, such as halloysite nanotubes and nanocellulose, as promising additives to the commercial halogen-free, fire-retardant triphenyl phosphate (TPP) to enhance the flame retardance of open-cell polyurethane foams. The nanocomposite foams were synthesized by in situ polymerization. Investigation of the mechanical properties of the nanocomposite PUF revealed that the nanoscale additives led to a notable decrease in the foam’s compressibility. The obtained results of the flammability tests clearly indicate that there is a prominent synergetic effect between the fire-retardant and the natural nanoscale additives. The nanocomposite foams containing a mixture of TPP (10 and 20 parts per hundred polyol by weight) and either 10 wt.% of nanocellulose or 20 wt.% of halloysite demonstrated the lowest burning rate without dripping and were rated as HB materials according to UL 94 classification. Full article

Over the past few decades, polymer composites have received significant interest and become protagonists due to their enhanced properties and wide range of applications. Herein, we examined the impact of filler and flame retardants in hemp seed oil-based rigid polyurethane foam (RPUF) composites’ performance. Firstly, the hemp seed oil (HSO) was converted to a corresponding epoxy analog, followed by a ring-opening reaction to synthesize hemp bio-polyols. The hemp polyol was then reacted with diisocyanate in the presence of commercial polyols and other foaming components to produce RPUF in a single step. In addition, different fillers like microcrystalline cellulose, alkaline lignin, titanium dioxide, and melamine (as a flame retardant) were used in different wt.% ratios to fabricate composite foam. The mechanical characteristics, thermal degradation behavior, cellular morphology, apparent density, flammability, and closed-cell contents of the generated composite foams were examined. An initial screening of different fillers revealed that microcrystalline cellulose significantly improves the mechanical strength up to 318 kPa. The effect of melamine as a flame retardant in composite foam was also examined, which shows the highest compression strength of 447 kPa. Significantly better anti-flaming qualities than those of neat foam based on HSO have been reflected using 22.15 wt.% of melamine, with the lowest burning time of 4.1 s and weight loss of 1.88 wt.%. All the composite foams showed about 90% closed-cell content. The present work illustrates the assembly of a filler-based polyurethane foam composite with anti-flaming properties from bio-based feedstocks with high-performance applications. Full article

The Elastic Catalytic Foam-bed Reactor (EcFR) technology was used to enhance a model catalytic hydrogenation reaction by improving gas–liquid mass transfer. This advanced technology is based on a column packed with a commercial elastomeric polyurethane open-cell foam, which also acts as a catalyst support. A simple and efficient crankshaft-inspired system applied in situ compression/relaxation movements to the foam bed. For the first time, the catalytic support parameters (i.e., porosity, tortuosity, characteristic length, etc.) underwent cyclic and controlled changes over time. These dynamic cycles have made it possible to intensify the transfer of gas to liquid at a constant energy level. The application chosen was the selective hydrogenation of phenylacetylene to styrene in an alcoholic solution using a palladium-based catalyst under hydrogen bubble conditions. The conversion observed with this EcFR at 1 Hz as cycle frequency was compared with that observed with a conventional Fixed Catalytic Foam-bed Reactor (FcFR). Full article

Natural oils from watermelon, cherry, black currant, grape and pomegranate fruit seeds were applied in the synthesis of biopolyols using the transesterification reaction. In this manuscript, the preparation possibility of open-cell foams from a polyurethane system in which petrochemical polyol was fully replaced with biopolyols is analyzed. Firstly, polyurethane foam systems were developed on a laboratory scale, and they were next tested under industrial conditions. It was shown that the foaming method has a significant impact on the foaming process and the cell structure of obtained foams as well as their thermal insulation properties. Based on the conducted research, it was found that the method of processing the polyurethane system has a significant impact on the properties of open-cell spray foams. Foams produced under industrial conditions have a much higher cell density, which has a positive effect on their selected physical–mechanical properties compared to foams produced on a laboratory scale. The open-cell biofoams obtained using a high-pressure machine had apparent densities 12–17 kg/m³, thermal conductivity coefficients 35–37 mW/m·K, closed-cell contents < 10% and were dimensionally stable at low and high temperatures. Full article

Due to their electroconductive properties, flexible open-cell polyurethane foam/silver nanowire (PUF/AgNW) structures can provide an alternative for the construction of cheap pressure transducers with limited lifetimes or used as filter media for air conditioning units, presenting bactericidal and antifungal properties. In this paper, highly electroconductive metal-polymer hybrid foams (MPHFs) based on AgNWs were manufactured and characterized. The electrical resistance of MPHFs with various degrees of AgNW coating was measured during repeated compression. For low degrees of AgNW coating, the decrease in electrical resistance during compression occurs in steps and is not reproducible with repeated compression cycles due to the reduced number of electroconductive zones involved in obtaining electrical conductivity. For high AgNW coating degrees, the decrease in resistance is quasi-linear and reproducible after the first compression cycle. However, after compression, cracks appear in the foam cell structure, which increases the electrical resistance and decreases the mechanical strength. It can be considered that PUFs coated with AgNWs have a compression memory effect and can be used as cheap solutions in industrial processes in which high precision is not required, such as exceeding a maximum admissible load or as ohmic seals for product security. Full article

Soil erosion, a global problem, degrades land quality and increases pollution and sedimentation in bodies of water. This study propounds a new material to mitigate soil erosion using rice straw-based polyurethane foam (RSPF) blocks as a potential replacement for commercially available expanded polystyrene (EPS) foam in slope stabilization. RSPF was synthesized via a conventional one-shot foaming method with 15% rice straw-based polyol content. The RSPF blocks have an average density of 43.29 kg/m³, average compressive strength of 184.55 kPa, closed cell content of 88.4%, and water absorption capacity of 262% that can effectively reduce water runoff. These properties are comparable to EPS foams according to ASTM D6817, except for the high absorption capacity of RSPF. This added feature allows the foam to act as topsoil protection by reducing runoff. In slope stabilization and topsoil protection applications, the effectiveness of the RSPF blocks in reducing soil loss was tested in both simulated and natural rainfall events with different land slope degrees, rain intensities, and soil covers. Results show that the use of RSPF in the simulated setup with a heavy rain intensity of 80 mm/h reduced the soil loss by 61.5%, 22.7%, and 4.3% in 5°, 10°, and 20° of land slope, respectively. There was also a higher degree of soil loss reduction when the RSPF block was coupled with a natural vegetation soil cover by 79.6%, 70%, and 19.3% in 5°, 10°, and 20° land slopes, respectively. Moreover, in the natural rainfall events in an open field with a land slope of 20°, the recorded soil loss reduction reached 93.6–98.8% at an average rainfall intensity of 16.26 mm/h. Additionally, the relationship between soil loss and land slope was investigated to produce a best fit model that predicts the soil loss up to a 20° land slope. An interesting observation was made wherein the erosion rate increased using linear regression modeling in the simulated setup for bare soil (BS), soil with vegetation (SV), soil with RSPF (SF), and soil with RSPF and vegetation (FV), with high coefficient of determination (R²) values between 0.92 and 0.99. These findings suggest that the RSPF block is a promising alternative and sustainable material for EPS foams in mitigating soil erosion, especially under heavy rainfall conditions. Full article

Bio-polyols (BPOs), characterized by a hydroxyl number up to around 90 mg KOH/g, narrow polydispersity index and relatively low molecular mass up to 2000 g/mol, were synthetized from partially and completely epoxidized soybean and linseed oils and caprylic acid or 3-phenyl butyric acid. These BPOs were used in the presence of toluene diisocyanate to produce polyurethane (PU) foams by using a quasi-prepolymer method involving a two-step reaction. A detailed structural investigation of the prepolymers from toluene diisocyanate and both BPOs and polypropylene glycol was conducted by SEC and solution NMR. The apparent density of the foams was in the range of 40–90 kg/m³, with higher values for foams from the aromatic acid. All the foams showed an open-cell structure with uniform and regular shape and uniform size. The specific Young’s moduli and compression deflection values suggest superior mechanical properties than the reference foams. The novel synthesized polyurethanes are excellent candidates to partially replace petroleum-based materials. Full article

Open-cell spray polyurethane foams are widely used as highly efficient thermal insulation materials with vapor permeability and soundproofing properties. Unfortunately, for the production of commercial foams, mainly non-renewable petrochemical raw materials are used. The aim of this study was to determine the possibility of completely replacing petrochemical polyols (the main raw material used in the synthesis of polyurethanes, alongside isocyanates) with bio-polyols obtained from used cooking oils, classified as waste materials. The research consisted of three stages: the synthesis of bio-polyols, the development of polyurethane foam systems under laboratory conditions, and the testing of developed polyurethane spray systems under industrial conditions. The synthesis of the bio-polyols was carried out by using two different methods: a one-step transesterification process using triethanolamine and a two-step process of epoxidation and opening oxirane rings with diethylene glycol. The obtained bio-polyols were analyzed using gel chromatography and nuclear magnetic resonance spectroscopy. The developed polyurethane foam formulations included two types of fire retardants: halogenated tris(1-chloro-2-propyl) phosphate (TCPP) and halogen-free triethyl phosphate (TEP). In the formulations of polyurethane systems, reactive amine catalysts were employed, which become incorporated into the polymer matrix during foaming, significantly reducing their emission after application. The foams were manufactured on both a laboratory and industrial scale using high-pressure spray machines under conditions recommended by commercial system manufacturers: spray pressure 80–100 bar, component temperature 45–52 °C, and component volumetric ratio 1:1. The open-cell foams had apparent densities 14–21.5 kg/m³, thermal conductivity coefficients 35–38 mW/m∙K, closed-cell contents <5%, water vapor diffusion resistance factors (μ) <6, and limiting oxygen indexes 21.3–21.5%. The properties of the obtained foams were comparable to commercial materials. The developed polyurethane spray systems can be used as thermal insulation materials for insulating interior walls, attics, and ceilings. Full article

New rigid polyurethane foams (RPURFs) modified with two types of bio-polyols based on rapeseed oil were elaborated and characterized. The effect of the bio-polyols with different functionality, synthesized by the epoxidation and oxirane ring-opening method, on the cell structure and selected properties of modified foams was evaluated. As oxirane ring-opening agents, 1-hexanol and 1.6-hexanediol were used to obtain bio-polyols with different functionality and hydroxyl numbers. Bio-polyols in different ratios were used to modify the polyurethane (PUR) composition, replacing 40 wt.% petrochemical polyol. The mass ratio of the used bio-polyols (1:0, 3:1, 1:1, 1:3, 0:1) affected the course of the foaming process of the PUR composition as well as the cellular structure and the physical and mechanical properties of the obtained foams. In general, the modification of the reference PUR system with the applied bio-polyols improved the cellular structure of the foam, reducing the size of the cells. Replacing the petrochemical polyol with the bio-polyols did not cause major differences in the apparent density (40–43 kg/m³), closed-cell content (87–89%), thermal conductivity (25–26 mW⋅(m⋅K)⁻¹), brittleness (4.7–7.5%), or dimensional stability (<0.7%) of RPURFs. The compressive strength at 10% deformation was in the range of 190–260 and 120–190 kPa, respectively, for directions parallel and perpendicular to the direction of foam growth. DMA analysis confirmed that an increase in the bio-polyol of low functionality in the bio-polyol mixture reduced the compressive strength of the modified foams. Full article
