Search Results (46)

The microstructure evolution and hardness variations of as-fabricated and recrystallized 12Cr oxide dispersion strengthened (ODS) steel after dual-ion (6.4 MeV Fe³⁺ and energy-degraded 1 MeV He⁺) irradiation at 973 K up to 10.6 displacements per atom (dpa) at peak damage and 8900 appm He are investigated. Results show that the oxide particles slightly shrink in the as-fabricated specimen, while they are stable in the recrystallized specimen. Furthermore, larger helium bubbles are trapped at the grain boundaries in the as-fabricated specimen, and the size of helium bubbles in the grains is almost the same for both as-fabricated and recrystallized specimens, indicating that reduction of grain boundaries would reduce the potential nucleation sites and suppress the helium segregation. Moreover, no obvious hardening occurs in the as-fabricated specimen, whereas the hardness increases a little in the recrystallized specimen. Based on the barrier model, the barrier strength factor of helium bubbles is calculated. The value is 0.077, which is much smaller and suggests that helium bubbles seem not to significantly induce irradiation hardening. Full article

Oxide dispersion-strengthened (ODS) steels are emerging as leading candidate materials for next-generation nuclear reactor components due to their exceptional resistance to creep, fatigue, and irradiation, combined with high strength at elevated temperatures. This paper investigates the microstructural mechanisms underpinning these superior properties, with a particular focus on the critical role of nano-oxides in enhancing performance. Various manufacturing techniques, including powder metallurgy and additive manufacturing, are reviewed to assess their impact on the structural and mechanical properties of ODS steels. Recent case studies on their application in nuclear environments highlight the potential of ODS steels to significantly extend component longevity without necessitating major reactor redesigns. Nevertheless, further research is necessary to assess their reliability under extreme environmental conditions and to determine optimal, scalable manufacturing processes for large-scale production. Full article

Oxide dispersion-strengthened (ODS) steels are among the most promising candidate structural materials for fusion and Generation-IV (Gen-IV) fission reactors, but the ductility of ODS steels is inferior to its strength properties. Therefore, we investigate void nucleation, considered as the first step of ductile damage in metal, using molecular dynamics simulations. Given that the materials are subjected to extremely complex stress states within the reactor, we present the void nucleation process of 1–4 nm Y₂O₃ nanoclusters in bcc iron during uniaxial, biaxial, and triaxial tensile deformation. We find that the void nucleation process is divided into two stages depending on whether the dislocations are emitted. Void nucleation occurs at smaller strain in biaxial and triaxial tensile deformation in comparation to uniaxial tensile deformation. Increasing the size of clusters results in a smaller strain for void nucleation. The influence of 1 nm clusters on the process of void nucleation is slight, and the void nucleation process of 1 nm cluster cases is similar to that of pure iron. In addition, void nucleation is affected by both stress and strain concentration around the clusters, and the voids grow first in the areas of high stress triaxiality. Full article

Laser Powder Bed Fusion (LPBF) enables the efficient production of near-net-shape oxide dispersion-strengthened (ODS) alloys, which possess superior mechanical properties due to oxide nanoparticles (e.g., yttrium oxide, Y-O, and yttrium-titanium oxide, Y-Ti-O) embedded in the alloy matrix. To better understand the precipitation mechanisms of the oxide nanoparticles and predict their size distribution under LPBF conditions, we developed an innovative physics-based multiscale modeling strategy that incorporates multiple computational approaches. These include a finite volume method model (Flow3D) to analyze the temperature field and cooling rate of the melt pool during the LPBF process, a density functional theory model to calculate the binding energy of Y-O particles and the temperature-dependent diffusivities of Y and O in molten 316L stainless steel (SS), and a cluster dynamics model to evaluate the kinetic evolution and size distribution of Y-O nanoparticles in as-fabricated 316L SS ODS alloys. The model-predicted particle sizes exhibit good agreement with experimental measurements across various LPBF process parameters, i.e., laser power (110–220 W) and scanning speed (150–900 mm/s), demonstrating the reliability and predictive power of the modeling approach. The multiscale approach can be used to guide the future design of experimental process parameters to control oxide nanoparticle characteristics in LPBF-manufactured ODS alloys. Additionally, our approach introduces a novel strategy for understanding and modeling the thermodynamics and kinetics of precipitation in high-temperature systems, particularly molten alloys. Full article

This paper presents corrosion resistance results of a 12Cr ferritic ODS steel (Fe-12Cr-2W-0.5Zr-0.3Y₂O₃) fabricated via a powder metallurgy route as a prospective applicant for fuel cladding materials. In a spent nuclear fuel reprocessing facility, nitric acid serves as the primary solvent in the PUREX method. Therefore, fundamental immersion and electrochemical tests were conducted in various nitric acid solutions to evaluate corrosion degradation behavior. Additionally, polarization tests were also performed in 0.61 M of sodium chloride solutions (seawater-like atmosphere) as a more general, all-purpose procedure that produces valid comparisons for most metal alloys. For comparison, martensitic X46Cr13 steel was also examined under the same conditions. In general, the corrosion resistance of the 12Cr ODS steel was better than its martensitic counterpart despite a lower nominal chromium content. Potentiodynamic polarization plots exhibited a lower corrosion current and higher breakdown potentials in chloride solution in the case of the ODS steel. It was found that the corrosion rate during immersion tests was exceptionally high in diluted (0.1–3 M) boiling nitric acid media, followed by its sharp decrease in more concentrated solutions (>4 M). The results of the polarization plots also exhibited a shift toward more noble corrosion potential as the concentrations increased from 1 M to 4 M of HNO₃. The results on corrosion resistance were supported by LSCM and SEM observations of surface topology and corrosion products. Full article

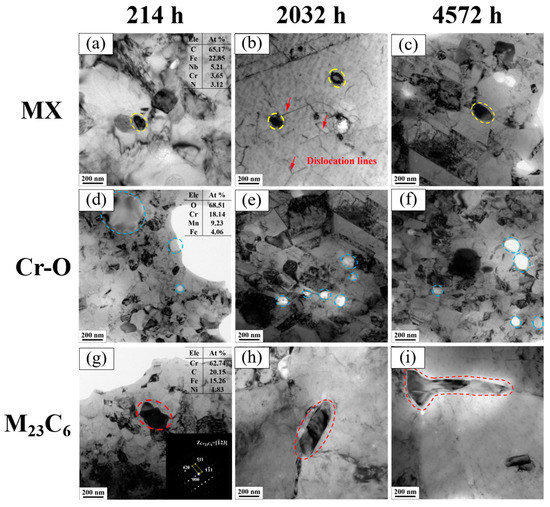

Lead-cooled fast reactors exhibit strong inherent safety performance and good economic features, while material degradation due to corrosion and irradiation is still challenging. Oxide dispersion-strengthened steels are one of the promising candidates for fuel cladding materials. The effects of both irradiation and corrosion on ODS steel need to be further studied. In this work, MX-ODS steel was irradiated by Fe ions at 500 °C up to 46 dpa. Later, the as-received specimen and the irradiated specimen were used to conduct corrosion tests in oxygen-saturated Pb at 550 °C for 1 h. In the as-received specimen, discontinuous oxides penetrated by Pb and Pb in contact with steel matrix were observed, demonstrating unsatisfactory corrosion resistance of the material. However, in the irradiated specimen after corrosion experiment, a protective oxide layer formed and prevented Pb attack. The oxidation behavior differences between the two specimens can be attributed to the defects produced by irradiation and the structural discrepancy in oxides caused by the formation process. A possible mechanism of irradiation on the corrosion is discussed. In the as-received specimen, Fe atoms loss led to voids in the oxides, and lead penetrated the oxides through these voids. In the irradiated specimen, defects left by previous irradiation helped to form a more uniform oxide layer. The adhesive outer magnetite oxide and the Fe ions generated from where grain boundary oxidation developed retarded the presence of voids and made the oxide layer protective. Full article

Oxide Dispersion Strengthened (ODS) ferritic steels are promising materials for the nuclear power sector. This paper presents the results of a study on the sintering process using the Spark Plasma Sintering (SPS) technique, focusing on ODS ferritic steel powders with different contents (0.3 and 0.6 vol.%) of Y₂O₃. The novelty lies in the analysis of the effect of pre-annealing treatment on powders previously prepared by mechanical alloying on the microstructure, mechanical, and thermal properties of the sinters. Using the SPS method, it was possible to obtain well-densified sinters with a relative density above 98%. Pre-annealing the powders resulted in an increase in the relative density of the sinters and a slight increase in their thermal conductivity. The use of low electron energies during SEM analysis allowed for a fairly good visualization of the reinforcing oxides uniformly dispersed in the matrix. Analysis of the Mössbauer spectroscopy results revealed that pre-annealing induces local atomic rearrangements within the solid solution. In addition, there was an additional spectral component, indicating the formation of a Cr-based paramagnetic phase. The ODS material with a higher Y₂O₃ content showed increased Vickers hardness values, as well as increased Young’s modulus and nanohardness, as determined by nanoindentation tests. Full article

Oxide-dispersion-strengthened (ODS) steels have long been viewed as a prime solution for harsh environments. However, conventional manufacturing of ODS steels limits the final product geometry, is difficult to scale up to large components, and is expensive due to multiple highly involved, solid-state processing steps required. Additive manufacturing (AM) can directly incorporate dispersion elements (e.g., Y, Ti and O) during component fabrication, thus bypassing the need for an ODS steel supply chain, the scale-up challenges of powder processing routes, the buoyancy challenges associated with casting ODS steels, and the joining issues for net-shape component fabrication. In the AM process, the diffusion of the dispersion elements in the molten steel plays a key role in the precipitation of the oxide particles, thereby influencing the microstructure, thermal stability and high-temperature mechanical properties of the resulting ODS steels. In this work, the atomic diffusivities of Y, Ti, and O in molten 316L stainless steel (SS) as functions of temperature are determined by ab initio molecular dynamics simulations. The latest Vienna Ab initio Simulation Package (VASP) package that incorporates an on-the-fly machine learning force field for accelerated computation is used. At a constant temperature, the time-dependent coordinates of the target atoms in the molten 316L SS were analyzed in the form of mean square displacement in order to obtain diffusivity. The values of the diffusivity at multiple temperatures are then fitted to the Arrhenius form to determine the activation energy and the pre-exponential factor. Given the challenges in experimental measurement of atomic diffusivity at such high temperatures and correspondingly the lack of experimental data, this study provides important physical parameters for future modeling of the oxide precipitation kinetics during AM process. Full article

The microstructure evolution associated with the cold forming sequence of an Fe-14Cr-1W-0.3Ti-0.3Y₂O₃ grade ferritic stainless steel strengthened by dispersion of nano oxides (ODS) was investigated. The material, initially hot extruded at 1100 °C and then shaped into cladding tube geometry via HPTR cold pilgering, shows a high microstructure stability that affects stress release heat treatment efficiency. Each step of the process was analyzed to better understand the microstructure stability of the material. Despite high levels of stored energy, heat treatments, up to 1350 °C, do not allow for recrystallization of the material. The Vickers hardness shows significant variations along the manufacturing steps. Thanks to a combination of EBSD and X-ray diffraction measurements, this study gives a new insight into the contribution of statistically stored dislocation (SSD) recovery on the hardness evolution during an ODS steel cold forming sequence. SSD density, close to 4.10¹⁵ m⁻² after cold rolling, drops by only an order of magnitude during heat treatment, while geometrically necessary dislocation (GND) density, close to 1.10¹⁵ m⁻², remains stable. Hardness decrease during heat treatments appears to be controlled only by the evolution of SSD. Full article

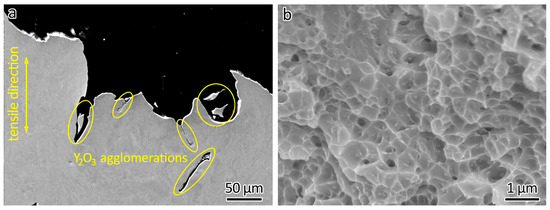

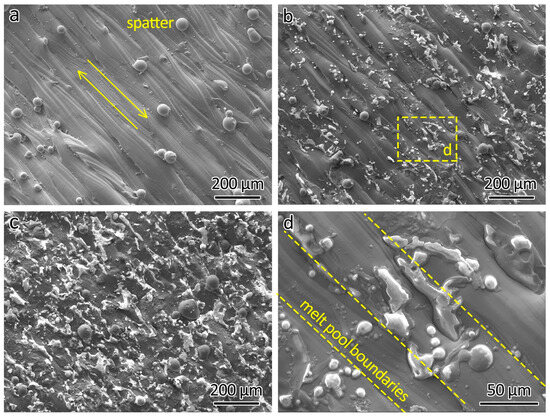

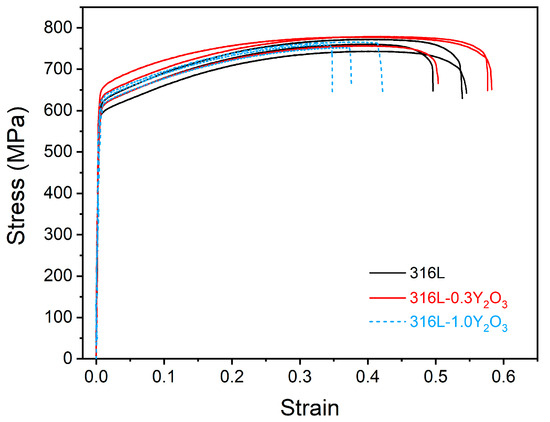

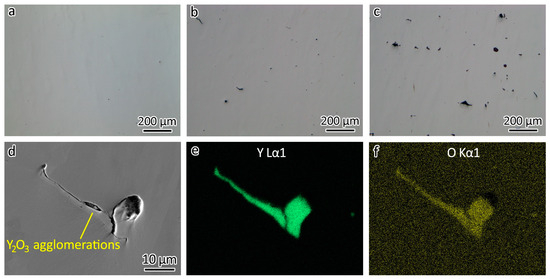

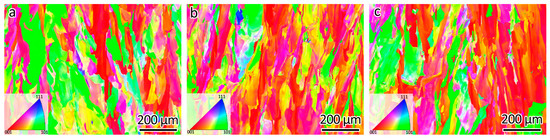

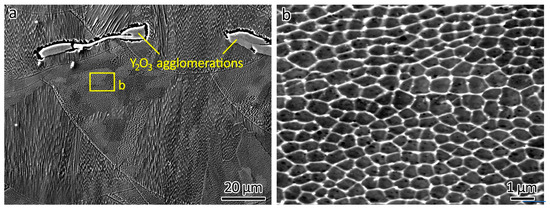

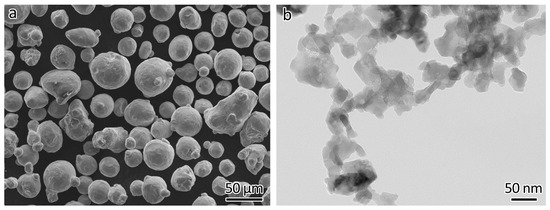

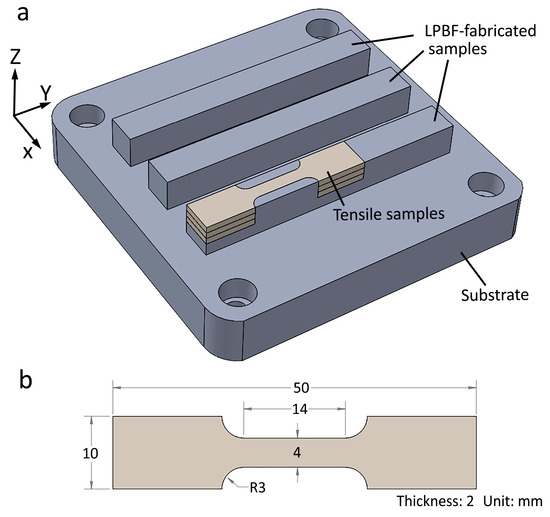

Laser powder bed fusion (LPBF) is a fusion-based additive manufacturing process. It has the advantage of allowing the manufacturing of metal matrix composites. This advantage arises from its small melting zone and rapid cooling rate, which minimize the risk of reinforcement segregation. In this work, 0.3 wt% and 1.0 wt% Y₂O₃ nanoparticles were added to 316L to fabricate oxide dispersion-strengthened (ODS) steels using the LPBF process. Notably, Y₂O₃ agglomerates were identified in the LPBF-fabricated 316L ODS steels, without inducing grain refinement, while the impact on tensile strength of Y₂O₃ addition proved negligible. Tensile elongation was decreased due to the poor bonding of the Y₂O₃ agglomerations to the matrix. The crucial role of the wettability of the reinforcement and the matrix in facilitating grain refinement and strength enhancement is discussed. The poor wettability of the Y₂O₃ particles and 316L emerged as the primary cause for Y₂O₃ agglomeration. This finding highlights the importance of addressing wettability issues to optimize the manufacturing process and enhance the overall performance of LPBF-fabricated metal matrix composites. Full article

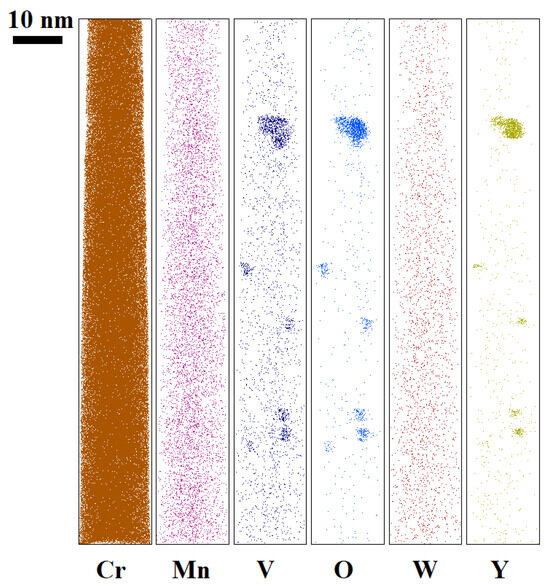

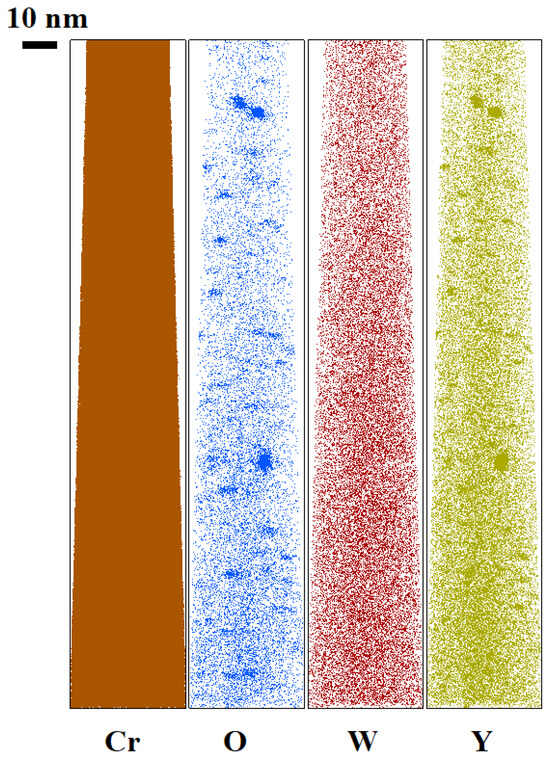

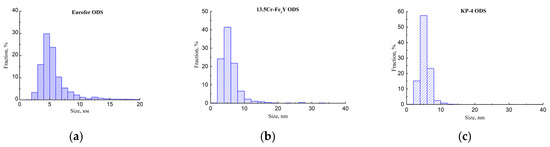

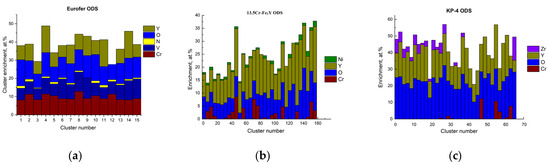

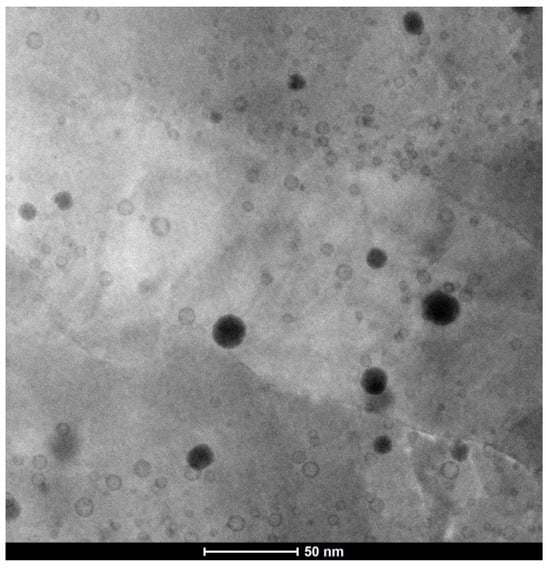

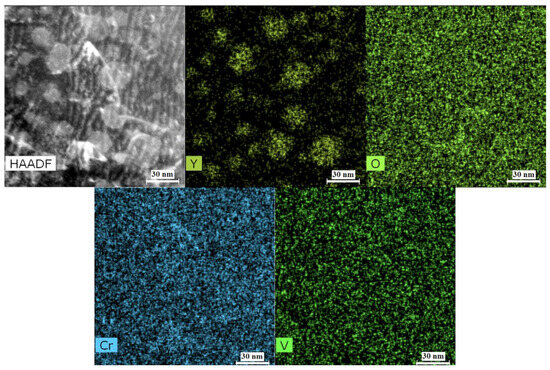

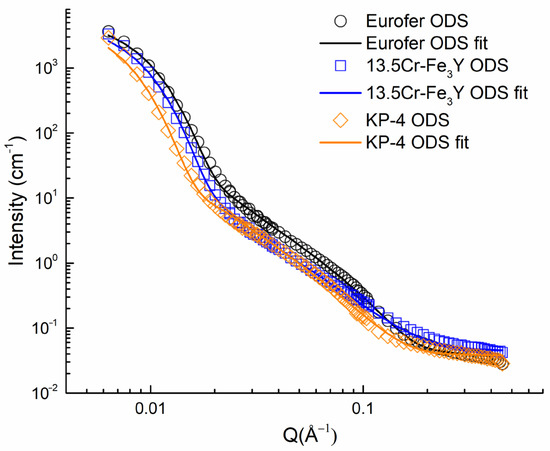

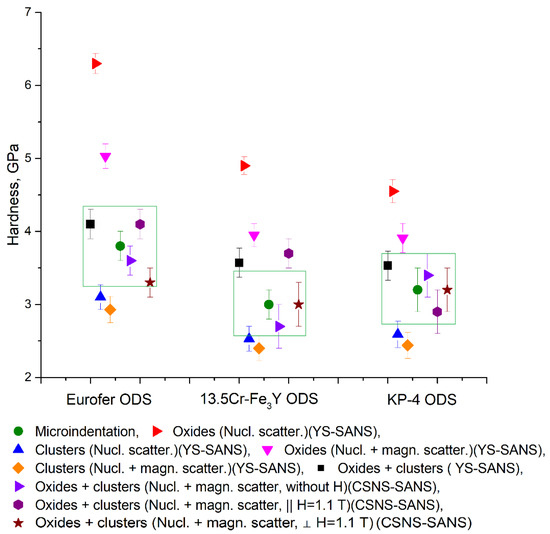

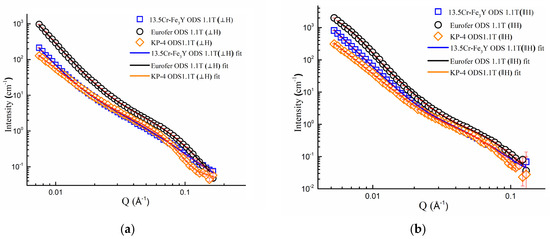

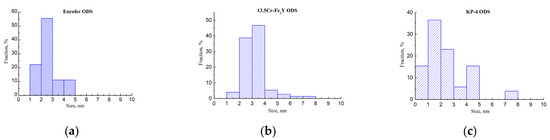

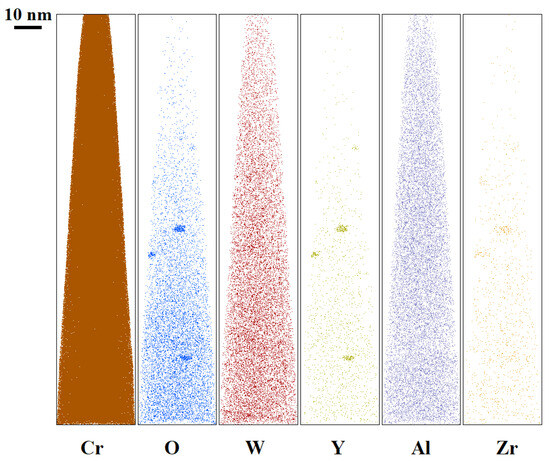

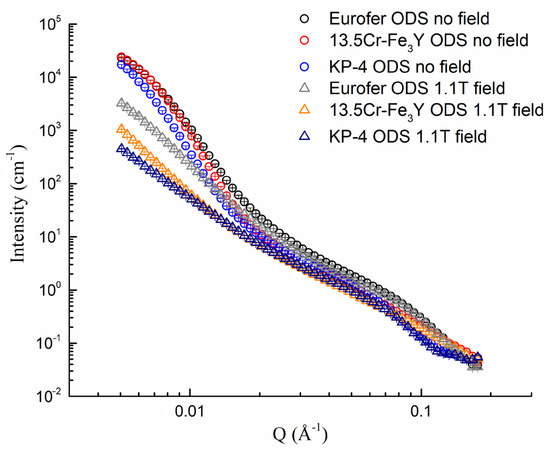

In this work, the nanostructure of oxide dispersion-strengthened steels was studied by small-angle neutron scattering (SANS), transmission electron microscopy (TEM), and atom probe tomography (APT). The steels under study have different alloying systems differing in their contents of Cr, V, Ti, Al, and Zr. The methods of local analysis of TEM and APT revealed a significant number of nanosized oxide particles and clusters. Their sizes, number densities, and compositions were determined. A calculation of hardness from SANS data collected without an external magnetic field, or under a 1.1 T field, showed good agreement with the microhardness of the materials. The importance of taking into account two types of inclusions (oxides and clusters) and both nuclear and magnetic scattering was shown by the analysis of the scattering data. Full article

Oxide-dispersion- and hard-particle-strengthened (ODS) laser-cladded single-layer multi-tracks with a Ni-based alloy composition with 20 wt.% μm-WC particles and 1.2 wt.% nano-Y₂O₃ addition were produced on ultra-high-strength steel in this study. The investigation of the composite coating designed in this study focused on the reciprocating friction and wear workpiece surface under heavy load conditions. The coating specimens were divided into four groups: (i) Ni-based alloy, nano-Y₂O₃, and 2 μm-WC (2 μm WC-Y/Ni); (ii) Ni-based alloy with added 2 μm-WC (2 μmWC/Ni); (iii) Ni-based alloy with added 80 μm-WC (80 μmWC/Ni); and (iv) base metal ultra-high-strength alloy steel 30CrMnSiNi2A. Four conclusions were reached: (1) Nano-Y₂O₃ could effectively inhibit the dissolution of 2 μm-WC. (2) It can be seen from the semi-space dimensionless simulation results that the von Mises stress distribution of the metal laser composite coating prepared with a 2 μm-WC particle additive was very uniform and it had better resistance to normal impact and tangential loads than the laser coating prepared with the 80 μm-WC particle additive. (3) The inherent WC initial crack and dense stress concentration in the 80 μm-WC laser coating could easily cause dislocations to accumulate, as shown both quantitatively and qualitatively, resulting in the formation of micro-crack nucleation. After the end of the running-in phase, the COF of the 2 μm-WC-Y₂O₃/Ni component samples stabilized at the minimum of the COF of the four samples. The numerical order of the four COF curves was stable from small to large as follows: 2 μm-WC-Y₂O₃/Ni, 2 μm-WC/Ni, 80 μm-WC/Ni, and 30CrMnSiNi2A. (4) The frictional volume loss rate of 2 μm-WC-Y₂O₃/Ni was 1.3, which was significantly lower than the corresponding values of the other three components: 2.4, 3.5, and 13. Full article

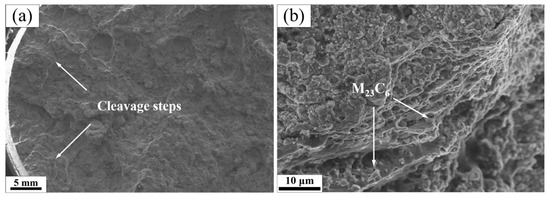

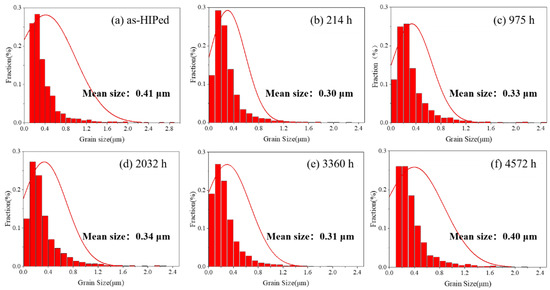

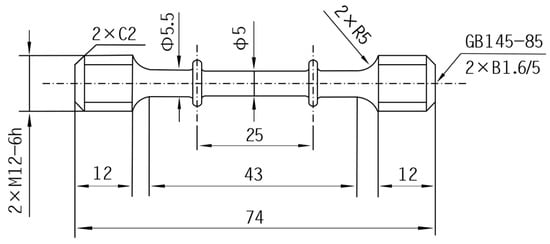

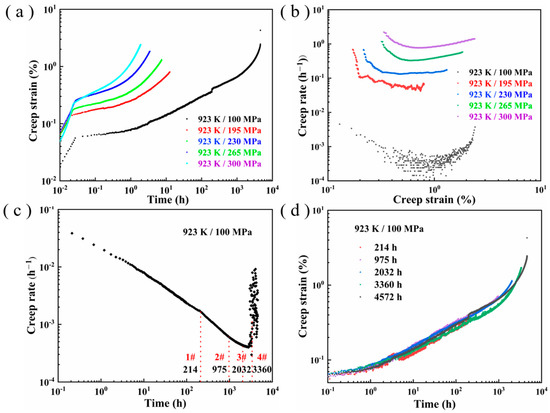

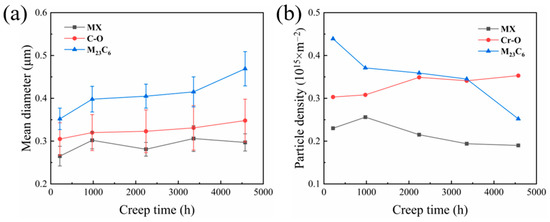

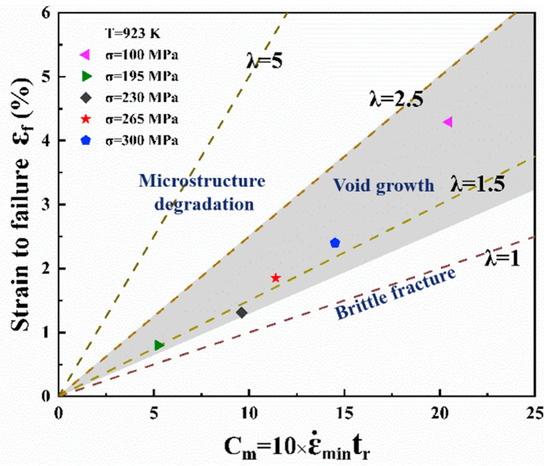

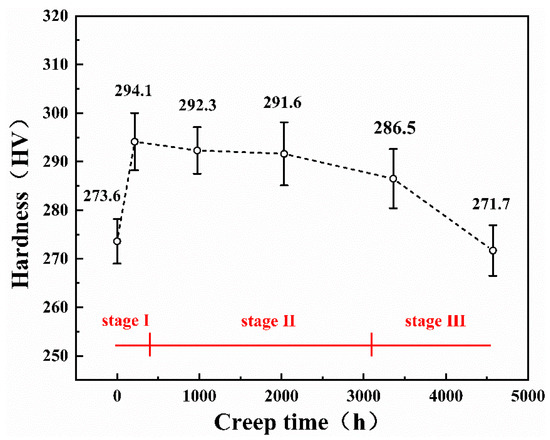

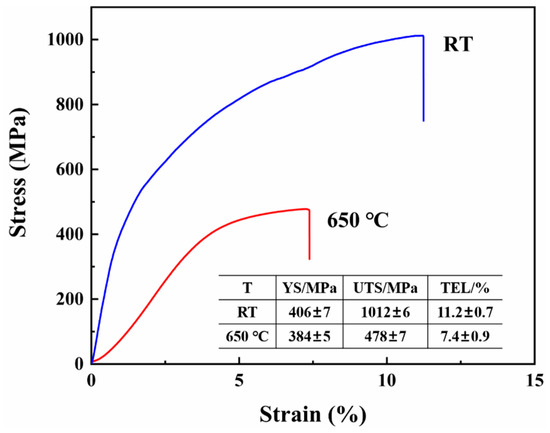

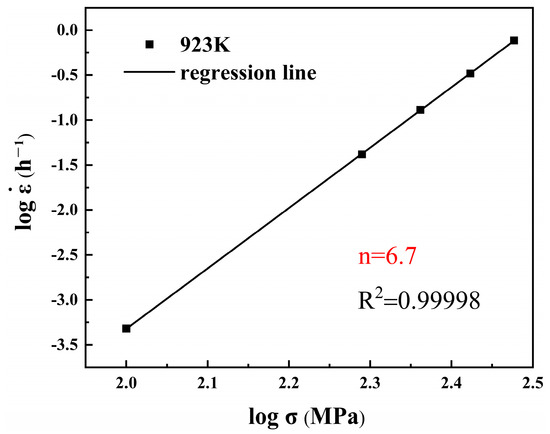

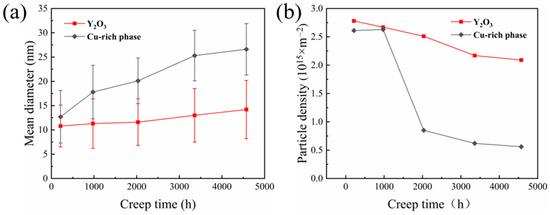

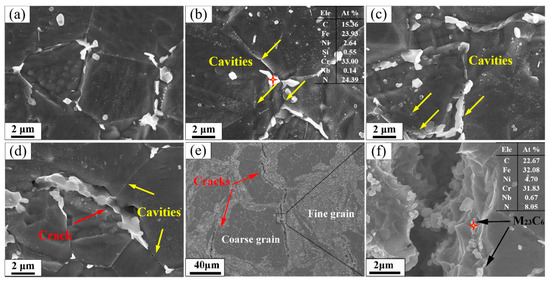

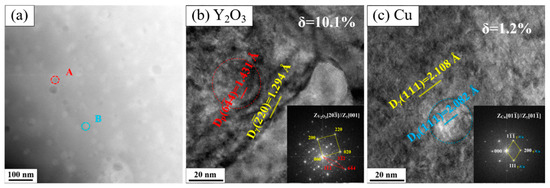

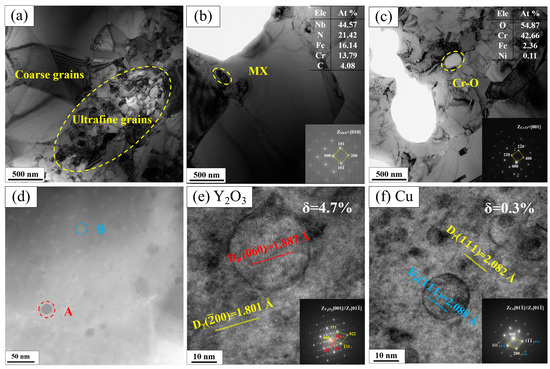

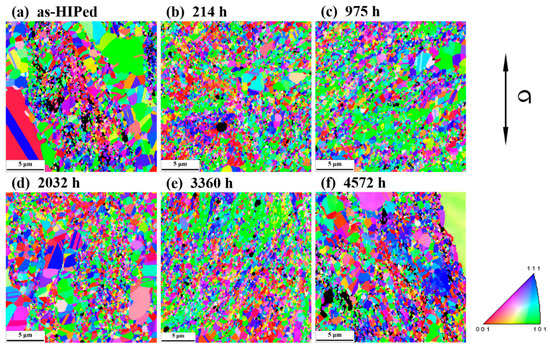

In this paper, the creep deformation behavior, microstructure evolution, and damage mechanism of Super304H oxide dispersion strengthened (ODS) steel have been systematically investigated at 650 °C. The creep behavior of the ODS steel could be understood by virtue of a dislocation creep deformation mechanism. Interrupted creep experiments under 100 MPa were conducted to further study the microstructure evolution during long-term creep deformation. The grains began to refine at the initial stage, and some M₂₃C₆ phases were observed at grain boundaries, which enhanced the microhardness during the first creep stage. Along with creep, both Y₂O₃ and Cu-rich precipitates exhibited good coherence with the matrix. The Y₂O₃ precipitates showed better thermal stability than the Cu-rich phase. During the second creep stage, some cavities emerged around the M₂₃C₆ phase and at grain boundaries. The cavities gradually developed into significant cracks, causing the steel to fracture. The creep damage due to cavity growth could be determined according to the creep damage tolerance factor value. Full article

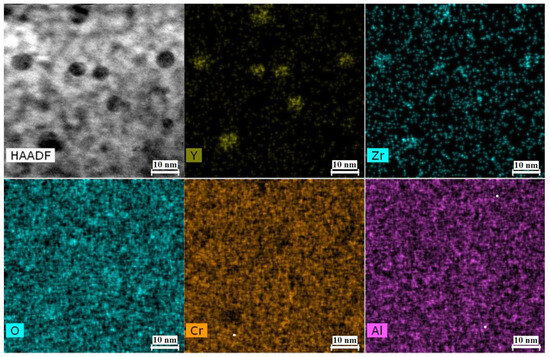

Oxide-dispersion-strengthened (ODS) steel is considered as a promising candidate structural material for nuclear applications. In this study, the microstructure and mechanical properties of Y₄Zr₃O₁₂-added Fe–13.5Cr–2W ODS steels, containing high contents of C and N, prepared by mechanical alloying (MA) and two-step spark plasma sintering (SPS), were investigated. The results showed that pure Y₄Zr₃O₁₂ powders, with a grain size of 3.5 nm, were well prepared with NH₃·H₂O addition by the sol-gel method in advance, in order to avoid the formation of some coarse or undesired oxides. W was completely dissolved into the matrix after 48 h of ball milling at 300 rpm, and the main elements were uniformly distributed on the surface of the milled powders. The unexpected face-centered cubic (FCC, γ)/body-centered cubic (BCC, α) dual-phase structure of the sintered specimens, could be explained by the unexpectedly high contents of C and N from the raw powder production process, fast-sintering characteristic of SPS, and inhibitory effect of W on the diffusion of C. The experimental results were approximately consistent with the simulation results from the Thermo Calc software. The temperature combination of 800 °C and 1100 °C during the SPS process, provided a relatively more homogeneous microstructure, while the combination of 750 °C and 1150 °C, provided the highest ultimate tensile strength (UTS), of 1038 MPa, with the highest uniform elongation (UE), of 6.2%. M₂₃C₆, Cr₂O₃, M₂(C,N), and other precipitates, were mainly distributed at grain boundaries, especially at the triple junctions, which led to Cr depletion at grain boundaries. Full article

This study aims to assess the potential of Laser Additive Manufacturing (LAM) for the elaboration of Ferritic/Martensitic ODS steels. These materials are usually manufactured by mechanical alloying of powders followed by hot consolidation in a solid state. Two Fe-14Cr-1W ODS powders are considered for this study. The first powder was obtained by mechanical alloying, and the second was through soft mixing of an atomized Fe-14Cr steel powder with yttria nanoparticles. They are representative of the different types of powders that can be used for LAM. The results obtained with the Laser Powder Bed Fusion (LPBF) process are compared to a non-ODS powder and to a conventional ODS material obtained by Hot Isostatic Pressing (HIP). The microstructural and mechanical characterizations show that it is possible to obtain nano-oxides in the material, but their density remains low compared to HIP ODS steels, regardless of the initial powders considered. The ODS obtained by LAM have mechanical properties which remain modest compared to conventional ODS. The current study demonstrated that it is very difficult to obtain F/M ODS grades with the expected characteristics by using LAM processes. Indeed, even if significant progress has been made, the powder melting stage strongly limits, for the moment, the possibility of obtaining fine and dense precipitation of nano-oxides in these steels. Full article
