Search Results (843)

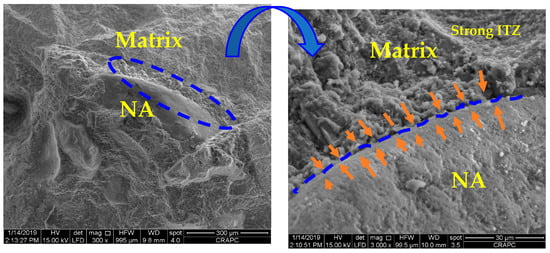

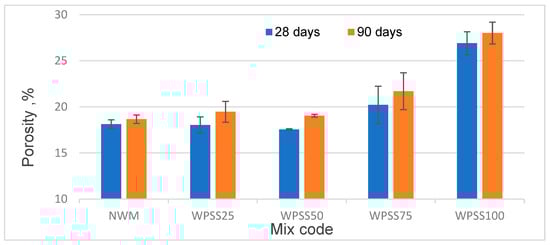

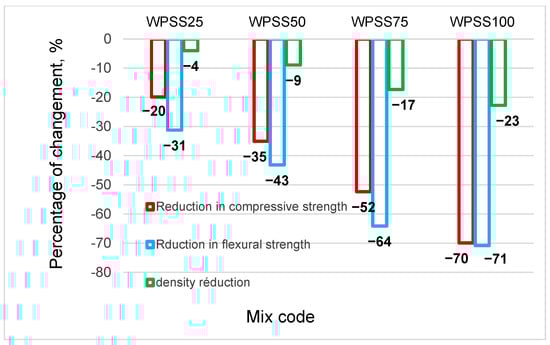

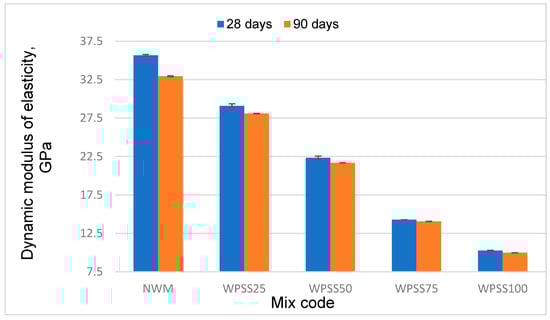

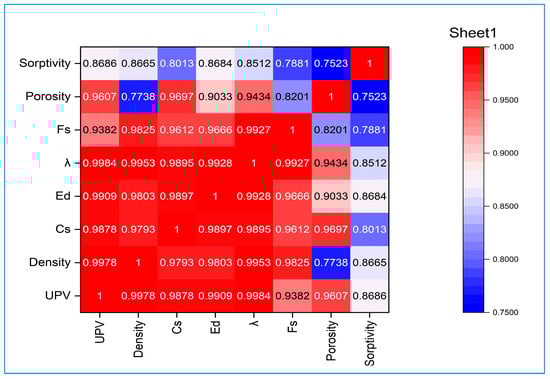

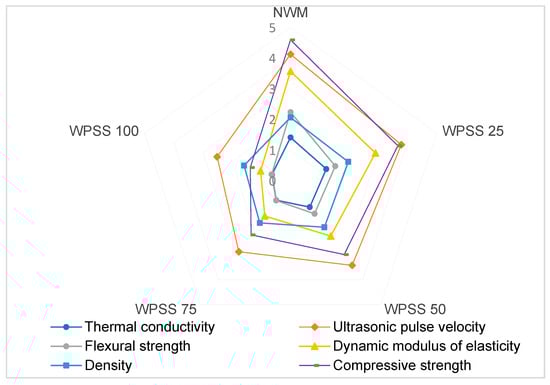

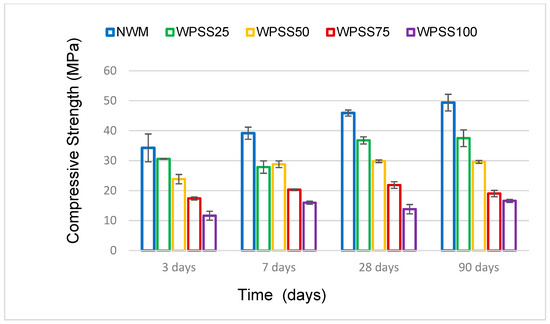

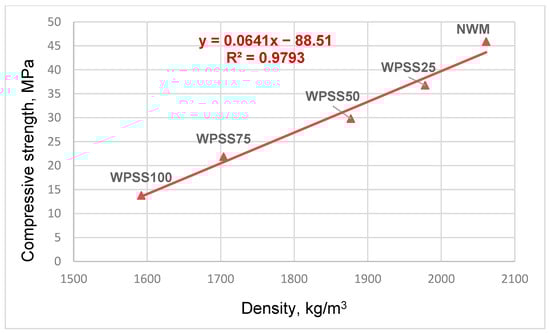

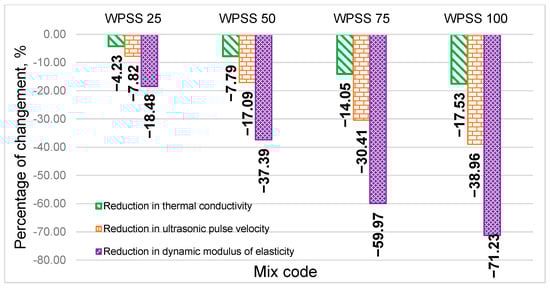

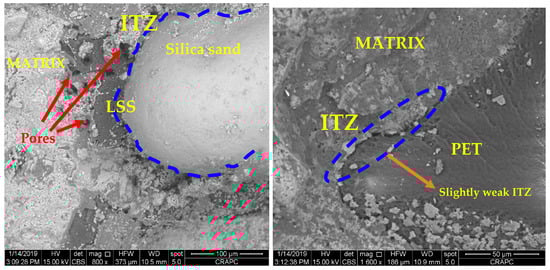

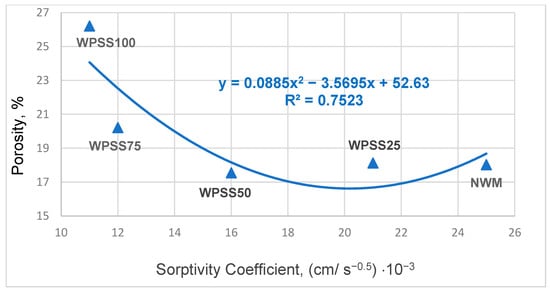

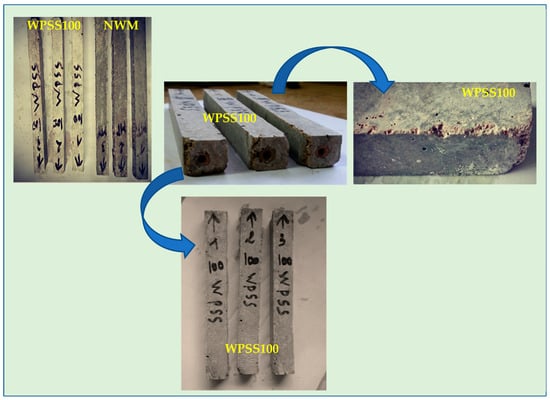

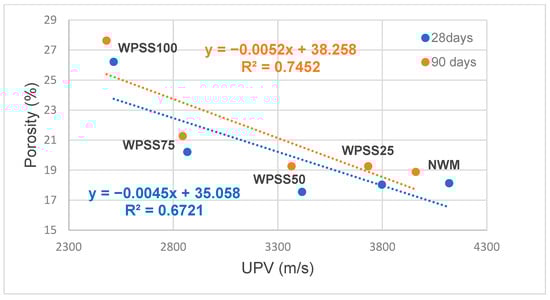

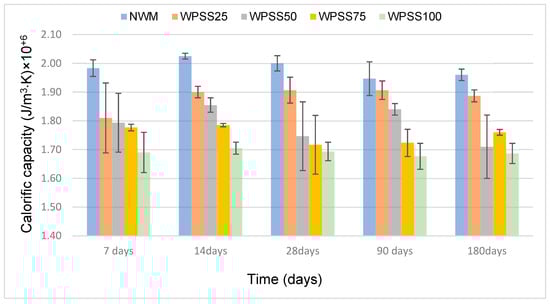

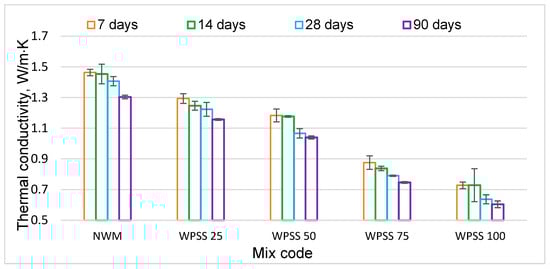

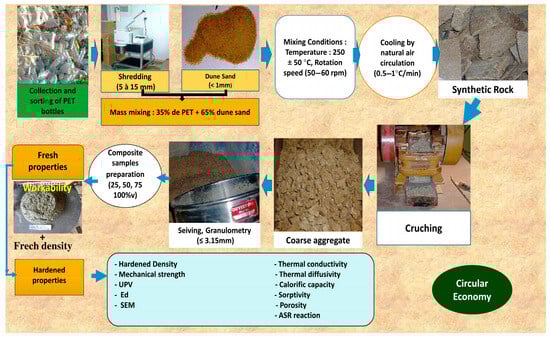

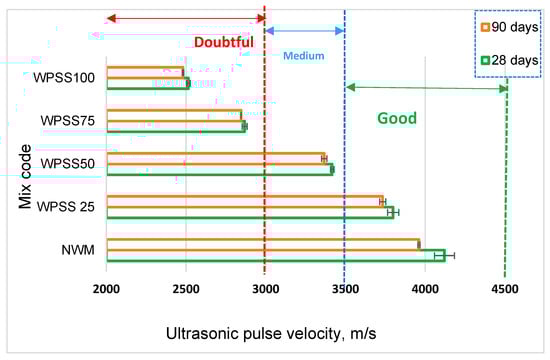

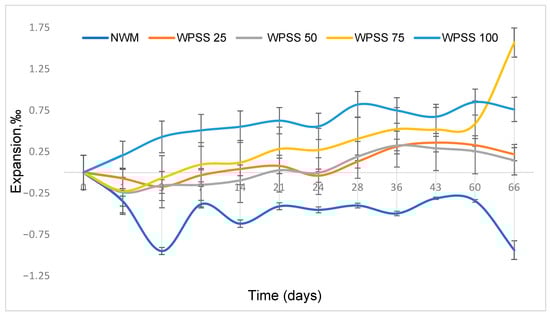

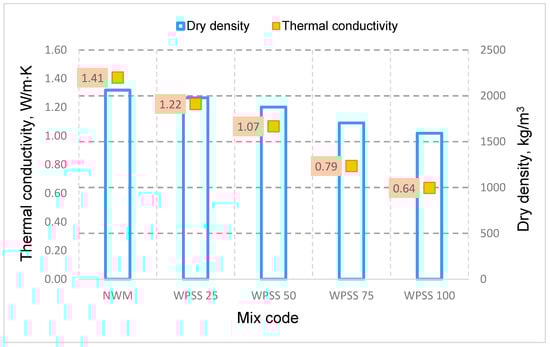

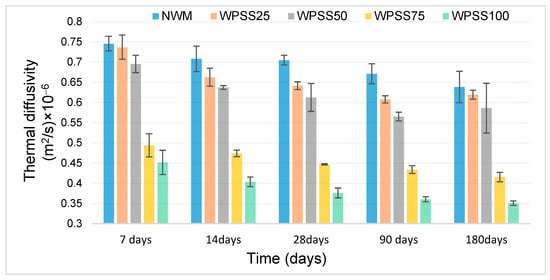

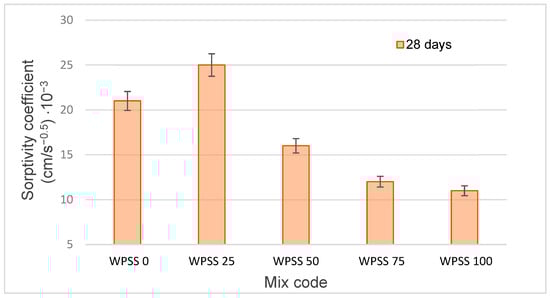

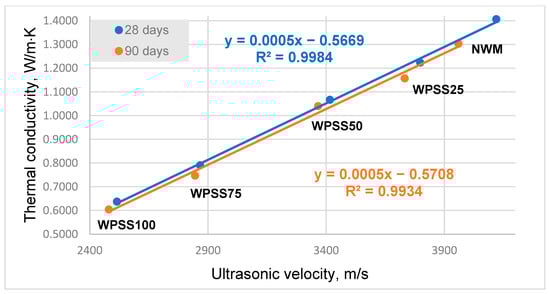

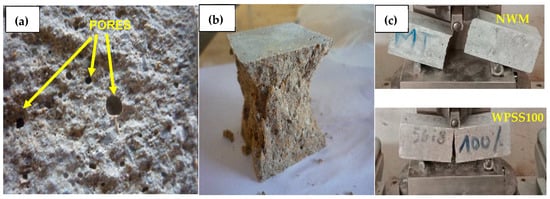

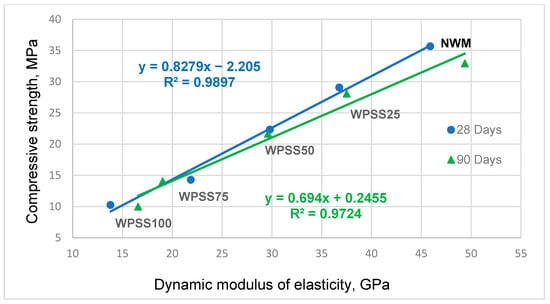

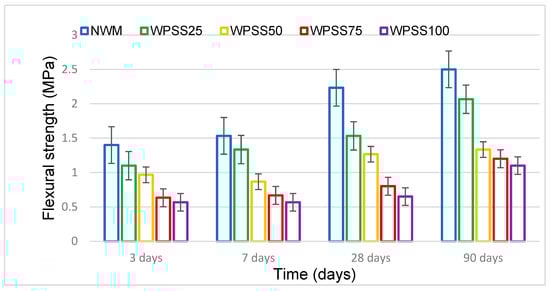

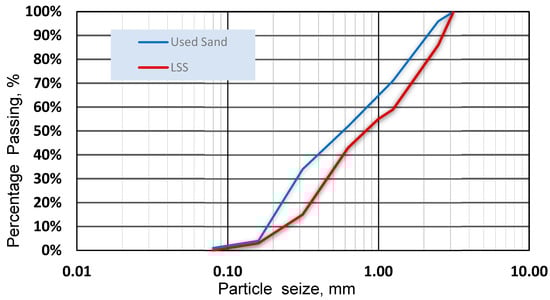

This study investigates sustainable mortars using lightweight synthetic sand (LSS), made from dune sand and recycled PET bottles, to replace natural sand (0–100% by volume). This aligns with circular economy principles by valorizing plastic waste into a construction aggregate. LSS is produced via controlled thermal treatment (250 ± 5 °C, 50–60 rpm), crushing, and sieving (≤3.15 mm), leading to a significantly improved interfacial transition zone (ITZ) with the cement matrix. The evaluation included physico-mechanical tests (density, strength, UPV, dynamic modulus, ductility), thermal properties (conductivity, diffusivity, heat capacity), porosity, sorptivity, alkali–silica reaction (ASR), and SEM. The results show LSS incorporation reduces mortar density (4–23% for 25–100% LSS), lowering material and logistical costs. While compressive strength decreases (35–70%), these mortars remain suitable for low-stress applications. Specifically, at ≤25% LSS, composites retain 80% of their strength, making them ideal for structural uses. LSS also enhances ductility and reduces dynamic modulus (18–69%), providing beneficial flexibility. UPV decreases (8–39%), indicating improved acoustic insulation. Thermal performance improves (4–18% conductivity reduction), suggesting insulation applicability. A progressive decrease in sorptivity (up to 46%) enhances durability. Crucially, the lack of ASR susceptibility reinforces long-term durability. This research significantly contributes to the repurposing of plastic waste into sustainable cement-based materials, advancing sustainable material management in the construction sector. Full article

The poor quality of recycled coarse aggregate (RCA), particularly its high water absorption and low strength, has long restricted the development of recycled aggregate concrete (RAC). In this study, a novel combined spraying treatment method integrating cement slurry and a methyl sodium silicate (MSS) solution was proposed to improve the comprehensive performance of RCA. The effects of the treatment on RCA properties, including crushing value, water absorption, dynamic water absorption, apparent density, micromorphology, and contact angle, were systematically investigated. Furthermore, the treated RCA was incorporated into concrete to evaluate the mechanical strength, water absorption, and interfacial transition zone (ITZ) properties of the resulting RAC. The results indicated that cement slurry treatment alone significantly reduced the crushing value of the RCA by 30.1% but had little effect on water absorption. Conversely, MSS solution treatment reduced RCA water absorption by 29.6% without affecting its strength. The combined spraying method successfully enhanced both strength and water absorption performance. When applied in the RAC, cement slurry-treated RCA improved compressive and splitting tensile strengths, while MSS-treated RCA notably reduced water absorption. RAC prepared with combined-treated RCA achieved further strength improvement, and although its water absorption was not as low as that of MSS-only treated RAC, it still showed a substantial decrease compared to untreated RCA. Nanoindentation and microstructural analyses revealed that MSS enhanced the ITZ by forming a hydrophobic molecular film and reacting with new mortar, inhibiting water transport and improving RAC durability. An optimal MSS concentration of 10% was identified for achieving the best combined performance in strength and durability. Full article

The Qinghai–Tibet Plateau presents a unique challenge for infrastructure development due to its extreme geological and climatic conditions—high elevation, large diurnal temperature fluctuations, frequent freeze–thaw cycles, intense ultraviolet radiation, and seasonal precipitation. These factors greatly accelerate the weathering of rock materials, leading to aggregates with increased porosity, microcracking, and weakened mechanical properties. While the engineering implications of such degradation are evident, the underlying material science of weathered aggregates—particularly their microstructure–property relationships—remains insufficiently explored, necessitating further investigation to inform material selection and design. In this study, three representative types of weathered aggregates (silica-rich, carbonaceous, and alumina-rich), alongside unweathered natural aggregates, were examined through both macro-scale (density, water absorption, crushing value, abrasion resistance) and micro-scale (scanning electron microscopy (SEM), energy-dispersive spectroscopy (EDS)) analyses. To capture the material evolution, we introduced a simplified classification framework based on the Si/Al ratio and porosity and applied a gray entropy correlation model to quantify the coupling between microstructure and mechanical performance. Results show that weathering reduces the Si/Al ratio from 2.45 to 1.82, increases porosity from 4.2% to 12.7%, enlarges the average pore size to 0.85 μm, raises microcrack density to 1.40 μm/μm², and increases the proportion of connected pores to 68.2%. These microstructural degradations correlate with decreased aggregate density, increased water absorption (up to 8.0%), higher crushing value (27.4%), and abrasion resistance loss (26.0%). Based on these findings, a weathered aggregate classification and pretreatment strategy is proposed, offering a practical reference for engineers to improve material performance in high-altitude road construction. Full article

Inspired by the evolutionary optimization of biological load-bearing systems, honeycomb structures are highly valued in applications involving impact protection and lightweight load-bearing due to their outstanding mechanical properties. This study introduces an interesting honeycomb structure known as the hybrid topological cellular honeycomb structure (HTCHS), which integrates four distinctive topological cells. To effectively fabricate HTCHS samples, the research utilized a fused deposition modeling (FDM) process, employing polyethylene terephthalate glycol-modified (PETG) as the matrix material, successfully producing the HTCHS samples. A finite element simulation model for the HTCHS is created using LS-DYNA software(LS-DYNA R11.1.0 software), and its accuracy is confirmed through a comparative analysis of experimental and simulation results. The influence of the topological cell parameters (T₁ to T₄) on compressive energy absorption, specific energy absorption, and peak crushing force through parametric modeling is investigated. The mechanical properties of honeycomb structures vary depending on the cell parameters at different positions, and monotonically increasing the design parameters does not improve the energy absorption capacity of the HTCHS. To enhance the mechanical performance of the HTCHS, the initial periodic cell configurations are transformed into non-periodic designs. A discrete optimization design framework for local parameters of the HTCHS is established, integrating cell coding with the MOPSO algorithm. The feasibility of the optimization results is validated through experimental data, demonstrating that this study offers an effective technical solution for developing a novel generation of cellular honeycomb structures with customizable mechanical properties. Full article

The tight conglomerate oil reservoir in Xinjiang’s Mahu area is situated on the northwestern margin of the Junggar Basin. The reservoir comprises five stacked fan bodies, with the Triassic Baikouquan Formation serving as the primary pay zone. To delineate the study scope and conduct a field validation, the Ma-X well block was selected for investigation. Through triaxial compression tests and large-scale true triaxial hydraulic fracturing simulations, we analyzed the failure mechanisms of tight conglomerates and identified key factors governing hydraulic fracture propagation. The experimental results reveal several important points. (1) Gravel characteristics control failure modes: Larger gravel size and higher content increase inter-gravel stress concentration, promoting gravel crushing under confining pressure. At low-to-medium confining pressures, shear failure primarily occurs within the matrix, forming bypassing fractures around gravel particles. (2) Horizontal stress differential dominates fracture geometry: Fractures preferentially propagate as transverse fractures perpendicular to the wellbore, with stress anisotropy being the primary control factor. (3) Injection rate dictates fracture complexity: Weakly cemented interfaces in conglomerates lead to distinct fracture morphologies—low rates favor interface activation, while high rates enhance penetration through gravels. (4) Stimulation strategy impacts SRV: Multi-cluster perforations show limited effectiveness in enhancing fracture network complexity. In contrast, variable-rate fracturing significantly increases stimulated reservoir volume (SRV) compared to constant-rate methods, as evidenced by microseismic data demonstrating improved interface connectivity and broader fracture coverage. Full article

In view of the lack of accurate model in the discrete element study during straw comprehensive utilization (crushing, mixing, and baling), wheat straw was taken as the research object to calibrate the simulation parameters using EDEM 2023. The intrinsic and contact mechanical parameters of wheat straw were measured, and a test of the angle of repose (AOR), extrusion test and bending test were carried out. On this basis, a discrete element model (DEM) of hollow flexibility by using cylindrical particles was developed. The optimal combination of contact mechanical parameters was obtained through AOR tests based on the Box–Behnken design (BBD), coefficients of static friction, rolling friction, and restitution between wheat straw and wheat straw-45 steel are separately 0.227, 0.136, 0.479, 0.271, 0.093, and 0.482, AOR is 18.66°. Meanwhile, optimal combinations of bond contact parameters were determined by the BBD. The calibrated parameters were used to conduct extrusion and bending tests. Results show that the average values of peak extrusion force and peak bending pressure are 23.20 N and 3.92 N, which have relative discrepancy of 3.25% and 3.59% compared to physical test measurements. The results can provide model reference for the optimization design such as feed processing equipment, baler, and mixer. Full article

This paper describes the complex process of rock crushing removal by AWJ impact from the microscopic perspective. The acceleration and deceleration mechanism of abrasive particles throughout the whole process of single abrasive particles impacting rocks, the spherical cavity expansion mechanism of the abrasive particles’ impact on the rock, and the elastic contact force of the collision between the abrasive particles and rock were investigated; a mathematical model of AWJ’s impact on the rock crushing removal conditions was established; and the threshold values of the jet impact parameters were obtained. The mathematical model of the rock crushing removal conditions was verified through numerical simulation and jet impact experiments. The research results show that the theoretical value of the jet impact velocity that meets the conditions for limestone crushing removal is greater than or equal to 36 m/s, and the theoretical value of the pressure is greater than or equal to 2.7 MPa. Numerical simulation was used to obtain the displacement of marked points, stress, and strain variation in marked elements of rock under different impact velocities. The effect of impact rock breaking obtained through the experiment demonstrates the correspondence between the test pressure and the theoretical pressure, which verifies the accuracy of the mathematical model of the rock crushing removal conditions. Full article

In marine engineering applications, substituting conventional crushed stone coarse aggregates with coral aggregates offers dual advantages: reduced terrestrial quarrying operations and minimized construction material transportation costs. However, the inherent characteristics of coral aggregates—low bulk density, high porosity, and elevated water absorption capacity—adversely influence concrete workability and mechanical performance. To address these limitations, this investigation employed microbial-induced carbonate precipitation (MICP) for aggregate modification. The experimental design systematically evaluated the impacts of substrate concentration (1 mol/L) and mineralization period (14 days) on three critical parameters, mass gain percentage, water absorption reduction, and apparent density enhancement, across distinct particle size fractions (4.75–9.5 mm, 9.5–20 mm) and density classifications. Subsequent application trials assessed the performance of MICP-treated aggregates in marine concrete formulations. Results indicated that under a substrate concentration of 1 mol/L and mineralization period of 14 days, lightweight coral aggregates and coral aggregates within the 4.75–9.5 mm size fraction exhibited favorable modification effects. Specifically, their mass gain rates reached 11.75% and 11.22%, respectively, while their water absorption rates decreased by 32.22% and 34.75%, respectively. Apparent density increased from initial values of 1764 kg/m³ and 1930 kg/m³ to 2050 kg/m³ and 2207 kg/m³. Concrete mixtures incorporating modified aggregates exhibited enhanced workability and strength improvement at all curing ages. The 28-day compressive strengths reached 62.1 MPa (11.69% increment), 46.2 MPa (6.94% increment), and 60.1 MPa (14.91% increment) for the 4.75–9.5 mm, 9.5–20 mm, and continuous grading groups, respectively, compared to untreated counterparts. Full article

The utilization of recycled concrete aggregate presents an effective solution for construction waste mitigation. However, concrete service in sulfate environments leads to sulfate ion retention in recycled aggregates, substantially impairing their quality and requiring modification approaches. A critical question remains whether traditional recycled aggregate modification techniques can effectively enhance the performance of these sulfate-containing recycled aggregates (SRA). Cement paste wrapping in various proportions was used in this investigation to enhance SRA. The performance of both SRA and modified aggregates was systematically assessed through measurements of apparent density, water absorption, crushing value, and microhardness. Microstructural analysis of the cement wrapping modification mechanism was conducted by scanning electron microscopy coupled with mercury intrusion porosimetry. Results revealed that internal sulfate addition decreased the crushing value and increased the water absorption of recycled aggregates, primarily due to micro-cracks formed by expansion. Additionally, the pores were occupied by erosion products, leading to a slight increase in the apparent density of aggregates. The performance of SRA was effectively enhanced by cement paste wrapping at a 0.6 water–binder ratio, whereas it was negatively impacted by a ratio of 1.0. The modifying effect became even more effective when 15% fly ash was added to the wrapping paste. Scanning electron microscopy observations revealed that the interface of SRA was predominantly composed of gypsum crystals. Cement paste wrapping greatly enhanced the original interface structure, despite a new dense interface formed in the modified aggregates. Full article

For meeting the growing demand for lightweight impact-resistant materials, this study designed and fabricated a carbon hollow microsphere (CHM)-reinforced polydimethylsiloxane (PDMS) composite and systematically investigated the influence of CHM packing structure on its energy absorption performance. Through optimizing the controllable preparation processes of the CHMs, CHMs with low breaking rates and novel structural stability were successfully prepared. A vacuum-assisted mixing–casting method was employed to synthesize the CHM/PDMS composites with varying CHM contents (0~10 wt.%). The results demonstrated that the incorporation of CHMs significantly enhanced the compressive strength, compressive modulus, and energy absorption efficiency of the PDMS matrix. Under quasi-static loading, the composite with 4 wt.% CHM exhibited optimal comprehensive performance, achieving a 124.68% increase in compressive strength compared to pure PDMS. In dynamic impact tests, the compressive strength and energy absorption at a strain rate of 4500 s⁻¹ increased by 1245.09% and 1218.32%, respectively. The improvement of mechanical properties can be mainly attributed to the introduction of CHMs with an appropriate percentage, which can form a dense stacking structure so that the interaction force between the CHMs and PDMS matrix can be improved through the dense stacking effect, and the external force can be effectively dissipated through interface interaction, in addition to the energy dissipated by the deformation of the matrix deformation and crush of the CHMs. Additionally, the introduction of CHMs elevated the onset thermal decomposition temperature of the materials, leading to an enhanced thermal stability of the CHM/PDMS composite compared to that of the pure PDMS. Overall, this study provides theoretical and experimental foundations for designing lightweight impact-resistant materials and demonstrates the potential of CHM/PDMS composites for multifunctional safety protection. Full article

Objective: To investigate the neuroprotective effects of a Rho-associated kinase (ROCK) inhibitor on retinal ganglion cells (RGCs) in vitro and in vivo. Methods: For in vivo studies, a unilateral optic nerve crush mouse model was established. Then, 100 mM Y-27632 (a ROCK inhibitor) or saline was applied to the experimental eyes once a day for 14 days. The effects of the ROCK inhibitor were evaluated by counting the surviving RGCs in the enucleated flat retina tissues and measuring the inner retinal thickness using optical coherence tomography (OCT), the amplitude of the electroretinogram (ERG), and the change in intraocular pressure (IOP). For the in vitro study, RGCs were isolated from five-day-old mice using a modified immunopanning method with magnetic beads. The isolated RGCs were incubated for 72 h with various concentrations of Y-27632, after which TUNEL assays were performed to determine the number of surviving RGCs. Results: Y-27632 has neuroprotective effects, as it significantly increased the number of surviving RGCs by approximately 6.3%. OCT and ERG data also revealed that Y-27632 induced neuroprotective effects in vivo; furthermore, Y-27632 reduced IOP by approximately 18.3%. The in vitro study revealed the dose-dependent neuroprotective effects of Y-27632, with the highest dose of Y-27632 (1000 nM) increasing the RGC survival rate after 72 h of incubation compared with that of the control. Conclusions: The ROCK inhibitor Y-27632 may exert some neuroprotective effects on RGCs when it is used as an eye drop through an IOP-independent mechanism. Full article

The increasing demand for sustainable construction materials has driven research into low-carbon geopolymers that mitigate both cement-related emissions and plastic and glass waste accumulation. This study explores the development of geopolymer concrete incorporating fly ash (FA), slag (S), and FA + S blends, with 10% recycled crushed glass (RCG) and recycled plastic waste (RPW) as partial coarse aggregate replacements. Compressive strength testing revealed that FA + S-based geopolymers (25FA + S) with 100% ordinary Portland cement (OPC) replacement achieved a 7-day strength of 24.6 MPa, representing a 98% improvement over control specimens. Slag-based geopolymers demonstrated water absorption properties comparable to OPC, indicating enhanced durability. Microstructural analyses using SEM, XRD, and EDS confirmed the formation of a dense aluminosilicate matrix, with slag promoting FA reactivity and reinforcing interfacial transition zone (ITZ). These effects contributed to superior mechanical performance and water resistance. Despite minor shrinkage-induced cracking, full OPC replacement with S or FA + S geopolymers outperformed control specimens, consistently exceeding the target strength of 15 MPa required for low-impact, single-story housing applications within seven days. These findings underscore the potential of geopolymer systems for rapid and sustainable construction, offering an effective solution for reducing carbon footprints and repurposing industrial waste. Full article

Compared to traditional dense asphalt concrete mixtures, stone mastic asphalt (SMA) generally offers superior performance in terms of its mechanical resistance and extended pavement lifespan. Focusing on the Norwegian scenario, this laboratory-based study investigated the durability of SMA considering the influence of the aggregate shape and petrography. The rock aggregates were classified according to three different-shaped refinement stages involving vertical shaft impact crushing. Further, the aggregates were sourced from three distinct locations (Jelsa, Tau and Dirdal) characterized by different petrographic origins: granodiorite, quartz diorite and granite, respectively. Two mixtures with maximum aggregate sizes of 16 mm (SMA 16) and 11 mm (SMA 11) were designed according to Norwegian standards and investigated in terms of their durability performance. In this regard, two main functional tests were performed for the asphalt mixture, namely resistance against permanent deformation and abrasion by studded tyres, and one for the asphalt mortar, namely water sensitivity. Overall, the best test results were related to the aggregates sourced from Jelsa and Tau, thus highlighting that the geological origin exerts a major impact on SMA’s durability performance. On the other hand, the different aggregate shapes related to the crushing refinement treatments seem to play an effective but secondary role. Full article

Simulation is an important technical tool in corn threshing operations, and the establishment of the corn kernel model is the core part of the simulation process. The existing modeling method is to treat the whole kernel as a rigid body, which cannot be crushed during the simulation process, and the calculation of the crushing rate needs to be considered through multiple criteria such as the contact force, the number of collisions, and so on. Aiming at the issue that kernel crushing during maize threshing cannot be accurately modeled in discrete element simulations, in this study, a sub-area crushing model was constructed; representative samples with 26%, 30% and 34% moisture content were selected from a double-season maturing region in China; based on the physical dimensions and biological structure of the maize kernel, three stress regions were defined; and mechanical property tests were conducted on each of the three stress regions using a texturometer as a way to determine the different crushing forces due to the heterogeneity of the maize structure. The correctness of the model was verified by stacking angle and mechanical property experiments. A discrete element model of corn kernels was established using the Bonding V2 method and sub-area modeling. Bonding parameters were calculated by combining stacking angle tests and mechanical property tests. The flattened corn kernel was used as a prototype, and the bonding parameters were determined through size and mechanical property tests. A 22-ball bonding model was developed using dimensional parameters, and the kernel density was recalculated. Results showed that the relative error between the stacking angle test and the measured mean value was 0.31%. The maximum deviation of axial compression simulation results from the measured mean value was 22.8 N, and the minimum deviation was 3.67 N. The errors between simulated and actual rupture forces at the three force areas were 5%, 10%, and 0.6%, respectively. The decreasing trend of the maximum rupture force for the three moisture levels in the simulation matched that of the actual rupture force. The discrete element model can accurately reflect the rupture force, energy relationship, and rupture process on both sides, top, and bottom of the grain, and it can solve the error problem caused by the contact between the threshing element and the grain line in the actual threshing process to achieve the design optimization of the threshing drum. The modeling method provided in this study can also be applied to breakable discrete element models for wheat and soybean, and it provides a reference for optimizing the design of subsequent threshing devices. Full article

Concrete is a cornerstone material in the construction industry owing to its versatile performance; however, its inherent brittleness, low tensile strength, and poor permeability resistance limit its broader application. Graphene, with its exceptional thermal conductivity, stable lattice structure, and high specific surface area, presents a transformative solution to these challenges. Despite its promise, comprehensive studies on the multifunctional properties and underlying mechanisms of graphene-enhanced concrete remain scarce. In this study, we developed a novel concrete composite incorporating cement, coarse sand, crushed stone, water, and graphene, systematically investigating the effects of the graphene dosage and curing duration on its performance. Our results demonstrate that graphene incorporation markedly improves the material’s density, brittleness, thermal conductivity, and permeability resistance. Notably, a comprehensive analysis of scanning electron microscopy (SEM) images and thermogravimetric (TG) data demonstrates that graphene-modified concrete exhibits a denser microstructure and the enhanced formation of hydration products compared to conventional concrete. In addition, the graphene-reinforced concrete exhibited a 44% increase in compressive strength, a 0.7% enhancement in the photothermal absorption capacity, a 0.4% decrease in maximum heat release, a 0.8% increase in heat-storage capacity, and a 200% reduction in the maximum penetration depth. These findings underscore the significant potential of graphene-reinforced concrete for advanced construction applications, offering superior mechanical strength, thermal regulation, and durability. Full article
