Search Results (397)

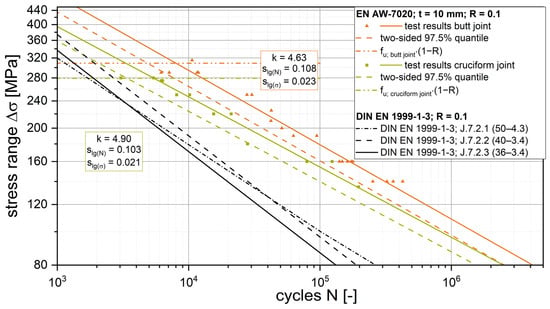

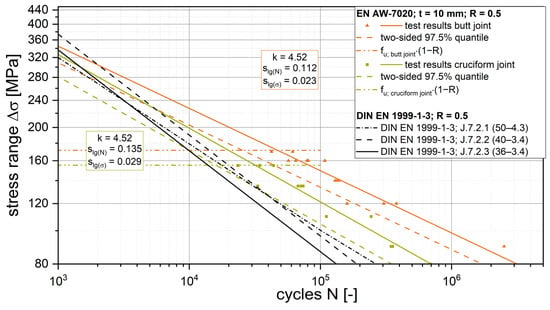

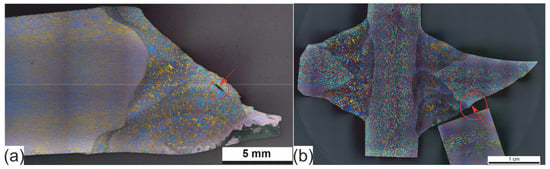

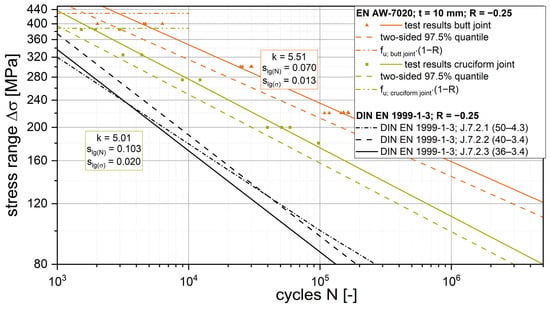

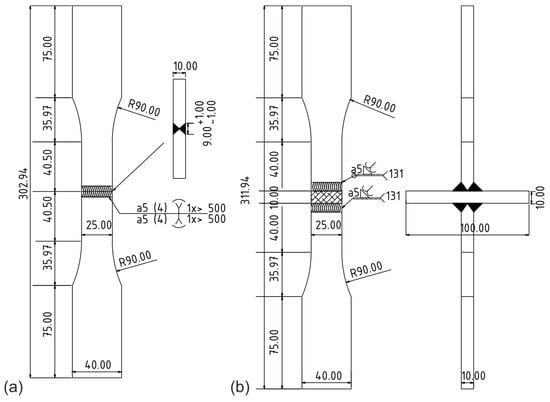

The cyclic performance of welded aluminum joints is crucial for the load-bearing capacity and durability of lightweight structural applications, particularly under low-cycle fatigue (LCF) conditions. Reliably assessing such behavior is essential to applying and further developing design standards, such as EN 1999-1-3. This paper presents the results of an experimental study of welded EN AW-7020 aluminum joints that were subjected to constant-amplitude loading with varying stress ratios. Fatigue tests were conducted on butt welds and cruciform joints with stress ratios ranging from R = −0.25 to R = 0.5. The resulting S–N curves were evaluated and compared with the corresponding detail categories according to EN 1999-1-3. The results demonstrate a clear dependence of fatigue strength on the applied stress ratio; increasing mean stress reduces the allowable stress range. For all configurations investigated, the experimental fatigue strength exceeds the standardized design curves, indicating a generally conservative assessment within the current design framework. However, the influence of the stress ratio is not adequately captured; significant scatter is observed due to local effects in the welded region, especially in the heat-affected zone. The derived fatigue parameters were integrated into the Aluminum Fatigue Database (Alfabet), which was expanded in this study by combining new experimental results with existing literature data. These findings highlight the limitations of the nominal stress concept in the LCF regime and contribute to developing more accurate, material-specific fatigue design approaches. Full article

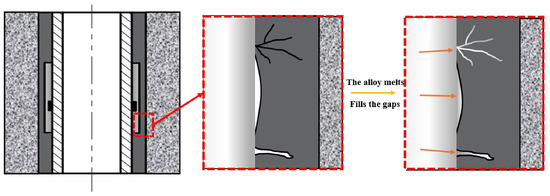

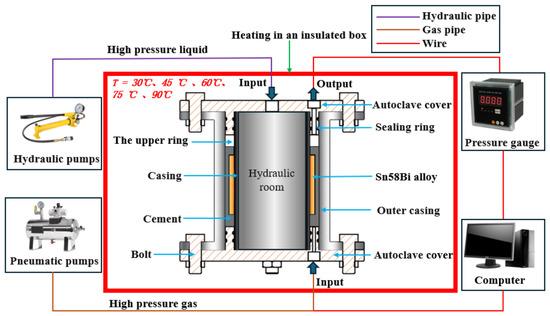

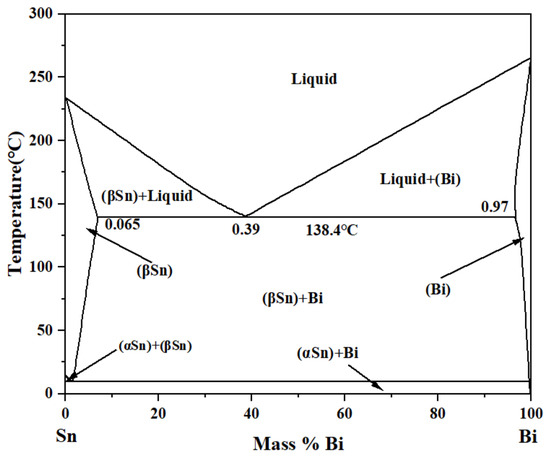

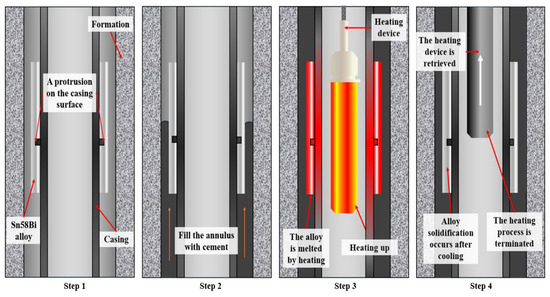

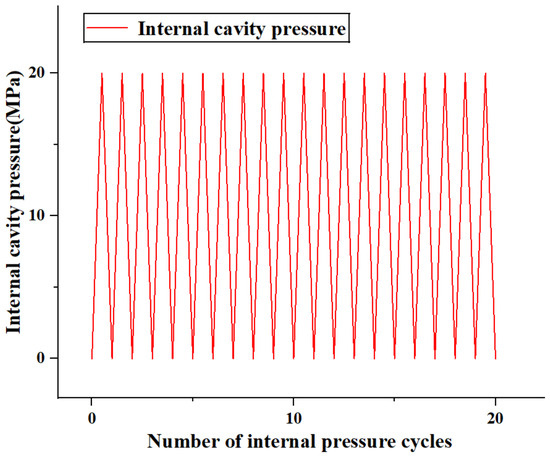

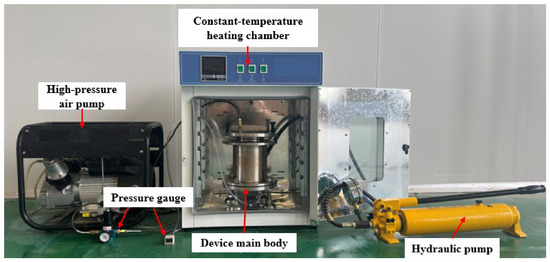

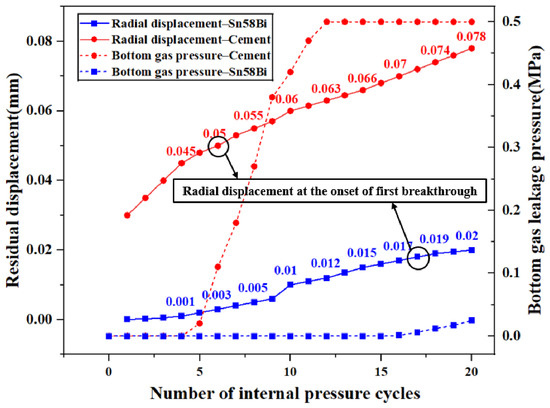

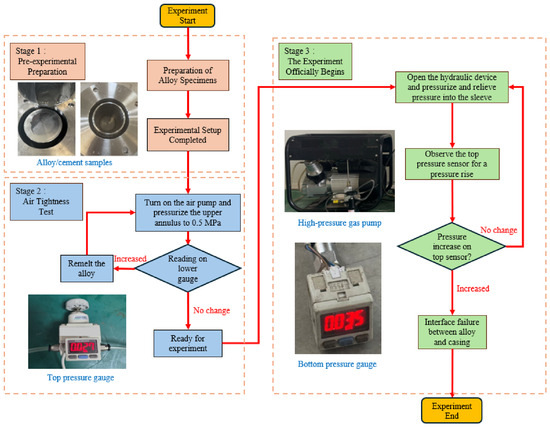

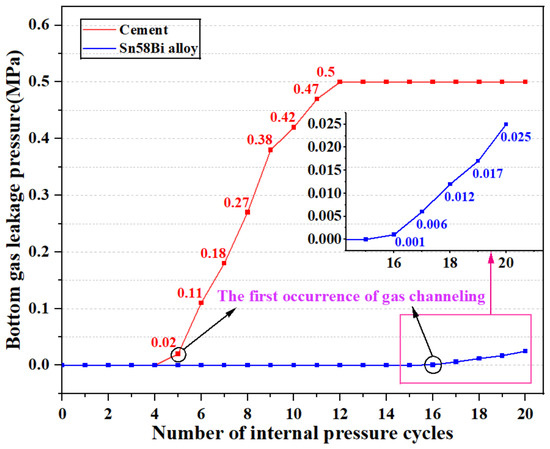

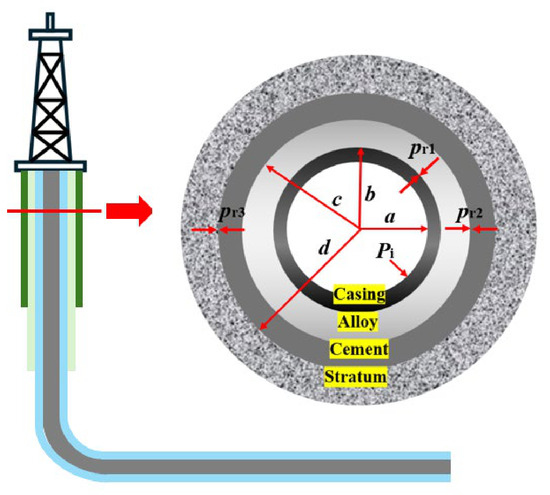

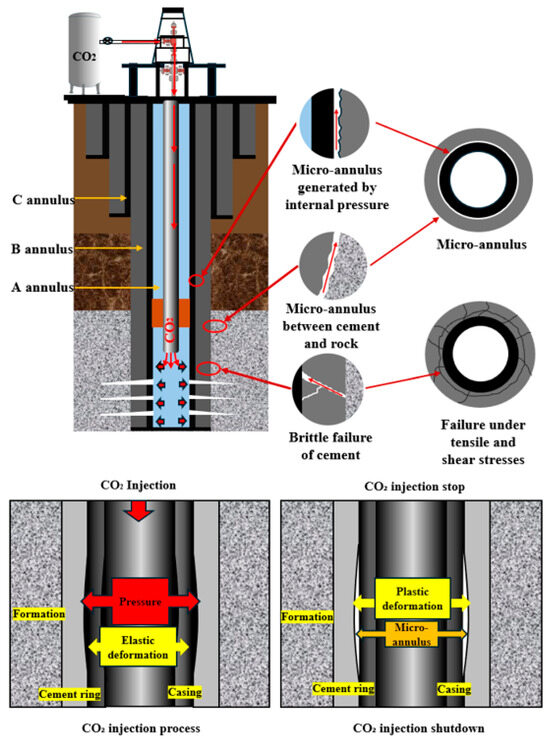

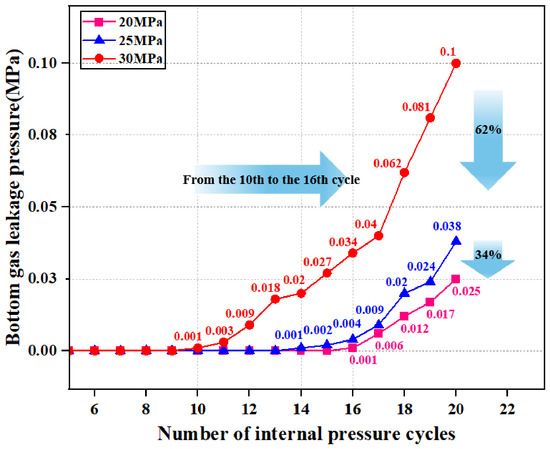

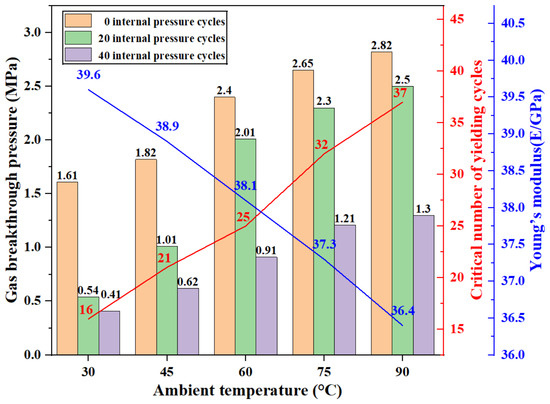

In geological carbon storage, cyclic casing loading can induce micro-annuli in the B-annulus cement sheath, risking CO₂ leakage. Compared with conventional cement, the Sn58Bi low-melting-point alloy boasts excellent flowability and favorable elastoplastic behavior, emerging as a promising sealing alternative. This study focuses on enhancing wellbore integrity by using Sn58Bi alloy to seal the B-annulus cement sheath. An experimental system was established to simulate micro-annulus evolution, with gas migration tests conducted under cyclic internal pressure to systematically evaluate the effects of temperature and cyclic loading on the alloy’s sealing performance. Additionally, a three-layer casing–annulus–formation coupling model was constructed to investigate the radial displacement of the Sn58Bi alloy sheath and cement sheath at 30 °C and 20 MPa casing pressure, clarifying their distinct mechanical responses. Results show that the alloy’s sealing performance improves with temperature (30–90 °C), while elevated cyclic internal pressure accelerates gas breakthrough and reduces sustainable cycles. Under identical conditions (30 °C, 20 MPa), Sn58Bi alloy exhibits significantly superior CO₂ sealing capacity to conventional cement. This study confirms the alloy’s potential for enhancing wellbore integrity and provides theoretical support for its application in B-annulus plugging during subsurface carbon storage. Full article

Aero-engine blades operate under extreme conditions involving high temperature, pressure, rotational speed, and cyclic loads, making them susceptible to surface defects such as micro-cracks. Due to their small scale, weak edges, low contrast, and elongated morphology, micro-cracks are easily affected by metallic reflections, uneven illumination, and complex background textures in borescope images, resulting in high missed-detection rates for conventional detection methods. To address these challenges, this study proposes an improved YOLO11-based framework for aero-engine blade micro-crack detection. The proposed method introduces P1/P2 shallow high-resolution detection branches to enhance the perception of fine crack edges and textures, incorporates Focal Loss to alleviate foreground–background imbalance, applies object-level Tversky Loss to strengthen false-negative constraints, and adopts a hard mining strategy to improve learning for difficult crack samples. Experiments conducted on a real aero-engine borescope image dataset demonstrate that the proposed model achieves a Precision of 0.9981, Recall of 0.9606, F1-score of 0.9790, mAP50 of 0.9781, and mAP50-95 of 0.6938 on an independent test set. Compared with the YOLO11 baseline, the proposed method significantly improves crack detection accuracy, localization quality, and robustness in complex borescope inspection scenarios. Full article

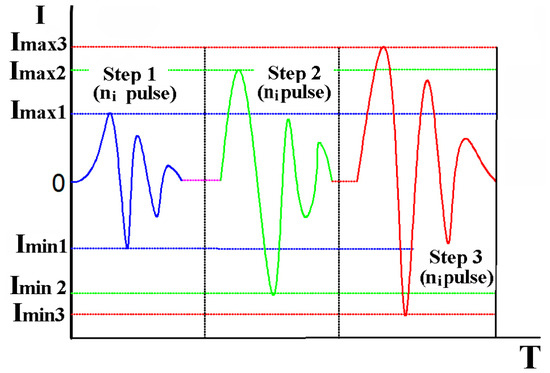

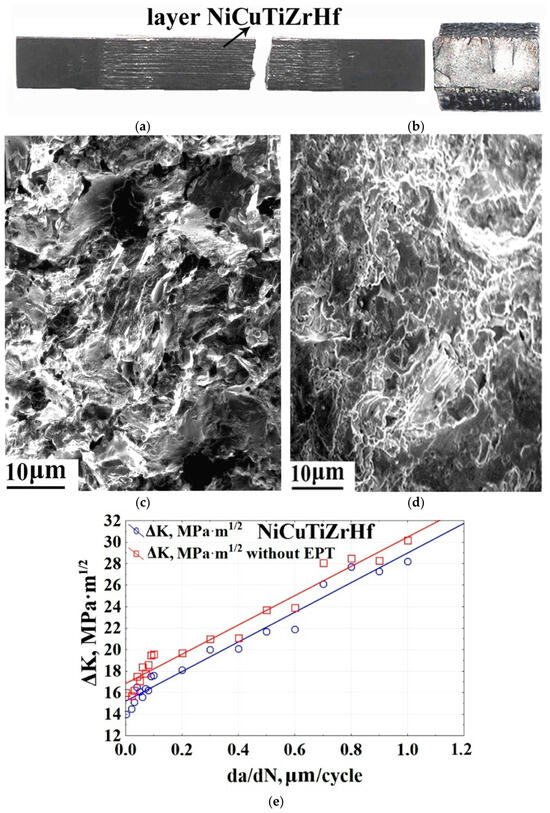

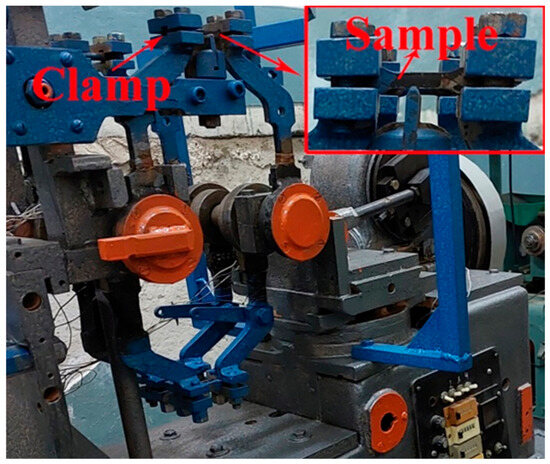

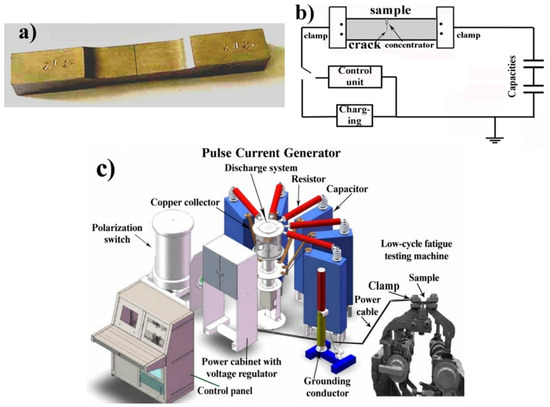

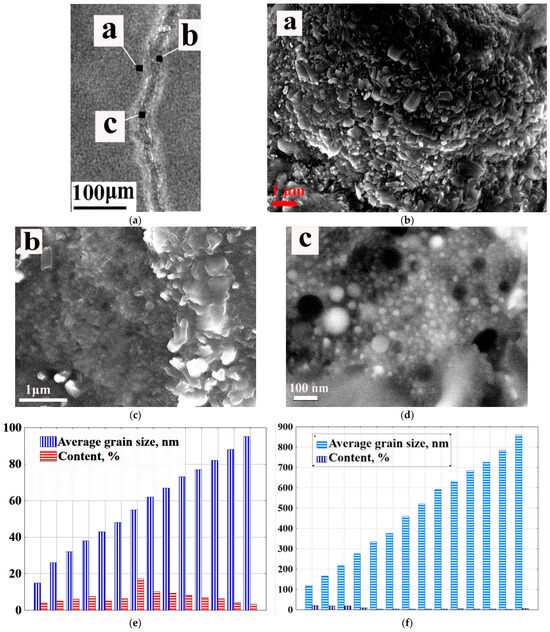

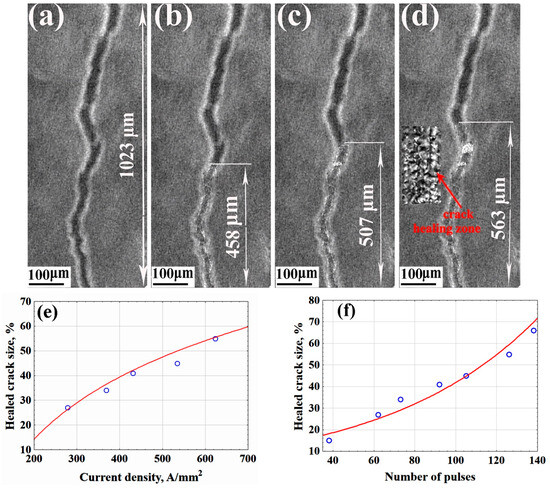

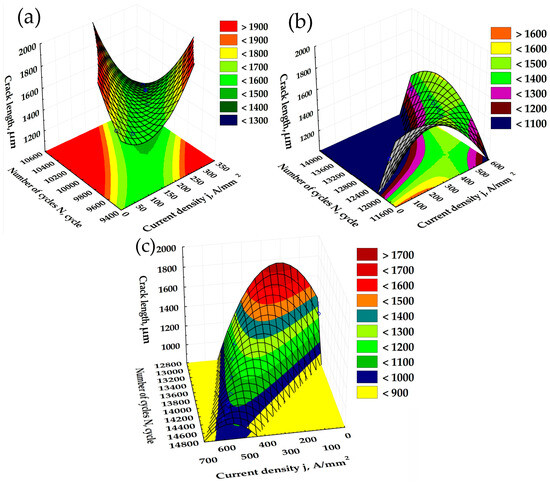

Reduced service life of components, units, and assemblies operating under extreme conditions, characterized by high cyclically varying stresses, remains a significant issue. The present work addresses this problem by enhancing the reliability and cyclic durability of materials through electric pulse force intensification. As a result of the study, appropriate equipment for electric pulse force intensification was selected. A technology for electric pulse force intensification was developed, and process parameters such as current strength, current density, and pulse duration were optimized. Using statistical analysis of experimental data, 3D models were created, and empirical mathematical equations were derived to describe the influence of key process parameters on the cyclic durability of materials. The geometric parameters of cracks were examined during cyclic durability tests under bending with low-cycle loading, both before and after electric pulse activation. Using SEM, we studied the material structure in the crack region, revealing that pulsed electric current enhances cyclic life by “partial healing” of structural defects. Statistical modeling produced empirical equations expressing the relationships between various characteristics. The mechanism of defect partial healing in materials subjected to electric pulses was described, and the impact of electric pulse activation on samples was evaluated. This demonstrated the potential to fully restore a component’s service life after cyclic loading at 80% of its ultimate limit. Full article

Reinforced concrete (RC) infilled frames are widely used structural systems; however, seismic design provisions often idealize masonry infill as non-structural, leading to uncertainty in performance assessment. This study experimentally and numerically investigates the role of unreinforced masonry infill in RC frames, focusing on load-transfer mechanisms, strain evolution, and energy redistribution. Two 2/3-scale single-bay, single-storey RC frames (bare and fully infilled) were tested under constant axial load and quasi-static reversed cyclic lateral loading. Reinforcement strain gauges were used to capture local deformation demands, and a nonlinear macro-model was developed and validated against experimental results. Results show that the presence of masonry infill significantly increases ultimate strength, initial stiffness, and energy dissipation capacity, in comparatively more brittle post-peak cyclic behavior and accelerated stiffness degradation that leads to more abrupt post-peak degradation. Strain measurements provide clear evidence of a staged interaction mechanism: at low drift levels, the infill governs lateral resistance through diagonal compression strut action, limiting reinforcement demand in the frame; with increasing drift, progressive cracking and crushing of the infill promote a gradual transfer of forces to the RC frame, reflected by increasing reinforcement strains and stiffness degradation. At higher drift levels, the system transitions to frame-dominated behavior with localized strain concentration and shear failure at column bases or joints. These findings demonstrate that infill significantly modifies structural response and highlight the importance of incorporating strain-based mechanisms in the seismic assessment of infilled RC frames. Full article

Argillaceous siltstone is widely distributed along expressways in southern China; however, its strong water sensitivity and slaking properties severely restrict its utilization as subgrade fill, particularly under wet–dry cyclic conditions where bearing capacity deteriorates sharply. Existing studies have predominantly focused on mechanical performance evaluation of stabilizers, while systematic comparisons of lime and cement improvement effects and durability evolution under wet–dry cycles remain insufficiently understood. Drawing on the Yongjin Expressway reconstruction and expansion project, this study systematically investigates the durability of lime- and cement-improved argillaceous siltstone fill. Through unconfined compressive strength (UCS) tests, California bearing ratio (CBR) tests, and five wetting–drying cycles, the evolution differences in strength development, water stability, and durability between the two improvement schemes are revealed. Results indicate that, under identical stabilizer contents (3–7%) and curing conditions, the UCS and CBR of cement-improved soil are significantly higher than those of lime-improved soil. At the same dosage, the strength of cement-improved soil is approximately 1.5–1.7 times that of lime-improved soil, and the absolute strength gap further widens with increasing dosage. Both stabilizers effectively inhibit water immersion swelling, but the swelling rate of lime-improved soil is about 1.3–1.5 times that of cement-improved soil at the same dosage. At 7% dosage, the swelling rates of cement- and lime-improved soils decrease to 0.40% and 0.60%, respectively, both meeting subgrade fill swelling control requirements. After five wet–dry cycles, the UCS retention rate of 7% cement-improved soil is 78.3%, while that of lime-improved soil is 69.0%; the residual strengths are 507.0 kPa and 303.6 kPa, respectively, both satisfying general subgrade engineering strength requirements. However, the 3% lime-improved soil declines to 47.5 kPa after cycling, falling below the engineering threshold. Integrating strength, deformation, and durability indices, high-grade highway roadbeds and other high-load-bearing sections should prioritize 7% cement improvement, whereas general subgrade sections and locations emphasizing crack resistance may adopt 7% lime improvement as an alternative. Low-dosage (<5%) lime improvement is not recommended for argillaceous siltstone subgrade engineering. The findings provide a scientific basis for the engineering application of argillaceous siltstone as subgrade fill and for optimization of improvement schemes. Full article

The mechanical behavior of lead/rubber bearings (LRBs) is strongly influenced by both ambient temperature and hysteretic heating under seismic loading; however, their coupled effects and underlying mechanisms remain insufficiently understood. This study presents a systematic investigation of the thermo-mechanical response of LRBs through combined experimental and numerical approaches. Dynamic cyclic tests were conducted on full-scale LRBs (700 mm in diameter) over a wide range of ambient temperatures, revealing that ambient temperature and hysteretic heating jointly govern the evolution of key mechanical properties, including stiffness, characteristic strength, and energy dissipation capacity. Specifically, decreasing temperature leads to stiffness and strength enhancement, whereas hysteretic heating induced by cyclic plastic deformation of the lead core results in progressive softening and degradation of restoring force. Based on the experimental observations, a modified uniaxial Bouc–Wen constitutive model is developed, incorporating the coupled effects of ambient temperature, hysteretic heating, and large-strain hardening. The proposed model is implemented in a single-degree-of-freedom (SDOF) base-isolated system to evaluate the seismic response under different temperature conditions. The results reveal a competing mechanism between ambient temperature and hysteretic heating: low temperatures tend to increase base shear and reduce displacement, while hysteretic heating produces the opposite effect, with their relative dominance depending on temperature level and ground motion intensity. Neglecting such thermo-mechanical coupling may lead to significant misestimation of structural response, particularly under long-duration strong ground motions. This study provides new insights into the coupled temperature-dependent behavior of LRBs and establishes a robust modeling framework for the seismic analysis and design of isolation systems under complex service conditions. Full article

The seismic design of spatial joints in long-span concrete-filled steel tube (CFST) arch bridges under complex stresses remains a critical challenge in high-intensity seismic zones. This study investigates the seismic performance and failure mechanisms of CFST spatial KT-type joints, using the Pingnan No. 3 Bridge as a case study. Based on similarity theory, four scaled test specimens were designed. The core variable was the axial compression ratio of the main pipe, while the load on the K-branch served as the parametric variable. Quasi-static tests were conducted under constant static loading on the main pipe and K-branches, coupled with low-cycle cyclic loading on the T-branch. Furthermore, nonlinear finite element analysis (FEA) was performed using Abaqus for cross-validation. The results indicate that the primary failure mode of this joint configuration is the shear-punching failure of the main pipe wall at the T-branch intersection. The load–displacement hysteresis curves exhibit a robust “bow-shaped” profile, indicating substantial plastic energy dissipation capacity. Comparative analysis confirms that hollow steel pipe T-branches offer superior ductility in long-span arch bridges compared to concrete-filled alternatives. By extracting shear stress distribution characteristics from the FEA model to precisely locate the neutral axis, this study proposes a theoretical correction to the ultimate load-carrying capacity calculation model. The derived theoretical values demonstrate good agreement with the experimental results. The relative errors between the calculated and experimental bearing capacities of KT783a, KT783, KT700, and KT607 were 1.99%, 0.23%, 2.26%, and 2.45%, respectively, referring to the T-branch out-of-plane bearing capacity predicted by the proposed formula. The proposed theoretical model provides a reliable quantitative basis for the seismic design and local strengthening of similar spatial joints in long-span CFST arch bridges. Full article

This study develops a ternary Fe-based geopolymer system composed of metakaolin (MK), red mud (RM), and fly ash (FA) for the preparation of sustainable water-retaining subgrade materials for sponge-city roadbed applications. Unlike conventional formulations primarily designed for structural strength or rapid permeability, the proposed MK–FA–RM system was designed to improve water-storage capacity while maintaining adequate mechanical support and environmental compatibility. In this ternary system, MK provides highly reactive aluminosilicate species for geopolymer network formation, RM introduces Fe-bearing phases and enhances industrial solid-waste utilization, and FA contributes to particle packing, workability, and resource efficiency. A constrained ternary mixture design implemented using Design-Expert software was adopted to optimize precursor proportions. Within the investigated compositional range, the fitted first-order mixture model showed acceptable statistical adequacy for preliminary composition screening (R² = 0.86). The optimal blend (60% MK, 30% RM, and 10% FA) achieved a 7-day compressive strength of 8.37 MPa and a water retention rate of 35.3% under ambient curing conditions, satisfying the strength requirement considered for the target subgrade/base-layer application. Microstructural and phase analyses suggest that the synergistic interaction of the three precursors promoted Fe-modified aluminosilicate gel formation together with conventional geopolymer gel products, while improving matrix continuity and preserving interconnected pore space for water storage. This multiscale structural effect helps explain how the material achieved a balance between water retention capacity and mechanical support. Under the tested conditions, the material maintained acceptable residual strength after short-term exposure to water, acid, and sulfate-containing solutions. Life-cycle assessment indicated a 70% reduction in CO₂ emissions compared with ordinary Portland cement, while pilot-scale cost analysis showed a 39% lower production cost than MetaMax-based geopolymer materials. Pilot-scale application further demonstrated the constructability and water-regulation potential of the material in practical environments. Overall, the proposed ternary Fe-based geopolymer demonstrates that Fe-rich industrial wastes can be engineered into low-carbon and economically viable water-retaining subgrade materials that balance hydraulic regulation, structural adequacy, and sustainability. Nevertheless, long-term durability, cyclic loading performance, and direct nanoscale characterization of Fe-bearing gel evolution still require further investigation. Full article

Hydrogen transport under high-pressure conditions poses significant challenges for pipeline materials and structural design. Existing studies on PA12-based systems are primarily limited to material-level characterization, with insufficient validation at the pipeline scale. To address this gap, this study presents the design and system-level experimental validation of an all-thermoplastic composite hydrogen pipeline. A full-scale DN50 pipeline, consisting of a PA12 liner and a ±54° filament-wound carbon fiber-reinforced layer, was fabricated and tested under hydrogen pressures up to 10 MPa, including long-term exposure and cyclic loading. The results indicate stable deformation behavior and low hydrogen permeation (~10⁻¹⁴ mol·m/(m²·s·Pa)) within the investigated pressure range, with a burst pressure exceeding 60 MPa. A transition from stable to accelerated deformation was identified at elevated pressure, indicating a structural operating limit. Post-test observations reveal that interlaminar damage, rather than primary interface failure, governs long-term degradation. Based on these findings, a design framework integrating stress-based, deformation-based, and damage-based criteria is proposed. This work extends PA12-based hydrogen pipeline research from material-level understanding to system-level validation and provides practical guidance for structural design and performance evaluation. Full article

The prefabricated polyurethane-solidified track bed (PPSTB) combines the adjustability of ballasted tracks with the low maintenance requirements of slab tracks, offering a promising solution for railway sections on deformable foundations. This study investigates the interaction and mechanical behaviors of the polyurethane-solidified ballast (PSB) modules and bulk ballast under laboratory loading. A series of unconfined uniaxial tests, confined ballast box tests, and cyclic loading tests were conducted, complemented by discrete element method (DEM) simulations to analyze mesoscopic particle evolution. Under monotonic compression, the stress–strain curve exhibits three distinct stages with an average elastic modulus of 19.66 MPa, where the central aggregate framework acts as the primary load-bearing structure. Confinement increases the modulus by 33.57% and yields a nearly linear stress–strain relationship, attributed to a more compact and uniform contact distribution. Furthermore, under cyclic loading, the PSB shows enhanced energy dissipation and deformation resistance compared to conventional ballast. These findings provide a theoretical basis for the structural design and long-term performance assessment of the PPSTB. Full article

This paper investigates the low-cycle behaviour of Concrete-Filled steel Tubes (CFTs) subjected to cyclic pure bending, a loading condition representative of large bridge and building girders. A 3D finite element model is developed in Abaqus/Explicit, combining a ductile damage law for the steel tube and Concrete-Damaged Plasticity for the infilled concrete, and is calibrated against large-scale cyclic bending tests on circular and square CFT beams. An automated Python scripting framework is then used to perform a systematic parametric study on members made of standard code-based materials, varying diameter-to-thickness ratio and span length over a wide range of practical configurations. Constant-amplitude chord rotations are imposed, and the nonlinear response is tracked in the plastic range while material damage evolves. The hysteretic behaviour is quantified in terms of cumulative plastic strains, dissipated energy and the degradation of reaction force and bending moment after 25 cycles. The results show that geometric parameters strongly affect the cyclic response: within the investigated loading layer, configurations with $D_e=100$ mm generally exhibit strength degradation values between about 10% and 60%, whereas for $D_e=400$ mm the degradation typically ranges between 50% and 100%, with most cases falling in the moderate-to-severe degradation domain. At the same time, larger diameters and thicker tubes generally lead to an increase in dissipated energy, while longer members tend to show lower energy dissipation but also reduced degradation. The study therefore provides a reproducible computational framework and comparative performance trends for the assessment of low-cycle cyclic response in CFT beams under a prescribed loading protocol. Full article

The purpose of this paper is to investigate the seismic damage performance levels of reinforced concrete (RC) external beam–column joints exhibiting beam flexural failure mode based on acoustic emission (AE) characteristics. To achieve this purpose, two specimens of RC external beam–column joints with beam flexural failure mode were tested under constant axial compression at the column and low-cyclic lateral loading at the end of the beam. During the tests, six AE-based indicators—namely AE hit ($H_{\mathrm{AE}}$), AE energy ($E_{\mathrm{AE}}$), AE count ($C_{\mathrm{AE}}$), amplitude ($A_{\mathrm{AE}}$), rise time (RT), and peak frequency ($f_{\mathrm{p}}$)—were measured using the PCI-2 Acoustic Emission System equipped with R6$\alpha$ piezoelectric sensors. In addition, five damage performance levels, i.e., no damage, minor damage, medium damage, serious damage, and collapse, were proposed based on the analysis of AE monitoring results. After calibration, the fiber finite element method was used to conduct a numerical simulation of 432 joints subjected to lateral loading. An empirical expression for the material parameter of the Park–Ang damage model was presented based on simulated results. Suggested five damage performance levels were used together with a response databank from the numerical analysis to obtain the limit damage values. This work provides a quantitative AE-based framework for seismic damage assessment of RC external beam–column joints with beam flexural failure mode, which can inform performance-based seismic design and post-earthquake safety evaluation. Full article

Background: The wear resistance of modern commercial glass-ceramic materials used in dental prostheses was investigated under cyclic contact conditions that included a rotational component. This loading mode has been largely overlooked in conventional in vitro wear testing, yet may be clinically relevant in patients with parafunctional conditions such as bruxism. Methods: Rotational loading was applied using an all-electric testing machine equipped with a biaxial actuator. Loading cycles combined a normal load (50 N) and a rotation (30°), at a frequency of 1 Hz. Microstructure and damage were characterized using advanced microscopy. Results: Rotational loading induced substantial damage across this class of materials, including the formation of glassy tribolayers with limited protective capability under the low-humidity conditions examined. Significant microstructure-dependent variations in wear volume were observed, with specific wear rates indicating severe wear (SWR above 10⁻⁶ mm³/N·m threshold) in three of the five materials tested. Lithium disilicate glass-ceramics, characterized by a high fraction of elongated reinforcement crystals, exhibited the greatest resistance to damage, whereas leucite-based glass-ceramics showed the lowest. The dominant wear mechanisms were plastic-deformation-induced grooving and fracture-driven chipping. The findings are interpreted within established wear models for brittle materials (Archard and fracture-based) and supported by numerical simulations of stress fields across multiple length scales. Implications: The results provide mechanistic insight into rotational wear damage in glass-ceramic systems, a material class particularly susceptible to such loading, and inform strategies for material selection and microstructural design aimed at improving prosthetic durability. Full article

The escalating global demand for sustainable and disaster-resilient housing has renewed interest in bamboo-based construction systems, particularly composite bamboo shear wall (CBSW) panels as low-carbon alternatives to conventional materials. Despite their potential, systematic data on the shear performance of such panels remains limited, especially regarding the influence of cross-bracing on strength, stiffness, ductility, dissipated energy, and damage behavior under lateral loading. This study addresses this gap through experimental characterization of full-scale CBSW panels. Two configurations, with (WT1) and without (WT2) flat steel bar cross-bracing, were tested under monotonic and cyclic loading. WT1 panels consistently exhibited a higher characteristic shear strength and capacity, and initial stiffness than WT2. WT2 panels showed greater ductility through more distributed deformation. Both configurations displayed gradual strength deterioration post-peak. The Energy Equivalent Elastic–Plastic (EEEP) method yielded higher and more conservative estimates of yield load and displacement compared to the conventional approach. These findings demonstrate that CBSW panels, particularly WT1, offer viable lateral resistance for low-rise structures in seismic-prone regions. Full article
