Experimental Characterization of Composite Bamboo Shear Wall Panels Under Monotonic and Cyclic Loading

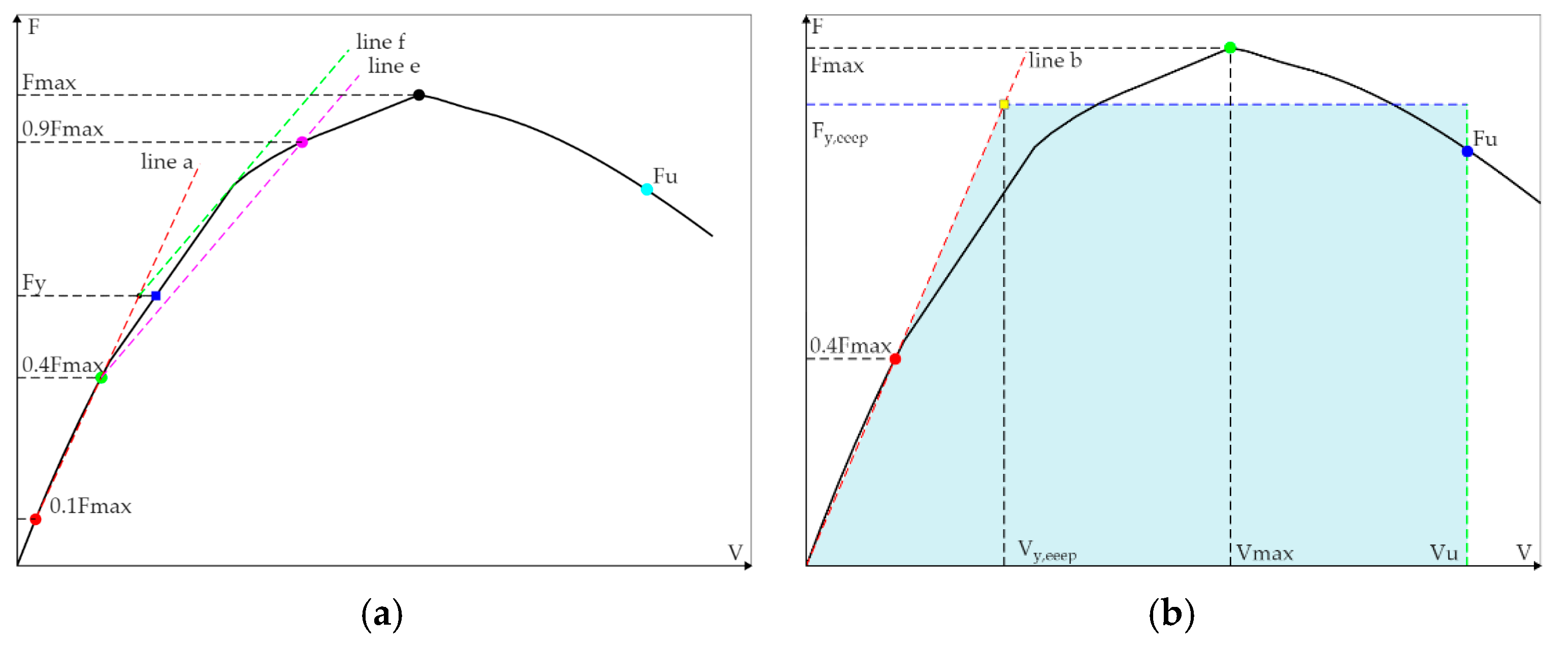

The escalating global demand for sustainable and disaster-resilient housing has renewed interest in bamboo-based construction systems, particularly composite bamboo shear wall (CBSW) panels as low-carbon alternatives to conventional materials. Despite their potential, systematic data on the shear performance of such panels remains limited, especially regarding the influence of cross-bracing on strength, stiffness, ductility, dissipated energy, and damage behavior under lateral loading. This study addresses this gap through experimental characterization of full-scale CBSW panels. Two configurations, with (WT1) and without (WT2) flat steel bar cross-bracing, were tested under monotonic and cyclic loading. WT1 panels consistently exhibited a higher characteristic shear strength and capacity, and initial stiffness than WT2. WT2 panels showed greater ductility through more distributed deformation. Both configurations displayed gradual strength deterioration post-peak. The Energy Equivalent Elastic–Plastic (EEEP) method yielded higher and more conservative estimates of yield load and displacement compared to the conventional approach. These findings demonstrate that CBSW panels, particularly WT1, offer viable lateral resistance for low-rise structures in seismic-prone regions.
