Search Results (10)

Probabilistic models of glued laminated timber are a required input to structural reliability analysis, and the JCSS Probabilistic Model Code is the reference most analyses adopt without independent verification. This paper reports an experimental programme of 61 small clear-wood specimens of GL24h glulam produced in Croatia, cut from three parent elements from one producer, delivered together as a single lot, covering bending, tension and compression parallel to grain, shear of wood and of the adhesive line, compression perpendicular to grain, and finger joints in tension and bending. All eight strength properties are tested against the reference model with confidence intervals and a family-wise error correction across the eight comparisons. Exactly one deviation survives: the coefficient of variation (COV) of tensile strength parallel to grain is 0.339 against the reference 0.180, with a Holm-adjusted p = 0.0064; no other property is distinguishable from the reference. The measured density COV of 0.026, against a reference value of 0.10, shows directly that the specimens are a cluster sample from three parent elements rather than independent draws from the GL24h population, which makes the elevated tensile scatter the more notable, since clustering suppresses observed variability rather than inflating it. The reliability consequence is then shown to depend on an assumption usually left implicit. Holding the characteristic value at the declared 19.2 MPa, as grading enforces, the reliability index of a tension-critical element falls from 3.30 to 3.09; holding the mean constant, it falls to 2.41. The absolute values depend on the load-duration class assumed for snow, but the contrast between the two treatments does not. Carrying the sampling uncertainty of the COV estimate through the calculation lowers these to predictive values of 2.88 and 1.82. The conclusion is correspondingly narrow: elevated tensile variability matters for the assessment of existing structures, where the mean is measured rather than declared, and for reliability studies that adopt generic parameters and vary only dispersion; it matters little where grading against a fractile is active. Full article

The precise segmentation of small-sized defects on wood surfaces is critical for the quality grading of glued laminated timber (GLT). Existing semantic segmentation models face core bottlenecks in this context: high miss rates, blurred boundary localization, and excessive size measurement errors. To address these issues, this paper proposes an improved Defect-Mask2Former model that integrates an Attention-Guided Pyramid Enhancement (AGPE) module and a Defect Boundary Calibration and Correction (DBCC) module. Through synergistic optimization, the model achieved pixel-level precise segmentation. To support model training and validation, a custom image acquisition device was designed, and the PlankDefSeg dataset was constructed, comprising 3500 pixel-level annotated images covering five defect types across six industrial wood species. Experimental results demonstrate that on the PlankDefSeg dataset, Defect-Mask2Former achieved a mean Intersection over Union (mIoU) of 85.34% for small-sized defects, a 17.84% improvement over the baseline Mask2Former. The miss rate was reduced from 20.78% to 5.83%, and the size measurement error was only 2.86%, strictly meeting the ≤3% accuracy requirement of the GB/T26899-2022 standard. The model achieved an inference speed of 27.6 FPS, satisfying real-time detection needs. By integrating the model into the GLT grading workflow, a grading accuracy of 94.3% was achieved, and the processing time per timber was reduced from 30 s to 1.5 s, a 20-fold efficiency improvement. This study provides reliable technical support for intelligent GLT quality grading and offers a reference solution for other industrial surface defect segmentation tasks. Full article

This study examines the mechanical performance of small-sized glued-laminated timber (GLT) produced from low-quality oak (Quercus spp.) lamellae and veneer arranged in 2–5 layers. After both non-destructive and bending tests, density, modulus of rupture, deflection and modulus of elasticity by static and dynamic methods were evaluated. Average densities ranged from 747 to 777 kg/m³. The two- and three-layer GLTs exhibited modulus of rupture values of 59.0 MPa and 63.7 MPa, while the four- and five-layer specimens reached 80.4 MPa and 80.0 MPa, respectively—up to 36% higher due to veneer reinforcement on the tension side. Static modulus of elasticity ranged between 11.2 and 12.1 GPa, and dynamic modulus of elasticity reached 13.0 GPa. The findings demonstrate that multi-layer configurations with veneer reinforcement effectively enhance bending performance and reliability, promoting the structural application potential of low-grade hardwood in accordance with EN 14080. Full article

This paper focuses on analysing the structural performance of fast-grown hardwood versus softwood glued laminated timber (GLT or glulam) beams with the aim to evaluate the potential structural use of the two main species planted in the country. In Uruguay, the first forest plantations date from the 1990s and are comprised mainly of Eucalyptus ssp. and Pinus spp. No one species were planted for a specific industrial purpose. However, while eucalyptus was primarily destined for the pulp industry, pine, which is now reaching its forest rotation, had no specific industrial destination. Timber construction worldwide is mainly focused on softwood species with medium and long forest rotation. The objective of the present work is, therefore, to analyse and compare the potential of eucalyptus (Eucalyptus grandis) and loblolly/slash pine (Pinus elliottii/taeda) to produce glulam beams for structural purposes. Experimental tests were made on sawn timber and GLT beams manufactured under laboratory conditions for both species. The relationship between the physical and mechanical properties of sawn timber showed that, for similar characteristic values of density (365 kg/m³ for pine and 385 kg/m³ for eucalyptus), and similar years of forest rotation (20–25 years for pine and around 20 years for eucalyptus) and growth rates, the structural yield of eucalyptus was higher compared to that of pine. The superior values of modulus of elasticity found in the hardwood species explained this result. Since there is no strength classes system for South American wood species, the European system was the basis for estimating and assigning theoretical strength classes from the visual grades of Uruguayan timbers. For sawn timber, a C14 strength class for pine and C20 for eucalyptus were assigned. Results showed that pine GLT could be assigned to a strength class GL20h, and eucalyptus glulam to GL24h and GL28h, demonstrating the potential of both species for producing glulam beams. Even though eucalyptus showed a better yield than pine, the technological process of manufacturing eucalyptus glulam was more challenging in terms of drying time and gluing than in the case of pine, which derivates in higher economic costs. Full article

Cross-laminated timber (CLT) has become a massive commercial success in recent years due to its high performance, technological advantages, and low environmental impact. The finite softwood raw material supply has motivated researchers to find alternatives. This study presents an investigation of the viability of some Hungarian hardwood materials, such as CLT materials. Homogeneous beech, poplar, and spruce panels, as well as their combinations, were created using a polyurethane adhesive. The experimental results show the clear potential of Hungarian poplar, which performed much better than spruce. Poplar’s modulus of elasticity (MOE) and modulus of rupture (MOR) values reached or exceeded those of high-grade commercial softwood CLT. The bending properties of beech and hybrid beech–poplar panels far exceeded the performance of commercial panels, which shows the excellent potential of high-density hardwoods for high-performance CLT production. Beech–spruce hybrid panels seriously underperformed. This was caused by gluing issues, probably due to the large density differences between the two species, as evidenced by the glueline failure exhibited by most of these specimens during testing. The average panel density proved to be the best predictor of mechanical performance, except for beech–spruce hybrid panels. Full article

The evolution toward small-diameter and fast-growing plantation timbers such as the Pinus elliotti var. elliottii (Engelm) × Pinus caribaea var. hondurensis (Sénéclauze) (PEE×PCH) hybrids around the world is producing large volumes of core wood that are falling short of structural sawn timber grading requirements. Engineered timber products such as cross-laminated timber (CLT) and glue-laminated (glulam) offer potential solutions to value-adding this resource, but the bond performance of this feedstock and the extent to which current standards and guides address its common characteristics for bond performance need to be understood. This study investigated the bond quality and performance of clear defect-free, low stiffness out-of-grade PEE×PCH and evaluated this performance using the pass/fail criteria of the CLT bond performance requirements of three national CLT standards. 5-layer CLT delamination samples and shear block test samples were glued using one-component polyurethane (PUR). This process was repeated for common occurring characteristics in this resource of resin, knots, and pith to understand their impact and inform an evaluation on the need to restrict their inclusion. Clear samples had an average glue line delamination of 2.9% and an average glue line wood failure of 96.7%. Resin achieved 9.3% and 92.6%, respectively. While knots had the lowest performance at 24.4% and 77.4%, respectively. When pith was at or adjacent to the glue line, wood failure occurred through the pith and its immediate surrounding fiber. Shear strength and wood failure tests were carried out on glulam and CLT-oriented samples. CLT knot samples were tested in two load orientations. Glulam-oriented samples in clear, resin, pith, and knots achieved an average shear strength of 8.5 MPa, 8.2 MPa, 7.9 MPa, and 8.2 MPa, respectively, and wood failure of 86%, 85%, 90%, and 69%, respectively. CLT-oriented samples in clear and resin both achieved average shear strengths of 4.0 MPa; 0°-loaded and 90°-loaded pith samples achieved 3.6 MPa and 2.4 MPa, while 0°-loaded and 90°-loaded knot samples achieved 4.2 MPa and 4.7 MPa respectively. Average wood failures were 90%, 89%, 96%, 96%, 83%, and 51%, respectively. PRG320 was found to be the most restrictive standard. Resin, knots, and pith were not addressed in the evaluation of delamination or shear strength in any standard, and PRG320 was the only standard to restrict these characteristics over and above structural grading rules. The amount and type of characteristics present vary considerably in structurally graded wood, and even more so for this out-of-grade resource. It was determined that the negative impact that resin, knots, and pith have on bond quality and bond performance calls for some restriction of their inclusion in order to achieve the author’s interpretation of the intended bond performance requirements of the CLT standards, which currently do not address these characteristics well or at all. A proposed modification to the PRG320 effective bond area was presented as a proactive solution. Full article

European beech is one of the dominating wood species in central Europe and the most abundant hardwood species in Austrian, German and Swiss forests. Today, it is predominantly used for the provision of energy and in the furniture industry. With the increasing demand on forests to provide sustainable raw materials for energy as well as products, the importance of lesser-used wood species like European beech has continuously increased over the last decade. The application in load-bearing products has gained significant interest. In order to connect the current and historical state of knowledge about this wood species, this review provides an overview of the past and present utilization of European beech wood. On the basis of the historical literature, technical approvals and standards of established products, it aims to summarize the extensive state of the art of this wood species and provide an overview of recent scientific publications in the field of wood material science. Based on the reviewed literature, current research efforts deal with different engineered wood products like glued laminated timber, cross-laminated timber and laminated veneer lumber. Furthermore, strength grading, adhesive technology as well as improving dimensional stability is of particular interest. Full article

Changes in the condition of existing timber structures can be caused by fatigue or biological attack, among other things. Replacing damaged timber is still very expensive, so it seems more advisable to repair or reinforce damaged elements. Therefore, in order to improve the static performance analysis of timber structures, reinforcement applications in timber elements are necessary. In this experimental study, technical-scale glulam beams measuring 82 × 162 × 3650 mm, which were reinforced with carbon strands and carbon laminates, were tested in flexure. A four-point bending test was used to determine the effectiveness of the reinforcement used in the timber beams. Internal strengthening (namely, glued carbon cords placed into cut grooves in the last and penultimate lamella) and an external surface of near-surface mounted (NSM) carbon laminates glued to the bottom surface of the beam were used to reinforce the laminated ashlar beams. As a result of this study, it was found that the bending-based mechanical properties of ash wood beams reinforced with carbon fibre-reinforced polymer composites were better than those of the reference beams. In this work, the beams were analysed in terms of the reinforcement variables used and the results were compared with those for the beams tested without reinforcement. This work proves the good behaviour of carbon fibre reinforced plastic (CFRP—Carbon fibre reinforced polymer) cords when applied to timber beams and carbon laminates. This study illustrated the different reinforcement mechanisms and showed their structural properties. Compared to the reference samples, it was found that reinforcement with carbon strings or carbon laminates increased the load-bearing capacity, flexural strength and modulus of elasticity, and reduced the amount of displacement of the timber materials, which is an excellent alternative to the use of ashlar and, above all, inferior grade materials due to the current shortage of choice grade. Experimental results showed that, with the use of carbon fibre (carbon cords SikaWrap^® FX-50 C—Sika Poland Sp. z o.o., Warsaw), the load bearing capacity increased by 35.58%, or with carbon cords SikaWrap^® FX-50 C and carbon laminates S&P C-Laminate type HM 50/1.4 - S&P Poland Sp. z o.o., Malbork, by 45.42%, compared to the unreinforced beams. Full article

The main strength and elastic properties of structural timber products, such as glued laminated timber (glulam; GLT) and cross-laminated timber (CLT), are usually described via load-bearing models, which use the tensile properties parallel to the grain of the base material boards and finger joints as input parameters. These load-bearing models assume that the strength-graded boards will retain their full dimensions in the final product. In some applications or use cases, however, the structural timber products are split lengthwise, e.g., split/resawn glulam, or comprise a random share of in width randomly lengthwise split lamellas. As a result of splitting, the material properties assigned to these boards during the grading process in their full cross-sections are no longer valid. Examples of such structural timber products are the novel flex_GLT-beams which are cut out from large dimensional multi-laminated timber panels. In the following paper, the bending properties and system effects of resawn glulam and flex_GLT-beams are described by means of a 3D stochastic-numerical beam model that uses probabilistic models to create the input values for unsplit and split boards as well as finger joints. The models are successfully validated by our own tests and tests from literature and applied in numerous parameter studies. Full article

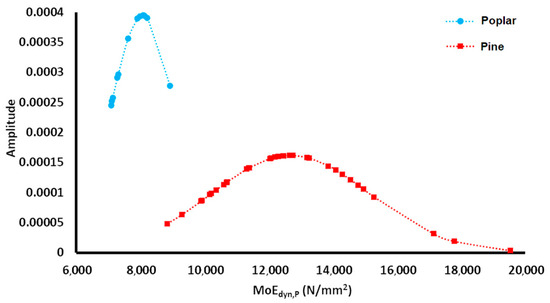

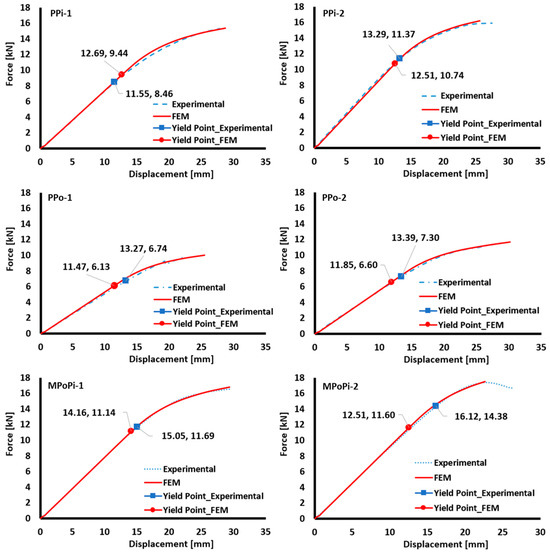

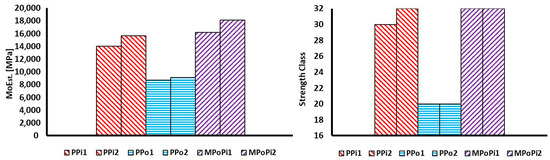

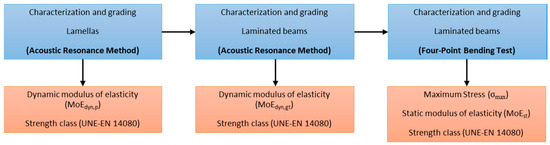

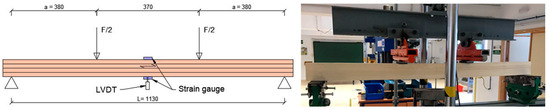

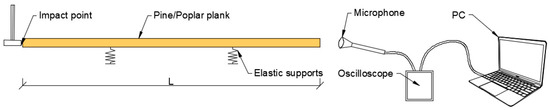

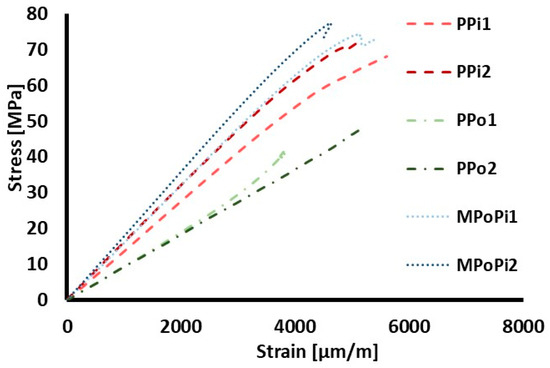

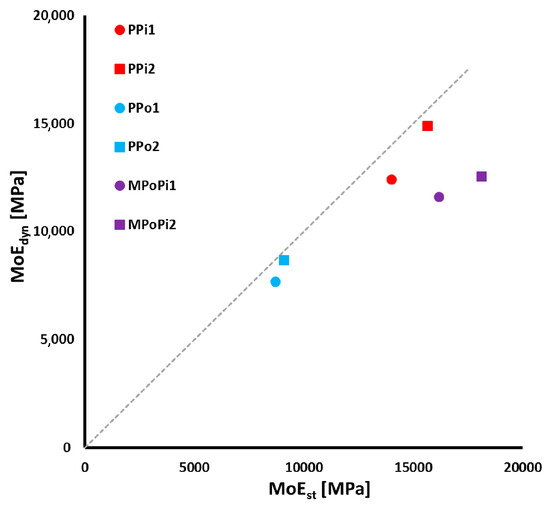

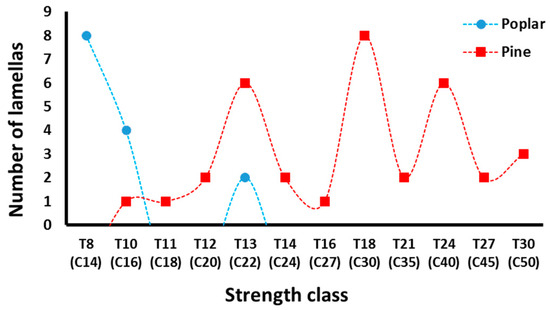

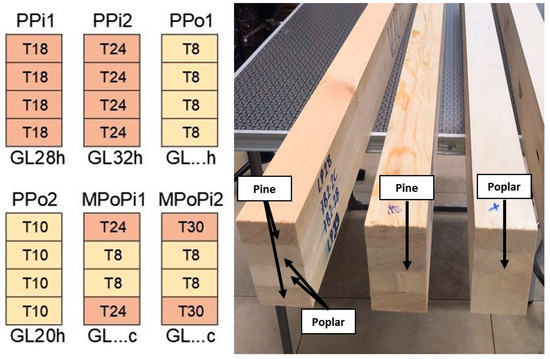

The structural use of timber coming from fast growing and low-grade species such as poplar is one of the current challenges in the wood value chains, through the development of engineering products. In this work, a qualitative comparison of the behavior of mixed glued laminated timber made of pine in their outer layers and of poplar in their inner layers is shown and discussed. Single-species poplar and pine laminated timber have been used as control layouts. The investigation includes destructive four-point bending tests and three non-destructive methodologies: finite elements numerical model; semi-analytical model based on the Parallel Axes theorem and acoustic resonance testing. An excellent agreement between experimental and numerical results is obtained. Although few number of samples have been tested, the results indicate that the use of poplar as a low-grade species in the inner layers of the laminated timber can be a promising technology to decrease the weight of the timber maintaining the good mechanical properties of pine. Likewise, the need for the use of the shear modulus in both experimental measurements and numerical analysis is suggested, as well as the need to reformulate the vibration methodology for non-destructive grading in the case of mixed timber. Full article
