Search Results (342)

This study developed a sustainable high-strength coal gangue backfill material for underground mining applications using coal gangue, fly ash, and cement as primary raw materials, with red mud (RM) as an alternative alkali activator. The mechanical properties of the backfill material were systematically optimized by adjusting coal gangue particle size and alkali activator dosage. The optimized formulation (coal gangue/fly ash/cement = 5:4:1, 3–6 mm coal gangue particle size, 5% RM, which named BF-6-5RM) achieved superior compressive strengths of 8.23 MPa (7 days) and 10.5 MPa (28 days), significantly exceeding conventional backfill requirements and outperforming a CaO-activated reference system (coal gangue/fly ash/cement = 5:4:1, 3–6 mm coal gangue particle size, 2% CaO, which named BF-6-2CaO). Microstructural and physicochemical analyses revealed that both formulations produced calcium silicate hydrate gels (C-S-H gels) and ettringite (AFt) as key hydration products, though BF-6-5RM exhibited a denser microstructure with well-developed ettringite networks and no detectable portlandite (CH), explaining its enhanced early-age strength. Environmental assessments confirmed effective heavy metal immobilization via encapsulation, adsorption, precipitation and substitution, except for arsenic (As), which exceeded Class III groundwater thresholds (DZ/T 0290-2015) due to elevated raw material content, displaying “surface wash-off, diffusion and depletion” leaching behavior. The findings confirm that red mud-based alkali activation is a viable technology for underground backfilling, provided it is coupled with arsenic control strategies like chemical stabilization or the selection of low-arsenic raw materials. This approach not only enables the resource utilization of hazardous industrial waste but also facilitates the production of backfill materials that combine both mechanical strength and environmental compatibility, thereby delivering dual economic and ecological benefits for sustainable mining practices. Full article

In response to the pressing environmental challenges posed by electrolytic manganese residue (EMR) and red mud (RM), this study proposes an innovative cementitious material technology for the synergistic co-utilization of these industrial wastes. By employing steel slag (SS) as a calcium-rich skeleton, the system effectively immobilizes sulfates from EMR and alkalinity from RM, converting hazardous wastes into value-added construction materials. Through orthogonal experimentation, an optimal mix proportion was established—30% RM, 20% EMR, and 50% SS at a water-to-binder ratio of 0.28—which achieved a 28-day compressive strength of 20.40 MPa, meeting relevant industry standards for auxiliary cementitious materials. Microstructural analysis unveiled a multi-stage alkali-sulfate synergistic activation mechanism: (1) the high alkalinity derived from RM rapidly activates the dissolution of aluminosilicate phases in both SS and EMR; (2) sulfate ions released from EMR promote extensive formation of ettringite (AFt), enhancing early-age structural integrity; and (3) calcium ions from SS facilitate the development of a dense C-S-H gel matrix, which serves as the primary binding phase. More profoundly, this process exemplifies a self-stabilizing waste-to-resource conversion mechanism, whereby harmful constituents (sulfates and free alkalis) are constructively incorporated into stable hydration products. This work not only elucidates a coherent scientific framework for the safe and efficient reclamation of multi-source solid wastes, but also demonstrates a scalable and ecologically viable pathway for million-ton-scale valorization of EMR and RM. Furthermore, it presents feasibility insights for the application of high-dosage steel slag-based material systems, thereby unifying significant environmental and economic advantages. Full article

This study explores the influence of vibration timing on the performance of high early-strength cement-based composites used in bridge wet joints. A series of experimental techniques, including SEM, MIP, and RCM tests, were employed to evaluate microstructural evolution, mechanical properties, and durability. The results indicate that vibration applied between the initial and final setting phases has a critical impact, significantly reducing early-age compressive, flexural, and bond strengths. This deterioration is mainly attributed to micro-crack formation and enhanced pore connectivity, as confirmed by SEM and MIP analyses. Moreover, vibration markedly increases the chloride diffusion coefficient, particularly in mixtures with higher water-to-binder ratios, thereby raising long-term durability concerns. These findings underscore the necessity of optimizing mix proportions and strictly controlling vibration timing to ensure both the mechanical performance and service life of high early-strength cement composites in bridge construction. The study provides practical insights for the design and application of durable, resilient bridge wet joints. Full article

The goal of this paper is to assess the evolution of the autogenous strains as well as the thermal strains (thanks to the assessment of the coefficient of thermal expansion) of alkali-activated slag-based materials at early age. The effect of the sand and the coarse aggregates on the paste and mortar scale to upscale to mortar and concrete, respectively, has been investigated as a function of the age of the material. The restraint imposed by the sand on the paste seemed more significant than that of the coarse aggregate on the mortar. In addition, the long-term autogenous strains have been monitored on the mortar scale. These results revealed a separation into groups based on the solution concentration. Different testing methods were also compared. Thermal and autogenous strains were monitored with a customized testing device where the thermal variations are controlled. These devices were the horizontal corrugated tubes method (for tests on paste and mortar scales) and the vertical corrugated tubes method (for tests on mortar and concrete scales). Depending on the compositions (lower concentration), good correlations can be obtained between the two testing methods. Moreover, the autogenous strain of two different specimen sizes was also assessed manually (initially for the long-term), but early-age comparison showed good correlation for lower solution-to-binder ratios. On the concrete scale, a correlation based on the modified equations from the standards was established between the compressive strength and the tensile strength, obtained from the splitting tensile test. Full article

This study investigates the early-age compressive strength development of concrete incorporating ground granulated blast-furnace slag (GGBFS) under varying water-to-binder (W/B) ratios (35%, 45%, and 55%) and curing temperatures (5 °C, 20 °C, and 35 °C). Concrete mixtures were prepared with 0%, 20%, and 40% GGBFS replacement levels, maintaining a constant slump of 180 mm. The influence of GGBFS on fresh properties was evident, as higher GGBFS content reduced the demand for high-performance air-entraining water-reducing admixture (AEWR) by up to 72% at 40% GGBFS and W/B of 35%. All mixtures maintained target air content within 4.5 ± 1.5%. The Nurse–Saul maturity method was applied to determine the datum temperature $T_0$ (The minimum temperature required for the degree of maturity to increase) for early-age strength prediction. The optimal $T_0$ was found to be −3 °C for both OPC and GGBFS-blended concretes, replacing the conventional −10 °C value. Compressive strength predictions were conducted using Plowman, Logistic, and Gompertz models within the 5–10 MPa range. The Plowman and Gompertz models predicted early-age compressive strength with an error of approximately 10% in the 5–10 MPa range. In the lower strength range of 3–5 MPa, the Gompertz model exhibited superior predictive performance, with prediction errors 0.5–1 MPa lower than those obtained using the Plowman model. These findings will help in enhancing the maturity method’s reliability for low-temperature or time-constrained construction and support the use of GGBFS as a sustainable cement replacement. The study offers practical insights into optimizing early-age performance in blended cementitious systems. Full article

The escalating accumulation of industrial solid wastes (e.g., copper slag: CS, ground-granulated blast furnace slag: GGBS) and carbon-intensive cement production has intensified environmental challenges, driving the demand for sustainable construction materials that synergize waste valorization with carbon sequestration. This study investigates the evaluation of the compressive strength, mineralogical evolution, and real-time CO₂ capture of the alkali-activated geopolymer composite materials by optimizing the mixed design of precursor materials (CS/GGBS ratio: 7/3) with MgO (0–10%) and coconut shell (CSB), peanut shell (PSB), and durian shell biochar (DSB) (0–3%). Results reveal that the 5% MgO addition achieves an 89.5% early-age compressive strength increase versus the MgO-free specimen. The compressive strength of the geopolymer composite could be further increased by a 1.5% dosage of DSB with an average pore size of 8.98 nm. In addition, the incorporation of an appropriate amount of porous biochar could not only enhance the CO₂ capture capacity of the geopolymer composite, but also further improve the CO₂ mineralization efficiency. The optimal formulation (5% MgO + 1.5% DSB) could mineralize 40.2 kg CO₂ per ton of solid waste at least. This work highlights a sustainable strategy for synchronizing industrial solid waste valorization with carbon-negative construction providing scalable CO₂ sequestration solutions. Full article

Substituting cement with mineral additives like fly ash is increasingly essential for sustainable production. While replacement rates largely depend on fresh-state properties, the interaction between fly ash and polycarboxylate ether (PCE) molecular structures remains underexplored. In this regard, this study investigates the effect of PCE molecular structures and weight on the rheology, setting, and strength of cementitious systems containing up to 45% fly ash additions. Seven distinct PCE possessing different molecular weights (27,000–78,000 g/mol) as well as backbone and side chain lengths are synthesized. The interaction between PCE and solid particles was explored through total organic carbon, dynamic light scattering, and gel permeation chromatography. Test results showed that the adsorption rates of the cement and fly ash particles within the cementitious composites improved by up to 90% with fly ash replacement and upon using PCE with a medium molecular weight of 56,000 g/mol, backbone length of 21 k, and short side chain length of 1000 g/mol. This has resulted in a 75% reduction in the material’s apparent viscosity, delayed setting times of up to 38%, and improved early- and late-age compressive strengths of up to 123%. Such data can interest cement and admixture producers in proposing suitable PCEs for superior fly ash concrete performance. Full article

The global generation of industrial waste is increasing rapidly, with much of it either landfilled or discharged into marine environments, resulting in severe environmental pollution. To address this issue, extensive research has been conducted on utilizing waste materials as partial replacements for cement. Although concrete incorporating industrial by-products offers environmental advantages—such as reducing pollution and lowering CO₂ emissions—its application has been limited by poor early-age performance. In South Korea, the annual production of ferronickel slag (FNS) now exceeds 2,000,000 tons, yet its usage remains minimal. To improve this early-age performance, researchers have applied steam curing (SC), a method widely used in precast concrete, which can enhance the utilization of FNS-containing concrete. Some studies have individually evaluated the mechanical or microstructural properties of SC effects, but the combined effects of FNS and SC replacement in precast concrete have rarely been addressed. This study applied SC, a method widely used in precast concrete production, to improve the performance of FNS concrete and conducted a comprehensive evaluation to promote its practical application. For this purpose, ordinary Portland cement (OPC) was partially replaced with FNS at rates of 10%, 20%, and 30%. To assess the effects, tests were conducted on hydration heat, SEM, and XRD, along with evaluations of compressive and splitting tensile strength. Results identified 20% as the optimal replacement ratio. At this ratio, chloride penetration resistance and freeze–thaw durability were also assessed. Furthermore, FNS concrete was evaluated under both natural curing (NC, 28 days) and SC conditions to simulate precast production. Under NC, mechanical properties declined as the FNS content increased, whereas under SC, the performance of the 20% replacement mixture was comparable to that of the control. In addition, the chloride diffusion coefficient and freeze–thaw resistance were improved by 11% and 2%, respectively, under SC compared to NC. This study evaluated the feasibility of FNS-containing concrete, and further studies should be conducted to investigate the structural performance of FNS-containing reinforced concrete via methods such as flexural, shear, splicing, and debonding experiments. Full article

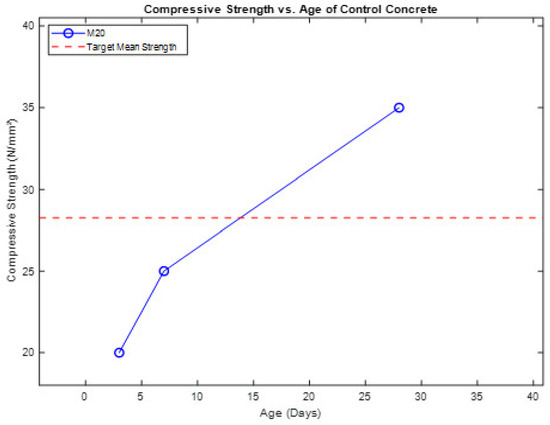

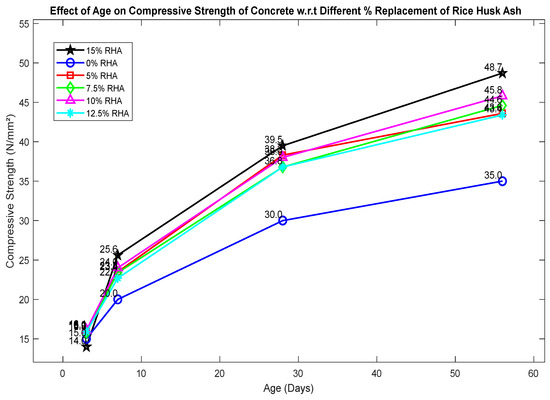

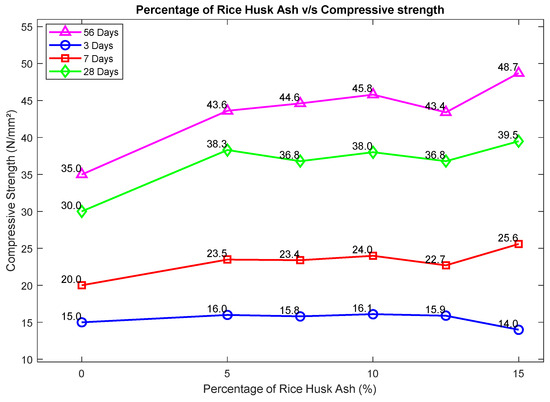

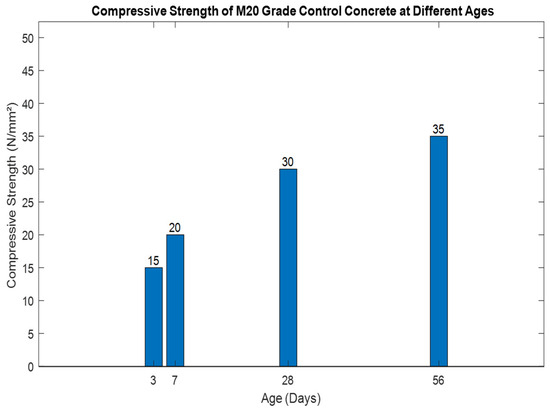

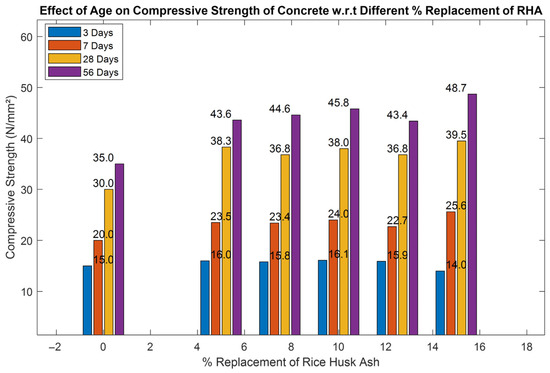

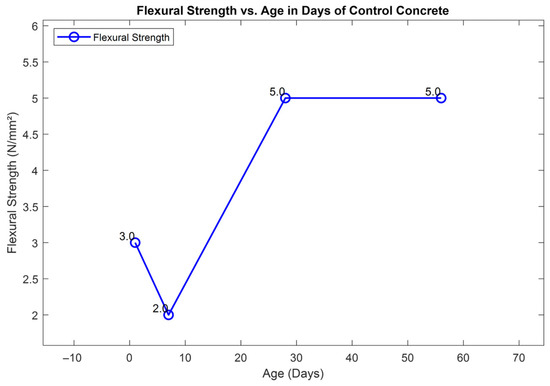

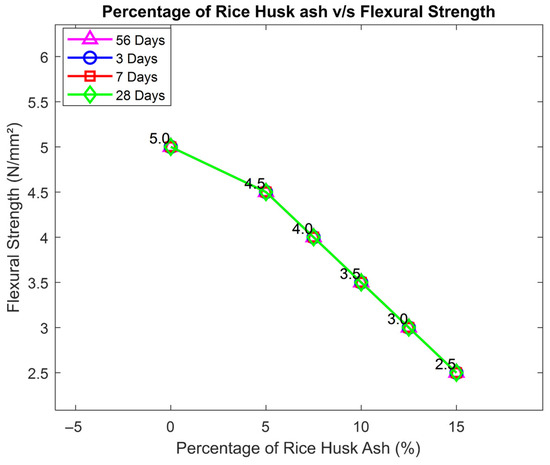

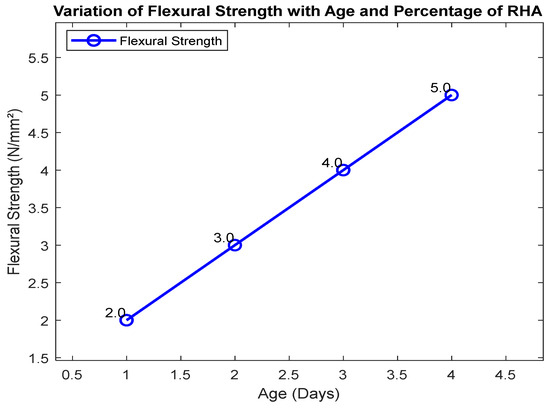

The construction industry is a major contributor to greenhouse gas emissions, with cement production responsible for 8–10% of global CO₂ output. This study investigates the use of rice husk ash (RHA) as a partial cement replacement in Portland Pozzolana Cement (PPC) concrete, which already contains fly ash. Five replacement levels (5%, 7.5%, 10%, 12.5%, and 15% by weight of PPC) were tested for compressive and flexural strength (modulus of rupture, MOR) at 3, 7, 28, and 56 days. An M20-grade mix, designed in accordance with Saudi Building Code (SBC) provisions, was adopted to ensure practical applicability. Results showed that moderate RHA contents (5–7.5%) enhanced strength, with maximum compressive (37.62 MPa) and flexural (5.47 MPa) strengths recorded at 7.5% RHA after 56 days, representing 3.5% and 9.6% improvements over the control, respectively. All RHA mixes exhibited reduced early-age strength due to delayed pozzolanic activity, whereas higher replacements (≥12.5%) caused strength loss from excessive cement dilution. The novelty of this study lies in demonstrating the synergistic effect of RHA with PPC—an underexplored dual-pozzolan system—and identifying optimal replacement levels for sustainable construction. The findings highlight RHA as a viable supplementary cementitious material that reduces clinker use and carbon emissions while maintaining or improving long-term concrete performance. Full article

Nano-silica (NS) is used to enhance the mechanical and durability properties of cementitious materials; however, its frequent tendency to agglomerate limits its effectiveness and uniform distribution within the cement matrix. The main goal of this study was to improve NS dispersion and therefore to improve the properties of the concrete by coating NS onto standard sand particles (sand@NS) using the Stöber method, creating a composite material that acts as a filler, nucleation site, and highly reactive pozzolanic agent. The resulting sand@NS was incorporated into cement mixtures, and its compressive strength was measured after 3, 7, and 28 days of curing. In addition, water absorption and microstructural density were also evaluated. Comparative results showed that sand@NS significantly enhanced early-age hydration and initial strength, with a 145% increase in compressive strength at 28 days compared to the reference, whereas free NS resulted in a 120% increase. The early-age strength improvement was mainly due to the increased number of nucleation centers, while later strength gains were attributed to pozzolanic activity of the immobilized NS. Additionally, sand@NS reduced water absorption and increased microstructural density, even with reduced cement content, supporting more sustainable and eco-efficient concrete production. This work shows a promising, scalable, and cost-effective strategy to maximize the performance of NS in cementitious systems and supports its broader adoption in advanced construction materials. Full article

This study explores the potential of calcium-rich fly ash from the Ptolemais region in Greece as a partial cement replacement for improving sulfate resistance in cementitious composites. An integrated experimental program, combining mechanical testing, electrochemical corrosion monitoring and microstructural characterization, was designed to capture the progression of material properties over time and their impact on performance. The experimental results proved that, at early ages, incorporation of fly ash led to reductions in compressive, tensile and bond strengths, attributed to delayed pozzolanic reactivity. However, over prolonged curing, secondary reactions consumed portlandite and generated additional calcium silicate hydrate, refining the pore network and reducing permeability. These microstructural improvements were associated with enhanced mechanical performance, improved durability indices and markedly lower reinforcement corrosion rates. Bond tests further revealed a shift from brittle to a more ductile response, offering advantages for repair applications. These findings establish calcium-rich Ptolemais fly ash as a as a sustainable and promising supplementary cementitious material that substantially enhances the long-term durability and sulfate resistance of cementitious systems. Full article

This study explores the early-age performance of eco-efficient alkali-activated slag–fly ash (AASF) mixtures using high-calcium fly ash (HCFA) and low-calcium fly ash (LCFA) at varying alkali activator-to-slag cement (AL/SC) ratios (15%, 20%, and 25%) under steam, water, and ambient curing conditions. Mix designs were developed with a fixed water-to-slag cement ratio of 50%, while fly ash partially replaced fine aggregate at a 20% substitution level. Fresh and hardened properties were investigated. The results revealed that increasing the AL/SC ratio led to reduced workability and increased flow loss, especially in HCFA mixtures, due to their higher calcium content and finer particle size, which promoted early stiffening. In contrast, LCFA mixtures exhibited greater slump flow and better workability retention owing to their slower dissolution rate. Regarding compressive strength, steam curing produced the highest performance. At 25% AL/SC, HCFA mixtures achieved 70 MPa at 28 days, while LCFA mixtures reached 68 MPa. Water curing showed moderate strength development, whereas ambient curing resulted in slower gains. These findings emphasize the influence of fly ash type, AL/SC ratio, and various curing conditions in enhancing the performance of eco-efficient AASF mixtures. Full article

This study examines the effects of three polymer binders—polyvinyl alcohol (PVA), polyethylene glycol (PEG), and polyacrylic acid (PAA) on the mechanical properties and dry–wet cycle corrosion resistance of cement mortar at different dosages (1–4%). Mechanical testing combined with scanning electron microscopy (SEM) and molecular dynamics (MD) simulations was conducted to validate the experimental findings and reveal the underlying mechanisms. Results show that polymers reduce early-age strength but improve flexural performance, and at low dosage, enhance compressive strength. PVA and PAA exhibited a pronounced improvement in mechanical strength while PVA and PEG showed a significant improvement in wet cycle corrosion resistance. SEM observations indicated that polymers encapsulate cement particles, enhancing interfacial bonding while partially inhibiting hydration. MD simulations revealed that PVA and PAA interact with Ca²⁺ via Ca-O coordination, while PEG primarily forms hydrogen bonds, resulting in distinct water-binding capacities (PEG > PVA > PAA). These interactions explain the enhanced mechanism of mechanical and dry–wet cycle resistance properties. This work combined experimental and molecular-level validation to clarify how polymer–matrix and polymer–water interactions govern mechanical and durability, respectively. The findings provide theoretical and practical guidance for designing advanced polymer binders with tailored interfacial adhesion and water absorption properties to improve cementitious materials. Full article

The utilization of high-volume fly ash (HVFA, ≥50% cement replacement) in concrete is pivotal for sustainable construction but hindered by low early-age strength. This study investigates the individual and combined effects of hydrated lime (HL) and calcium formate (CF) on the strength development, hydration kinetics, and microstructure of HVFA pastes (60% and 70% FA). Individual additions of 11% HL (HVFA60) or 14% HL (HVFA70) raised 28-day compressive strength by 18% and 22%, respectively, and shortened final setting from 10.0 h to 3.8 h. Similarly, 3% CF increased 28-day strength by 15% (HVFA60) and 12% (HVFA70) while cutting final setting to 2.1 h and 3.3 h. In contrast, combining HL and CF suppressed strength by 15–22% despite accelerating final setting to less than 1 h. Isothermal calorimetry showed a 40% reduction in cumulative heat release at 44 h for the combined system. XRD, TGA and SEM confirmed 20–30% lower C-S-H content, 25% less CH, and a rise in porosity when HL and CF were used together. These findings demonstrate that HL and CF act as competing accelerators, where rapid heat release compromises microstructural integrity. For practical applications using HVFA materials, individual use of HL or CF is recommended to enhance early-age performance, while combined application should be avoided to prevent strength reduction. Full article

This study investigates rapid-setting, phosphate-based, chemically bonded phosphate ceramic (CBPC) composites for emergency pothole repair through a two-phase experimental approach. Phase I involved fundamental mix design experiments that systematically examined the effects of water-to-binder ratio (20–40%), filler content (10–50%), and phosphate powder fineness (570–3640 cm²/g) on setting and mechanical performance. Based on Phase I results, Phase II evaluated field-applicable mixes optimized for concrete and asphalt pavement conditions in terms of rapid strength development: compressive strength exceeding 24 MPa within 30 min, flexural strength surpassing 3.4 MPa within 1 h, and adhesive strength reaching up to 1.62 MPa (concrete) and 0.68 MPa (asphalt) within 4 h. Additional performance evaluations included Marshall stability (49,848 N), water-immersion residual stability (100% under the test protocol), length change (small magnitude over 28 days), and self-filling behavior (complete filling in 17 s in the specified setup). These rapid early-age results met or surpassed relevant domestic specifications used for emergency repair materials. Based on these data, mix designs for field application are proposed, and practical implications and limitations for early-age performance are discussed. Full article
