Next Article in Journal
Optimizing EDM of Gunmetal with Al2O3-Enhanced Dielectric: Experimental Insights and Machine Learning Models
Previous Article in Journal
Impact of Hot Water Extraction on the Chemical Composition of Hemp (Cannabis sativa L.)
Previous Article in Special Issue
Effects of w/b Ratio on Sodium Sulfate Crystallization Damage and Degradation Mechanisms in Semi-Immersed Alkali-Activated Slag Mortar


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
This is an early access version, the complete PDF, HTML, and XML versions will be available soon.
Article

Volume Changes of Alkali-Activated Slag-Based Mortars and Concretes in Sealed and Free Conditions

BATir Department (LGC), Université libre de Bruxelles (ULB), 1050 Brussels, Belgium
*
Author to whom correspondence should be addressed.
Materials 2025, 18(19), 4577; https://doi.org/10.3390/ma18194577
Submission received: 14 August 2025 / Revised: 26 September 2025 / Accepted: 27 September 2025 / Published: 2 October 2025

Abstract

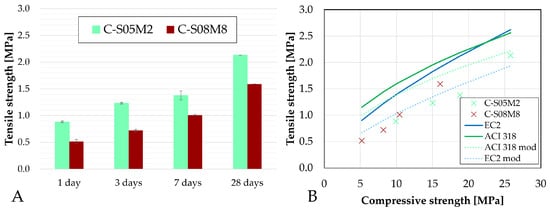

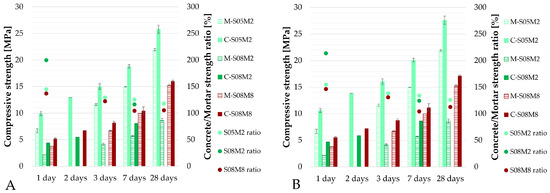

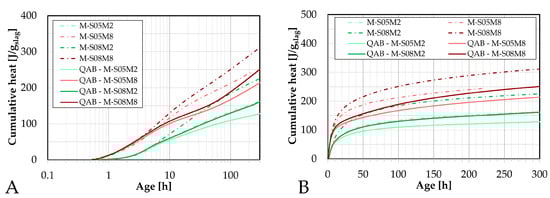

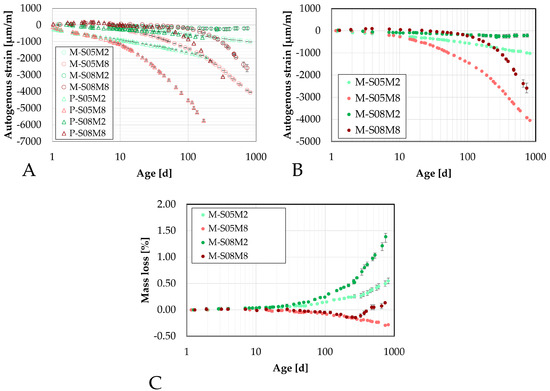

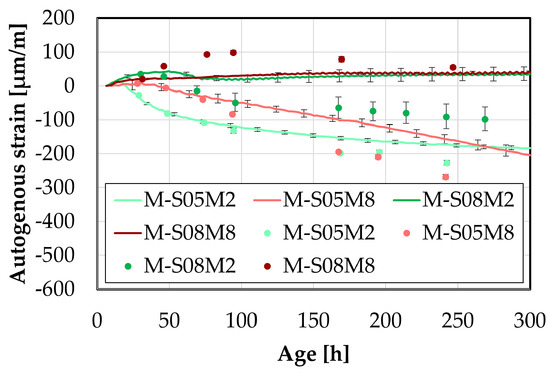

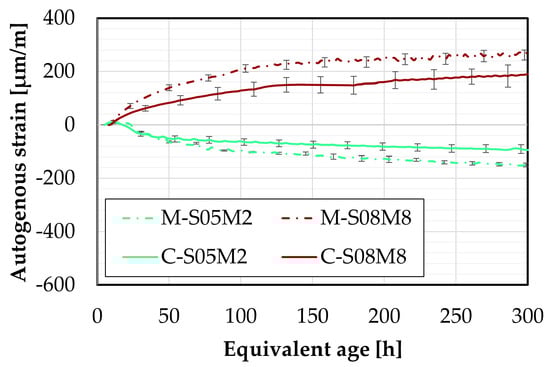

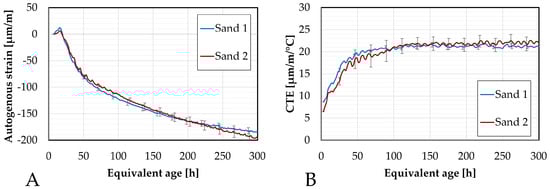

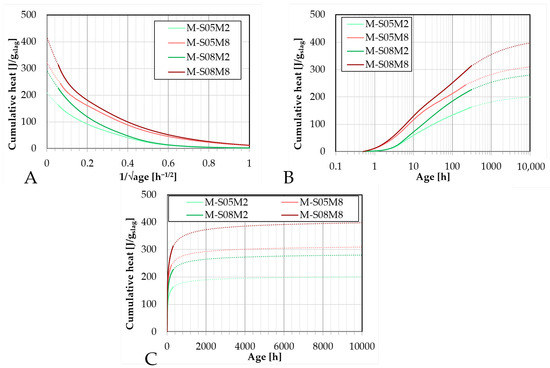

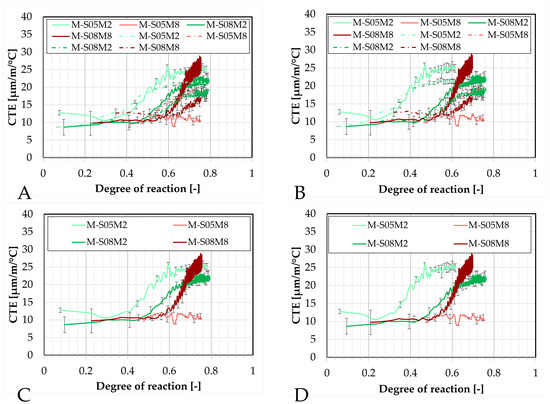

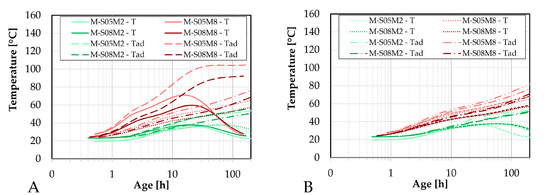

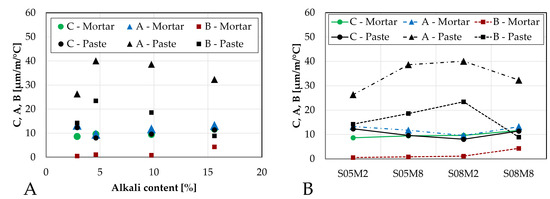

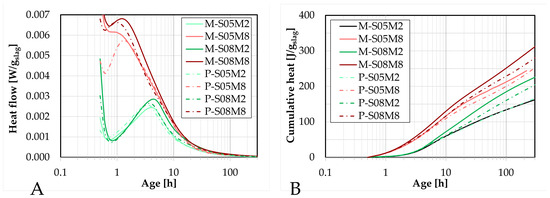

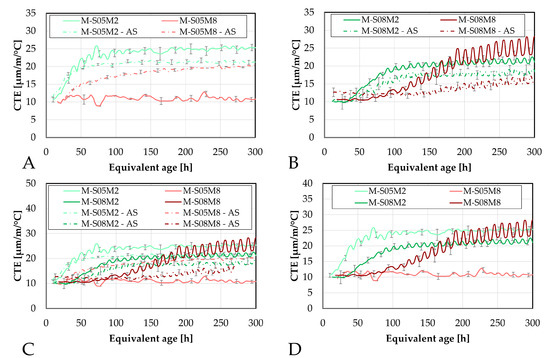

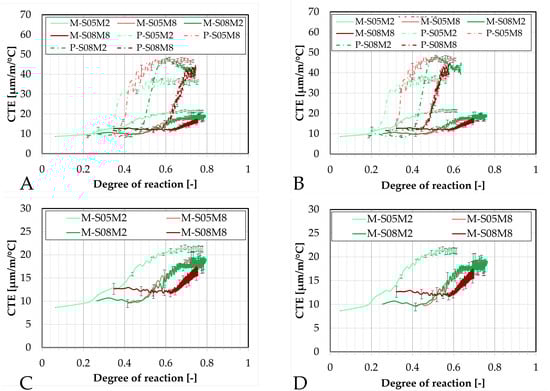

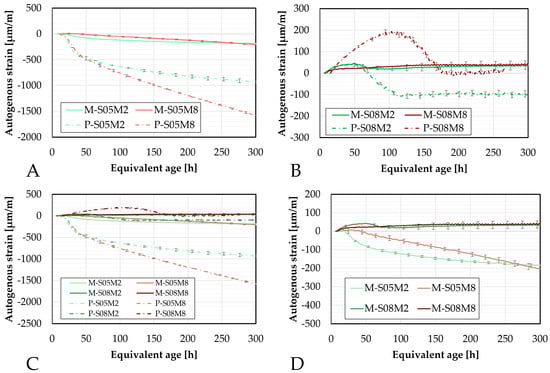

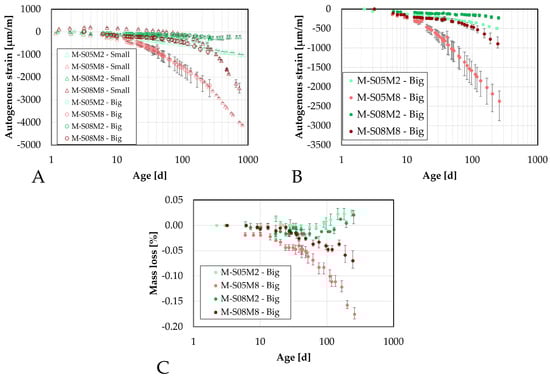

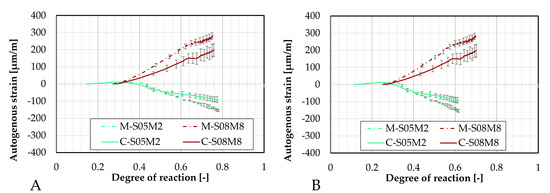

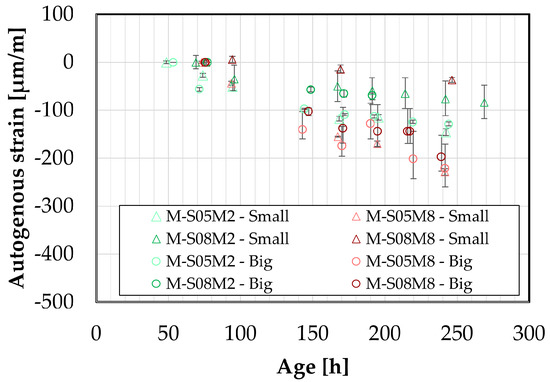

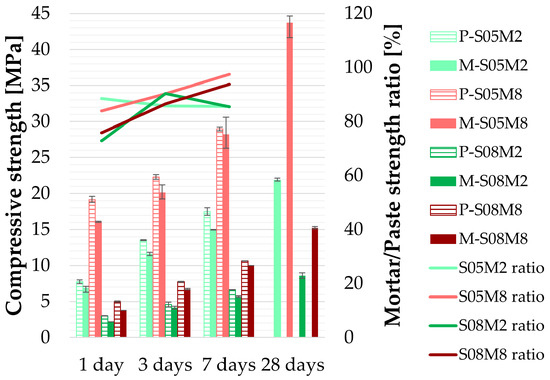

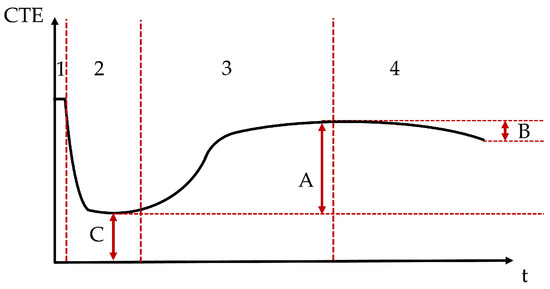

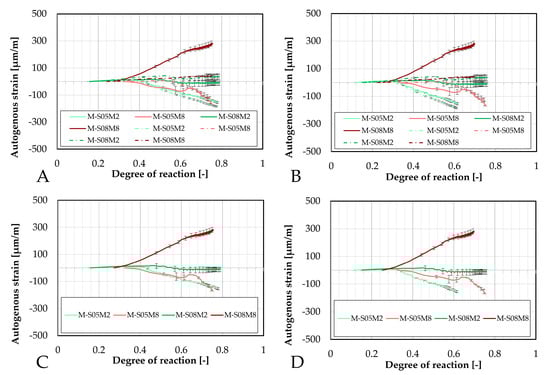

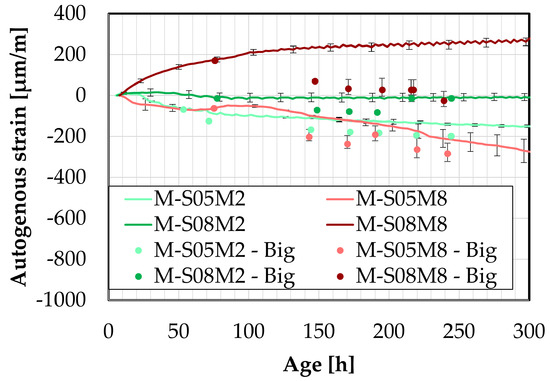

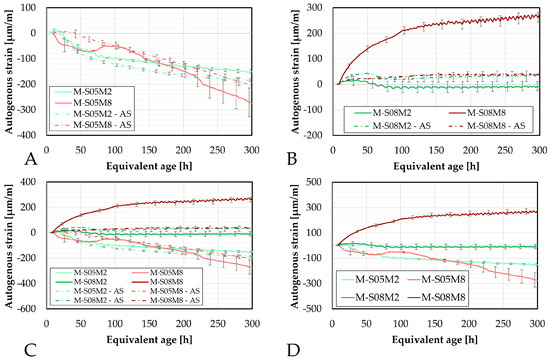

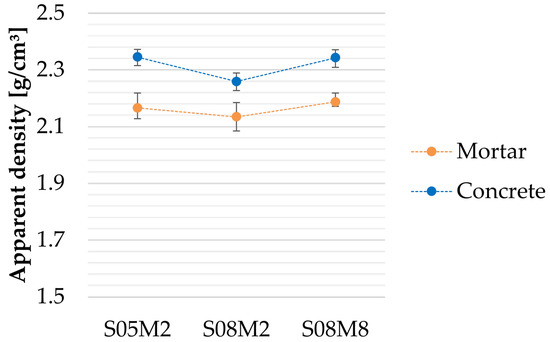

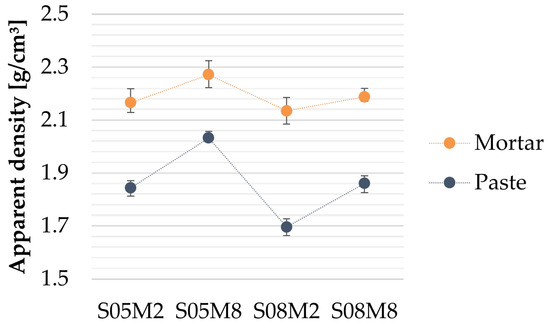

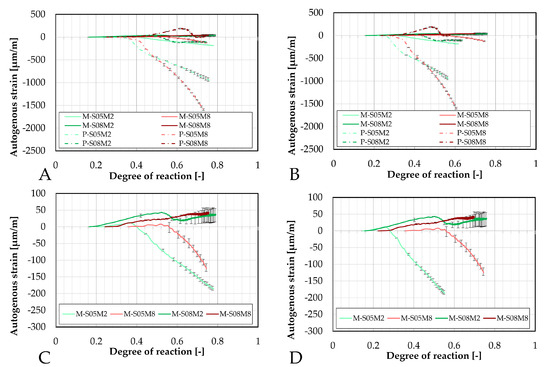

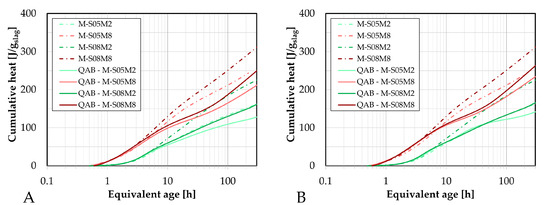

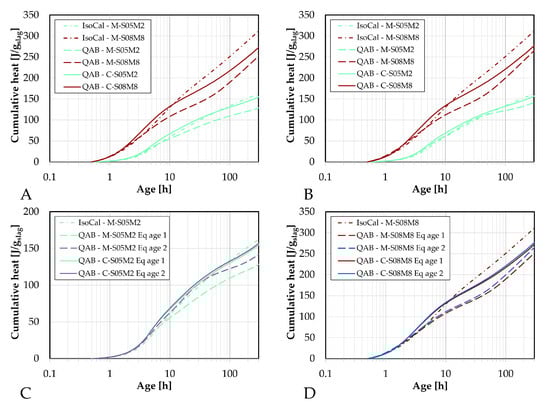

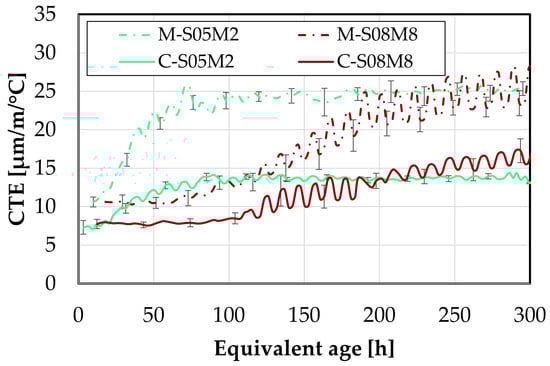

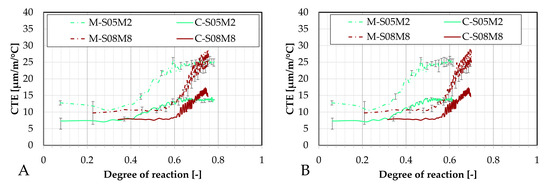

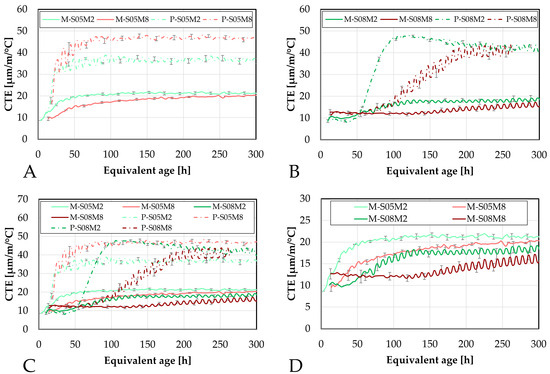

The goal of this paper is to assess the evolution of the autogenous strains as well as the thermal strains (thanks to the assessment of the coefficient of thermal expansion) of alkali-activated slag-based materials at early age. The effect of the sand and the coarse aggregates on the paste and mortar scale to upscale to mortar and concrete, respectively, has been investigated as a function of the age of the material. The restraint imposed by the sand on the paste seemed more significant than that of the coarse aggregate on the mortar. In addition, the long-term autogenous strains have been monitored on the mortar scale. These results revealed a separation into groups based on the solution concentration. Different testing methods were also compared. Thermal and autogenous strains were monitored with a customized testing device where the thermal variations are controlled. These devices were the horizontal corrugated tubes method (for tests on paste and mortar scales) and the vertical corrugated tubes method (for tests on mortar and concrete scales). Depending on the compositions (lower concentration), good correlations can be obtained between the two testing methods. Moreover, the autogenous strain of two different specimen sizes was also assessed manually (initially for the long-term), but early-age comparison showed good correlation for lower solution-to-binder ratios. On the concrete scale, a correlation based on the modified equations from the standards was established between the compressive strength and the tensile strength, obtained from the splitting tensile test.
Keywords: mortar; concrete; coefficient of thermal expansion; autogenous strain; heat flow; alkali-activated materials; blast-furnace slag; sodium hydroxide mortar; concrete; coefficient of thermal expansion; autogenous strain; heat flow; alkali-activated materials; blast-furnace slag; sodium hydroxide

Share and Cite

MDPI and ACS Style

Lacante, M.; Delsaute, B.; Staquet, S. Volume Changes of Alkali-Activated Slag-Based Mortars and Concretes in Sealed and Free Conditions. Materials 2025, 18, 4577. https://doi.org/10.3390/ma18194577

AMA Style

Lacante M, Delsaute B, Staquet S. Volume Changes of Alkali-Activated Slag-Based Mortars and Concretes in Sealed and Free Conditions. Materials. 2025; 18(19):4577. https://doi.org/10.3390/ma18194577

Chicago/Turabian Style

Lacante, Maïté, Brice Delsaute, and Stéphanie Staquet. 2025. "Volume Changes of Alkali-Activated Slag-Based Mortars and Concretes in Sealed and Free Conditions" Materials 18, no. 19: 4577. https://doi.org/10.3390/ma18194577

APA Style

Lacante, M., Delsaute, B., & Staquet, S. (2025). Volume Changes of Alkali-Activated Slag-Based Mortars and Concretes in Sealed and Free Conditions. Materials, 18(19), 4577. https://doi.org/10.3390/ma18194577

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
