Search Results (13)

The global energy crisis, driven by factors such as increased demand, limited fossil fuel resources, and growing environmental concerns created an urgent need for energy-efficient solutions across all sectors. Among these, refrigeration systems, which are used extensively in both domestic and commercial settings, are responsible for a sizeable amount of global energy consumption. Finding ways to reduce energy used in the refrigeration could play a crucial role in mitigating the energy crisis. Phase Change Materials (PCMs) have emerged as a promising technology to enhance the energy efficiency of refrigeration systems. By storing and releasing energy in the form of latent heat, PCMs optimize energy conversion rate of the processes, reduce power consumption, and lower the overall environmental impact. The present research focus Calcium Chloride Hexahydrate (CCH) as the PCM which acts as an intermediary between the heat sources to achieve optimal effectiveness. To improve system performance and optimize PCM quantity, two novel system configurations were assessed in the mass proportions of 1 kg and 2 kg of PCM with water. The incorporation of PCZ enhanced the overall heat energy utilisation, recovery of waste heat, and greater system output. And actual COP of the refrigeration system was meet out with the domestic refrigerator in ranges of 1.0759 to 1.1537. The above two novel system were proved that a vital role in removal of waste latent heat into lateral use in the ranges of 110.8 kJ (min.) into 226.8 kJ (max.). Finally proposed system was avoided global warming temperature raise because of uses of waste heat into lateral uses in the refrigeration systems. Full article

Thermochemical energy storage using salt hydrates is a promising method for the efficient use of energy. In this study, three host matrices, expanded vermiculite, expanded clay, and expanded natural graphite were impregnated with a eutectic mixture of CaCl₂·6H₂O and bischofite (MgCl₂·6H₂O). These composites were subjected to various humidity conditions (30–70% relative humidity) at 20 °C over an extended hydration period to investigate their cyclability. It was shown that only expanded natural graphite could contain the deliquescent salt at high humidity over 50 cycles. Hence, the expanded natural graphite composites containing either CaCl₂·6H₂O or CaCl₂·6H₂O/bischofite eutectic mixture were placed in a lab-scale open packed bed reactor, providing energy densities of 150 and 120 kWh/m³ over 20 h, respectively. The eutectic composite showed slightly lower temperature lift, water uptake rate, and power output but at reduced cost. Using the eutectic mixture also decreased the composite’s dehydration temperature at which the maximum mass loss rate occurred around 16.2 °C to 62.3 °C, allowing recharge using less energy-intensive heating methods. The cost of storing 1 kWh of energy with expanded natural graphite composites is only USD 0.08 due to its stability. This research leveraging cost-effective composites with enhanced stability, reaction kinetics, and high thermal energy storage capabilities benefits renewable energy, power generation, and the building construction research communities and industries by providing a competitive alternative to sensible heat storage technologies. Full article

This research investigates the use of phase change materials (PCMs) in thermal energy storage (TES) unit-based cooling systems to increase the efficiency of air conditioners (ACs) by reducing the air inlet temperature. This study aims to evaluate different configurations of PCM enclosures, and different PCMs (paraffin and salt hydrate), by changing the speed of inlet air to achieve heat reduction of inlet air. The study includes experimental and simulation investigations. Every configuration simulates the hot-season atmospheric conditions of the UAE. A duct containing enclosures of paraffin RT-31 and salt hydrate (calcium chloride hexahydrate) was used for the simulation study using ANSYS/Fluent. A conjugate heat transfer model employing an enthalpy-based formulation is developed to predict the optimized PCM number of series and optimum airflow rate. Four designs of the AC duct were modelled and evaluated that contained one to four series of PCM containers subjected to different levels of supplied air velocities ranging from 1 m/s–4 m/s. The simulation study revealed that employing four series (Design 4) of PCM enclosures at a low air velocity of 1 m/s enhanced the pre-cooling performance and reduced the outlet air temperature to 33 °C, yielding a temperature drop up to 13 °C. The performance of salt hydrate (calcium chloride hexahydrate) was observed to be better than paraffin (RT-31) in terms of the cooling effect. Characterization of paraffin wax (RT-31) and salt hydrate was performed to establish the thermophysical properties. The experimental setup based on a duct with integrated PCM enclosures was studied. The experiment was repeated for three days as the repeatability test incorporating RT-31 as the PCM and a 3 °C maximum temperature drop was observed. The drop in the outlet air temperature of the duct system quantifies the cooling effect. Net heat reduction was around 16%. Full article

PCMs are attractive for the future generation of buildings, where energy efficiency targets and thermal comfort expectations are increasingly prioritized. Experimental analysis of local thermal processes in these dynamic components and whole-building energy consumption predictions are essential for the proper implementation of PCMs in buildings. This paper discusses the experimental analysis of the thermophysical characteristics of both a latent heat storage material (PCM) and a product containing this PCM. The prototype product under investigation is a panelized PCM technology containing inorganic, salt-hydrate-based PCM. The thermal analysis includes studies of melting and freezing temperatures, enthalpy changes during phase change processes, nucleation intensity, sub-cooling effects, and PCM stability. The PCM’s stability is also investigated, as is the ability of PCM products to control local temperatures and peak load transmission times. Two inorganic PCM formulations based on calcium chloride hexahydrate (CaCl₂.6H₂O) were prepared and tested in laboratory conditions. Material-scale testing results were compared with outcomes from the system-scale analysis, using both laboratory test methods as well as field exposure in test huts. This work demonstrates that PCM technologies used in buildings can effectively control both the magnitude of thermal storage capacity as well as the time of the peak thermal load. It was found that commonly used material-scale testing methods may not always be beneficial in assessing the dynamic thermal performance characteristics of building technologies containing PCMs. Full article

Strontium marking technology is commonly used for extensive marking in stock enhancement and releasing activities. In order to explore the feasibility of this technology for juvenile Takifugu obscurus, five different concentrations of strontium (0, 12, 18, 36, and 72 mg/L) were set up by strontium chloride hexahydrate (SrCl₂·6H₂O) and T. obscurus were immersed for 7 days. Then, T. obscurus were reared in non-additive water for 25 days. The results showed that the survival rate of all groups was 100%, except the 72 mg/L group, after 7 days of immersion. Moreover, the growths of all the marked groups were better than that of the control group. There was no significant difference between the control and marked groups, except for the 18 mg/L group, indicating that the appropriate concentration of strontium might have positive effect for T. obscurus. The strontium to calcium (Sr/Ca) ratios of otoliths in the marked groups increased with increasing concentration and time, which were higher than the baseline, respectively. Then, the Sr/Ca ratios returned to the original level, but the peak value was still retained, suggesting that the success rate of the strontium marking reached 100%. Notably, the residual strontium content of 18 mg/L group was insufficient for causing negative effects for T. obscurus after 25 days. Therefore, in consideration of the growth, survival, and effect of strontium marking on otolith, 18 mg/L is an appropriate concentration for strontium marking of juvenile T. obscurus. This study confirmed the feasibility of strontium marking for T. obscurus and provided a new approach to rationally and scientifically evaluate the stock enhancement and releasing efficiency of T. obscurus. Full article

This study investigates improvements in low-cost latent heat storage material calcium chloride hexahydrate (CaCl₂.6H₂O). Its melting point is between 25 and 28 °C, with relatively high enthalpy (170–190 J/g); however, this phase change material (PCM) shows supercooling and phase separation. In CaCl₂.6H₂O incongruent melting causes lower hydrates of CaCl₂ to form, which affects the overall energy storage capacity and long-term durability. In this work, PCM performance enhancement was achieved by adding SrCl₂.6H₂O as a nucleating agent and NaCl/KCl as a stabilizer to prevent supercooling and phase separation, respectively. We investigated the PCM preparation method and optimized the proportions of SrCl₂.6H₂O and NaCl/KCl. Thermal testing for 25 cycles combined with DSC and T-history testing was performed to observe changes in enthalpy, phase transitions and supercooling over the extended period of usage. X-ray diffraction was used to verify crystalline structure in the compounds. It was found that the addition of 2 wt.% of SrCl₂.6H₂O reduced supercooling from 12 °C to 0 °C compared to unmodified CaCl₂.6H₂O. The addition of 5 wt.% NaCl or KCl proved to effectively suppress separation and the melting enthalpy achieved was 169 J/g–178 J/g with congruent melting over 25 cycles, with no supercooling and almost no reduction in the latent heat. Full article

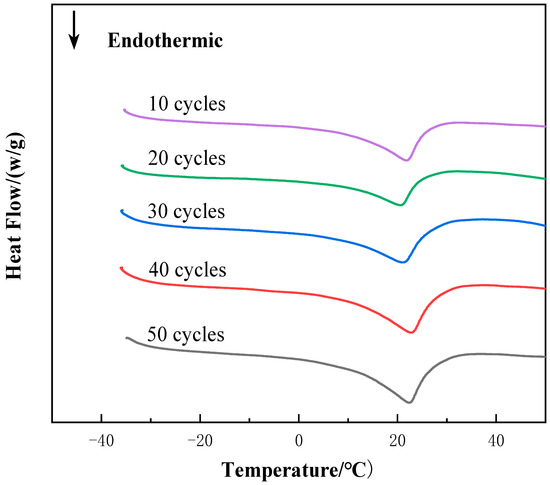

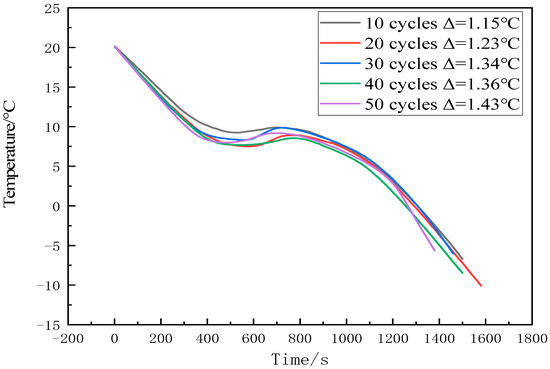

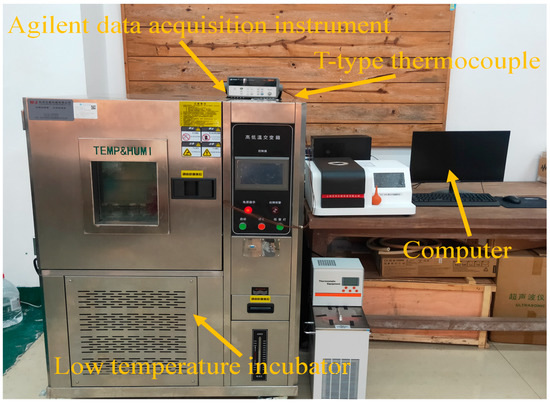

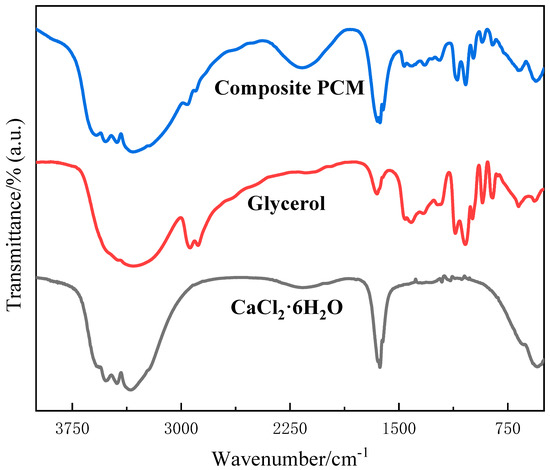

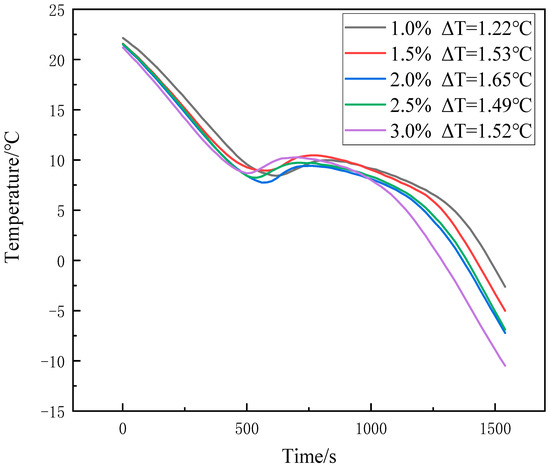

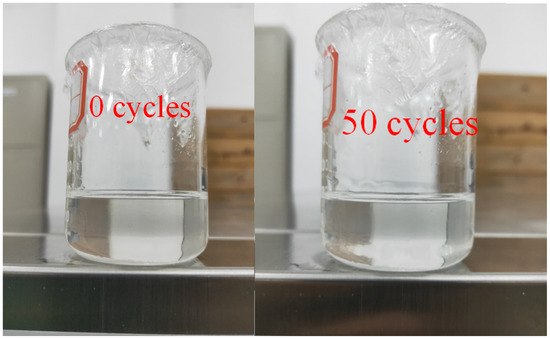

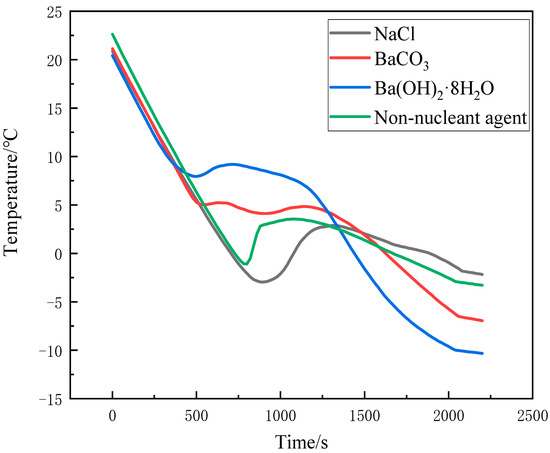

CaCl₂·6H₂O is selected as the original substrate for research, and a new composite phase change material (CPCM) suitable for air-conditioning was developed through experiments. The new modified CaCl₂·6H₂O CPCM uses glycerol as a temperature regulator and barium hydroxide octahydrate as a nucleating agent. The experimental results show that when the mass ratio of CaCl₂·6H₂O to glycerol is 85:15, the melting temperature of the CPCM is 11.8 °C and the enthalpy of phase change is 112.86 J/g. The chemical composition of the CPCM was characterized by Fourier transform infrared spectroscopy, which confirmed that the material was successfully developed. When the amount of barium hydroxide octahydrate nucleating agent was 1.0 wt.%, the supercooling of the CPCM decreased to 1.22 °C. CPCM still show good stability after 50 thermal cycles and can be used in practical production. Full article

Calcium aluminate slag produced by the aluminothermic reduction of silica is tested as a candidate raw material for the hydrometallurgical production of pure aluminium chloride hexahydrate (ACH) through leaching with hydrochloric acid. The crystallization of ACH follows by sparging the pregnant liquor with hydrochloric gas. Almost total extraction of Al is achieved with the use of azeotropic HCl acid solution (5.9 M) at 80 °C and 1 h retention time. A pregnant liquor with approximately 20 wt% AlCl₃ is produced as a base for ACH crystallization by sparging it with gaseous HCl. The ACH produced is re-dissolved and crystallized three to four times until high purity is achieved. High purity ACH acts as a precursor for producing High Purity Alumina (HPA), a high added value material used in LEDs and lithium-ion batteries and other niche applications. Full article

Photovoltaic (PV) systems are well-known systems that convert solar energy into electrical energy. Increases in operating temperature induce a drop in conversion efficiency and, thus, in the output power produced by the panel. This paper investigates the effectiveness of using Phase Change Materials (PCMs) in cooling PV modules. Due to its high storage density with limited temperature fluctuations, the latent heat storage in a PCM is an important factor. This depends on the thermophysical properties of PCMs such as the melting point, specific heat capacity, latent heat, density, etc. This paper aims to make a comparison between four types of PCM with different melting points and physical properties. Indoor experimental studies were performed using five prototypes. A halogen lamp was used as a solar simulator to ensure that experiments were carried out under the same irradiance. The first prototype was the reference, which consisted of a PV panel, a stand, and an electric circuit without PCMs. Four other prototypes were investigated, consisting of a PV panel with a container added at the rear face, with each having different types of PCM: sodium sulfate decahydrate, sodium phosphate dibasic dodecahydrate, decanoic acid, and calcium chloride hexahydrate, respectively. The results clearly show the effect of PCMs’ properties on PV temperature profile and power generation. Full article

The generation and use of energy are significant contributors to CO₂ emissions. Globally, approximately 30% to 40% of all energy consumption can be directly or indirectly linked to buildings. Nearly half of energy usage in buildings is linked to maintaining the thermal comfort of the inhabitants. Therefore, finding solutions that are not only technically but also economically feasible is of utmost importance. Though much research has been conducted to address this issue, most solutions are still costly for developing countries to implement practically. This study endeavors to find a less expensive yet straightforward methodology to achieve thermal comfort while conserving energy. This study takes a broader view of multiple habitat-related CO₂ emission issues in developing regions and describes a hybrid solution to address them. New technologies and innovative concepts are being globally examined to benefit from the considerable potential of PCMs and their role in thermal energy storage (TES) applications for buildings. The current study numerically investigates the thermal response of a hybrid building envelope consisting of PCM and local organic waste materials for low-cost low-energy buildings. The local organic waste materials used are those whose disposal is usually done by burning, resulting in an immense amount of greenhouse gases. In the first phase, different waste materials are characterized to determine their thermophysical properties. In the second phase, a low-cost, commonly available PCM calcium chloride hexahydrate, CaCl₂·6H₂O, is integrated with a brick and corn husk wall to enhance the thermal storage in the building envelope to minimize energy consumption. Temperature distribution plots are primarily used for analysis. The results show a marked improvement in thermal comfort by maintaining a maximum indoor temperature of 27 °C when construction is performed with a 6% corn husk composite material embedded with the PCM, while under similar conditions, the standard brick construction maintained a 31 °C indoor temperature. It is concluded that the integration of the PCM layer with the corn husk wall provides an adequate solution for low-cost and low-energy buildings. Full article

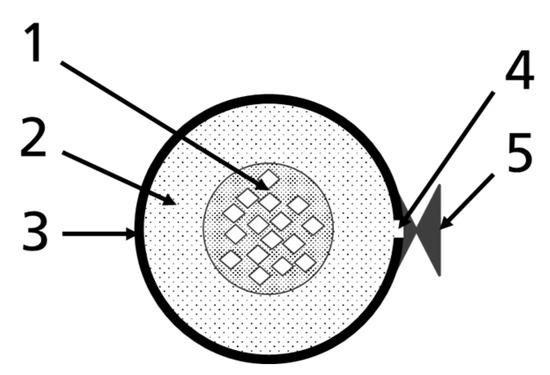

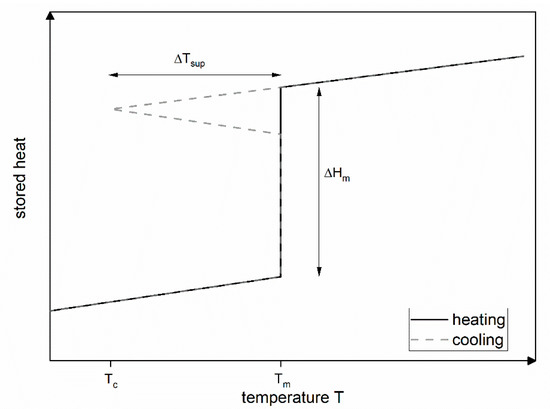

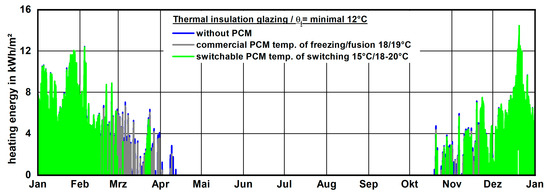

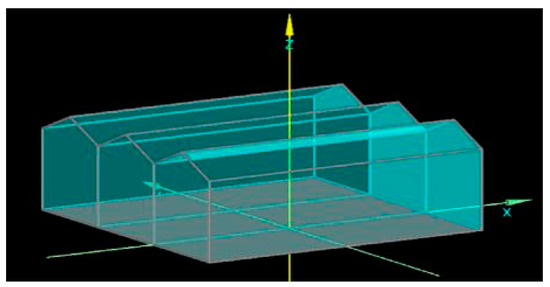

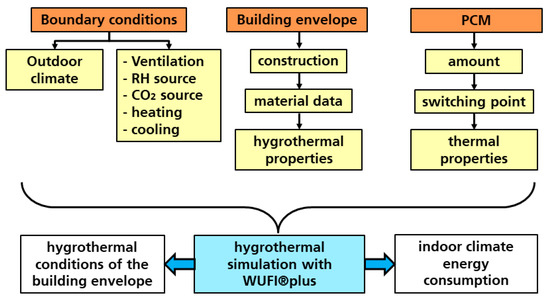

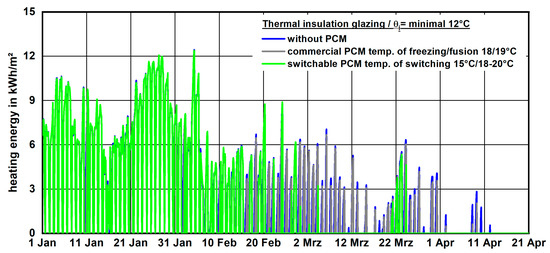

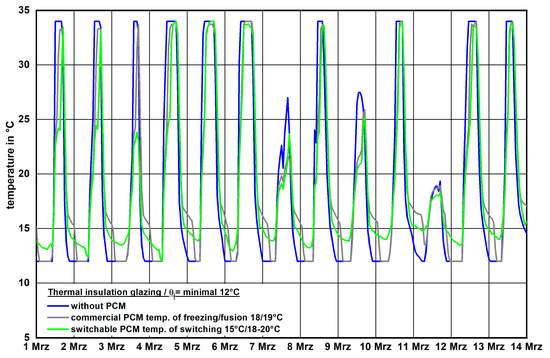

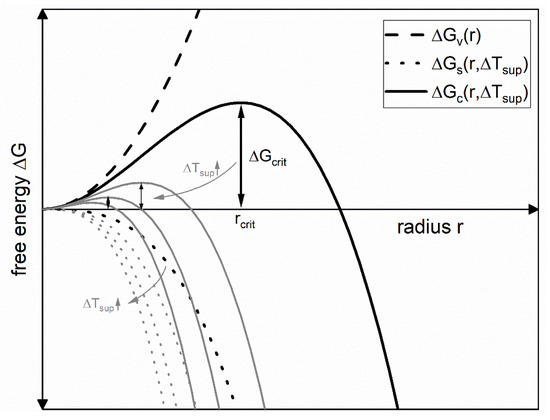

The research project Fraunhofer Cluster of Excellence “Programmable Materials” aims to develop new materials that can change their properties according to defined boundaries. This article describes the development and use of a novel programmable phase change material (PCM) for latent heat storage applications. At the moment, these PCMs have a programmable trigger mechanism incorporated that activates the crystallization of the material as a reaction to a defined stimulus so that the stored heat is released. In future development stages, programmability is to be integrated on the material level. The latent heat storage that is based on PCMs can be recharged by using the energy of the sun. As an example, for a possible application of such a material, the use of a novel programmable PCM in greenhouses to support heating energy reduction or to reduce the risk of frost is explained. Using the hygrothermal simulation tool WUFI^® Plus, the effects in greenhouse constructions without and with commercially available or novel programmable PCMs are calculated and presented in the present article. The calculations are based on the material data of calcium chloride hexahydrate (CaCl₂-6H₂O), as this material serves as a basic material for the development of programmable PCM compositions. The results of the simulations show a positive impact on the indoor temperatures in greenhouses in view of the risk of frost and the reduction of heating energy. Thus, the vegetation period can be extended in combination with a lower energy load. By an eligible actuation mechanism, an inherent material system for temperature control can be created. Full article

Salt hydrates have issues of supercooling when they are utilized as phase change materials (PCMs). In this research, a new method was adopted to prepare a salt hydrate PCM (based on a mixture of calcium chloride dihydrate and calcium chloride anhydrous) as a novel PCM system to reduce the supercooling phenomenon existing in CaCl₂·6H₂O. Six samples with different compositions of CaCl₂ were prepared. The relationship between the performance and the proportion of calcium chloride dihydrate (CaCl₂·2H₂O) and calcium chloride anhydrous (CaCl₂) was also investigated. The supercooling degree of the final PCM reduced with the increase in volume of CaCl₂·2H₂O during its preparation. The PCM obtained with 66.21 wt % CaCl₂·2H₂O reduced the supercooling degree by about 96.8%. All six samples, whose ratio of CaCl₂·2H₂O to (CaCl₂ plus CaCl₂·2H₂O) was 0%, 34.03%, 53.82%, 76.56%, 90.74%, and 100% respectively, showed relatively higher enthalpy (greater than 155.29 J/g), and have the possibility to be applied in buildings for thermal energy storage purposes. Hence, CaCl₂·2H₂O plays an important role in reducing supercooling and it can be helpful in adjusting the solidification enthalpy. Thereafter, the influence of adding different percentages of Nano-SiO₂ (0.1 wt %, 0.3 wt %, 0.5 wt %) in reducing the supercooling degree of some PCM samples was investigated. The test results showed that the supercooling of the salt hydrate PCM in Samples 6 and 5 reduced to 0.2 °C and 0.4 °C respectively. Finally, the effect of the different cooling conditions, including frozen storage (−20 °C) and cold storage (5 °C), that were used to prepare the salt hydrate PCM was considered. It was found that both cooling conditions are effective in reducing the supercooling degree of the salt hydrate PCM. With the synergistic action of the two materials, the performance and properties of the newly developed PCM systems were better especially in terms of reducing the supercooling degree of the PCM. The novel composite PCMs are promising candidates for thermal energy storage applications. Full article

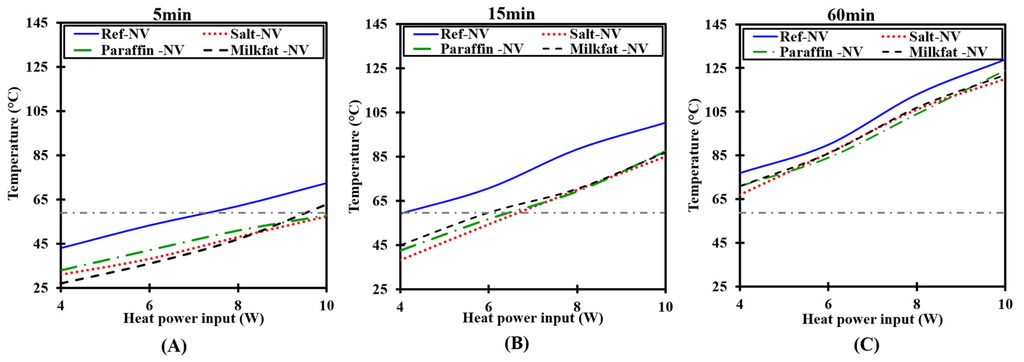

This paper thermo-physically characterizes salt hydrate, paraffin wax and milk fat as phase change materials (PCMs). The three PCMs are compared in terms of improving heat sink (HS) performance for cooling electronic packaging. An experimental study is carried out on commercially available finned HS with and without PCM under natural ventilation (NV) and forced ventilation (FV) at different heat loads (4 W to 10 W). The results indicate that integration of all of the PCMs into the HS improves its cooling performance; however, milk fat lags behind the other two PCMs in terms of cooling produced. A three-dimensional pressure-based conjugate heat transfer model has been developed and validated with experimental results. The model predicts the parametric influence of PCM melting range, thermal conductivity and density on HS thermal management performance. The HS cooling performance improves with increased density and conductivity while it deteriorates with the wider melting range of the PCMs. Full article
