Search Results (23)

Compared with traditional Al–Si die-cast alloys, which have good formability and low cost but poor brazeability and inadequate corrosion resistance, high-pressure die-cast (HPDC) Al–RE alloys exhibit superior comprehensive properties. To satisfy the demand for lightweight, high-performance materials in automotive thermal management, a controlled-atmosphere brazing (CAB) furnace was employed in this work to investigate the effect of the complete brazing cycle on the microstructure, mechanical properties, and corrosion resistance of the HPDC Al–RE alloy. In the as-cast state, the eutectic Al₁₁(La,Ce)₃ phase presents a lamellar structure. After the simulated brazing process, this phase transforms into dispersed near-spherical particles. Such microstructural evolution directly determines the mechanical and corrosion behaviors of the alloy. The yield strength and ultimate tensile strength decrease, while the elongation increases substantially owing to the alleviation of stress concentration. The corrosion resistance of the alloy depends on the service environment. After 960 h of neutral salt spray (NSS) testing, the alloy showed excellent corrosion resistance with only slight corrosion. Nevertheless, severe localized pitting corrosion (maximum pit depth: 0.932 mm) was observed after 480 h of sea water acidified accelerated test (SWAAT) exposure. This pitting phenomenon is directly associated with spheroidized Al₁₁(La,Ce)₃ particles. In acidic chloride-containing media, these intermetallic particles undergo preferential anodic dissolution relative to the α-Al matrix, resulting in micro-galvanic corrosion. In conclusion, after simulated brazing treatment, the ductility of the Al–RE alloy is remarkably improved at the cost of a moderate reduction in strength. The Al–RE alloy possesses good corrosion resistance in neutral saline environments. However, severe localized corrosion tends to occur in acidic environments due to the high electrochemical activity of spheroidized intermetallic phases. Full article

The reliable joining of graphite and Cu holds significant promise for applications in electronic heat dissipation and sliding electrical contacts. However, the substantial differences in their physicochemical properties, poor wettability, and mismatch in coefficients of thermal expansion often result in low joint strength. In this study, a two-step joining strategy combines surface modification with low-temperature sintering, and this is proposed for fabrication of Cu/graphite joints. First, the graphite surface is modified using an AgCuTi active filler alloy under vacuum conditions. Ti preferentially segregates at and reacts with the graphite interface, leading to the formation of an Ag-Cu eutectic modified layer on the graphite surface. Subsequently, low-temperature joining of the modified graphite to a Cu substrate is achieved via a hot-pressing sintering process using a Ag paste. In the sintered joint, the Ag sintered layer forms sound metallurgical bonds with both the Cu substrate and the graphite-modified layer. When the sintering temperature is 250 °C, the joint exhibits a shear strength of 30 MPa, which is significantly higher than that of a directly brazed joint. This strategy effectively reduces thermal residual stress in the joint during cooling and shifts the failure location from the brittle graphite substrate to the ductile Ag sintered layer, thereby substantially enhancing the mechanical performance. Full article

During active brazing of alumina ceramics, active elements react with the ceramic to form a reaction layer, which has significant influence on the mechanical property of the brazed joint. However, the composition and formation mechanism of this layer remain unclear among researchers. To fill this gap, different brazing temperatures (900–1100 °C) and heating rates (2.5 °C/min and 10 °C/min) were used to braze 95% Al₂O₃ ceramics and a Kovar 4J34 alloy using a Ag-Cu-2Ti active brazing filler, and the microstructure and mechanical properties of the joints were investigated. The results show that the joint could be divided into five layers: Al₂O₃, ceramic-side reaction layer, filler layer, Kovar-side reaction layer, and Kovar. The ceramic-side reaction layer could be further divided into a Ti-O-rich layer and an intermetallics (IMC)-rich layer, and the Kovar-side reaction layer consists of TiFe₂ particles, Ag-Cu eutectic, and the remaining Kovar. A belt-like TiFe₂+TiNi₃ IMC could be found in the filler layer. Increasing the brazing temperature enlarged the belt-like TiFe₂+TiNi₃ IMC in the filler layer and increased the thickness of the IMC-rich layer in the ceramic-side reaction layer, but had no significant effect on the thickness of the Ti-O-rich layer in the ceramic-side reaction layer. A lower heating rate (2.5 °C/min) was found to suppress the formation of the IMC-rich layer and shift the fracture location in shear tests from the ceramic-side reaction layer to the filler layer, indicating that the strength of the ceramic-side reaction layer was enhanced by controlling the formation of the IMC-rich layer. A maximum shear strength of 170 ± 61 MPa was obtained at a heating rate of 2.5 °C/min and a brazing temperature of 940 °C. Full article

A novel AgCuTi brazing foil with a unique microstructure was developed, which could achieve strong vacuum brazing of Ti6Al4V (TC4) and sapphire. The brazing foil was composed of Ag solid solution (Ag(s,s)), Cu solid solution (Cu(s,s)), and layered Ti-rich phases, and had a low liquidus temperature of 790 °C and a narrow melting range of 16 °C, facilitating the defect-free joining of TC4 and sapphire. The sapphire/TC4 joint fabricated by using this novel AgCuTi brazing foil exhibited an outstanding average shear strength of up to 132.2 MPa, which was the highest value ever reported. The sapphire/TC4 joint had a characteristic structure, featuring a brazing seam reinforced by TiCu particles and a thin Ti₃(Cu,Al)₃O reaction layer of about 1.3 μm. The fracture mechanism of the sapphire/TC4 joint was revealed. The crack originated at the brazing seam with TiCu particles, then propagated through the Ti₃(Cu,Al)₃O reaction layer, detached the reaction layer from the sapphire, and finally penetrated into the sapphire. This study offers valuable insights into the design of active brazing alloys and reliable metal–ceramic bonding. Full article

Brazing a SiO_2f/SiO₂ composite with metals is often faced with two problems: poor wettability with the brazing alloy and high residual stress in the joint. To overcome these problems, we report a combined method of selective etching and depositing reduced graphene oxide (rGO) on the surface of a SiO_2f/SiO₂ composite (3D-rGO-SiO_2f/SiO₂) to assist brazing with TC4. After the combined treatment, a “3D-rGO” buffer layer formed on the surface layer of the SiO_2f/SiO₂, and the contact angle was reduced from 130° to 38°, which meant the wettability of active brazing alloy on the surface of SiO_2f/SiO₂ was obviously improved. In addition, the “3D-rGO” buffer layer contributed to fully integrating the brazing alloy and SiO_2f/SiO₂; then, the infiltration of the brazing alloy into the surface layer of the SiO_2f/SiO₂ was enhanced and formed the reduced graphene oxide with a pinning structure in the three dimensional (“3D-pinning-rGO”) structure. Moreover, the joining area of the brazing alloy and SiO_2f/SiO₂ was expanded and the mismatch degree between the SiO_2f/SiO₂ and TC4 was reduced, which was achieved by the “3D-pinning-rGO” structure. Furthermore, the concentration of the residual stress in the SiO_2f/SiO₂-TC4 joints transferred from the SiO_2f/SiO₂ to the braided quartz fibers, and the residual stress reduced from 142 MPa to 85 MPa. Furthermore, the 3D-pinning-rGO layer facilitated the transfer of heat between the substrates during the brazing process. Finally, the shear strength of the SiO_2f/SiO₂-TC4 joints increased from 12.5 MPa to 43.7 MPa by the selective etching and depositing rGO method. Full article

In this article, the studies undertaken on brazed diamond tools were reviewed. The influences of the brazing alloys with different active elements on the brazing quality of brazed diamond tools are emphatically discussed. The differences in the micromorphology, friction and wear properties, and mechanical properties of brazed diamonds caused by three different brazing alloys are described in detail. The quality evaluation of brazed diamond tools is discussed from several aspects, such as the difference in microstructure of the diamond/brazing alloy interface, the friction and wear of brazed diamond tools, and the strength and residual stress of the brazing interface. Finally, relevant open questions related to the brazed diamond tools’ performance are outlined, and the future has been prospected. Full article

The aim of this work was to investigate the challenges associated with bonding Al-Mg alloys and develop a new method for bonding these alloys to steels. During an extensive R&D project, over 80 attempts, using 11 methods, were made to bond Al-6 wt.% Mg alloy (Al-5056/Al-5A06) to two types of stainless steels (heat-resistant 1Cr18Ni9Ti and conventional 316). Wide ranges of temperature (500 °C to 580 °C), pressure (0.5 MPa to 10 MPa) and time (1 min to 2 h) were used when direct diffusion bonding of these alloys. Then, effects of using various interlayers and brazing foils were investigated. The interlayers used in this work were gallium, pure titanium, copper and aluminium foils, aluminium 6061 alloy sheets, aluminium-silicon brazing foils, zinc and zinc alloy foils as well as an active brazing foil (known as Incusil-ABA containing silver, copper, indium and titanium). Several complex and multi-stage processes, using up to 3 different interlayers in the same joint, were also developed and assessed. Examination and assessment of the bonded samples, including failed attempts, paved the way of developing new methods for bonding these dissimilar materials. A number of samples with tensile strengths from 200 MPa to 226 MPa were made by using complex combinations of 2 or 3 interlayers and triple-stage bonding cycles. The highest recorded bond strength was 226 MPa in the as-bonded condition. This value is above the measured yield strength (134 MPa) and about 93% of the measured ultimate strength (243 MPa) of the parent Al-Mg alloy after it was subjected to the same bonding cycle. Since the use of complex processes was not feasible for bonding large components, a simpler and more practical bonding cycle was also developed in the project. Using the simpler process, joints with tensile strengths around 90 MPa could be made. This article also sheds light on the difficulties associated with brazing and soldering aluminium alloys with a high magnesium content. Full article

The purpose of this study was to investigate the wetting behavior and interfacial reactions of Sn-Ti alloys, which has been widely applied to join ceramics with metals, on Si₃N₄ substrates. The isothermal wetting process of Sn-xTi alloys (x = 0.5, 1.0, 1.5, 2.0 and 2.5 wt.%) on Si₃N₄ was systematically studied from 1223 K to 1273 K through sessile drop methods. The microstructures of the interface were characterized by X-ray diffraction (XRD) and microscope (SEM). The active Ti element remarkably enhanced the wettability of Sn-xTi melts on Si₃N₄ substrates because of the formation of metallic reaction layers (Ti₅Si₃ and TiN). With the Ti content rising, thicker Ti₅Si₃ layer formed on the TiN phase inducing a lower equilibrium contact angle. The value of the lowest contact angle was 6°, which was obtained in the Sn-2.0Ti/Si₃N₄ system at 1273 K. Larger Ti₅Si₃ grains were found in Sn-2.5Ti melt and a higher final contact angle was obtained. Lower temperature increased the final contact angle and slowed down the spreading rate. The formation of reaction products was calculated thematically, and the spreading kinetics was calculated according to the reaction-driven theory. The spreading behavior of Sn-Ti alloy on Si₃N₄ ceramic was composed of rapid-spreading stage and sluggish-spreading stage. The calculated activity energy of spreading was 395 kJ/mol. Eventually, the wetting process of Sn-2.0Ti/Si₃N₄ system was successfully elucidated. These results provide significant guidance information for the brazing between metals and Si₃N₄ ceramic. Full article

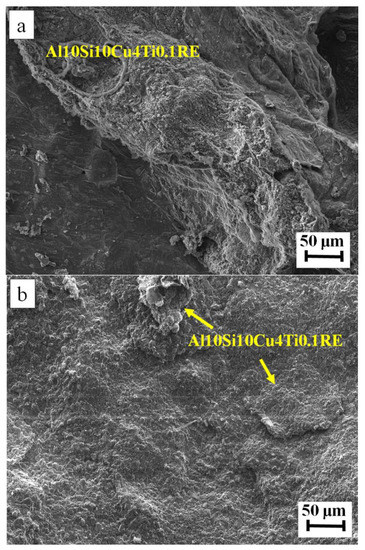

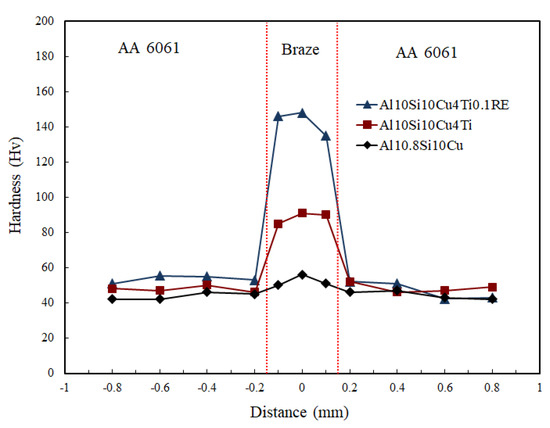

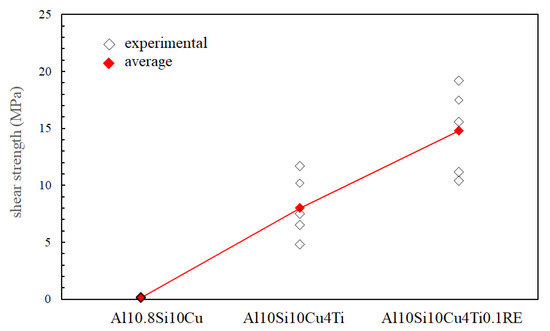

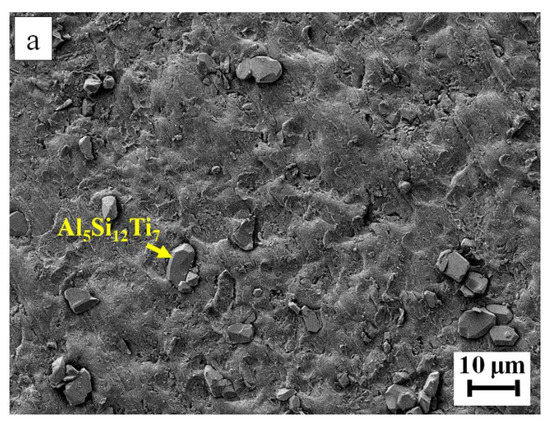

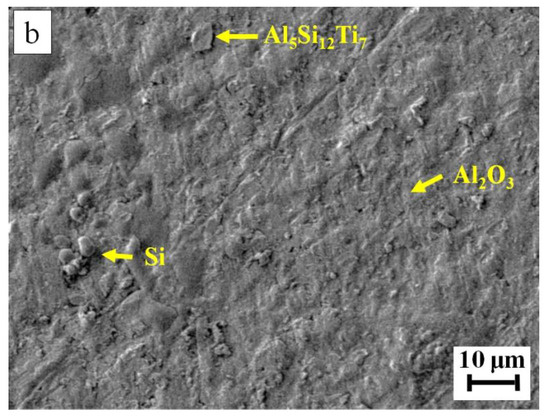

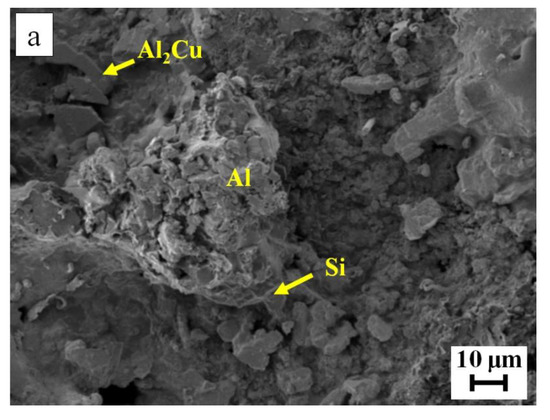

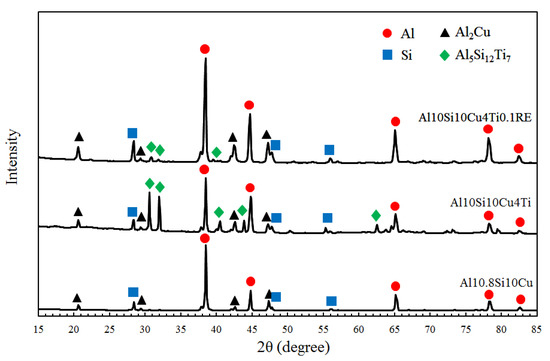

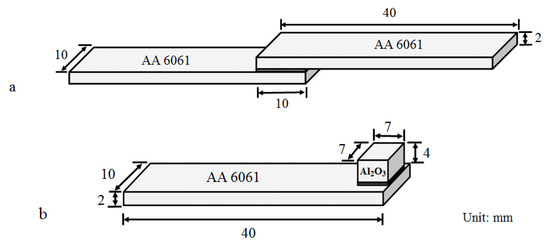

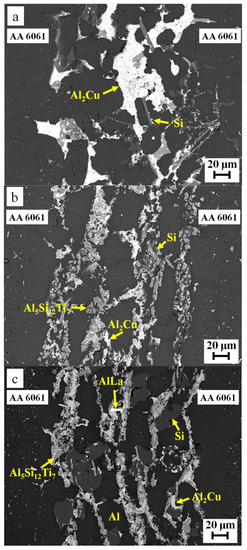

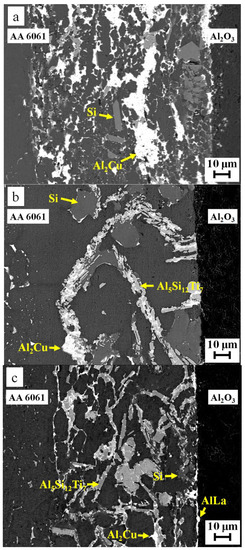

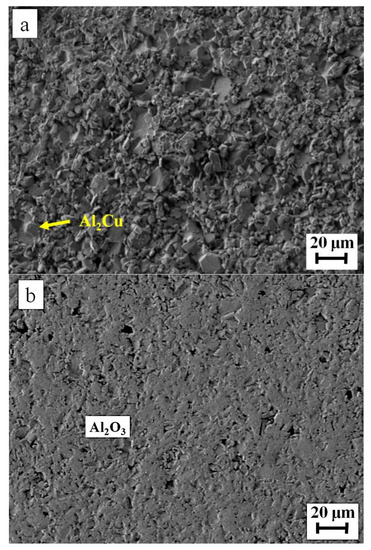

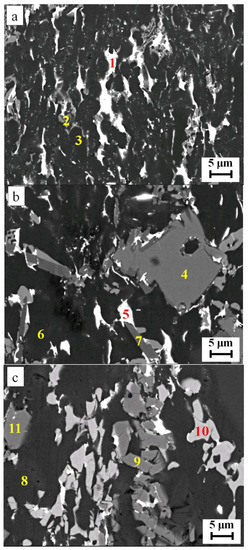

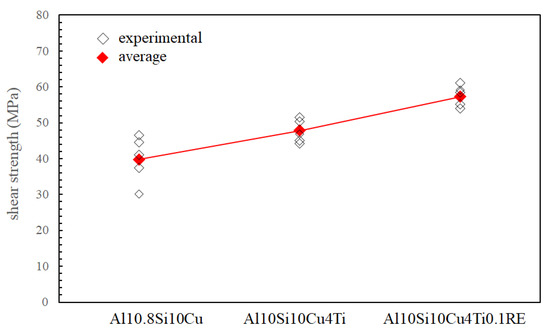

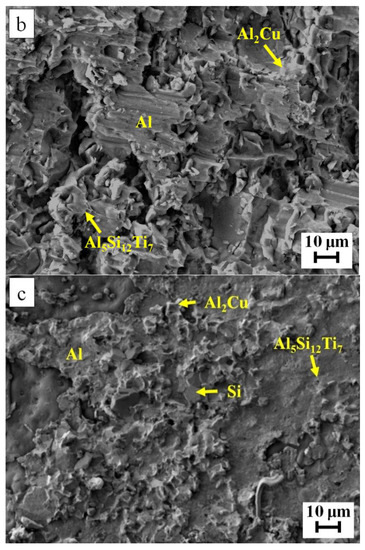

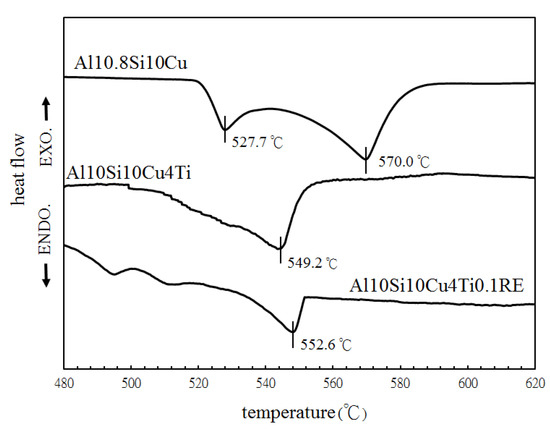

In this study, AA6061/AA6061 and AA6061/alumina were directly brazed with Al10.8Si10Cu, Al10Si10Cu4Ti and Al10Si10Cu4Ti0.1RE filler alloys at 530 °C for 10 min without the use of flux. The addition of titanium and rare-earth elements into Al10.8Si10Cu alloy effectively improved the bonding shear strengths of AA6061/AA6061 and AA6061/alumina joints. The highest joint shear strengths were 61.1 and 19.2 MPa, respectively. The Al10.8Si10Cu filler alloy without titanium and rare-earth elements could not wet on the alumina and caused failure of the AA6061/alumina joint. The shear strengths of the AA6061/AA6061 and AA6061/alumina joints both strongly depended on the active element addition. Due to the high chemical activity of the rare-earth elements, they formed AlLa between the Al10Si10Cu4Ti0.1RE filler alloy and alumina. The addition of rare-earth elements into Al10Si10Cu4Ti filler alloy resulted in significant enhancement of the average bond strength of AA6061/alumina joints, from 8.0 to 14.8 MPa. Full article

To create a DEMO reactor, it is necessary to develop high-quality technology to join tungsten with reduced-activation ferritic-martensitic (RAFM) steel (Rusfer, Eurofer, CLF-1, etc.). Difficulties arise in their direct connection due to the large difference in the coefficient of thermal expansion (CTE). To suppress the difference of CTE, intermediate interlayers are usually used, such as vanadium or tantalum, and brazing is a prospective technology to conduct the joining. The vast majority of works represent copper- or nickel-based brazing alloys, but their applicability is under significant discussion due to their activation properties. That is why, in this work, fully reduced activation 48Ti-48Zr-4Be wt.% brazing alloy was used. The following joint was made: Rusfer steel/48Ti-48Zr-4Be/Ta/48Ti-48Zr-4Be/W. The brazing was successfully carried out under a mode providing thermal heat treatment of Rusfer. Through EDS and EBSD analysis, the microstructure of the joint was determined. Shear strength of the as-joined composition was measured as 127 ± 20 MPa. The joint endured 200 thermocycles in the temperature range between 300–600 °C, but the fillet regions degraded. Full article

The study was designed to investigate the synergic effect of Ti and Sn in the active metal brazing of Al₂O₃ ceramic to copper brazed, using the multicomponent Ag-Cu-Zr filler alloy. Numerous fine and hexagonal-shaped rod-like ternary intermetallic (Zr, Ti)₅Sn₃ phase (L/D = 5.1 ± 0.8, measured in microns) were found dispersed in the Ag-Cu matrix of Ag-18Cu-6Sn-3Zr-1Ti alloy, along with the ternary CuZrSn intermetallic phases. An approximate 15° reduction in contact angle and 3.1 °C reduction in melting point are observed upon the incorporation of Ti and Sn in Ag-18Cu-3Zr filler. Interestingly, the interface microstructure of Al₂O₃/Cu joints brazed by using Ag-18Cu-6Sn-3Zr-1Ti filler shows a double reaction layer: a discontinuous Ti-rich layer consisting of (Cu, Al)₃(Ti, Zr)₃O, TiO, and in-situ Cu-(Ti, Zr) precipitates on the Al₂O₃ side and continuous Zr-rich layer consisting of ZrO₂ on the filler side. The shear strength achieved in Al₂O₃/Cu joints brazed with Ag-18Cu-6Sn-3Zr-1Ti filler is 31% higher, compared to the joints brazed with Ag-18Cu-6Sn-3Zr filler. Failure analysis reveals a composite fracture mode indicating a strong interface bonding in Al₂O₃/Ag-18Cu-6Sn-3Zr-1Ti filler/Cu joints. The findings will be helpful towards the development of high entropy brazing fillers in the future. Full article

Ultralight sandwich constructions with corrugated channel cores (i.e., periodic fluid-through wavy passages) are envisioned to possess multifunctional attributes: simultaneous load-carrying and heat dissipation via active cooling. Titanium alloy (Ti-6Al-4V) corrugated-channel-cored sandwich panels (3CSPs) with thin face sheets and core webs were fabricated via the technique of selective laser melting (SLM) for enhanced shear resistance relative to other fabrication processes such as vacuum brazing. Four-point bending responses of as-fabricated 3CSP specimens, including bending resistance and initial collapse modes, were experimentally measured. The bending characteristics of the 3CSP structure were further explored using a combined approach of analytical modeling and numerical simulation based on the method of finite elements (FE). Both the analytical and numerical predictions were validated against experimental measurements. Collapse mechanism maps of the 3CSP structure were subsequently constructed using the analytical model, with four collapse modes considered (face-sheet yielding, face-sheet buckling, core yielding, and core buckling), which were used to evaluate how its structural geometry affects its collapse initiation mode. Full article

Titanium and Zircaloy-4 dissimilar alloys were brazed with a zirconium-titanium-copper-nickel amorphous filler alloy, and the resulting joint structures as well as their corrosion properties were examined. The microstructure of the brazed joints was investigated according to brazing holding time at 850 °C, and the corrosion property was analyzed by potentiodynamic polarization. During brazing, joints were produced by diffusion-induced isothermal solidification of the molten filler alloy. At a relatively brief brazing holding time of 5 min, a large segregation zone consisting of an active α-phase and a nobler intermetallic phase was generated in the joint center, which suffered from micro-galvanic corrosion. The presence of alloyed titanium deteriorated the nobility of the α-zirconium phase near the joint and induced galvanic coupling with cathodic base metals, resulting in massive localized corrosion. This localized corrosion caused the pitting behavior at the applied potential of −51.1~187.5 mV during anodic polarization. With a brazing holding time of 20 min, the concentration of the alloying elements was homogenized to eliminate the electrochemical potential difference and minimize the galvanic corrosion susceptibility of the joint region. This homogeneous joint resulted in a highly passive corrosion behavior comparable to that of the titanium base metal. Full article

In this study, brazing AA6061 to Q235 steel using flame brazing was performed with 70.9 wt.% CsF-0.5 wt.% RbF-28.6 wt.% AlF₃ fluxes doped with GaF₃, ZnF₂, Zn(BF₄)₂ and Ga₂O₃ nanoparticles, matched with a Zn-15Al filler metal, and the spreadability of the filler metal and the mechanical properties of brazed joints were investigated at the same time. The results showed suitable amounts of GaF₃, ZnF₂, Zn(BF₄)₂ and Ga₂O₃ doped into the base flux could strengthen the filler metal in wetting and spreading on the surface of aluminum alloy and steel to different degrees. The suitable ranges of GaF₃, ZnF₂, Zn(BF₄)₂ and Ga₂O₃, respectively, were 0.0075–0.01 wt.%, 0.0075–0.01 wt.%, 0.0075–0.01 wt.% and 0.009–0.01 wt.%, and the maximum spreading area was obtained via doping with GaF₃. The shear strength of brazed joints reached the peak at 126 MPa when 0.075 wt.% GaF₃ was added. Comparative tests proved that the activity of the CsF-RbF-AlF₃ flux doped with GaF₃ was the best. The reason was that the CsF-RbF-AlF₃-GaF₃ flux was competent in removing oxides of the base metal and decreasing the interfacial tension, in virtue of the activity of Ga³⁺ as well as F⁻. Full article

The vacuum brazing of dissimilar electronic packaging materials has been investigated. In this research, this applies silicon particle-reinforced aluminum matrix composites (Si_p/Al MMCs) to Kovar alloys. Active melt-spun ribbons were employed as brazing filler metals under different joining temperatures and times. The results showed that the maximum joint shear strength of 96.62 MPa was achieved when the joint was made using Al-7.5Si-23.0Cu-2.0Ni-1.0Ti as the brazing filler metal at 580 °C for 30 min. X-ray diffraction (XRD) analysis of the joint indicated that the main phases were composed of Al, Si and intermetallics, including CuAl, TiFeSi, TiNiSi and Al₃Ti. When the brazing temperature ranged from 570 °C to 590 °C, the leakage rate of joints remained at 10⁻⁸ Pa·m³/s or better. When the joint was made using Al-7.5Si-23.0Cu-2.0Ni-2.5Ti as the brazing filler metal at 580 °C for 30 min, the higher level of Ti content in the brazing filler metal resulted in the formation of a flake-like Ti(AlSi)₃ intermetallic phase with an average size of 7 µm at the interface between the brazing seam and Si_p/Al MMCs. The joint fracture was generally in the form of quasi-cleavage fracture, which primarily occurred at the interface between the filler metal and the Si_p/Al MMCs. The micro-crack propagated not only Ti(AlSi)₃, but also the Si particles in the substrate. Full article
