Stretchable organic field-effect transistors (OFETs), with inherent flexibility, versatile sensing mechanisms, and signal amplification properties, provide a unique device-level solution for the real-time, in situ detection of trace gaseous pollutants. However, serious challenges remain regarding the synergistic optimization of OFET gas sensor production preparation, mechano-electrical properties, and gas-sensing performance. Although the introduction of microstructures can theoretically provide OFETs with enhanced sensing performance, the high-precision process required for microstructure fabrication limits scale-up. Herein, a straightforward hybrid solvent strategy is proposed for regulating the intrinsic microstructure of the organic semiconductor layer, with the aim of constructing an ultrasensitive PDVT-10/SEBS fully stretchable OFET NO₂ sensor. The binary solvent system induces the formation of nanoneedle-like structures in the PDVT-10/SEBS organic semiconductor, which achieves a maximum mobility of 2.71 cm² V⁻¹ s⁻¹, a switching current ratio generally exceeding 10⁶, and a decrease in mobility of only 30% at 100% strain. Specifically, the device exhibits a response of up to 77.9 × 10⁶ % within 3 min and a sensitivity of up to 1.4 × 10⁶ %/ppm, and it demonstrates effective interference immunity, with a response of less than 100% to nine interferences. This work paves the way for next-generation wearable smart sensors. Full article

Optimizing charge transport in organic semiconductors is crucial for advancing next-generation optoelectronic devices. The performance of organic field-effect transistors (OFETs) is significantly influenced by the alignment of films in the channel direction and the quality of the dielectric surface, which should be uniform, smooth, and free of charge-trapping defects. Our study reports the enhancement of OFET performance using large-area, uniform, and oriented thin films of regioregular poly[3-hexylthiophene] (RR-P3HT), prepared via the Floating Film Transfer Method (FTM) on octadecyltrichlorosilane (OTS) passivated SiO₂ surfaces. SiO₂ surfaces inherently possess dangling bonds that act as charge traps, but these can be effectively passivated through optimized surface treatments. OTS treatment has improved the optical anisotropy of thin films and the surface wettability of SiO₂. Notably, using octadecene as a solvent during OTS passivation, as opposed to toluene, resulted in a significant enhancement of charge carrier transport. Specifically, passivation with OTS-F (10 mM OTS in octadecene at 100 °C for 48 h) led to a >150 times increase in mobility and a reduction in threshold voltage compared to OTS-A (5 mM OTS in toluene for 12 h at room temperature). Under optimal conditions, these FTM-processed RR-P3HT films achieved the best device performance, with a saturated mobility (μ_sat) of 0.18 cm²V⁻¹s⁻¹. Full article

Organic semiconductor materials are interesting due to their application in various organic electronics devices. [1]benzothieno[3,2-b][1]benzothiophene (BTBT) is a widely used building block for the creation of such materials. In this work, three novel solution-processable regioisomeric derivatives of BTBT—2,7-bis(3-octylthiophene-2-yl)BTBT (1), 2,7-bis(4-octylthiophene-2-yl)BTBT (2), and 2,7-bis(5-octylthiophene-2-yl)BTBT (3)—were synthesized and investigated. Their optoelectronic properties were characterized experimentally by ultraviolet–visible and fluorescence spectroscopy, time-resolved fluorimetry, and cyclic voltammetry and studied theoretically by Time-Dependent Density Functional Theory calculations. Their thermal properties were investigated by a thermogravimetric analysis, differential scanning calorimetry, polarizing optical microscopy, and in situ small-/wide-angle X-ray scattering measurements. It was shown that the introduction of alkyl substituents at different positions (3, 4, or 5) of thiophene moieties attached to a BTBT fragment significantly influences the optoelectronic properties, thermal stability, and phase behavior of the materials. Thin films of each compound were obtained by drop-casting, spin-coating and doctor blade techniques and used as active layers for organic field-effect transistors. All the OFETs exhibited p-channel characteristics under ambient conditions, while compound 3 showed the best electrical performance with a charge carrier mobility up to 1.1 cm²·V⁻¹s⁻¹ and current on/off ratio above 10⁷. Full article

Organic field-effect transistors (OFETs) are an ideal platform for intrinsically stretchable sensors due to their diverse mechanisms and unique electrical signal amplification characteristics. The remarkable advantages of intrinsically stretchable sensors lie in their molecular tunability, lightweight design, mechanical robustness, solution processability, and low Young’s modulus, which enable them to seamlessly conform to three-dimensional curved surfaces while maintaining electrical performance under significant deformations. Intrinsically stretchable sensors have been widely applied in smart wearables, electronic skin, biological detection, and environmental protection. In this review, we summarize the recent progress in intrinsically stretchable sensors based on OFETs, including advancements in functional layer materials, sensing mechanisms, and applications such as gas sensors, strain sensors, stress sensors, proximity sensors, and temperature sensors. The conclusions and future outlook discuss the challenges and future outlook for stretchable OFET-based sensors. Full article

The performance of organic field-effect transistors (OFETs) is highly dependent on the dielectric–semiconductor interface, especially in ion-gel-gated OFETs, where a significantly high carrier density is induced at the interface at a low gate voltage. This study investigates how altering the alkyl side chain length of donor–acceptor (D-A) copolymers impacts the electrical performance of ion-gel-gated OFETs. Two difluorobenzothiadiazole-based D-A copolymers, PffBT4T-2OD and PffBT4T-2DT, are compared, where the latter features longer alkyl side chains. Although PffBT4T-2DT shows a 2.4-fold enhancement of charge mobility in the SiO₂-gated OFETs compared to its counterpart due to higher crystallinity in the film, PffBT4T-2OD outperforms PffBT4T-2DT in the ion-gel-gated OFETs, manifested by an extraordinarily high mobility of 17.7 cm²/V s. The smoother surface morphology, as well as stronger interfacial interaction between the ion-gel dielectric and PffBT4T-2OD, enhances interfacial charge accumulation, which leads to higher mobility. Furthermore, PffBT4T-2OD is blended with a polymeric elastomer SEBS to achieve ion-gel-gated flexible OFETs. The blend devices exhibit high mobility of 8.6 cm²/V s and high stretchability, retaining 45% of initial mobility under 100% tensile strain. This study demonstrates the importance of optimizing the chain structure of polymer semiconductors and the semiconductor–dielectric interface to develop low-voltage and high-performance flexible OFETs for wearable electronics applications. Full article

Organic field-effect transistors (OFETs) require ultra-precise electrical measurements due to their unique charge transport mechanisms and sensitivity to environmental factors, yet commercial semiconductor parameter analysers capable of such measurements are prohibitively expensive for many research laboratories. This study introduces a novel, cost-effective, and portable setup for high-precision OFET characterisation that addresses this critical need, providing a feasible substitute for conventional analysers costing tens of thousands of dollars. The suggested system incorporates measurement, data processing, and graphical visualisation capabilities, together with Bluetooth connectivity for local operation and Wi-Fi functionality for remote data monitoring. The device consists of a motherboard and specialised cards for low-current measurement, voltage measurement, and voltage generation, providing comprehensive OFET characterisation, including transfer and output characteristics, in accordance with IEEE-1620 standards. The system can measure current from picoamperes to milliamperes, with voltage measurements supported by high input resistance (>100 MΩ) and a voltage generation range of −30 V to +30 V. This versatile and accessible approach greatly improves the opportunities for future OFET research and development. Full article

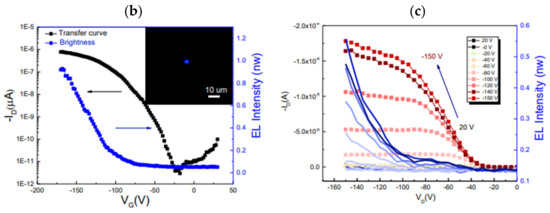

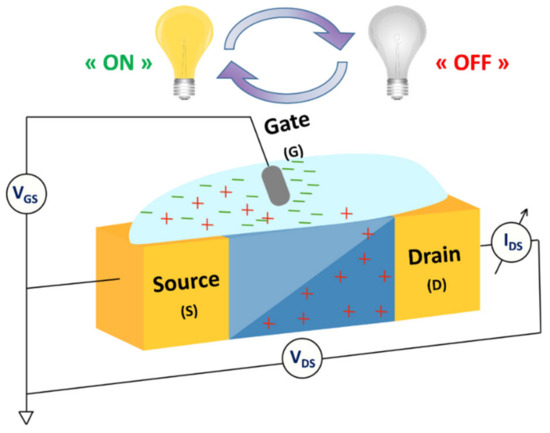

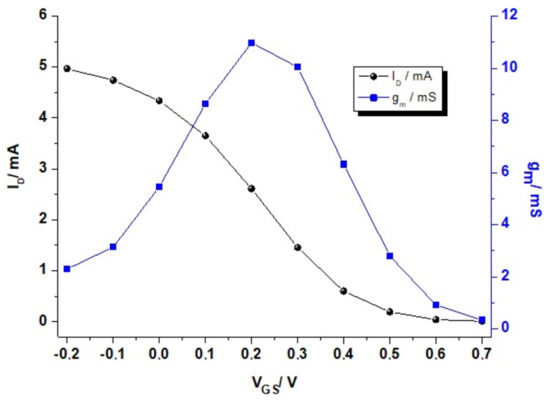

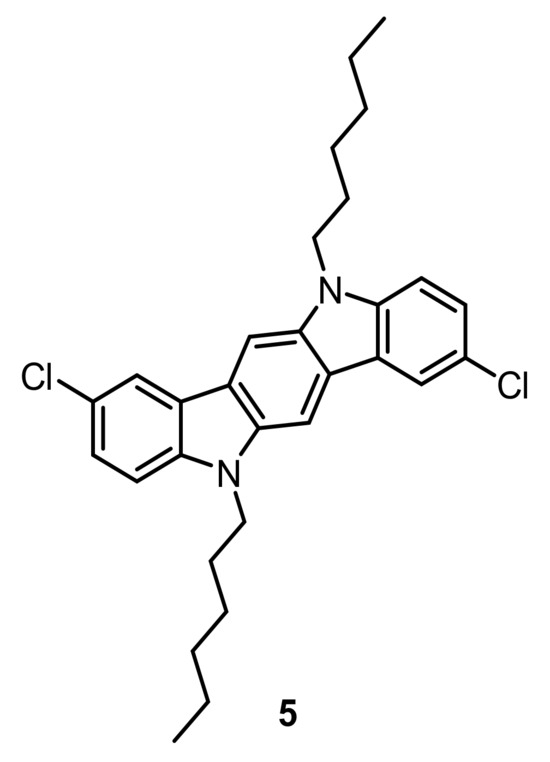

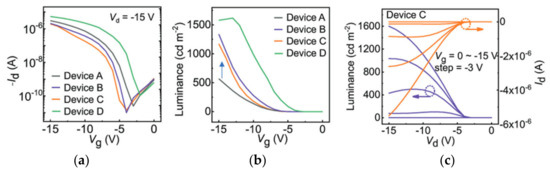

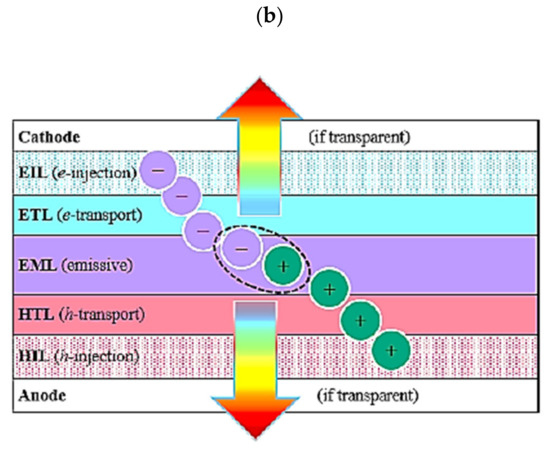

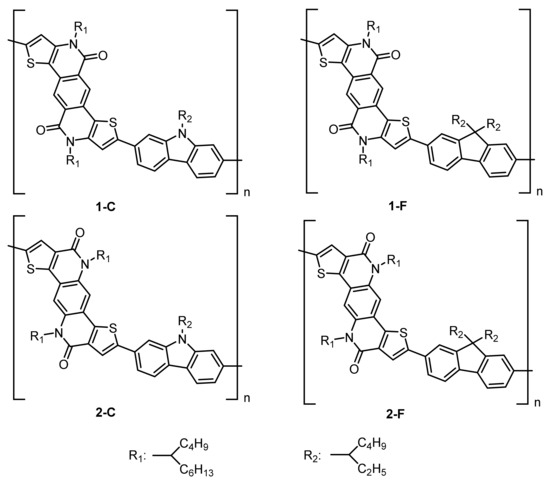

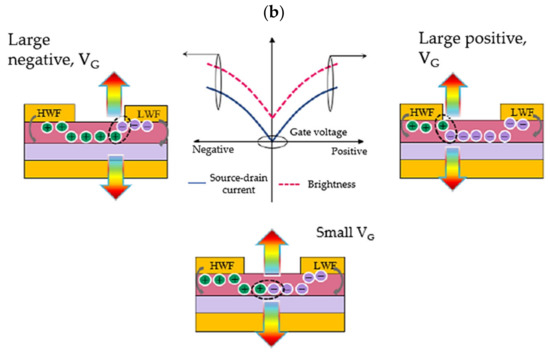

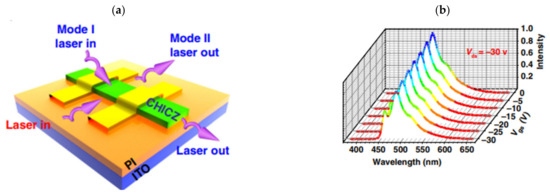

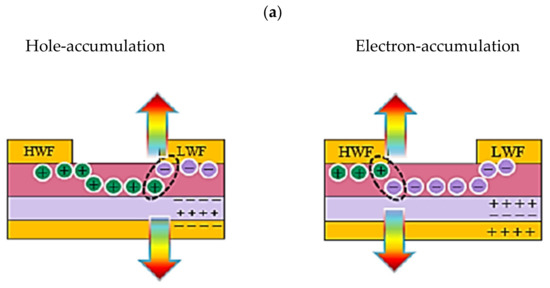

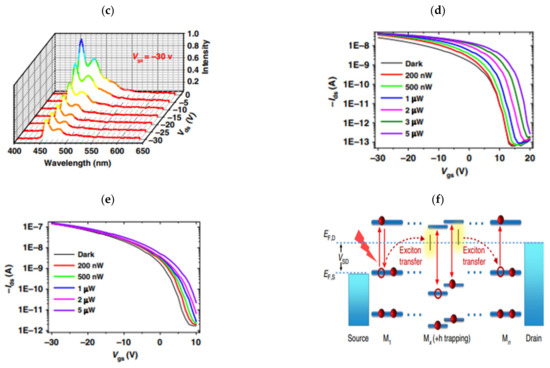

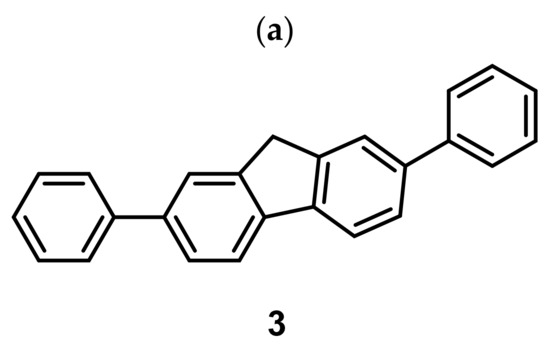

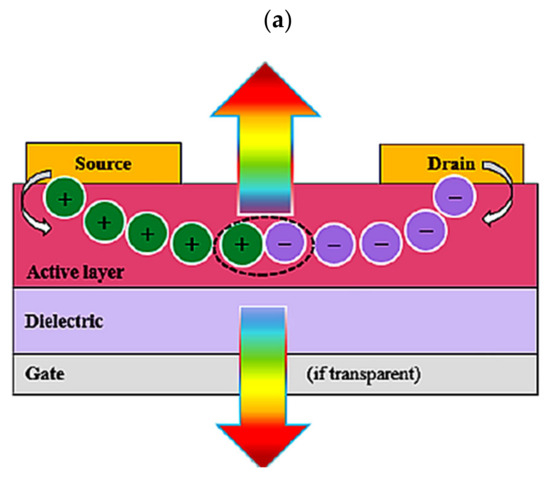

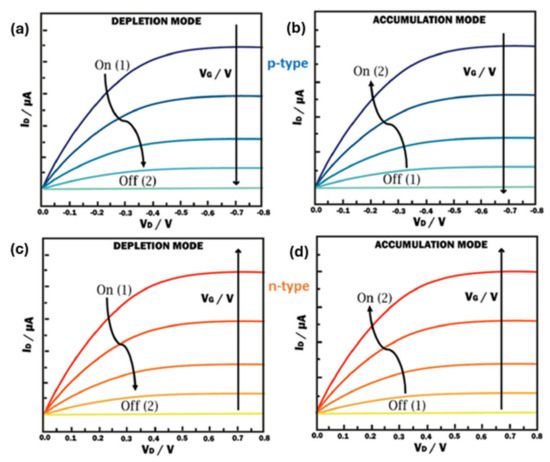

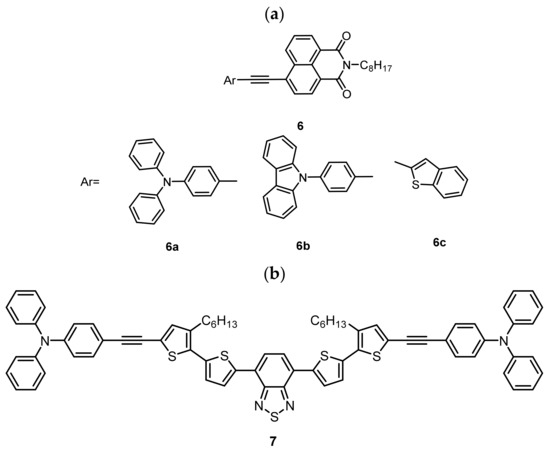

Advancements in electronic device technology have led to an exponential growth in demand for more efficient and versatile transistors. In this context, organic field-effect transistors (OFETs) have emerged as a promising alternative due to their unique properties and potential for flexible and low-cost applications. However, to overcome some of the inherent limitations of OFETs, the integration of organic materials with other materials and technologies has been proposed, giving rise to a new generation of hybrid devices. In this article, we explore the development and advances of organic field-effect transistors and highlight the growing importance of hybrid devices in this area. In particular, we focus on three types of emerging hybrid devices: organic electrochemical transistors (OECTs), organic light-emitting field-effect transistors (OLEFETs) and organic field-effect waveguides (OFEWs). These devices combine the advantages of organic materials with the unique capabilities of other technologies, opening up new possibilities in fields such as flexible electronics, bioelectronics, or optoelectronics. This article provides an overview of recent advances in the development and applications of hybrid transistors, highlighting their crucial role in the next generation of electronic devices. Full article

In this work, naphthalenediimide (NDI) derivatives are widely studied for their semiconducting properties and the influence of the side-chain length on the crystal packing is reported, along with the thermal properties of three core-chlorinated NDIs with different fluoroalkyl side-chain lengths (CF₃-NDI, C₃F₇-NDI and C₄F₉-NDI). The introduction of fluorinated substituents at the imide nitrogen and addition of strong electron-withdrawing groups at the NDI core are used to improve the NDI derivatives air stability. The new compound, CF₃-NDI, was deeply analyzed and compared to the well-known C₃F₇-NDI and C₄F₉-NDI, leading to the discovery and solution of two different crystal phases, form α and solvate form, and a solid solution of CF₃-NDI and CF₃-NDI-OH, formed by the decomposition in DMSO. Full article

In this work, a gate insulator poly (4-vinylphenol) (PVP) of an organic field effect transistor (OFET) was deposited using an inkjet printing technique, realized via a high printing resolution. Various parameters, including the molecular weight of PVP, printing direction, printing voltage, and drop frequency, were investigated to optimize OFET performance. Consequently, PVP with a smaller molecular weight of 11 k and a printing direction parallel to the channel, a printing voltage of 18 V, and a drop frequency of 10 kHz showed the best OFET performance. With a direct ink writing-printed organic semiconductor, this work paves the way for fully inkjet-printed OFETs. Full article

Merging the functionality of an organic field-effect transistor (OFET) with either a light emission or a photoelectric effect can increase the efficiency of displays or photosensing devices. In this work, we show that an organic semiconductor enables a multifunctional OFET combining electroluminescence (EL) and a photoelectric effect. Specifically, our computational and experimental investigations of a six-ring thiophene-phenylene co-oligomer (TPCO) revealed that this material is promising for OFETs, light-emitting, and photoelectric devices because of the large oscillator strength of the lowest-energy singlet transition, efficient luminescence, pronounced delocalization of the excited state, and balanced charge transport. The fabricated OFETs showed a photoelectric response for wavelengths shorter than 530 nm and simultaneously EL in the transistor channel, with a maximum at ~570 nm. The devices demonstrated an EL external quantum efficiency (EQE) of ~1.4% and a photoelectric responsivity of ~0.7 A W^–1, which are among the best values reported for state-of-the-art organic light-emitting transistors and phototransistors, respectively. We anticipate that our results will stimulate the design of efficient materials for multifunctional organic optoelectronic devices and expand the potential applications of organic (opto)electronics. Full article

Conjugated polymers (CPs) offer the potential for sustainable semiconductor devices due to their low cost and inherent molecular self-assembly. Enhanced crystallinity and molecular orientation in thin films of solution-processable CPs have significantly improved organic electronic device performance. In this work, three methods, namely spin coating, dip coating, and unidirectional floating-film transfer method (UFTM), were utilized with their parametric optimization for fabricating RR-P3HT films. These films were then utilized for their characterization via optical and microstructural analysis to elucidate dominant roles of molecular orientation and crystallinity in controlling charge transport in organic field-effect transistors (OFETs). OFETs fabricated by RR-P3HT thin films using spin coating and dip coating displayed field-effect mobility (μ) of 8.0 × 10⁻⁴ cm²V⁻¹s⁻¹ and 1.3 × 10⁻³ cm²V⁻¹s⁻¹, respectively. This two-time enhancement in µ for dip-coated films was attributed to its enhanced crystallinity. Interestingly, UFTM film-based OFETs demonstrated μ of 7.0 × 10⁻² cm²V⁻¹s⁻¹, >100 times increment as compared to its spin-coated counterpart. This superior device performance is attributed to the synergistic influence of higher crystallinity and molecular orientation. Since the crystallinity of dip-coated and UFTM-thin films are similar, ~50 times improved µ of UFTM thin films, this suggests a dominant role of molecular orientation as compared to crystallinity in controlling the charge transport. Full article

Gas detection is crucial for detecting environmentally harmful gases. Organic field-effect transistor (OFET)-based gas sensors have attracted attention due to their promising performance and potential for integration into flexible and wearable devices. This review examines the operating mechanisms of OFET-based gas sensors and explores methods for improving sensitivity, with a focus on porous structures. Researchers have achieved significant enhancements in sensor performance by controlling the thickness and free volume of the organic semiconductor layer. Additionally, innovative fabrication techniques like self-assembly and etching have been used to create porous structures, facilitating the diffusion of target gas molecules, and improving sensor response and recovery. These advancements in porous structure fabrication suggest a promising future for OFET-based gas sensors, offering increased sensitivity and selectivity across various applications. Full article

Hydrogel-gated synaptic transistors offer unique advantages, including biocompatibility, tunable electrical properties, being biodegradable, and having an ability to mimic biological synaptic plasticity. For processing massive data with ultralow power consumption due to high parallelism and human brain-like processing abilities, synaptic transistors have been widely considered for replacing von Neumann architecture-based traditional computers due to the parting of memory and control units. The crucial components mimic the complex biological signal, synaptic, and sensing systems. Hydrogel, as a gate dielectric, is the key factor for ionotropic devices owing to the excellent stability, ultra-high linearity, and extremely low operating voltage of the biodegradable and biocompatible polymers. Moreover, hydrogel exhibits ionotronic functions through a hybrid circuit of mobile ions and mobile electrons that can easily interface between machines and humans. To determine the high-efficiency neuromorphic chips, the development of synaptic devices based on organic field effect transistors (OFETs) with ultra-low power dissipation and very large-scale integration, including bio-friendly devices, is needed. This review highlights the latest advancements in neuromorphic computing by exploring synaptic transistor developments. Here, we focus on hydrogel-based ionic-gated three-terminal (3T) synaptic devices, their essential components, and their working principle, and summarize the essential neurodegenerative applications published recently. In addition, because hydrogel-gated FETs are the crucial members of neuromorphic devices in terms of cutting-edge synaptic progress and performances, the review will also summarize the biodegradable and biocompatible polymers with which such devices can be implemented. It is expected that neuromorphic devices might provide potential solutions for the future generation of interactive sensation, memory, and computation to facilitate the development of multimodal, large-scale, ultralow-power intelligent systems. Full article

Doping can alter certain electronics, including the thermoelectric properties of an organic semiconductor. These alterations may enable viable tunable devices that could be useful in temperature sensing for autonomous controls. Here, we demonstrate a dual-modulation organic field-effect transistor (OFET) where temperature can modulate the current-voltage characteristics of the OFET and gate voltage can modulate the thermoelectric properties of the active layer in the same device. Specifically, Poly(3-hexylthiophene-2,5-diyl) (P3HT) was utilized as the host p-type semiconducting polymer, and iodine was utilized as the thermoelectric minority dopant. The finished devices were characterized with a semiconductor analyzer system with temperature controlled using two thermoelectric cooling plates. The FETs with iodine doping levels in the range of 0.25% to 0.5% mole ratio with respect to the P3HT exhibit the greatest on/off ratios. This study also observed that P3HT thin film samples with an intermediate iodine doping concentration of 0.25% mole ratio exhibit an optimal thermoelectric power factor (PF). Full article

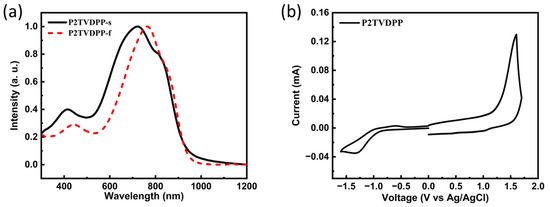

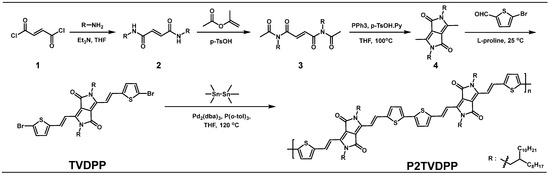

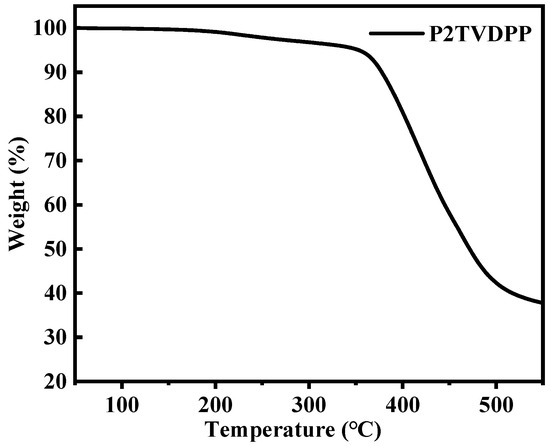

In this communication, we report a novel acceptor structural unit, TVDPP, that can be distinguished from classical materials based on TDPP structures. By designing a synthetic route via retrosynthetic analysis, we successfully prepared this monomer and further prepared polymer P2TVDPP with high yield using a Stille-coupling polymerization reaction. The polymer showed several expected properties, such as high molecular weight, thermal stability, full planarity, small π−π stacking distance, smooth interface, and so on. The absorption spectra and energy levels of the polymer were characterized via photochemical and electrochemical analysis. The organic field-effect transistor (OFET), which is based on P2TVDPP, exhibited excellent carrier mobility and an on/off current ratio of 0.41 cm² V⁻¹ s⁻¹ and ~10⁷, respectively, which is an important step in expanding the significance of DPP-based materials in the field of optoelectronic devices and organic electronics. Full article
