Search Results (702)

The outcomes of a standard geochemical, geophysical and petrographical approach to exploration at Lead Trial, a small prospect in central Scotland, have been compared to the interpretation of a parallel gold compositional study describing 703 gold particles from local in situ and alluvial occurrences. Standard exploration approaches identified a 4.5 km² zone hosting an array of numerous auriferous (to 17 g/t Au), vuggy, brecciated quartz-galena ± sphalerite veins culminating in the identification of a drill target. The gold study identified three gold compositional types: two 23–32 wt.% Ag alloys with a Zn-Pb-Cu mineral inclusion assemblage differentiated by sphalerite abundance, and a 5–16 wt.% Ag alloy with a Mo-Bi-Pb-Cu-Fe inclusion signature, yet to be correlated with either float or outcrop. Spatial distribution of the gold types indicates lateral variation and probably vertical variation within a single magmatic hydrothermal system. Integration of gold particle studies with early stages of exploration offers rapid insights into the nature and distribution of mineralization when very limited information is available and is mutually supportive of standard exploration approaches. Full article

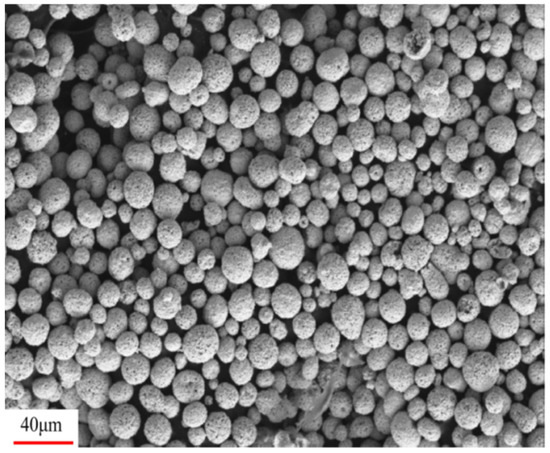

GH4141 + 0.2 wt.% Y₂O₃ superalloy was fabricated using laser powder bed fusion (LPBF) technology and subjected to solution and ageing heat treatments. The effects of laser power (1100, 1300, 1500 W) on the microstructure and mechanical properties of the ODS nickel-based superalloy were investigated. The results indicate that as the laser power increased from 1100 W to 1300 W, defects such as cracks and pores in the specimens decreased, the grains were refined, and the microstructure became more uniform; when the laser power was further increased to 1500 W, the grain size coarsened significantly, precipitation phases at the grain boundaries became coarser or locally aggregated, and crack sensitivity increased. EDS analysis revealed enrichment of C, Cr, Mo and Ti in the dark phases at the grain boundaries, which may be associated with MC-type and M₂₃C₆-type carbides; no significant agglomeration of Y₂O₃ particles was observed in the matrix. Room-temperature tensile properties exhibited a pattern of initially increasing and then decreasing with increasing laser power. The tensile strength and elongation after fracture of the specimens were relatively similar under 1100 W and 1500 W conditions, whilst the specimen tested at 1300 W achieved the optimal balance of strength and toughness, with a tensile strength of 1460 MPa and an elongation after fracture of 14.3%, representing increases of approximately 9.8% and 54% compared to the 1100 W and 1500 W conditions, respectively. At 760 °C, the 1300 W specimens still maintained excellent high-temperature strength. Full article

Green synthesis of KGM-capped CeO₂ nanoparticles was successfully achieved through a simple coprecipitation method using Konjac Glucomannan (KGM) as a biopolymeric capping and stabilizing agent. The reaction conditions were optimized by varying pH (9–11) and temperature (30–70 °C) to evaluate their influence on nanoparticle formation and photocatalytic performance. The synthesized KGM–CeO₂ nanoparticles were comprehensively characterized using FTIR, UV–Vis spectroscopy, XRD, SEM–EDS, TEM, DLS, and ZP analysis to investigate their structural, optical, morphological, and surface properties. The characterization results confirmed the successful formation of porous sponge-like branched CeO₂ nanostructures with irregular morphology. XRD analysis revealed the crystalline nature of the nanoparticles with an average crystallite size of approximately 7.7 nm, while DLS analysis showed an average hydrodynamic particle size of 29.7 nm with a biomodal particle size distribution. The positive zeta potential value (+16.75 mV) confirmed good colloidal stability and reduced agglomeration due to effective capping by KGM. The synthesized nanoparticles also exhibited favorable optical properties with band gap values suitable for photocatalytic applications. The adsorption and photocatalytic degradation performance of the KGM–CeO₂ nanoparticles was investigated against synthetic textile dyes, including Naphthol Blue Black (NBB), Methyl Orange (MO), and a mixed NBB–MO dye system under acidic conditions. Using an adsorbent dosage of 50 mg and dye concentrations of 100 mg/L, the material achieved degradation efficiencies of approximately 99% for NBB, 91% for MO, and 52% for the mixed dye system under UV irradiation for 120 min. Adsorption kinetic studies indicated that the pseudo-second-order model provided the best fit, suggesting that chemisorption is the dominant adsorption mechanism involving multifunctional surface interactions. These findings are particularly relevant for industrial wastewater treatment, since actual textile effluents typically contain complex mixtures of dyes and organic contaminants rather than single dye pollutants. The mixed dye experiments, therefore, provide a more realistic simulation of industrial wastewater conditions. Overall, the synthesized KGM–CeO₂ nanoparticles demonstrate excellent potential as an eco-friendly, cost-effective, and sustainable multifunctional material for adsorption-assisted photocatalytic treatment of dye-contaminated wastewater. Further optimization of operational conditions and catalyst surface properties may enhance its efficiency in multicomponent wastewater systems. Full article

Designing lightweight composite sandwich structures is challenging due to the conflicting objectives of minimizing structural weight and cost while satisfying strength and stiffness requirements. The optimization procedure becomes more complex when multiple discrete design variables and nonlinear material behavior are involved. This study presents a newly developed optimization methodology for a sandwich structure composed of Fiber Reinforced Polymer (FRP) laminated facesheets and an aluminum honeycomb core. To reduce the computational cost associated with repeated high-fidelity Finite Element (FE) analyses, a surrogate modeling strategy based on Artificial Neural Networks (ANNs) is employed to approximate the structural response. The applied dataset is generated using Monte Carlo simulation in which combinations of design variables are used as inputs, and the corresponding structural responses obtained from the analytical formulation are used as outputs for training the ANN surrogate model. The trained ANN model is integrated with a Multi-Objective Niching Memetic Particle Swarm Optimization (MO-NMPSO) algorithm to simultaneously minimize structural weight and material cost while satisfying constraints on facesheet strength, wrinkling, intra-cell buckling, deflection, core shear failure and structural thickness. The resulting Pareto-optimal solutions are validated through detailed FE simulations, demonstrating the reliability of the newly elaborated optimization framework. The results of the newly developed computationally efficient optimization procedure provide a diverse set of optimal design solutions for the investigated sandwich structure. Full article

As the demand for sustainable construction materials grows, wood ash and nanosilica have emerged as promising components for eco-friendly mortars, whose optimization requires advanced analytical techniques capable of capturing their complex linear and nonlinear interactions, making frameworks such as response surface methodology and artificial neural networks essential for effective mix design. This study examines the mechanical performance of eco-friendly mortar incorporating wood ash (WA) as a partial cement replacement and nanosilica solution (NSS) as a strength-enhancing additive, with the aim of optimizing compressive and flexural behaviour. Wood ash was substituted at levels of 5–25%, while NS (0.265 moL⁻¹) was substituted at levels of 0–1.7%. Twenty-one mortar samples were produced and tested at multiple curing ages. Two modelling techniques, response surface methodology (RSM) and artificial neural networks (ANNs), were employed to evaluate the individual and interactive effects of WA and NSS on strength development at curing ages of 28 and 180 days. While RSM provided insight into factor significance and linear interactions, ANN more effectively captured nonlinear behaviour, achieving superior predictive accuracy (R² = 1.000 for 28-day strength). Experimental results revealed that nanosilica substantially enhanced strength up to an optimal dosage of approximately 2.5 g, beyond which performance declined due to particle agglomeration or matrix over-refinement. In contrast, higher WA contents produced strength reductions attributable to dilution effects. Optimization showed that mixtures containing low WA (≤30 g) combined with moderate NSS (2.0–2.5 g) exhibited the highest mechanical performance. Collectively, the findings confirm that ANN-based models outperform RSM and multilinear regression, underscoring their effectiveness for mix design optimization and performance forecasting in sustainable cementitious systems. Full article

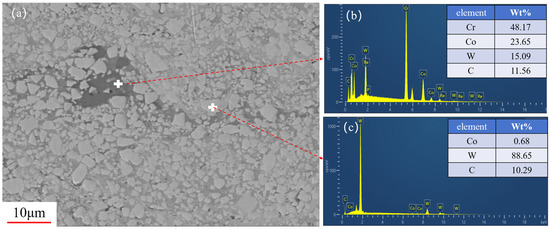

In pursuit of a composite coating for tunnel boring machine (TBM) disc cutters that offers both high wear resistance and self-lubricating functionality, we fabricated Fe-based composite coatings reinforced with WC and MoS₂ through laser cladding. Seven coating compositions with systematically tailored MoS₂ contents were prepared to investigate the concentration-dependent effects of MoS₂ on microstructural evolution and tribological properties, and to evaluate their performance under various rock-contact conditions. XPS results reveal that MoS₂ decomposed during laser cladding, leading to the in situ formation of metal sulfides in the Fe-based matrix. These sulfides, characterized by low shear strength, readily form a continuous and stable lubricating tribofilm at the hob–rock interface. The tribofilm effectively lowers the coefficient of friction (COF), curtails friction-induced energy dissipation and surface degradation, and ultimately enhances the wear resistance of the disc cutter. Simultaneously, the rapid non-equilibrium solidification inherent in laser cladding stabilizes metastable phases, which refine the microstructure, improve densification, and bolster phase stability. Among the tested compositions, the coating containing 4 wt.% MoS₂ exhibited the most favorable dry-sliding tribological performance, as evidenced by an average coefficient of friction of 0.409, a hardness of 749.5 HV1, and consistently low wear mass losses below 2.1 × 10⁻³ g under different rock-contact conditions. Mechanistically, XRD and SEM analyses further attributed the superior performance of the 4 wt.% MoS₂ coating to concurrent strengthening mechanisms: grain refinement, dispersion strengthening from uniformly distributed second-phase particles, and increased dislocation density. Collectively, these effects substantially improve the wear resistance of the disc cutter, thereby extending its durability and service life under complex operating conditions. Full article

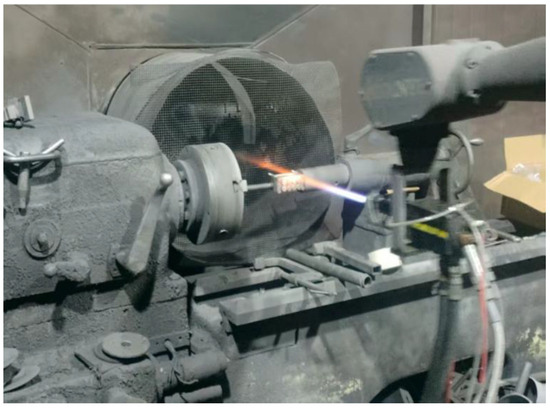

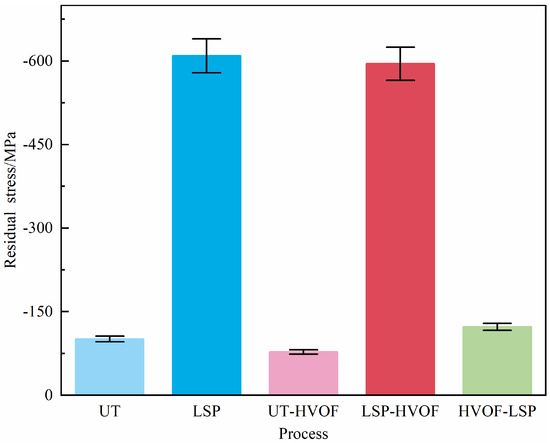

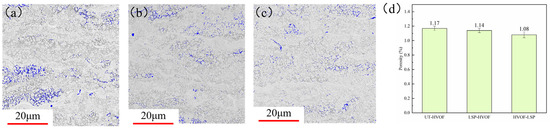

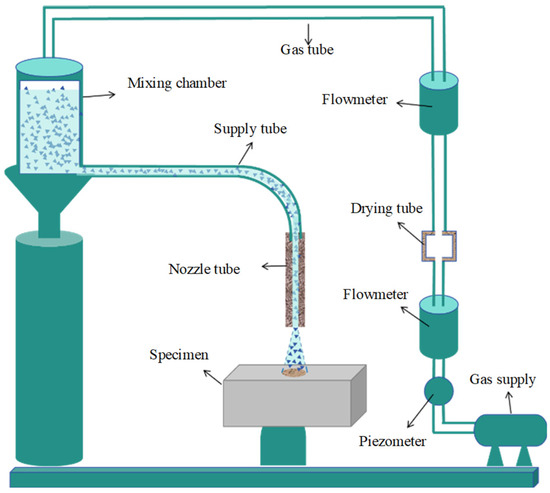

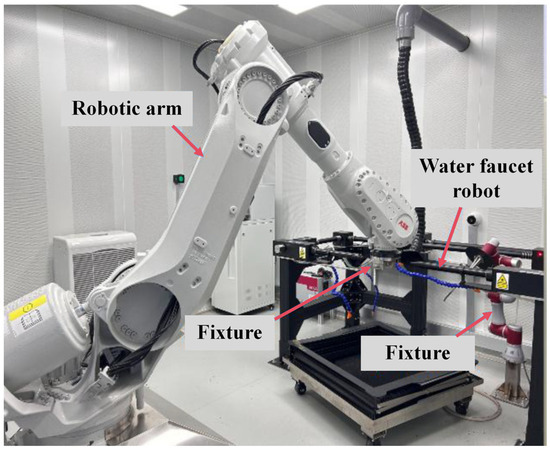

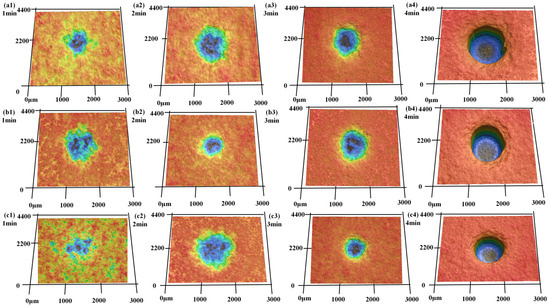

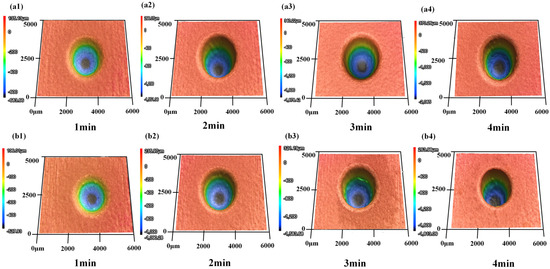

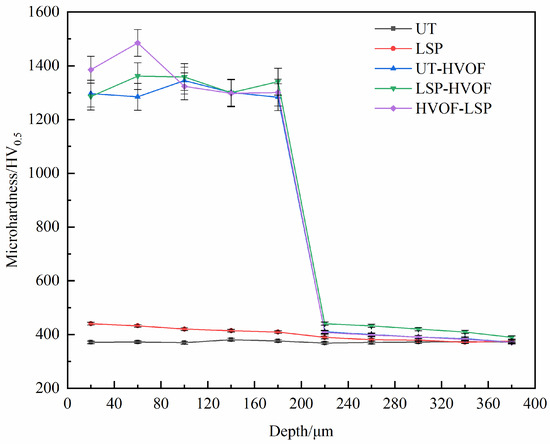

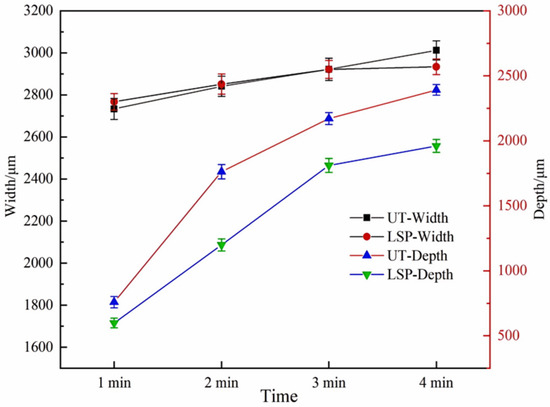

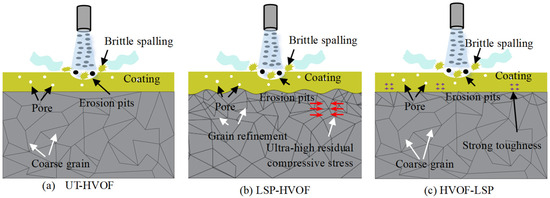

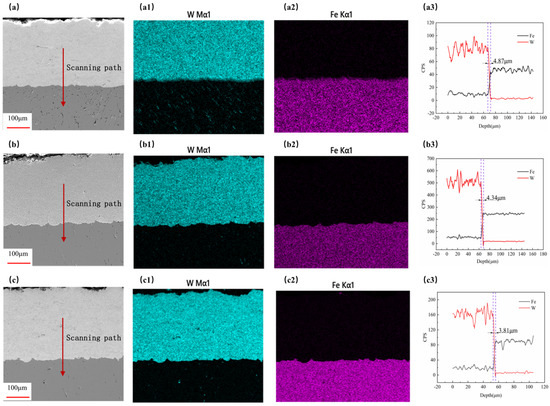

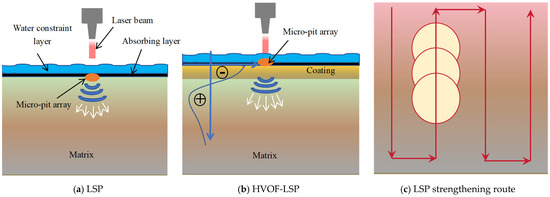

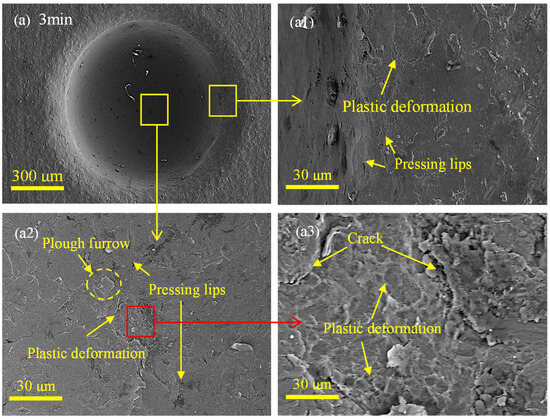

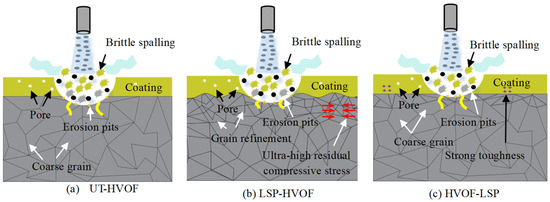

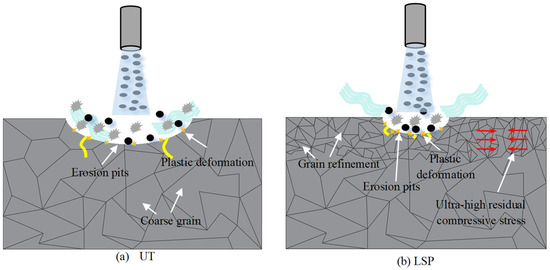

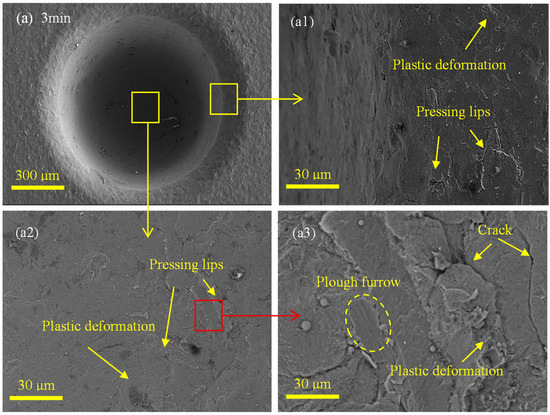

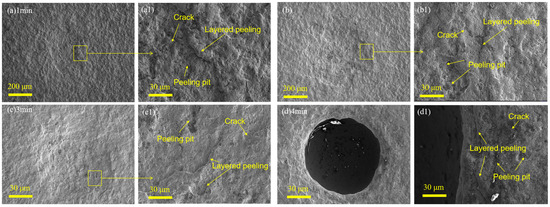

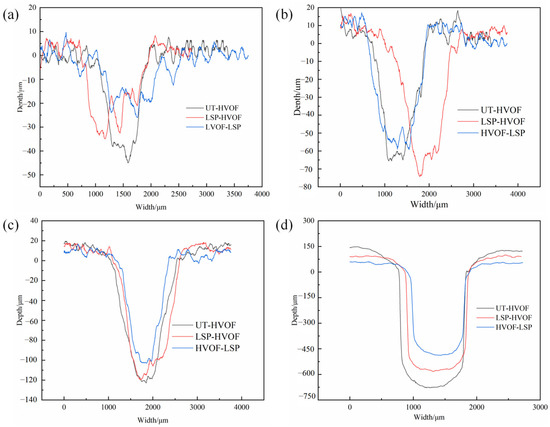

In steam turbines, blades operate in a high-speed wet steam environment and are often damaged by combined erosion from liquid droplets and solid particles. To reveal the mechanism of composite modification via high velocity oxy-fuel spraying (HVOF) and laser shock peening (LSP) on improving blade erosion resistance, an accelerated erosion experimental method was designed in this work. Five different processes were proposed, including UT, LSP, UT-HVOF, LSP-HVOF, and HVOF-LSP. The results indicate that compared with UT specimens, LSP treatment induces high compressive residual stress in the surface layer of 1Cr12Ni3Mo2VN stainless steel, which leads to shallower compound erosion pits. Compared with UT-HVOF and LSP-HVOF specimens, the HVOF-LSP specimen has the lowest coating porosity and the highest surface microhardness of 1500 HV0.5, representing an increase of 14.5% and 8.7% respectively. This demonstrates that LSP post-treatment can enhance the load-bearing capacity of HVOF coatings effectively. Microstructural analysis further reveals that the HVOF-LSP specimen presents the shallowest erosion pits and the longest penetration lifetime of the WC coating. Accordingly, the HVOF-LSP treatment can effectively improve the service life and protection performance of materials under accelerated erosion conditions, providing a technical reference for the long-term service of turbine blades. Full article

With the increasing demands on energy efficiency and dynamic stability of modern combustion engines (e.g., TDI systems), conventional powder metallurgy materials are reaching their limits in terms of fatigue life and surface integrity. This scientific problem has led to the need to develop hybrid metal matrix (MMC) systems that use in situ hard phase formation. This study presents a comparative analysis of two real industrial components representing hybrid systems with a uniquely high content of titanium and vanadium (>1% by weight). The Ni-Mo-Ti system and the high-carbon C-Cu-Ti system were compared. The samples were processed by steam oxidation and plasma nitriding at 200 °C after sintering. The experimental methodology included chemical analysis on the Bruker Q2 ION 2 instrument, 10-point EDX analysis (Phenom), measurement of the apparent hardness of HV10 and dynamic ball-on-disc tribological tests at a load of 5.00 N supplemented by 3D profilometry. The results showed that the Ni-Mo-Ti system achieves higher hardness at functional edges (256 HV10) and three times higher resistance to deep penetration (11.46 μm vs. 34.67 μm) compared to the C-Cu-Ti system. Topographic analysis confirmed the positive role of porosity as a micro-reservoir for abrasion particles (negative Ssk). The study confirms that the nickel–molybdenum matrix ensures more efficient fixation of in situ generated TiC carbides, thus providing higher functional stability for automotive applications, which was verified by the non-destructive vibroacoustic diagnostics of Polytec PSV-500. Full article

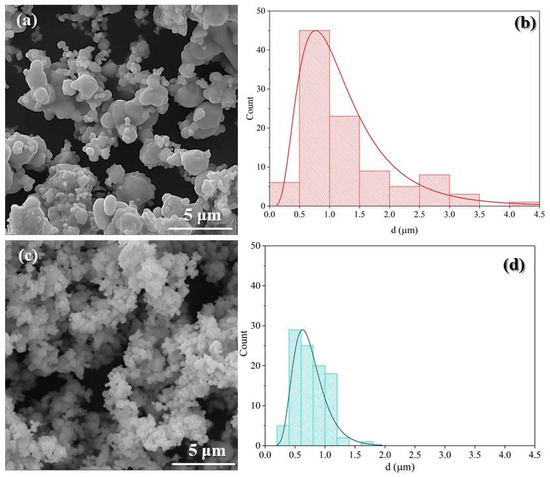

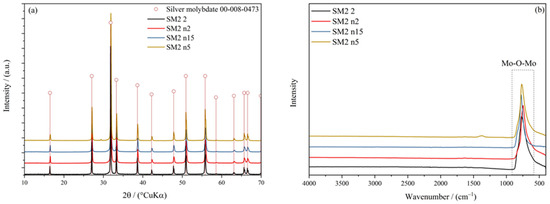

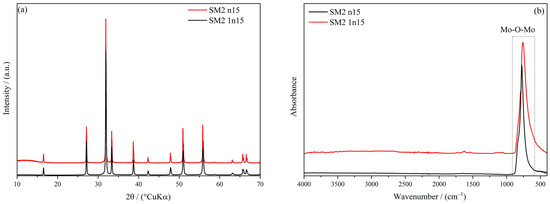

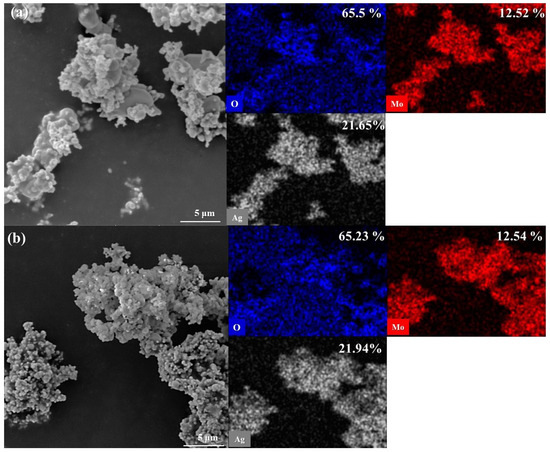

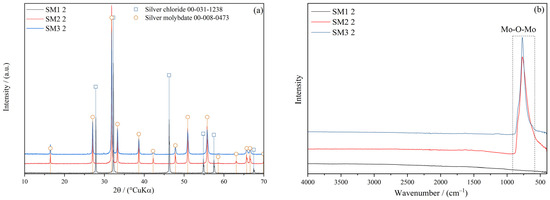

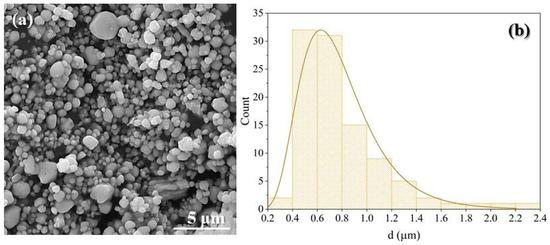

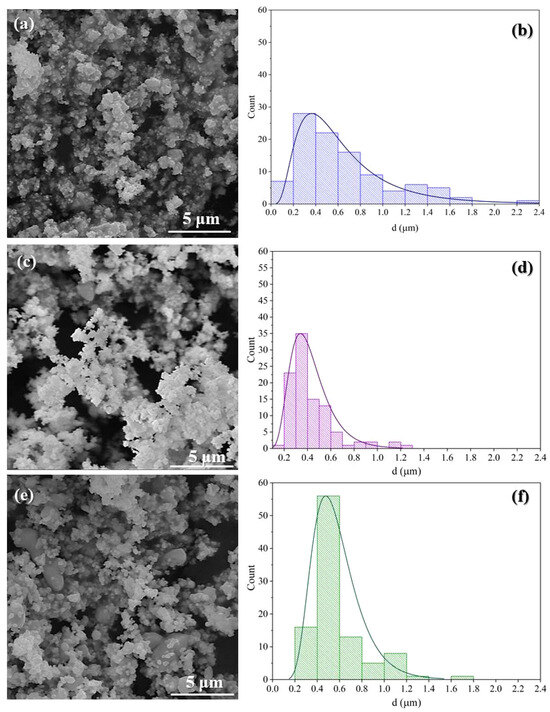

This study investigates the mechanochemical synthesis of silver molybdate (Ag₂MoO₄). Three silver precursors (AgCl, AgNO₃, Ag₂SO₄) in combination with sodium molybdate dihydrate as the molybdenum precursor were used. Three corresponding sodium salts, which are also formed as byproducts, were employed as process control agents (PCAs) to investigate the possibility of obtaining fine-grained silver molybdate. Milling was performed in a planetary mill at 600 and 100 rpm, and for 2 h, 15 min, and 5 min. X-ray diffraction analysis (XRD) revealed that AgCl is completely unreactive in this type of reaction, whereas AgNO₃ and Ag₂SO₄ form crystalline Ag₂MoO₄. Additional sample characterization included Fourier transform infrared spectroscopy (FTIR), UV-Vis diffuse reflectance spectroscopy (UV-Vis DRS), scanning electron microscopy (SEM), energy-dispersive X-ray spectroscopy (EDS), and simultaneous differential thermal and thermogravimetric analysis (DTA-TGA). The results indicate that the silver molybdate formation reaction is favorable and rapid. Even under the mildest conditions, including the presence of PCA, micron-sized silver molybdate particles were obtained. A greater rotation rate and longer milling time resulted in a decrease in particle size, but also an increase in sodium content. However, unlike the few existing reports on the mechanochemical synthesis of Ag₂MoO₄, which, despite harsh milling conditions, did not yield a phase-pure product, our approach produced well-crystallized and pure silver molybdate even under the mildest synthesis conditions. Full article

Monolayer molybdenum disulfide (MoS₂) holds great promise for strain-tunable optoelectronic devices. The strain-dependent dielectric function is a core parameter to characterize the tunability of optoelectronic properties. However, due to the extremely short light–matter interaction path length for atomically thin materials, measurements are challenging. In this work, we measured the dielectric function of strained monolayer MoS₂ using the surface plasmon resonance (SPR) method with the simulated annealing particle swarm optimization (SAPSO) algorithm. When the applied strain ranged from −0.23% (compressive strain) to +0.20% (tensile strain), the dielectric function at seven characteristic wavelengths around the exciton absorption peaks was extracted. Our results demonstrate that both the real part (ε_2r) and the imaginary part (ε_2i) of the dielectric function evolved almost linearly with the applied strain from −0.23% to +0.20%. Based on these results, we further obtained the strain-induced variations in the refractive index (n) and the extinction coefficient (k). At exciton absorption peak B (600 nm), the strain-induced change rate for n reached a maximum of about −0.0141%⁻¹. At the rising edge of the B exciton absorption (580 nm), the strain-induced change rate for k reached a maximum of about −0.3261%⁻¹. This work presents a quantitative extraction of strain-dependent dielectric function of monolayer MoS₂ over excitonic band-edge wavelengths using phase SPR–SAPSO fitting. The proposed method can be extended to the measurement of other atomically thin materials. Full article

Ni-based WC composite coatings are widely used to protect hydraulic components, yet the role of WC particle morphology in binder-phase strengthening remains unclear. In this study, two Ni40-based coatings containing 55 wt.% WC were laser-cladded on 0Cr13Ni5Mo steel under identical conditions using either rough spherical WC coating (RWC) or smooth spherical WC coating (SWC). Both coatings were mainly composed of γ-Ni, residual WC, W₂C, carbides, and borides. Although the rough WC particles showed about 38% lower intrinsic hardness than the smooth WC particles, the RWC exhibited a 25% higher binder-phase hardness and a 47% higher overall coating hardness. Accordingly, compared with the SWC, the RWC reduced the specific wear rate by about 33% under water-lubricated sliding. In slurry erosion, the RWC consistently showed lower erosion rates and less severe surface damage. The improved performance is attributed to the greater dissolution of rough WC during laser cladding, which strengthened the Ni-based binder and provided more stable support for the hard phases. These results demonstrate that tailoring WC particle morphology is an effective strategy for designing wear- and slurry erosion-resistant Ni-based laser-cladded coatings. Full article

Efficient separation of Cu–Mo sulfide minerals from moraine materials remains a major challenge for low-grade, high-moraine Cu–Mo ores. Fine-grained muscovite induces severe slime coating and gangue entrainment, thereby markedly reducing flotation selectivity. In this work, a biodegradable polymer depressant, polyaspartic acid (PASP), was employed to regulate Cu–Mo sulfide flotation under muscovite interference conditions. Microflotation tests, particle size distribution analysis, zeta potential measurements, SEM-EDS observations, contact angle measurements, and XPS analyses were conducted to clarify the dispersion behavior, slime-coating mechanism, and selective adsorption characteristics of PASP. The results demonstrated that PASP selectively depressed muscovite at relatively low dosages while exerting negligible influence on the floatability of chalcopyrite and molybdenite. Notably, at a dosage of 15 mg/L, PASP reduced muscovite recovery by 43.07% and 31.23% more effectively than sodium silicate and sodium hexametaphosphate, respectively, demonstrating superior selective depression efficiency under moraine interference conditions. Particle size distribution and zeta potential analyses confirmed that PASP effectively weakened heterocoagulation and electrostatic attraction between muscovite and sulfide minerals, thereby suppressing slime coating and improving slurry dispersion stability. SEM-EDS and contact angle analyses further revealed that PASP significantly reduced muscovite deposition on sulfide mineral surfaces while maintaining the hydrophobicity of chalcopyrite and molybdenite. High-resolution XPS analysis further indicated that PASP adsorbed onto muscovite mainly through coordination between carboxylate groups and surface Al–OH sites, forming a stable hydrophilic adsorption layer. Overall, PASP provides a low-dosage, highly selective, and biodegradable depressant strategy for mitigating muscovite-induced slime coating and improving the flotation separation of Cu–Mo sulfide ores under moraine interference conditions. Full article

This study aims to develop CoCrMo/xCu composites through liquid phase sintering. The primary focus is on investigating how the addition of copper influences sintering kinetics, microstructure, and mechanical properties. The copper volume fraction ranged from 10 to 25 wt.% relative to CoCrMo. Sintering was conducted at 1150 °C under an argon atmosphere. Characterization methods included scanning electron microscopy, computed microtomography, and X-ray diffraction analysis. It was observed that molten copper, which forms upon reaching its melting temperature, can fill the interparticle spaces left by CoCrMo particles in the green compacts. During sintering, densification is further enhanced by the dissolution of CoCrMo, resulting in the formation of intermetallic phases enriched in Cr and Mo, as well as a ternary Co-Cr-Cu compound. Both densification and intermetallic formation contribute to increased microhardness as Cu content rises. It is concluded that the CoCrMo/25Cu composite exhibits the best mechanical and corrosion properties because its densification was improved by the Cu liquid. Full article

Background: Platinum-based chemotherapy, including cisplatin and carboplatin, is widely used to treat various cancers, including ovarian cancer. However, its clinical application is limited by dose-limiting toxicities and resistance, with a poor 5-year overall survival rate for ovarian cancer (35–40%). In this study, we used ionisable lipids and developed pH-responsive lipid nanoparticles (LNPs) to address platinum-resistance in ovarian carcinoma. Methods: Cisplatin was loaded into three LNP systems containing monoolein (MO) and synthetic cationic ionisable lipids (OE-Mo, OA-Py, and OA-Pi) dispersed in Pluronic F-127 with 0.9% NaCl. Cisplatin-loaded LNPs (Cis-OE-Mo-NP, Cis-OA-Py-NP, and Cis-OA-Pi-NP) were characterised for size, zeta potential, and internal mesophase structure. Encapsulation efficiencies were determined via HPLC after removing free drug by ultrafiltration. In vivo efficacy was tested using cisplatin-resistant human patient-derived xenograft (PDX) models. Results: The LNPs were well dispersed with particle size of 219–250 nm and a drug loading of ~1.2 mg/mL. Encapsulation efficiencies were 62%, 59%, and 64%, for Cis-OE-Mo-NP, Cis-OA-Py-NP, and Cis-OA-Pi-NP, respectively. Small angle X-ray scattering (SAXS) results showed that the LNPs are pH responsive with structural transitions from a cubic to a hexagonal phase at an acidic pH. Among the tested formulations, Cis-OA-Py-NP resulted in the most significant reduction in tumour volume by ~60% compared to treatment with cisplatin alone. However, they also showed significant toxicity, including >10% weight loss and gross lung and kidney damage, as confirmed by histology. Conclusions: These findings highlight the potential of Cis-OA-Py-NP in reducing tumour volume but underscore the need for further optimisation to improve safety and therapeutic applicability. Full article

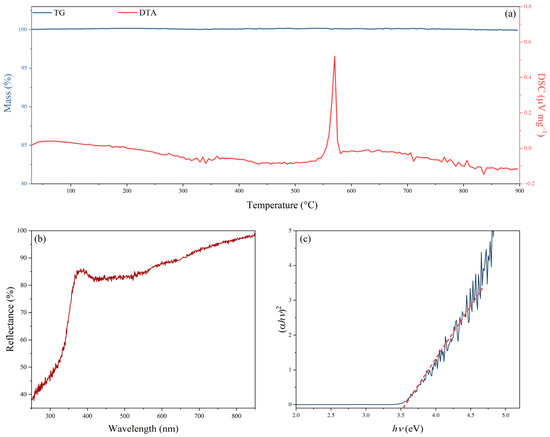

This study presents the synthesis and use of a novel bamboo-derived magnetic activated carbon (BMAC) for the effective removal of cationic and anionic dyes, specifically methylene blue (MB), methyl orange (MO), and sunset yellow (SY), from aqueous solutions. The adsorbent was synthesized using thermal carbonization and subsequent inclusion of magnetic oxide, yielding a porous structure with improved adsorption and magnetic separation properties. Thorough characterization utilizing SEM, EDX, BET, FTIR, XRD, and TGA/DTA validated the creation of a highly porous material including uniformly dispersed magnetic particles and several surface functional groups. Batch adsorption tests were performed to examine the influences of contact time, adsorbent dosage, initial dye concentration, pH, and temperature. The findings indicated rapid adsorption kinetics, with equilibrium reached in around 60–70 min, and adsorption capacity ranked as MB > MO > SY. Augmenting adsorbent dosage enhanced removal efficiency but diminished adsorption capacity per unit mass due to site unsaturation. The maximum adsorption capacities (q_m) of BMAC were 58.9, 56.3, and 32.7 mg/g for MB, MO, and SY, respectively, as determined from the Langmuir isotherm model, indicating superior performance compared with other reported magnetic activated carbon. The adsorption process was determined to be exothermic and spontaneous, as evidenced by thermodynamic characteristics. The equilibrium data were optimally characterized by the Langmuir isotherm model, indicating monolayer adsorption, whereas the kinetic studies conformed to the pseudo-second-order model, signifying that chemisorption is predominant. The adsorption mechanism encompasses electrostatic interactions, π–π stacking, hydrogen bonding, van der Waals forces, pore filling, and surface complexation with magnetic oxides. The findings indicate that BMAC is an efficient, sustainable, and magnetically recoverable adsorbent for the elimination of both cationic and anionic dyes from wastewater. Full article
