Search Results (32)

In this study, the curvature changes of an unintentionally doped GaN end and third quantum well were observed in situ when the annealing times of a GaN buffer layer were 40 s, 50 s and 55 s, respectively. When the annealing time was increased from 40 s to 50 s, the concave curvature of the unintentionally doped GaN end and the third quantum well became smaller. When the annealing time was increased to 55 s, there was no significant change in curvature. These curvature changes are related to the relaxation of the stress in the epitaxial wafer with different annealing times. With the increase in buffer annealing time, the compressive stress and warpage decreased gradually, and the photoluminescence wavelength of the sample became longer. Meanwhile, the standard deviation yield of the dominant wavelength was increased by 5.46%, and the wavelength yield was increased by 19.45% when the annealing time was changed from 40 s to 50 s. Full article

A novel empirical method for fabricating Van der Pauw Hall test samples on GaN epitaxy is proposed and tested, which enables rapid preparation of Van der Pauw Hall test samples on both conductive and non-conductive substrates. Compared to traditional Van der Pauw Hall sample preparation, this approach eliminates the need for annealing to form Ohmic contacts, thereby facilitating more accurate measurement of the resistivity, Hall coefficient, majority carrier concentration, and mobility in semiconductor wafers, which may be subject to change after high-temperature annealing. This method is based on the use of specialized plasma dry-etched patterns to form the Ohmic electrodes, which reduces the metal–semiconductor contact barrier, allowing the tunneling current to dominate and thus forming Ohmic contacts. In the validation experiments, three different substrate materials for GaN-epi—silicon, sapphire, and silicon carbide—were selected for the preparation of the Van der Pauw Hall test samples, followed by testing and analysis to confirm the accuracy of the new test method. The measurement results for the electron mobility and carrier concentration on the sapphire and silicon carbide substrate samples were verified via the contactless RF reflectance mapping method, with an average difference only 4.0% and 7.0%, respectively, and a minimum of only 0.53% and 1.8%. The proposed fabrication method features a relatively simple structure, enabling rapid preparation and avoiding the damage and errors caused by high-temperature annealing processes. It shows great potential for industrial application on precise carrier property measurements, especially for GaN-epi on a conductive substrate. Full article

The emergence of GaN-based micro-LEDs has revolutionized display technologies due to their superior brightness, energy efficiency, and thermal stability compared to traditional counterparts. However, the development of red-emitting micro-LEDs on silicon substrates (GaN-on-Si) faces significant challenges, among them including hydrogen-induced deactivation of p-GaN caused by hydrogen species generated from SiH₄ decomposition during SiO₂ passivation layer growth, which degrades device performance. This study systematically investigates the use of high-density metal-oxide dielectric passivation layers deposited by atomic layer deposition (ALD), specifically Al₂O₃ and HfO₂, to mitigate these effects and enhance device reliability. The passivation layers effectively suppress hydrogen diffusion and preserve p-GaN activation, ensuring improved ohmic contact formation and reduced forward voltage, which is measured by the probe station. The properties of the epitaxial layer and the cross-section morphology of the dielectric layer were characterized by photoluminescence (PL) and scanning electron microscopy (SEM), respectively. Experimental results reveal that Al₂O₃ exhibits superior thermal stability and lower current leakage under high-temperature annealing, while HfO₂ achieves higher light-output power (LOP) and efficiency under increased current densities. Electroluminescence (EL) measurements confirm that the passivation strategy maintains the intrinsic optical properties of the epitaxial wafer with minimal impact on Wp and FWHM across varying process conditions. The findings demonstrate the efficacy of metal-oxide dielectric passivation in addressing critical challenges in InGaN red micro-LED on silicon substrate fabrication, contributing to accelerating scalable and efficient next-generation display technologies. Full article

In this work, we demonstrated the epitaxial growth of a gallium nitride (GaN) buffer structure on 200 mm SOI (silicon-on-insulator) substrates. This epitaxial layer is grown using a reversed stepped superlattice buffer (RSSL), which is composed of two superlattice (SL) layers with different Al component ratios stacked in reverse order. The upper layer, with a higher Al component ratio, introduces tensile stress instead of accumulative compressive stress and reduces the in situ curvature of the wafer, thereby achieving a well-controlled wafer bow ≤ ±50 µm for a 3.3 µm thick buffer. Thanks to the compliant SOI substrate, good crystal quality of the grown GaN layers was obtained, and a breakdown voltage of 750 V for a 3.3 µm thick GaN buffer was achieved. The breakdown field strength of the epitaxial GaN buffer layer on the SOI substrate is estimated to be ~2.27 MV/cm, which is higher than the breakdown field strength of the GaN-on-Si epitaxial buffer layer. This RSSL buffer also demonstrated a low buffer dispersion of less than 10%, which is good enough for the further processing of device and circuit fabrication. A D-mode GaN HEMT was fabricated on this RSSL buffer, which showed a good on/off ratio of ~10⁹ and a breakdown voltage of 450 V. Full article

Developing cost-effective methods to synthesize large-size GaN films remains a challenge owing to the high dislocation density during heteroepitaxy. Herein, AlGaN/GaN HEMTs were grown on 6- and 8-inch Si(111) substrates using metal–organic chemical vapor deposition, and their basic properties and dislocation evolution characteristics were investigated thoroughly. With the insertion of a 100 nm thin AlGaN buffer layer, bow–warp analysis of the epitaxial wafers revealed excellent stress control for both the 6- and 8-inch wafers. HR-XRD and AFM analyses validated the high crystal quality and step-flow growth mode of GaN. Further, Hall measurements demonstrated the superior transport performance of AlGaN/GaN heterostructures. It is worth noting that dislocations tended to annihilate in the AlN nucleation layer, the thin AlGaN buffer layer, and the GaN buffer layer in the initial thickness range of 200–300 nm, which was indicated by ADF-STEM. To be specific, the heterointerfaces exhibited a significant effect on the annihilation of c-type (b = <0001>) dislocations, which led to the formation of dislocation loops. The thin inserted layers within the AlGaN buffer layer played a key role in promoting the annihilation of c-type dislocations, while they exerted less influence on a-type (b = 1/3<11$\overline{2}$0>) and (a+c)-type (b = 1/3<11$\overline{2}$3>) dislocations. Within an initial thickness of 200–300 nm in the GaN buffer layer, a-type and (a+c)-type dislocations underwent strong interactions, leading to considerable dislocation annihilation. In addition, the EELS results suggested that the V-shaped pits in the AlN nucleation layer were filled with the AlGaN thin layer with a low Al content. Full article

The monolithic integration of gallium phosphide (GaP), with its green band gap, high refractive index, large optical non-linearity, and broad transmission range on silicon (Si) substrates, is crucial for Si-based optoelectronics and integrated photonics. However, material mismatches, including thermal expansion mismatch and polar/non-polar interfaces, cause defects such as stacking faults, microtwins, and anti-phase domains in GaP, adversely affecting its electronic properties. Our paper presents a structural and defect analysis using scanning transmission electron microscopy, high-resolution transmission electron microscopy, and scanning nanobeam electron diffraction of epitaxial GaP islands grown on Si nanotips embedded in SiO₂. The Si nanotips were fabricated on 200 mm n-type Si (001) wafers using a CMOS-compatible pilot line, and GaP islands were grown selectively on the tips via gas-source molecular-beam epitaxy. Two sets of samples were investigated: GaP islands nucleated on open Si nanotips and islands nucleated within self-organized nanocavities on top of the nanotips. Our results reveal that in both cases, the GaP islands align with the Si lattice without dislocations due to lattice mismatch. Defects in GaP islands are limited to microtwins and stacking faults. When GaP nucleates in the nanocavities, most defects are trapped, resulting in defect-free GaP islands. Our findings demonstrate an effective approach to mitigate defects in epitaxial GaP on Si nanotip wafers fabricated by CMOS-compatible processes. Full article

A series of characterization methods involving high-resolution X-ray diffraction (HR-XRD), electron channel contrast imaging (ECCI), cathodoluminescence microscopy (CL), and atomic force microscopy (AFM) were applied to calculate the dislocation density of GaN-on-Si epitaxial wafers, and their performance was analyzed and evaluated. The ECCI technique, owing to its high lateral resolution, reveals dislocation distributions on material surfaces, which can visually characterize the dislocation density. While the CL technique is effective for low-density dislocations, it is difficult to accurately identify the number of dislocation clusters in CL images as the density increases. The AFM technique analyzes surface dislocation characteristics by detecting surface pits caused by dislocations, which are easily affected by sample and probe conditions. A prevalent method for assessing the crystal quality of GaN is the rocking curve of HR-XRD (ω-scan), which calculates the dislocation density based on the FWHM value of the curves. By comparing the above four dislocation characterization methods, the advantages and limitations of each method are clarified, which also verifies the applicability of $D_B={\displaystyle \frac{{\beta }^2}{9b^2}}$ for GaN-on-Si epitaxial wafers. This provides an important reference value for dislocation characterization in GaN-on-Si materials. The accuracy evaluation of dislocation density can truly and reliably reflect crystal quality, which is conducive to further optimization. Furthermore, this study can also be applied to other heterogeneous or homogeneous epitaxial materials. Full article

The van der Waals epitaxy of wafer-scale GaN on 2D MoS₂ and the integration of GaN/MoS₂ heterostructures were investigated in this report. GaN films have been successfully grown on 2D MoS₂ layers using three different Ga fluxes via a plasma-assisted molecular beam epitaxy (PA-MBE) system. The substrate for the growth was a few-layer 2D MoS₂ deposited on sapphire using chemical vapor deposition (CVD). Three different Ga fluxes were provided by the gallium source of the K-cell at temperatures of 825, 875, and 925 °C, respectively. After the growth, RHEED, HR-XRD, and TEM were conducted to study the crystal structure of GaN films. The surface morphology was obtained using FE-SEM and AFM. Chemical composition was confirmed by XPS and EDS. Raman and PL spectra were carried out to investigate the optical properties of GaN films. According to the characterizations of GaN films, the van der Waals epitaxial growth mechanism of GaN films changed from 3D to 2D with the increase in Ga flux, provided by higher temperatures of the K-cell. GaN films grown at 750 °C for 3 h with a K-cell temperature of 925 °C demonstrated the greatest crystal quality, chemical composition, and optical properties. The heterostructure of 3D GaN on 2D MoS₂ was integrated successfully using the low-temperature PA-MBE technique, which could be applied to novel electronics and optoelectronics. Full article

A complex study was performed on a set of AlGaN/GaN high-electron-mobility transistor structures grown by metalorganic vapor phase epitaxy on miscut Si(111) wafers with a highly resistive epitaxial Si layer to investigate the influence of substrate miscut on their properties. The results showed that wafer misorientation had an influence on the strain evolution during the growth and surface morphology, and could have a strong impact on the mobility of 2D electron gas, with a weak optimum at 0.5° miscut angle. A numerical analysis revealed that the interface roughness was a main parameter responsible for the variation in electron mobility. Full article

The Al/Au alloy was investigated to improve the ohmic characteristic and light efficiency of reflective infrared light-emitting diodes (IR-LEDs). The Al/Au alloy, which was fabricated by combining 10% aluminum and 90% gold, led to considerably improved conductivity on the top layer of p-AlGaAs of the reflective IR-LEDs. In the wafer bond process required for fabricating the reflective IR-LED, the Al/Au alloy, which has filled the hole patterns in Si₃N₄ film, was used for improving the reflectivity of the Ag reflector and was bonded directly to the top layer of p-AlGaAs on the epitaxial wafer. Based on current-voltage measurements, it was found that the Al/Au alloyed material has a distinct ohmic characteristic pertaining to the p-AlGaAs layer compared with those of the Au/Be alloy material. Therefore, the Al/Au alloy may constitute one of the favored approaches for overcoming the insulative reflective structures of reflective IR-LEDs. For a current density of 200 mA, a lower forward voltage (1.56 V) was observed from the wafer bond IR-LED chip made with the Al/Au alloy; this voltage was remarkably lower in value than that of the conventional chip made with the Au/Be metal (2.29 V). A higher output power (182 mW) was observed from the reflective IR-LEDs made with the Al/Au alloy, thus displaying an increase of 64% compared with those made with the Au/Be alloy (111 mW). Full article

With the increased power density of gallium nitride (GaN) high electron mobility transistors (HEMTs), effective cooling is required to eliminate the self-heating effect. Incorporating diamond into GaN HEMT is an alternative way to dissipate the heat generated from the active region. In this review, the four main approaches for the integration of diamond and GaN are briefly reviewed, including bonding the GaN wafer and diamond wafer together, depositing diamond as a heat-dissipation layer on the GaN epitaxial layer or HEMTs, and the epitaxial growth of GaN on the diamond substrate. Due to the large lattice mismatch and thermal mismatch, as well as the crystal structure differences between diamond and GaN, all above works face some problems and challenges. Moreover, the review is focused on the state-of-art of polycrystalline or nanocrystalline diamond (NCD) passivation layers on the topside of GaN HEMTs, including the nucleation and growth of the diamond on GaN HEMTs, structure and interface analysis, and thermal characterization, as well as electrical performance of GaN HEMTs after diamond film growth. Upon comparing three different nucleation methods of diamond on GaN, electrostatic seeding is the most commonly used pretreatment method to enhance the nucleation density. NCDs are usually grown at lower temperatures (600–800 °C) on GaN HEMTs, and the methods of “gate after growth” and selective area growth are emphasized. The influence of interface quality on the heat dissipation of capped diamond on GaN is analyzed. We consider that effectively reducing the thermal boundary resistance, improving the regional quality at the interface, and optimizing the stress–strain state are needed to improve the heat-spreading performance and stability of GaN HEMTs. NCD-capped GaN HEMTs exhibit more than a 20% lower operating temperature, and the current density is also improved, which shows good application potential. Furthermore, the existing problems and challenges have also been discussed. The nucleation and growth characteristics of diamond itself and the integration of diamond and GaN HEMT are discussed together, which can more completely explain the thermal diffusion effect of diamond for GaN HEMT and the corresponding technical problems. Full article

Hexagonal boron nitride (h-BN) is one promising material class for applications in DUV optoelectronics due to the layered structure and ultra-wide bandgap. The synthesis of h-BN with smooth surface morphology and high quality on dielectric substrates is the key to construct efficient functional devices thereon. In this study, we reported wafer-scale h-BN on c-plane sapphire substrates by metal organic chemical vapor deposition utilizing the flow modulation epitaxy (FME) with growth interruptions. The effect of the growth interruption location within FME on the surface morphology and crystalline quality of h-BN films was systematically investigated. The interruption after the TEB injection could promote the mobility of B adatoms, and the interruption after the NH₃ injection could further relieve the passivation of N terminal growth fronts and mitigate the parasitic gas-phase reaction between growth precursors. By simultaneously employing interruptions after TEB and NH₃ injections, the growth rate of h-BN increased significantly from 0.16 nm/min to 4.76 nm/min, and the surface roughness of 2-nm-thick h-BN was reduced to 0.587 nm. In addition, h-BN grown with an interruption solely after the NH₃ injection presented the best crystallinity because the relatively slow growth rate reduced the possibility of impurity incorporation. Full article

GaN and its alloys with InN and AlN are of technological importance for a variety of optical, electronic, and optoelectronic devices due to its high thermal conductivity, wide band gap, high breakdown voltage and high saturation velocity. GaN-based devices now provide superior performance for a variety of high power, high frequency, high temperature, and optical applications. The major roadblock for the full realization of Nitride semiconductor potential is still the availability of affordable large-area and high-quality native substrates with controlled electrical properties. Despite the impressive accomplishments recently achieved by techniques such as hydride vapor phase epitaxy and ammonothermal for GaN growth, much more must be attained before establishing a fully satisfactory bulk growth method for this material. Recent results suggest that ammonothermal GaN wafers can be successfully used as seeds to grow thick freestanding GaN wafers by hydride vapor phase epitaxy. A brief review of defect-sensitive optical and paramagnetic spectroscopy techniques employed to evaluate structural, optical, and electronic properties of the state-of-the-art bulk and thick-film (quasi-bulk) Nitride substrates and homoepitaxial films is presented. Defects control the performance of devices and feeding back knowledge of defects to growth efforts is key to advancing technology. Full article

To meet the stringent requirements of 5G communication, we proposed a high-performance bulk acoustic wave (BAW) filter based on single crystal AlN piezoelectric films on a SiC substrate. The fabrication of the BAW filter is compatible with the GaN high electron mobility transistor (HEMT) process, enabling the implementation of the integration of the BAW device and high-performance monolithic microwave integrated circuit (MMIC). The single crystal AlN piezoelectric film with 650-nm thickness was epitaxially grown on the SiC substrate by Metal Organic Chemical Vapor Deposition (MOCVD). After wafer bonding and substrate removal, the single crystal AlN film with electrode layers was transferred to another SiC wafer to form an air gap type BAW. Testing results showed that the fabricated resonators have a maximum Q-factor up to 837 at 3.3 GHz resonant frequency and electromechanical coupling coefficient up to 7.2%. Ladder-type filters were developed to verify the capabilities of the BAW and process, which has a center frequency of 3.38 GHz with 160 MHz 3 dB bandwidth. The filter achieved a minimum 1.5 dB insertion loss and more than 31 dB out-of-band rejection. The high performance of the filters is attributed to the high crystallinity and low defects of epitaxial single crystal AlN films. Full article

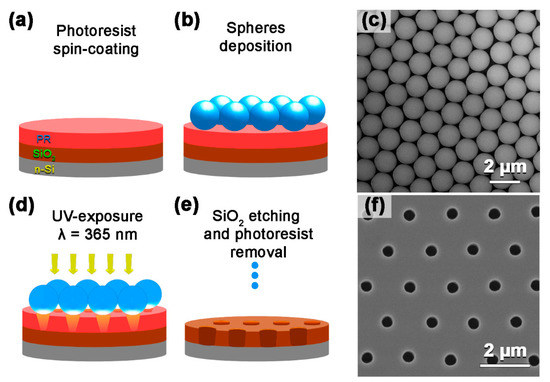

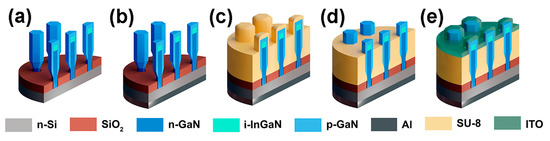

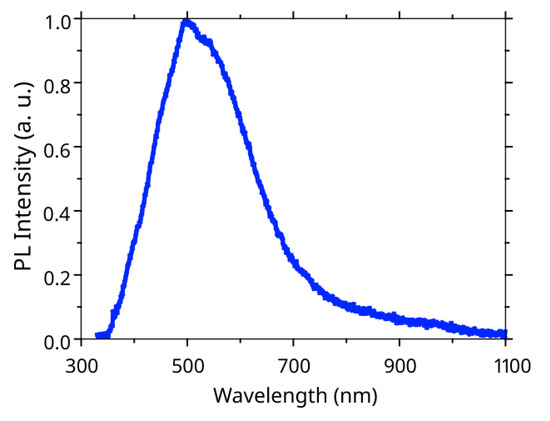

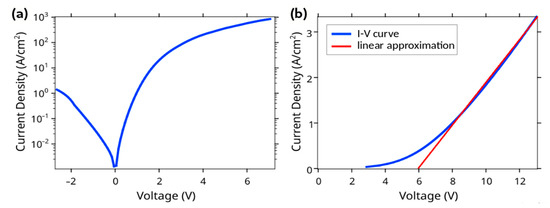

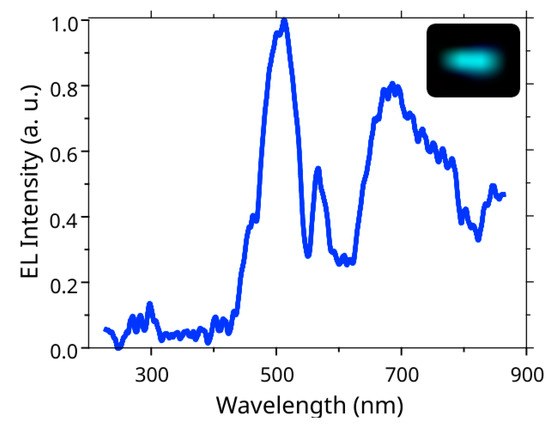

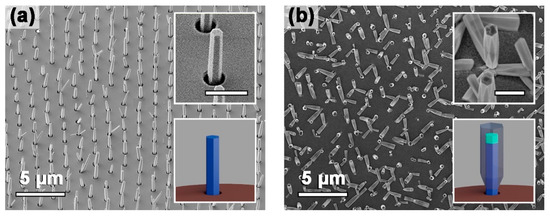

The direct integration of epitaxial III-V and III-N heterostructures on Si substrates is a promising platform for the development of optoelectronic devices. Nanowires, due to their unique geometry, allow for the direct synthesis of semiconductor light-emitting diodes (LED) on crystalline lattice-mismatched Si wafers. Here, we present molecular beam epitaxy of regular arrays n-GaN/i-InGaN/p-GaN heterostructured nanowires and tripods on Si/SiO₂ substrates prepatterned with the use of cost-effective and rapid microsphere optical lithography. This approach provides the selective-area synthesis of the ordered nanowire arrays on large-area Si substrates. We experimentally show that the n-GaN NWs/n-Si interface demonstrates rectifying behavior and the fabricated n-GaN/i-InGaN/p-GaN NWs-based LEDs have electroluminescence in the broad spectral range, with a maximum near 500 nm, which can be employed for multicolor or white light screen development. Full article
