Search Results (32)

In this study, 10% nitric acid was employed to remove the aluminum coating on the cobalt-based superalloy K6509, with a focus on elucidating the corrosion mechanism and evaluating the effect of ultrasonic on the removal process. The results shows that ultrasonic treatment (40 kHz) significantly improves coating removal efficiency, increasing the maximum corrosion rate by 46.49% from 2.5413 × 10⁻⁷ g·s⁻¹·mm⁻² to 4.7488 × 10⁻⁷ g·s⁻¹·mm⁻² and reducing removal time from 10 min to 6 min. This enhancement is attributed to cavitation effect of ultrasonic bubbles and the shockwave-accelerated ion diffusion, which together facilitate more efficient coating degradation and results in a smoother surface. In terms of corrosion behavior, the difference in phase composition between the outer layer and the interdiffusion zone (IDZ) plays a decisive role. The outer layer is primarily composed of β-(Co,Ni)Al phase, which is thermodynamically less stable in acidic environments and thus readily dissolves in 10% HNO₃. In contrast, the IDZ mainly consists of Cr₂₃C₆, which exhibit high chemical stability and a strong tendency to passivate. These characteristics render the IDZ highly resistant to nitric acid attack, thereby forming a protective barrier that limits acid penetration and helps maintain the integrity of the substrate. Full article

The demand for strategic elements, including nickel and cobalt, increases each year due to rapid technological advancements. However, due to their scarcity and environmental concerns, the development of sustainable recycling processes supported by green-energy technologies is becoming essential. In this study, a process relying on indirect bioleaching was used to recover nickel and cobalt from three different superalloy residue powders as a second source of metals, as part of a wider study to recycle superalloys within a waste process. A comparison between the three methods was carried out to analyse the bioleaching mechanisms of the target metals. Acidolysis was selected for further study due to its set-up simplicity and superior recovery rates. Variations in agitation speed of the lixiviant processing the Ni 30167 superalloy revealed that 270 rpm achieved the optimal active metal surface–oxidising agent interaction, with 60% and 70% dissolution rates after 24 h for nickel and cobalt, respectively. For the Re 30168 superalloy, extraction rates of 60% and 50% were obtained in 48 h for nickel and cobalt, respectively. The effect of hydrogen peroxide as an additive to improve metal solubilisation and overcome passivation, are discussed together with the challenges posed by the presence of iron, the materials’ elemental complexity, and its interaction with different oxidising agents. Full article

This study comprehensively evaluates a non-weldable nickel-cobalt-based superalloy fabricated using laser powder bed fusion (LPBF) technology. The investigation systematically examined the impact of heat treatment, specifically solution treatment and solution treatment followed by aging treatment, on the microstructural characteristics and the evolution of residual stress within the alloy. The findings indicated that the as-built Ni-Co-based superalloy predominantly consists of equiaxed crystals and epitaxial columnar crystals, with no formation of the γ′ phase observed. After the solution treatment, the alloy experienced equiaxed columnar crystallization, recrystallization, and grain refinement. Additionally, a significant quantity of γ′ phases within the alloy exhibited a specific arrangement and precipitation. Following the aging treatment, there was an observed increase in the average dimensions of both the γ′ phase and the grains within the alloy. The evolution of residual stress distribution perpendicular to the construction direction in the alloy, both before and following heat treatment, was assessed using the contour method. The results showed that heat treatment progressively diminished the residual stress levels within the alloy. Furthermore, this study discusses the interrelationship between residual stress and the microstructural evolutions of nickel-cobalt-based superalloys throughout the heat treatment process. Full article

In this work, the oxidation behavior of an aluminide coating at 900, 1000, and 1100 °C was investigated. The aluminide coating was prepared on a cobalt-based superalloy using a vapor phase aluminizing process, which is composed of a β-(Co,Ni)Al phase outer layer and a Cr-rich phase diffusion layer. The experimental results showed that the oxidation of the coating at 900–1100 °C all obey the parabolic law. The oxidation rate constants of the coating were between 2.19 × 10⁻⁷ and 47.56 × 10⁻⁷ mg²·cm⁻⁴·s⁻¹. The coating produced metastable θ-Al₂O₃ at 900 °C and stable α-Al₂O₃ at 1000 and 1100 °C. As the oxidation temperature increases, the formation of Al₂O₃ is promoted, consuming large amount of Al in the coating, resulting in the transformation from β-(Co,Ni)Al phase to α-(Co,Ni,Cr) phase. And the decrease in the β phase in the coating led to the dissolution of the diffusion layer. Full article

Hot cracking is a frequent and severe defect that occurs during laser additive manufacturing of superalloys. In this work, a pulsed-wave (PW) laser modulation process was employed to control the solidification microstructure and reduce the hot cracking susceptibility of laser additive manufactured cobalt-based superalloy. The effects of continuous-wave (CW) and PW laser processing modes on the dendrite morphology, element segregation, eutectic phase, and hot cracking of fabricated Co-based superalloys were investigated. Optical microscopy, scanning electron microscopy, and energy-dispersive X-ray spectroscopy were used to characterize the microstructural characteristics of samples. A two-color pyrometer was used to measure the molten pool temperature variation under different laser processing modes. The results show that coarse columnar dendrites, chain-like eutectic carbides, and hot cracks were observed in the CW sample. In contrast, the fine equiaxed crystals, discrete eutectic carbides, and low-level residual stresses were obtained to avoid hot cracks, owing to the high cooling rate and the periodic melting and solidification of the molten pool under the PW laser processing mode. This work provides a new method for controlling solidification structure and hot cracking of laser additive manufactured Co-based superalloy. Full article

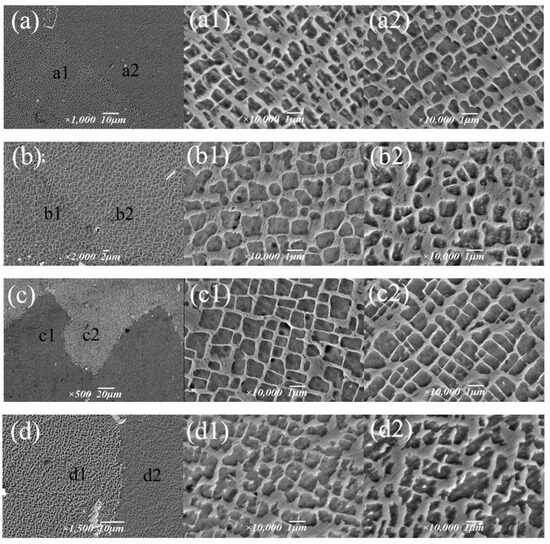

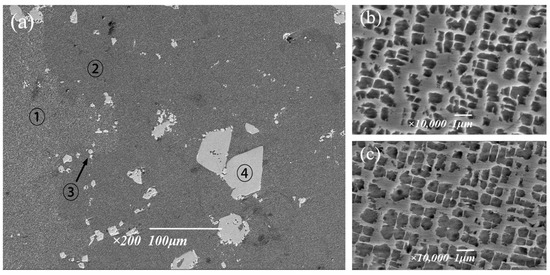

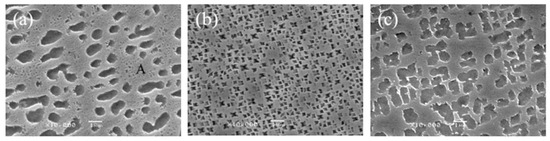

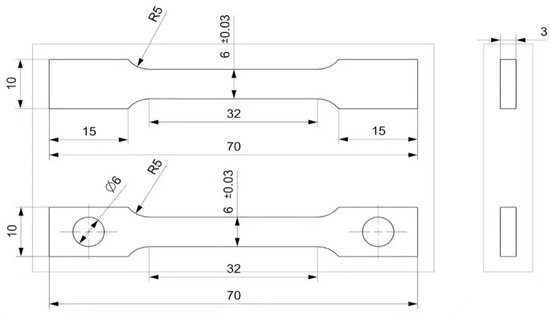

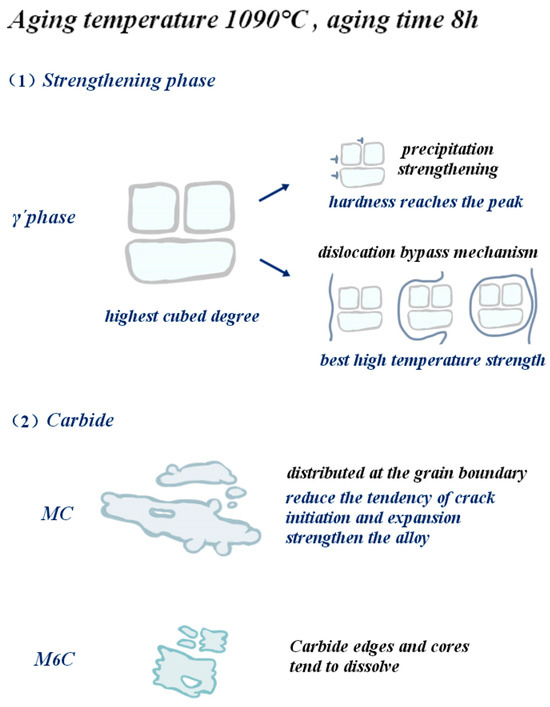

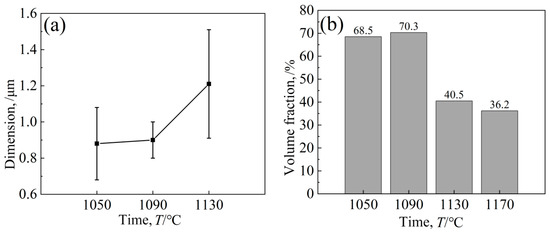

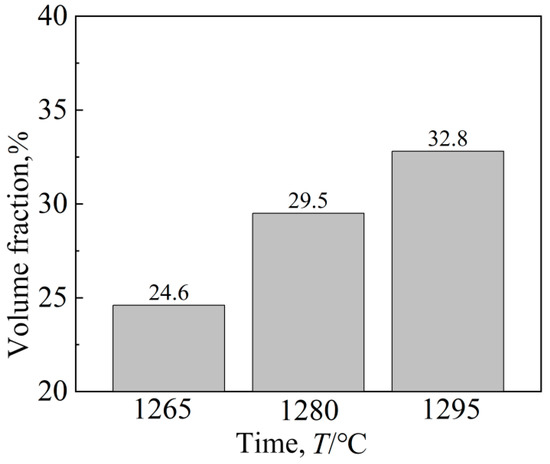

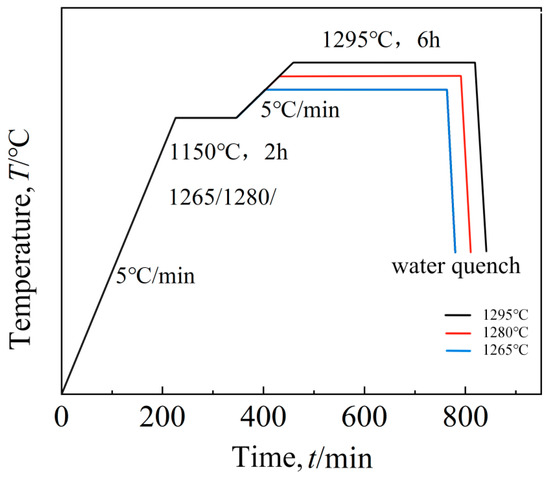

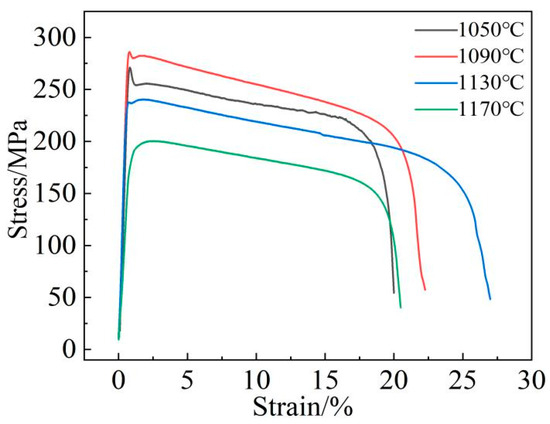

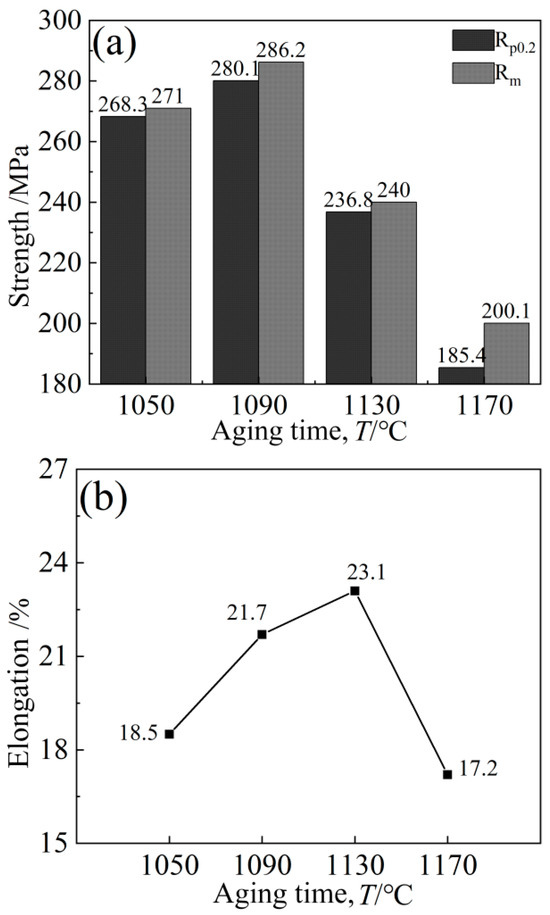

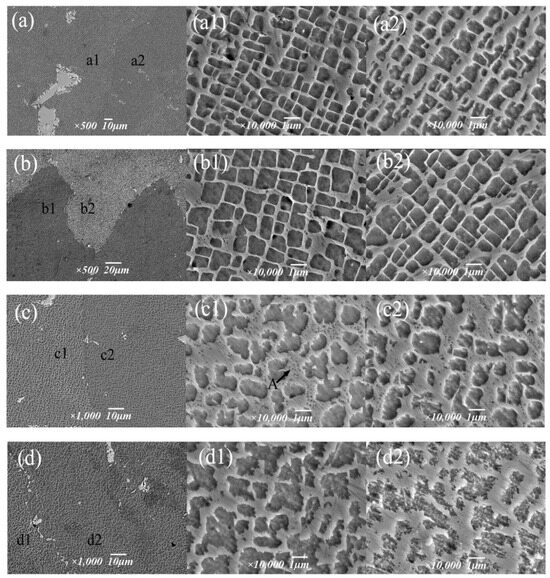

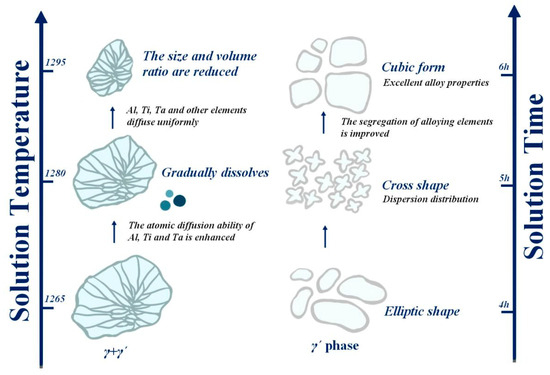

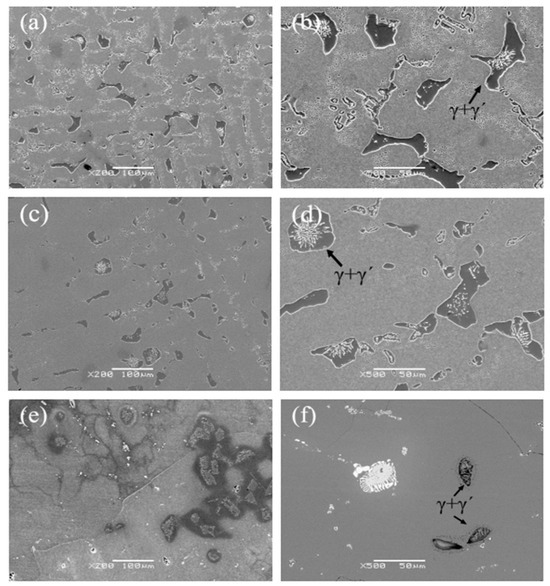

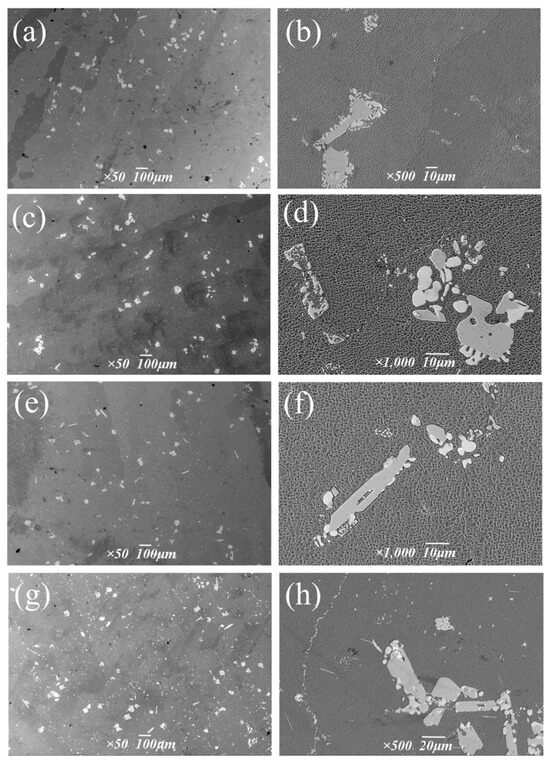

In this paper, the microstructure of an alloy was regulated by means of strengthening solution aging, and microstructure observation and composition analysis were carried out by means of an optical microscope and X-ray diffractometer. Combined with the Vickers hardness tester, electronic universal testing machine and high-temperature persistent creep testing machine, the mechanical properties and high-temperature properties of the alloy were tested, and the strengthening mechanism of the alloy was explored. The results showed that the dendritic morphology and structure of the alloy decreased with an increase in temperature during the solution process, and the γ′ phase morphology also changed with the solution temperature: oval → cross → cubic. The γ′ phase after solid solution at 1295 °C was closest to the cubic form. Therefore, it is believed that the 1295 °C solution treatment had the best effect. In the aging process, the uniform cubic degree of γ′ phase distribution was the highest at 1090 °C. On the basis of fixed aging temperature (1090 °C), it was found that the volume fraction of the γ′ phase increased significantly after 8 h. The γ′ phase, which was closest to the cubic form, had the largest proportion of precipitation, and the volume fraction increased to 70.3%. The minimum carbide volume was 1.0%. The hardness of the alloy reached 435.8 HV; the yield strength increased to 280.1 MPa; and the durability of the alloy under the conditions of 1000 °C/230 MPa and 870 °C/655 MPa was 99.7 h and 42.7 h, respectively, which achieved the purpose of alloy design. Full article

At present, cobalt belongs to what are called critical raw materials due to its scarcity and its economic importance. Cobalt is a crucial element in the development of new technologies and applications for decarbonization, with around 40% of cobalt consumption being used for rechargeable battery materials. Additionally, cobalt-based catalysts are used in the production of hydrogen fuel cells, and this element is also employed in the production of superalloys for aerospace and power generation industries. For this reason, it is imperative to increase cobalt recycling by recovering from secondary sources, such as decommissioned lithium-ion batteries. Among the technologies for cobalt recovery, adsorption is a reliable alternative as it allows its recovery even at low concentrations in aqueous solutions and is relatively low in cost. Among the potential adsorbents for cobalt recovery, this paper reviews two of the most promising adsorbents for cobalt recovery from aqueous solutions: zeolitic and carbonaceous materials. Regarding zeolitic materials, the maximum adsorption capacities are reached by FAU-type zeolites. In the case of carbonaceous materials, the actual trend is to obtain activated carbons from a wide range of carbon sources, including waste, the adsorption capacities, on average, being larger than the ones reached with zeolitic materials. Additionally, activated carbons allow, in many cases, the selective separation of cobalt from other ions which are present at the same time in the aqueous solutions such as lithium. Full article

This study introduces an advanced computational method aimed at accelerating continuum-scale processes using crystal plasticity approaches to predict mechanical responses in cobalt-based superalloys. The framework integrates two levels, namely, sub-grain and homogenized, at the meso-scale through crystal plasticity finite element (CPFE) platforms. The model is applicable across a temperature range from room temperature up to $900$$°$C, accommodating various dislocation mechanisms in the microstructure. The sub-grain level explicitly incorporates precipitates and employs a dislocation density-based constitutive model that is size-dependent. In contrast, the homogenized level utilizes an activation energy-based constitutive model, implicitly representing the ${\gamma }^{\prime }$ phase for efficiency in computations. This level considers the effects of composition and morphology on mechanical properties, demonstrating the potential for cobalt-based superalloys to rival nickel-based superalloys. The study aims to investigate the impacts of elements including tungsten, tantalum, titanium, and chromium through the homogenized constitutive model. The model accounts for the locking mechanism to address the cross-slip of screw dislocations at lower temperatures as well as the glide and climb mechanism to simulate diffusions at higher temperatures. The model’s validity is established across diverse compositions and morphologies, as well as various temperatures, through comparison with experimental data. This advanced computational framework not only enables accurate predictions of mechanical responses in cobalt-based superalloys across a wide temperature range, but also provides valuable insights into the design and optimization of these materials for high-temperature applications. Full article

Cobalt-Rhenium (Co-Re)-based alloys are currently investigated as potential high-temperature materials with melting temperatures beyond those of nickel-based superalloys. Their attraction stems from the binary Co-Re phase diagram, exhibiting complete miscibility between Co and Re, whereby the melting temperature steadily increases with the Re-content. Thus, depending on the Re-content, one can tune the melting temperature between that of pure Co (1495 °C) and that of pure Re (3186 °C). Current investigations focus on Re-contents of about 15 at.%, which makes melting with standard equipment still feasible. In addition to solid solution strengthening due to the mixture of Co- and Re-atoms, particle strengthening by tantalum carbide (TaC) and titanium carbide (TiC) precipitates turned out to be promising in recent studies. Yet, it is currently unclear which of the two particle types is the best choice for high temperature applications nor has the strengthening mechanism associated with the monocarbide (MC)-precipitates been elucidated. To address these issues, we perform compression tests at ambient and elevated temperatures on the particle-free base material containing 15 at.% of rhenium (Re), 5 at.% of chromium (Cr) and cobalt (Co) as balance (Co-15Re-5Cr), as well as on TaC- and TiC-containing variants. Additionally, transmission electron microscopy is used to analyze the shape of the precipitates and their orientation relationship to the matrix. Based on these investigations, we show that TiC and TaC are equally suited for precipitation strengthening of Co-Re-based alloys and identify climb over the elongated particles as a rate controlling particle strengthening mechanism at elevated temperatures. Furthermore, we show that the Re-atoms are remarkably strong obstacles to dislocation motion, which are overcome by thermal activation at elevated temperatures. Full article

The A286 iron-based superalloy has wide-ranging applications in replacing expensive nickel-based and cobalt-based superalloy to manufacture the turbine disk as well as the pipelines and valves of the fourth-generation supercritical water reactor (SCWR) working below 650 °C. The recrystallization texture importantly affects the mechanical properties and oxidation resistance of superalloys. However, very few investigations are available on the recrystallisation texture of A286 alloy. The current work reports the texture of A286 alloy fabrication using various rolling routes, including one-stage cold rolling with the rolling rates of 83% (Route I) and 91% (Route II), and two-stage cold rolling with the rolling rate of 83% + 50% (Route III). Route III is preferentially recommended to manufacture A286 alloy thin plates due to the obviously reduced work hardening as well as the weakened recrystallization texture and anisotropy; moreover, compared with other routes, the recrystallized grain size of Route III did not significantly coarsen. We also revealed the mechanism for the effect of cold rolling textures on the final recrystallization texture and the role of the deformation twin in {110} <115> grain. In this study, recrystallization texture develops through two independent mechanisms related to different deformation microstructures, including the recrystallization texture inherited from deformation texture and the recrystallization texture depended on deformation twins. Full article

With the advancement in computational approaches and experimental, simulation, and modeling tools in recent decades, a trial-and-validation method is attracting more attention in the materials community. The development of powder metallurgy Ni-based superalloys is a vivid example that relies on simulation and experiments to produce desired microstructure and properties in a tightly controlled manner. In this research, we show an integrated approach to predicting the grain size of industrial forgings starting from lab-scale cylindrical compression by employing modeling and experimental validation. (a) Cylindrical compression tests to obtain accurate flow stress data and the hot working processing window; (b) double-cone tests of laboratory scale validation; (c) sub-scale forgings for further validation under production conditions; and (d) application and validation on full-scale industrial forgings. The procedure uses modeling and simulation to predict metal flow, strain, strain rate, temperature, and the resulting grain size as a function of thermo-mechanical processing conditions. The models are calibrated with experimental data until the accuracy of the modeling predictions is at an acceptable level, which is defined as the accuracy at which the results can be used to design and evaluate industrial forgings. Full article

Machining hard-to-cut materials, such as cobalt (Co)-based superalloys, is a common problem in manufacturing industries. Background: wire electrical discharge machining (W-EDM) is one of the widely used cutting processes that causes layer (white layer—WL and heat-affected zone—HAZ) formation, and microcracks on the material’s surface. Purpose: this study investigates the effects of WL and HAZ on the electrochemical grooving (EC grooving) performance of Co-based superalloys. Two different surface types (W-EDMed and VFed) were used in the experiments. Result: the experiments showed that material removal rate (MRR) values increased up to 212.49% and 122.23% for vibratory finished (VFed) and wire-electrical-discharge-machined (W-EDMed) surfaces, respectively. Conclusion: This result indicates the presence of HAZ and WL that prevent current transition between two electrodes. However, increased voltage causes an increase in surface roughness, with increment rates at 71.13% and 36.08% for VFed and W-EDMed surfaces, respectively. Moreover, for the VFed surfaces, the groove lost its flatness at the bottom after an approximately 100 µm depth due to the different electrochemical machineabilities of HAZ and real surface texture. This result can be attributed to the different microstructures (HAZ and surface texture) showing different electrochemical dissolution rates. Therefore, high-depth distance HAZ and WL must be removed from the workpiece. Full article

Rhenium is largely used as an additive to nickel- and cobalt-based superalloys. Their resistance to temperature and corrosion makes them suitable for the production of turbines in civil and military aviation, safety valves in drilling platforms, and tools working at temperatures exceeding 1000 °C. The purity of commercial rhenium salts is highly important. Potassium, which is a particularly undesirable element, can be removed by recrystallization. Therefore, it is crucial to possess detailed knowledge concerning process parameters including the dissolved solid concentration and the resulting saturation temperature. This can be achieved using simple densimetric methods. Due to the fact that data concerning the physicochemical properties of ammonium perrhenate (APR) NH₄ReO₄ and potassium perrhenate (PPR) KReO₄ are imprecise or unavailable in the scientific literature, the goal of this study is to present experimental data including the solubility and density of water solutions of both salts. In the experiments, a densimeter with a vibrating cell was used to precisely determine the densities. Although the investigated solutions did not fit into the earlier proposed mathematical model, some crucial conclusions could still be made based on the results. Full article

This study investigated the characteristic properties of aluminizing, boronizing, and boro-aluminizing coatings grown on Haynes 25 superalloys and their effects on the high-temperature wear behavior. The coating processes were conducted in a controlled atmosphere at 950 °C for 3 h. Characterization studies were performed using scanning electron microscopy, energy-dispersive spectroscopy, X-ray diffraction analysis, nanoindentation testing, and high-temperature wear tests. It was determined that the thickness values of aluminide, boride, and boride–aluminide coatings were 140 ± 1.50 µm, 37.58 ± 2.85 µm, and 14.73 ± 1.71 µm, and their hardness values were 12.23 ± 0.9 GPa, 26.34 ± 2.33 GPa, and 23.46 ± 1.29 GPa, respectively. The hardness of the coatings resulted in reduced wear volume losses both at room temperature and at 500 °C. While the best wear resistance was obtained in the boronized sample at room temperature due to its high hardness, the best wear resistance at 500 °C was obtained in the boro-aluminized sample with the oxidation–reduction effect of Al content and the lubricating effect of B content in the boro-aluminide coating. This indicates that the presence of aluminum in boride layers improves the high-temperature wear resistance of boride coatings. The coated samples underwent abrasive wear at room temperature, whereas at 500 °C, the wear mechanism shifted to an oxidative-assisted adhesive wear mechanism. Full article

In this work, two Ni-based superalloys with 13 wt.% and 35 wt.% Co were prepared via selective laser melting (SLM), and the effects of Co on the microstructure and mechanical properties of the additively manufactured superalloys were investigated. As the Co fraction increased from 13 wt.% to 35 wt.%, the average grain size decreased from 25.69 μm to 17.57 μm, and the size of the nano-phases significantly increased from 80.54 nm to 230 nm. Moreover, the morphology of the γ′ phase changed from that of a cuboid to a sphere, since Co decreased the γ/γ′ lattice mismatch from 0.64% to 0.19%. At room temperature, the yield strength and ultimate tensile strength of the 13Co alloy reached 1379 MPa and 1487.34 MPa, and those of the 35Co alloy were reduced to 1231 MPa and 1350 MPa, while the elongation increased by 52%. The theoretical calculation indicated that the precipitation strengthening derived from the γ′ precipitates made the greatest contribution to the strength. Full article
