Search Results (23)

This study investigates the combined use of electron beam irradiation (EBI) and nanotechnology to develop improved food packaging films. EBI, commonly applied for sterilization, can alter polymer microstructure, while irradiated cellulose nanocrystals (CNCs) offer enhanced functionality when incorporated into biopolymer matrices. Here, CNCs were irradiated with doses up to 50 kGy, leading to the formation of carboxyl and aldehyde groups, confirmed by FTIR analysis, as a consequence of the initial formation of free radicals and peroxides that may subsist in that original form or be converted into various carbonyl groups. Flexible films were obtained by incorporating pristine and EB-irradiated CNCs in an internal mixer, using minute amounts of poly(ethylene oxide) (PEO) to facilitate the dispersion of the filler within the polymer matrix. The resulting PLA/PEO/CNC films were evaluated for their mechanical, thermal, barrier, and antioxidant properties. The results showed that structural modifications of CNCs led to significant enhancements in the performance of the composite films, including a 30% improvement in water barrier properties and a 50% increase in antioxidant activity. These findings underscore the potential of irradiated CNCs as effective additives in biopolymer-based active packaging, offering a sustainable approach to reduce dependence on synthetic preservatives and potentially extend the shelf life of food products. Full article

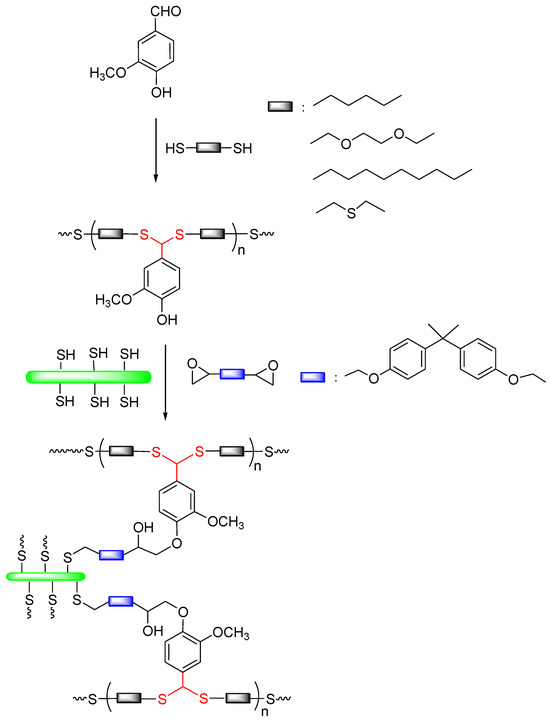

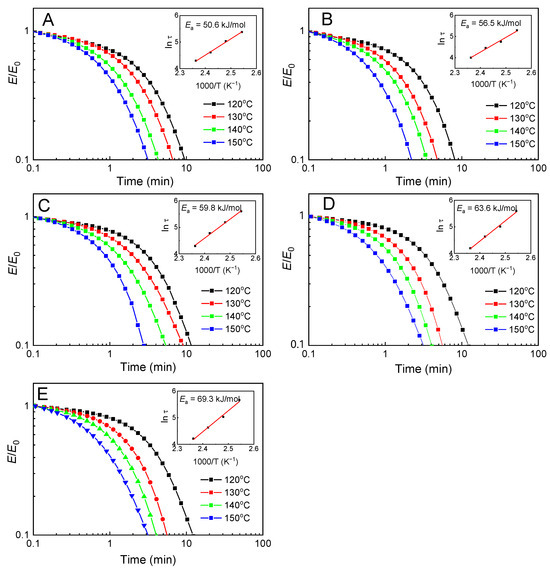

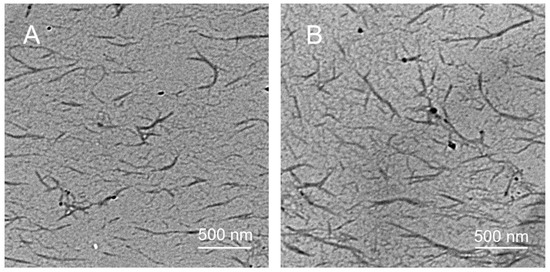

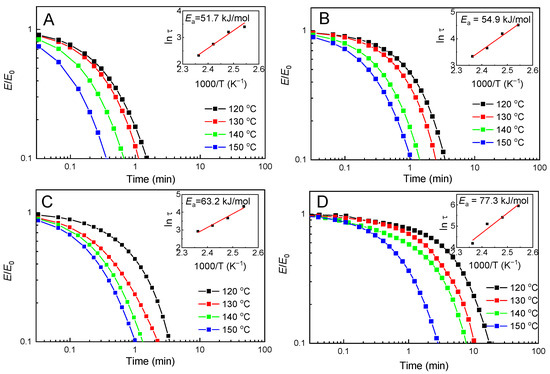

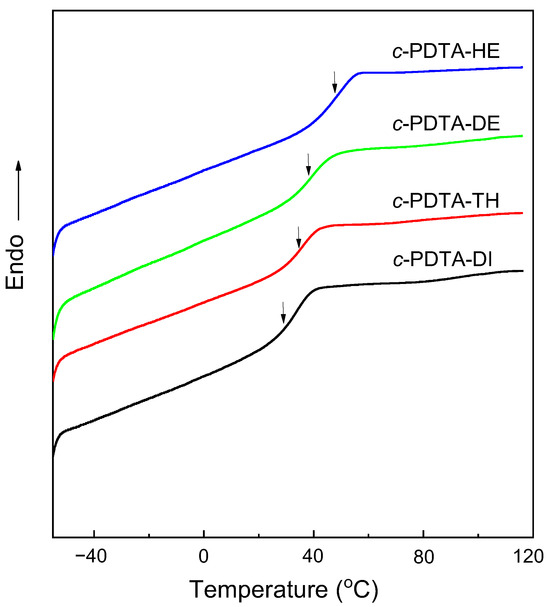

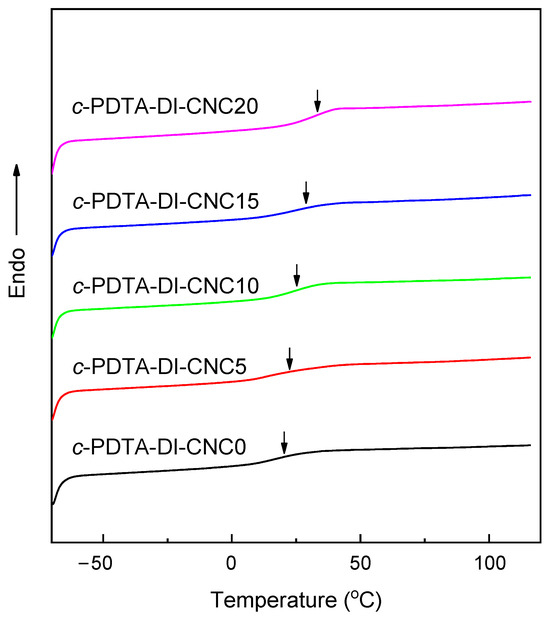

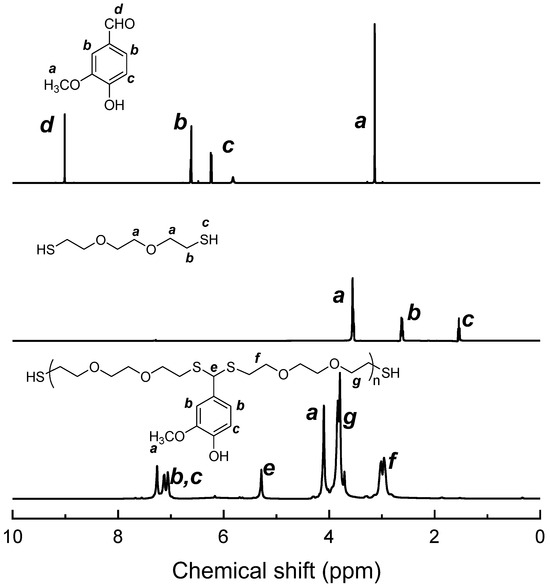

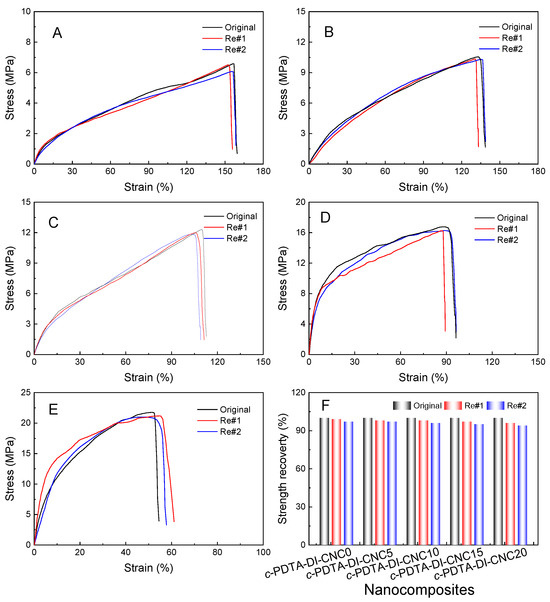

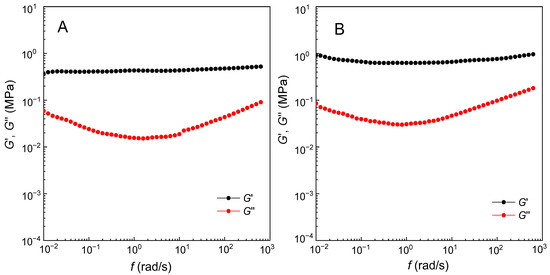

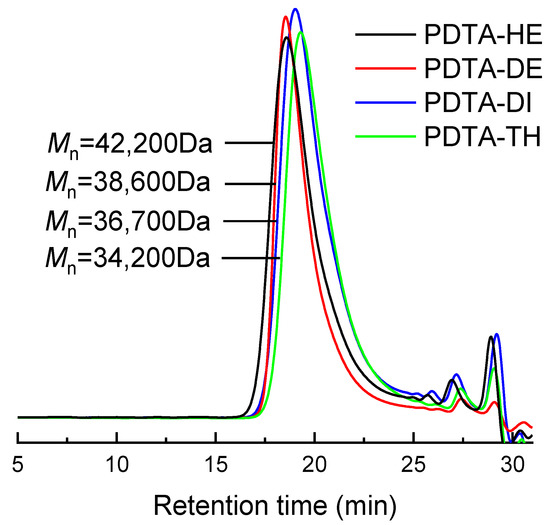

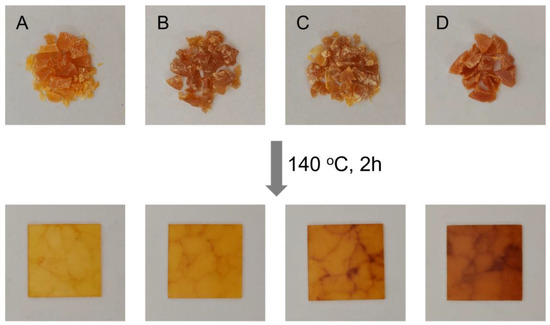

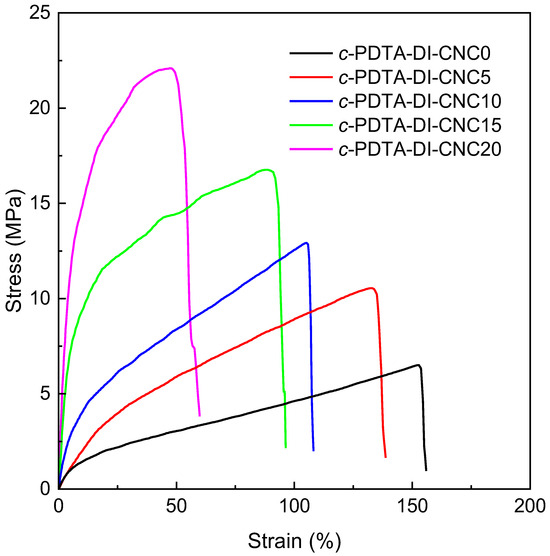

Bio-based polydithioacetal nanocomposites were synthesized to address the critical need for materials that simultaneously achieve enhanced thermomechanical properties and excellent reprocessing capabilities. Using vanillin and cellulose nanocrystals (CNCs) as starting materials, linear polydithioacetals (PDTAs) were prepared via acid-catalyzed polycondensation of vanillin with various dithiols including 1,6-hexanedithiol, 1,10-decanedithiol, 3,6-dioxa-1,8-octanedithiol and 2,2′-thiodiethanethiol. These PDTAs were then crosslinked with a diepoxide (i.e., diglycidyl ether of bisphenol A, DGEBA) via the reaction of phenolic hydroxyl groups of PDTAs with epoxide groups of DGEBA. To create the nanocomposites, cellulose nanocrystals (CNCs) were surface-functionalized with thiol groups and then incorporated as the reinforcing nanofillers of the networks. The results of morphological observation showed that the fine dispersion of CNCs in the polymer matrix was attained. Owing to the incorporation of CNCs, the nanocomposites displayed improved thermomechanical properties. Compared to the network without CNCs, the nanocomposite containing 20 wt% CNCs exhibited an increase of more than tenfold in modulus and threefold in tensile strength. In addition, the nanocomposites exhibited excellent reprocessing properties, attributable to the dynamic exchange of dithioacetal bonds. This work presents a promising strategy for developing bio-based nanocomposites that have not only improved thermomechanical properties but also excellent reprocessing (or recycling) properties. Full article

This study presents the development and analysis of hybrid polyurea composite materials. Neat polyurea was reinforced with cellulose nanocrystals (CNCs) and isocyanate-modified CNCs (CNC-ISOs) via a two-step prepolymer process. Introducing CNC considerably increased the mechanical strength and stiffness of the polyurea matrix. The tensile strength increased by up to 16.4%, and the Young modulus improved by approximately 29% compared to the pure polyurea. When CNC was functionalized with isocyanate, the interfacial bonding was further improved, and superior dispersion and load transfer were achieved. At 1.5% CNC-ISO loading, the modulus increased by approximately 128% compared to the unmodified matrix. Comprehensive analyses using FT-IR, XPS, DSC, TGA, DMA, tensile testing, and SEM showed that CNC-ISO films not only achieved higher tensile strength and better thermal stability but also formed a denser polymer network as evidenced by the increased crosslinking density. These findings highlight the importance of tailored nanofiller modification to create advanced polyurea composites with enhanced performance suitable for demanding protective and structural applications. Full article

This study explores how varying chlorogenic acid levels (low—yellowish, Y; high—greenish, G) in sunflower proteins (SFs) affect the properties of eugenol-loaded oil-in-water emulsions and the resulting films, while examining the interaction of cellulose nanoparticles (from commercial (CNC) and banana peel sources (CNF)) with the film-forming matrix. This research fills gaps in literature by demonstrating how interactions among proteins, lipids, phenolic compounds, and cellulose nanoparticles influence film properties. The high chlorogenic acid content in SF reduced electrostatic repulsion between protein molecules, causing aggregation, oil droplet flocculation, and increased emulsion viscosity. The mechanical properties of emulsion-based films were significantly lower than those made with SF dispersions. Films made from low chlorogenic acid (yellowish SF) emulsions showed lower tensile strength and Young’s modulus but higher elongation at break compared to those made from high chlorogenic acid (greenish SF) emulsions. Water vapor permeability (WVP) decreased in films containing oil phases, but adding cellulose nanoparticles increased WVP. Despite this, the cellulose nanoparticles could not fully overcome the negative effects of lipid–protein interactions on mechanical properties and WVP. However, films containing eugenol exhibited significant antioxidant activity. The findings provide insights into developing sustainable, active packaging with antioxidant functionality and reduced environmental impact, opening new avenues for applications in food and other sectors requiring eco-friendly materials. Full article

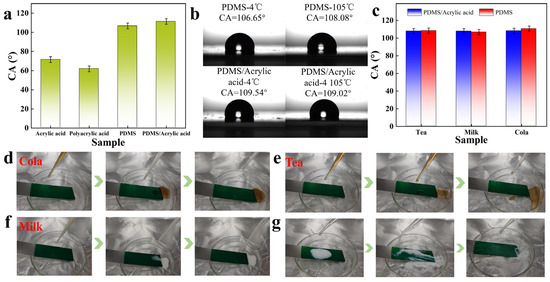

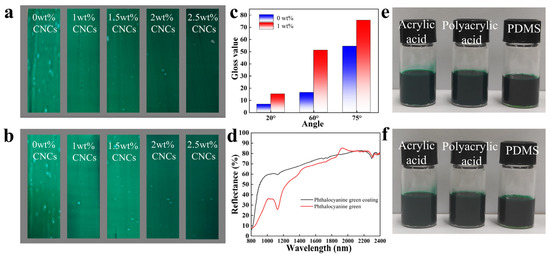

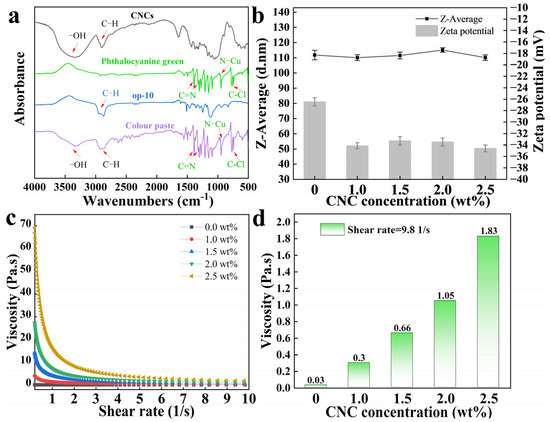

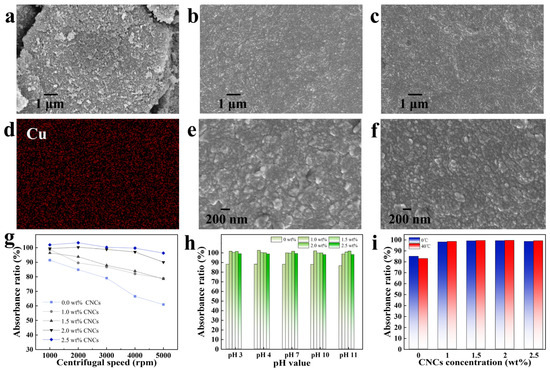

Cellulose nanocrystals (CNCs) prepared by sulfuric acid hydrolysis were added to phthalocyanine green colour pastes with a surfactant to improve stability. The particle size, zeta potential, absorbance, and microstructure of the colour pastes were analyzed and characterized. The mechanism of CNCs to enhance the stability of hydrophobic phthalocyanine green in water was investigated. The functionalized application of the colour pastes was explored by mixing colour pastes with coating-forming substances to prepare phthalocyanine green paint. The results show that CNCs could enhance the stability of phthalocyanine green in water and form a binary system with non-ionic surfactants in colour pastes. The system could make phthalocyanine green colour pastes have very good dispersion and stability and mix well with coating-forming substances. The phthalocyanine green paint had excellent performance. As a renewable and naturally degradable biomass resource, CNCs have the potential to be applied for the dispersion and stabilization of hydrophobic pigments by compounding with surfactants. Full article

In the present work, solvent casting and Pickering emulsion methods are studied to enhance the mechanical properties of polylactic acid (PLA) composites containing surface-modified cellulose nanomaterials. To enhance the compatibility and the adhesion at the interface, cellulose nanocrystal (CNC) was functionalized by 2,4-methylene diphenyl diisocyanate (MDI) and castor oil. Their results demonstrated that the Pickering emulsion method led to better dispersion of CNC in composites, resulting in improved tensile strength, flexibility, and thermal stability (compared with solvent-casted ones). In particular, the tensile strength increased by 20% and the crystallinity increased by 15% using the Pickering emulsion technique, indicating their potential as a new generation of sustainable packaging. The findings of this research could help in creating eco-friendly packaging options by improving the mechanical features of biodegradable composites and exploring potential alternatives to overcome their limitations. Full article

As an important means to enhance oil recovery, ternary composite flooding (ASP flooding for short) technology has achieved remarkable results in Daqing Oilfield. Alkalis, surfactants and polymers are mixed in specific proportions and injected into the reservoir to give full play to the synergistic effect of each component, which can effectively enhance the fluidity of crude oil and greatly improve the oil recovery. At present, the technology for further improving oil recovery after ternary composite flooding is not mature and belongs to the stage of technical exploration. The presence of alkaline substances significantly alters the reservoir’s physical properties and causes considerable corrosion to the equipment used in its development. This is detrimental to both the environment and production. Therefore, it is necessary to develop green displacement control agents. In the reservoir environment post-ASP flooding, 2-(methylamino)ethyl methacrylate and glycidyl methacrylate were chosen as monomers to synthesize a polymer responsive to alkali, and then grafted with cellulose nanocrystals to form microspheres of alkali-resistant swelling hydrogel. Cellulose nanocrystals (CNCs) modified with functional groups and other materials were utilized to fabricate hydrogel microspheres. The product’s structure was characterized and validated using Fourier transform infrared spectroscopy and X-ray diffraction. The infrared spectrum revealed characteristic absorption peaks of CNCs at 1165 cm⁻¹, 1577 cm⁻¹, 1746 cm⁻¹, and 3342 cm⁻¹. The diffraction spectrum corroborated the findings of the infrared analysis, indicating that the functional modification occurred on the CNC surface. After evaluating the swelling and erosion resistance of the hydrogel microspheres under various alkaline conditions, the optimal particle size for compatibility with the target reservoir was determined to be 6 μm. The potential of cellulose-based gel microspheres to enhance oil recovery was assessed through the evaluation of Zeta potential and laboratory physical simulations of oil displacement. The study revealed that the absolute value of the Zeta potential for gel microspheres exceeds 30 in an alkaline environment with pH values ranging from 7 to 14, exhibiting a phenomenon where stronger alkalinity correlates with a greater absolute value of Zeta potential. The dispersion stability spans from good to excellent. The laboratory oil displacement simulation experiment was conducted using a cellulose-based gel microsphere system following weak alkali ASP flooding within the pH value range from 7 to 10. The experimental interventions yielded recovery rates of 2.98%, 3.20%, 3.31%, and 3.38%, respectively. The study indicates that cellulose-based gel microspheres exhibit good adaptability in alkaline reservoirs. This research offers a theoretical foundation and experimental approaches to enhance oil recovery techniques post-ASP flooding. Full article

An environmentally friendly Pickering stabilizer was developed by upcycling sugarcane bagasse (SCB) into a cellulose nanocrystal (CNC), which was subjected to surface modification by using quaternary ammonium compound to enhance its amphiphilic characteristics. The changes in microstructural properties of modified cellulose nanocrystal (m-CNC), such as surface functional group, thermal stability, surface morphology, elemental composition, and particle size distribution were investigated. Results indicated the success of quaternary ammonium compound grafting with the presence of a trimethyl-alkyl chain on the cellulose structure, while the m-CNC preserves the needle-like nanoparticles in length of ~534 nm and width of ~20 nm. The colloidal profile of m-CNC-stabilized oil–water emulsion gels with different concentrations of m-CNC (1–5 wt%), and oil:water (O:W) ratios (3:7, 5:5, 7:3) were examined. The emulsion gel stability study indicated that the optimal concentration of m-CNC (3 wt%) was able to stabilize all the emulsion gels at different O:W ratios with an emulsion index of >80% for 3 months. It is the minimum concentration of m-CNC to form a robust colloidal network around the small oil droplets, leading to the formation of stable emulsion gels. The emulsion gel with O:W ratio (3:7) with 3 wt% of m-CNC rendered the best m-CNC–oil-droplets dispersion. The m-CNC effectively retained the size of oil droplets (<10 μm for 3 months storage) against coalescence and creaming by creating a steric barrier between the two immiscible phases. Furthermore, the emulsion gel exhibited the highest viscosity and storage modulus which was able to prevent creaming or sedimentation of the emulsion gels. Full article

Currently, the scientific community has spent a lot of effort in developing “green” and environmentally friendly processes and products, due the contemporary problems connected to pollution and climate change. Cellulose nanocrystals (CNCs) are at the forefront of current research due to their multifunctional characteristics of biocompatibility, high mechanical properties, specific surface area, tunable surface chemistry and renewability. However, despite these many advantages, their inherent hydrophilicity poses a substantial challenge for the application of CNCs as a reinforcing filler in polymers, as it complicates their dispersion in hydrophobic polymeric matrices, such as polyurethane foams, often resulting in aggregate structures that compromise their properties. The manipulation and fine-tuning of the interfacial properties of CNCs is a crucial step to exploit their full potential in the development of new materials. In this respect, starting from an aqueous dispersion of CNCs, two different strategies were used to properly functionalize fillers: (i) freeze drying, solubilization in DMA/LiCl media and subsequent grafting with bio-based polyols; (ii) solvent exchange and subsequent grafting with bio-based polyols. The influence of the two functionalization methods on the chemical and thermal properties of CNCs was examined. In both cases, the role of the two bio-based polyols on filler functionalization was elucidated. Afterwards, the functionalized CNCs were used at 5 wt% to produce bio-based composite polyurethane foams and their effect on the morphological, thermal and mechanical properties was examined. It was found that CNCs modified through freeze drying, solubilization and bio-polyols grafting exhibited remarkably higher thermal stability (i.e., degradation stages > 100 °C) with respect to the unmodified freeze dried-CNCs. In addition, the use of the two grafting bio-polyols influenced the functionalization process, corresponding to different amount of grafted-silane-polyol and leading to different chemico-physical characteristics of the obtained CNCs. This was translated to higher thermal stability as well as improved functional and mechanical performances of the produced bio-based composite PUR foams with respect of the unmodified CNCs-composite ones (the best case attained compressive strength values three times more). Solvent exchange route slightly improved the thermal stability of the obtained CNCs; however; the so-obtained CNCs could not be properly dispersed within the polyurethane matrix, due to filler aggregation. Full article

In nanoscience, nanotechnology is applied to various technologies, and research is actively being conducted. As the application of multi-walled carbon nanotubes (MWCNTs) in various fields increases, efforts have been made to develop dispersion and functionalization technologies. In order to effectively use MWCNT nanofluids, it is most important to solve the problem of dispersion. In this study, MWCNTs were improved in dispersibility and functionalized through various chemical and mechanical treatments. In addition, MWCNTs aggregation was alleviated by using cellulose nanocrystal (CNC) as a dispersant. The processing results of MWCNTs and CNC were analyzed through transmission electron microscopy (TEM) and the dispersion was characterized by UV–Vis spectroscopy. The addition of CNC to MWCNTs has been confirmed to have high dispersibility and improved stability compared to untreated MWCNTs, and this effect affects the quality of the machine. Full article

The poor water solubility, large particle size, and low accessibility of cellulose, the most abundant bioresource, have restricted its generalization to carbon dots (CDs). Herein, nitrogen and sulfur co-doped fluorescent carbon dots (N, S-CDs) were hydrothermally synthesized using cellulose nanocrystals (CNC) as a carbon precursor, exhibiting a small particle size and excellent aqueous dispersion. Thiourea was selected as a nitrogen and sulfur dopant to introduce abundant fluorescent functional groups into N, S-CDs. The resulting N, S-CDs exhibited nanoscale size (6.2 nm), abundant functional groups, bright blue fluorescence, high quantum yield (QY = 27.4%), and high overall yield (16.2%). The excellent optical properties of N, S-CDs endowed it to potentially display a highly sensitive fluorescence “turn off” response to rutin. The fluorescence response for rutin allowed a wide linear range of 0–40 mg·L⁻¹, with a limit of detection (LOD) of 0.02 μM, which revealed the potential of N, S-CDs as a rapid and simple sensing platform for rutin detection. In addition, the sustainable and large-scale production of the N, S-CDs in this study paves the way for the successful high-value utilization of cellulose. Full article

Mechanically enhanced gelatin-based composite hydrogels were developed in the presence of functionalized cellulose nanocrystals (CNCs) employing microbial transglutaminase (mTG) as a binding agent. In this work, the surfaces of CNCs were grafted with (3-Aminopropyl) trimethoxysilane with a NH₂ functional group, and the success of CNCs’ modification was verified by FTIR spectroscopy and XPS. The higher degree of modification in CNCs resulted in more covalent cross-linking and dispersibility within the gelatin matrix; thus, the as-prepared hydrogels showed significantly improved mechanical properties and thermo-stability, as revealed by dynamic rheological analysis, uniaxial compression tests and SEM. The biocompatibility of the obtained hydrogels was evaluated by the MTT method, and it was found that the grafted CNCs had no obvious inhibitory effect on cell proliferation. Hence, the mechanically enhanced gelatin-based hydrogels might have great potential in biomedical applications. Full article

The aim of the study was to characterize and compare films made of cellulose nanocrystals (CNC), nano-fibrils (CNF), and bacterial nanocellulose (BNC) in combination with chitosan and alginate in terms of applicability for potential food packaging applications. In total, 25 different formulations were made and evaluated, and seven biopolymer films with the best mechanical performance (tensile strength, strain)—alginate, alginate with 5% CNC, chitosan, chitosan with 3% CNC, BNC with and without glycerol, and CNF with glycerol—were selected and investigated regarding morphology (SEM), density, contact angle, surface energy, water absorption, and oxygen and water barrier properties. Studies revealed that polysaccharide-based films with added CNC are the most suitable for packaging purposes, and better dispersing of nanocellulose in chitosan than in alginate was observed. Results showed an increase in hydrophobicity (increase of contact angle and reduced moisture absorption) of chitosan and alginate films with the addition of CNC, and chitosan with 3% CNC had the highest contact angle, 108 ± 2, and 15% lower moisture absorption compared to pure chitosan. Overall, the ability of nanocellulose additives to preserve the structure and function of chitosan and alginate materials in a humid environment was convincingly demonstrated. Barrier properties were improved by combining the biopolymers, and water vapor transmission rate (WVTR) was reduced by 15–45% and oxygen permeability (OTR) up to 45% by adding nanocellulose compared to single biopolymer formulations. It was concluded that with a good oxygen barrier, a water barrier that is comparable to PLA, and good mechanical properties, biopolymer films would be a good alternative to conventional plastic packaging used for ready-to-eat foods with short storage time. Full article

A hybrid method is proposed for optimizing rigid tapping parameters and reducing synchronization errors in Computer Numerical Control (CNC) machines. The proposed method integrates uniform design (UD), regression analysis, Taguchi method, and fractional-order particle swarm optimizer (FPSO) to optimize rigid tapping parameters. Rigid tapping parameters were laid out in a 28-level uniform layout for the experiments in this study. Since the UD method provided a layout with uniform dispersion in the experimental space, the UD method’s uniform layout provided iconic experimental points. Next, the 28-level uniform layout results and regression analysis results were used to obtain significant parameters and a regression function. To obtain the parameter values from the regression function, FPSO was selected because its diversity and algorithmic effectiveness are enhanced compared with PSO. The experimental results indicated that the proposed method could obtain suitable parameter values. The best parameter combination in FPSO yielded the best results in comparisons of the non-systematic method. Next, the best parameter combination was used to optimize actual CNC machining tools during the factory commissioning process. From the commissioning process perspective, the proposed method rapidly and accurately minimizes synchronization error from 23 pulses to 18 pulses and processing time from 20.8 s to 20 s. In conclusion, the proposed method reduced the time needed to tune factory parameters for CNC machining tools and increased machining precision and decreased synchronization errors. Full article

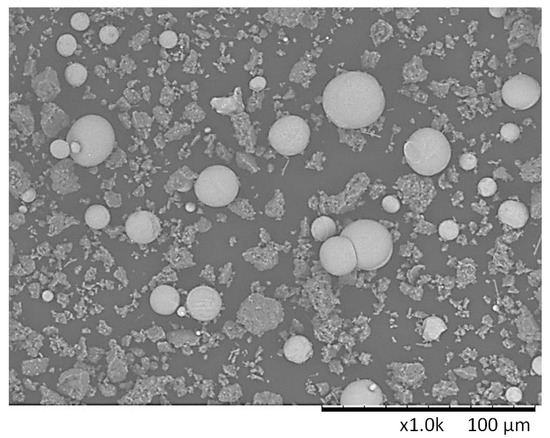

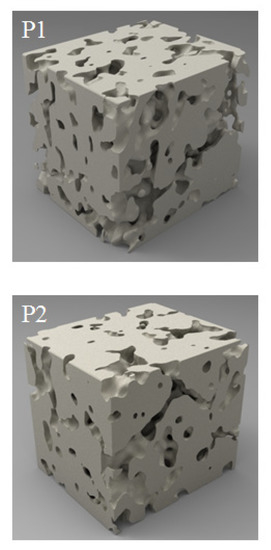

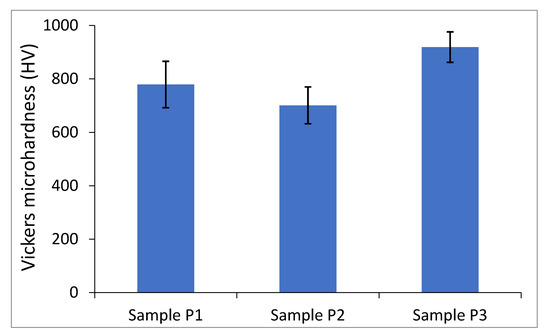

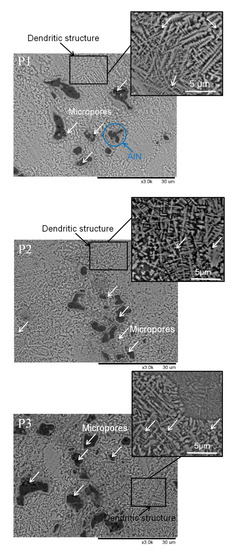

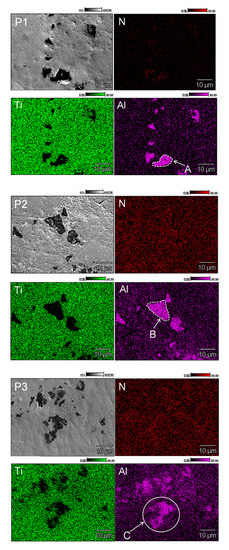

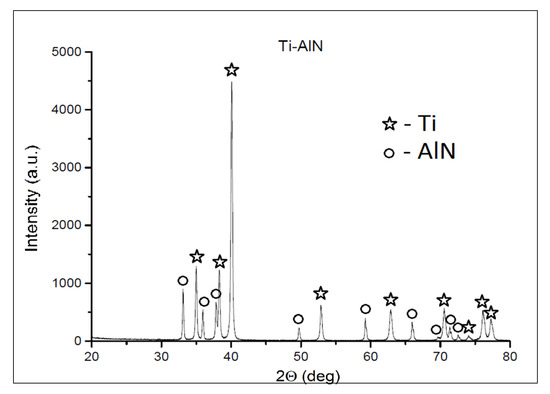

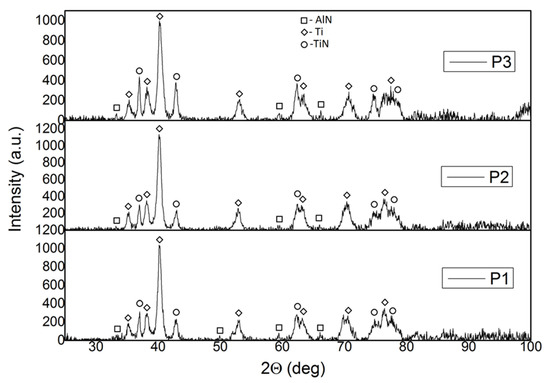

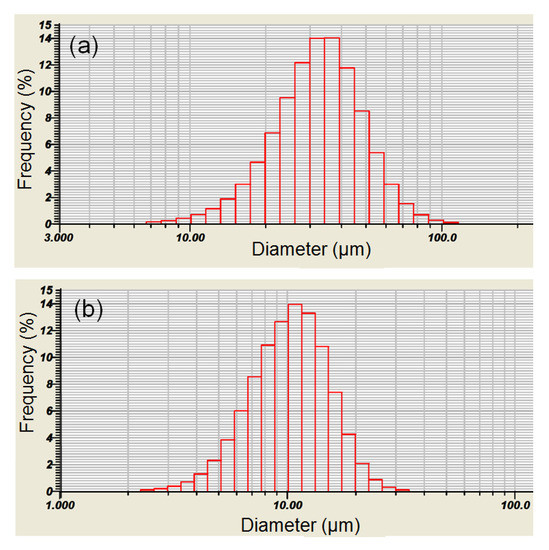

Selective Laser Melting (SLM) is a manufacturing technique that is currently used for the production of functional parts that are difficult to form by the traditional methods such as casting or CNC (Computer Numerical Control) cutting from a wide range of metallic materials. In our study, a mixture of commercially pure titanium (Ti) and 15% at. aluminum nitride (AlN) was Selective Laser Melted to form three-dimensional objects. The obtained 4 mm edge cubes with an energy density that varied from 70 to 140 J/mm³ were examined in terms of their microstructure, chemical and phase composition, porosity, and Vickers microhardness. Scanning Electron Microscopy (SEM) observations of the etched samples showed inhomogeneities in the form of pores and unmelted and partly melted AlN particles in the fine-grained dendritic matrix, which is typical for titanium nitrides and titanium aluminum nitrides. The AlN particles remained unmelted in samples, but no porosity was observed in the interface area between them and the dendritic matrix. Additionally, samples fabricated with the presintering step had zones with different sizes of dendrites, suggesting a differing chemical composition of the matrix and the possibility of the formation of the phases forming an Ti–Al–N ternary system. The chemical composition in the microareas of the samples was determined using Energy Dispersive X-Ray Spectroscopy (EDS) and revealed differences in the homogeneity of the samples depending on the SLM process parameters and the additional presintering step. The phase composition, examined using X-ray Diffraction analysis (XRD), showed that samples were formed from Ti, TiN, and AlN phases. Porosity tests carried out using a computer microtomography revealed porosities in a range from 7% to 17.5%. The formed material was characterized by a relatively high hardness exceeding 700 HV_0.2 over the entire cross-section, which depended on the manufacturing conditions. Full article
