Radiomic-Based Machine Learning for Differentiating Brain Metastases Recurrence from Radiation Necrosis Post-Gamma Knife Radiosurgery: A Feasibility Study

Abstract

Background: Radiation therapy is a key treatment modality for brain metastases. While providing a treatment alternative, post-treatment imaging often presents diagnostic challenges, particularly in distinguishing tumor recurrence from radiation-induced changes such as necrosis. Advanced imaging techniques and artificial intelligence (AI)-based radiomic analyses emerge as alternatives to help lesion characterization. The objective of this study was to assess the capacity of machine learning algorithms to distinguish between brain metastases recurrence and radiation necrosis. Methods: The research was conducted in two phases and used publicly available MRI data from patients treated with Gamma Knife radiosurgery. In the first phase, 30 cases of local recurrence of brain metastases and 30 cases of radiation-induced necrosis were considered. Image segmentation and radiomic feature extraction were performed on these data using MatRadiomics_1_5_3, a MATLAB-based framework integrating PyRadiomics. Features were then selected using point-biserial correlation. In the second phase, a classification was performed using a Support Vector Machine model with repeated stratified cross-validation settings. Results: The results achieved an accuracy on the test set of 83% for distinguishing metastases from necrosis. Conclusions: The results of this feasibility study demonstrate the potential of radiomics and AI to improve diagnostic accuracy and personalized care in neuro-oncology.

1. Introduction

1.1. Radiomics and Machine Learning

Brain metastases (BMs) are the most common type of cancer that affects the central nervous system (CNS); about 30–40% of cancer patients have them or are going to develop them through their disease progression [1,2]. They are a well-known sign of a bad prognosis, and without timely and appropriate clinical intervention, patient outcomes tend to be particularly poor, which emphasizes the need for quick diagnosis and the use of individualized, multidisciplinary management strategies [3,4]. Beyond the morbidity directly caused by the BM to the CNS, treatment-related side effects play a major role in overall patient morbidity.

Systemic therapies are known to have reduced intracranial efficacy, which makes radiation therapy (RT), mainly stereotactic radiosurgery (SRS), an important treatment option. SRS must be carefully managed to avoid potential adverse effects. Radiation-induced toxicity can cause early (acute) and delayed (late) damage to nearby healthy tissues [5]. A critical challenge in the follow-up of post-radiotherapy BM patients is to differentiate between the BM lesions and radiation-induced changes, like radiation necrosis (RN). High-resolution imaging is necessary for the RT workflow to precisely define target volumes and identify organs at risk (OARs). To differentiate BM from perilesional edema and normal brain superior structures, magnetic resonance imaging (MRI) is often used for soft tissue contrast.

Radiomics is a way to translate information from medical images to numbers. The idea is that medical imaging contains information that is not readily visible but can be decoded using mathematical models. It allows a better thorough examination of tumor heterogeneity and treatment response, while conventional imaging is observer-dependent, and when it comes to difficult clinical scenarios, a misdiagnosis can happen [6]. Machine learning models that incorporate radiomics features have been shown to be effective in distinguishing between patients who will respond positively to RT and patients who will not [7]. Moreover, when trained on multiparametric MRI (including diffusion-weighted and perfusion imaging), machine learning algorithms have shown a high capability to differentiate radiation-induced necrosis from tumor recurrence [8].

The ability of AI-enhanced techniques, particularly quantitative radiomic features and Support Vector Machine algorithms, to differentiate between radiation-induced necrosis and brain metastases recurrence on post-radiotherapy MRI scans is assessed in this work. The main hypothesis is that quantitative radiomic signatures can be used to train machine learning algorithms to replicate the results of specialists and support this complex diagnostic differentiation. The development of such modelsserves as an aid for clinical workflow decision-support, to assist radiation oncologists in evaluating imaging data, and to improve post-treatment monitoring.

1.2. Support Vector Machine

Support Vector Machine (SVM) is a supervised learning model used for classification and regression tasks. It optimizes generalization ability, that is, the ability to recognize patterns that do not belong to the training set.

For the following notation, please refer to Appendix A. Let us now consider the training set T = {x_i, y_i}, i = 1, …, n, as the set of samples xi with relative labels y_i identifying their class. Let us also consider a hyperplane separating classes:

$$\mathbf{w}\cdot \mathrm{\Phi }\left(\mathbf{x}\right)+\mathrm{b}=0$$

where w is the normal vector, b represents the bias term, and Φ is a transformation that allows the classification into the feature space, that is, a space of higher dimension than the sample space, where the decision boundary becomes linear (Figure 1).

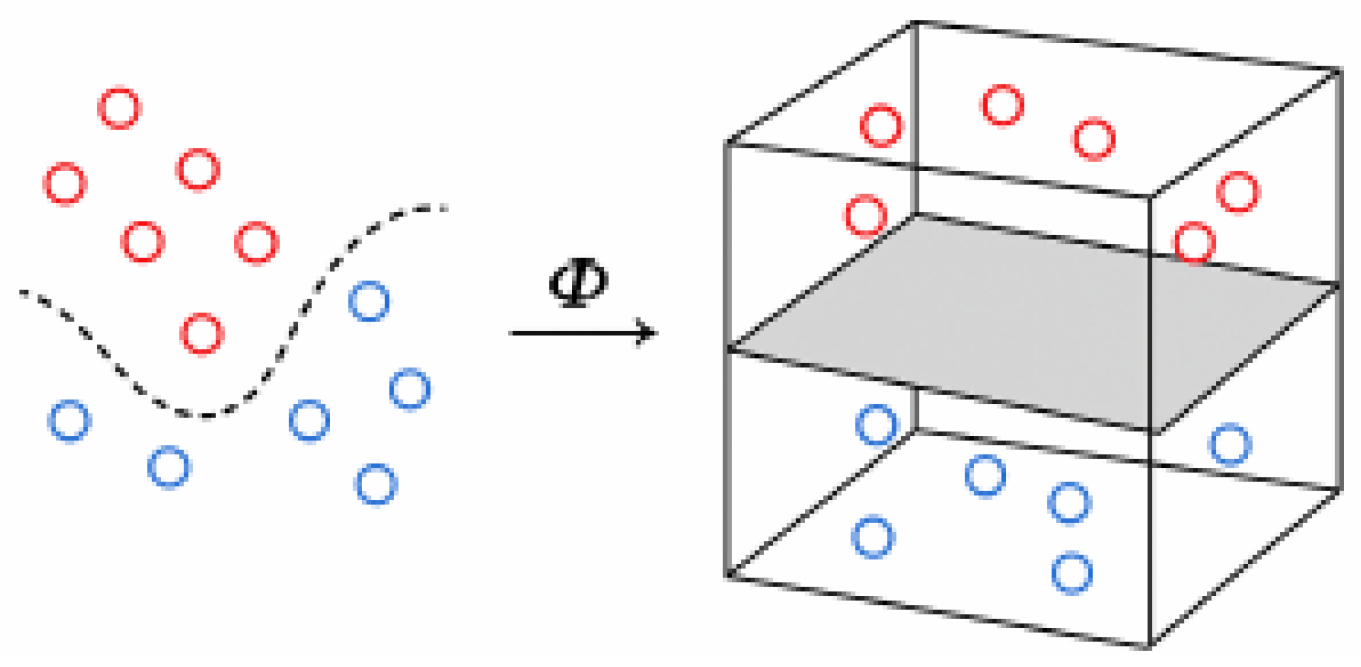

Figure 1. Φ transformation. In a higher-dimensional space, the decision boundary becomes linear.

Therefore, learning to classify these samples consists of computing the best decision hyperplane, that is, the one that maximizes the distance between the hyperplane itself and the nearest data points (i.e., samples in the feature space) from both classes. This distance is called the margin, and the nearest data points are support vectors. It requires the solution of the following optimization problem [9]:

$$\underset{\mathbf{w},\mathrm{b},\left\{{\xi }_{\mathit{i}}\right\}}{\mathrm{m}\mathrm{i}\mathrm{n}} {\displaystyle \frac{1}{2}}\parallel \mathbf{w}{\parallel }^2+\mathrm{C}\sum _{\mathit{i}=1}^n{\xi }_{\mathit{i}}$$

subject to the constraints:

$${\mathrm{y}}_i\left(\mathbf{w}\cdot \mathrm{\Phi }\left({\mathbf{x}}_i\right)+\mathrm{b}\right)\ge 1-{\xi }_i, {\xi }_i\ge 0, \forall i=1,\dots ,n$$

where y₁, y₂, …,y_n are the labels of all patterns, C > 0 is the regularization parameter controlling the trade-off between margin size and classification error, and ξ₁, ξ₂, …, ξ_n are the so-called slack variablesthat allow for outlier tolerance so that the margin is not affected, and measure how much these points violate the margin or the decision boundary (Figure 2).

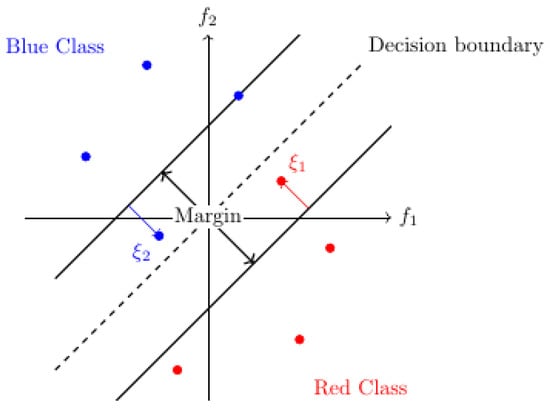

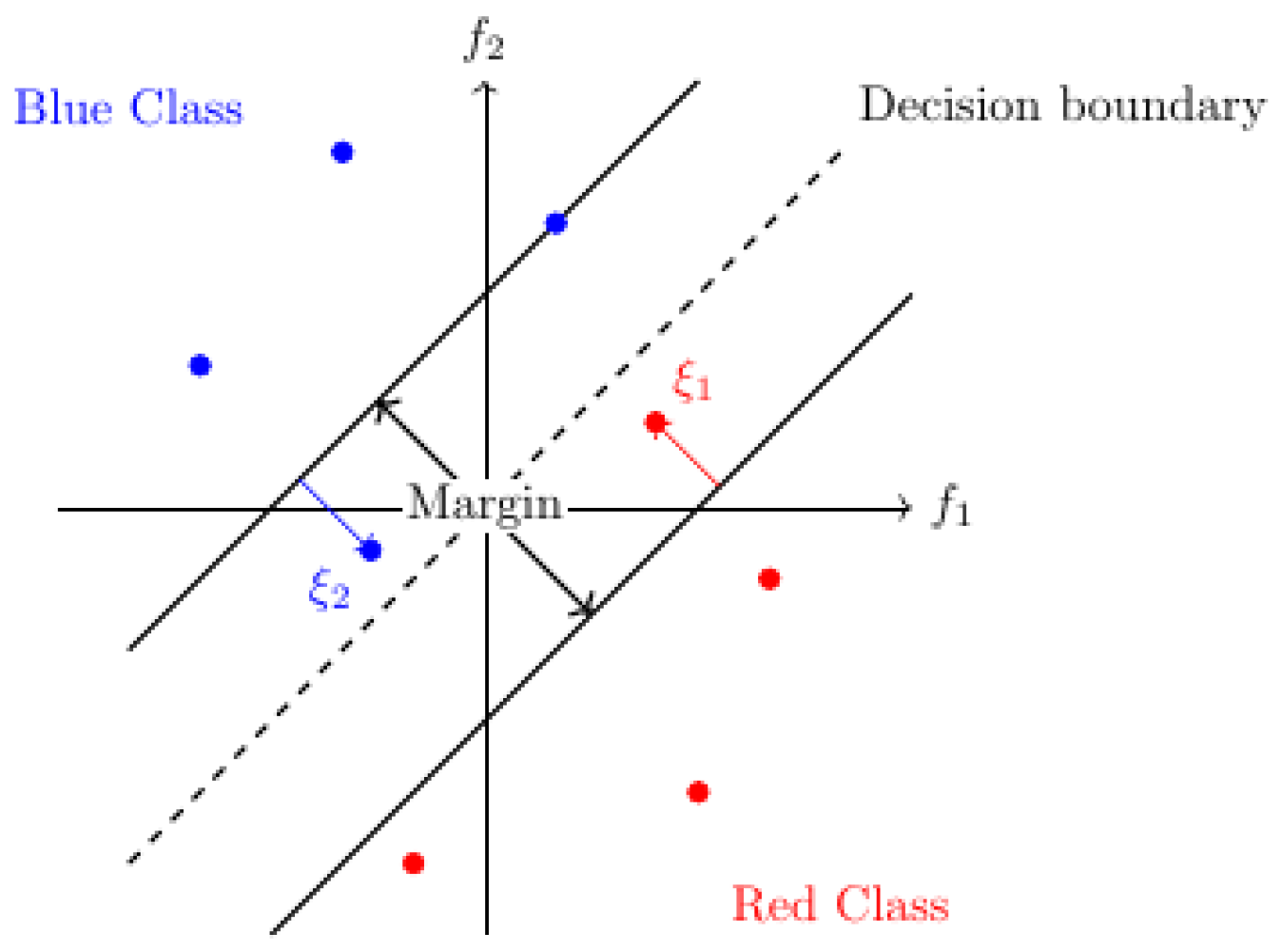

Figure 2. Margin, decision boundary, and slack variables in binary (red and blue) classification in a two-dimensional (f₁, f₂) feature space. The arrows show the violation (slack) of outlier points.

The problem of learning in an SVM can also be written in the dual form

$$max{\mathbf{1}}^T\mathbf{\alpha }-{\displaystyle \frac{1}{2}}{\mathbf{\alpha }}^{T}Q\mathbf{\alpha }$$

$${\mathbf{y}}^T\mathbf{\alpha }=0$$

$$0\le {\alpha }_i\le C,i=1,\dots ,n$$

where 1 = (1, …,1) is the n-dimensional all-ones vector, Q is the matrix of coefficients, y = (y₁, …, y_n) are the above labels, and α = (α₁, …, α_n) are the Lagrange multipliers, i.e., auxiliary variables associated with the constraints of the problem which play the role of dual variables. The dual form makes it unnecessary to explicitly represent the transformation Φ. The elements of Q are then calculated as follows:

$${\mathrm{q}}_{\mathrm{i}\mathrm{j}}={\mathrm{y}}_{\mathrm{i}}{\mathrm{y}}_{\mathrm{j}}\mathrm{K}\left({\mathbf{x}}_{\mathbf{i}},{\mathbf{x}}_{\mathbf{j}}\right)$$

where K is called the kernel function and implements the transformation Φ.

Thus, training an SVM means solving a convex quadratic programming problem with linear constraints, finding the optimal decision surface that allows the two classes to be discriminated.

2. Materials and Methods

2.1. Software and Tools Used

Image processing and feature extraction tasks were performed using MATLAB R2021b [10], a software environment designed for engineering and scientific tasks, offering tools for data analysis, image and signal processing, control system design, wireless communication, and robotics applications. MATLAB includes a programming language, interactive apps, highly specialized libraries, and tools for automatically generating embedded code. MatRadiomics_1_5_3 was the plugin used in our work; its function is to facilitate the entire radiomics work. The platform allows users to start a new radiomics study or import an existing one, load and view DICOM (Digital Imaging and Communications in Medicine) images and related metadata, segment the ROI, upload external segmentations, extract features using PyRadiomics, select features using a new hybrid method that combines descriptive and inferential techniques, and apply machine learning models for analysis [11]. PyRadiomics, a Python library v3.12.8 [12] integrated within MATLAB, was used for standardized radiomic feature extraction. Manual segmentations were carried out entirely in MATLAB.

2.2. Data Sources and Preparation

Although the Brain-TR-GammaKnife dataset includes lesion-level annotations reviewed independently by two neuroradiologists and one radiation oncologist, it does not provide histopathological confirmation for each case. Therefore, the ground truth labels used in this study reflect expert consensus based on imaging and clinical follow-up rather than biopsy-proven diagnoses. This limitation is common in radiomic studies and must be considered when interpreting the model’s performance. The dataset used in this work is the Brain-TR-GammaKnife dataset, published by [13] and hosted by The Cancer Imaging Archive (TCIA). This publicly available dataset contains brain MRI scans and corresponding Gamma Knife stereotactic radiosurgery treatment planning data from 47 patients diagnosed with brain metastases. Each patient underwent T1-weighted MPRAGE MRI scans using a 1.5T Siemens Magnetom scanner with gadolinium contrast and 1 × 1 × 1 mm voxel resolution.

The dataset has been preprocessed to support lesion-level AI-based classification. Each patient’s datawas used once as a test set. Dose images were resampled to match the spatial resolution of the planning MRI scans. Lesion-level cropping was performed using annotated masks. Segmentation masks, dose maps, and clinical outcome labels were provided in the DICOM-RT format. The datasetwas fully anonymized and curated for AI-based radiotherapy studies. The dataset was imported as is after independent evaluation of lesions by two different neuroradiologists and an RO; no discrepancies were found.

2.3. Radiomic Feature Extraction and Analysis

2.3.1. Segmentation of ROI

Lesions were manually segmented (Figure 3) using MatRadiomics_1_5_3, a MATLAB-based radiomics platform that supports feature extraction, selection, and predictive modeling.

Figure 3. Delimitation of ROI from an MRI image.

Segmentation of lesions was performed under the supervision of a radiation oncologist with more than 10 years of clinical experience.

2.3.2. Feature Extraction

A total of 106 quantitative features were extracted using the PyRadiomics engine integrated into MATLAB. These features describe tumor morphology, signal intensity, and intra-lesional texture (Table 1).

Table 1. Radiomic features in MatRadiomics and their interpretation.

Feature	Interpretation
Shape Features
original_shape_Elongation	Measures how stretched the tumor is. A value close to 1 indicates a rounder shape; lower values indicate elongation.
original_shape_Flatness	Describes the flatness of the shape by assessing the ratio of the minor to major principal components.
original_shape_Maximum 2DDiameterColumn	Maximum 2D diameter of the lesion measured along the column direction. Useful for assessing size in a planar view.
original_shape_Sphericity	Quantifies how spherical the shape is. A value closer to 1 indicates a shape close to a perfect sphere.
First-order Statistics
original_firstorder_Minimum	The lowest gray-level intensity value within the ROI.
original_firstorder_Skewness	Measures the asymmetry of the intensity distribution. High skewness indicates deviation from a normal distribution.
original_firstorder_Total_Energy	Sum of squared intensity values. Reflects the total signal magnitude within the region.
Texture Features (GLCM)
original_glcm_Difference Entropy	Captures the randomness of intensity differences between neighboring voxels; higher values suggest greater heterogeneity.
original_glcm_Idmn	Inverse Difference Moment Normalized. Measures local homogeneity; higher values indicate more uniform texture.
original_glcm_Imc2	Informational measure of correlation 2. Assess the complexity of the texture pattern.
Texture Features (GLSZM)
original_glszm_ZoneVariance	Quantifies the variance in sizes of homogeneous zones; high values indicate varied and complex textures.
Texture Features (NGTDM)
original_ngtdm_Contrast	Measures local contrast by comparing each voxel’s intensity with its neighborhood.
original_ngtdm_Strength	Represents the strength or coarseness of the perceived texture.
Ground Truth Label
Gold_Standard	Binary label used as ground truth (e.g., 0 = control, 1 = incidence) for supervised learning.

2.3.3. Preprocessing and Training

The dataset was preprocessed in the following way. First, the 60 patterns were randomly divided into a training set (80% of the total, i.e., 48 patterns) and a test set (20%, 12 patterns). The training patterns were then subjected to scaling, i.e., their mean was scaled to 0 and variance to 1, applying the following criterion:

$${\mathbf{x}}^{\prime }={\displaystyle \frac{\mathbf{x}-\mathrm{\mu }}{\mathrm{\sigma }}}$$

where x is an input pattern, µ and σ are, respectively, the mean and variance of the values of the training set, and x’ is the transformed (standardized) pattern. It is important to reiterate that mean and variance were calculated only on the training set to avoid data leakage, that is, to prevent test data from entering the training process and distorting the outcomes. Therefore, always only on the training set, the dimension of pattern space was reduced by Principal Component Analysis (PCA).

The training was performed by stratified k-fold cross-validation. In other words, the training set was divided into k partitions (folds), only one of which, in rotation, was used to measure the average performance of the model (Figure 4). On the other hand, stratification ensures that each fold preserves the original class distribution, which is particularly important for imbalanced datasets.

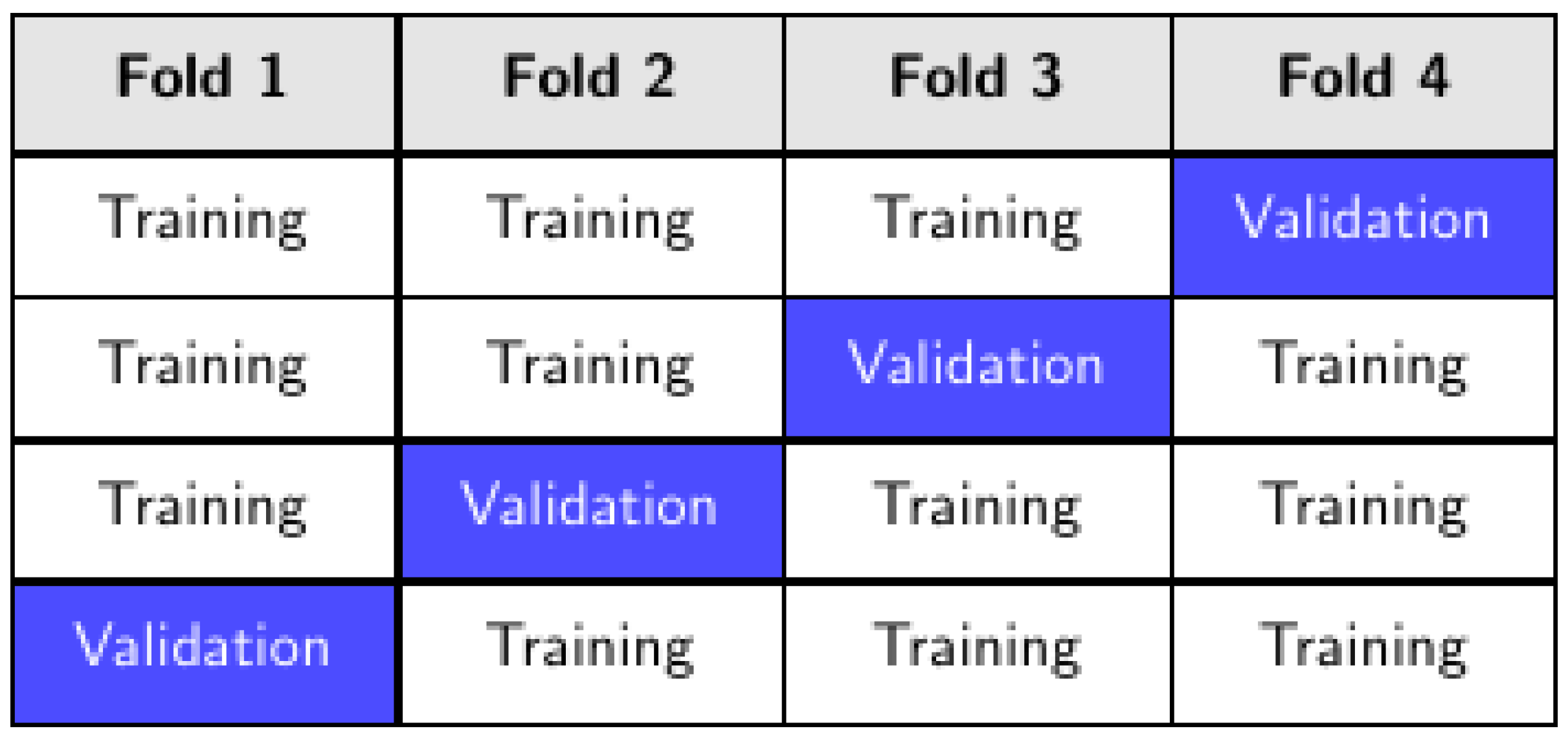

Figure 4. K-fold cross-validation, k = 4.

This pipeline (scaling + PCA + training) was then repeated n times with different random partitions of the data. By averaging results across several repetitions, this method reduces variance in the performance estimate and provides a more reliable assessment of model generalization. The values taken by k are 3, 4, 6, 8, and 12 in order to have balanced partitions, with n = 60.

To avoid information leakage, point-biserial correlation feature selection was performed within each training fold during the repeated stratified k-fold cross-validation. Specifically, for each fold, feature selection was applied only to the training subset, and the selected features were then used to train the model and evaluate it on the corresponding validation subset. This nested approach ensures that no information from the validation data influences the feature selection process.

2.3.4. Model Selection

In order to find the best model, the training was performed varying several parameters such as (1) number of PCA components by data variance; (2) regularization parameter C; (3) kernel function and (4) degree if it is polynomial; (5) kernel coefficient γ. The values of these parameters are shown and explained in Table 2.

Table 2. PCA parameter and hyperparameters in model selection.

Training Parameter	Values	Description
n_components	0.90, 0.95, 0.99, None	Number of principal components to keep in PCA if it is an integer. Values between zero and one define the fraction of the total variance that should be preserved.
C	0.1, 1, 10, 100	Regularization parameter. Lower C allows wider margins with more tolerance to misclassification; higher C gives smaller margins and less tolerance to misclassification. The chosen range spans two orders of magnitude, thereby enabling the exploration of both under- and over-regularized regimes.
Kernel	linear, poly, rbf, sigmoid	Specifies the kernel type. In this work, all available kernels were used, i.e., linear, polynomial, radial basis function (rbf), and sigmoid.
Degree	2, 3, 4	Only used with a polynomial kernel, the degree defines the complexity of the feature mapping. Degrees 2 to 4 were selected to balance representational power with computational efficiency and to avoid excessive overfitting that might arise from higher-order polynomials.
gamma	auto, scale	Only used with Radial Basis Function and polynomial kernels, auto and scale constants provide two data-dependent normalizations without introducing arbitrary constant values. auto = 1/number of features scale = auto/variance of input data

The parameter n_components of the PCA was explored using four different settings: 0.90, 0.95, 0.99, and None. For instance, n_components = 0.90 retains the minimum number of principal components required to explain at least 90% of the variance, while n_components = 0.95 and n_components = 0.99 retain the number of components needed to explain 95% and 99% of the variance, respectively. This approach allows the dimensionality reduction to adapt automatically to the intrinsic structure of the dataset. Conversely, setting n_components = None means that no dimensionality reduction is applied: all components are retained, and the transformation corresponds to a full orthogonal rotation of the feature space. This also serves as a baseline condition, enabling comparison with reduced-dimensionality configurations. The rationale behind testing the thresholds 0.90, 0.95, and 0.99 is to investigate the trade-off between information retention and dimensionality reduction. Lower thresholds (e.g., 0.90) yield a more compact representation, potentially reducing noise but at the risk of discarding informative variance. Higher thresholds (e.g., 0.99) preserve nearly all variance, offering a minimal reduction in dimensionality, while the intermediate threshold (0.95) is a practical balance between the two extremes.

Model selection, as preprocessing and training, was carried out using ad hoc Python code (Appendix B).

3. Results

To better approximate clinical deployment and reduce the risk of data leakage, a leave-one-patient-out cross-validation (LOPO-CV) was performed. In this approach, each patient’s data was used exclusively for testing in one iteration, ensuring that no information from the same patient was present in both training and test sets.

The LOPO-CV yielded the following performance metrics: accuracy of 0.74, sensitivity of 0.95, specificity of 0.59, positive predictive value (PPV) of 0.63, and negative predictive value (NPV) of 0.94. These results confirm the model’s ability to reliably identify true positive cases while maintaining acceptable performance in ruling out false negatives, which is particularly relevant in clinical decision-making.

3.1. Leave-One-Patient-Out Cross-Validation (LOPO-CV)

As mentioned above, the model was evaluated on an independent test set consisting of 12 cases, derived from a total dataset of 60 patterns, and using various metrics, as shown below. All training converges on the following results.

The ROC analysis (Figure 5) yielded an AUC of 0.80 (95% CI: 0.47–1.00), while the precision–recall analysis (Figure 6) showed an AUC of 0.83 (95% CI: 0.49–1.00). These values suggest acceptable discrimination. However, the wide confidence intervals, extending from values close to chance level to near-perfect classification, reflect the uncertainty arising from the limited test set size.

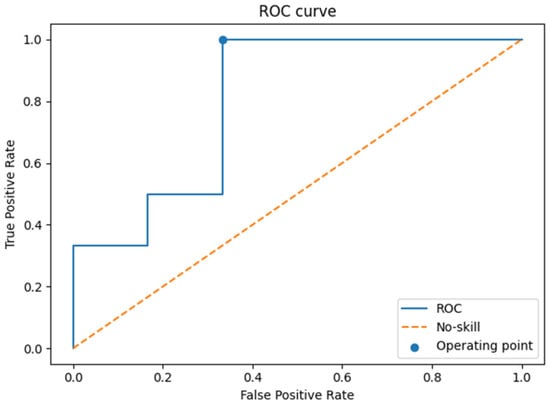

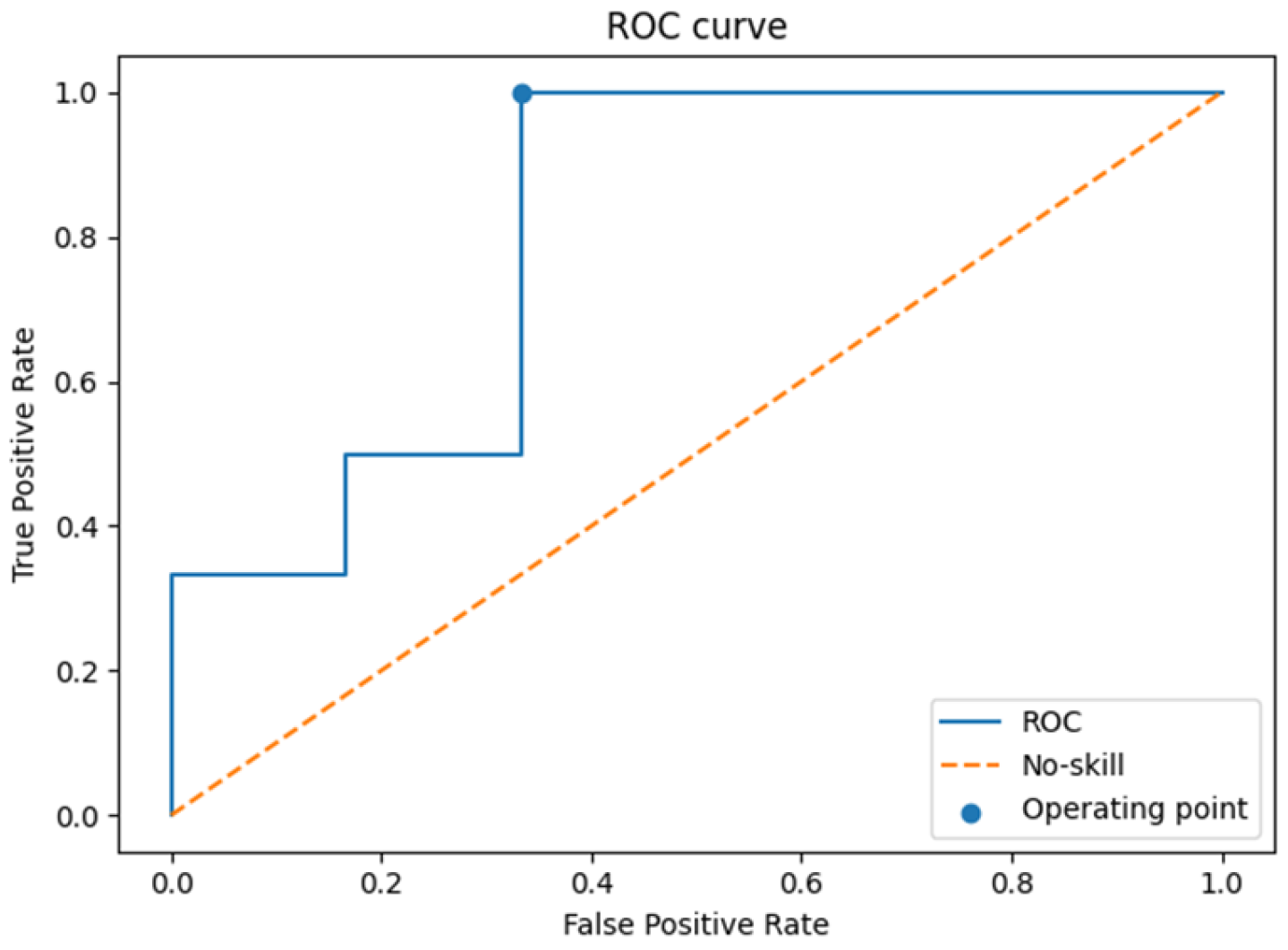

Figure 5. ROC curve on the test set.

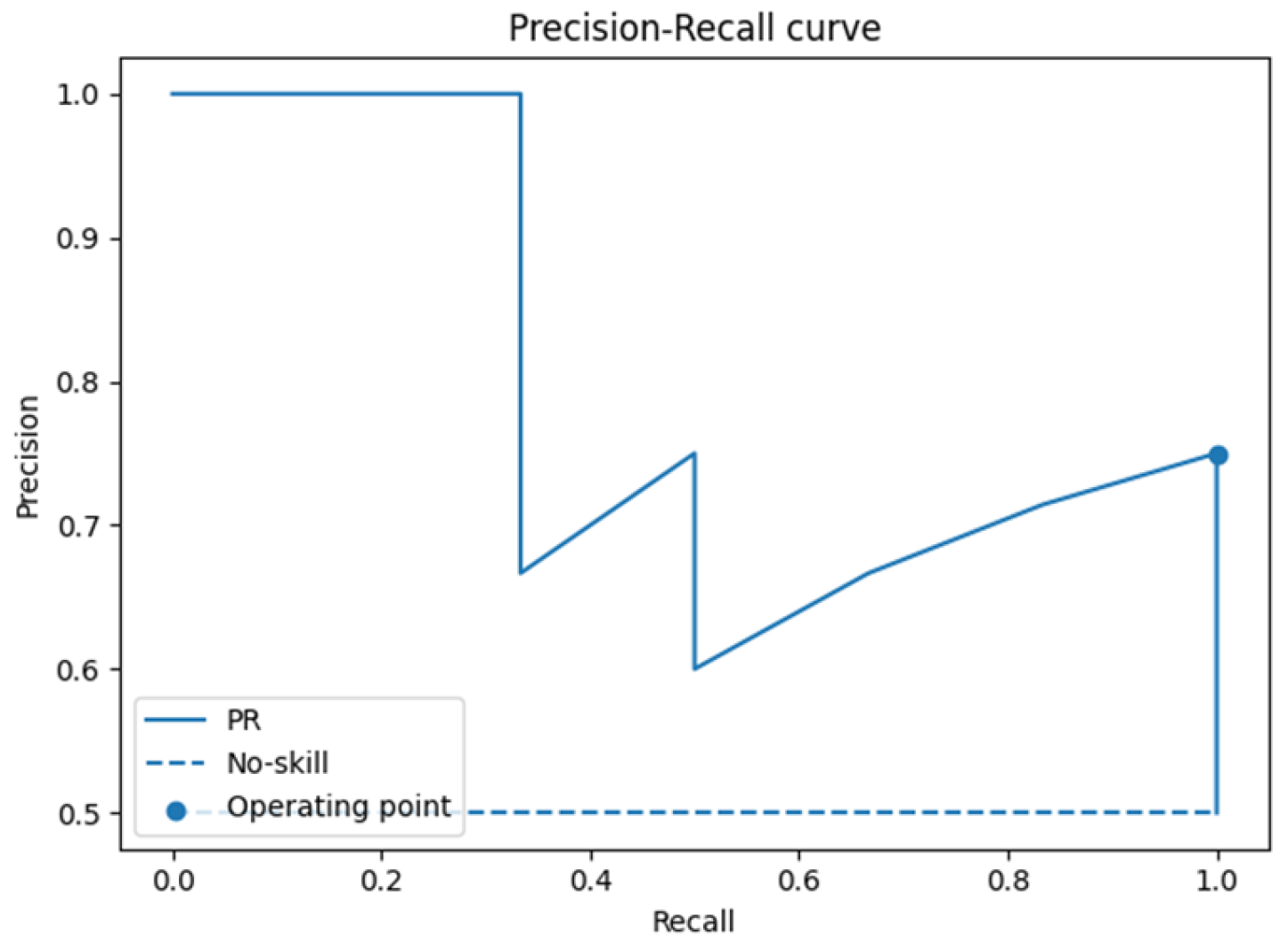

Figure 6. Precision–recall–r curve on the test set.

The confusion matrix (Figure 7) showed six true positives, four true negatives, two false positives, and no false negatives. Derived performance indices included an accuracy of 0.83, sensitivity of 1.00, specificity of 0.67, positive predictive value (PPV) of 0.75, and negative predictive value (NPV) of 1.00. These results indicate that the model successfully identified all positive cases, but at the expense of some false positive predictions.

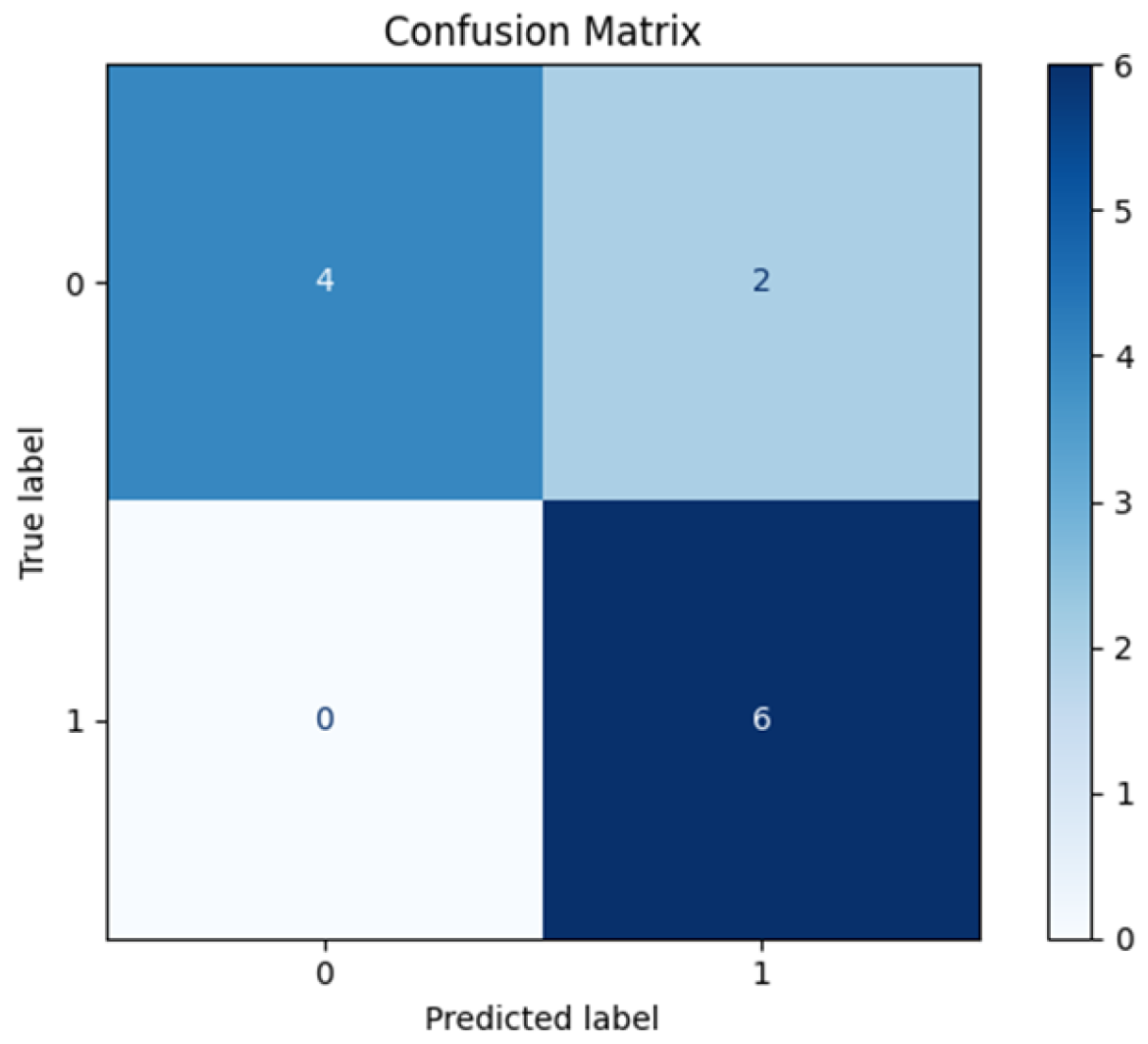

Figure 7. Confusion matrix on the test set.

The reliability diagram (Figure 8) suggested that predicted probabilities were broadly aligned with observed frequencies. The Brier score of 0.18 confirmed moderate calibration, though this finding must be interpreted with caution due to the limited number of observations in the test set.

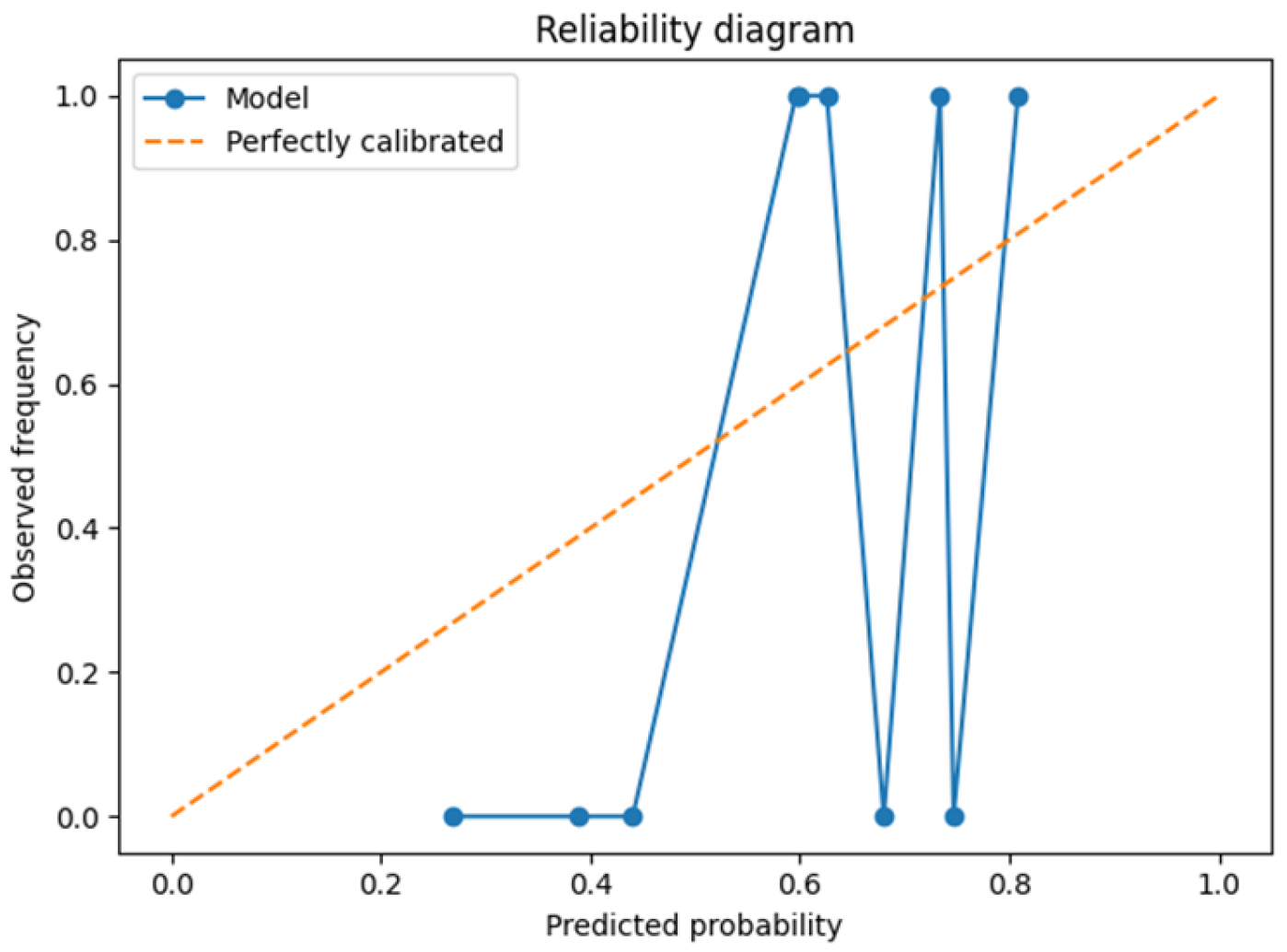

Figure 8. Reliability diagram on the test set.

Finally, decision curve analysis (DCA, Figure 9) indicated that the model may provide a net clinical benefit across a range of threshold probabilities, further supporting its potential utility. Nevertheless, as with other analyses, the small test set limits the robustness of these conclusions.

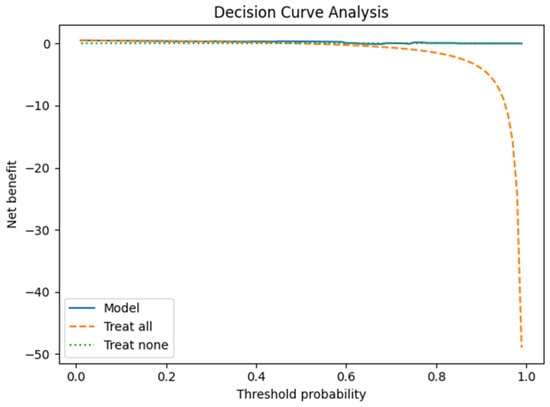

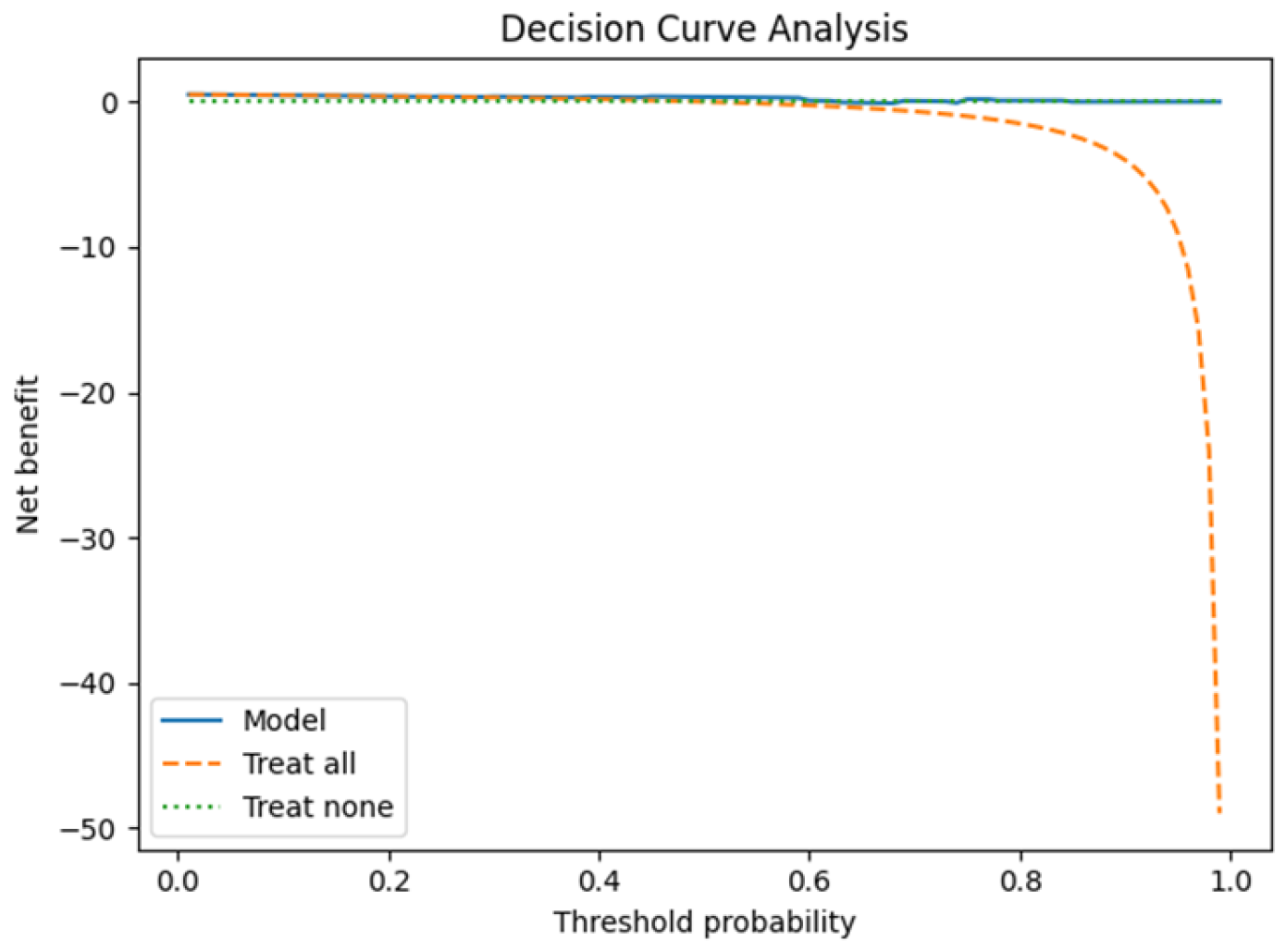

Figure 9. Decision curve on test set.

Table 3 summarises the above, and Table 4 shows the best parameters found in model selection.

Table 3. Metrics with 95% confidence interval (CI) (bootstrap on test).

#Metric	Mean Value	CI
Accuracy	0.83 ± 0.11	0.58–1.00
Sensitivity	1.00 ± 0.00	1.00–1.00
Specificity	0.66 ± 0.21	0.20–1.00
PPV	0.75 ± 0.15	0.42–1.00
NPV	1.00 ± 0.00	1.00–1.00
ROC-AUC	0.80 ± 0.14	0.47–1.00
PR-AUC	0.83 ± 0.14	0.49–1.00
Brier score	0.18 ± 0.05	–

Table 4. Best parameters in model selection.

PCA	C	Kernel
None	0.1	Linear

3.2. Radiomic Feature Interpretability and Clinical Relevance

The linear SVM model trained without PCA (Figure 10) preserves the original radiomic features, allowing direct clinical interpretation. Among the most influential features in distinguishing tumor recurrence from radiation necrosis are texture descriptors (e.g., GLCM, and NGTDM) and shape-based metrics. These features are clinically meaningful: necrotic lesions typically present with irregular morphologies and heterogeneous signal patterns, while recurrent tumors tend to be more homogeneous and spherical.

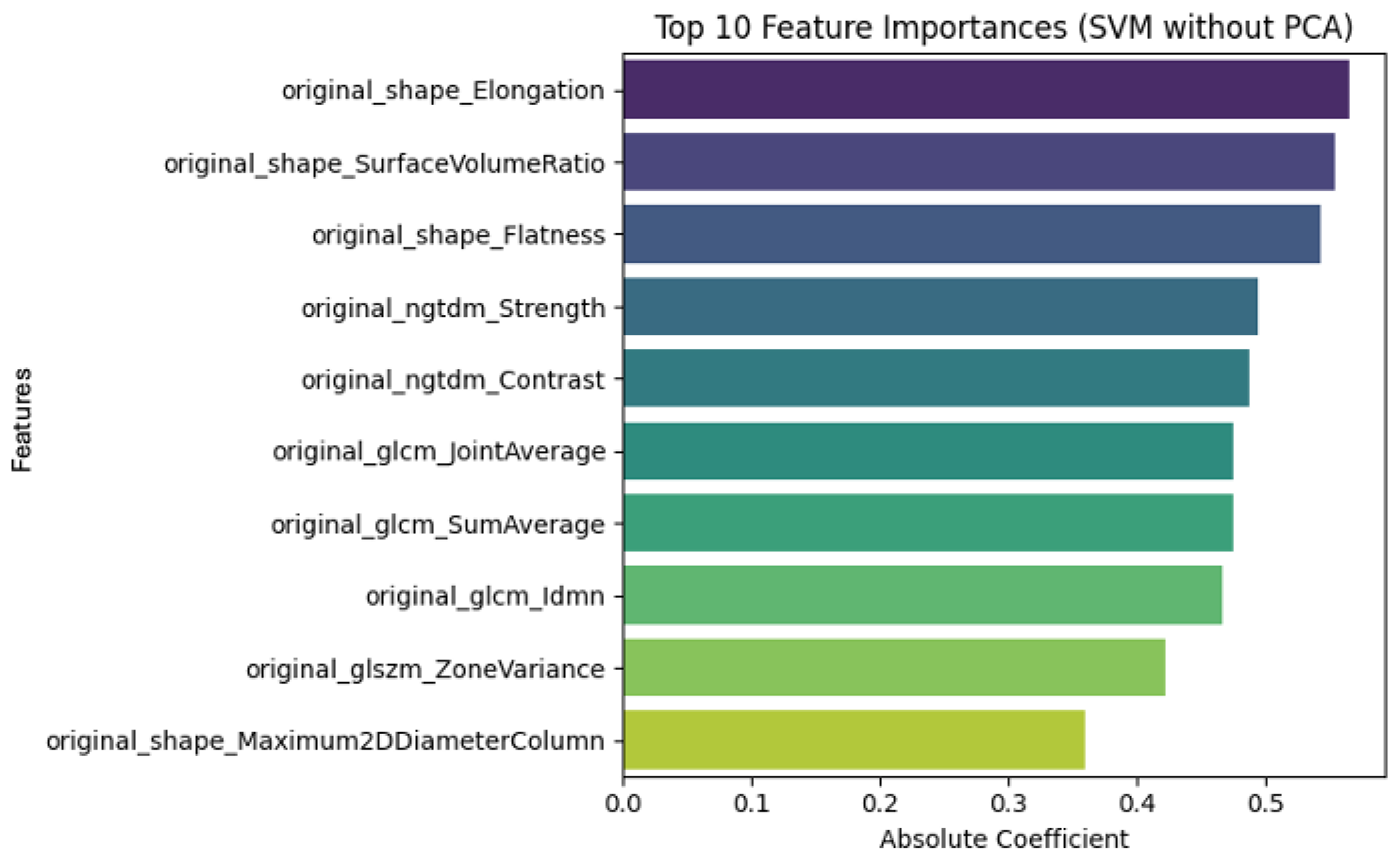

Figure 10. SVM model without PCA.

In contrast, when PCA (Figure 11) is applied, the model operates on transformed principal components rather than the original features. Although this approach reduces dimensionality and may enhance generalization, it limits direct interpretability. The top principal components capture most of the variance in the dataset, but their clinical meaning is less transparent.

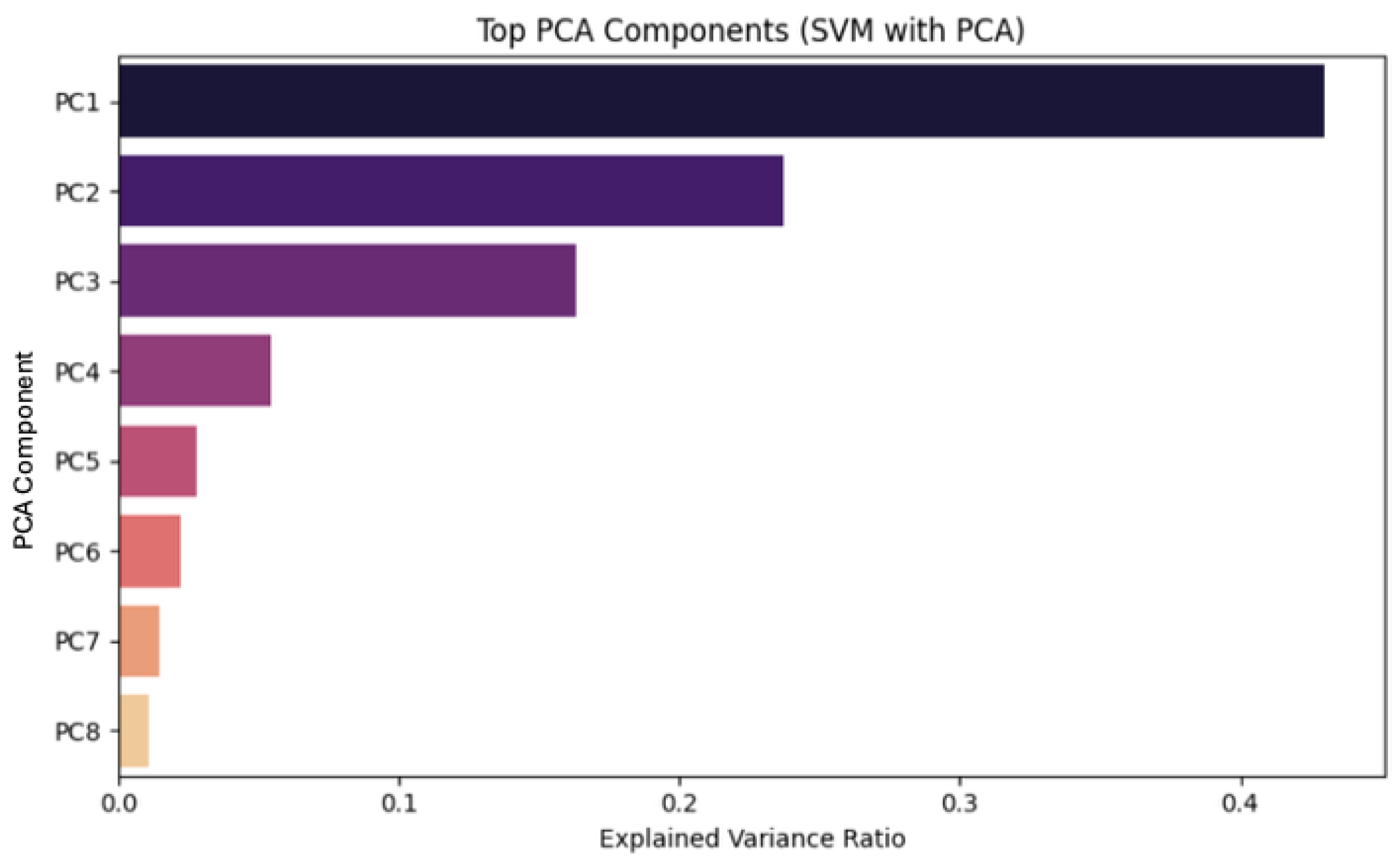

Figure 11. SVM model with PCA.

To support interpretability, a SHAP-inspired analysis was performed, confirming that texture and shape features are key drivers in the classification task. These insights can assist clinicians in understanding the model’s decision-making process and facilitate the integration of radiomics into clinical workflows.

The SHAP analysis (Table 5) revealed that texture (e.g., difference entropy), shape (sphericity), and first-order (skewness) features were among the most influential in distinguishing radiation necrosis from tumor recurrence.

Table 5. Radiomic features and their clinical relevance.

Feature Type	Feature Name	Clinical Insight	Patient Example	Confirmed Diagnosis
Texture	original_glcm_DifferenceEntropy	Highlights heterogeneity in necrotic tissue, useful for distinguishing from more homogeneous tumor recurrence.	GK_270	Radiation necrosis
Shape	original_shape_Sphericity	Tumor recurrence tends to have more spherical shapes, while necrotic lesions are irregular due to tissue degradation.	GK_492	Radiation necrosis
First-order	original_firstorder_Skewness	Reflects asymmetry in intensity, typical of necrotic tissue with edema and fibrosis.	GK_114	Radiation necrosis

4. Discussion

This study should be considered a developmental investigation, given the limited sample size (n = 60 patterns from 47 patients). Its primary aim is to explore the feasibility of radiomic-based classification rather than to provide definitive clinical validation.

To better approximate clinical deployment and reduce overfitting risks, we implemented a leave-one-patient-out cross-validation (LOPO-CV) strategy. This approach ensures that each patient’s data is used exclusively for testing in one iteration, preventing any overlap between training and test sets. The LOPO-CV yielded promising results (accuracy = 0.74, sensitivity = 0.95, NPV = 0.94), particularly in minimizing false negatives, which is critical in clinical decision-making.

We acknowledge that external validation is essential for future work, and we plan to incorporate multicenter or time-split data from TCIA or other repositories to assess generalizability and robustness.

Regarding clinical thresholds, we performed decision curve analysis (DCA) to evaluate the net benefit across a range of operating points. This analysis supports the potential utility of the model in real-world settings, where rule-in and rule-out thresholds may vary depending on clinical context. For example, in a multidisciplinary tumor board, a high-sensitivity threshold might be preferred to rule out recurrence when biopsy is not feasible, whereas a high-specificity threshold could be used to confirm recurrence before initiating salvage therapy.

4.1. Dimensionality Reduction

After scaling, PCA was applied to the dataset as a preprocessing step before the SVM training. Several thresholds were tested (90%, 95%, 99%, and full retention) in order to determine the best performance, achieved by full retention of the components.

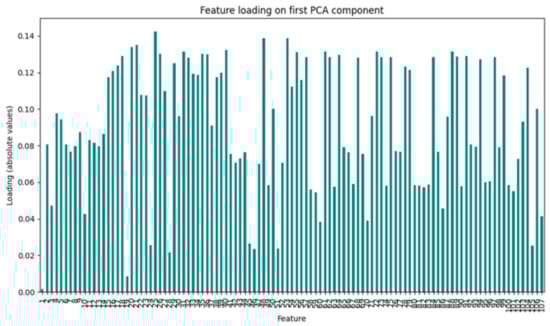

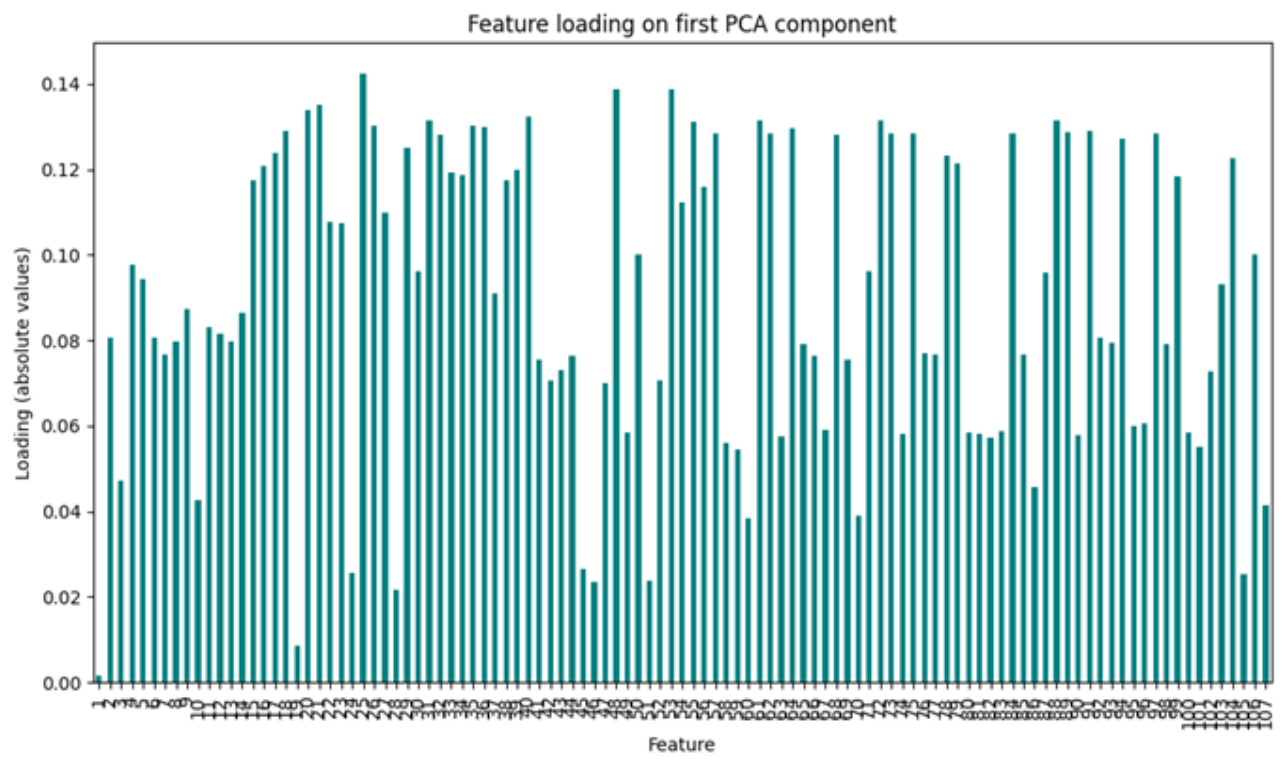

Another analysis conducted independently of the SVM training showed that a single principal component was sufficient to explain nearly all of the dataset’s variance, even under a stringent 99% retention threshold. This outcome confirms the presence of a dominant direction of variability, but a more detailed examination of this finding is provided in Appendix C.

4.2. SVM Classification and Model Robustness

The classification step involved SVMs with multiple kernel options and regularization strategies that were optimized by a thorough grid search and repeated stratified k-fold cross-validation. Linear kernels have consistently outperformed non-linear alternatives, which indicates that the decision boundary was approximately linear, supporting proper feature selection and transformationin simplifying the classification task, even in complex imaging data.

In fact, the model achieved excellent sensitivity (1.00) and NPV (1.00), suggesting that it may be particularly effective in contexts where avoiding false negatives is critical. In contrast, specificity (0.67) and PPV (0.75) were more modest, highlighting the occurrence of false positives. Furthermore, the performance metrics and graphical assessments (ROC, precision–recall, calibration, and DCA) provide a consistent picture of a model with encouraging preliminary characteristics. However, the statistical uncertainty is substantial, as reflected by the wide confidence intervals for most metrics. In a test set of only 12 cases, even a single misclassification exerts a large effect on sensitivity, specificity, and predictive values, thereby limiting the generalizability of these findings.

Finally, calibration analysis and the Brier score suggest that probability estimates are reasonably well calibrated, but these results are again constrained by the small denominator. Similarly, the decision curve analysis points to a potential net benefit, though such conclusions remain provisional given the exploratory nature of the study.

4.3. Limitations and Future Work

Another important limitation concerns the biological heterogeneity of the lesions. In clinical practice, it is not uncommon for a single lesion to contain both viable tumor cells and radiation-induced necrotic tissue. These ‘mixed lesions’ challenge binary classification models, as they do not represent purely recurrent or purely necrotic entities. Future work should explore probabilistic or multi-label approaches that can reflect the continuum of tissue composition and provide more nuanced diagnostic support.

This study should be regarded as an exploratory investigation aimed at assessing the feasibility of radiomic-based machine learning for the clinically relevant challenge of differentiating brain metastasis recurrence from radiation necrosis. While the sample size is limited (n = 60), our findings underscore the potential of this approach and highlight the need for external validation using larger, multicenter datasets to enable clinical translation and support timely, evidence-based decision-making.

The dataset used in this study does not include detailed information on systemic therapies, such as targeted agents and immunotherapies, which are increasingly employed in the management of brain metastases. These treatments can induce pseudoprogression, a phenomenon that may mimic both tumor recurrence and radiation necrosis in imaging. Because this factor was not accounted for in the original dataset, our model may have inadvertently included cases of pseudoprogression without distinction. Future research should incorporate longitudinal clinical data and treatment history to better address this diagnostic challenge. In addition, we acknowledge the absence of gold-standard diagnostic criteria in the original dataset. Although the Brain-TR-GammaKnife dataset is publicly available and its labels were reviewed by two neuroradiologists and a radiation oncologist, no formal adjudication process was applied. This limitation may have introduced uncertainty in lesion classification. To mitigate this, we implemented a leave-one-patient-out cross-validation (LOPO-CV) strategy and performed a SHAP-inspired feature analysis to enhance interpretability and robustness. Nonetheless, the lack of a definitive reference standard warrants caution when interpreting our findings, which should be considered exploratory.

This development study achieved promising results, though several limitations must be addressed. The sample size (n = 60) is not large enough to provide thorough generalizability of the results. Even though repeated stratified k-fold cross-validation and strict training/test splits were used to mitigate this problem, larger datasets would be required for a more reliable translation into clinical practice. Future directions may encompass the augmentation of the dataset with multicenter data to improve generalizability, the integration of multi-parametric imaging modalities (e.g., perfusion-weighted imaging, diffusion MRI), and the incorporation of automatic or semi-automatic segmentation techniques. A next step of the current study might be the use of a larger dataset and the application of alternative machine learning methodologies.

Radiomic features act as quantitative surrogates of lesion biology, offering reproducible metrics that can complement conventional imaging interpretation. For example, high difference entropy values—derived from GLCM texture analysis—capture intralesional heterogeneity, a hallmark of necrotic tissue architecture. Low sphericity values, on the other hand, reflect morphological irregularities often seen in post-radiation changes. Clinically, these descriptors provide observer-independent evidence that can improve diagnostic confidence in differentiating recurrence from radionecrosis (Figure 12). Their integration into machine learning models enables stratified risk assessment and supports multidisciplinary decision-making, particularly in cases where conventional imaging yields equivocal findings or when biopsy is not feasible.

Figure 12. Visual summary of radiomic features used to differentiate radiation necrosis from tumor recurrence.

In a clinical setting, building a predictive model able to distinguish between brain metastases recurrence and radiation necrosis would not act autonomously but as a decision support tool in a multidisciplinary tumor board. Thresholds (rule-in and rule-out) may be adjusted dynamically depending on patient history, radiologist confidence, or availability of follow-up diagnostics.
