Feasibility Analysis of Tamura Features in the Identification of Machined Surface Images Using Machine Learning and Image Processing Techniques ^†

Abstract

In modern manufacturing industries with Industry 4.0 capabilities, the automated identification and classification of machined surfaces based on their texture will play a crucial role. Texture analysis through computer vision, image processing, classification using artificial neural networks (ANN), and various machine learning techniques have been prominent research areas in recent decade. Tamura features are very popular in selecting optimum textural features from an image, especially in the medical domain. These textural features correspond to human visual perception and play a significant role in identifying and shortlisting the best features from the photographs. Despite the popularity of Tamura features in the medical domain, their usage in extracting the features from machined surface photographs is seldom reported. Hence, the present study investigates the feasibility of using Tamura features to classify machined surface images produced using turning, milling, grinding, and shaping operations in manufacturing. Photographs of the surfaces produced are obtained using smartphone cameras. Further, the photographs are preprocessed and divided into sixteen different portions. Then, Tamura features are extracted and are given as input to ANN, support vector machines (SVM), K-Nearest Neighbor (KNN), Decision Tree (DT), and Random Forest (RF). The result shows that each machine learning (ML) algorithm performs differently while classifying the same set of machined surface images. Amongst the ML algorithms considered in the study, RF classified the photographs of surfaces machined using different machining operations with the highest accuracy. On the other hand, SVM performed poorly.

1. Introduction

A picture or image is a two-dimensional function called f (x, y), where x and y are coordinates in the spatial plane. The intensity of the image at any given level is equal to the amplitude of f at any given pair of coordinates (x, y) [1]. A digital image has discrete, finite values for the variables x, y, and amplitude. A digital picture is a binary image split into a matrix of pixels, each with a digital value of one or more bits, specified by the bit depth. Analog images, such as photographs, are represented by a continuous shift in tone. Electrical approaches are well-known for modifying visuals. In analog image processing, analog signals can be non-periodic, which means they vary without showing any pattern, or periodic, which means they are simple and contain numerous sine waves. A cathode-ray tube television is an example of analog image processing since it sends, transforms, and projects an electrical signal onto the screen as a series of pictures [2]. Digital image processing, on the other hand, comprises retrieving and storing picture data as computer data to interpret, analyze, extract, and retrieve the image using computer products (such as phones, digital cameras, computers, and current televisions). Image processing is a technique for enhancing or extracting information from a photograph by applying procedures to a photograph. It is a form of signal processing where an image serves as the input, and the picture or its traits/features serve as the output. Image processing is one of the technologies that is evolving the most quickly nowadays [3,4]. Additionally, it is a crucial topic for engineering and computer science study. The following are the three stages of image processing [5]:

-

Using image acquisition tools to import the image;

-

Examining and modifying the image;

-

Outputting from image analysis that can potentially provide changed images or reports.

When employing these visual aids, image analysts employ a variety of interpretation criteria. On computers, digital image processing methods are used to modify digital photos. Digital image processing (DIP) includes picture enhancement, image restoration, image analysis, and image compression, to name a few [6,7].

Tamura Textural Features

Tamura and colleagues introduced a set of perceptual texture features for human vision derived from psychological experiments. The mathematical definitions of the Tamura features are given in Table 1.

Table 1. Tamura features.

Feature	Definition
Coarseness	$\frac{1}{m\times n}{\displaystyle \sum _{i=1}^m}{\displaystyle \sum _{j=1}^n}{s}_b\left(i,j\right)$
Contrast	$\frac{\sigma }{{\left({\alpha }_4\right)}^n}$
Directionality	$1-r{\dot{n}}_p{\displaystyle \sum _p^{n_p}}{\displaystyle \sum _{\varnothing ϵw_p}}{\left(\varnothing -{\varnothing }_p\right)}^2{\dot{H}}_D\left(\varnothing \right)$
Roughness	Coarseness + contrast

Here, m and n denote the size of images, $s_b\left(i,j\right)$ represents the neighborhood from center pixel having the highest average intensity, ${\alpha }_4$ is the kurtosis, $\sigma$ is the standard deviation of intensity histogram, n is a positive number, HD represents bar graph degree, np denotes count of peaks, $\mathrm{\varnothing }$ = 180°, and r is the normalized factor. The coarseness is the measure of the size of the texels composing the texture. The contrast represents the measure of polarization, and directionality is the measure of the frequency distribution of local edges oriented against their directional angle [8].

The manufacturing sector has undergone significant transformations, evolving from the first industrial revolution (Industry 1.0) to the current Industry 4.0 era, driven by remarkable technological advancements in rapidly developing fields like computing, image processing (IP), automation, machine vision, ML, as well as the integration of big data and the Internet of Things (IoT). In Industry 4.0, machine tools are expected to possess the capability to autonomously identify the materials they are handling, enabling them to make and execute necessary decisions as required autonomously [9,10]. Machined surface texture identification is of the utmost importance in production firms, as it helps to measure the roughness of the surface. Various methods have been used for surface texture identification by earlier researchers [11,12,13]. However, the Tamura features are considered one of the essential features in identifying patterns, which is not studied in determining surface texture [8,14]. Thus, the study aims to explore the applicability of Tamura features in identifying surface texture. Four different surface texture images were obtained from turning, milling, grinding, and shaping operations to check the feasibility of Tamura features. The images are preprocessed and given as input to different classification models to identify surface textures. The comprehensive procedure involved in the work is presented in Figure 1.

Figure 1. Overall methodology involved in the work.

2. Methodology

The experiment procedures involved the use of a shaping machine, vertical milling machine, CNC lathe machine, and surface grinding machine. A mild steel rectangular block of 200 mm length by 50 mm width was divided into three approximately equal rectangular blocks of 66 mm length by 50 mm width for milling, shaping, and surface grinding operations. However, 50 mm-diameter and 200 mm-length cylindrical mild steel workpieces were taken for the CNC turning operation. After machining for a particular duration/length, the machine was stopped, and machined surface images were captured with a One Plus 7 mobile phone 48-megapixel camera in a daylight environment without any extra accessories.

The captured images were then transferred to a Lenovo Idea pad laptop with 16 GB RAM to preprocess the images. The MATLAB software was used for preprocessing the captured images. Photos were captured in RGB format for each of the four classes and then converted to grayscale. They were then scaled to 1600 × 1600-pixel resolution. After analyzing the texture’s characteristics, the contrast was adjusted appropriately to improve the image’s quality. To change the strength of the grey levels, histogram equalization was used. The Laplacian filter was then used for further filtering to determine the surface texture. To increase the number of images given as input to different models and to generalize the developed model, the picture was split into 16 pieces [15]. Four classes, including 27 × 16 × 4 partitions, gave us 1728 images. The various DIP steps implemented in the work are shown in Figure 2.

Figure 2. Pre-processing of machined surface image.

The four different Tamura features (Table 1) were extracted from preprocessed images. These feature vectors of size 1728 × 4 were given as input to different classification models. As each feature varied in magnitude, the normalization of the feature was essential. The features were normalized as per Equation (1).

$$x_{nor}=\frac{x}{x_{max}}$$

(1)

3. Results and Discussion

The total feature dataset was separated into duplet, with eighty percent of the features being employed for training, and twenty percent for testing the classification model. Five different machine learning-based models were selected for classification purposes viz. ANN [16], DT [17], KNN [18], RF [19] and SVM [20]. Hyperparameter tuning is very much essential for the identification of the best parameters for the classification model. The “GridSearchCV” function from the “sklearn.model_selection” module has been used for tuning the hyperparameters of all classification models. The selected hyperparameters are shown in Table 2. The K-fold approach was utilized for validation through the training phase. By trial and error, the value of K was fixed to 10. The confusion matrix is the most common method of evaluating classification problems. Therefore, all the classifiers were evaluated using a confusion matrix.

Table 2. Hyperparameters for classifiers.

Model	Hyperparameters
ANN	Hidden layers: Two Layer 1 and 2: 100 and 50 neurons apiece optimizer: rmsprop
DT	Criterion: entropy, max_features:auto, splitter:best
KNN	Algorithm: auto, n_neighbors: 9, weights: distance
RF	Criterion: entropy, max_features: log2, n_estimators: 200
SVM	C: 17, gamma: scale, kernel: rbf

Table 3 shows the classification accuracy for different models. Among five different classification models, DT and RF performed better during training, with 90% reliable results. Conversely, in the testing phase, the RF model outperformed others, with 77.5% reliable results (Figure 3).

Table 3. Classification model accuracy.

Model	Training Accuracy	Testing Accuracy
ANN	76.5	73
DT	90	76.6
KNN	89.50	76.6
RF	90	77.5
SVM	69.8	69.4

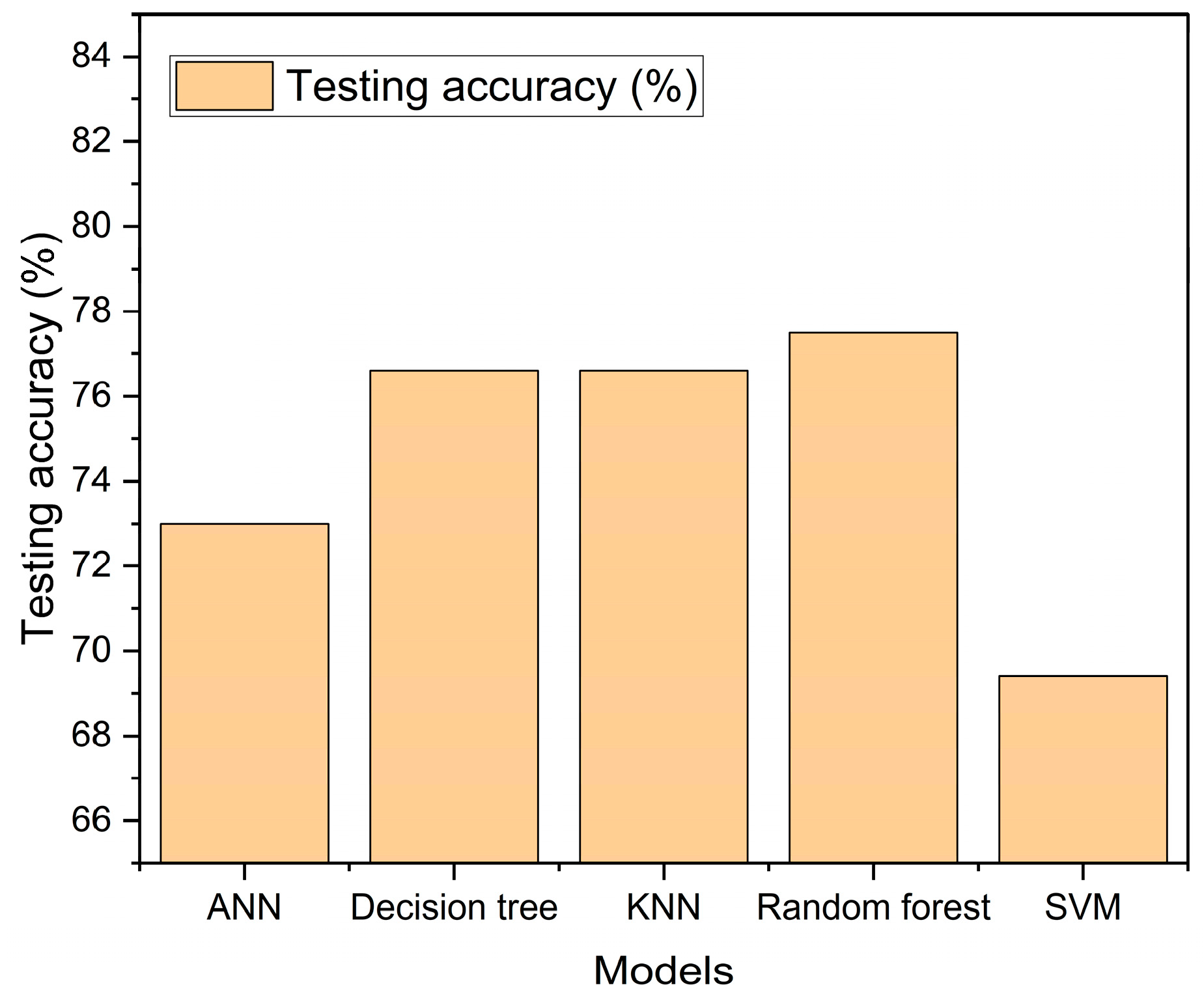

Figure 3. Plot of testing accuracy.

On the other hand, SVM performed poorly, having 69.8% and 69.4% reliable results apiece in training and testing. The confusion matrix (CF) for the random forest model is given in Figure 4. The digits zero, one, two, and three marked in both the axes in the CF represent the machined surfaces obtained from turning, milling, grinding, as well as shaping operations. The slopping elements in the CF provide the number of valid classifications, whereas off-slopping elements provide the number of wrong classifications. By employing four Tamura features, the different models are able to give a testing accuracy above 70%. The classification model’s accuracy can be further increased by using more images as input to the machine learning models. Additionally, other image features along with Tamura features can be used as input to models to increase and generalize the classification accuracy of the models. These models can be further implemented in robots for automatically identifying objects or measuring surface roughness.

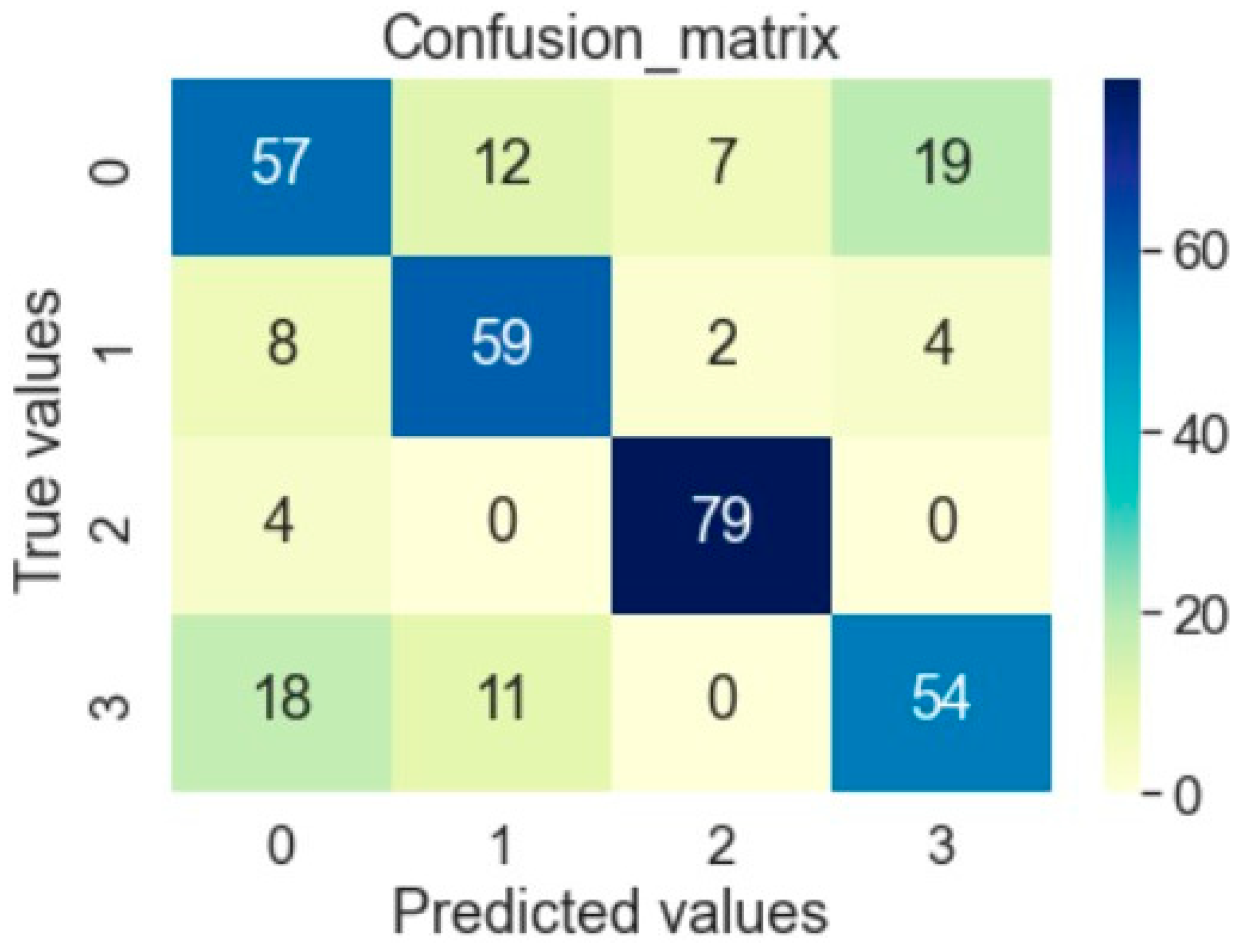

Figure 4. Confusion matrix (CF) of Random Forest model.

4. Conclusions

This work used image processing and ML to recognize and classify the quality of surfaces obtained from various machining operations. The current study investigated the use of four Tamura characteristics from partitioned images, including coarseness, contrast, directionality, and roughness, in identifying surface textures. Five different classification models were used to classify machined surface images, namely, ANN, DT, KNN, Random Forest, and SVM. Out of the five different classification models, the Random Forest model outperformed others, having obtained 90% and 77.5% reliable results apiece in training and testing. However, the SVM model performed poorly, obtaining 69.8% and 69.4% reliable results apiece in training and testing. Enhancements in model performance can be achieved by using a greater quantity of better-quality images as input to the classifier, and by combining other image texture features.
