# The Computed Sinusoid

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. The Hepatic Sinusoid

#### 1.2. Models of the Hepatic Sinusoids

## 2. Materials and Methods

#### 2.1. Computational Fluid Dynamics (CFD) Simulations

^{®}2021 R1 Academic software and a laptop with the features listed below (Table 3).

#### 2.2. Geometry and Mesh

- The sinusoid was designed as a half-section measuring 275 µm long. Two half-sections were evaluated, one with a constant radius (3.5 µm) and one with a linearly increasing radius (the inlet/outlet radii were, respectively, set to 3.5 µm and 7.5 µm).
- The SoD was modeled as a 1 µm thick 2D chamber surrounding the sinusoid lumen and communicating with it via fenestrations.
- The fenestrations were modeled as 100 nm long and 150 nm high channels connecting the sinusoidal lumen with the SoD (Figure 3).

- The main walls (of the sinusoidal lumen and the Space of Disse lumen) were formed as two coaxial rectangles (or trapezoids when the sinusoid had a diverging section).
- Fenestrations were modeled as a linear pattern.
- The sketch was converted into a surface, and a symmetry axis was introduced (halving the model).

#### 2.3. Solver Configuration

^{−1}·s

^{−1}, ρ = 1060 kg/m

^{3}). Since the computational model was based on a pressure-driven flow, the physiological pressures were set to 1067 and 800 Pa, respectively, at the inlet/outlet [13]. Pathological conditions (e.g., portal hypertension) were introduced, elevating inlet pressure up to 2400 Pa [13]. To simulate lymphatic drainage, a pressure outlet was added at the portal region (zone 1) of the SoD, and the selected exit pressure was set to 100 Pa [38]. The equations were solved using the COUPLED algorithm (keeping default under-relaxation factors). The solutions converged after 105 iterations (which were initially set to 2000 iterations).

^{−3}) and u is the 3D velocity vector (m/s)

## 3. Results

## 4. Discussion

#### 4.1. Major Insights about Sinusoidal Pressure (P)

#### 4.2. Major Insights Regarding Flow Velocity (V)

#### 4.3. General Considerations and Limitations

## Supplementary Materials

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Ehrlich, A.; Duche, D.; Ouedraogo, G.; Nahmias, Y. Challenges and Opportunities in the Design of Liver-on-Chip Microdevices. Annu. Rev. Biomed. Eng.
**2019**, 21, 219–239. [Google Scholar] [CrossRef] - Cogger, V.C.; Hunt, N.J.; Le Couteur, D.G. Fenestrations in the Liver Sinusoidal Endothelial Cell. In The Liver; Wiley: Hoboken, NJ, USA, 2020; pp. 435–443. [Google Scholar] [CrossRef]
- Wake, K.; Motomatsu, K.; Dan, C.; Kaneda, K. Three-Dimensional Structure of Endothelial Cells in Hepatic Sinusoids of the Rat as Revealed by the Golgi Method. Cell Tissue Res.
**1988**, 253, 563–571. [Google Scholar] [CrossRef] [PubMed] - MacPhee, P.J.; Schmidt, E.E.; Groom, A.C. Intermittence of Blood Flow in Liver Sinusoids, Studied by High-Resolution in Vivo Microscopy. Am. J. Physiol.—Gastrointest. Liver Physiol.
**1995**, 269, G692–G698. [Google Scholar] [CrossRef] - Komatsu, H.; Koo, A.; Guth, P.H. Leukocyte Flow Dynamics in the Rat Liver Microcirculation. Microvasc. Res.
**1990**, 40, 1–13. [Google Scholar] [CrossRef] - Eguchi, H.; Sato, N.; Matsumura, T.; Minamiyama, M.; Kawano, S.; Kamada, T. The Microcirculatory Properties around the Hepatic Periportal and Pericentral Regions of Rats. In Proceedings of the Fourth World Congress for Microcirculation, Beijing, China, 20–22 July 1987. [Google Scholar]
- Horn, T.; Henriksen, J.H.; Christoffersen, P. The Sinusoidal Lining Cells in “Normal” Human Liver. A Scanning Electron Microscopic Investigation. Liver
**1986**, 6, 98–110. [Google Scholar] [CrossRef] - Vidal-Vanaclocha, F.; Barberá-Guillem, E. Fenestration Patterns in Endothelial Cells of Rat Liver Sinusoids. J. Ultrastruct. Res. Mol. Struct. Res.
**1985**, 90, 115–123. [Google Scholar] [CrossRef] [PubMed] - Wack, K.E.; Ross, M.A.; Zegarra, V.; Sysko, L.R.; Watkins, S.C.; Stolz, D.B. Sinusoidal Ultrastructure Evaluated during the Revascularization of Regenerating Rat Liver. Hepatology
**2001**, 33, 363–378. [Google Scholar] [CrossRef] - Wisse, E.; De Zanger, R.B.; Jacobs, R.; McCuskey, R.S. Scanning Electron Microscope Observations on the Structure of Portal Veins, Sinusoids and Central Veins in Rat Liver. Scan. Electron Microsc.
**1983**, Pt 3, 1441–1452. [Google Scholar] - Henriksen, J.H.; Lassen, N.A. Pressure Profile in Liver Sinusoids A Model of Localization of Sinusoidal Resistance in the Normal and Cirrhotic Liver. Liver
**1988**, 8, 88–94. [Google Scholar] [CrossRef] [PubMed] - Yoon, Y.J.; Chang, S.; Kim, O.Y.; Kang, B.K.; Park, J.; Lim, J.H.; Yun Huang, J.; Kim, Y.K.; Byun, J.H.; Gho, Y.S. Three-Dimensional Imaging of Hepatic Sinusoids in Mice Using Synchrotron Radiation Micro-Computed Tomography. PLoS ONE
**2013**, 8, e68600. [Google Scholar] [CrossRef] - Ryou, M.; Stylopoulos, N.; Baffy, G. Nonalcoholic Fatty Liver Disease and Portal Hypertension. Explor. Med.
**2020**, 1, 149–169. [Google Scholar] [CrossRef] [PubMed] - Tanaka, M.; Iwakiri, Y. Lymphatics in the Liver. Curr. Opin. Immunol.
**2018**, 53, 137–142. [Google Scholar] [CrossRef] [PubMed] - Tanaka, M.; Iwakiri, Y. The Hepatic Lymphatic Vascular System: Structure, Function, Markers, and Lymphangiogenesis. Cell. Mol. Gastroenterol. Hepatol.
**2016**, 2, 733–749. [Google Scholar] [CrossRef] - Jeong, J.; Tanaka, M.; Iwakiri, Y. Hepatic Lymphatic Vascular System in Health and Disease. J. Hepatol.
**2022**, 77, 206–218. [Google Scholar] [CrossRef] [PubMed] - Santambrogio, L. The Lymphatic Fluid. Int. Rev. Cell Mol. Biol.
**2018**, 337, 111–133. [Google Scholar] [CrossRef] - Hsu, M.C.; Itkin, M. Lymphatic Anatomy. Tech. Vasc. Interv. Radiol.
**2016**, 19, 247–254. [Google Scholar] [CrossRef] - Bonfiglio, A.; Leungchavaphongse, K.; Repetto, R.; Siggers, J.H. Mathematical Modeling of the Circulation in the Liver Lobule. J. Biomech. Eng.
**2010**, 132, 111011. [Google Scholar] [CrossRef] - Siggers, J.H.; Leungchavaphongse, K.; Ho, C.H.; Repetto, R. Mathematical Model of Blood and Interstitial Flow and Lymph Production in the Liver. Biomech. Model. Mechanobiol.
**2014**, 13, 363–378. [Google Scholar] [CrossRef] - Debbaut, C.; Vierendeels, J.; Casteleyn, C.; Cornillie, P.; Van Loo, D.; Simoens, P.; Van Hoorebeke, L.; Monbaliu, D.; Segers, P. Perfusion Characteristics of the Human Hepatic Microcirculation Based on Three-Dimensional Reconstructions and Computational Fluid Dynamic Analysis. J. Biomech. Eng.
**2012**, 134, 011003. [Google Scholar] [CrossRef] - Piergiovanni, M.; Bianchi, E.; Capitani, G.; Li Piani, I.; Ganzer, L.; Guidotti, L.G.; Iannacone, M.; Dubini, G. Microcirculation in the Murine Liver: A Computational Fluid Dynamic Model Based on 3D Reconstruction from In Vivo Microscopy. J. Biomech.
**2017**, 63, 125–134. [Google Scholar] [CrossRef] - Hu, J.; Lü, S.; Feng, S.; Long, M. Flow Dynamics Analyses of Pathophysiological Liver Lobules Using Porous Media Theory. Acta Mech. Sin. Xuebao
**2017**, 33, 823–832. [Google Scholar] [CrossRef] - Rani, H.P.; Sheu, T.W.H.; Chang, T.M.; Liang, P.C. Numerical Investigation of Non-Newtonian Microcirculatory Blood Flow in Hepatic Lobule. J. Biomech.
**2006**, 39, 551–563. [Google Scholar] [CrossRef] [PubMed] - Rohan, E.; Turjanicová, J.; Lukeš, V. Multiscale Modelling of Liver Perfusion. In Proceedings of the 15 International Conference on Computational Plasticity: Fundamentals and Applications, COMPLAS 2019, Barcelona, Spain, 3–5 September 2019; pp. 343–353. [Google Scholar]
- Debbaut, C.; Monbaliu, D.; Casteleyn, C.; Cornillie, P.; Van Loo, D.; Van Hoorebeke, L.; Simoens, P.; Pirenne, J.; Segers, P. Multiscale Modeling of the Blood Circulation in the Human Liver Using Vascular Corrosion Casting and Micro-CT Imaging Techniques. In Proceedings of the ASME 2011 Summer Bioengineering Conference, Parts A and B, Farmington, PA, USA, 22–25 June 2011; American Society of Mechanical Engineers: New York, NY, USA, 2011; pp. 451–452. [Google Scholar] [CrossRef]
- Ricken, T.; Dahmen, U.; Dirsch, O. A Biphasic Model for Sinusoidal Liver Perfusion Remodeling after Outflow Obstruction. Biomech. Model. Mechanobiol.
**2010**, 9, 435–450. [Google Scholar] [CrossRef] [PubMed] - Ahmadi-Badejani, R.; Mosharaf-Dehkordi, M.; Ahmadikia, H. An Image-Based Geometric Model for Numerical Simulation of Blood Perfusion within the Liver Lobules. Comput. Methods Biomech. Biomed. Eng.
**2020**, 23, 987–1004. [Google Scholar] [CrossRef] - Mosharaf-Dehkordi, M. A Fully Coupled Porous Media and Channels Flow Approach for Simulation of Blood and Bile Flow through the Liver Lobules. Comput. Methods Biomech. Biomed. Eng.
**2019**, 22, 901–915. [Google Scholar] [CrossRef] - Schwen, L.O.; Krauss, M.; Niederalt, C.; Gremse, F.; Kiessling, F.; Schenk, A.; Preusser, T.; Kuepfer, L. Spatio-Temporal Simulation of First Pass Drug Perfusion in the Liver. PLoS Comput. Biol.
**2014**, 10, e1003499. [Google Scholar] [CrossRef] [PubMed] - Schwen, L.O.; Schenk, A.; Kreutz, C.; Timmer, J.; Rodríguez, M.M.B.; Kuepfer, L.; Preusser, T. Representative Sinusoids for Hepatic Four-Scale Pharmacokinetics Simulations. PLoS ONE
**2015**, 10, e133653. [Google Scholar] [CrossRef] - Barléon, N.; Clarke, R.J.; Ho, H. Novel Methods for Segment-Specific Blood Flow Simulation for the Liver. Comput. Methods Biomech. Biomed. Eng.
**2018**, 21, 780–783. [Google Scholar] [CrossRef] - Rezania, V.; Coombe, D.; Tuszynski, J.A. A Physiologically-Based Flow Network Model for Hepatic Drug Elimination III: 2D/3D DLA Lobule Models. Theor. Biol. Med. Model.
**2016**, 13, 9. [Google Scholar] [CrossRef] - Ni, Y.; Li, J.-M.; Liu, M.-K.; Zhang, T.-T.; Wang, D.-P.; Zhou, W.-H.; Hu, L.-Z.; Lv, W.-L. Pathological Process of Liver Sinusoidal Endothelial Cells in Liver Diseases. World J. Gastroenterol.
**2017**, 23, 7666–7677. [Google Scholar] [CrossRef] - Horn, T.; Christoffersen, P.; Henriksen, J.H. Alcoholic Liver Injury: Defenestration in Noncirrhotic Livers-a Scanning Electron Microscopic Study. Hepatology
**1987**, 7, 77–82. [Google Scholar] [CrossRef] [PubMed] - Hilmer, S.N.; Cogger, V.C.; Fraser, R.; McLean, A.J.; Sullivan, D.; Le Couteur, D.G. Age-Related Changes in the Hepatic Sinusoidal Endothelium Impede Lipoprotein Transfer in the Rat. Hepatology
**2005**, 42, 1349–1354. [Google Scholar] [CrossRef] - Brainerd, C.; Gorti, V.; Janes, M.; Jones, K.; Khayat, S.; Liu, A.; Noonan-shueh, M.; Rao, S. Variable Fenestration of A 3D Nanoprinted Liver Sinusoid on a Chip. Dr. Ryan D. Sochol Department of Mechanical Engineering. Available online: http://hdl.handle.net/1903/24764 (accessed on 29 September 2021).
- Heppell, C.; Roose, T.; Richardson, G. A Model for Interstitial Drainage Through a Sliding Lymphatic Valve. Bull. Math. Biol.
**2015**, 77, 1101–1131. [Google Scholar] [CrossRef] [PubMed] - Swartz, M.A. The Physiology of the Lymphatic System. Adv. Drug Deliv. Rev.
**2001**, 50, 3–20. [Google Scholar] [CrossRef] - Wisse, E.; De Zanger, R.; Charles, K.; Van Der Smissen, P.; McCuskey, R. The Liver Sieve: Considerations Concerning the Structure and Function of Endothelial Fenestrae, the Sinusoidal Wall and the Space of Disse. Hepatology
**1985**, 5, 683–692. [Google Scholar] [CrossRef] [PubMed] - Iwata, H.; Ueda, Y. Pharmacokinetic Considerations in Development of a Bioartificial Liver. Clin. Pharmacokinet.
**2004**, 43, 211–225. [Google Scholar] [CrossRef]

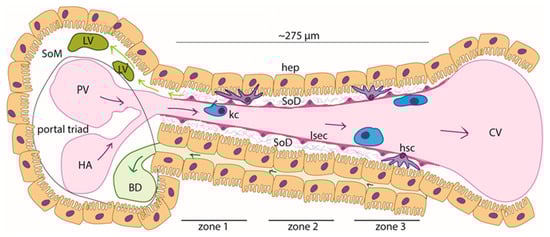

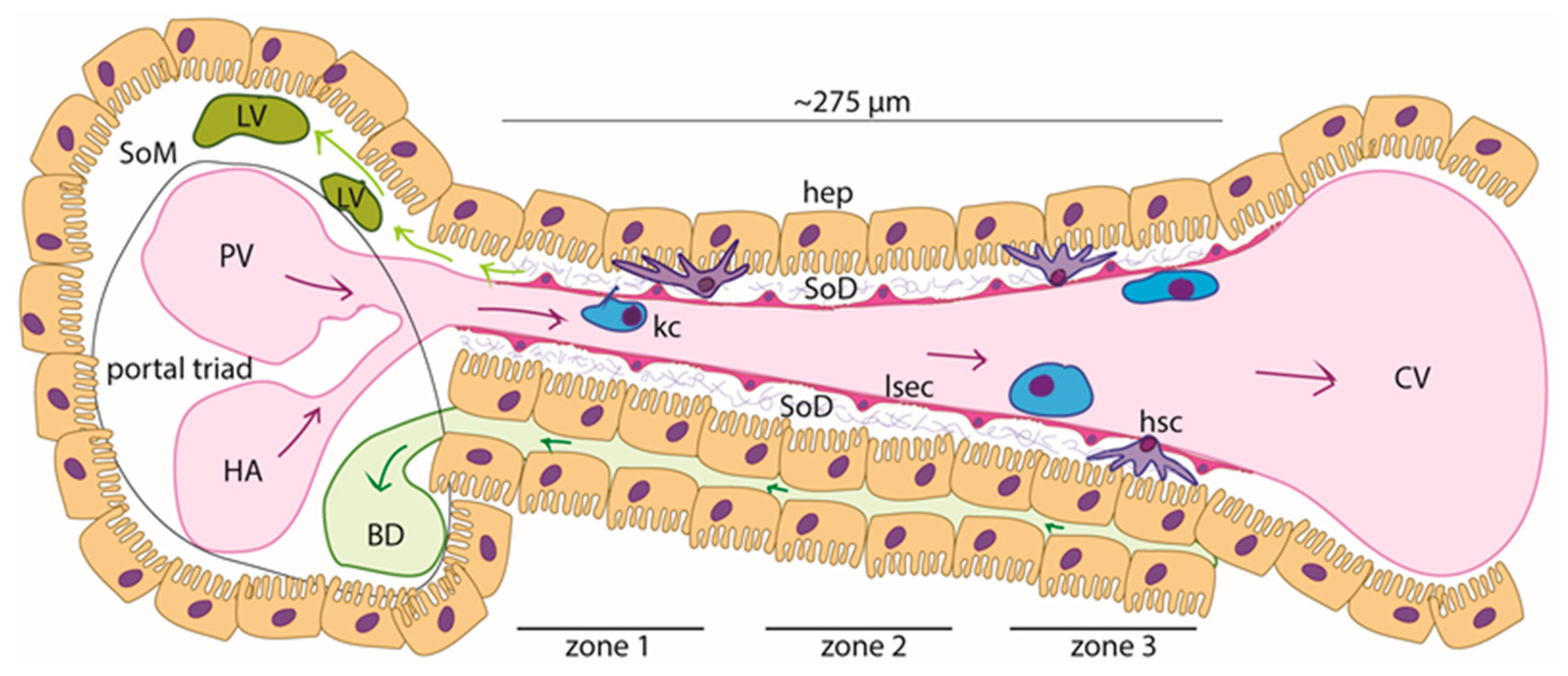

**Figure 1.**Schematic of the liver sinusoid: liver sinusoid endothelial cells (LSECs) form the highly specialized and fenestrated endothelium of the sinusoid. Resident macrophages (Kupffer cells (KCs)) populate the sinusoidal lumen, while hepatic stellate cells can be found within the Space of Disse (SoD), an approximately 1 µm thick region with a sparse extracellular matrix (grey bundles—proteoglycans and collagen type III) that separates the LSECs from the hepatocytes (hep). Blood rich in nutrients and oxygen flows from the portal vein (PV) and the hepatic artery (HA) toward the central vein (CV) (purple arrows). Bile is formed in the hepatocytes and flows through the bile canaliculi, which are situated between hepatic cords (dark green arrows). Lymph is largely (ca. 80%) formed from the filtrate in the SoD and flows into the lymphatic vasculature (LV), which is in the Space of Mall (SoM) (light green arrows).

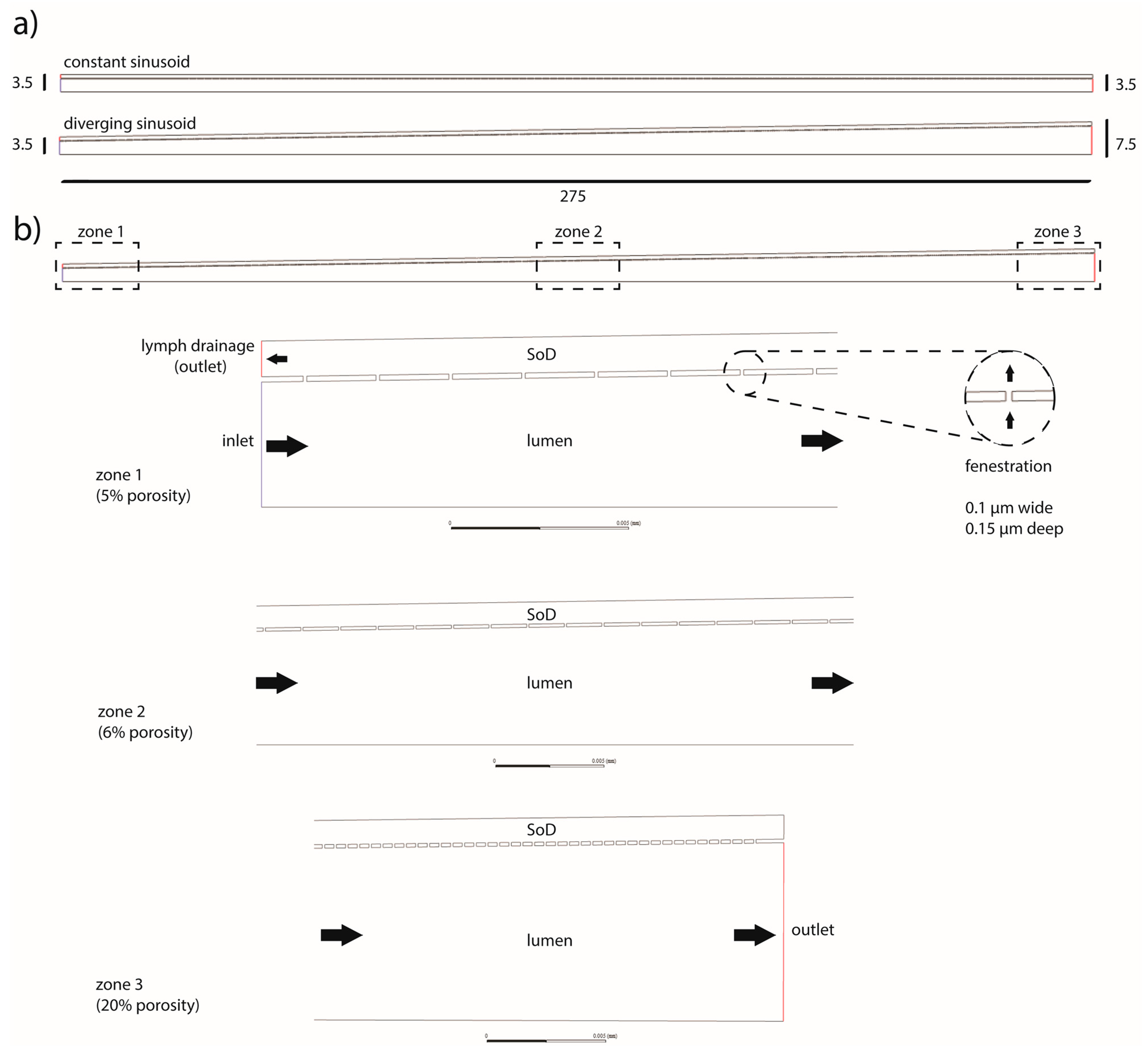

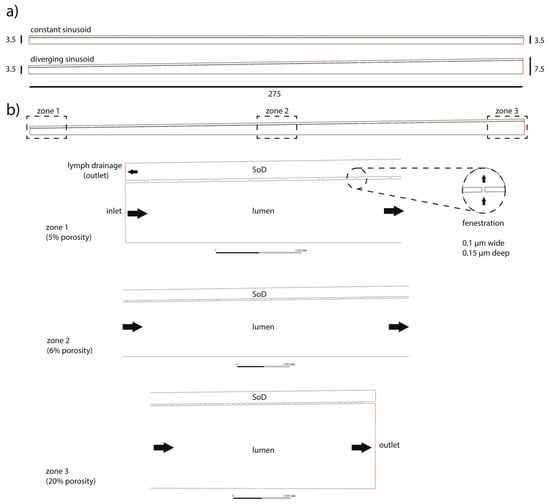

**Figure 2.**Schematics of the numerical models of the sinusoid. The model was designed as a half-section. Two main versions were adopted: constant-radius and diverging sinusoids (

**a**). Sizes are in microns. An example of the more complete model adopted in the simulations (

**b**) a diverging section, including a variable porosity (5%, 6%, and 20%) and an extra outlet at the portal side of the SoD to mimic lymphatic drainage (dark arrows indicate the direction of the flow).

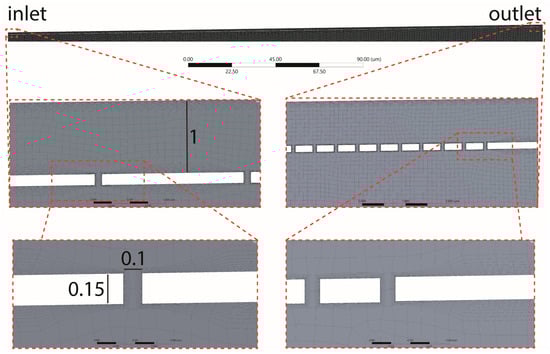

**Figure 3.**Mesh highlights shown for the diverging sinusoid model. The side of each element of the mesh was set to a max size of 0.1 µm. Further, in the bottom panel, the quality spectrum for the orthogonality metric is reported.

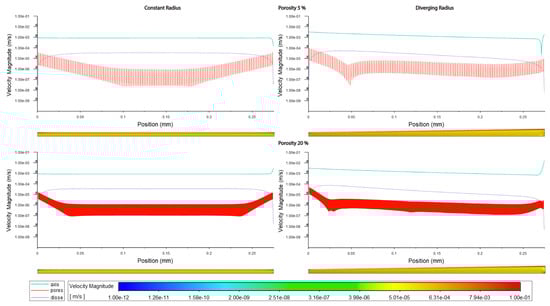

**Figure 4.**Velocity magnitudes along sinusoids modeled without lymphatic drainage. Models are with a constant radius (cylinder) or with a diverging radius (conical) and low (5%) porosity or high (20%) porosity.

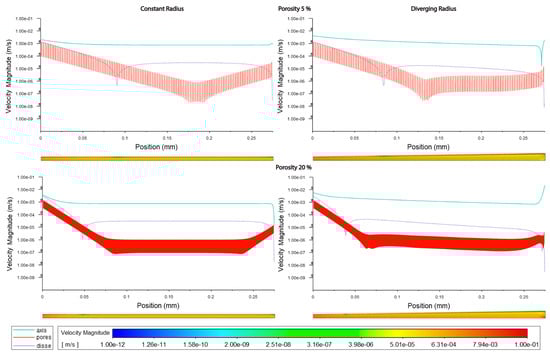

**Figure 5.**Velocity magnitudes along sinusoids modeled with lymphatic drainage. Models are with a constant radius (cylinder) or with a diverging radius (conical) and low (5%) porosity or high (20%) porosity.

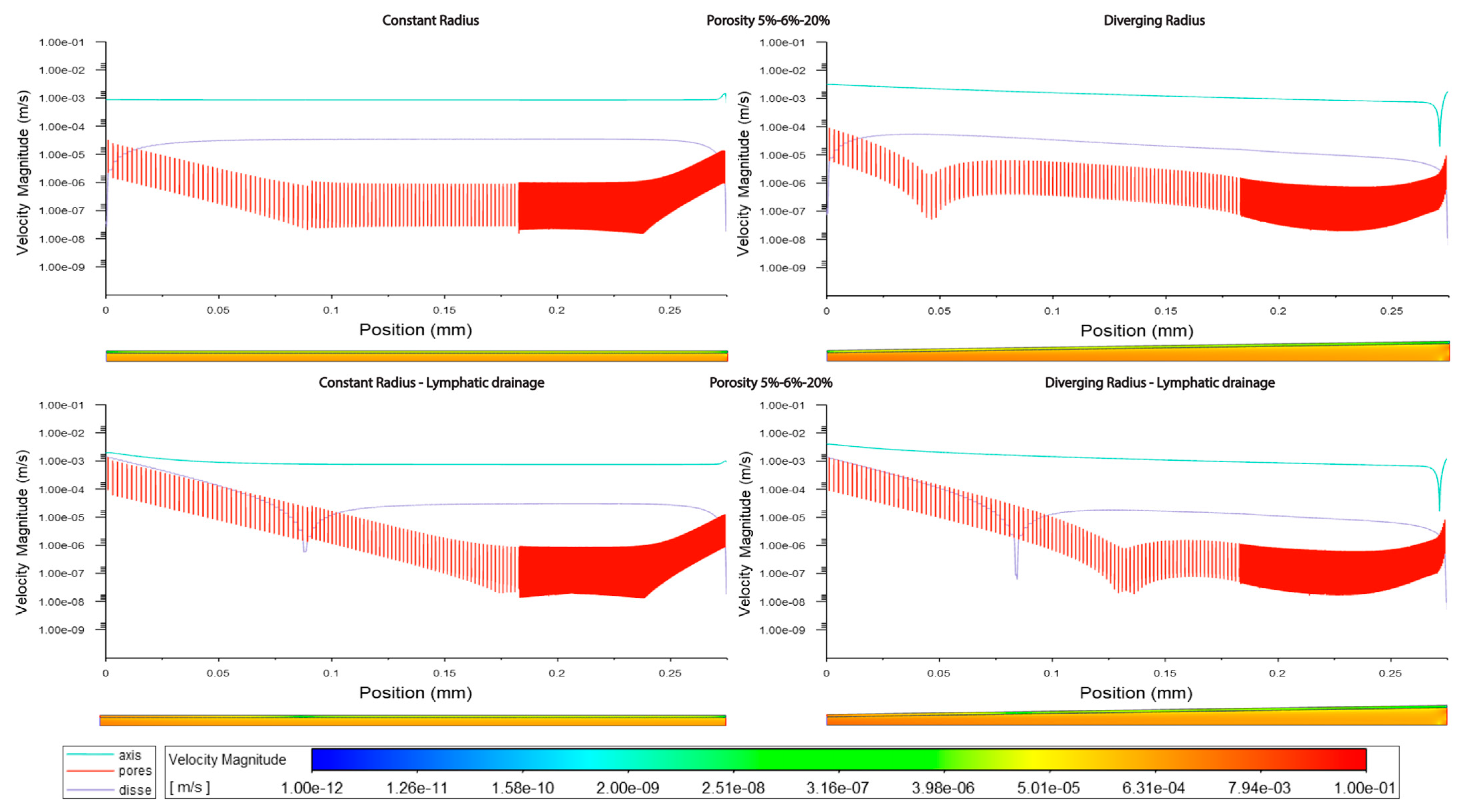

**Figure 6.**Velocity along sinusoids modeled with variable porosity (5, 6, 20%). Models are with a constant radius (cylinder) or with a diverging radius (conical) and with or without lymphatic drainage.

**Figure 7.**Pressure along sinusoids modeled with lymphatic drainage. Models are with a constant radius (cylinder) or with a diverging radius (conical) and low (5%) porosity or high (20%) porosity (top/bottom).

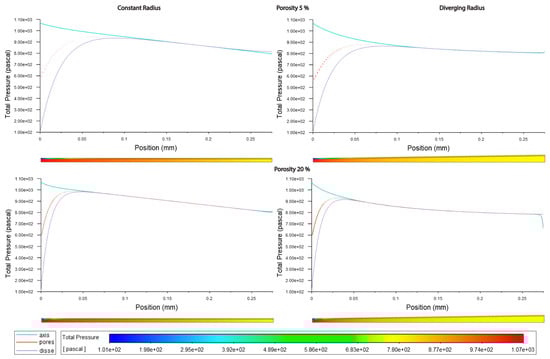

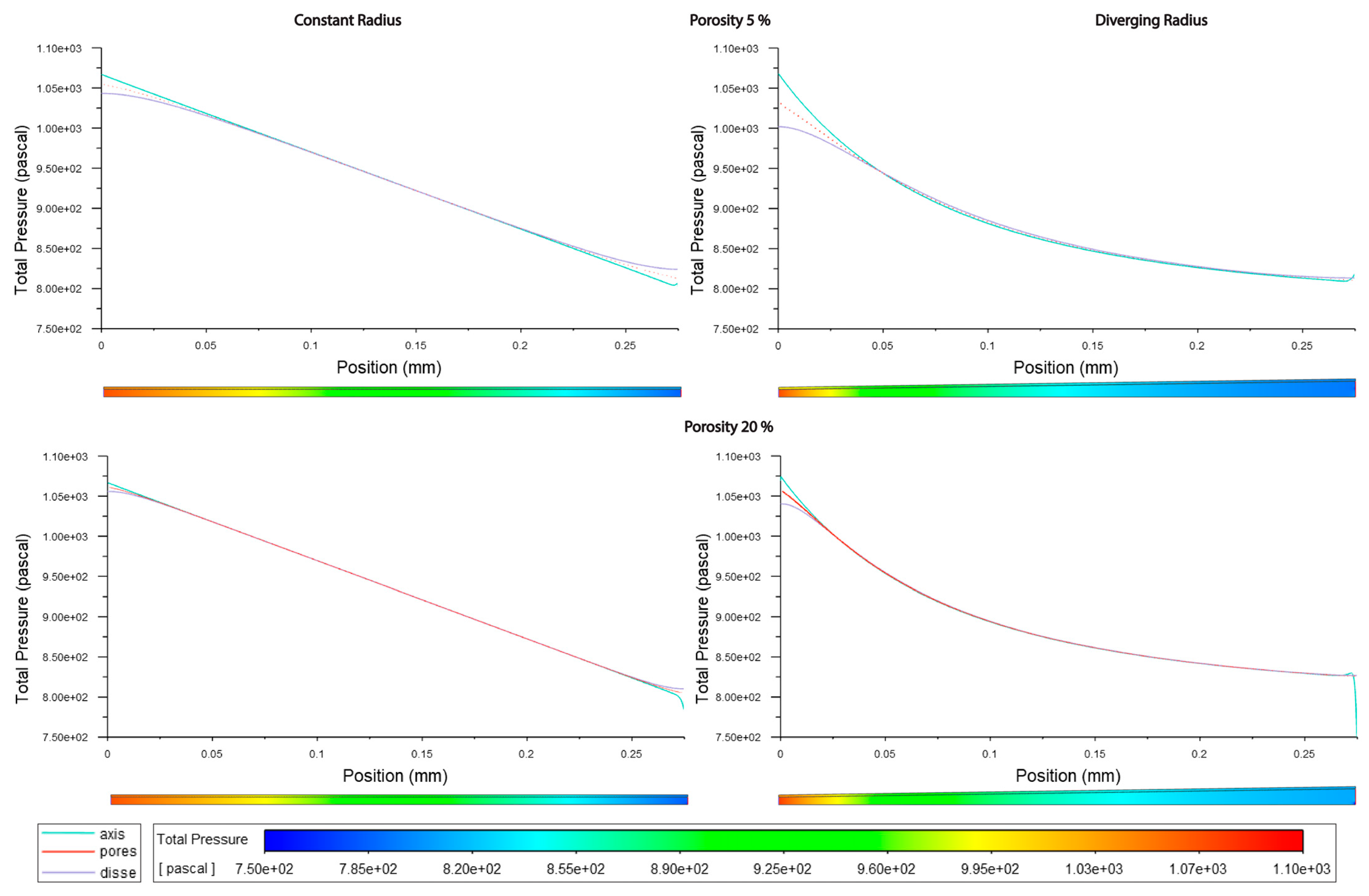

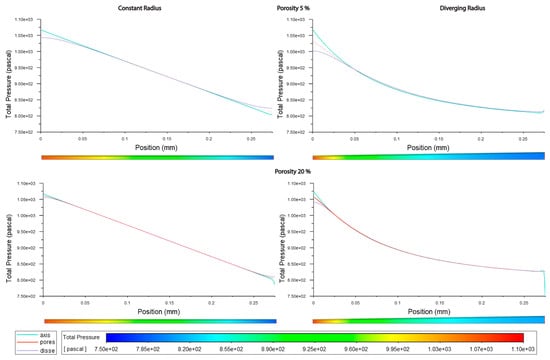

**Figure 8.**Pressure along sinusoids modeled without lymphatic drainage. Models are with a constant radius (cylinder) or with a diverging radius (conical) and low (5%) porosity or high (20%) porosity.

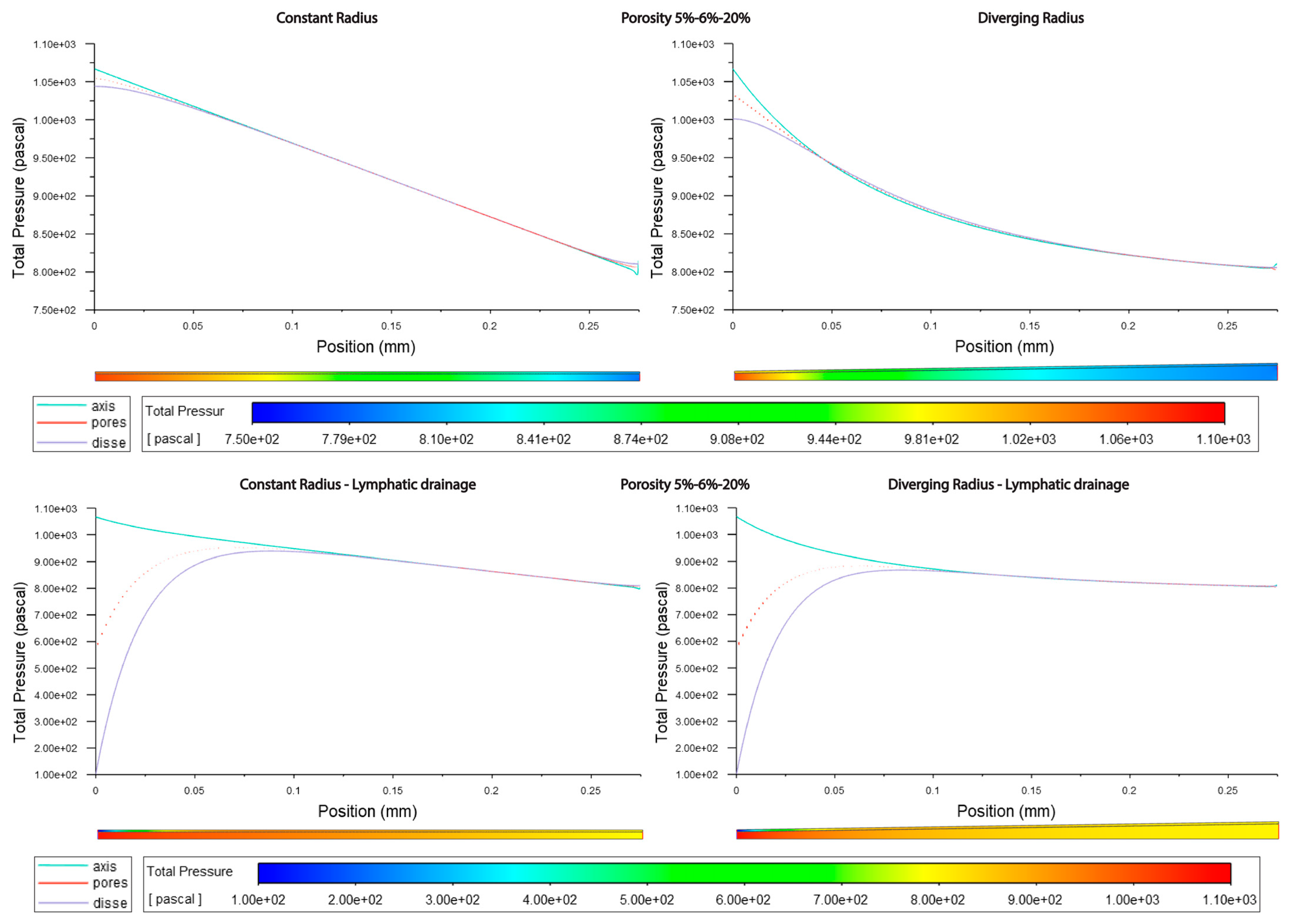

**Figure 9.**Pressure along sinusoids modeled with variable porosity (5, 6, 20%). Models are with a constant radius (cylinder) or with a diverging radius (conical) and with or without lymphatic drainage.
