Process Optimization and Non-Destructive Evaluation of Micro-Voids in Submarine Composite Structures for Enhanced Mechanical Performance

Abstract

This study presents a systematic approach to enhancing the mechanical performance of composite materials for submarine applications by quantitatively evaluating and controlling internal micro-voids generated during the manufacturing process. Three non-destructive evaluation techniques—ultrasonic testing, optical microscopy, and micro-computed tomography (Micro-CT)—were employed to assess the void content in fiber-reinforced composite specimens fabricated under various processing conditions. Tensile and flexural strength tests were conducted to investigate the correlation between the void content and mechanical properties. Among the methods, ultrasonic testing exhibited the strongest negative correlation (correlation coefficient = −0.703), confirming its effectiveness as a representative non-destructive evaluation technique. Furthermore, the statistical design of experiments, including factorial design, steepest ascent method, and response surface methodology (RSM), identified defoamer concentration and mixing time as the most influential process parameters in void reduction. The optimal processing conditions were determined to be 0.049% defoamer and 232 min of mixing. Under these conditions, the void content was minimized, and the mechanical properties were significantly improved. These findings offer practical guidance for void control and non-destructive evaluation in large-scale composite structures, contributing to improved reliability in underwater structural applications.

1. Introduction

Submarines are strategic naval weapon systems capable of stealth operations, superior maneuverability, and sustained mission execution, playing a pivotal role in national maritime defense. During missions, submarines are constantly exposed to extreme hydrostatic pressure, mechanical impact, friction, and wear. Therefore, ensuring the durability and structural reliability of their hulls is a critical requirement for stable operation [1].

Structurally, a submarine consists of a pressure hull and a non-pressure hull. The pressure hull, constructed from high-strength metallic materials such as HY80 and HY100 steels, is designed to withstand external pressure and protect the crew and onboard equipment [2]. In contrast, the non-pressure hull, although not directly exposed to external pressure, serves to protect equipment, minimize hydrodynamic resistance, and improve acoustic performance. It is nonetheless subjected to continuous mechanical loads and harsh marine environments, demanding properties such as lightweight design, corrosion resistance, and mechanical strength [1].

Fiber-reinforced polymer (FRP) composites such as glass fiber reinforced plastic (GRP) and carbon fiber reinforced plastic (CRP) are widely employed as structural materials for non-pressure hulls [3]. GRP offers excellent processability, corrosion resistance, and cost-effective mechanical performance, while CRP is selectively used in local areas requiring high stiffness and acoustic properties [4].

In this study, the investigated composite materials correspond to the non-pressure hull structures of submarines, which require lightweight design, corrosion resistance, and mechanical reliability under hydrostatic pressure. The process optimization and void-control techniques proposed in this research are therefore intended to enhance the structural reliability of submarine components operating in harsh underwater environments.

One of the most common defects during composite manufacturing is the presence of voids [5]. These voids significantly degrade the physical, mechanical, and thermodynamic properties of the composite. Submarine composites are typically fabricated via Liquid Composite Molding (LCM), in which a liquid thermosetting resin is infused into a fibrous preform [6]. During this process, voids are generated through mechanisms such as mechanical air entrapment, gas evolution during curing, and volatilization of dissolved gases in the resin [6]. In particular, the heterogeneous permeability of the fiber preform induces local variations in flow velocity, which, coupled with capillary effects, increases void formation [7].

Recent studies have provided detailed insights into the mechanisms of void formation during liquid composite molding (LCM) and the optimization of process parameters for void reduction. Investigations on degassing behavior, Micro-CT-based void quantification, and ultrasonic attenuation analysis have demonstrated that the control of gas dissolution and flow dynamics plays a crucial role in minimizing porosity in fiber-reinforced composites [5,6,7,8,9,10,11,12,13].

Voids in composites are generally classified as macro-, meso-, or micro-scale, depending on their size and morphology [6]. Macro-voids result from incomplete resin infiltration, while meso- and micro-voids typically occur due to insufficient resin penetration into the fiber structure. Controlling void content in LCM processes requires the regulation of void formation, dissolution, and migration stages [8].

Voids induce local stress concentrations, increasing the peak stress near the void boundary by up to 1.85 times [9]. This promotes fiber-matrix interfacial debonding, accelerates crack initiation and propagation, and ultimately reduces the mechanical reliability of the structure. Furthermore, voids facilitate moisture ingress, thereby degrading corrosion and environmental resistance, and in the long term, accelerating fiber wear and damage. As a result, void control is considered a crucial factor in the design and manufacturing of composite structures exposed to harsh underwater environments [10].

Representative techniques for quantitative void analysis include optical microscopy, ultrasonic testing, and micro-computed tomography (Micro-CT) [14]. Optical microscopy enables visualization of void size, shape, and distribution, but is inherently limited by localized bias due to cross-sectional observation. Although image-based area fraction measurements show trends similar to density-based volume fractions, several studies have reported that image-based void content tends to be overestimated [15]. Ultrasonic testing evaluates internal voids in a non-destructive manner by analyzing pulse attenuation and velocity, and is less sensitive to fiber volume fraction variations, making it suitable for evaluating bulk composite structures [16]. Micro-CT, which exploits differences in X-ray absorption and scattering, enables high-resolution three-dimensional characterization of internal structures and is gaining attention as a reliable method for void quantification [17].

Given the high mechanical performance requirements for submarine composites—such as tensile and flexural strength—quantitative void evaluation and its correlation with mechanical properties are increasingly important [15]. Voids generated during LCM processes are influenced by various process parameters including degassing conditions, injection pressure, vacuum level, and curing rate [11]. Among these, degassing parameters are considered particularly critical, as they directly influence void reduction and are relatively easy to control [12].

This study aims to quantitatively evaluate micro-voids generated during the fabrication of GRP composites for submarine applications and to identify and optimize key process variables affecting mechanical performance. Submarine composite structures are typically manufactured using Liquid Composite Molding (LCM), a resin-based molding process. During this process, micro-voids may form due to mechanical air entrapment, gas generation during curing, and degassing of dissolved gases in the resin [5]. These voids significantly degrade the mechanical reliability of the composite, making void control a fundamental requirement for high-reliability systems such as submarines. The correlations between void characteristics and mechanical properties such as tensile and flexural strength were investigated using three void analysis methods: optical microscopy, ultrasonic attenuation analysis, and Micro-CT imaging. Furthermore, statistical design of experiments (DOE) was employed to derive optimal degassing process conditions, and the effects of each parameter on composite mechanical performance were quantitatively analyzed to establish a foundation for improving the reliability of composite manufacturing for underwater structural applications.

2. Experimental Methods

2.1. Materials and Specimen Fabrication

To investigate the effect of internal micro-voids on the mechanical properties of submarine composite structures, specimens with varying void content were fabricated through random modulation of process conditions. The reinforcement material used was DBLT-100 glass fiber, a balanced and bidirectional woven fabric with an areal weight of 600 g/m² and an average fiber diameter of 13 μm, while the matrix resin was an unsaturated polyester resin, DION-9100LF.

The curing agent, TBPB, was added at 1.5 wt% relative to the resin weight. All specimens were fabricated using a laboratory-scale vacuum-assisted LCM system (JET-VI250, Korea Vacuum Technology Co., Ltd., Siheung, Republic of Korea) under controlled environmental conditions of 25 ± 2 °C temperature and 40–50% relative humidity, with a vacuum level maintained at 0.095 MPa. The final composite plates had a thickness of approximately 5.0 ± 0.3 mm. Specimens for tensile testing were cut to 250 × 25 mm according to ASTM D3039 [18], while flexural test specimens were prepared to 127 × 12.7 mm following ASTM D790 [19]. Process parameters such as vacuum pressure and degassing time were intentionally varied to produce a range of void distributions among the fabricated specimens.

2.2. Void Quantification Techniques

Since internal micro-voids significantly influence the mechanical performance, environmental resistance, and long-term reliability of composite materials, their accurate and reliable quantification is crucial. In this study, three non-destructive evaluation techniques—ultrasonic testing, optical microscopy-based image analysis, and micro-computed tomography (Micro-CT)—were employed independently to measure void content. While these methods share the advantage of non-destructive internal assessment, they differ in terms of measurement accuracy, spatial resolution, applicable specimen size, and analysis range.

2.2.1. Ultrasonic Testing

Ultrasonic testing evaluates internal defects by utilizing reflection and attenuation phenomena that occur at heterogeneous interfaces within the material. In this study, a C-Scan system (Model: 4UTTU-01, Poyutek Co., Ltd., Busan, Republic of Korea) was used, consisting of a 14-axis scanning setup capable of analyzing specimens up to 10 m × 1.5 m × 2.5 m in size. The scan speed was set at 35 inch/s, the operating frequency at 2.25 MHz, and data were acquired in Time-Through Transmission (TTU) mode.

Attenuation data were obtained on a pixel-by-pixel basis over a central region of 85 mm × 85 mm, and the average value was defined as the representative attenuation for each specimen. This method is advantageous for estimating bulk void content as it reflects the overall internal state across a wide measurement area.

2.2.2. Optical Microscopy and Image Analysis

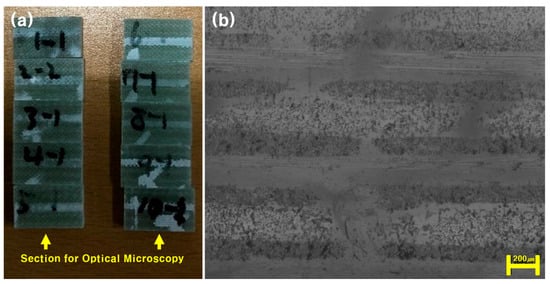

As illustrated in Figure 1, the composite specimen was sectioned perpendicular to the laminate surface (through-thickness direction) for optical microscopy (BX53M, Olympus Corporation, Tokyo, Japan) analysis. Figure 1a shows the prepared specimen and the location of the observation section, while Figure 1b presents a representative cross-sectional view highlighting voids distributed between fiber bundles. This orientation allowed for accurate identification of void morphology and distribution across the laminate thickness.

Figure 1. Cross-sectional observation for optical microscopy: (a) Composite specimen and prepared section for optical microscopy (through-thickness direction); (b) Representative image of the observed cross-section showing fiber bundles and internal voids. Note: The specimen surface was polished prior to observation, and the optical section was prepared perpendicular to the laminate surface to accurately identify void morphology.

This method involves cross-sectional observation of the composite using an optical microscope, followed by image processing to quantitatively estimate the void content. Because this technique requires specimen sectioning, it is considered a semi-destructive method rather than a fully non-destructive one. In this study, it was included as a comparative evaluation technique for cross-validation with non-destructive methods such as ultrasonic testing and Micro-CT. Thus, the three techniques are collectively described as complementary evaluation methods, including two non-destructive and one semi-destructive approach. A Carl Zeiss Axio Observer 3 inverted fluorescence microscope (Carl Zeiss Microscopy Gmbh, Jena, Germany) was used. The specimen surfaces were polished with #2400 grit abrasive paper prior to observation. Each specimen was first observed at 50× magnification to scan the entire cross-section, and then five selected areas were examined at 100× magnification for detailed analysis.

Voids were defined as regions with light intensity values between 4000 and 6000, based on their lower transmittance compared to resin and fiber. Through RGB channel-based image processing(ZEN 3.6, Carl Zeiss Microscopy Gmbh, Jena, Germany), the green channel was used to identify the resin phase, and fibers and voids were separated based on contrast with other channels.

2.2.3. Micro-Computed Tomography (Micro-CT)

Micro-CT enables high-resolution, three-dimensional observation of internal voids using X-ray attenuation differences. A Vtomex M300 system (GE) (GE Measurement & Control Solutions, Wunstorf, Germany), was employed for analysis, with a scan volume of 600 × 400 × 600 μm. The voxel resolution was set to 9.0 μm, using a 0.1 mm copper filter. A total of 2000 projection images were acquired, with an integration time of 1.0 s per image. The images were reconstructed into 3D using VGStudio MAX software (Version 3.6, Volume Graphics GmbH, Heidelberg, Germany), and voids were distinguished based on local density differences to quantify both their distribution and volume fraction.

2.3. Design of Experiments

To identify process variables influencing micro-void content during the degassing stage, three parameters were selected: defoamer concentration, mixing speed (RPM), and mixing time. The ranges for each parameter were defined as follows: defoamer content from 0 to 0.03 wt% with a center point at 0.015 wt%, mixing speed from 100 to 400 rpm, and mixing time from 30 to 150 min.

Statistical optimization of these process variables was performed using Minitab Statistical Software (version 22, Minitab, LLC, State College, PA, USA). The experimental process was carried out in three stages. First, factorial design was applied to identify significant factors. Second, the steepest ascent method was used to move toward the direction of maximum response improvement. Finally, response surface methodology (RSM) was employed to conduct additional experiments at the center and axial points and derive the optimal combination of process parameters. Table 1 summarizes the experimental design matrix constructed based on the selected process parameters, including defoamer concentration, mixing speed, and mixing time. This table presents the factorial design used to determine the relative influence of each factor on the micro-void content prior to statistical optimization. For continuity, Table 1 is further referenced and discussed in Section 3.3.1.

Table 1. Experimental matrix for factorial design: combinations of defoamer concentration (wt%), mixing speed (rpm), and mixing time (min) used to fabricate composite specimens.

RunOrder	Defoamer Concentration (wt%)	Mixing Speed (rpm)	Mixing Time (min)
1	0	400	150
2	0.015	250	90
3	0.03	400	30
4	0	100	30
5	0.03	400	30
6	0.03	400	150
7	0.015	250	90
8	0.03	100	30
9	0	400	30
10	0	100	30
11	0.03	400	150
12	0	400	30
13	0	400	150
14	0.03	100	30
15	0	100	150
16	0.015	250	90
17	0.03	100	150
18	0	100	150
19	0.03	100	150

2.4. Mechanical Property Evaluation

Mechanical properties of the composite specimens were evaluated through tensile and flexural strength testing. Tensile strength tests were performed according to ASTM D3039 using an Instron 8802 machine(Instron, Norwood, MA, USA), and the loading was applied along the fiber alignment direction (warp direction), while flexural strength was measured based on ASTM D790 using an Instron 5582 system (Instron, Norwood, MA, USA). For each condition, ten specimens were prepared, and the average values were reported as the final results.

3. Results and Discussion

3.1. Comparison of Void Measurement Techniques

Accurate quantification of internal micro-voids in composite materials is essential for ensuring structural integrity and predicting mechanical performance. In this study, three different non-destructive techniques—C-Scan ultrasonic testing, optical microscopy, and Micro-CT analysis—were applied to ten specimens fabricated from the same composite system but with varying void contents. The void content results obtained from each method were evaluated in terms of mean values and standard deviations.

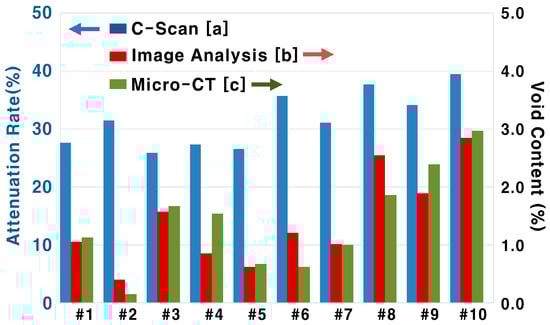

Figure 2a shows the attenuation rate obtained from C-Scan ultrasonic testing, while Figure 2b,c depicts the void content variations determined through optical microscopy and Micro-CT analysis (VtomeX M300, GE Measurement & Control Solutions, Wunstorf, Germany), respectively.

Figure 2. Comparison of void quantification results by different non-destructive techniques: (a) C-Scan—Ultrasonic attenuation rates (%) measured for each composite specimen; (b) Image Analysis—Void content (%) of composite specimens quantified by optical microscopy; (c) Micro-CT—Void content (%) of composite specimens measured by Micro-CT analysis. Note: The bar graphs correspond to the left Y-axis (attenuation rate %), while the line plots correspond to the right Y-axis (void content %).

The ultrasonic testing yielded an average attenuation of 31.7% with a standard deviation of 4.9%. This method has the advantage of scanning a relatively large area (85 mm × 85 mm), enabling it to represent the average void distribution in the bulk material. In contrast, the optical microscopy method provided an average void content of 1.45% and a standard deviation of 0.51%, based on detailed observation of a small cross-sectional region (~0.14 mm²). While this method offers high spatial resolution for local void characterization, it has limitations in terms of representativeness of the overall structure.

Micro-CT analysis showed an average void content of 2.09% with a standard deviation of 0.86%. This technique allows for three-dimensional visualization of internal voids, providing detailed information on their morphology, spatial distribution, and location. However, its analysis volume is limited to approximately 0.096 mm³, making it difficult to fully represent the global void distribution in large-scale composite structures. Consequently, care must be taken when correlating Micro-CT results with bulk mechanical behavior. Although attenuation rate and void content represent distinct physical parameters, previous studies have demonstrated a strong empirical correlation between ultrasonic attenuation and void fraction in fiber-reinforced composites [16,17]. This relationship provides the rationale for comparing the attenuation-based and void-based evaluation results in this study.

All three techniques revealed considerable variation in void distribution among specimens, reflecting the inherent randomness and non-uniformity of void formation.

Rather than identifying a universally superior method, it is important to select the most appropriate technique based on the specific purpose and characteristics of the composite structure.

Critical factors such as measurement representativeness, spatial resolution, and non-destructive capability must be holistically considered.

Ultimately, identifying the measurement method that exhibits the strongest correlation with mechanical properties is essential for establishing the reliability of composite materials.

3.2. Comparison of Mechanical Properties Among Specimens with Random Void Distribution

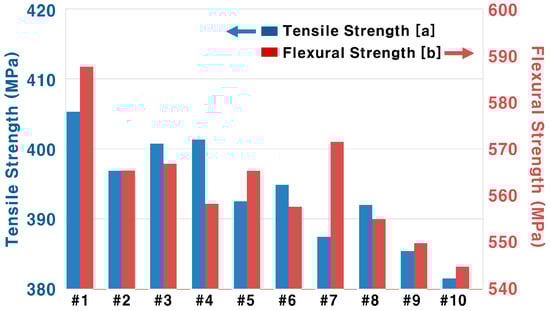

Figure 3a,b shows the tensile and flexural strengths of composite specimens fabricated with randomly distributed voids. The x-axis represents specimen numbers, which were intentionally retained because each specimen served as a common reference for all evaluation methods—C-Scan ultrasonic testing, optical microscopy, Micro-CT and mechanical testing.

Figure 3. Mechanical performance of composite specimens with randomly distributed voids: (a) Tensile strength (MPa) of each specimen; (b) Flexural strength (MPa) of each specimen.

This arrangement enables a direct comparison of how the mechanical performance of each specimen corresponds to the void characteristics quantified by the different non-destructive evaluation methods presented in Figure 2.

As observed, specimens exhibiting relatively higher void content—identified particularly by C-Scan attenuation data—tend to show lower tensile and flexural strength, confirming the negative influence of voids on mechanical reliability.

Table 2 presents the Pearson’s correlation coefficients between the tensile strength of each specimen and the corresponding void data obtained by three evaluation techniques—C-Scan ultrasonic testing, optical microscopy, and Micro-CT. Among them, the C-Scan method exhibited the strongest negative correlation (−0.703), while the optical microscopy and Micro-CT methods showed lower correlation coefficients of −0.557 and −0.508, respectively. Statistically, only the ultrasonic method satisfied the significance level (p < 0.05), demonstrating that its void measurements are most consistent with the actual tensile strength results.

Table 2. Pearson’s correlation coefficients and significance levels between tensile strength and void measurement results obtained by different evaluation methods.

	Correlation	Significance Level
C-Scan	−0.703	0.023
Image Analysis	−0.557	0.094
Micro-CT	−0.508	0.134

Table 3 summarizes the correlation between flexural strength and void data derived from the same three evaluation methods.

Table 3. Pearson’s correlation coefficients and significance levels between flexural strength and void measurement results obtained by different evaluation methods.

	Correlation	Significance Level
C-Scan	−0.608	0.030
Image Analysis	−0.610	0.061
Micro-CT	−0.591	0.072

Again, the C-Scan method exhibited the most significant negative correlation (p < 0.05), reinforcing its reliability as a non-destructive technique for predicting the mechanical performance of composite materials.

All three measurement techniques revealed a consistent negative correlation between void content and mechanical properties, suggesting that an increase in voids leads to a deterioration in structural performance. This is attributable to the fact that voids act as stress concentrators, weakening the interfacial bonding between fibers and matrix, thereby accelerating crack initiation and propagation [15,16]. In tensile loading, in particular, voids often serve as the starting point for cracks, resulting in a direct reduction in strength. Therefore, void content is confirmed as a critical factor in the degradation of composite mechanical properties.

The differences in statistical significance across the three methods can be attributed to the representativeness of their respective measurement areas. Submarine composites typically have surface areas ranging from several square centimeters to several square meters. As the mechanical properties are influenced by the statistical distribution of voids throughout the entire structure, localized analysis techniques such as microscopy and Micro-CT may not sufficiently capture this variability. In contrast, the ultrasonic method, with its ability to cover larger areas non-destructively, is better suited to represent bulk properties.

Although Micro-CT offers superior spatial resolution and the ability to analyze the shape, size, and spatial distribution of voids in three dimensions, the small volume of analyzable material (approximately 0.096 mm³) limits its applicability for assessing large-scale composite structures such as those used in submarines. In comparison, the ultrasonic method can scan an area of 85 mm × 85 mm (totaling 7225 mm²), thus offering higher representativeness. The optical microscopy method, in contrast, evaluates only about 0.14 mm² per specimen, based on five selected regions from a divided cross-sectional area of 0.25 mm².

In summary, the ultrasonic method emerges as the most effective technique for predicting the mechanical performance of composites, particularly when representative, non-destructive evaluation over a large area is required. These findings highlight the need to balance resolution, analysis volume, and representativeness when selecting void quantification methods, and emphasize that choosing a measurement technique based on its correlation with mechanical properties is essential for improving the precision and reliability of composite material evaluations.

3.3. Optimization of Process Parameters for Micro-Void Control

3.3.1. Factorial Design

A factorial design approach was employed to identify the key process parameters influencing void formation during the defoaming stage of the LCM process.

Based on preliminary experiments and prior studies [13], three variables—defoamer concentration, mixing speed, and mixing time—were selected as the primary factors for investigation.

This design enabled simultaneous evaluation of both main and interaction effects on the ultrasonic attenuation rate, which was used as an indicator of void content.

In this study, three critical parameters of the defoaming process were selected for investigation: defoamer concentration, mixing speed, and mixing time. The defoamer facilitates the collapse of entrapped air bubbles by reducing surface tension. However, excessive use can alter interfacial properties and deteriorate the resin’s performance. Mixing speed promotes uniform dispersion of additives, but overly high speeds may introduce additional air, while insufficient speeds may cause inhomogeneity and poor curing. Likewise, mixing time must be carefully optimized; insufficient time results in uneven composition, while prolonged mixing may cause premature curing or re-bubbling of the resin [13].

To quantitatively evaluate the effects of these factors and their interactions, a two-level full factorial design was constructed using Minitab 22 statistical software.

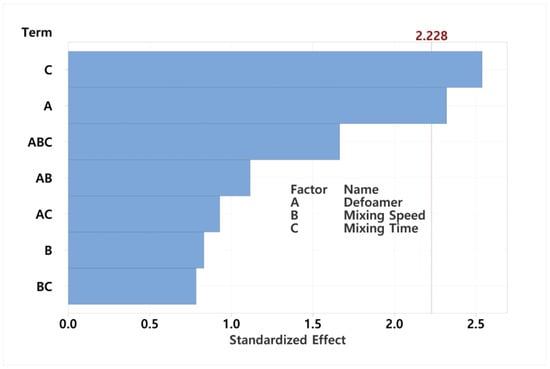

The detailed experimental matrix is presented in Table 1, and the relative significance of each factor is visualized through a Pareto chart in Figure 4.

Figure 4. Pareto chart of standardized effects illustrating the relative significance of process parameters on ultrasonic attenuation rate (%).

This statistical approach allowed for identification of the dominant parameters that significantly influence ultrasonic attenuation prior to response surface optimization.

The experimental results indicated that defoamer concentration and mixing time significantly affected the attenuation rate, which served as a proxy for void content. In contrast, interaction effects and higher-order terms (second- or third-order interactions) were found to be statistically insignificant. Notably, mixing time had a greater influence than defoamer concentration, which may be attributed to the physical behavior of entrapped air—naturally escaping from the resin over time.

To validate the reliability of the regression model, a residual analysis was conducted. The results were as follows:

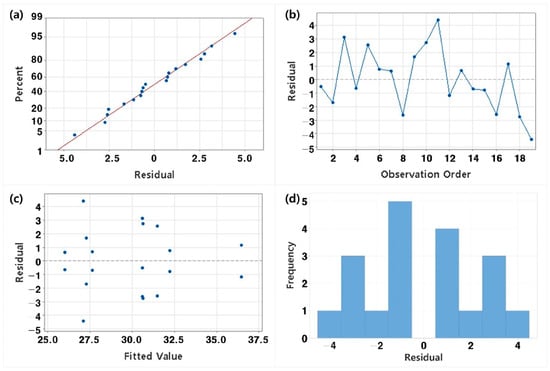

The normal probability plot of residuals (Figure 5a) showed that the residuals approximately followed a straight line, indicating that the assumption of normality was satisfied.

Figure 5. Diagnostic plots for regression model residuals: (a) Normal probability plot of residuals, (b) Residuals versus observation order, (c) Residuals versus fitted values, (d) Histogram of residuals.

The residuals versus observation order plot (Figure 5b) revealed no discernible patterns, suggesting that the experiments were conducted in a random sequence.

The residuals versus fitted values plot (Figure 5c) showed constant variance across the fitted values, confirming the homoscedasticity of the residuals. A slight degree of heteroscedasticity was observed in Figure 5c; however, this was attributed to minor variability among repeated trials and did not affect the reliability of the regression model.

The histogram of residuals (Figure 5d) exhibited a bell-shaped normal distribution, indicating that the statistical characteristics of the data were well captured by the regression model.

Collectively, these results confirm that the regression model satisfies key statistical assumptions—normality, independence, and homoscedasticity—and that the predictive reliability of the model is sufficiently robust for subsequent optimization steps [20].

Based on the factorial analysis results, the two primary process parameters that had statistically significant effects on ultrasonic attenuation (used as a proxy for void content) were identified as defoamer concentration and mixing time. In contrast, the second-order terms and the interaction effect between these two factors were found to be statistically insignificant, with p-values exceeding the threshold of 0.05.

Table 4 presents the results of the analysis of variance (ANOVA) considering only the significant main effects. Both defoamer concentration and mixing time exhibited p-values less than 0.05, reaffirming their statistically significant influence on attenuation rate. Notably, the lower p-value for mixing time indicates that this factor exerts a relatively greater effect on the variation in attenuation, likely due to the extended time allowing for more effective physical removal of entrapped air bubbles from the resin.

Table 4. Analysis of variance (ANOVA) results for the effects of process parameters on ultrasonic attenuation rate (%).

Source	Adj SS	Adj MS	F-Value	p-Value
Model	114.54	38.18	3.70	0.036
Linear	113.10	56.55	5.48	0.016
Defoamer	51.48	51.48	4.99	0.041
Mixing Time	61.62	61.62	5.97	0.027
Curvature	1.44	1.14	0.14	0.714
Error	154.87	10.32
Lack-of-fit	59.20	11.84	1.24	0.361
Pure Error	95.67	9.56
Total	269.41

In addition, a curvature test was conducted to evaluate the existence of non-linearity in the response surface. The p-value for the curvature term was calculated as 0.714, which is significantly greater than 0.05, indicating no statistically significant evidence of curvature within the current experimental domain. This result implies that the response surface behaves in a linear manner under the tested conditions and that the global optimum may lie beyond the current design space.

Based on these results, a first-order regression model in uncoded (real-world) units was established as follows:

Attenuation rate (%) = 34.59 − 119.6 × Defoamer concentration (wt%) − 0.0327 × Mixing time (min)

(1)

As shown in Equation (1), both coefficients in the regression equation are negative, suggesting that increasing the defoamer concentration and mixing time leads to a reduction in attenuation rate. This trend indicates a corresponding decrease in void content, thereby implying improved physical integrity and mechanical performance of the composite material.

Furthermore, the absence of an interaction term (i.e., the product of the two variables) in the regression model confirms that the interaction effect between defoamer concentration and mixing time was statistically insignificant within the tested range.

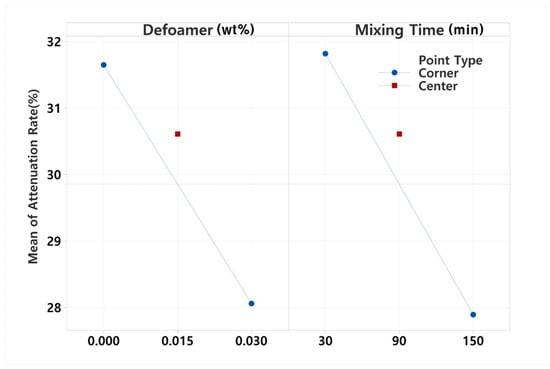

Figure 6 illustrates the main effects of each factor on attenuation rate. The results clearly show that attenuation reaches its minimum near a defoamer concentration of 0.03 wt% and a mixing time of 150 min, corroborating the findings derived from the regression model. Both parameters demonstrate a strong negative correlation with attenuation.

Figure 6. Main effects plot showing the influence of defoamer concentration (wt%) and mixing time (min) on attenuation rate (%).

However, the lack of statistical significance in the curvature test indicates that the response surface remains linear within the current design domain. This suggests that the optimal conditions for minimizing void content may not yet have been reached and could exist outside the currently tested range. Accordingly, further experiments employing the Steepest Ascent Method are recommended to explore the response gradient and identify a local optimum in regions where curvature may be present.

3.3.2. Steepest Ascent Method

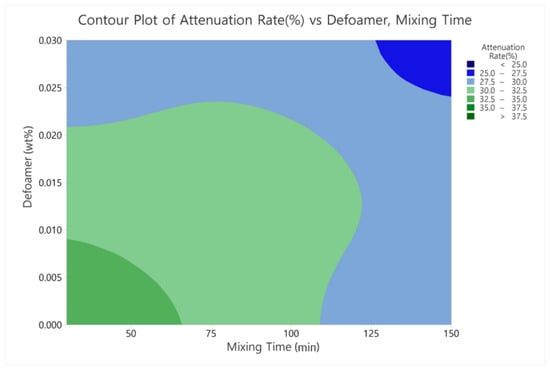

Figure 7 presents a two-dimensional contour plot showing the variation in the attenuation rate with respect to defoamer concentration and mixing time. The contour distribution indicates that the lowest attenuation values occur in the upper-right region of the plot, where both variables are at their highest levels. This trend suggests that, in order to reach the optimal response, both defoamer concentration and mixing time should be increased simultaneously.

Figure 7. Contour plot of attenuation rate (%) as a function of defoamer concentration (wt%) and mixing time (min).

To systematically approach the optimum region, the Steepest Ascent Method was employed in this study. This method involves adjusting the experimental conditions along the direction of the gradient vector derived from the initial regression model, thereby iteratively moving toward conditions that yield improved response values [21]. Once the progression reaches a point where no further meaningful improvement in attenuation is observed, subsequent optimization can be performed using Response Surface Methodology (RSM) to precisely identify the local optimum.

The estimated regression coefficients and their statistical significance for defoamer concentration and mixing time are summarized in Table 5. The negative coefficients confirm that both factors contribute to reducing attenuation, with mixing time exhibiting a slightly stronger effect.

Table 5. Estimated regression coefficients, t-values, and p-values for the first-order model evaluating the effects of defoamer concentration and mixing time on ultrasonic attenuation rate (%).

Term	Effect	Coef	T-Value	p-Value
Constant		29.855	36.90	0.000
Defoamer	−3.588	−1.794	−2.22	0.044
Mixing Time	−3.925	−1.962	−2.43	0.029
Defoamer * Mixing time	1.437	0.719	0.89	0.389
Ct Pt		0.75	0.37	0.717

* indicates the interaction term between defoamer concentration and mixing time.

In particular, as shown in Table 5, the defoamer concentration and mixing time yielded statistically significant p-values (0.044 and 0.029, respectively), indicating their individual influence on attenuation rate. Meanwhile, the interaction term between defoamer and mixing time was not statistically significant (p = 0.389), suggesting that the effects of each parameter are largely independent within the studied range. This supports the validity of the linear first-order model used in the steepest ascent approach.

Accordingly, the Steepest Ascent Method was applied in this study to identify the optimal processing conditions for minimizing ultrasonic attenuation. This statistical approach iteratively adjusts the experimental variables in the direction of the steepest gradient—i.e., the direction in which the response variable (attenuation rate) improves most rapidly—enabling efficient navigation toward the optimal region within the response surface.

A critical step in implementing the Steepest Ascent Method is the selection of a principal variable. Although both defoamer concentration and mixing time were found to significantly influence the attenuation rate, defoamer concentration was selected as the primary factor due to its relative ease of experimental control. Using standardized regression coefficients derived from the initial model, the gradient ratio was calculated to determine how much the mixing time should be adjusted when the defoamer concentration is increased by one coded unit. The ratio of the mixing time coefficient (−1.962) to the defoamer coefficient (1.794) yielded approximately 1.1. When converted to actual experimental units, this corresponds to an increment of 66 min in mixing time (i.e., 60 min × 1.1) for every unit increase in defoamer concentration [13].

Based on this gradient direction, a series of experiments was conducted by progressively adjusting the process conditions. The results are summarized in Table 6. The attenuation rate continued to decrease up to a condition of 0.045 wt% defoamer concentration and 222 min of mixing time, beyond which further changes in the process variables did not lead to additional improvements in the response. This indicates that these conditions are located near the optimal region for minimizing attenuation.

Table 6. Experimental results from the Steepest Ascent Method showing the effect of increasing defoamer concentration and mixing time on attenuation rate (%).

StdOrder	Defoamer (wt%)	Mixing Time (min)	Attenuation Rate (%)
1	0.015	90	30.8
2	0.030	156	25.8
3	0.045	222	21.4
4	0.060	288	21.0
5	0.075	354	21.6
6	0.090	420	20.7

It is also worth noting that excessive defoamer addition can adversely alter the interfacial properties of the resin, leading to degradation in curing characteristics and mechanical performance. Similarly, overly extended mixing times may increase the resin’s viscosity or cause premature curing, compromising the processability. Therefore, the experimental results suggest that the practical optimal conditions for attenuation minimization lie near 0.045 wt% defoamer concentration and 222 min of mixing time. In the subsequent step, Response Surface Methodology (RSM) was employed to conduct a more precise exploration of the local optimum within the defined design space.

3.3.3. Response Surface Methodology

Following the factorial design and Steepest Ascent Method, defoamer concentration and mixing time were identified as statistically significant factors influencing the attenuation rate, and the potential presence of curvature in the response surface was suggested. Consequently, this study employed Response Surface Methodology (RSM) to perform a more refined optimization of the process parameters [22].

The RSM experimental design was based on a Central Composite Design (CCD), with the optimal condition derived from the Steepest Ascent Method—namely, 0.045 wt% defoamer concentration and 222 min of mixing time—used as the center point. The design included a total of 14 additional experiments: three center points per block, four axial points, and seven factorial points from the previous design [23]. The detailed experimental matrix and the measured attenuation rates are summarized in Table 7.

Table 7. Experimental matrix and attenuation rate results for response surface methodology (RSM) based on central composite design.

StdOrder	Defoamer (wt%)	Mixing Time (min)	Attenuation Rate (%)
1	0.06	156	23.6
2	0.045	222	21.5
3	0.06	288	21.0
4	0.045	222	20.8
5	0.03	288	24.9
6	0.045	156	25.8
7	0.024	222	20.1
8	0.066	222	26.8
9	0.045	222	25.9
10	0.045	128	27.5
11	0.045	315	26.9
12	0.045	222	22.3
13	0.045	222	20.8
14	0.045	222	21.6

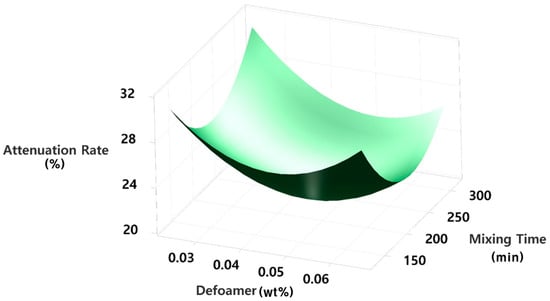

Figure 8 presents a three-dimensional contour plot of the response surface, visually confirming that the minimum attenuation rate occurs in the vicinity of 0.045 wt% defoamer concentration and 222 min of mixing time. Subsequently, a numerical optimization tool based on the fitted RSM model was employed to determine the precise combination of process variables that minimizes the attenuation rate.

Figure 8. Three-dimensional surface plot showing the combined effects of defoamer concentration (wt%) and mixing time (min) on ultrasonic attenuation rate (%).

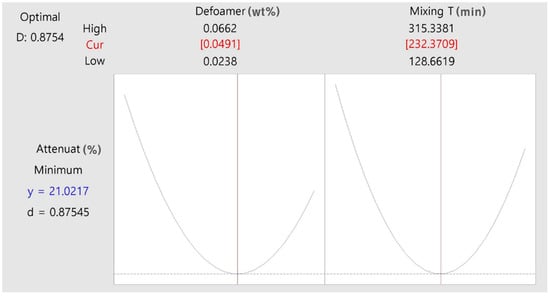

As shown in Figure 9, the optimal condition was identified at a defoamer concentration of 0.049 wt% and a mixing time of 232 min, at which point the attenuation rate was minimized to approximately 21%. These results were validated statistically using the fitted regression model rather than through additional specimen fabrication. The RSM model exhibited a high coefficient of determination (R² = 0.98) and a statistically significant fit (p < 0.05), confirming the reliability of the predicted optimal parameters. This indicates that the optimized process conditions can effectively minimize void content and enhance the mechanical reliability of the composite without requiring further experimental confirmation.

Figure 9. Response optimization plot identifying the optimal process conditions for minimizing attenuation rate: 0.049 wt% defoamer concentration and 232 min of mixing time.

The outcome of the response surface optimization highlights the critical impact of the defoaming process on the quality of composite structures used in submarine applications. Furthermore, the statistical validation supports the effectiveness of data-driven process optimization in ensuring consistent manufacturing quality and improving the reliability of advanced composite fabrication.

4. Conclusions

This study systematically investigated the improvement in mechanical performance in composite materials used for the non-pressure hull structures of submarines by focusing on the quantitative evaluation of internal micro-voids and their reduction through process optimization. Three non-destructive evaluation (NDE) techniques—C-Scan ultrasonic testing, optical microscopy with image analysis, and Micro-CT scanning—were applied to quantify void content, and the correlations between void characteristics and mechanical properties (tensile and flexural strength) were comparatively analyzed.

The results indicated a negative correlation between the void content and mechanical strength across all evaluation methods, with the C-Scan ultrasonic method demonstrating the strongest correlation. Due to its broad scanning area, this method also showed statistical significance (p < 0.05), thereby validating its effectiveness in reflecting overall material behavior. These findings underscore the importance of representativeness in measurement scope for predicting mechanical performance and experimentally confirm that the C-Scan ultrasonic method is particularly effective for reliability assessment of composite structures.

Furthermore, factorial design, Steepest Ascent Method, and Response Surface Methodology (RSM) were sequentially employed to identify and optimize key defoaming process parameters, including defoamer concentration, mixing speed, and mixing time. The optimal process conditions were determined to be a defoamer concentration of 0.049 wt% and a mixing time of 232 min, which corresponded to the lowest ultrasonic attenuation rate, indicating a reduction in the void content and improved mechanical strength.

These results suggest that precise control of defoaming parameters can effectively suppress void defects and contribute to the structural soundness and reliability required for large-scale composite applications. In particular, the establishment of a quantitative correlation between process parameters and void characteristics provides a practical and technically grounded optimization strategy that can enhance industrial applicability.

Nevertheless, this study was conducted under limited sample sizes and processing conditions, indicating the need for extended research across various resin systems, fiber configurations, and molding techniques. Future work should also aim to establish advanced composite design and evaluation models through detailed correlation analyses between microstructural features (e.g., void shape, spatial distribution) and mechanical behavior.
