J. Compos. Sci. 2017, 1(2), 19; https://doi.org/10.3390/jcs1020019

Convergence Investigation for the Exponential Matrix and Mathematical Layers in the Static Analysis of Multilayered Composite Structures

Department of Mechanical and Aerospace Engineering, Politecnico di Torino, Corso Duca degli Abruzzi, 24, 10129 Torino, Italy
*
Author to whom correspondence should be addressed.
Received: 28 November 2017 / Revised: 13 December 2017 / Accepted: 13 December 2017 / Published: 18 December 2017
(This article belongs to the Special Issue Mechanics of Innovative Materials in Engineering Applications)
Full-Text   |   PDF [350 KB, uploaded 19 December 2017]   |

Abstract

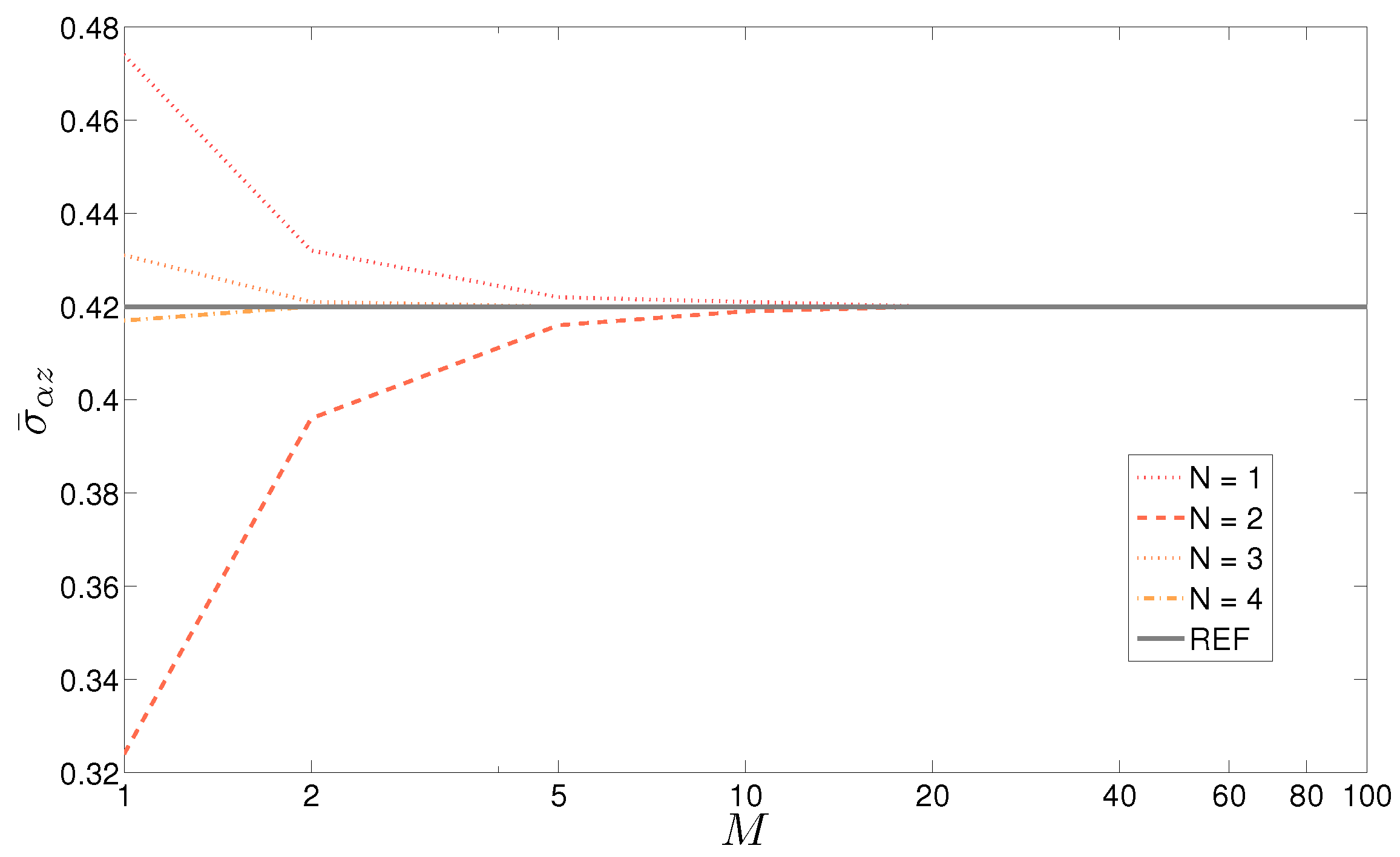

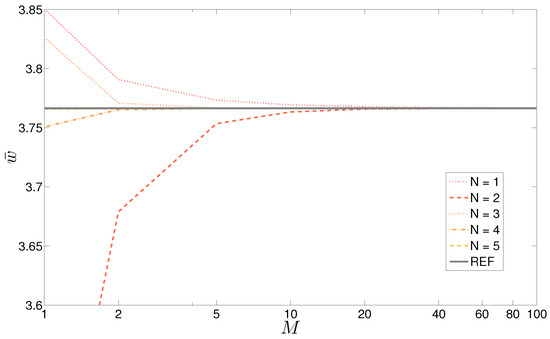

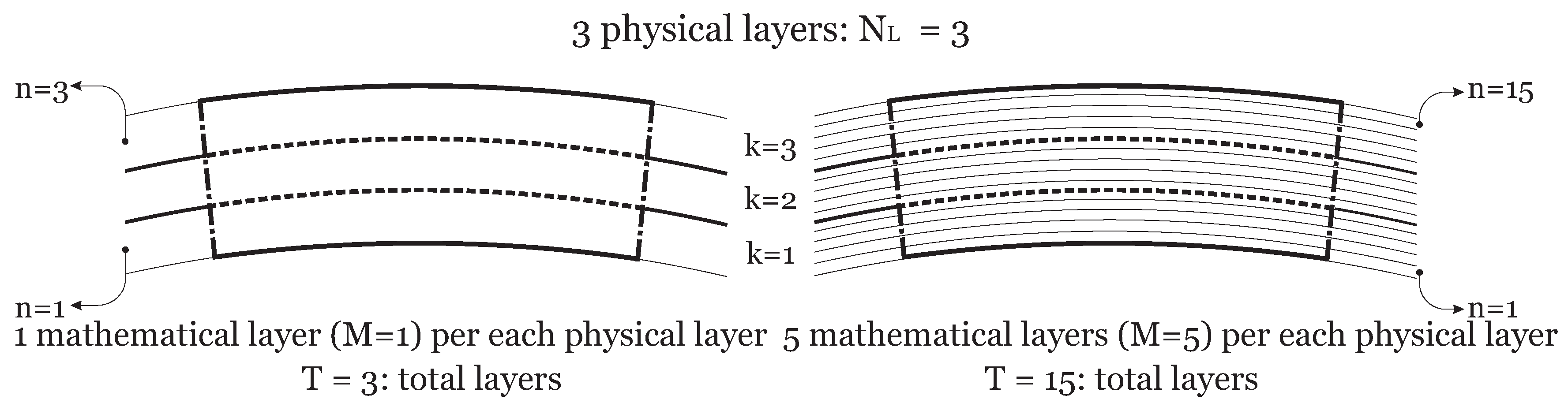

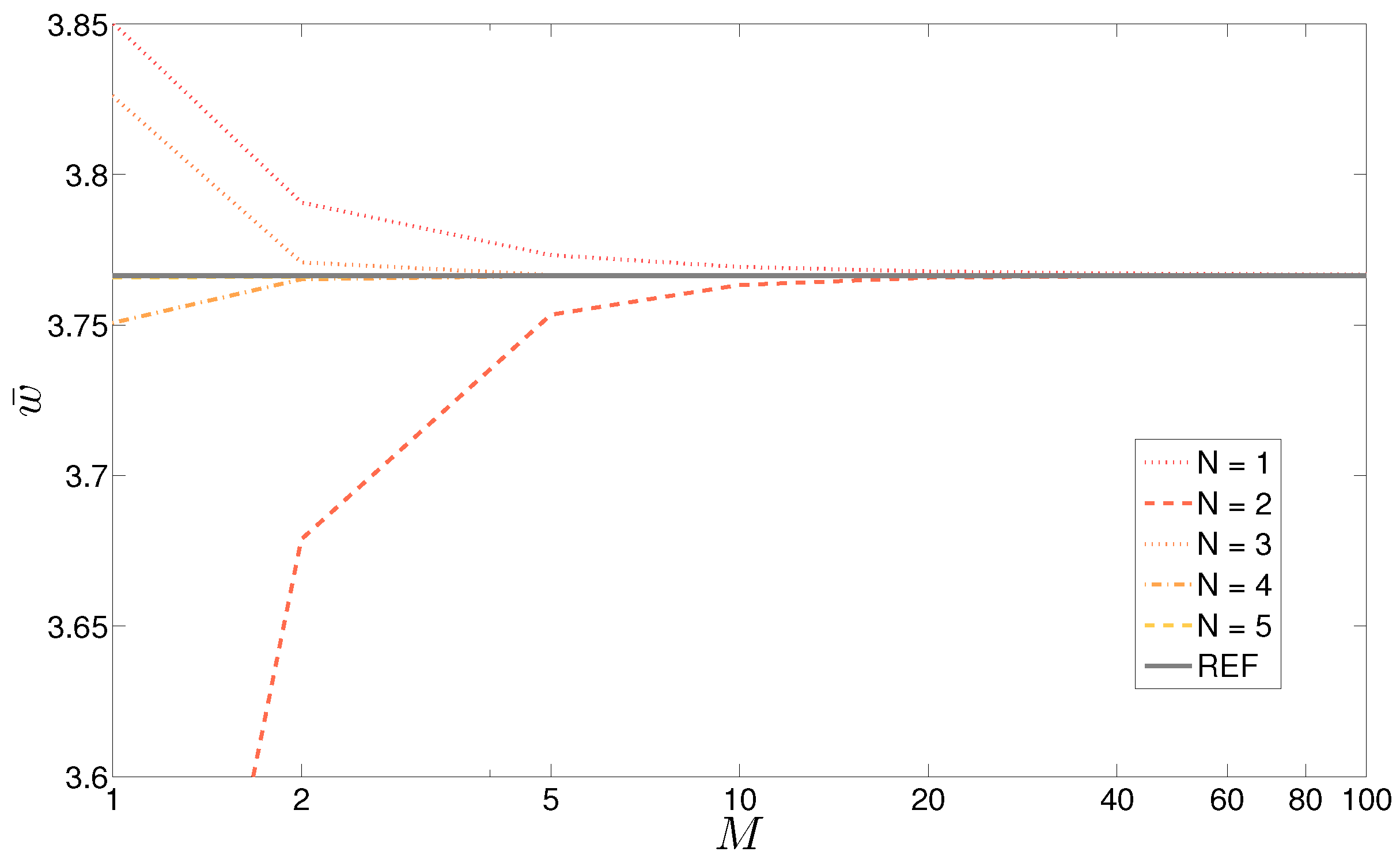

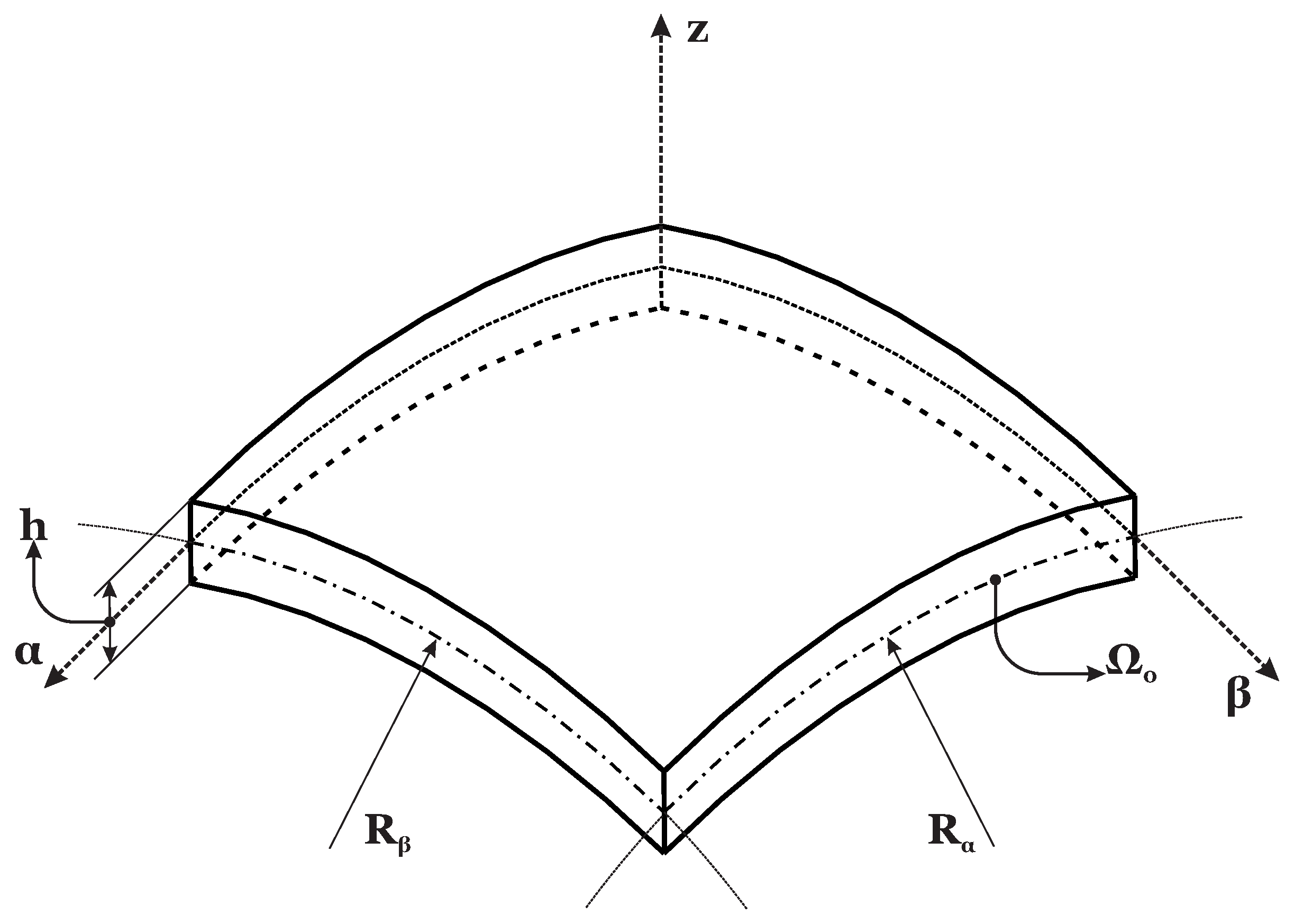

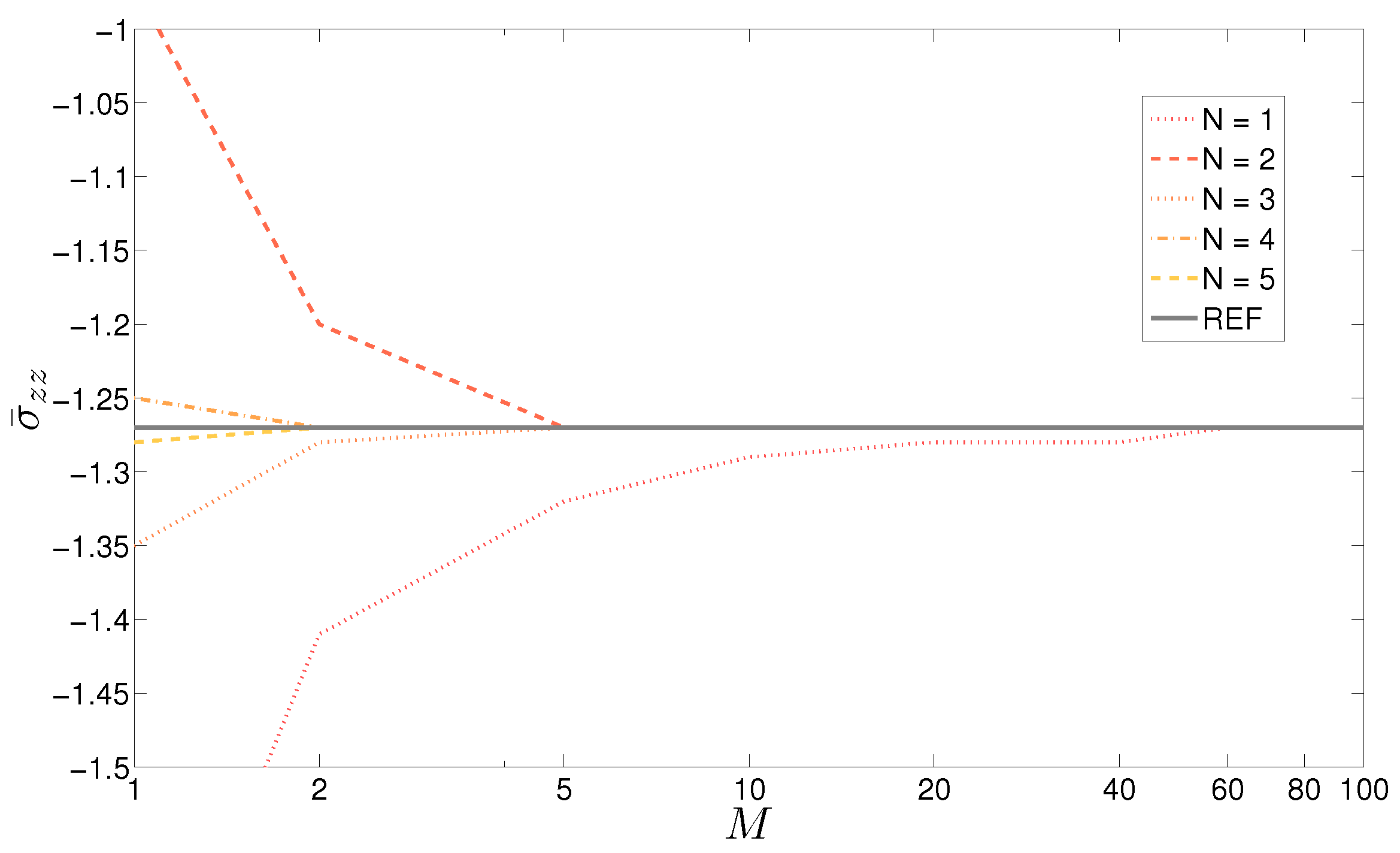

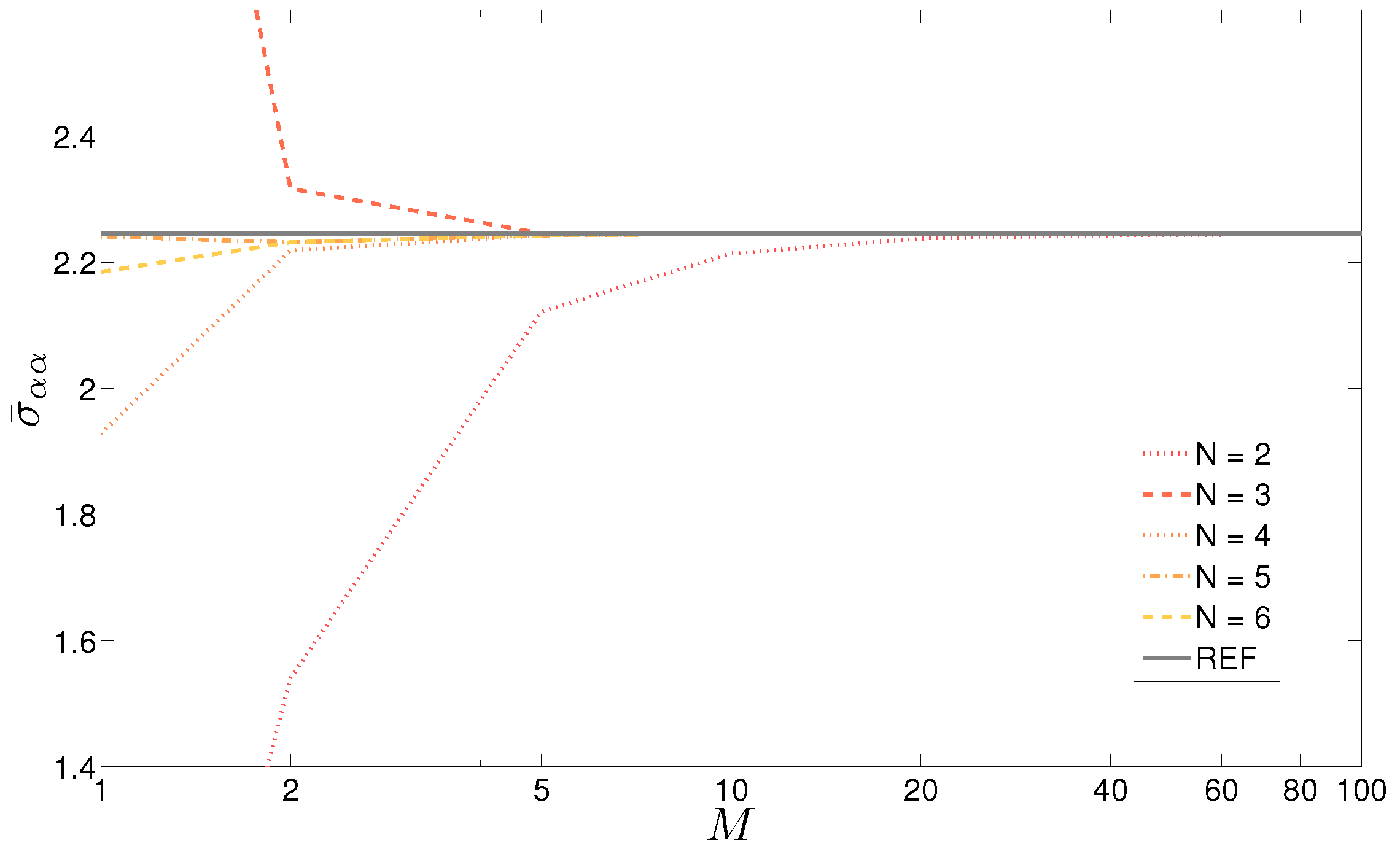

The exact three-dimensional analysis of a large group of geometries is accomplished here using the same formulation written in orthogonal mixed curvilinear coordinates. This solution is valid for plates, cylindrical shells, cylinders and spherical shells. It does not need specialized equations for each proposed geometry. It makes use of a formulation that is valid for spherical shells and automatically degenerates in the simpler geometries. Second order differential equations are reduced of an order redoubling the number of variables, and then they are solved via the exponential matrix method. Coefficients of equations vary through the thickness when shells are considered. M mathematical layers must be introduced into each physical layer to approximate the curvature. The correlation between M and the order of expansion N for the exponential matrix is analyzed in this paper in order to find their opportune combined values to obtain the exact results. As their effects may depend on different parameters, several geometries, lamination sequences, thickness ratios and imposed half-wave numbers are taken into consideration. View Full-Text
Keywords: plates; shells; static analysis; 3D elasticity solution; exact method; exponential matrix method; convergence study; mathematical layers plates; shells; static analysis; 3D elasticity solution; exact method; exponential matrix method; convergence study; mathematical layers
Figures

Figure 1
