Bio-Based Polyester/Cellulose Films for Engineering Applications ^†

A large part of the materials intended for engineering applications are still based on non-renewable resources, thus contributing to the accumulation of plastic wastes [1]. The replacement of petroleum-based polymers with bio-based ones is a must of the current period. Poly(lactic acid) (PLA) is the most used biopolymer due to its many advantages arising from its good mechanical properties and transparency along with the availability on the market, and easy processing [2]. Poly(3-hydroxybutyrate) (PHB) is one of the most promising biopolyesters obtained from bacterial fermentation and is seen as a substitute of petroleum-based polymers in biomedical and engineering applications [3]. Nanocellulose represents a renewable and innovative filler, that incorporated or combined with other biopolymers may give rise to a multitude of performing and sustainable multifunctional materials [1,3]. This work aimed to obtain PLA/PHB composite films reinforced with different concentrations (0–4 wt%) of nanocellulose extracted from cheap sources. Nanocellulose extracted from agricultural waste (NC), polylactic acid (PLA 4032 D), in the form of pellets, containing 1.4% D isomer and with an average molecular weight of 220 kDa (NatureWorks LLC, Minnetonka, MN, USA) and PHB powder from Biomer (Germany) were used in this study. The polymer composites were obtained by melt–mixing method using a fully automated Brabender plastograph and pressed into films with 0.28 mm (±0.001 mm) thickness. Incorporation of NC in the PLA/PHB matrix influenced the Young’s modulus (Y), which was improved in relation to the control sample regardless NC concentration (Figure 1). The thermal stability of the obtained composites was not diminished by the addition of NC. Moreover, an increase in the onset temperature by 9 °C was attained in the composite samples containing the highest NC amount. DMTA results showed an enhancement of the storage modulus for all PLA/PHB/NC composites, especially at room temperature, revealing the reinforcing effect of this type of fibers.

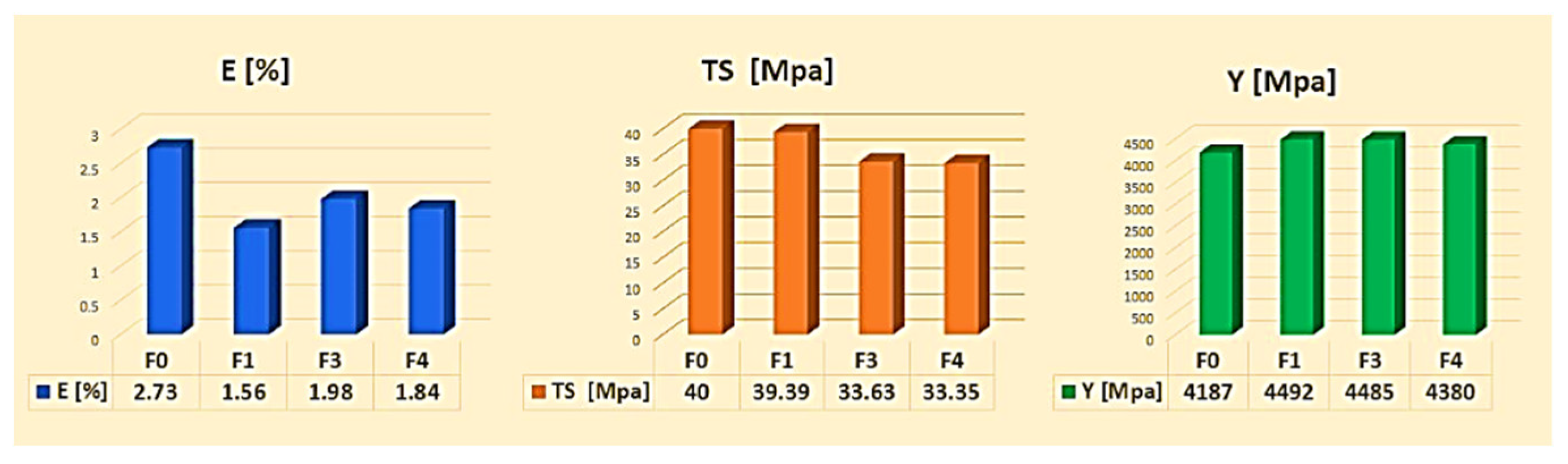

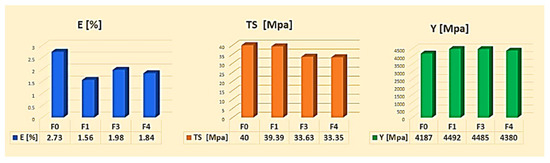

Polyesters-nanocellulose composite films intended for engineering applications were obtained using only bio-based materials. TGA analysis highlighted the positive effect of NC fillers on improving the thermal stability of the PLA/PHB matrix. Both static tensile test and dynamical mechanical analysis pointed out an improved stiffness upon the incorporation of NC. Thus, the obtained composites can be considered as potential candidates for safe toys.
