Single Crystal X-ray Structure Analyses of Thallides: Halide Incorporation and Mixed Alkali Sites in A₈Tl₁₁X (A = K, Rb, Cs; X = Cl, Br) ^†

Abstract

A₈Tl₁₁ (A = alkali metal) compounds have been known since the investigations of Corbett et al. in 1995 and still are matter of current discussions as the compound includes one extra electron referred to the charge of the Tl₁₁⁷⁻ cluster. Attempts to substitute the charge by incorporation of a halide atom succeeded for the lightest homologue of the group, Cs₈Ga₁₁Cl, and powder diffraction experiments for the heavier homologues also suggested the formation of analogous compounds. However, X-ray single crystal studies on A₈Tl₁₁X to prove this substitution and to provide a deeper insight into the influence on the thallide substructure have not yet been performed, probably due to severe absorption combined with air and moisture sensitivity for this class of compounds. In our contribution we present single crystal X-ray analyses of the new compounds Cs₈Tl₁₁Cl_0.8, Cs₈Tl₁₁Br_0.9 and Cs₅Rb₃Tl₁₁Cl_0.5. It is shown that a (partial) incorporation of halide can also be indirectly determined by examination of the Tl-Tl distances for low resolved data sets, e.g., for Cs_5.7K_2.3Tl₁₁Cl_?. Mixed occupied sites by two different alkali metals indicate a dependence on the cesium content, the systems K/Rb–Tl–Br and K/Rb–Tl–Cl only gave rise to the formation of the higher reduced (K/Rb)₈Tl₁₁ and the less reduced by-product (K/Rb)₁₅Tl₂₇. We have not been able to prove the formation of halide including thallides in the absence of cesium.

1. Introduction

The largest (empty) thallide cluster is represented by the Tl₁₁⁷⁻ cluster which is present in binary materials A₈Tl₁₁ [1,2] and A₁₅Tl₂₇ [3] (A = K, Rb, Cs). The A₈Tr₁₁ structure type was first described in 1991 for the lighter homologue indium in K₈In₁₁, [1,4] of which the crystal structure proved the presence of a naked, pentacapped trigonal prismatic shaped In₁₁ cluster, which was assigned a charge of −7. Additionally, one extra-electron per formula unit is present, which is responsible for the metallic character. The additional electron, referred to the charge of −7 of the cluster anion, is not necessary for the stability of the clusters [5] and can be replaced by halide atoms, which are located on a $\overline{3}$ void (Wyckoff position 6b) at the origin of the unit cell resulting in a diamagnetic character of the compounds. Halide incorporation was proven for the lighter homologue of the group, Cs₈Ga₁₁Cl by X-ray single crystal structure analysis. [6] Powder diffraction experiments suggested the formation of the heavier homologues Rb₈Ga₁₁Cl, Cs₈Ga₁₁X (X = Br, I), Rb₈In₁₁Cl, Cs₈In₁₁Cl, Cs₈Tl₁₁X (X = Cl, Br, I). The formation of Rb₈Tl₁₁Cl was termed as doubtful due to the lack of a significant change in the lattice constants compared to Rb₈Tl₁₁.

The questions we wanted to answer were: (1) How does the geometry of the thallide cluster change on halide incorporation; (2) Is there a Rb₈Tl₁₁Cl_?; (3) How do mixed cation sites affect the amount of halide incorporation?

In Section 2 (Results) we report on the first single crystal X-ray structure determination of halide including thallides, Cs₈Tl₁₁Cl_0.8, Cs₈Tl₁₁Br_0.9, Cs₅Rb₃Tl₁₁Cl_0.5 and Cs_5.7K_2.3Tl₁₁Cl_?. Subsequently, (Section 3, Discussions) the crystal structures are investigated according to the questions listed above.

2. Results

All compounds crystallize in a variant of the K₈In₁₁ structure type (rhombohedral, spacegroup R$\overline{3}$c) and especially for the mixed alkali metal compounds, many of the crystals happened to form typical “multicrystals”. Due to the presence of reverse/obverse twinning a R(obv) filter was applied during data reduction. The materials naturally possess very high absorption coefficients (μ > 60 mm⁻¹), therefore small single crystals have been chosen for the X-ray analyses. However, the data sets still suffer from severe absorption effects which could be reduced by carefully applying numerical absorption correction (including refinement of A and B factors). Thereby, the adjustment of the correct shape played a dominant role.

Table 1. Selected data reduction and refinement details.

Chemical Formula	Cs8Tl11Cl0.8	Cs8Tl11Br0.9	Cs5Rb3Tl11Cl0.5	Cs5.7K2.3Tl11Cl0.6
Space group	R$\overline{3}$c	R$\overline{3}$c	R$\overline{3}$c	R$\overline{3}$c
a [Å]	10.4697(4)	10.5608(3)	10.3791(5)	10.3291(9)
b [Å]	10.4691(4)	10.5608(3)	10.3791(5)	10.3291(9)
c [Å]	53.297(3)	53.401(2)	52.437(3)	51.909(5)
α [°]	90	90	90	90
β [°]	90	90	90	90
γ [°]	120	120	120	120
V [Å3]	5058.8(5)	5157.9(4)	4892.0(5)	4796.3(9)
μ [mm−1]	60.902	60.745	64.052	61.908
R indices (all data)	R1 = 0.0309, wR2 = 0.0629	R1 = 0.0280, wR2 = 0.0541	R1 = 0.0466, wR2 = 0.0970	R1 = 0.0566, wR2 = 0.1034
Rint	0.0497	0.0385	0.0446	0.0449

lists selected data for the structure determination. For the chloride including compounds two additional, unresolved but several times reproduced residual electron density peaks (≈1.5 Å beside the chlorine atom, ≈2.2 Å beside cesium; along the c-axis) are present, which we attribute to unresolved absorption effects as this direction is along the thinnest direction of the plate like crystals. For the bromine including compound this effect is not as dominant as for the chlorine including ones but still is observed.

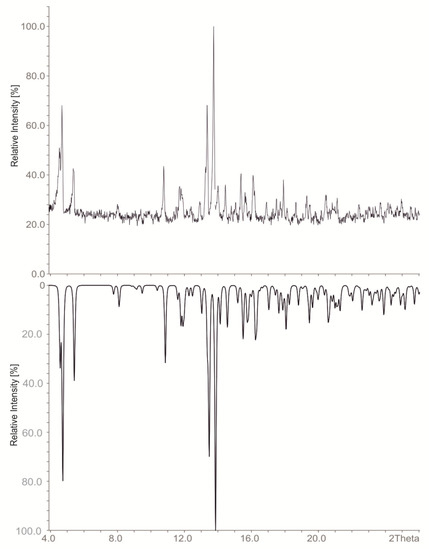

With only one cation being present in the Cs₈Tl₁₁Cl_0.8 and Cs₈Tl₁₁Br_0.9, phase pure materials could be obtained according to the powder diffraction pattern of the bulk material (refined cell contstants at room temperature for Cs₈Tl₁₁Cl_0.8: a = 10.566(5), c = 53.67(3), R$\overline{3}$c, 17 single indexed lines, Figure 1). Additionally the unit cells were checked for several single crystals which confirmed phase pureness.

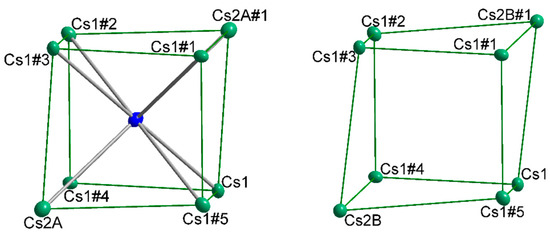

The quality of the crystals is significantly improved for Cs₈Tl₁₁X compared to the mixed alkali metal compounds, and in these cases we were able to obtain better resolved data which allowed for the determination of split positions of one alkali metal according to the site occupany factor (s.o.f.) of the halide atom. For the reported single crystals with mixed alkali metal positions the data quality is worse compared to Cs₈Tl₁₁X phases, therefore the splitting of the alkali metal position could not be observed due to the lower resolution of the data sets. In this case, we refined the s.o.f. of the halide and for Cs₅Rb₃Tl₁₁Cl_0.5 this resulted in an improvement of the F_o/F_calc ratio and the residual electron density, therefore we consider the value of 0.50(4) to be true. In contrast, the same treatment of the halide in the data set of Cs_5.7K_2.3Tl₁₁Cl_0.6 (refined s.o.f.: 0.60(4)) did not allow for a significant improvement of the model, therefore the amount of halide incorporation cannot be determined reliably in this case, but the s.o.f. value of the halogen atom fits the s.o.f. for Cs amount of the split position.

3. Discussion

3.1. How Does the Geometry of the Thallide Cluster Change on Halide Incorporation?

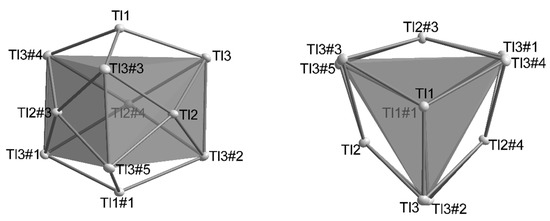

All A₈Tl₁₁ and A₈Tl₁₁X_x compounds include Tl₁₁⁷⁻ clusters, which are best described as a very compressed, pentacapped trigonal prism [2]. Three symmetry independent thallium atoms are located on three different Wyckoff positions of space group R-3c: Tl1(12c; 3-fold rotational axis), Tl2 (36f; general position) and Tl3 (18e; 2-fold rotational axis) and build up a cluster consisting of 11 Tl atoms in point group D₃. The deviations from point group D_3h are very small (Figure 2) and are represented by a distortion of the height of the trigonal prism built by Tl3-atoms. This distortion is also reflected in the distances of Tl2-Tl3 (d(Tl2-Tl3): =cd) as there are two crystallographically independent distances present. The degree of distortion decreases with increasing similarity of the capping distances (cd). In

Table 2. Selected distances (numbering scheme according to Figure 2, values taken from [1,2]), tilt angle and cdd/cd_av value for K₈Tl₁₁ and Rb₈Tl₁₁.

		K8Tl11	Rb8Tl11
Tl2	Tl3	3.0476(4)	3.060
Tl2	Tl33	3.1396(4)	3.157
Tl1	Tl31	3.1304(4)	3.147
Tl3	Tl33	3.2054(7)	3.219
Tilt		4.69(2)°	4.90°
cdd/cdav [%]		3.0	3.1

^{1, 3} symmetry operations according to Figure 2.

and

Table 3. Selected distances (numbering scheme according to Figure 2), tilt angle and cdd/cd_av value for Cs₈Tl₁₁Cl_0.8, Cs₈Tl₁₁Br_0.9, Cs₅Rb₃Tl₁₁Cl_0.5 and Cs_5.7K_2.3Tl₁₁Cl_?

		Cs8Tl11Cl0.8	Cs8Tl11Br0.9	Cs5Rb3Tl11Cl0.5	Cs5.7K2.3Tl11Cl0.6
Tl2	Tl3	3.0656(4)	3.0743(2)	3.0605(6)	3.0554(7)
Tl2	Tl33	3.0632(4)	3.0766(2)	3.0896(6)	3.0656(4)
Tl1	Tl31	3.0894(4)	3.1006(2)	3.1049(7)	3.0884(8)
Tl3	Tl33	3.2019(11)	3.2102(4)	3.2025(11)	3.1873(11)
Tilt [°]		0.12(2)	0.069(7)	0.94(2)	0.34(5)
cdd/cdav [%]		0.1	0.1	0.9	0.4

the distances as well as the distortion angles are listed and the dependence on the amount of halide incorporation is clearly evident. In contrast, the height of the trigonal prism (Tl3-Tl3) as well as the distance of the capping atom Tl2 to the mean plane built by Tl3 atoms [d(Tl2-plane) = 0.56 Å] and also the Tl1-Tl3 distances do not significantly change. Based on these observations we introduce a cdd/cd_av ratio (cdd: capping distance difference; cd_av: average capping distance; (1)) which allows for a quick estimation of the degree of distortion.

3.2. Is There a Rb₈Tl₁₁Cl?

Despite numerous efforts we did not succeed in synthesizing Rb₈Tl₁₁Cl and the analogous reaction approaches only yielded crystals of Rb₈Tl₁₁ of bad quality. The incorporation of halide cannot be completely ruled out as there is some residual electron density at Wyckoff position 6b according to the position of the halide atom in the previously discussed compounds. However, the cdd/cd_av ratio of 2.4% compared to 3.0 % (K₈Tl₁₁) and 3.1% (Rb₈Tl₁₁) and a tilt angle of 2.4° (K₈Tl₁₁: 4.7°, Rb₈Tl₁₁: 4.9°) suggest a minimal involvement of chloride; the s.o.f. for chlorine at this position refined to a value of 10%, but the resolution of the data set does not allow for a distinct statement.

3.3. How Do Mixed Cation Sites Affect the Amount of Halide Incorporation?

It needs to be emphasized that for the preparation of all compounds the same stoichiometric approach was employed and the dependence of the amount of halide incorporation on the cesium content is conspicuous. Therefore, the cation positions need to be examined more in detail. There are two different cation positions in the asymmetric unit corresponding to Wyckoff position 36f for A1 and Wyckoff position 12c for A2. For Cs₅Rb₃Tl₁₁Cl_0.5 and Cs_5.7K_2.3Tl₁₁Cl_? the position of A1 is mixed occupied by both alkali metals and the s.o.f. values for cesium on the mixed position are very similar to the s.o.f. for the halide, although the value of 0.60(4) for Cs_5.7K_2.3Tl₁₁Cl_? cannot be affirmed definitely. The position of A2 is only occupied by the heavier alkali metal cesium, which is in accordance with the observations of Corbett et al. for the A₈Tl₁₁ phases. [2] This cation position shows the previously mentioned splitting dependent on the s.o.f. of the halogen atom. The resulting coordination sphere of the halide is best described as distorted cubic, where the longer distances are along the room diagonal of the cubic arrangement from the halide to the position of A2. This distance shortens significantly for X-A2 by the introduction of the split positions (same s.o.f. as halide), resulting in a less distorted cubic arrangement (Figure 3). This might explain the observation, that halides are only incorporated when cesium occupies A2 and is also involved in A1 mixed occupied sites, as the (distorted) cubic arrangement resembles very much the coordination of the halide in the CsCl structure type (d(Cs-Cl) = 3.573 Å; d(Cs-Br) =3.718 Å).

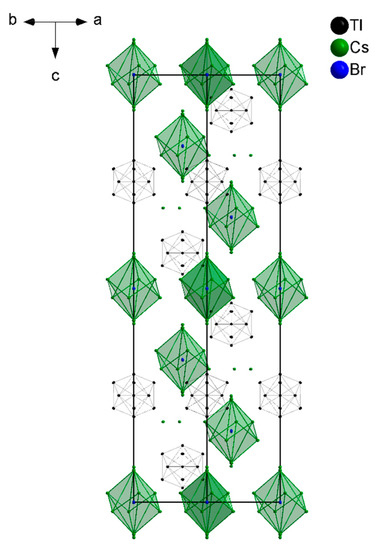

The previously stated stability of the halide including A₈Tr₁₁X phases might not be exclusively caused by the effect of charge balance due to halide incorporation but additionally by the stabilization of halide in a distorted cubic arrangement (Figure 4). This might also explain that less (or even no) halide is incorporated when less (or no) cesium is involved. In return, the Tl₁₁ clusters themselves seem to tolerate any charge between 7⁻ and 8⁻.

4. Materials and Methods

All compounds have been synthesized via a stoichiometric approaches using high temperature solid state techniques. Cesium and Rubidium were produced by the reduction of the corresponding alkali metal halide with elemental Calcium [7] and distilled twice, potassium was segregated for purification. Thallium lumps have been stored under inert atmosphere and were used without further purification. The starting materials were enclosed in tantalum crucibles which were subsequently placed in quartz glass ampoules and sealed under argon atmosphere. The same temperature program was used for all compounds: Heating to 700 °C with a heating rate of 50 °C/h, holding for 24 h, cooling to room temperature with a cooling rate of 3 °C/h to allow for crystallization. All compounds are very sensitive towards moisture and oxygen and degeneration of the crystals was observed (gassing) in dried mineral oil within a few hours. Suitable single crystals for X-ray structure analysis were isolated in dried mineral oil and mounted on an Agilent SuperNova (Mo-source, Eos detector) using MiTeGen loops. Thereby, the transfer needed to be very quick as the crystals started to decompose as soon as the mineral oil film became too thin. Once placed on the diffractometer in the nitrogen stream at 123 K the crystals remained stable and data collection was possible.
