Modified Nickel Nanowires for Electro-Catalytic Oxidation of Formaldehyde in Alkaline Solutions ^†

Abstract

A Ni nanowires-based electrodes for formaldehyde (HCHO) detection were fabricated via a template-assisted electrodeposition. The as-deposited Ni nanowires (NWs) were characterized by scanning electron microscope (SEM). In order to form an active redox couple of Ni(OH)₂/NiOOH on the surface of nanowires, the Ni NWs were electrochemically modified in 0.5 mol L⁻¹ KOH using cyclic voltammetry. The presence of Ni(OH)₂/NiOOH on the surface of Ni NWs was confirmed by transmission electron microscopy (TEM). Furthermore, the ability of modified Ni NWs-based electrode (i.e., receptor element) was investigated for HCHO electro-oxidation in alkaline media via cyclic voltammetry and amperometry. The fabricated Ni NWs-based electrode exhibited fast response (3s), good selectivity, a high sensitivity and low limit of detection 0.8 μmol L⁻¹.

1. Introduction

Formaldehyde (HCHO) is a very important compound in the fuel cell industry. It is also one of the initial products of the methanol oxidation, which has technological significance in industrial catalytic processes [1]. It was found in many products, to which many industrial workers and customers are exposed on a daily basis. Exposure to formaldehyde leads to blindness, respiratory diseases, cause cancer and in the worst cases, death [2]. Currently, several analytical techniques (spectroscopic and chromatographic) have been applied for detection of HCHO, such as high performance liquid chromatography, gas chromatography, spectroscopic and colorimetric methods; which are impractical, expensive and time-consuming. Therefore, on site monitoring of HCHO is very important from the perspective of controlling the industrial process, as well from protecting employees to being exposed to toxic HCHO.

The analysis that enables fast detection and high selectivity of HCHO is electrochemical detection which includes the catalysis of the electrochemical reactions, provided by nanostructured electrodes [3] with the unique physical, chemical and electrical properties. The combination of the catalytic properties with the unique properties of the nanomaterial enables the construction of highly sensitive sensor systems. Many different kinds of nanomaterials (nanoparticles, nanowires, nanotubes, etc. [4,5]) have been used for constructing electrochemical sensors. The use of nanomaterials with the inherent high surface area results in lower detection limits and improved specificity. In recent years, selection of the catalytic materials for HCHO detection, has been the subject of many studies and optimizations. Most of the catalytic materials were based on noble metal (Pt, Pd, Au, Ag, etc.) nanomaterials, due to their amazing catalytic properties. But, the limiting factors is that noble metals-based electrodes are quickly poisoned by adsorbed intermediate (carbon monoxide). Furthermore, these metals are not economical for practical and industrial applications due to their high price. Among these, nickel is an interesting metal, as it is low cost and relatively abundant material that is often used in various industrial applications such as electrochemical sensors, secondary battery electrodes, oxidation of organic compound and the electrochemical treatment of wastewater [6]. It has been shown that nickel electrodes are of interest as modifying agents because in alkaline media nickel redox species (Ni(OH)₂/NiOOH) show high catalytic activity towards oxidation of HCHO [7].

2. Materials and Methods

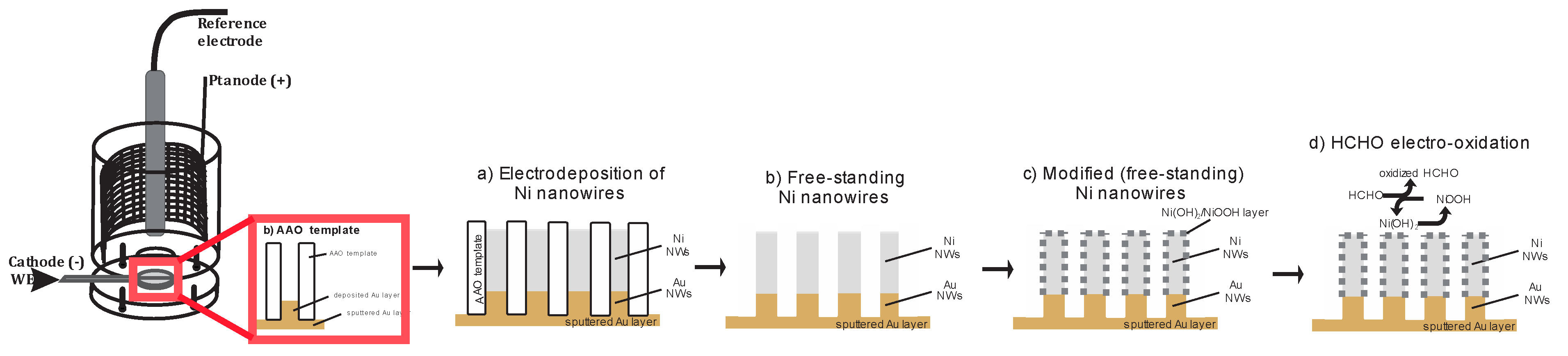

The cyclic voltammetry and amperometry were carried out using a potentiostat/galvanostat Gamry Reference 600 equipped with PHE 200 software at room temperature. Figure 1 (left) presents a standard three-electrode system that was used during the experiments. The reference electrode was an Ag/AgCl/3.5 M KCl (HANA Instruments GmbH-type HI5311). A circular platinum mesh was used as a counter electrode. The diameter of the circular opening in a Teflon cell, where the working electrodes were exposed to the electrolyte, is 0.5 cm (the calculated corresponding area is 0.196 cm²).

(a) Electrodeposition of Ni nanowires (NWs) (Figure 1a): The Ni NWs were prepared by template-asissted electrodeposition into a commercially available anodized aluminium oxide (AAO) (Whatman Anopore, the pore diameter was found to be 200 ± 50 nm. A pore density of 1 × 10⁹ cm⁻² was calculated from SEM images). The bottom part of AAO template was sputtered with a 600-nm-thick Au conductive layer. Prior to the electrodeposition of the Ni NWs, the bottom branched part of the pores was filled with Au NWs from commercially available gold electrolyte (Ecolyt SG100). Ni nanowires were electrodeposited by applying a constant potential of −1.0 V for 1200s. The electrolyte for the deposition of Ni NWs was composed of 0.2 M NiSO₄∙6H₂O and 0.1 M H₃BO₃ (pH = 2.0 was adjusted by adding H₂S0₄).

(b) Removal of AAO template (Figure 1b): In order to produce a free-standing Ni NWs, the as-deposited nanowires were dipped in a 10 M NaOH solution for 2 h to completely remove the AAO.

(c) Electrochemical modification (Figure 1c): The electrochemical modification of free-standing Ni NWs was performed in a solution composed of 0.5 M KOH by cyclic voltammetry (CV) at scan rate 200 mV s⁻¹. After the modification, the Ni NWs-based electrode was washed with a distilled water and ethanol and completely dried.

(d) Electro-oxidation of HCHO in alkaline media (Figure 1d): Free-standing KOH-modified Ni nanowires (Ni(OH)₂/NiOOH-Ni NWs) were used for electrochemical investigation (cyclic voltammetry and amperometry) of HCHO oxidation. The electrolyte solutions of 0.1–0.02 M HCHO and 0.1 M NaOH (pH = 13.7) were prepared freshly for every set of experiments. The cyclic voltammograms were recorded from 0 V to +1.0 V at a scan rate of 100 mV s⁻¹. Amperometric measurements were executed under a constant potentials from +0.7 V to +1.0 V for 10 s.

The as-deposited Ni NWs were characterized using a field emission-gun scanning electron microscope (FEG-SEM) JEOL JSM-7600F equipped with an energy-dispersive X-ray spectroscopy (EDXS). The morphology of the Ni(OH)₂/NiOOH-Ni NWs was investigated using the transmission electron microscope (TEM, Jeol JEM-2010F).

3. Results

The Ni nanowires (NWs) for HCHO detection were prepared by electrodeposition of Ni into AAO template. Electrodeposited Ni nanowires (200 nm diameter, retaining the size ~2–3 μm) were investigated using SEM and EDX analysis that revealed the presence of Ni in the completely filled pores of alumina template (Figure 1a). After the electro-deposition, the template was etched in strong alkaline solution in order to generate free-standing NWs (Figure 1b).

Furthermore, free-standing Ni NWs based electrode was modified in alkaline solution (KOH) to form an active Ni(OH)₂/NiOOH redox couple on the surface of Ni NWs-based electrode using cyclic voltammetry (Figure 1c). The TEM analysis revealed the amorphous nature of formed Ni(OH)₂/NiOOH layer (thickness ≈ 10 nm). Modified Ni NWs-based electrode (Ni(OH)₂/NiOOH-Ni NWs) was further used as a receptor element for HCHO electro-oxidation (Figure 1d).

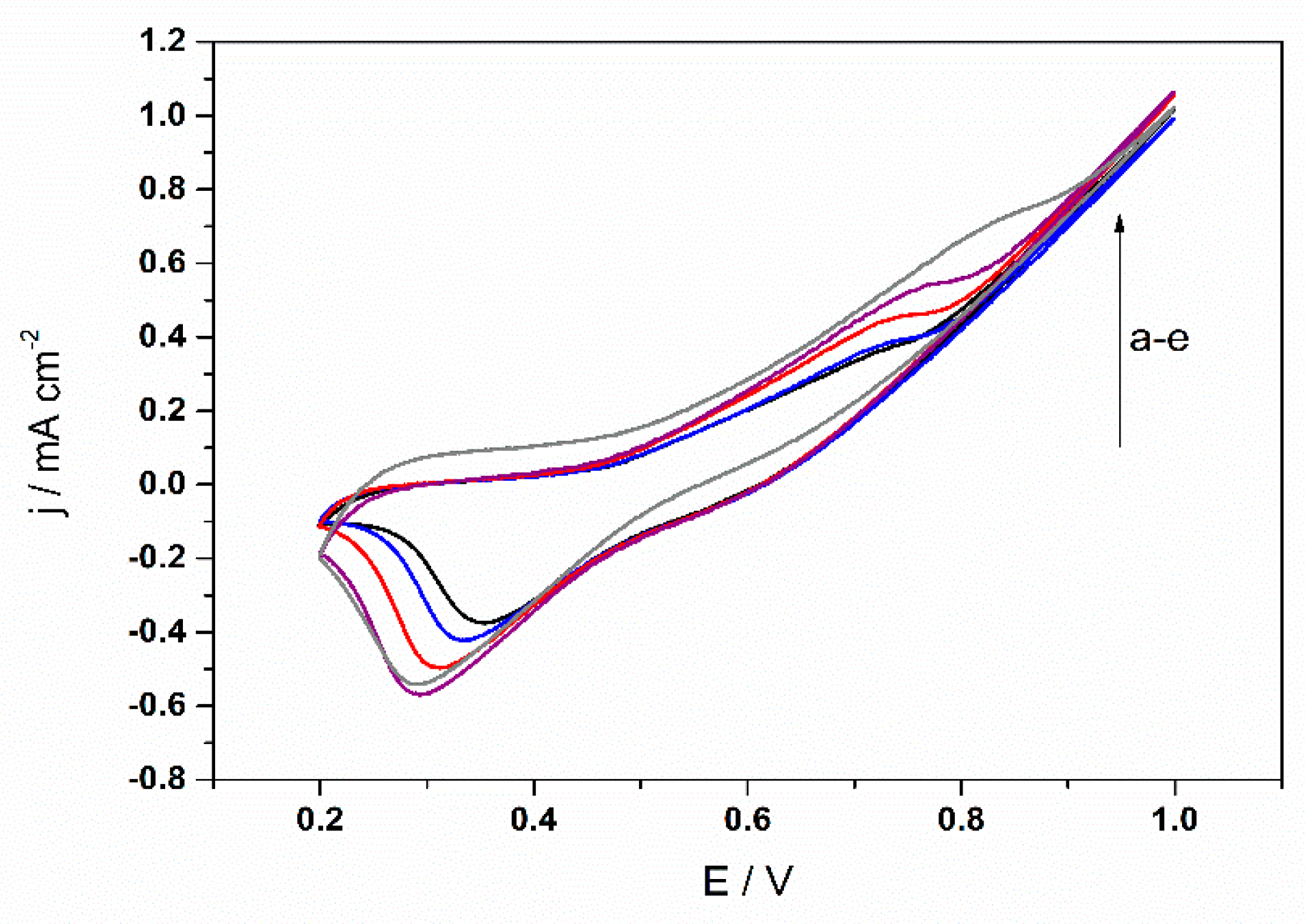

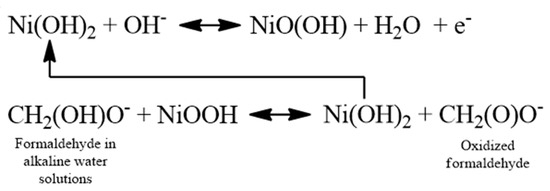

The investigation of the electrochemical behavior of HCHO electro-oxidation in 0.1 M NaOH solution on the Ni(OH)₂/NiOOH-Ni NWs-based electrode (i.e., receptor element) was carried out by cyclic voltammetry and amperometry. The receptor element responded to HCHO in a concentration range from 0.8 μM to 0.2 mM (Figure 2). Obtained results from cyclic voltammograms showed that HCHO oxidation peak current density increases drastically with increasing formaldehyde concentrations, but the onset potential shifted to more positive as a result of IR drop [8]. Also, a rise in the oxidation peak current is observed due to the oxidation of NiOOH species by HCHO. The increase in the current densities of oxidation peak is a consequence of the redox reaction between Ni(OH)₂/NiOOH redox couple (on the surface of Ni NWs) and the HCHO. The results indicate that HCHO is oxidized via a possible mechanism presented in Scheme 1 [7,9,10,11,12,13]. Amperometric measurements confirmed two broad linearity ranges (from 0.01–2 mM and 2–20 mM) and fast response (3s). Taking into account the determined electrochemically active surface areas (A_ecsa) (determined by oxalate method [6,14]) we have been able to calculate the sensitivities: 0.3419 mA L cm⁻² mmol⁻¹ and 0.0458 mA L cm⁻² mmol⁻¹. The receptor element has a detection capabitility of 0.8 μmol L⁻¹ (experimentally determined and calculated according to the IUPAC recommendation).

4. Conclusions

This study reflects the ability to process the Ni(OH)₂/NiOOH-Ni NWs-based receptor elements via a cost effective template-assisted electrodeposition method followed by modification of the Ni surface in alkaline electrolyte. This approach enables an easy fabrication of a novel and efficient non-enzymatic sensor for the electro-oxidation of HCHO with good sensitivity and low detection limit 0.8 μmol L⁻¹ which is comparable and even surpassing those achieved for nanostructured noble metals and other reported Ni—based electrodes.
