Article

Collagen Membrane as Water-Based Gel Electrolyte for Electrochromic Devices

by
Carmela Tania Prontera
1,*,
Nunzia Gallo
2,*,
Roberto Giannuzzi
1,3,
Marco Pugliese
1,
Vitantonio Primiceri
1,3,
Fabrizio Mariano
1,
Antonio Maggiore
1,
Giuseppe Gigli
1,3,
Alessandro Sannino
2,
Luca Salvatore
2 and
Vincenzo Maiorano
1
1
CNR NANOTEC—Institute of Nanotechnology c/o Campus Ecotekne, University of Salento, Via Monteroni, 73100 Lecce, Italy
2
Department of Engineering for Innovations, University of Salento, Via Monteroni, 73100 Lecce, Italy
3
Department of Mathematics and Physics “Ennio De Giorgi”, University of Salento, Via per Arnesano, 73100 Lecce, Italy
*
Authors to whom correspondence should be addressed.
Gels 2023, 9(4), 310; https://doi.org/10.3390/gels9040310
Submission received: 10 March 2023 / Revised: 31 March 2023 / Accepted: 4 April 2023 / Published: 6 April 2023
(This article belongs to the Special Issue Gel-Based Electrolytes for Solid-State Electrochemical Devices)
Browse Figures
Review Reports Versions Notes

Abstract

:
Bio-based polymers are attracting great interest due to their potential for several applications in place of conventional polymers. In the field of electrochemical devices, the electrolyte is a fundamental element that determines their performance, and polymers represent good candidates for developing solid-state and gel-based electrolytes toward the development of full-solid-state devices. In this context, the fabrication and characterization of uncrosslinked and physically cross-linked collagen membranes are reported to test their potential as a polymeric matrix for the development of a gel electrolyte. The evaluation of the membrane’s stability in water and aqueous electrolyte and the mechanical characterization demonstrated that cross-linked samples showed a good compromise in terms of water absorption capability and resistance. The optical characteristics and the ionic conductivity of the cross-linked membrane, after overnight dipping in sulfuric acid solution, demonstrated the potential of the reported membrane as an electrolyte for electrochromic devices. As proof of concept, an electrochromic device was fabricated by sandwiching the membrane (after sulfuric acid dipping) between a glass/ITO/PEDOT:PSS substrate and a glass/ITO/SnO2 substrate. The results in terms of optical modulation and kinetic performance of such a device demonstrated that the reported cross-linked collagen membrane could represent a valid candidate as a water-based gel and bio-based electrolyte for full-solid-state electrochromic devices.

Graphical Abstract

1. Introduction

One of the most important components in an electrochemical device is the electrolyte since it is responsible for ionic transportation within the device, thus influencing its performance. Traditional liquid electrolytes are not suitable for the evolution of electrochemical devices since they show several disadvantages, such as the employment of corrosive and inflammable solvents, leakage and evaporation problems, and unfit for flexible devices [1]. For these reasons, there is a growing interest in the development of new electrolytes suitable for full-solid-state devices since they allow at the same time to improve device safety, simplify the fabrication process, and achieve flexible devices [1]. In this context, polymers represent promising candidates [2]. In particular, gel polymer electrolytes contain liquid electrolytes immobilized in a host made up of one or more polymer matrices [2,3,4]. Their features are excellent mechanical integrity, film-forming ability, easy processability, and higher ionic conductivity compared to solid-state polymer electrolytes [2,3,5]. Among the liquid electrolytes that can be immobilized into a polymeric matrix, aqueous solutions represent an interesting alternative for the development of safe and non-toxic gel polymer electrolytes. Hydrogels are three-dimensional (3D) polymeric networks composed of hydrophilic-functional groups allowing them to absorb and retain a large amount of water without dissolving [6]. Therefore, hydrogels can hold a large amount of aqueous ionic solution providing good ionic conductivity, keeping at the same time good mechanical stability originating from the polymeric network [6]. Different synthetic polymers have already been employed to obtain hydrogels, but natural polymers have gained attention as promising substitutes for traditional synthetic polymers thanks to their advantageous properties, such as biodegradability, biocompatibility, non-toxicity, sustainability, etc. [7,8]. Indeed, global warming, price fluctuations, reduced oil resources, and pollution are just some of the factors that are pushing toward increasing use of eco-friendly biomaterials.
Natural materials directly extracted from biomass resources, such as polysaccharides, proteins, and lipids, represent one of the most relevant categories. In particular, polysaccharides are the most studied bio-polymeric electrolytes for their large availability, abundance, and accessibility. For all these reasons, they were adopted in the fabrication of eco-friendly devices [9,10]. Among proteins, soybean protein, gelatin, and collagen were used as matrices for gel polymeric electrolytes aiming for more sustainable solid-state electrochemical devices [11,12,13,14]. In particular, gel polymeric electrolytes were obtained by saturating a membrane of soybean protein with an aqueous solution of Li2SO4, and such electrolytes were employed for the fabrication of solid-state electric double-layer capacitors [11]. Similarly, a gelatine-based gel electrolyte consisting of porcine skin-derived gelatine and sodium chloride was employed in screen-printed and stencil-printed supercapacitors [12].
In this context, type I collagen is the most abundant structural protein of vertebrates’ connective tissue, where it provides strength and structural stability, performing regulatory functions [15,16]. Its unique fingerprint consists of three left-handed polyproline-II helices of about 1000 amino acid residues that assemble in a right-handed triple helix [16,17,18]. Each polyproline-II chain is characterized by the replication of the (Gly-X-Y)n triplet, where Gly is glycine, and the X and Y positions are usually occupied by proline and hydroxyproline, respectively [19]. In this recurrence, glycine plays a fundamental role in the three α helices packing, while proline and hydroxyproline are crucial elements in the triple-helical-structure stabilization [20]. Thanks to its advantageous intrinsic properties, such as biodegradability, biocompatibility, bioactivity, easy manufacturing, and customizable properties, collagen is one of the most used biomaterials for healthcare applications [20,21,22,23,24,25]. Collagen harvesting mostly relies on its extraction from animal tissues by-products of the food industry (i.e., skin, tendon, scales, cartilage, bone, and so on) [21,26]. The recovery and valorization of waste materials make collagen eco-friendlier and more cost-effective than other approaches [27]. Recently, aside from applications in the biomedical, pharmaceutical, cosmetic, and food fields, collagen started to be investigated in the field of energy devices as a sustainable source for nanoporous carbon materials exploitable as batteries anode [28]. Regarding the application of collagen as a polymeric network for hydrogel-based electrolytes, a collagen fiber membrane infiltrated with Na2SO4 aqueous solution showed an ionic conductivity of about 9 × 10−3 S/cm and it was used as an electrolyte in an electrical double-layer capacitor [13]. Collagen was also employed as an electrolyte of fuel cells in humidified conditions [14]. Indeed, Matsuo et al. demonstrated that the proton conductivity of the collagen membrane goes from 1 × 10−5 to 4 × 10−3 S/cm when the relative humidity is increased from 53% to 100%. Such an effect is due to the formation of water bridges bonded with the collagen peptide chains, inducing an increase in proton conductivity compared to a dry-collagen membrane.
Starting from such a background, in this work, uncrosslinked and cross-linked collagen membranes derived from equine tendons have been investigated as alternative gel-like polymeric electrolytes for the fabrication of electrochromic devices. Because of produced uncrosslinked collagen membranes’ low degradation resistance in acid environments, a physical cross-linking method was chosen and applied among cross-linking strategies to enhance collagen substrate properties without reducing their eco-friendly character and their biocompatibility profile. In particular, a heat-mediated cross-linking method was selected to induce the formation of amide and ester bonds via condensation reactions [29]. The swelling capability and the mechanical properties of the two kinds of membranes were evaluated, and the cross-linked collagen proved to be the best candidate for the preparation of the gel electrolyte. The ionic conductivity and the optical properties of the membrane after impregnation with H2SO4 aqueous solution were measured, demonstrating its suitability for the fabrication of electrochromic devices thanks to its good transparency and excellent conductivity. An electrochromic device was fabricated exploiting such a polymeric gel electrolyte, showing good modulation properties and excellent kinetic properties.
These results demonstrate the potential of eco-friendly and biodegradable collagen-based membranes as new and effective hydrogel-like electrolytes for the fabrication of full-solid-state electrochemical devices and, in particular, electrochromic devices.

2. Results and Discussion

Uncrosslinked (UN) and cross-linked (DHT) collagen membranes were prepared by air-drying; their IR spectra are reported in Figure 1. The peaks of amide I, amide II, and amide III of type I collagen were detected, as well as amide A and B contributions [30,31]. The amide I (1621–1635 cm−1) band is associated with C=O hydrogen-bonded stretching, the amide II (1535–1548 cm−1) peak is associated with C-N stretching and N-H in-plane bending from amide linkages, and the amide III (1220–1240 cm−1) to the N-H bending [32,33,34,35,36]. The peaks at 1400 and 1340 cm−1 were assigned to the wagging and deformation modes of -CH3 and -CH2 of the glycine backbone, besides the proline and hydroxyproline sides [32]. The contributions at approximately 1080 cm−1 and 1030 cm−1 were attributed to the stretching vibration of C-O-C and C-O, respectively [34]. Lastly, contributions at about 3400–3500 cm−1 and 3000–3080 cm−1 could be observed and attributable to the amide A and amide B, which are ascribed to the N-H stretching coupled with intramolecular H-bond and N-H bend, respectively [37]. The presence of contributions attributable to type I collagen confirmed that the process employed for collagen-membranes production did not significantly affect the material structural conformation. The peaks of amide I, II, II, A, and B were found to be almost the same in uncrosslinked and cross-linked samples, with a slight shift to lower frequencies for cross-linked samples. In particular, the shift to lower frequencies in the amide I and III of cross-linked samples prompted the involvement of the -C=O and -NH groups in new bonding interactions and, thus, the effectiveness of the applied physical cross-linking treatment [31]. In Figure 1B, a representation of the chemical structure after the cross-linking process is shown, and the new bonds are highlighted in red.
To investigate in-depth collagen secondary structure in the matrices after the production process, five contributions were identified from amide I deconvolution (Figure 2). In particular, β-sheet (peak center: 1610–1642 cm−1), random coil (peak center: 1642–1650 cm−1), α-helix (peak center: 1650–1660 cm−1), β-turn (peak center 1660–1680 cm−1), and β-antiparallel (peak center 1680–1700 cm–1) components were detected (Table 1) [38,39,40]. The increase of the β-sheets component in cross-linked samples could be explained by assuming the formation of bonds among collagen molecules that are laterally associated that spectroscopically mimic β-sheet structures [41,42]. Moreover, the integrity of the collagen triple-helical unit was evaluated by the amide III/A1450 ratio [43]. A ratio equal to or higher than unity confirmed its conformational structure preservation after the production process (uncrosslinked amide III/A1450 = 2.1; cross-linked amide III/A1450 = 1.9).
Additionally, the –OH stretching band (range 4000–3000 cm−1) corresponding to the amide A was analyzed and deconvoluted into four components (Figure 3) whose frequencies were related to different O-H bond lengths (Table 2), which in turn were correlated to the hydrogen bond network around the protein. Differences in hydrogen bond distances could provide information about cross-linking due to protein modifications. Thus, following the procedure of the second derivative analysis, four Gaussian components were identified, corresponding to the four classes of water molecules that can be bound to the protein. Each of them has different vibrational energies and a single average H-bond distance (H···OH length) of 0.31, 0.29, 0.2,8, and 0.25 nm, respectively [41,44]. The defined peaks were found at about 3670, 3460, 3250, and 3110 cm−1, according to the literature [41,45]. The sub-band peaking at about 3590–3690 cm−1 region corresponds to H-bond distances, characteristic of a vapor-like state, attributed to protein non-H-bonded or weakly H-bonded O–H groups [41,46]. As collagen films were in a dehydrated state, about 4.4% of non-H-bonded O–H groups were found in UN films, while no non-H-bonded O–H groups contributions were found in DHT films. The two-component bands peaking at 3480–3490 cm−1 and 3240–3250 cm−1 attributed to water molecules coordinated by two or three H-bonds corresponding to water molecules that form inter- or intra-molecular bridges. Indeed, they were found to constitute about 18% (for ν2) and 50% (for ν3) of the total water content for both UN and DHT. As suggested by Bridelli et al., the corresponding H-bond distances suggested that they could be attributed to the hydrogen bonding of –C=O groups belonging to glycine (d(C=O···W) = 0.295 nm) and hydroxyproline (Hyp) (d(C=O···W) = 0.284 nm) hydroxyl residues [41]. Lastly, the component at about 3110 cm−1, which was attributed to water molecules hydrogen-bonded to polar and charged groups exposed to the macromolecule surface, was found to be higher for DHT (about 33%) than UN (26%), suggesting the presence of a high number of hydrogen bonds in DHT films. Moreover, a variation was noticed in the band-intensities ratio of –CH2 and –CH3 (uncrosslinked CH2/CH3 ratio: 1.6; cross-linked CH2/CH3 ratio: 6.0); the increase in the band intensity assigned to the methylene groups (2925 cm−1) compared to the methyl groups one (2950 cm−1) suggested that cross-linking reaction occurred in cross-linked collagen matrices [47].
Considering the application of the collagen film as a hydrogel-based electrolyte, their stability in water and aqueous electrolytes and their water/aqueous electrolyte-absorbing capacity was evaluated. Sulfuric acid was selected as an aqueous electrolyte because of its high ionic conductivity, and three different concentrations were tested. Cross-linked and uncrosslinked collagen membranes were soaked overnight in water and sulfuric acid (1%, 2%, 5% v/v). Uncrosslinked collagen membrane in water showed a very high water-absorption capability, clearly visible from the significant swelling-degree ratio (close to 10) and thickness increase (dry uncrosslinked film thickness: 55 ± 6 µm; uncrosslinked film thickness in H2SO4: 856 ± 24 µm) (Figure 4A). Non-significant differences in thickness variation related to sulfuric acid concentration were detected (p > 0.5). However, the uncrosslinked matrix turned out not to be stable in sulfuric acid solutions since it lost its film-like structures and almost completely melted in 1–5% v/v sulfuric acid.
Vice versa, a lower water-absorption capability and a reduced thickness increase were observed for cross-linked membranes (dry cross-linked film thickness: 38 ± 5 µm; cross-linked film thickness in H2SO4: 242 ± 12 µm; swelling-degree ratio close to 3). Again, non-significant differences in thickness variation related to sulfuric acid concentration were detected (p > 0.5). Despite the reduced ability to retain H2SO4, cross-linked films, unlike non-crosslinked ones, turned out to be able to withstand their structure even after soaking in 5% (v/v) sulfuric acid. The swelling ratio of the different membranes soaked in different solutions is reported in Figure 4B.
Tensile tests were performed to characterize uncrosslinked and cross-linked collagen matrices, in terms of mechanical properties, after overnight incubation in water and 1–5% (v/v) H2SO4. The mechanical properties of uncrosslinked films in H2SO4 were not assessed because of its almost complete dissolution in sulfuric acid that did not allow for handling and clamping it in a tensile-test-machine tool. As expected, the stress-strain curves of matrices were all characterized by a linear elastic region, followed by a non-elastic region and a rupture region (Figure 5) [31,40]. The constitutive bond of the uncrosslinked matrix was found to be statistically different from that of the cross-linked matrices in terms of E and εr (Table 3). In particular, the elastic modulus of the uncrosslinked matrix (1.2 ± 0.3 MPa) proved to be lower than that of the cross-linked matrices (2.7 ± 0.5 MPa), suggesting a matrix stiffening due to the applied physical cross-linking treatment (p = 0.01). Moreover, while σmax was found to be almost the same for both uncrosslinked and cross-linked matrices (p = 0.2), the εr value was significantly reduced by the cross-linking treatment (UN-H2O treatment: εr = 131 ± 7%; DHT-H2O treatment: εr = 67 ± 7%; p = 0.0003). As regards the presence of the aqueous electrolyte, it was verified to significantly influence the E value as well as the εr value. Indeed, the sulfuric acid increased cross-linked matrices’ E values and reduced their εr value. In particular, the sulfuric acid concentration was proven to be inversely proportional to E values and directly proportional to εr values (p < 0.01). In other words, the increase in sulfuric acid concentration was responsible for the cross-linked matrix mechanical properties lost. Representative snapshots of uncrosslinked and cross-linked collagen matrices at ε% = 0% and at their maximum deformation before the break in the presence of water and aqueous electrolytes are reported in Figure 6.
Considering the reported results, cross-linked membrane proved to be a good candidate to obtain a self-standing hydrogel-like electrolyte that can be easily integrated into a multilayer device; for such reasons, it was further investigated. In particular, to integrate the reported hydrogel electrolyte in an electrochromic device, optical properties and ionic conductivity should be evaluated. Therefore, the ionic conductivity of the cross-linked membrane impregnated with water at different H2SO4 concentrations (1%, 2%, and 5% v/v) was evaluated through electrochemical impedance spectroscopy. Nyquist plots of electrochemical impedance spectra of the different membranes, measured at 0 V, have been reported in Figure 7A. The electrolyte ohmic resistance is obtained by the intercept at the real impedance axis of high frequency. The ionic conductivity (see equation in experimental details) of M-Water, M-H2SO4 (1%), M-H2SO4 (2%), and M-H2SO4 (5%) hydrogel electrolytes was found to be 0.004, 0.12, 0.16, and 0.15 mS/cm, respectively. All H2SO4-impregnated membranes showed higher ionic conductivity than water-based hydrogel.
The ionic conductivity of the membrane impregnated with pure water can be attributed to the intrinsic conductivity of the wet collagen membrane. In particular, it has been largely reported that ionic conductivity in collagen is strongly affected by its hydration state [48]. The water molecules that are absorbed by the membrane interact with the N-H, O-H, and C=O groups of the peptide chains through hydrogen bonds. When a small quantity of water is absorbed, the water molecules are isolated from each other, but when the number of absorbed water molecules increases, firstly, intra-helix bridges and after, inter-helix bridges form, thus allowing the formation of a water-bridge network into the collagen matrix. The water-bridge network allows the proton conduction into the film through the Grotthuss mechanism. Therefore, the ionic conductivity of the pure water-impregnated membrane is due to the transfer of protons which are intrinsically present in the polymeric matrix. After impregnation with H2SO4 solutions, a strong improvement of proton conductivity is visible, which is imputable to the increase in the number of membrane protons that can be transferred.
As a result, the obtained ionic-conductivity values for the H2SO4-impregnated membranes are suitable for application as electrolytes in electrochemical devices. In particular, considering the ionic conductivity and the mechanical characterization, we evaluated that the cross-linked membrane impregnated with H2SO4 1% (v/v) represents the best option. Regarding optical properties, the total transmittance and the haze of the wetted membrane (with H2SO4 1% v/v) were measured in the visible range of the electromagnetic spectrum; the results have been reported in Figure 7B. An excellent global transmittance was measured, with a mean transmittance value higher than 90% in the range of 400–800 nm. Concerning haze, it is used to measure the milky or cloudy appearance that is due to the scattering of light in transparent material. The lower the haze, the higher the clarity of the film, a desirable feature for application in electrochromic devices, where high transparency/clarity is required in the bleached state. The mean haze value of the cross-linked membrane is about 15% in the range of 400–800 nm, which is suitable for the mentioned application.
Considering the promising characteristics of the cross-linked membrane, it was tested as an electrolyte in an electrochromic device. The cross-linked collagen membrane impregnated in H2SO4 1% (v/v) was sandwiched between glass/ITO/PEDOT:PSS and glass/ITO/SnO2 (Figure 8A). In this structure, PEDOT:PSS acts as an electrochromic material while SnO2 is the ion storage layer; both materials were deposited by solution processes [4]. In Figure 8D, the electromagnetic spectra in the visible range of this device at different applied voltages have been reported. In the bleached state, the device shows good transparency with a mean transmittance higher than 70% in the 400–800 nm range. When a negative voltage is applied, a reduction of the transmittance is visible, and an absorption band, peaked at about 650 nm, appears [49]. Such absorption band is typical of PEDOT:PSS, and it is imputable to the intercalation of H+ into the PEDOT:PSS thin film. The maximum ΔT is about 35% at about 650 nm (at −3V), and such transmittance variation can also be appreciated in Figure 8B,C, where the device is shown in the bleached and colored state. The kinetics of the device was also evaluated by measuring the transmittance at 650 nm, applying a square-wave potential signal from −3V to +1V and back. The results are reported in Figure 8E. The device shows very fast coloration and bleaching kinetics with τc (coloration time) equal to 3 s and τb (bleaching time) equal to 2 s, which confirm the good performance of the selected electrochromic material but also the excellent ionic-conduction properties of the collagen membrane electrolyte.

3. Conclusions

Bio-based polymers represent a more sustainable and eco-friendly alternative to conventional polymers in various fields of applications. In this work, the possibility of employing collagen membranes as hydrogel-polymeric electrolytes in full-solid-state electrochemical devices has been investigated. Indeed, collagen can absorb large amounts of water, and thus it could be employed as a polymeric matrix that can retain large quantities of aqueous electrolyte and can be used as a self-standing electrolyte membrane. Uncrosslinked and cross-linked collagen membranes were obtained by air-drying, and a detailed FTIR characterization was performed to evaluate the effectiveness of the cross-linking and the preservation of typical triple-helical conformation of collagen after cross-linking.
The stability and the mechanical properties of the membranes after impregnation in water and aqueous electrolyte were tested; the resulting measures demonstrated that cross-linked membranes could absorb the aqueous electrolyte and preserve their integrity and mechanical characteristics. The ionic conductivity of the cross-linked membranes after impregnation with the aqueous electrolyte (1%, 2%, and 5% v/v H2SO4) was measured by EIS spectroscopy, showing a high ionic-conductivity value, close to 10−4 S/cm for all the tested concentrations.
Considering these results and the good optical characteristic of the collagen membranes in terms of transparency and low haze, we tested the H2SO4-impregnated membrane as an electrolyte in an electrochromic device. The glass/ITO/PEDOT:PSS/impregnated collagen/SnO2/ITO/glass device showed a maximum ΔT of about 35% at about 650 nm (at −3 V) and a very fast kinetic with τc equal to 3 s and τb equal to 2 s. The good performances of the fabricated electrochromic device demonstrated that collagen represents a good candidate for the future development of greener full-solid-state electrochemical devices.

4. Materials and Methods

4.1. Materials

Insoluble fibrillar type I collagen from the equine tendon in dry flake form was provided by Typeone Biomaterials Srl (Lecce, Italy). Commercial ITO-covered glass was provided by VisionTek Systems Ltd. PEDOT:PSS (Clevios FET) was purchased from Heraeus (Hanau, Germany). UV curing resin (NOA65) was provided by Norland. Distilled water was obtained from Millipore Milli–U10 water purification facility from Merck KGaA (Darmstadt, Germany). All other chemicals used were of analytical grade and purchased by Sigma-Aldrich (St. Louis, MO, USA).

4.2. Collagen Membranes and Collagen Electrolyte Preparation

Collagen-thin membranes were developed by air drying following a previously optimized protocol [31,50]. In brief, a collagen suspension of 10 mg/mL in 0.5 M acetic acid was prepared, degassed under a vacuum, and cast in Petri dishes. Then, air drying was performed in a laminar flow hood for 72 h at room temperature [50]. Following air drying, collagen membranes (uncrosslinked) were peeled from the Petri dishes and exposed to dry heat at 121 °C for 72 h, under vacuum (p < 100 mTorr) (cross-linked) [20,31].

4.3. Electrochromic Device Fabrication

An electrochromic device with the following structure was prepared: glass/ITO/PEDOT:PSS/Collagen electrolyte/SnO2/ITO/glass. SnO2 was deposited starting from a colloidal solution in H2O (15%) by spin coating it at 2000 rpm for 1 min; after that, an annealing treatment at 250 °C for 30 min was performed. PEDOT:PSS was employed as an electrochromic material starting from a commercial solution; it was spin-coated onto ITO-coated glass substrate at 2000 rpm for 1 min and annealed at 140 °C for 20 min. An oxygen plasma treatment (50 W, 30 sccm, 2 min) has been performed on ITO-coated glass before PEDOT:PSS and SnO2 deposition.
The cross-linked collagen membrane was soaked in H2SO4 1% (v/v) overnight, it was recovered from the solution, the excess liquid was dried with absorbent paper, and it was placed on the surface of the pre-patterned PEDOT:PSS (in the center of the glass/ITO substrate). NOA65 UV curing resin was deposited on the edges of the substrate, and subsequently, the glass/ITO/SnO2 substrate was placed on top of it. The device was then exposed to UV light (5 W UV lamp) to allow the glue to cure and seal the device.

4.4. Collagen Membrane and Collagen Electrolyte Characterization

FT-IR was performed using FTIR-6300 from Jasco GmbH (Pfungstadt, Germany) on 1 × 1 cm collagen membranes. Absorption spectra were recorded in the range 4000–400 cm−1 at a resolution of 4 cm−1 and smoothed according to the Savitsky–Golay method [31,40]. Three samples for each sample type were scanned, and each spectrum was collected as an average of 64 scans. Amide I was deconvoluted in the five Gaussian sub-bands of the β-sheet, random coil, α-helix, β-turn, and β-antiparallel contributes according to the second derivative analysis. The contribution of each sub-band was calculated as a percentage of the total amide I area. Lastly, amide A was deconvoluted in the four Gaussian sub-bands, according to the second derivative analysis, corresponding to the different OH bonding lengths. The contribution of each sub-band was calculated as a percentage of the total amide A area. The ratio of the methylene (-CH2) and methyl (-CH3) groups was assessed, as well as the ratio between amide III and the contribute at 1450 cm−1. Origin software from OriginLab Corporation (Northampton, MA, USA) was used for data analysis.
The swelling tests were performed by weighing the samples before and after overnight soaking in water and H2SO4 solutions (1%, 2%, and 5% v/v) at room temperature. The thickness and width of dry and wet specimens were measured using a Dino-Lite digital microscope (AnMo Electronics Corporation, New Taipei City, Taiwan). The experiment was performed in triplicate for each sample type. All data were expressed as mean ± the standard deviation. The statistical significance of experimental data was determined using the t-Student test. Differences were considered significant at p < 0.05.
The mechanical properties of the collagen substrates in water and H2SO4 solutions (1%, 2%, and 5% v/v) were evaluated using a ZwickiLine universal testing machine (Zwick/Roell, Ulm, Germany) equipped with a loading cell of 1 kN by tensile test. Swelled samples of 5 × 20 mm were clamped and tested under displacement control till failure with a preload of 0.1 N and a load speed of 0.1 mm/s [31,40]. The Young’s modulus (E), the stress at break (σmax), and the strain at break (εr) of samples were taken into account [20,31]. The experiment was performed in triplicate for each sample type. All data were expressed as mean ± the standard deviation. Differences were considered significant at p < 0.05 using the t-Student test.
Electrochemical impedance spectroscopy was used to measure ionic conductivity by using an Autolab PGSTAT 302 N Potentiostat/Galvanostat (Metrohm). The measurements were carried out under steady-state conditions (0 V) by applying an AC voltage of 0.01 V over a 100 kHz to 0.1 Hz frequency range. The membranes were sandwiched between two parallel platinum foils (area = 1 cm2), and the ionic conductivity (σ) was calculated by using the following formula:
σ = s/(R · A)
where s is the electrolyte thickness, A is the active area of the electrode/membrane/electrode system, and R is the real part of the impedance extracted from the intercept of the low-frequency signal in the Nyquist plot with the x-axis. The experiment was performed in triplicate for each sample type.
Total optical transmittance and haze spectra of the wetted cross-linked collagen membrane were measured by a Varian 5000 spectrophotometer.

4.5. Electrochromic Device Characterization

Optical transmittance was measured by a Varian 5000 spectrophotometer in a wavelength range between 300 nm and 800 nm by applying different voltages at the device with a Keithley Sourcemeter 2420. Kinetic measurements were performed by changing the potential between 1 V and −3 V using an Autolab PGSTAT302 N (Metrohm AG, The Netherlands) potentiostat.

Author Contributions

Conceptualization, C.T.P. and N.G.; methodology, C.T.P., N.G., R.G., M.P. and V.P.; software, C.T.P., N.G. and M.P.; formal analysis, C.T.P., N.G., R.G. and M.P.; resources, G.G., A.S., L.S. and V.M.; data curation, C.T.P., N.G., R.G. and M.P.; writing—original draft preparation, C.T.P. and N.G.; writing—review and editing, R.G., M.P., F.M. and A.M.; visualization, C.T.P. and N.G.; supervision, R.G., M.P., L.S. and V.M.; project administration, G.G., A.S., L.S. and V.M.; funding acquisition, G.G., A.S., L.S. and V.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by:“ECO-sustainable and intelligent fibers and fabrics for TEChnic clothing (ECOTEC)”, PON «R&I» 2014–2020, project N° ARS01_00951, CUP B66C18000300005; Progetto FISR—C.N.R. “Tecnopolo di nanotecnologia e fotonica per la medicina di precisione”—CUP B83B17000010001; PE4 PNRR MUR project PE0000023–NQSTI; PNRR MUR project IR0000016–I–PHOQS; the Italian Ministry of Research (MUR) under the complementary actions to the NRRP (PNC0000007) “Fit4MedRob- Fit for Medical Robotics” Grant (contract number CUP B53C22006960001).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors acknowledge Typeone Biomaterial Srl for gently providing type I collagen. The authors acknowledge Sonia Carallo for the technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yeganeh Ghotbi, M. Solid state electrolytes for electrochemical energy devices. J. Mater. Sci. Mater. Electron. 2019, 30, 13835–13854. [Google Scholar] [CrossRef]
  2. Ngai, K.S.; Ramesh, S.; Ramesh, K.; Juan, J.C. A review of polymer electrolytes: Fundamental, approaches and applications. Ionics 2016, 22, 1259–1279. [Google Scholar] [CrossRef]
  3. Ren, W.; Ding, C.; Fu, X.; Huang, Y. Advanced gel polymer electrolytes for safe and durable lithium metal batteries: Challenges, strategies, and perspectives. Energy Storage Mater. 2021, 34, 515–535. [Google Scholar] [CrossRef]
  4. Primiceri, V.; Pugliese, M.; Prontera, C.T.; Monteduro, A.G.; Esposito, M.; Maggiore, A.; Cannavale, A.; Giannuzzi, R.; Gigli, G.; Maiorano, V. Low-cost gel polymeric electrolytes for electrochromic applications. Sol. Energy Mater. Sol. Cells 2022, 240, 111657. [Google Scholar] [CrossRef]
  5. Yang, H.; Yang, J.; Li, C.; Huang, Z.; Bendavid, A.; Yan, J.; Cen, K.; Han, Z.; Bo, Z. Gel polymer dominated ion charging mechanisms within graphene nanochannels. J. Power Sources 2022, 541, 231684. [Google Scholar] [CrossRef]
  6. Choudhury, N.A.; Sampath, S.; Shukla, A.K. Hydrogel-polymer electrolytes for electrochemical capacitors: An overview. Energy Environ. Sci. 2009, 2, 55–67. [Google Scholar] [CrossRef] [Green Version]
  7. Vedadghavami, A.; Minooei, F.; Mohammadi, M.H.; Khetani, S.; Rezaei Kolahchi, A.; Mashayekhan, S.; Sanati-Nezhad, A. Manufacturing of hydrogel biomaterials with controlled mechanical properties for tissue engineering applications. Acta Biomater. 2017, 62, 42–63. [Google Scholar] [CrossRef] [PubMed]
  8. Buwalda, S.J. Bio-based composite hydrogels for biomedical applications. Multifunct. Mater. 2020, 3, 22001. [Google Scholar] [CrossRef]
  9. Varshney, P.K.; Gupta, S. Natural polymer-based electrolytes for electrochemical devices: A review. Ionics 2011, 17, 479–483. [Google Scholar] [CrossRef]
  10. Rayung, M.; Aung, M.M.; Azhar, S.C.; Abdullah, L.C.; Su’ait, M.S.; Ahmad, A.; Jamil, S.N.A.M. Bio-based polymer electrolytes for electrochemical devices: Insight into the ionic conductivity performance. Materials 2020, 13, 838. [Google Scholar] [CrossRef] [Green Version]
  11. Huo, P.; Ni, S.; Hou, P.; Xun, Z.; Liu, Y.; Gu, J. A Crosslinked Soybean Protein Isolate Gel Polymer Electrolyte Based on Neutral Aqueous Electrolyte for a High-Energy-Density Supercapacitor. Polymers 2019, 11, 863. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Railanmaa, A.; Kujala, M.; Keskinen, J.; Kololuoma, T.; Lupo, D. Highly flexible and non-toxic natural polymer gel electrolyte for printed supercapacitors for IoT. Appl. Phys. A 2019, 125, 168. [Google Scholar] [CrossRef] [Green Version]
  13. Xu, H.; Wang, Y.; Liao, X.; Shi, B. A collagen-based electrolyte-locked separator enables capacitor to have high safety and ionic conductivity. J. Energy Chem. 2020, 47, 324–332. [Google Scholar] [CrossRef]
  14. Matsuo, Y.; Ikeda, H.; Kawabata, T.; Hatori, J.; Oyama, H. Collagen-Based Fuel Cell and Its Proton Transfer. Mater. Sci. Appl. 2017, 8, 747–756. [Google Scholar] [CrossRef] [Green Version]
  15. Sharma, S.; Chandra, S.; Dwivedi, S.; Srivastava, A.; Ompj, P.V. Collagen: A Brief Analysis. Oral Maxillofac. Pathol. J. 2019, 10, 11–17. [Google Scholar] [CrossRef]
  16. Gelse, K.; Pöschl, E.; Aigner, T. Collagens—Structure, function, and biosynthesis. Adv. Drug Deliv. Rev. 2003, 55, 1531–1546. [Google Scholar] [CrossRef] [Green Version]
  17. Bella, J. Collagen structure: New tricks from a very old dog. Biochem. J. 2016, 473, 1001–1025. [Google Scholar] [CrossRef] [PubMed]
  18. Birk, D.E.; Brückner, P. Collagens, Suprastructures, and Collagen Fibril Assembly BT—The Extracellular Matrix: An Overview; Mecham, R.P., Ed.; Springer: Berlin/Heidelberg, Germany, 2011; pp. 77–115. ISBN 978-3-642-16555-9. [Google Scholar]
  19. Shoulders, M.D.; Raines, R.T. Collagen structure and stability. Annu. Rev. Biochem. 2009, 78, 929–958. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Salvatore, L.; Gallo, N.; Natali, M.L.; Terzi, A.; Sannino, A.; Madaghiele, M. Mimicking the Hierarchical Organization of Natural Collagen: Toward the Development of Ideal Scaffolding Material for Tissue Regeneration. Front. Bioeng. Biotechnol. 2021, 9, 644595. [Google Scholar] [CrossRef]
  21. Gallo, N.; Natali, M.L.; Sannino, A.; Salvatore, L. An overview of the use of equine collagen as emerging material for biomedical applications. J. Funct. Biomater. 2020, 11, 79. [Google Scholar] [CrossRef]
  22. Salvatore, L.; Gallo, N.; Natali, M.L.; Campa, L.; Lunetti, P.; Madaghiele, M.; Blasi, F.S.; Corallo, A.; Capobianco, L.; Sannino, A. Marine collagen and its derivatives: Versatile and sustainable bio-resources for healthcare. Mater. Sci. Eng. C 2020, 113, 110963. [Google Scholar] [CrossRef]
  23. Liu, X.; Zheng, C.; Luo, X.; Wang, X.; Jiang, H. Recent advances of collagen-based biomaterials: Multi-hierarchical structure, modification and biomedical applications. Mater. Sci. Eng. C 2019, 99, 1509–1522. [Google Scholar] [CrossRef] [PubMed]
  24. Tang, C.; Zhou, K.; Zhu, Y.; Zhang, W.; Xie, Y.; Wang, Z.; Zhou, H.; Yang, T.; Zhang, Q.; Xu, B. Collagen and its derivatives: From structure and properties to their applications in food industry. Food Hydrocoll. 2022, 131, 107748. [Google Scholar] [CrossRef]
  25. León-López, A.; Morales-Peñaloza, A.; Martínez-Juárez, V.M.; Vargas-Torres, A.; Zeugolis, D.I.; Aguirre-Álvarez, G. Hydrolyzed Collagen—Sources and Applications. Molecules 2019, 24, 4031. [Google Scholar] [CrossRef] [Green Version]
  26. Noorzai, S.; Verbeek, C.J.R.; Lay, M.C.; Swan, J. Collagen Extraction from Various Waste Bovine Hide Sources. Waste Biomass Valorization 2020, 11, 5687–5698. [Google Scholar] [CrossRef]
  27. Noorzai, S.; Verbeek, C.J.R. Collagen: From Waste to Gold; Basso, T.P., Basso, T.O., Basso, L.C., Eds.; IntechOpen: Rijeka, Croatia, 2020; p. 12. ISBN 978-1-83881-182-2. [Google Scholar]
  28. Lionetto, F.; Bagheri, S.; Mele, C. Sustainable Materials from Fish Industry Waste for Electrochemical Energy Systems. Energies 2021, 14, 7928. [Google Scholar] [CrossRef]
  29. Harley, B.A.; Hastings, A.Z.; Yannas, I.V.; Sannino, A. Fabricating tubular scaffolds with a radial pore size gradient by a spinning technique. Biomaterials 2006, 27, 866–874. [Google Scholar] [CrossRef] [PubMed]
  30. Terzi, A.; Gallo, N.; Bettini, S.; Sibillano, T.; Altamura, D.; Madaghiele, M.; De Caro, L.; Valli, L.; Salvatore, L.; Sannino, A.; et al. Sub- and Supramolecular X-ray Characterization of Engineered Tissues from Equine Tendon, Bovine Dermis, and Fish Skin Type-I Collagen. Macromol. Biosci. 2020, 20, 2000017. [Google Scholar] [CrossRef]
  31. Gallo, N.; Natali, M.L.; Curci, C.; Picerno, A.; Gallone, A.; Vulpi, M.; Vitarelli, A.; Ditonno, P.; Cascione, M.; Sallustio, F.; et al. Analysis of the physico-chemical, mechanical and biological properties of crosslinked type-i collagen from horse tendon: Towards the development of ideal scaffolding material for urethral regeneration. Materials 2021, 14, 7648. [Google Scholar] [CrossRef]
  32. Bettini, S.; Bonfrate, V.; Syrgiannis, Z.; Sannino, A.; Salvatore, L.; Madaghiele, M.; Valli, L.; Giancane, G. Biocompatible Collagen Paramagnetic Scaffold for Controlled Drug Release. Biomacromolecules 2015, 16, 2599–2608. [Google Scholar] [CrossRef]
  33. Gallo, L.C.; Madaghiele, M.; Salvatore, L.; Barca, A.; Scialla, S.; Bettini, S.; Valli, L.; Verri, T.; Bucalá, V.; Sannino, A. Integration of PLGA Microparticles in Collagen-Based Matrices: Tunable Scaffold Properties and Interaction Between Microparticles and Human Epithelial-Like Cells. Int. J. Polym. Mater. Polym. Biomater. 2020, 69, 137–147. [Google Scholar] [CrossRef]
  34. Sanden, K.W.; Kohler, A.; Afseth, N.K.; Böcker, U.; Rønning, S.B.; Liland, K.H.; Pedersen, M.E. The use of Fourier-transform infrared spectroscopy to characterize connective tissue components in skeletal muscle of Atlantic cod (Gadus morhua L.). J. Biophotonics 2019, 12, e201800436. [Google Scholar] [CrossRef] [Green Version]
  35. De Campos Vidal, B.; Mello, M.L.S. Collagen type I amide I band infrared spectroscopy. Micron 2011, 42, 283–289. [Google Scholar] [CrossRef] [PubMed]
  36. Carbonaro, M.; Nucara, A. Secondary structure of food proteins by Fourier transform spectroscopy in the mid-infrared region. Amino Acids 2010, 38, 679–690. [Google Scholar] [CrossRef]
  37. Sow, L.C.; Peh, Y.R.; Pekerti, B.N.; Fu, C.; Bansal, N.; Yang, H. Nanostructural analysis and textural modification of tilapia fish gelatin affected by gellan and calcium chloride addition. LWT Food Sci. Technol. 2017, 85, 137–145. [Google Scholar] [CrossRef]
  38. Shi, C.; Bi, C.; Ding, M.; Xie, J.; Xu, C.; Qiao, R.; Wang, X.; Zhong, J. Polymorphism and stability of nanostructures of three types of collagens from bovine flexor tendon, rat tail, and tilapia skin. Food Hydrocoll. 2019, 93, 253–260. [Google Scholar] [CrossRef]
  39. Yan, M.; Qin, S.; Li, J. Study on the self-assembly property of type I collagen prepared from tilapia (Oreochromis niloticus) skin by different extraction methods. Int. J. Food Sci. Technol. 2015, 50, 2088–2096. [Google Scholar] [CrossRef]
  40. Gallo, N.; Natali, M.L.; Quarta, A.; Gaballo, A.; Terzi, A.; Sibillano, T.; Giannini, C.; De Benedetto, G.E.; Lunetti, P.; Capobianco, L.; et al. Aquaponics-Derived Tilapia Skin Collagen for Biomaterials Development. Polymers 2022, 14, 1865. [Google Scholar] [CrossRef]
  41. Bridelli, M.G. Fourier Transform Infrared Spectroscopy in the Study of Hydrated Biological Macromolecules; Nikolic, G.S., Cakic, M.D., Cvetkovic, D.J., Eds.; IntechOpen: Rijeka, Croatia, 2017; p. 9. ISBN 978-953-51-2894-6. [Google Scholar]
  42. Rath, A.; Davidson, A.R.; Deber, C.M. The structure of “unstructured” regions in peptides and proteins: Role of the polyproline II helix in protein folding and recognition. Pept. Sci. 2005, 80, 179–185. [Google Scholar] [CrossRef]
  43. Demeter, M.; Călina, I.; Scărișoreanu, A.; Micutz, M.; Kaya, M.A. Correlations on the Structure and Properties of Collagen Hydrogels Produced by E-Beam Crosslinking. Materials 2022, 15, 7663. [Google Scholar] [CrossRef]
  44. Nakamoto, K.; Margoshes, M.; Rundle, R.E. Stretching Frequencies as a Function of Distances in Hydrogen Bonds. J. Am. Chem. Soc. 1955, 77, 6480–6486. [Google Scholar] [CrossRef]
  45. Bridelli, M.G.; Stani, C.; Bedotti, R. Fourier transform infrared conformational investigation of type I collagen aged by in vitro induced dehydration and non-enzymatic glycation treatments. J. Biol. Res. Boll. Soc. Ital. Biol. Sper. 2017, 90. [Google Scholar] [CrossRef]
  46. Bridelli, M.G.; Crippa, P.R. Infrared and Water Sorption Studies of the Hydration Structure and Mechanism in Natural and Synthetic Melanin. J. Phys. Chem. B 2010, 114, 9381–9390. [Google Scholar] [CrossRef] [PubMed]
  47. Sideroudi, H.; Labiris, G.; Soto-Beobide, A.; Voyiatzis, G.; Chrissanthopoulos, A.; Kozobolis, V. The Effect of Collagen Cross-Linking Procedure on the Material of Intracorneal Ring Segments. Curr. Eye Res. 2015, 40, 592–597. [Google Scholar] [CrossRef]
  48. Matsui, H.; Matsuo, Y. Proton Conduction via Water Bridges Hydrated in the Collagen Film. J. Funct. Biomater. 2020, 11, 61. [Google Scholar] [CrossRef] [PubMed]
  49. Graßmann, C.; Mann, M.; Van Langenhove, L.; Schwarz-Pfeiffer, A. Textile Based Electrochromic Cells Prepared with PEDOT: PSS and Gelled Electrolyte. Sensors 2020, 20, 5691. [Google Scholar] [CrossRef]
  50. Salvatore, L.; Gallo, N.; Aiello, D.; Lunetti, P.; Barca, A.; Blasi, L.; Madaghiele, M.; Bettini, S.; Giancane, G.; Hasan, M.; et al. An insight on type I collagen from horse tendon for the manufacture of implantable devices. Int. J. Biol. Macromol. 2020, 154, 291–306. [Google Scholar] [CrossRef]
Gels 09 00310 g001 550

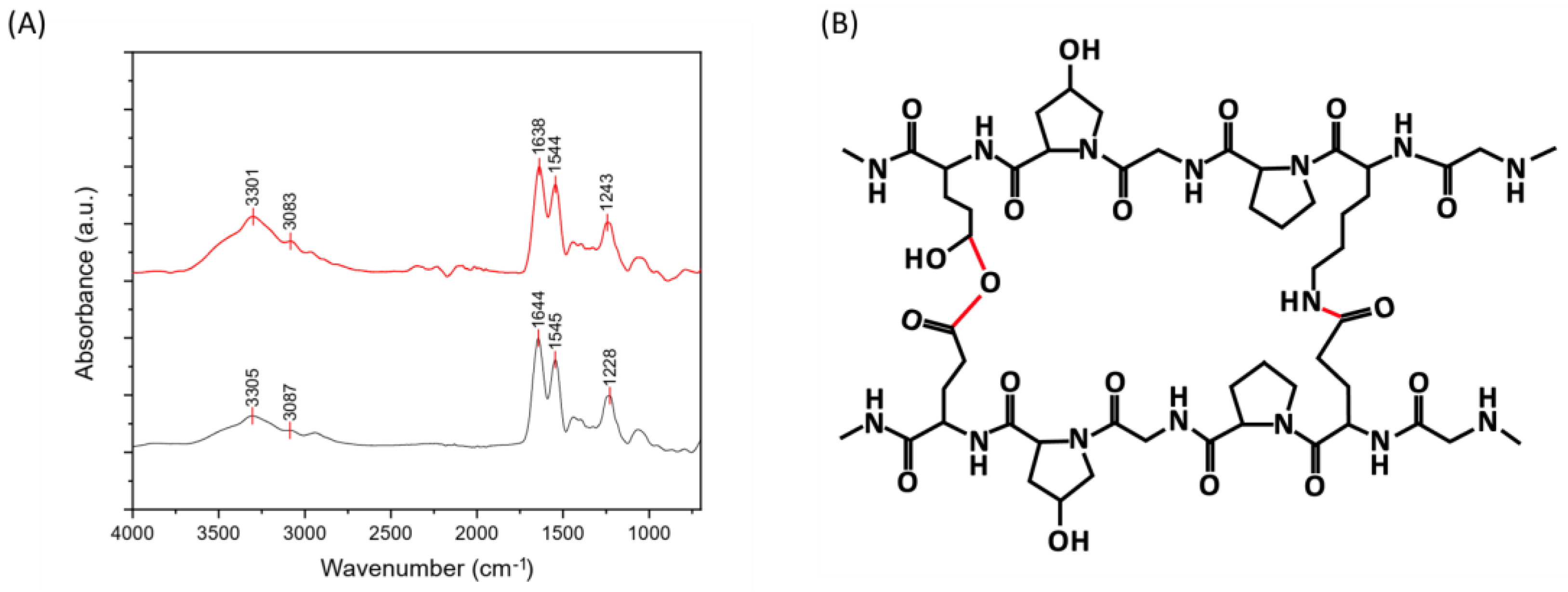

Figure 1. (A) FT-IR spectra of uncrosslinked (down) and cross-linked (up) collagen membranes. (B) Chemical structure of collagen after cross-linking.
Figure 1. (A) FT-IR spectra of uncrosslinked (down) and cross-linked (up) collagen membranes. (B) Chemical structure of collagen after cross-linking.
Gels 09 00310 g001
Gels 09 00310 g002 550

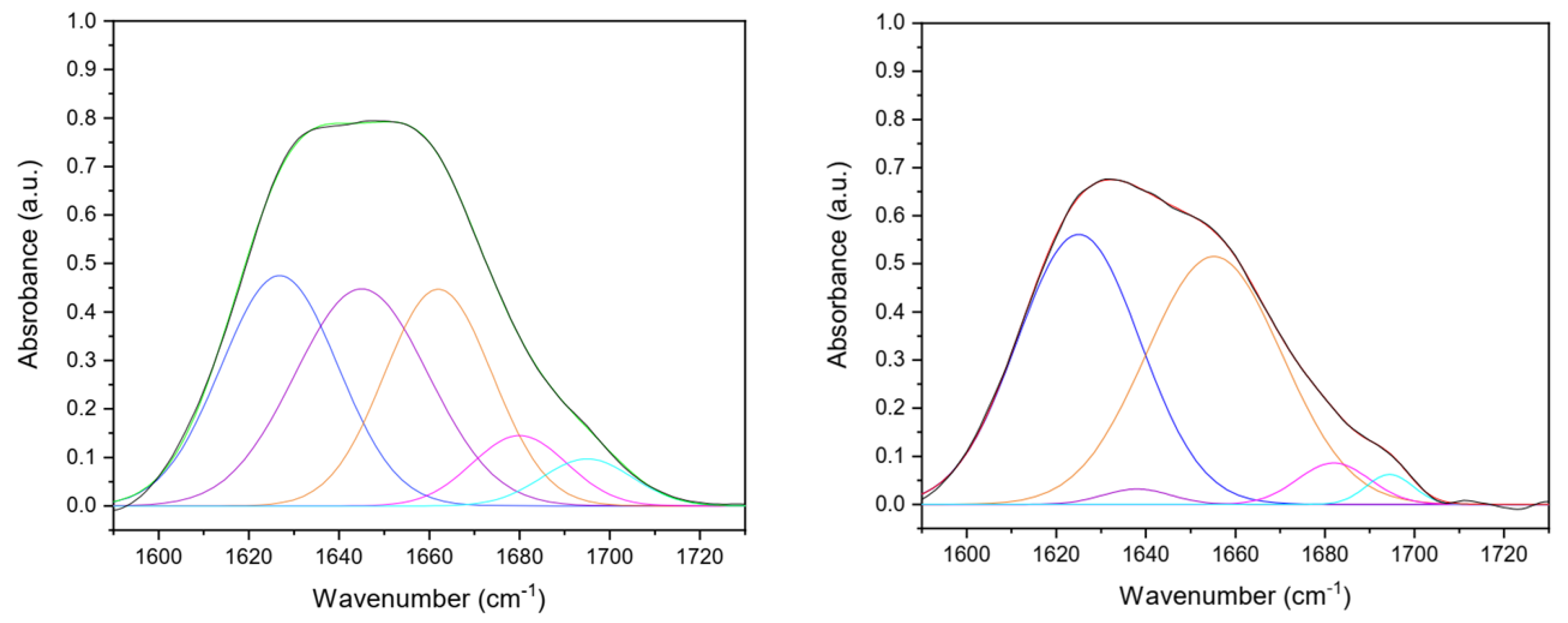

Figure 2. Gaussian deconvolution of UN (left) and DHT (right) collagen film amide I (1600–1700 cm−1) into four component bands, that were β-sheet (blue line, 1610–1642 cm−1), random coil (purple line, 1642–1650 cm−1), α-helix (orange line, 1650–1660 cm−1), β-turn (pink line, 1660–1680 cm−1), and β-antiparallel (teal line, 1680–1700 cm–1) components were detected. The fitted curve is reported with a green (UN) or red (DHT) line, closely overlapping the experimental curve (black line).
Figure 2. Gaussian deconvolution of UN (left) and DHT (right) collagen film amide I (1600–1700 cm−1) into four component bands, that were β-sheet (blue line, 1610–1642 cm−1), random coil (purple line, 1642–1650 cm−1), α-helix (orange line, 1650–1660 cm−1), β-turn (pink line, 1660–1680 cm−1), and β-antiparallel (teal line, 1680–1700 cm–1) components were detected. The fitted curve is reported with a green (UN) or red (DHT) line, closely overlapping the experimental curve (black line).
Gels 09 00310 g002
Gels 09 00310 g003 550

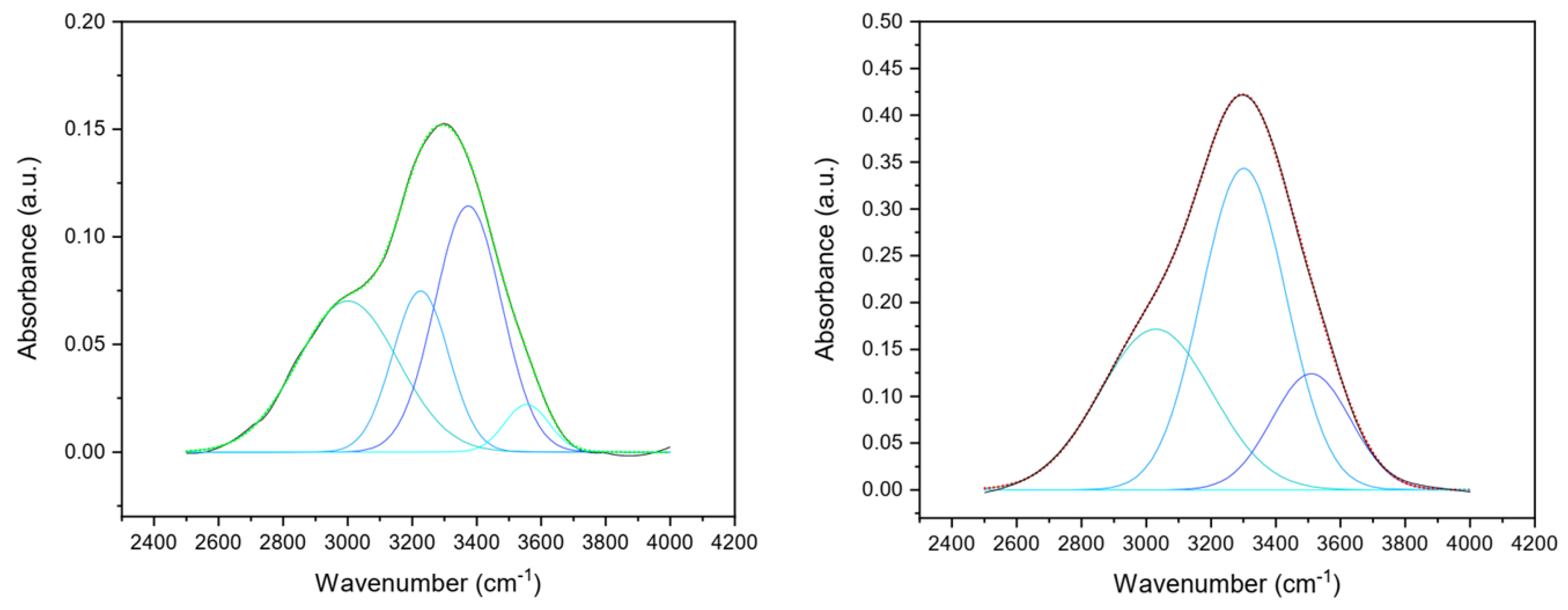

Figure 3. Gaussian deconvolution of FTIR spectrum of UN (left) and DHT (right) collagen film in the ν (OH) region in four components, corresponding to the H-bond distance of 0.25 nm (octane line, at about 3110 cm−1), 0.28 nm (sky blue line, at about 3250 cm−1), 0.29 nm (blue line, at about 3460 cm−1) and 0.31 nm (teal line, at about 3670 cm−1). The fitted curve is shown as the green (UN) or red (DHT) line, closely overlapping the experimental curve (black line).
Figure 3. Gaussian deconvolution of FTIR spectrum of UN (left) and DHT (right) collagen film in the ν (OH) region in four components, corresponding to the H-bond distance of 0.25 nm (octane line, at about 3110 cm−1), 0.28 nm (sky blue line, at about 3250 cm−1), 0.29 nm (blue line, at about 3460 cm−1) and 0.31 nm (teal line, at about 3670 cm−1). The fitted curve is shown as the green (UN) or red (DHT) line, closely overlapping the experimental curve (black line).
Gels 09 00310 g003
Gels 09 00310 g004 550

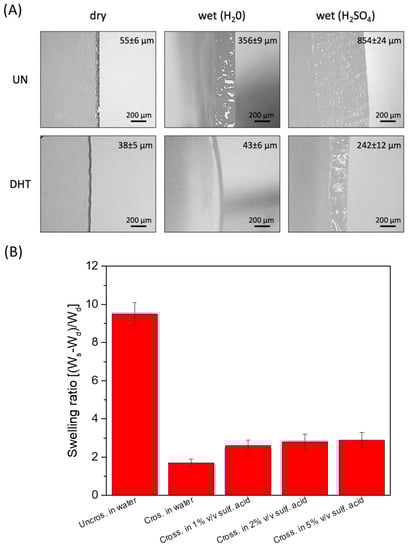

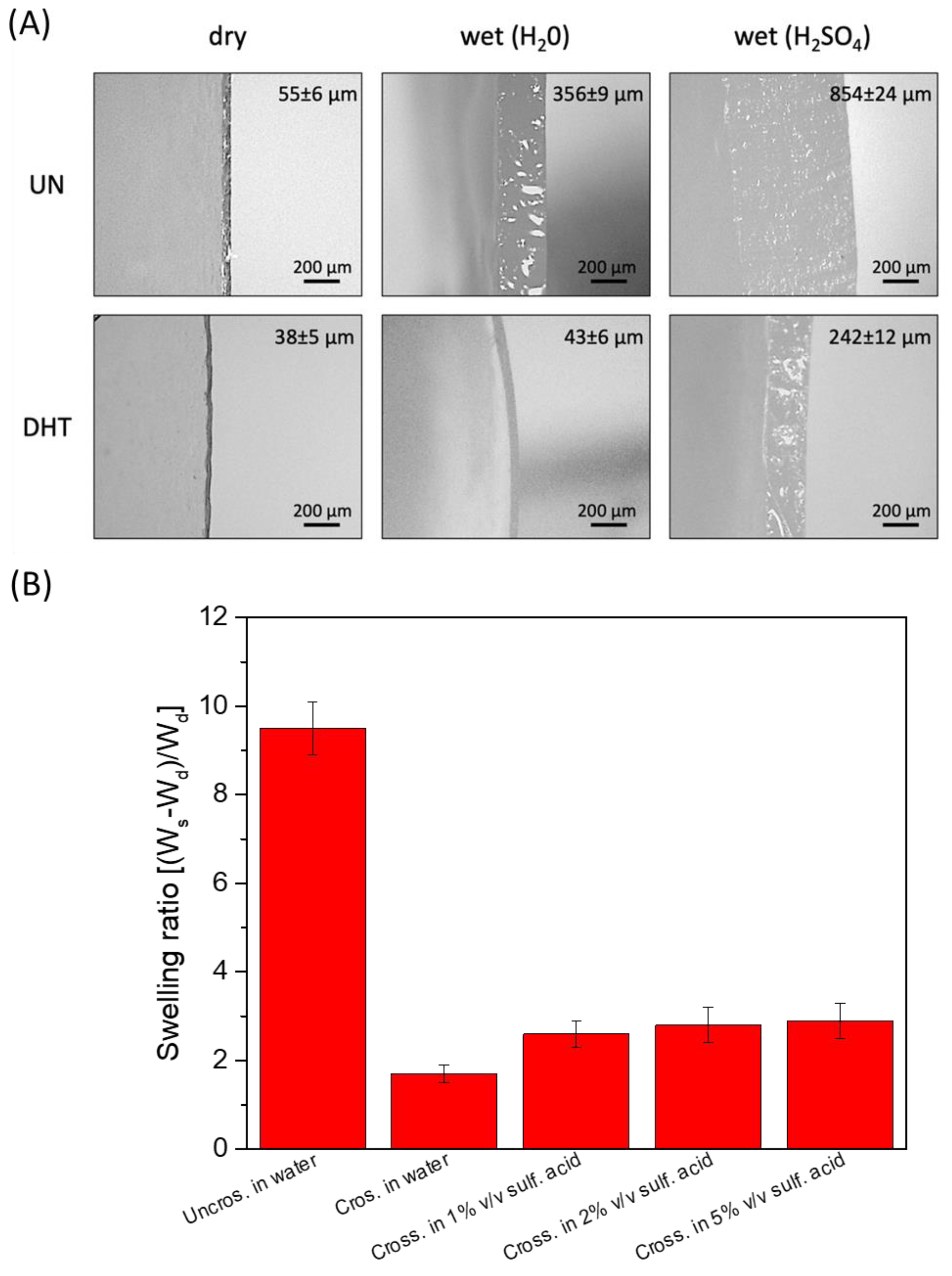

Figure 4. (A) Representative snapshot of uncrosslinked and cross-linked collagen matrices thickness in a dry state and in the presence of water and of sulfuric acid 1% (v/v). (B) Swelling degree of uncrosslinked and cross-linked collagen matrices thickness in a dry state and in the presence of water and of 1–5% (v/v) H2SO4.
Figure 4. (A) Representative snapshot of uncrosslinked and cross-linked collagen matrices thickness in a dry state and in the presence of water and of sulfuric acid 1% (v/v). (B) Swelling degree of uncrosslinked and cross-linked collagen matrices thickness in a dry state and in the presence of water and of 1–5% (v/v) H2SO4.
Gels 09 00310 g004
Gels 09 00310 g005 550

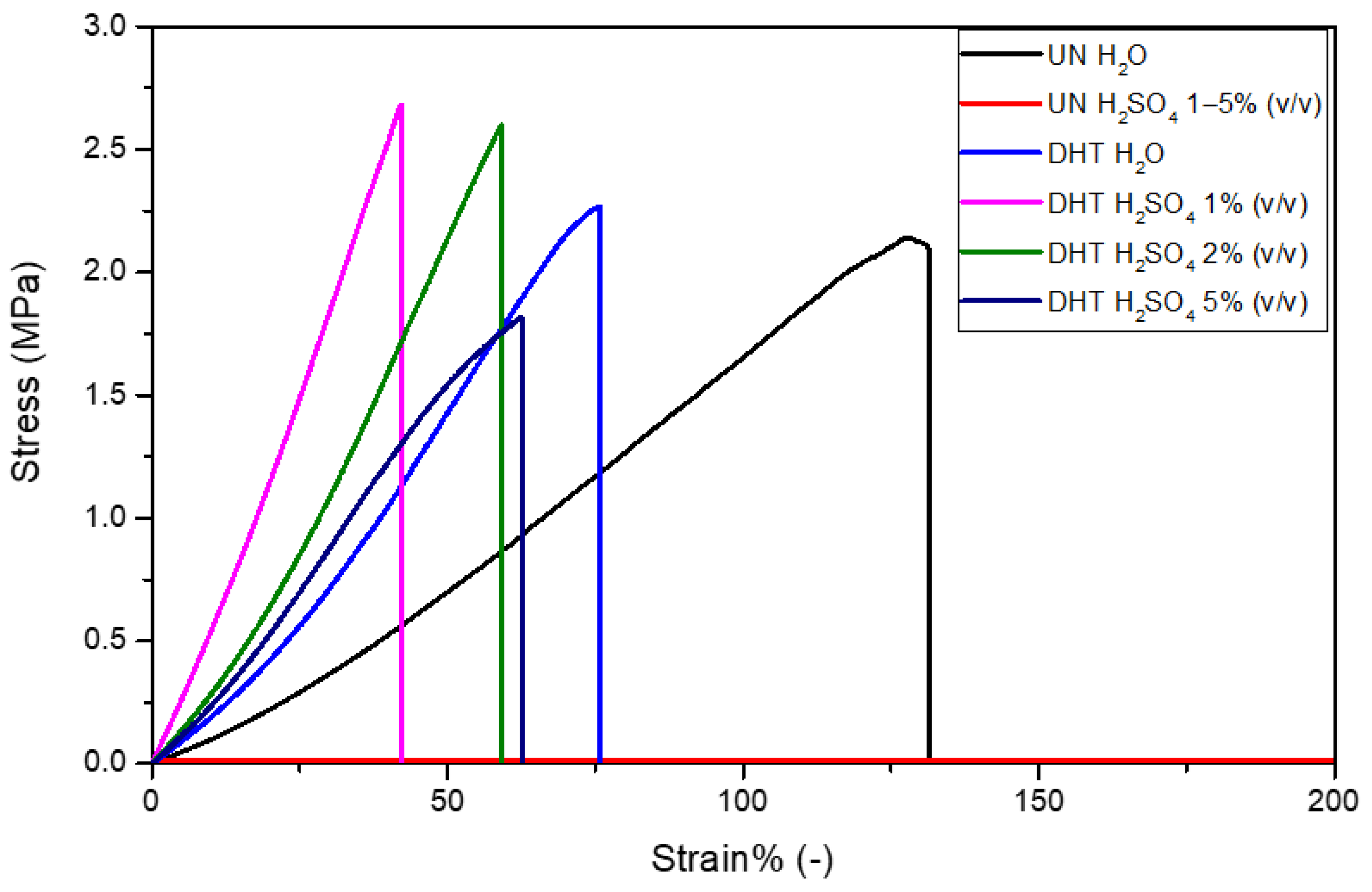

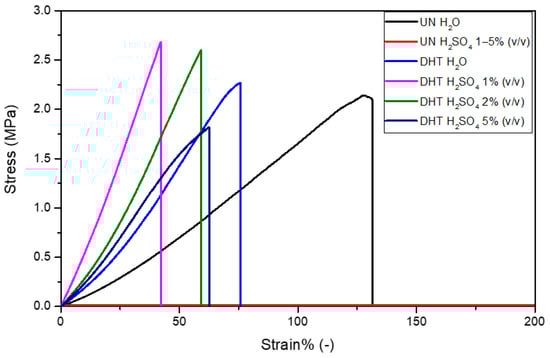

Figure 5. Representative stress-strain curves of uncrosslinked and cross-linked collagen matrices in the presence of water and sulfuric acid 1–5% (v/v).
Figure 5. Representative stress-strain curves of uncrosslinked and cross-linked collagen matrices in the presence of water and sulfuric acid 1–5% (v/v).
Gels 09 00310 g005
Gels 09 00310 g006 550

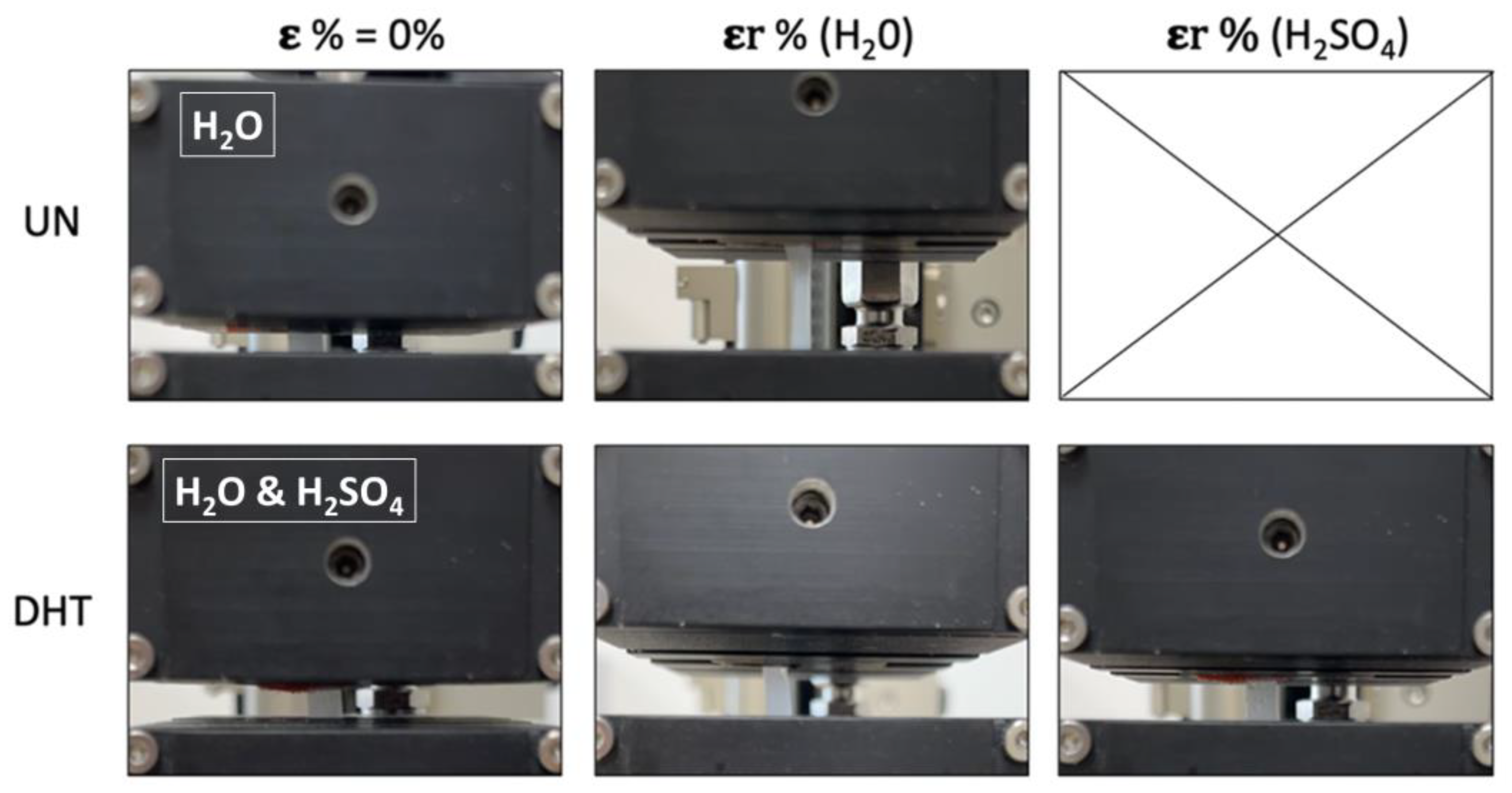

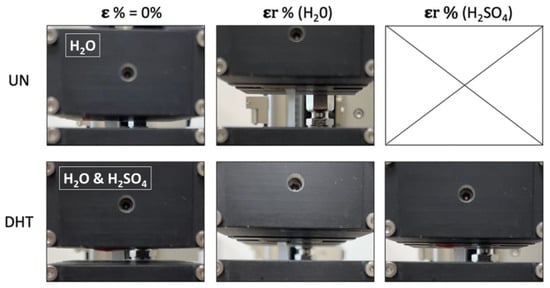

Figure 6. A representative snapshot of uncrosslinked and cross-linked collagen matrices at ε% = 0% and at their maximum deformation before the break in the presence of water and aqueous electrolytes (the snapshot of the UN membrane at ε% = 0% is referred to the sample impregnated with H2O since with H2SO4 it was not possible to perform measurements; the snapshot of the DHT membrane at ε% = 0% is referred to sample impregnated with both H2O and H2SO4 since no significant differences were visible).
Figure 6. A representative snapshot of uncrosslinked and cross-linked collagen matrices at ε% = 0% and at their maximum deformation before the break in the presence of water and aqueous electrolytes (the snapshot of the UN membrane at ε% = 0% is referred to the sample impregnated with H2O since with H2SO4 it was not possible to perform measurements; the snapshot of the DHT membrane at ε% = 0% is referred to sample impregnated with both H2O and H2SO4 since no significant differences were visible).
Gels 09 00310 g006
Gels 09 00310 g007 550

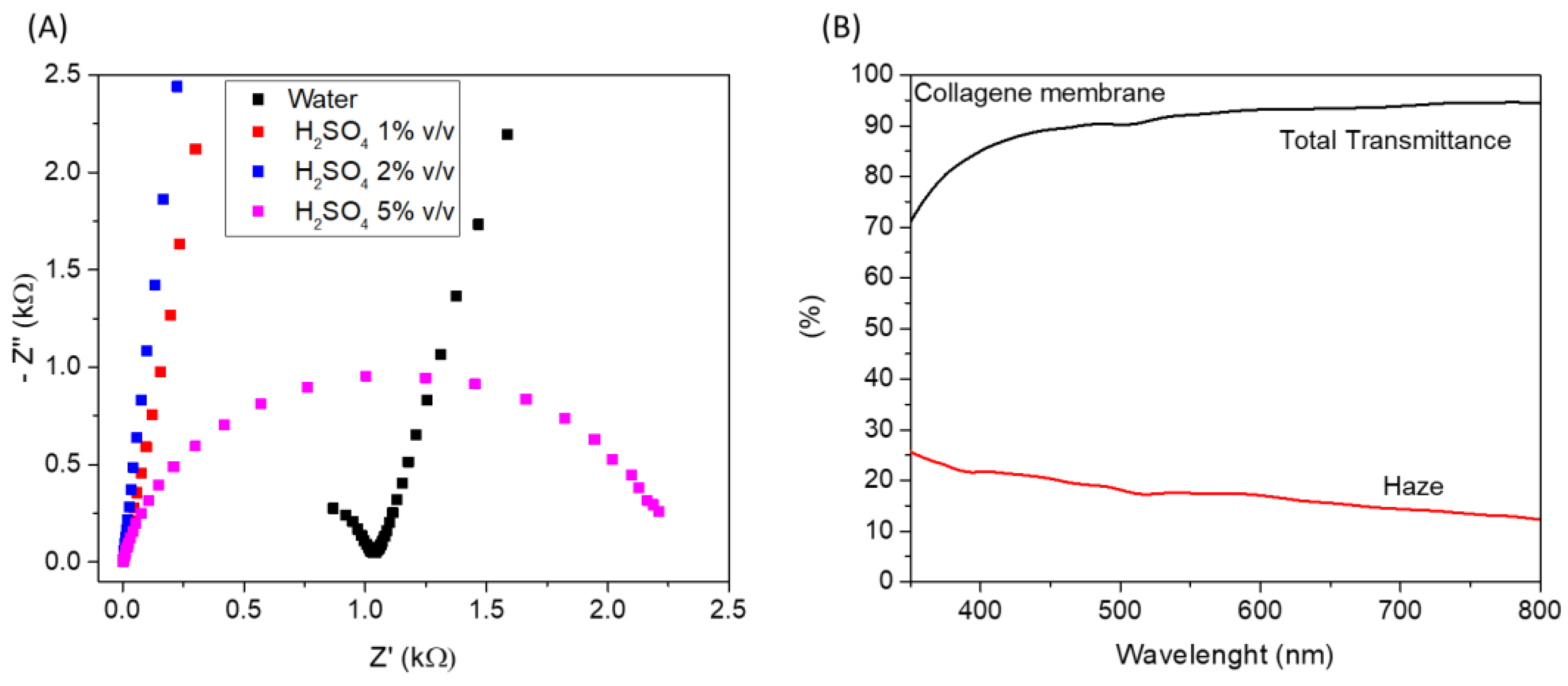

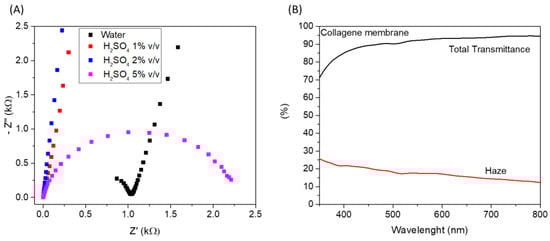

Figure 7. (A) Nyquist plots of electrochemical impedance spectra of the different membranes measured at 0 V; (B) Total transmittance and haze of cross-linked collagen membrane impregnated with H2SO4 1% (v/v).
Figure 7. (A) Nyquist plots of electrochemical impedance spectra of the different membranes measured at 0 V; (B) Total transmittance and haze of cross-linked collagen membrane impregnated with H2SO4 1% (v/v).
Gels 09 00310 g007
Gels 09 00310 g008 550

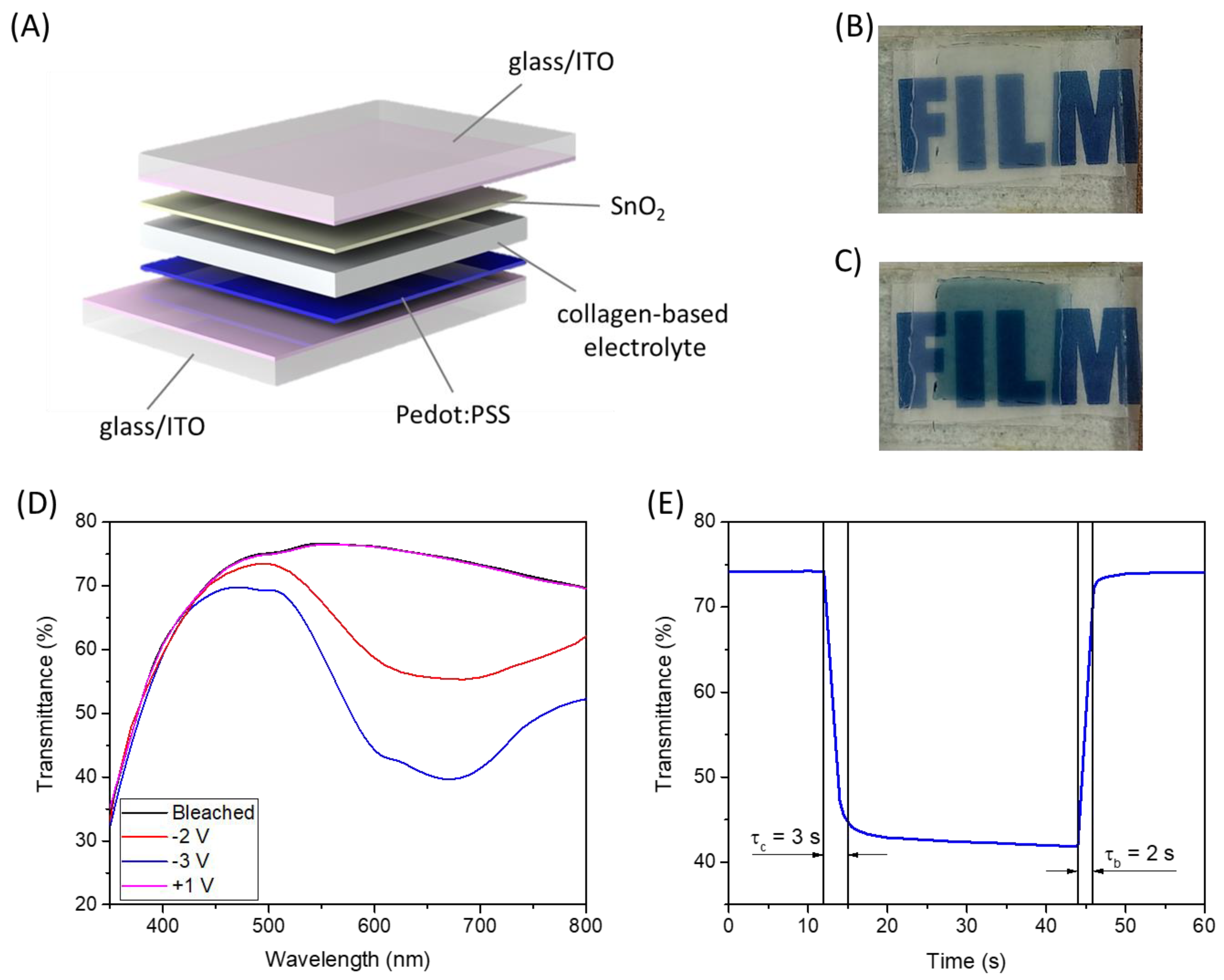

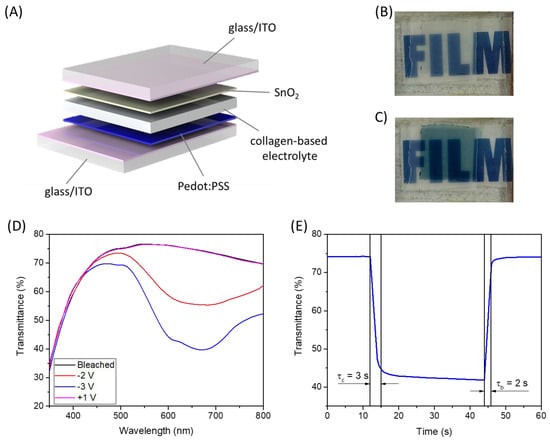

Figure 8. (A) Schematic representation of the fabricated electrochromic device; (B) picture of the device in the bleached state; (C) picture of the device in the colored state; (D) electromagnetic spectra of the electrochromic device in the visible range at different applied voltages; (E) transmittance (650 nm) vs. time spectrum by changing the potential between 1 V and −3 V.
Figure 8. (A) Schematic representation of the fabricated electrochromic device; (B) picture of the device in the bleached state; (C) picture of the device in the colored state; (D) electromagnetic spectra of the electrochromic device in the visible range at different applied voltages; (E) transmittance (650 nm) vs. time spectrum by changing the potential between 1 V and −3 V.
Gels 09 00310 g008
Table
Table 1. Secondary structure peaks and percentage analysis of uncrosslinked and cross-linked collagen matrices in the 1600–1700 cm−1 spectral range.
Table 1. Secondary structure peaks and percentage analysis of uncrosslinked and cross-linked collagen matrices in the 1600–1700 cm−1 spectral range.
Sampleβ-Sheets
1610–1642 cm−1		Random Coil
1642–1650 cm−1		α-Helices
1650–1660 cm−1		β-Turn
1660–1680 cm−1		β-Antiparallel
1680–1700 cm−1
UN film1626 (29.8%)1645 (32.1%)1660 (26.0%)1679 (7.4%)1695 (4.7%)
DHT film1625 (45.8%)1638 (1.6%)1655 (46.6%)1681.9 (4.1%)1694.4 (1.9%)
Table
Table 2. Hydrogen bond distances of uncrosslinked and cross-linked collagen matrices in the 2400–4000 cm−1 spectral range.
Table 2. Hydrogen bond distances of uncrosslinked and cross-linked collagen matrices in the 2400–4000 cm−1 spectral range.
Stretching Frequency (1/cm)ν1ν2ν3ν4
H-bond distances (nm)0.310.290.280.25
UN film3673 (4.4%)3490 (18.6%)3250 (50.6%)3116 (26.4%)
DHT film3671 (0.0%)3482 (16.8%)3249 (50.0%)3135 (33.2%)
Table
Table 3. Mechanical properties of uncrosslinked and cross-linked collagen matrices in the presence of water and of aqueous electrolytes in terms of Young’s modulus (E), maximum stress (σmax), and strain at break (εr). Reported values represent mean ± SD, where n = 3.
Table 3. Mechanical properties of uncrosslinked and cross-linked collagen matrices in the presence of water and of aqueous electrolytes in terms of Young’s modulus (E), maximum stress (σmax), and strain at break (εr). Reported values represent mean ± SD, where n = 3.
Sample TypeE (MPa)𝛔max (MPa)𝛆r% (-)
Uncosslinked collagen membrane (H2O)1.2 ± 0.31.8 ± 0.6131 ± 7
Uncosslinked collagen membrane (1% H2SO4)---
Uncosslinked collagen membrane (2% H2SO4)---
Uncosslinked collagen membrane (5% H2SO4)---
Cross-linked collagen membrane (H2O)2.7 ± 0.52.3 ± 0.367 ± 7
Cross-linked collagen membrane (1% H2SO4)4.7 ± 0.62.3 ± 0.440 ± 8
Cross-linked collagen membrane (2% H2SO4)2.8 ± 0.52.7 ± 1.265 ± 15
Cross-linked collagen membrane (5% H2SO4)2.5 ± 0.11.5 ± 0.455 ± 11
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Prontera, C.T.; Gallo, N.; Giannuzzi, R.; Pugliese, M.; Primiceri, V.; Mariano, F.; Maggiore, A.; Gigli, G.; Sannino, A.; Salvatore, L.; et al. Collagen Membrane as Water-Based Gel Electrolyte for Electrochromic Devices. Gels 2023, 9, 310. https://doi.org/10.3390/gels9040310

AMA Style

Prontera CT, Gallo N, Giannuzzi R, Pugliese M, Primiceri V, Mariano F, Maggiore A, Gigli G, Sannino A, Salvatore L, et al. Collagen Membrane as Water-Based Gel Electrolyte for Electrochromic Devices. Gels. 2023; 9(4):310. https://doi.org/10.3390/gels9040310

Chicago/Turabian Style

Prontera, Carmela Tania, Nunzia Gallo, Roberto Giannuzzi, Marco Pugliese, Vitantonio Primiceri, Fabrizio Mariano, Antonio Maggiore, Giuseppe Gigli, Alessandro Sannino, Luca Salvatore, and et al. 2023. "Collagen Membrane as Water-Based Gel Electrolyte for Electrochromic Devices" Gels 9, no. 4: 310. https://doi.org/10.3390/gels9040310

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
