On the Total Outer k-Independent Domination Number of Graphs

Abstract

A set of vertices of a graph G is a total dominating set if every vertex of G is adjacent to at least one vertex in such a set. We say that a total dominating set D is a total outer k-independent dominating set of G if the maximum degree of the subgraph induced by the vertices that are not in D is less or equal to $k-1$. The minimum cardinality among all total outer k-independent dominating sets is the total outer k-independent domination number of G. In this article, we introduce this parameter and begin with the study of its combinatorial and computational properties. For instance, we give several closed relationships between this novel parameter and other ones related to domination and independence in graphs. In addition, we give several Nordhaus–Gaddum type results. Finally, we prove that computing the total outer k-independent domination number of a graph G is an NP-hard problem.

1. Introduction

Theory of domination in graphs is one of the most important topics in graph theory. In the last few decades, the interest in this area has increased, due to its applications to different fields of science, such as linear algebra, communication networks, social sciences, computational complexity, algorithm design, complex ecosystems, optimization problems, among others (for example, see [1,2]). In this sense, in this important area, a very high number of variants of domination parameters have been developed, which are combinations of two or more parameters. In this article, we center our attention on the study of a new parameter, which is a combination between the following well-known parameters: total domination and k-independence in graphs. In addition, we focus the investigation some computational and combinatorial properties of it.

Throughout this article, we consider simple graphs G. Given a set $D\subseteq V\left(G\right)$, and a vertex $v\in V\left(G\right)$, $N_D\left(v\right)$ denotes the set of neighbors of v in D, that is, $N_D\left(v\right)=\{u\in D:uv\in E\left(G\right)\}$ and $N_D\left[v\right]=N_D\left(v\right)\cup \left\{v\right\}$. In addition, let ${\delta }_D\left(v\right)=\left|N_D\left(v\right)\right|$. The parameter $\delta \left(v\right)={\delta }_{V\left(G\right)}\left(v\right)=\left|N_{V\left(G\right)}\left(v\right)\right|$ denotes the degree of v in G. For short, we will often use $N\left(v\right)$ and $N\left[v\right]$ instead of $N_{V\left(G\right)}\left(v\right)$ and $N_{V\left(G\right)}\left[v\right]$, respectively. The minimum and maximum degrees of G will be denoted by $\delta \left(G\right)={min}_{v\in V\left(G\right)}\left\{\delta \left(v\right)\right\}$ and $\Delta \left(G\right)={max}_{v\in V\left(G\right)}\left\{\delta \left(v\right)\right\}$, respectively. A leaf vertex of G is a vertex of degree one, and a support vertex of G is a vertex adjacent to a leaf vertex. The set of leaves and support vertices will be denoted by $L\left(G\right)$ and $S\left(G\right)$, respectively. The subgraph induced by $X\subseteq V\left(G\right)$ will be denoted by $G\left[X\right]$. Given two sets $X,Y\subseteq V\left(G\right)$, $E(X,Y)$ denotes the set of all edges of G that join a vertex of X and a vertex of Y.

A set of vertices of a graph G is independent if the subgraph induced by it is isomorphic to an empty graph. The independence number of G is the maximum cardinality among all independent sets of G and is denoted by $\beta \left(G\right)$.

A set $D\subseteq V\left(G\right)$ is a dominating set of G if every vertex in $V\left(G\right)\setminus D$ is adjacent to at least one vertex in D. The domination number of G is the minimum cardinality among all dominating sets of G, and it is denoted by $\gamma \left(G\right)$.

In [3,4], Fink and Jacobson generalized the concepts of dominating and independent sets. For an integer $k\ge 1$, we say that a set $X\subseteq V\left(G\right)$ is k-independent if the maximum degree of the subgraph induced by the vertices of X is less than or equal to $k-1$, that is, $\Delta \left(G\right[X\left]\right)\le k-1$. The k-independence number of G is the maximum cardinality among all k-independent sets of G and is denoted by ${\beta }_k\left(G\right)$. A ${\beta }_k\left(G\right)$-set is a k-independent set of cardinality ${\beta }_k\left(G\right)$. Thus, when $k=1$, the 1-independence number is the classical independence number. Moreover, we say that a set $D\subseteq V\left(G\right)$ is k-dominating if every vertex in $V\left(G\right)\setminus D$ has at least k neighbors in D. The k-domination number of G is the minimum cardinality among all k-dominating sets of G and is denoted by ${\gamma }_k\left(G\right)$. A k-dominating set of cardinality ${\gamma }_k\left(G\right)$ is called a ${\gamma }_k\left(G\right)$-set. For more information on k-independence and k-domination, we suggest the relatively recent survey [5].

A dominating set $D\subseteq V\left(G\right)$ is a total dominating set of G if the subgraph induced by the vertices of D has no isolated vertex. The total domination number of G is the minimum cardinality among all total dominating sets of G and is denoted by ${\gamma }_t\left(G\right)$. A total dominating set of cardinality ${\gamma }_t\left(G\right)$ is called ${\gamma }_t\left(G\right)$-set. For more information on total domination, we suggest the survey [6] and the book [7].

A total outer k-independent dominating set (or TOkID set, for short) is a total dominating set $D\subseteq V\left(G\right)$ such that $V\left(G\right)\setminus D$ is a k-independent set. The minimum cardinality among all TOkID sets is the total outer k-independent domination number of G and is denoted by ${\gamma }_{t,oi}^k\left(G\right)$. A TOkID set of cardinality ${\gamma }_{t,oi}^k\left(G\right)$ is a ${\gamma }_{t,oi}^k\left(G\right)$-set. When $k=1$, a TOkID set is a total outer-independent dominating set, that is, a total dominating set D such that the subgraph induced by $V\left(G\right)\setminus D$ is isomorphic to an empty graph. This last concept was introduced in [8] and also barely looked at in [9] under the name of total co-independent domination number. Recently, it was analyzed in [10,11,12].

Given a graph G with no isolated vertex, in order to have a TOkID set D of G, any vertex of $V\left(G\right)\setminus D$ must have at least one neighbor in D and must have at most $k-1$ neighbors in $V\left(G\right)\setminus D$. Hence, $1\le k\le \Delta \left(G\right)$.

Moreover, we observe that, if $H_1$, $H_2$, …, $H_r$ with $r\ge 2$ are the components of a non-connected graph H with no isolated vertex, then any TOkID set of H is formed by a TOkID set in each component $H_i$, for $i=1,\dots ,r$. In the following remark, we expose the quotation above, and, as a consequence, in the paper, we only study the TOkID sets of nontrivial connected graphs.

Remark 1.

Let H be a non-connected graph with no isolated vertex. If $H_1$, $H_2$, …, $H_r$ with $r\ge 2$, are the components of H, then

$${\gamma }_{t,oi}^k\left(H\right)=\sum _{i=1}^r{\gamma }_{t,oi}^k\left(H_i\right).$$

The remainder of this article is structured as follows. Section 2 introduces primary combinatorial and computational results. For instance, we show that the problem of finding the total outer k-independent domination number of a graph is NP-hard. In addition, we give the exact value of this parameter for some specific families of graphs, and we expose general bounds and discuss the extreme cases. Finally, Section 3 is dedicated to giving several Nordhaus–Gaddum type results concerning the parameter ${\gamma }_{t,oi}^k\left(G\right)$.

2. Primary Combinatorial and Computational Results

It is natural to think that, due to the concept of “TOkID set", the total outer k-independent domination number is related to the total domination number and the k-independence number. This simple quotation leads to the following result.

Theorem 1.

If G is a connected graph of order n, then

$${\gamma }_{t,oi}^k\left(G\right)\ge max\{{\gamma }_t\left(G\right),n-{\beta }_k\left(G\right)\}.$$

Moreover, it is not difficult to see that, for any nontrivial connected graph G, any TO$(k-1)$ID set is a TOkID set, where $2\le k\le \Delta \left(G\right)$. Therefore, the following inequality chain holds.

Proposition 1.

If G is a connected graph of order n and maximum degree Δ, then

$$2\le {\gamma }_t\left(G\right)={\gamma }_{t,oi}^{\Delta }\left(G\right)\le {\gamma }_{t,oi}^{\Delta -1}\left(G\right)\le \cdots \le {\gamma }_{t,oi}\left(G\right)\le n.$$

The following remark is an immediate consequence of the proposition above.

Remark 2.

Let G be any connected graph. If ${\gamma }_{t,oi}^k\left(G\right)={\gamma }_t\left(G\right)$, then ${\gamma }_{t,oi}^j\left(G\right)={\gamma }_t\left(G\right)$ for every $j\in \{k,\dots ,\Delta (G\left)\right\}$.

Next, we give a theoretical characterization of the graphs that have equal TOkID and TO$(k-1)$ID numbers. For this, we need some extra terminology and notation. For any ${\gamma }_{t,oi}^k\left(G\right)$-set D, let $A_D^k$ be the set of vertices defined as follows:

$$A_D^k=\left\{v\in V\left(G\right)\setminus D:{\delta }_{V\left(G\right)\setminus D}\left(v\right)=k-1\right\}.$$

Lemma 1.

Let G be a nontrivial connected graph. For any ${\gamma }_{t,oi}^k\left(G\right)$-set D with $k\ge 2$,

$${\gamma }_{t,oi}^{k-1}\left(G\right)\le {\gamma }_{t,oi}^k\left(G\right)+\left|A_D^k\right|.$$

Proof.

Let D be any ${\gamma }_{t,oi}^k\left(G\right)$-set. Notice that $D\cup A_D^k$ is a TO$(k-1)$ID set of G. Thus, ${\gamma }_{t,oi}^{k-1}\left(G\right)\le |D\cup A_D^k|={\gamma }_{t,oi}^k\left(G\right)+\left|A_D^k\right|$. □

Theorem 2.

Let G be a connected graph. For an integer $k\ge 2$, ${\gamma }_{t,oi}^k\left(G\right)={\gamma }_{t,oi}^{k-1}\left(G\right)$ if and only if $A_D^k=\varnothing$ for some ${\gamma }_{t,oi}^k\left(G\right)$-set D.

Proof.

Suppose that ${\gamma }_{t,oi}^k\left(G\right)={\gamma }_{t,oi}^{k-1}\left(G\right)$ and let D be a ${\gamma }_{t,oi}^{k-1}\left(G\right)$-set. Thus, $\Delta \left(G\right[V\left(G\right)\setminus D\left]\right)\le k-2$. Since every TO$(k-1)$ID set is a TOkID set, it follows that D is also a TOkID set of G of cardinality ${\gamma }_{t,oi}^k\left(G\right)$. Hence, D is also a ${\gamma }_{t,oi}^k\left(G\right)$-set and satisfies that $A_D^k=\varnothing$. Conversely, if there exists a ${\gamma }_{t,oi}^k\left(G\right)$-set D such that $A_D^k=\varnothing$, then, by Proposition 1 and Lemma 1, the result follows. □

Now, we give an example of a subfamily of graphs given by Cabrera et al. in [13], in which the lower bound of Theorem 1 is achieved for the graphs of this family, and also the equivalence of Theorem 2 is satisfied. To this end, we need to introduce the family of graphs $\mathcal{F}$. Before this, we shall need the following operations for vertices or induced paths $P_3$ of a graph G. Note that these operations were already presented in [12].

Addition oftpendant vertices: Given a vertex x, add t new vertices $y_1,\cdots ,y_t$ and the edges $x{y}_i$ for every $i\in \{1,\cdots ,t\}$.

Inflation of sizeq: Given an induced path $P_3=uvw$ of G, in which $\delta \left(v\right)=2$, remove the vertex v and the two incident edges, and replace them with q vertices $v_1,\cdots ,v_q$ and edges $u{v}_i,v_{i}w$ for every $i\in \{1,\cdots ,q\}$.

From the cycle $C_6$, we obtain a graph $H\in \mathcal{F}$ by making the following sequence of operations.

(i)

Apply the operation “Addition of $t_i$ pendant vertices”, $t_i\ge 1$ and $i\in \{1,2,3\}$, to all vertices of a $\beta \left(C_6\right)$-set $S=\{v_1,v_2,v_3\}$, respectively.

(ii)

Apply the operation “Inflation of size $q_i$” with $q_i\ge 1$ and $i\in \{1,2,3\}$ to the three possible paths of order three between $v_1,v_2,v_3$.

Figure 1 shows an example of a graph belonging to the family $\mathcal{F}$. Next, we expose a result which relates ${\gamma }_t\left(H\right)$ and ${\gamma }_{t,oi}\left(H\right)$ for graphs $H\in \mathcal{F}$.

Remark 3.

If $H\in \mathcal{F}$, then ${\gamma }_t\left(H\right)={\gamma }_{t,oi}\left(H\right)=5$.

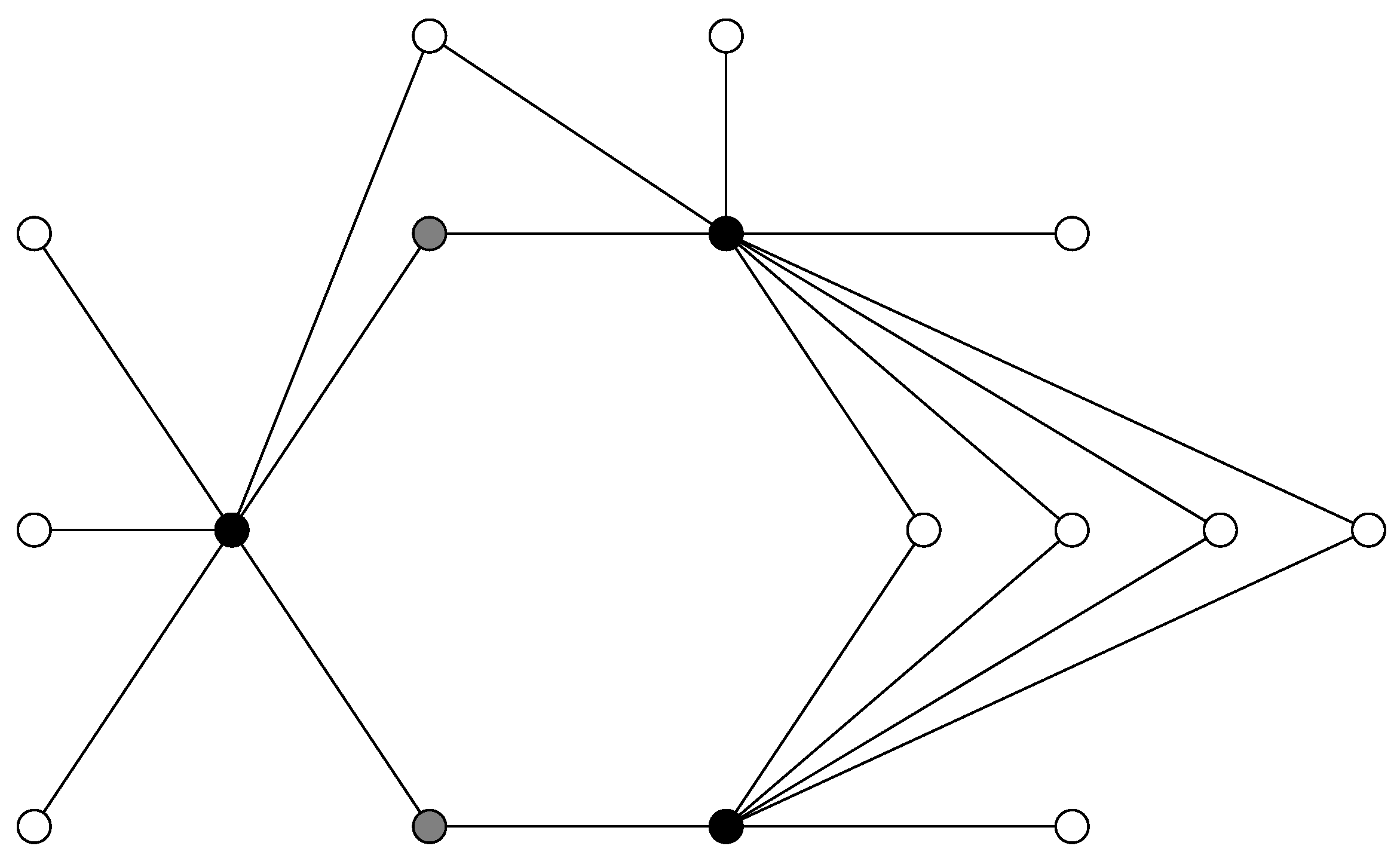

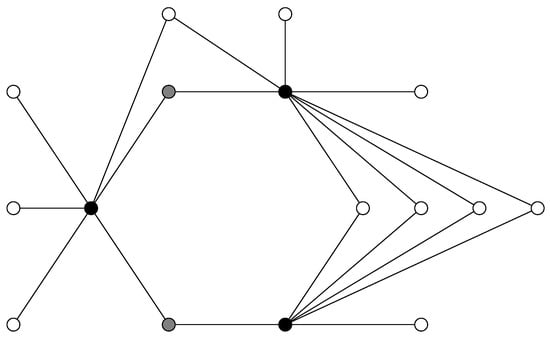

Figure 1. A graph $H\in \mathcal{F}$ where the three black-colored vertices form a $\beta \left(C_6\right)$-set and the two gray-colored vertices form a possible set to be added to the black-colored vertices to get a ${\gamma }_t\left(H\right)$-set.

According to the remark above, we can easily check that, for any graph $H\in \mathcal{F}$, ${\gamma }_t\left(H\right)={\gamma }_{t,oi}^{\Delta }\left(H\right)={\gamma }_{t,oi}^{\Delta -1}\left(H\right)=\cdots ={\gamma }_{t,oi}\left(H\right)$. Since every TOkID set is also a total dominating set and ${\gamma }_t\left(H\right)={\gamma }_{t,oi}^k\left(H\right)$ by equality chain above, we have that every ${\gamma }_{t,oi}^k\left(H\right)$-set is also a ${\gamma }_t\left(H\right)$-set too. Hence, if $k\ge 2$, then $A_D^k=\varnothing$ for every ${\gamma }_{t,oi}^k\left(H\right)$-set D.

Now, we consider the decision problem associated with total outer k-independent domination number of graphs.

TOTAL OUTER k-INDEPENDENT DOMINATION PROBLEM (TOkID PROBLEM) INSTANCE: A nontrivial connected graph G and a positive integer r PROBLEM: Deciding whether $r{\gamma }_{t,oi}^k\left(G\right)$ is less than r

We will show that the TOkID PROBLEM is NP-Complete by making a reduction from a known decision problem concerning the k-independence number of graphs, which was solved in 1989 by Jacobson and Peters [14]. In this article, the authors showed that the problem of determining the number ${\beta }_k\left(G\right)$ for an arbitrary graph G is NP-Complete.

Next, we define a family of graphs, which we will need to make the reduction. Fixing a positive integer k, the graph $H_k$ is obtained from a path $P_2$, by adding four copies of $K_k$, and joining with an edge each vertex of $P_2$ with all the vertices from two of such copies. (see Figure 2I). Let G be a connected graph with $\left|V\right(G\left)\right|=n$ and let $H_k^{\left(1\right)},\cdots ,H_k^{\left(n\right)}$ be n graphs isomorphic to the graph $H_k$. We construct the graph $G_{n,k}$ by adding edges between the $i^{th}$-vertex of G and one vertex of maximum degree of the $i^{th}$-graph $H_k^{\left(i\right)}$. See Figure 2II for an example.

Lemma 2.

If G is a connected graph of order n and any positive integer $k\le \Delta \left(G\right)$, then

$${\beta }_k\left(G_{n,k}\right)=\left|V\left(G_{n,k}\right)\right|-3n+{\beta }_k\left(G\right).$$

Proof.

Let G be a nontrivial connected graph such that $\left|V\right(G\left)\right|=n$ and let $G_{n,k}$ be the graph described above ($1\le k\le \Delta \left(G\right)$). We define $u^{\left(i\right)},v^{\left(i\right)}$ as the two vertices of maximum degree in the copy $H_k^{\left(i\right)}$ of the graph $H_k$ used to construct $G_{n,k}$ and let A be a ${\beta }_k\left(G\right)$-set. Notice that $A\cup \{{\bigcup }_{i=1}^{n}V\left(H_k^{\left(i\right)}\right)\setminus \{u^{\left(i\right)},v^{\left(i\right)}\}\}$ is a k-independent set of $G_{n,k}$. Hence, ${\beta }_k\left(G_{n,k}\right)\ge \left|V\left(G_{n,k}\right)\right|-3n+{\beta }_k\left(G\right).$

On the other hand, let S be a ${\beta }_k\left(G_{n,k}\right)$-set. It is straightforward to see that $|S\cap V(H_k^{\left(i\right)})|\le |V(H_k^{\left(i\right)})|-2$ for every $1\le i\le n$ and that $|S\cap V\left(G\right)|\le {\beta }_k\left(G\right)$. Therefore,

$$\begin{array}{cc}\hfill {\beta }_k\left(G_{n,k}\right)& =\left|S\right|=\left|(S\cap V\left(G\right))\cup \{{\displaystyle \bigcup _{i=1}^n}S\cap V\left(H_k^{\left(i\right)}\right)\}\right|\hfill \\ & \le |S\cap V\left(G\right)|+\sum _{i=1}^n\left(\right|V\left(H_k^{\left(i\right)}\right)|-2)\hfill \\ & =|V\left(G_{n,k}\right)|-3n+{\beta }_k\left(G\right),\hfill \end{array}$$

which completes the proof. □

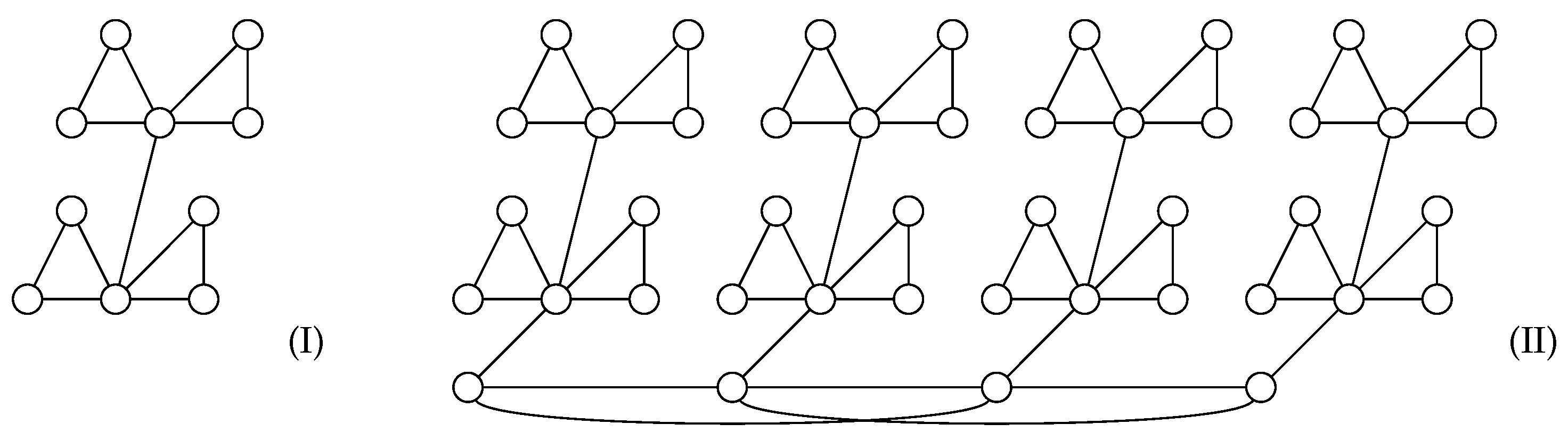

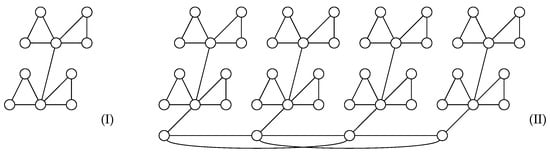

Figure 2. The graph $H_2$ (I) and a graph $G_{4,2}$ (II) where G is a complete graph minus one edge.

The following theorem shows the NP-completeness of the TOkID PROBLEM.

Theorem 3.

TOkID PROBLEM is NP-complete.

Proof.

The TOkID PROBLEM belongs to NP, since we can check in polynomial time that a given set has cardinality at most r and is a TOkID set. Let $G_{n,k}$ and $u^{\left(i\right)},v^{\left(i\right)}$ be the graph and the vertices described in the lemma above, respectively. Now, we will prove that ${\gamma }_{t,oi}^k\left(G_{n,k}\right)=3n-{\beta }_k\left(G\right)$.

Let A be a ${\beta }_k\left(G\right)$-set and let $D=(V\left(G\right)\setminus A)\cup \left\{{\bigcup }_{i=1}^n\{u^{\left(i\right)},v^{\left(i\right)}\}\right\}$. Notice that D is a total dominating set of $G_{n,k}$ and $V\left(G_{n,k}\right)\setminus D$ is a k-independent set. Thus, D is a TOkID set of $G_{n,k}$ and, as a consequence,

$${\gamma }_{t,oi}^k\left(G_{n,k}\right)\le \left|D\right|=n-\left|A\right|+\left|\bigcup _{i=1}^n\{u^{\left(i\right)},v^{\left(i\right)}\}\right|=3n-{\beta }_k\left(G\right).$$

Moreover, by Theorem 1 and Lemma 2, we obtain that ${\gamma }_{t,oi}^k\left(G_{n,k}\right)\ge 3n-{\beta }_k\left(G\right)$. Therefore, ${\gamma }_{t,oi}^k\left(G_{n,k}\right)=3n-{\beta }_k\left(G\right)$.

Now, for $j=3n-h$, it is readily seen that ${\gamma }_{t,oi}^k\left(G_{n,k}\right)\le j$ if and only if ${\beta }_k\left(G\right)\ge h$, which completes the reduction. Hence, TOkID PROBLEM is NP-complete. □

The next result is an immediate consequence of the previous theorem.

Corollary 1.

The problem of computing the total outer k-independent domination number of a nontrivial connected graph is NP-hard.

According to the complexity results above, it is desirable to bound the total outer k-independent domination number or compute its exact value for several families of graphs. We next center our attention on this second goal. We will use the notation $P_n$, $C_n$, $K_n$, $S_n$, $S_{r,n-r}$, $N_n$ and $W_n=N_1+C_{n-1}$ for path graphs, cycle graphs, complete graphs, star graphs, double star graphs, empty graphs and wheel graphs of order n, respectively. In addition, we use the notation $K_{r,s}$ for the bipartite complete graph and, without loss of generality, we always assume that $r\le s$.

Remark 4

([7]). For any integer $n\ge 3$, ${\gamma }_t\left(P_n\right)={\gamma }_t\left(C_n\right)=⌊\frac{n}{2}⌋+⌈\frac{n}{4}⌉-⌊\frac{n}{4}⌋$.

Proposition 2.

The following equalities hold for any integer $n\ge 3$.

(i)

${\gamma }_{t,oi}\left(P_n\right)=⌊\frac{2n}{3}⌋$ and ${\gamma }_{t,oi}^2\left(P_n\right)=⌊\frac{n}{2}⌋+⌈\frac{n}{4}⌉-⌊\frac{n}{4}⌋$.

(ii)

${\gamma }_{t,oi}\left(C_n\right)=⌊\frac{2n+2}{3}⌋$ and ${\gamma }_{t,oi}^2\left(C_n\right)=⌊\frac{n}{2}⌋+⌈\frac{n}{4}⌉-⌊\frac{n}{4}⌋$.

(iii)

${\gamma }_{t,oi}^k\left(K_n\right)=\left\{\begin{array}{cc}2& ifk=n-1,\hfill \\ n-k& otherwise.\hfill \end{array}\right.$

(iv)

${\gamma }_{t,oi}^k\left(S_n\right)={\gamma }_{t,oi}^k\left(S_{r,n-r}\right)=2$.

(v)

${\gamma }_{t,oi}^k\left(W_n\right)=\left\{\begin{array}{cc}⌈\frac{n+1}{2}⌉& ifk=1,\hfill \\ ⌈\frac{n+2}{3}⌉& ifk=2,\hfill \\ 2& otherwise.\hfill \end{array}\right.$

(vi)

${\gamma }_{t,oi}^k\left(K_{r,s}\right)=\left\{\begin{array}{cc}min\{r+1,r+s-2k+2\}& ifk\le r,\hfill \\ min\{r+1,s-k+2\}& otherwise.\hfill \end{array}\right.$

Proof.

The equalities ${\gamma }_{t,oi}\left(P_n\right)=⌊\frac{2n}{3}⌋$ and ${\gamma }_{t,oi}\left(C_n\right)=⌊\frac{2n+2}{3}⌋$ are given in [8]. From Proposition 1 and Remark 4, we deduce (i) and (ii). The equalities (iii)–(v) are straightforward. Now, we proceed to prove (vi). Let $K_{r,s}$ be the bipartite complete graph with partite sets $V_r$ and $V_s$ of cardinality r and s, respectively. Let $v\in V_s$. Notice that $V_r\cup \left\{v\right\}$ is a TOkID set of $K_{r,s}$. Hence, ${\gamma }_{t,oi}^k\left(K_{r,s}\right)\le |V_r\cup \left\{v\right\}|=r+1$. If ${\gamma }_{t,oi}^k\left(K_{r,s}\right)=r+1$, then we are done. Thus, we assume that ${\gamma }_{t,oi}^k\left(K_{r,s}\right)\le r$. Next, we analyze two cases.

Case 1. $k\le r$. Let $X\subseteq V\left(K_{r,s}\right)$ such that $|X\cap V_r|=r-(k-1)$ and $|X\cap V_s|=s-(k-1)$. Notice that X is a TOkID set of $K_{r,s}$. Hence, ${\gamma }_{t,oi}^k\left(K_{r,s}\right)\le \left|X\right|=r+s-2k+2$. Now, let D be a ${\gamma }_{t,oi}^k\left(K_{r,s}\right)$-set. Since $D\cap V_r\ne \varnothing$, $D\cap V_s\ne \varnothing$ and $\left|D\right|\le r$, we have that $|D\cap V_r|\ge r-(k-1)$ and $|D\cap V_s|\ge s-(k-1)$. Thus, ${\gamma }_{t,oi}^k\left(K_{r,s}\right)=\left|D\right|\ge r+s-2(k-1)$. Therefore, ${\gamma }_{t,oi}^k\left(K_{r,s}\right)=r+s-2k+2$.

Case 2. $k>r$. Let $X\subseteq V\left(K_{r,s}\right)$ such that $|X\cap V_r|=1$ and $|X\cap V_s|=s-(k-1)$. Notice that X is a TOkID set of $K_{r,s}$. Hence, ${\gamma }_{t,oi}^k\left(K_{r,s}\right)\le \left|X\right|=s-k+2$. Now, let D be a ${\gamma }_{t,oi}^k\left(K_{r,s}\right)$-set. Since $D\cap V_r\ne \varnothing$, $D\cap V_s\ne \varnothing$ and $\left|D\right|>r$, we have that $|D\cap V_r|\ge 1$ and $|D\cap V_s|\ge s-(k-1)$. Thus, ${\gamma }_{t,oi}^k\left(K_{r,s}\right)=\left|D\right|\ge s-k+2$. Therefore, ${\gamma }_{t,oi}^k\left(K_{r,s}\right)=s-k+2$. □

Let G and H be two graphs of order $n_G$ and $n_H$, respectively. The corona product graph $G\odot H$ is defined as the graph obtained from G and H, by taking one copy of G and $n_G$ copies of H and joining by an edge every vertex from the $i^{th}$-copy of H with the $i^{th}$-vertex of G. For every $x\in V\left(G\right)$, $H_x$ will denote the copy of H in $G\odot H$ associated with x.

Next, we study the total outer k-independent domination number of corona product graphs. Before, we shall need the following useful lemmas.

Lemma 3.

If G and H are two graphs with no isolated vertex, then, for any positive integer $k\le \Delta \left(H\right)$,

$${\beta }_k(G\odot H)=n_G{\beta }_k\left(H\right).$$

Proof.

Let S be a ${\beta }_k\left(H\right)$-set. For any $x\in V\left(G\right)$, let $S^x$ be the copy of S associated with $H_x$. Since ${\cup }_{x\in V\left(G\right)}{S}^x$ is a k-independent set of $G\odot H$, we have that ${\beta }_k(G\odot H)\ge \left|{\cup }_{x\in V\left(G\right)}{S}^x\right|=n_G{\beta }_k\left(H\right)$. Now, we suppose that ${\beta }_k(G\odot H)>n_G{\beta }_k\left(H\right)$ and let D be a ${\beta }_k(G\odot H)$-set. Thus, there exists a vertex $v\in V\left(G\right)$ such that $|D\cap (V\left(H_v\right)\cup \left\{v\right\})|>{\beta }_k\left(H\right)$. This can only happen if $v\in D$, which implies that $|D\cap (V\left(H_v\right)|\le k-1$, contradicting the fact that $|D\cap (V\left(H_v\right)\cup \left\{v\right\})|>{\beta }_k\left(H\right)$ since ${\beta }_k\left(H\right)\ge k$. Therefore, ${\beta }_k(G\odot H)=n_G{\beta }_k\left(H\right)$, which completes the proof. □

Lemma 4.

If G and H are two graphs with no isolated vertex, then

$${\gamma }_t(G\odot H)=n_G.$$

Proof.

Notice that $V\left(G\right)$ is a total dominating set of $G\odot H$. Hence, ${\gamma }_t(G\odot H)\le \left|V\left(G\right)\right|=n_G$. Moreover, we observe that each copy of H contains at least one vertex in any total dominating set of $G\odot H$. Thus, ${\gamma }_t(G\odot H)\ge n_G$, which completes the proof. □

Theorem 4.

If G is a graph with no isolated vertex, then, for every graph H with no isolated vertex,

$${\gamma }_{t,oi}^k(G\odot H)=\left\{\begin{array}{cc}{n}_G& if\Delta \left(H\right)\le k-1,\hfill \\ n_G(n_H-{\beta }_k\left(H\right)+1)& otherwise.\hfill \end{array}\right.$$

Proof.

If $\Delta \left(H\right)\le k-1$, then it is straightforward to see that $V\left(G\right)$ is a TOkID set of $G\odot H$. Hence, by Lemma 4 and the statement above, we have that ${\gamma }_{t,oi}^k(G\odot H)\le \left|V\left(G\right)\right|=n_G={\gamma }_t(G\odot H)$. Therefore, Theorem 1 leads to ${\gamma }_{t,oi}^k(G\odot H)=n_G$.

From now on, we assume that $k\le \Delta \left(H\right)$. Let S be a ${\beta }_k\left(H\right)$-set. For any $x\in V\left(G\right)$, let $S^x$ be the copy of S associated with $H_x$. Since $R={\cup }_{x\in V\left(G\right)}{S}^x$ is a k-independent set of $G\odot H$, by Lemma 3, we deduce that R is a ${\beta }_k(G\odot H)$-set. Moreover, we observe that $V(G\odot H)\setminus R$ is a total dominating set of $G\odot H$. Thus, $V(G\odot H)\setminus R$ is a TOkID set of $G\odot H$ and so ${\gamma }_{t,oi}^k(G\odot H)\le |V(G\odot H)\setminus R|=\left|V(G\odot H)\right|-{\beta }_k(G\odot H)=n_G(n_H+1)-n_G{\beta }_k\left(H\right)=n_G(n_H-{\beta }_k\left(H\right)+1)$. The proof is completed by Theorem 1. □

Now, we continue the article giving relationships between the total outer k-independent domination number and other parameters of a graph.

Theorem 5

([15]). If G is a connected graph of order $n\ge 3$ and maximum degree $\Delta \left(G\right)\le n-2$, then ${\gamma }_t\left(G\right)\le n-\Delta \left(G\right)$.

Theorem 6.

If G is a connected graph of order n and size m, then

$$\frac{2m-n(k-2)}{3\Delta \left(G\right)-k}\le {\gamma }_{t,oi}^k\left(G\right)\le n-k+1.$$

Furthermore, ${\gamma }_{t,oi}^k\left(G\right)=n-k+1$ if and only if $k=\Delta \left(G\right)=n-1$.

Proof.

Let D be a ${\gamma }_{t,oi}^k\left(G\right)$-set. Since D is also a total dominating set of G, each vertex in $V\left(G\right)\setminus D$ is adjacent to at least one vertex in D. Hence, $(n-|D\left|\right)\le \left|E\right(D,V\left(G\right)\setminus D\left)\right|\le \left|D\right|(\Delta (G)-1)$. In addition, as $V\left(G\right)\setminus D$ is a k-independent set, we have that $\left|E(V\left(G\right)\setminus D,V\left(G\right)\setminus D)\right|\le \frac{(n-|D\left|\right)(k-1)}{2}$. Since $\left|E(D,D)\right|\le \frac{\left|D\right|\Delta \left(G\right)-\left|E\right(D,V\left(G\right)\setminus D\left)\right|}{2}\le \frac{\left|D\right|\Delta \left(G\right)-(n-|D\left|\right)}{2}$, we obtain

$$\begin{array}{cc}\hfill m& =\left|E\right(D,V\left(G\right)\setminus D\left)\right|+\left|E\right(D,D\left)\right|+\left|E\right(V\left(G\right)\setminus D,V\left(G\right)\setminus D\left)\right|\hfill \\ & \le \left|D\right|(\Delta \left(G\right)-1)+\frac{\left|D\right|\Delta \left(G\right)-(n-|D\left|\right)}{2}+\frac{(n-|D\left|\right)(k-1)}{2},\hfill \end{array}$$

which is equivalent to $2m\le \left|D\right|(3\Delta (G)-k)+n(k-2)$. Therefore, ${\gamma }_{t,oi}^k\left(G\right)=\left|D\right|\ge \frac{2m-n(k-2)}{3\Delta \left(G\right)-k}$, which completes the proof of the lower bound.

In order to prove the upper bound, we first suppose that $1\le k<\Delta \left(G\right)$. Let v be a vertex of maximum degree and let $S_k$ be a set of k vertices adjacent to v. Clearly, the set $S_k$ is k-independent. If $D=V\left(G\right)\setminus S_k$ is a total dominating set, then D is a TOkID set. Hence, ${\gamma }_{t,oi}^k\left(G\right)\le \left|D\right|=n-k<n-k+1$. Now, we assume that D is not a total dominating set of G. Since G is connected, it can only happen when $S_k\cap S\left(G\right)\ne \varnothing$. Let $S_k^s=S_k\cap S\left(G\right)$ and consider the set $D^{\prime }=(D\setminus (N\left(S_k^s\right)\cap L\left(G\right)))\cup S_k^s$. Observe that $D^{\prime }$ is a total dominating set of G of cardinality at most $\left|D\right|$ and $V\left(G\right)\setminus D^{\prime }$ is k-independent. Hence, $D^{\prime }$ is a TOkID set of G and so, ${\gamma }_{t,oi}^k\left(G\right)\le |D^{\prime }|\le |D|=n-k<n-k+1$.

Now, we suppose that $k=\Delta \left(G\right)<n-1$. Hence, by Proposition 1 and Theorem 5, we have that ${\gamma }_{t,oi}^k\left(G\right)={\gamma }_t\left(G\right)\le n-\Delta \left(G\right)=n-k<n-k+1$.

Finally, we assume that $k=\Delta \left(G\right)=n-1$. Thus, ${\gamma }_t\left(G\right)=2$ and again, by Proposition 1, it follows that ${\gamma }_{t,oi}^k\left(G\right)={\gamma }_t\left(G\right)=2=n-\Delta \left(G\right)+1=n-k+1$. Conversely, if ${\gamma }_{t,oi}^k\left(G\right)=n-k+1$, then, by previous cases ($1\le k<\Delta \left(G\right)$ and $k=\Delta \left(G\right)<n-1$), we deduce that $k=\Delta \left(G\right)=n-1$, which completes the proof. □

The lower bound above is tight. For instance, it is achieved for the cycle $C_{4t}$ with $k=2$, where, by Proposition 2(ii), we obtain ${\gamma }_{t,oi}^2\left(C_{4t}\right)=2t$.

The following result is a direct consequence of Theorems 1 and 6.

Corollary 2.

Let G be a nontrivial connected graph of order n. Let k be an integer such that ${\beta }_k\left(G\right)=k$. If $k<\Delta \left(G\right)$ or $\Delta \left(G\right)<n-1$, then ${\gamma }_{t,oi}^k\left(G\right)=n-k$.

Next, we give an upper bound for the total outer k-independent domination number of a graph.

Theorem 7.

If G is a connected graph of order n, then for any positive integer $k\le \delta \left(G\right)$,

$${\gamma }_{t,oi}^k\left(G\right)\le 2(n-{\beta }_k\left(G\right))-\delta \left(G\right)+k.$$

Proof.

Let S be a ${\beta }_k\left(G\right)$-set. Since S is k-independent, then $V\left(G\right)\setminus S$ is a $\left(\delta \right(G)-k+1)$-dominating set of G. Now, we fix a vertex $v\in S$ and let A be the set of isolated vertices of $G\left[V\right(G)\setminus (S\cup N\left(v\right)\left)\right]$. Let $A^{\prime }$ be a subset of S of minimum cardinality such that $N\left(x\right)\cap A^{\prime }\ne \varnothing$ for every $x\in A$. Clearly, $|A^{\prime }|\le |A|$. Moreover, notice that the set $(V\left(G\right)\setminus S)\cup A^{\prime }\cup \left\{v\right\}$ is a TOkID set of G. Hence,

$$\begin{array}{cc}\hfill {\gamma }_{t,oi}^k\left(G\right)& \le |(V\left(G\right)\setminus S)\cup A^{\prime }\cup \left\{v\right\}|\hfill \\ & \le |V\left(G\right)\setminus S|+|A^{\prime }|+1\hfill \\ & \le \left|V\right(G)\setminus S|+\left|A\right|+1\hfill \\ & =(n-{\beta }_k\left(G\right))+(n-{\beta }_k\left(G\right)-(\delta \left(G\right)-k+1))+1\hfill \\ & =2(n-{\beta }_k\left(G\right))-\delta \left(G\right)+k,\hfill \end{array}$$

which completes the proof. □

We remark that the upper bound given in Theorem 7 is tight. For example, it is achieved for the graph $H_k=(k+1)K_k+N_{k+1}$, where $k\ge 2$ is an integer. It is easy to check that ${\beta }_k\left(H_k\right)=(k+1)k$, $|V\left(H_k\right)|={(k+1)}^2$, $\delta \left(H_k\right)=2k$ and ${\gamma }_{t,oi}^k\left(H_k\right)=k+2$. The graph $H_2$, for example, is illustrated in Figure 3.

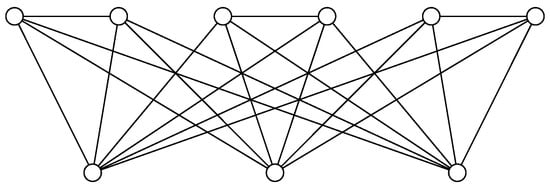

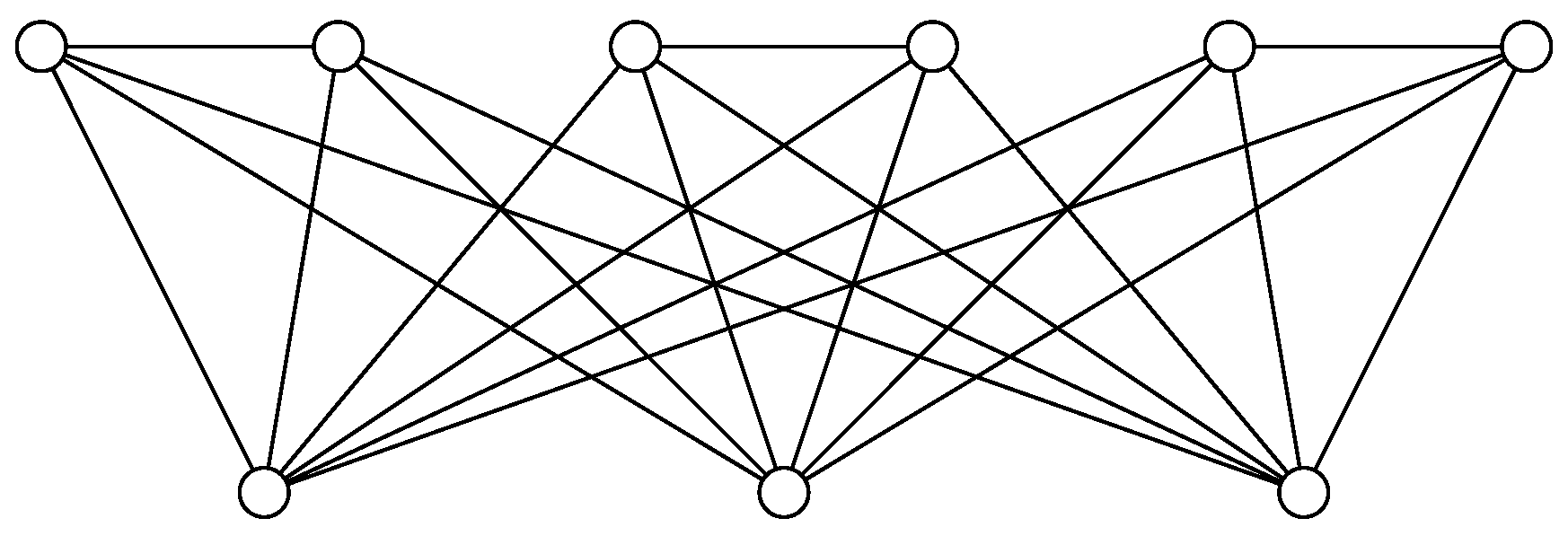

Figure 3. The graph $H_2=3K_2+N_3$.

Our next result provides a lower bound for the total outer k-independent domination number in terms of the order, minimum degree, and the maximum degree of a graph.

Theorem 8.

If G is a connected graph of order n, then for any positive integer $k\le \delta \left(G\right)$,

$${\gamma }_{t,oi}^k\left(G\right)\ge max\{\delta \left(G\right)-k+1,\frac{n\left(\delta \right(G)-k+1)}{\Delta \left(G\right)+\delta \left(G\right)-k}\}.$$

Furthermore, if ${\gamma }_{t,oi}^k\left(G\right)=\delta \left(G\right)-k+1$, then $G\cong G_1+G_2$, where $G_1$ is a graph with no isolated vertex of order $\delta \left(G\right)-k+1$ and $G_2$ is a $(k-1)$-regular graph of order $n-\delta \left(G\right)+k-1$.

Proof.

Let D be a ${\gamma }_{t,oi}^k\left(G\right)$-set. If $D=V\left(G\right)$, then, by Theorem 13(iii), we have that $k=1$ and $G\cong P_2$. Hence, the bound is satisfied. Now, we assume that $V\left(G\right)\setminus D\ne \varnothing$. Since every vertex in $V\left(G\right)\setminus D$ has at least $\delta \left(G\right)-k+1$ neighbors in D, we obtain that ${\gamma }_{t,oi}^k\left(G\right)=\left|D\right|\ge \delta \left(G\right)-k+1$. In addition, since every vertex in D has at most $\Delta \left(G\right)-1$ neighbors in $V\left(G\right)\setminus D$, we deduce that

$$\begin{array}{cc}\hfill \left|D\right|(\Delta (G)-1)& \ge \left|V\right(G)\setminus D|\left(\delta \right(G)-k+1)\hfill \\ \hfill {\gamma }_{t,oi}^k\left(G\right)(\Delta \left(G\right)-1)& \ge (n-{\gamma }_{t,oi}^k\left(G\right))(\delta \left(G\right)-k+1)\hfill \\ \hfill {\gamma }_{t,oi}^k\left(G\right)(\Delta \left(G\right)+\delta \left(G\right)-k)& \ge n\left(\delta \right(G)-k+1)\hfill \\ \hfill {\gamma }_{t,oi}^k\left(G\right)& \ge \frac{n\left(\delta \right(G)-k+1)}{\Delta \left(G\right)+\delta \left(G\right)-k}\hfill \end{array}$$

which implies that the bound is satisfied.

Now, we assume that $\left|D\right|=\delta \left(G\right)-k+1$. Since D is also a total dominating set of G, we have that $G_1=G\left[D\right]$ is a graph with no isolated vertex of order $\delta \left(G\right)-k+1$. Let $v\in V\left(G\right)\setminus D$. If $\delta \left(v\right)>\delta \left(G\right)$, then ${\delta }_D\left(v\right)>\delta \left(G\right)-k+1$ as $V\left(G\right)\setminus D$ is k-independent, which is a contradiction. Hence, for every vertex $x\in V\left(G\right)\setminus D$, it satisfies that $\delta \left(x\right)=\delta \left(G\right)$ and, consequently, ${\delta }_{V\left(G\right)\setminus D}\left(x\right)=k-1$. Thus, $G_2=G[V\left(G\right)\setminus D]$ is a $(k-1)$-regular graph of order $n-\delta \left(G\right)+k-1$ and $G\cong G_1+G_2$, which completes the proof. □

For any integer $k\ge 3$, let ${\mathcal{G}}_{2k,k-1}$ be the family of $(k-1)$-regular graphs of order $2k$, and let $G=P_2+G_k$, where $G_k\in {\mathcal{G}}_{2k,k-1}$. Observe that ${\mathcal{G}}_{2k,k-1}\subseteq T\left[F{\circ }_1{P}_2\right]$, where $\Delta \left(F\right)\le k-1$. Hence, by Theorem 13(i), we have that ${\gamma }_{t,oi}^k\left(G\right)=2$. In addition, one can check that $\left|V\right(G\left)\right|=2k+2$, $\Delta \left(G\right)=2k+1$, and $\delta \left(G\right)=k+1$, concluding that the lower bound given in the previous theorem is tight, and it is achieved for the graph G. Recall that, for any integer $k\ge 3$, the family ${\mathcal{G}}_{2k,k-1}$ is not empty. Next, we give an example of a graph $F_k\in {\mathcal{G}}_{2k,k-1}$. Let $F_k$ be the graph with vertex set $V\left(F_k\right)=\{v_1,\dots ,v_k,u_1,\dots ,u_k\}$ and edge set $E\left(F_k\right)=\{v_i{u}_j:i\in \{1,\dots k\},j\in \{i,\dots ,i+k-1\}\}$, where the subscripts are taken modulo k. It is not difficult to see that the graph $F_k$ is a $(k-1)$-regular graph of order $2k$, as desired. The graph $F_4$, for example, is illustrated in Figure 4.

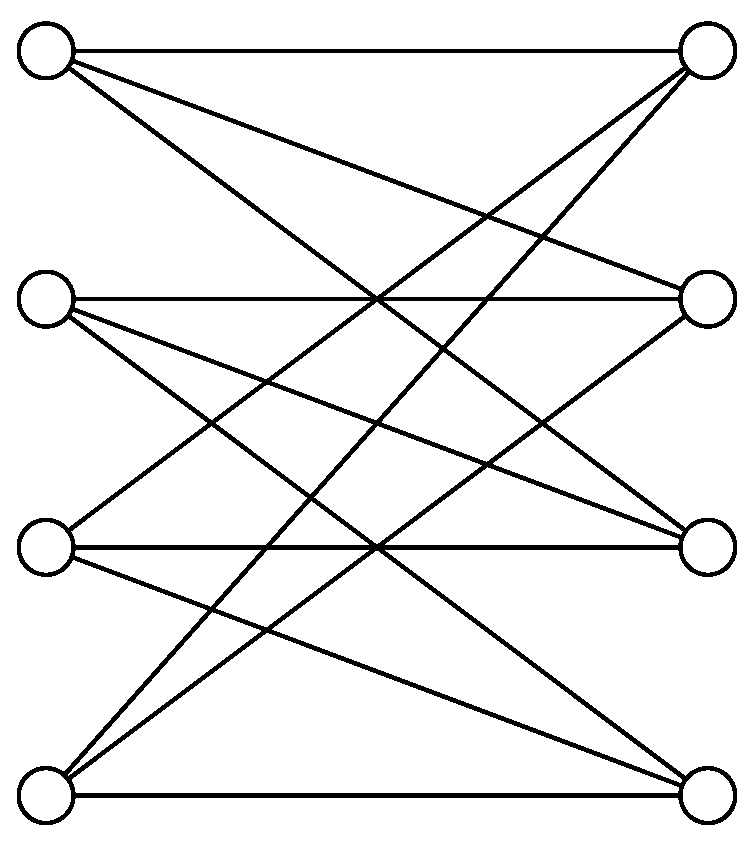

Figure 4. The graph $F_4$.

In order to derive another results, we need to state the following results.

Theorem 9.

Let G be a graph.

(i)

[16]If $k\le \delta \left(G\right)$, then ${\beta }_k\left(G\right)+{\gamma }_{\delta \left(G\right)-k+1}\left(G\right)\le n.$

(ii)

[3]If $2\le k\le \Delta \left(G\right)$, then ${\gamma }_k\left(G\right)\ge \gamma \left(G\right)+k-2.$

The following result is a direct consequence of combining Theorems 1 and 9(i).

Theorem 10.

If G is a connected graph, then for any positive integer $k\le \delta \left(G\right)$,

$${\gamma }_{t,oi}^k\left(G\right)\ge {\gamma }_{\delta \left(G\right)-k+1}\left(G\right).$$

We remark that the lower bound given in the theorem above is sharp. For example, it is achieved for any complete graph $K_n$ with $n\ge 3$ and $1\le k\le n-2$.

From Theorems 10 and 9(ii), we immediately have the next theorem.

Theorem 11.

If G is a connected graph, then for any positive integer $2\le k\le \delta \left(G\right)$,

$${\gamma }_{t,oi}^k\left(G\right)\ge \gamma \left(G\right)+\delta \left(G\right)-k-1.$$

To conclude this section, we proceed to characterize all graphs achieving the extreme values given in Proposition 1. Before this, we shall need the following result and notation.

Theorem 12

([8]). Let G be a graph of order n. Then, ${\gamma }_{t,oi}\left(G\right)=n-1$ if and only if $G\in \{P_3,C_4,C_5\}$ or G is a complete graph with at least three vertices.

We define the k-join operation between two graphs G and H, and denoted by $G{\circ }_{k}H$, as the disjoint union of G and H by joining each vertex of G to k or $k+1$ vertices of H. For each integer positive k and any graphs G and H, the family of all graphs obtained by the operation above is denoted by $T\left[G{\circ }_{k}H\right]$.

Theorem 13.

Let G be a connected graph of order n. Then, the following statement holds.

(i)

${\gamma }_{t,oi}^k\left(G\right)=2$ if and only if $G\in T\left[F{\circ }_1{P}_2\right]$, where F is some graph with $\Delta \left(F\right)\le k-1$.

(ii)

For $n\ge 3$, we have that ${\gamma }_{t,oi}^k\left(G\right)=n-1$ if and only if either $k=1$ and $G\in \{K_n,P_3,C_4,C_5\}$ or $k=2$ and $G\in \{P_3,C_3\}$.

(iii)

${\gamma }_{t,oi}^k\left(G\right)=n$ if and only if $k=1$ and G is the path $P_2$.

Proof.

We first proceed to prove (i). Suppose that ${\gamma }_{t,oi}^k\left(G\right)=2$ and let D be a ${\gamma }_{t,oi}^k\left(G\right)$-set. Clearly, D induces a path $P_2$. Moreover, $V\left(G\right)\setminus D$ is a k-independent set, which implies that the subgraph induced by $V\left(G\right)\setminus D$, namely F, has maximum degree $\Delta \left(F\right)\le k-1$. In addition, as D is a total dominating set, every vertex in $V\left(G\right)\setminus D$ is adjacent to one or two vertices in D, i.e., $1\le {\delta }_D\left(v\right)\le 2$ for every $v\in V\left(G\right)\setminus D$. Therefore, $G\in T\left[F{\circ }_1{P}_2\right]$, where F is some graph with $\Delta \left(F\right)\le k-1$. The necessary condition is straightforward and so the proof of (i) holds.

We now proceed to prove (ii). If either $k=1$ and $G\in \{K_n,P_3,C_4,C_5\}$ or $k=2$ and $G\in \{P_3,C_3\}$, then it is easy to see that ${\gamma }_{t,oi}^k\left(G\right)=n-1$. Hence, we assume that G is a connected graph satisfying ${\gamma }_{t,oi}^k\left(G\right)=n-1$. By Theorem 6, we obtain that $k\le 2$ and, if $k=2$, then $k=\Delta \left(G\right)=n-1$. If $k=1$, then, by Theorem 12, we give that $G\in \{K_n,P_3,C_4,C_5\}$. Moreover, if $k=2$, then $\Delta =2$ and $n=3$. Hence, G is either $P_3$ or $C_3$, which completes the proof of (ii).

Finally, we proceed to prove (iii). If $k=1$ and $G=P_2$, then it is straightforward that ${\gamma }_{t,oi}^k\left(G\right)=n$. Conversely, if G is a connected graph such that ${\gamma }_{t,oi}^k\left(G\right)=n$, then, by Theorem 6, we obtain that $k=\Delta \left(G\right)=1$ and $n=2$. Hence, G is the path $P_2$, which completes the proof. □

3. Nordhaus–Gaddum Type Inequalities

In 1956, Nordhaus and Gaddum published an article [17], where it gave lower and upper bounds on the sum and product of the chromatic numbers of a graph and its complement. From this research idea, these types of inequalities was defined as Nordhaus–Gaddum type inequalities, and have been well studied for several domination parameters. We suggest a recent survey [18]. In the present section, we initiate the study of Nordhaus–Gaddum type inequalities for the total outer k-independence domination number.

We first establish a lower and upper bounds on the sum of the total outer k-independence domination numbers of a graph and its complement. Before this, we remark that in this section we involve the study of not connected graphs. However, it is necessary to assume that both G and $\overline{G}$ have no isolated vertices. This last condition implies that $n\ge 4$. In addition, we assume that $1\le k\le min\{\Delta \left(G\right),\Delta \left(\overline{G}\right)\}$.

Lemma 5.

For any integer $m\ge 3$,

$${\gamma }_{t,oi}\left(\overline{m{K}_2}\right)=2m-2.$$

Proof.

Let u and v be two adjacent vertices of $m{K}_2$. Notice that $V\left(\overline{m{K}_2}\right)\setminus \{u,v\}$ is a TO1ID set of $\overline{m{K}_2}$. Hence, ${\gamma }_{t,oi}\left(\overline{m{K}_2}\right)\le |V\left(\overline{m{K}_2}\right)\setminus \{u,v\}|=2m-2$. Now, suppose that ${\gamma }_{t,oi}\left(\overline{m{K}_2}\right)<2m-2$ and let D be a ${\gamma }_{t,oi}\left(\overline{m{K}_2}\right)$-set. Observe that $\left|V\right(\overline{m{K}_2})\setminus D|\ge 3$ and any three vertices in $V\left(\overline{m{K}_2}\right)\setminus D$ contain a path $P_3$, which is a contradiction since $V\left(\overline{m{K}_2}\right)\setminus D$ is an independent set. Therefore, ${\gamma }_{t,oi}\left(\overline{m{K}_2}\right)=2m-2$, which completes the proof. □

Theorem 14.

For any graph G of order $n\ge 4$ such that neither G nor $\overline{G}$ contains isolated vertices,

$$max\{4,n-2k+1\}\le {\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)\le 2n-k.$$

Furthermore,

(i)

${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)=4$ if and only if ${\gamma }_{t,oi}^k\left(G\right)={\gamma }_{t,oi}^k\left(\overline{G}\right)=2$.

(ii)

${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)=2n-k$ if and only if $k=1$ and $G\in \{C_4,\overline{C_4}\}$.

(iii)

${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)=2n-k-1$ if and only if $k=1$ and $G\in \{m{K}_2,\overline{m{K}_2}\}$, with $m\ge 3$.

Proof.

First, we prove the lower bound. Since ${\gamma }_{t,oi}^k\left(G\right)\ge 2$ for any graph G without isolated vertices, the trivial lower bound follows and also (i) is straightforward. Now, let D and $\overline{D}$ be a ${\gamma }_{t,oi}^k\left(G\right)$-set and a ${\gamma }_{t,oi}^k\left(\overline{G}\right)$-set, respectively. As $V\left(G\right)\setminus D$ and $V\left(G\right)\setminus \overline{D}$ are k-independent in G and $\overline{G}$, respectively, we have that ${\delta }_{V\left(G\right)\setminus D}\left(x\right)\le k-1$ and ${\delta }_{V\left(G\right)\setminus \overline{D}}\left(x\right)\le k-1$ for every $x\in (V\left(G\right)\setminus D)\cap (V\left(G\right)\setminus \overline{D})$. Hence, $|(V\left(G\right)\setminus D)\cap (V\left(G\right)\setminus \overline{D})|\le |N_{V\left(G\right)\setminus D}\left(x\right)|+|N_{V\left(G\right)\setminus \overline{D}}\left(x\right)|+1\le 2k-1$, and, as a consequence,

$$n-\left(\right|D|+|\overline{D}\left|\right)\le n-|D\cup \overline{D}|=|(V\left(G\right)\setminus D)\cap (V\left(G\right)\setminus \overline{D})|\le 2k-1,$$

which implies that $n-2k+1\le {\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)$, as desired.

Next, we prove the upper bound. Suppose that ${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)>2n-k$. Notice that either G or $\overline{G}$ is connected. By symmetry, we assume that G is connected. Since $n\ge 4$ and $\Delta \left(G\right)<n-1$, by Theorem 6, we have that ${\gamma }_{t,oi}^k\left(G\right)\le n-k$. This implies that ${\gamma }_{t,oi}^k\left(\overline{G}\right)>n$, which is a contradiction. Therefore, the upper bound follows.

Now, we proceed to prove (ii). If $k=1$ and $G\in \{C_4,\overline{C_4}\}$, then it is straightforward to observe that ${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)=2n-k$. Conversely, we assume that ${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)=2n-k$. Since G is connected, Theorem 6 leads to ${\gamma }_{t,oi}^k\left(G\right)=n-k$ and ${\gamma }_{t,oi}^k\left(\overline{G}\right)=n$. Hence, by Theorem 13(iii), it follows that $\overline{G}$ consists of disjoint copies of $K_2$. Since $k\le \Delta \left(m{K}_2\right)=1$, we have that k can only take the value 1 and so ${\gamma }_{t,oi}^1\left(\overline{m{K}_2}\right)=n-1$. This implies, by Theorem 13(ii), that $m=2$. Therefore, $k=1$ and $G\in \{C_4,\overline{C_4}\}$, which completes the proof of (ii).

Finally, we proceed to prove (iii). First, we suppose that ${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)=2n-k-1$. Again, as G is connected, we have that $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))=(n-k,n-1)$ or $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))=(n-k-1,n)$. Hence, we analyze these two cases.

Case 1. $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))=(n-k,n-1)$. If ${\gamma }_{t,oi}^k\left(\overline{G}\right)=n-1$, then by Theorem 13(ii), we have that ($k=1$ and $\overline{G}$ is isomorphic to $m{K}_2\cup H$, where $H\in \{K_r,P_3,C_4,C_5\}$) or ($k=2$ and $\overline{G}$ is isomorphic to $m{K}_2\cup H$, where $H\in \{P_3,C_3\}$). In both cases, we can construct a TOkID set of G of cardinality $n-k-1$, which contradicts the condition ${\gamma }_{t,oi}^k\left(G\right)=n-k$.

Case 2. $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))=(n-k-1,n)$. If ${\gamma }_{t,oi}^k\left(\overline{G}\right)=n$, then by Theorem 13(iii) we have that $k=1$ and $\overline{G}$ is isomorphic to $m{K}_2$, with $m\ge 3$. Moreover, Lemma 5 leads to ${\gamma }_{t,oi}^k\left(G\right)={\gamma }_{t,oi}^k\left(\overline{m{K}_2}\right)={\gamma }_{t,oi}\left(\overline{m{K}_2}\right)=2m-2=n-2=n-k-1$, as desired.

On the other hand, we suppose that $k=1$ and $G\in \{m{K}_2,\overline{m{K}_2}\}$, with $m\ge 3$. By symmetry, we consider that $G=\overline{m{K}_2}$. Theorem 13(iii) and Lemma 5 lead to $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))=(n-k-1,n)$. Hence, ${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right))=2n-k-1$, which completes the proof. □

Next, we show that the upper bounds in Theorem 14 can be improved if we assume that both G and $\overline{G}$ are connected graphs.

Theorem 15.

If G is a graph of order $n\ge 4$ such that both G and $\overline{G}$ are connected, then

$${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)\le 2(n-k).$$

Proof.

Notice that, if both G and $\overline{G}$ are connected, then $k\le min\{\Delta \left(G\right),\Delta \left(\overline{G}\right)\}<n-1$, and by Theorem 6 we have that $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))\le (n-k,n-k)$. Hence, ${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)\le 2(n-k).$ □

Next, we give Nordhaus–Gaddum type inequalities for the product of the TOkID numbers of a graph and its complement.

Theorem 16.

If G is a graph of order $n\ge 5$ such that neither G nor $\overline{G}$ contains isolated vertices, then

$$max\{4,2n-2(2k+1)\}\le {\gamma }_{t,oi}^k\left(G\right)·{\gamma }_{t,oi}^k\left(\overline{G}\right)\le (n-k)(n-1).$$

Furthermore,

(i)

${\gamma }_{t,oi}^k\left(G\right)·{\gamma }_{t,oi}^k\left(\overline{G}\right)=4$ if and only if ${\gamma }_{t,oi}^k\left(G\right)={\gamma }_{t,oi}^k\left(\overline{G}\right)=2$.

(ii)

${\gamma }_{t,oi}^k\left(G\right)·{\gamma }_{t,oi}^k\left(\overline{G}\right)=(n-k)(n-1)$ if and only if $k=1$ and $G\cong C_5$.

Proof.

We first prove the upper bound. Since either G or $\overline{G}$ is connected (by symmetry, we assume that G is connected) and $max\{\Delta \left(G\right),\Delta \left(\overline{G}\right)\}<n-1$, we deduce by Theorem 6 that ${\gamma }_{t,oi}^k\left(G\right)\le n-k$. Therefore, ${\gamma }_{t,oi}^k\left(G\right)·{\gamma }_{t,oi}^k\left(\overline{G}\right)\le (n-k)n$.

Suppose now that there exists a graph G of order n for which ${\gamma }_{t,oi}^k\left(G\right)·{\gamma }_{t,oi}^k\left(\overline{G}\right)=(n-k)n$. Without loss of generality, we assume that ${\gamma }_{t,oi}^k\left(G\right)=n-k$ and ${\gamma }_{t,oi}^k\left(\overline{G}\right)=n$. Thus, by Theorem 13(iii), we have that $k=1$ and $\overline{G}$ consists of disjoint copies of $K_2$, which is a contradiction with the equality above ${\gamma }_{t,oi}^k\left(G\right)=n-k=n-1$ by Lemma 5.

As a consequence, ${\gamma }_{t,oi}^k\left(G\right)·{\gamma }_{t,oi}^k\left(\overline{G}\right)<(n-k)n$, which implies

$${\gamma }_{t,oi}^k\left(G\right)·{\gamma }_{t,oi}^k\left(\overline{G}\right)\le (n-k)(n-1),$$

(1)

as desired.

Now, we suppose that the equality in the inequality (1) holds. Hence, either $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))=(n-k,n-1)$ or $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))=(n-1,n-k)$. Without loss of generality, we may assume that $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))=(n-k,n-1)$. By Theorem 13(ii), we have that either ($k=1$ and $\overline{G}\cong t_1{K}_2+G^{\prime }$, where $G^{\prime }\in \{K_n,P_3,C_4,C_5\}$) or ($k=2$ and $\overline{G}\cong t_2{K}_2+G^{\prime \prime }$, where $G^{\prime \prime }\in \{P_3,C_3\}$). In both cases, if $t_1,t_2\ge 1$, then we can construct a TOkID set of G of cardinality $n-k-1$, which contradicts the condition ${\gamma }_{t,oi}^k\left(G\right)=n-k$. Since $n\ge 5$, we obtain that $k=1$ and $G\cong C_5$. The other hand is straightforward to see, which completes the proof of statement (ii).

In order to prove the lower bound, by Theorem 14, we have

$${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)\ge max\{4,n-2k+1\}.$$

Now, we minimize ${\gamma }_{t,oi}^k\left(G\right)·{\gamma }_{t,oi}^k\left(\overline{G}\right)$ subject to ${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)=max\{4,n-2k+1\}$. If ${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)=4$, then, by Theorem 14(i), we obtain the equivalence with the condition ${\gamma }_{t,oi}^k\left(G\right)={\gamma }_{t,oi}^k\left(\overline{G}\right)=2$. Therefore, ${\gamma }_{t,oi}^k\left(G\right)·{\gamma }_{t,oi}^k\left(\overline{G}\right)\ge 4$ and statement (i) holds. On the other hand, if ${\gamma }_{t,oi}^k\left(G\right)+{\gamma }_{t,oi}^k\left(\overline{G}\right)=n-2k+1$, then we obtain either $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))=(2,n-2k-1)$ or $({\gamma }_{t,oi}^k\left(G\right),{\gamma }_{t,oi}^k\left(\overline{G}\right))=(n-2k-1,2)$. Therefore, ${\gamma }_{t,oi}^k\left(G\right)·{\gamma }_{t,oi}^k\left(\overline{G}\right)\ge 2n-2(2k+1)$, which completes the proof. □

4. Conclusions and Open Problems

In this paper, we have introduced and studied the total outer k-independent domination number of graphs. Among the main contributions, we emphasize the following.

• We have shown the close relationship that exists between the total outer k-independent domination number and other domination parameters such as domination number, total domination number, k-domination number, and k-independence number.
• We have obtained general bounds for the parameter and discussed the sharpness of them.
• In a specific section of the article, we focused on the study of Nordhaus–Gaddum type inequalities for the total outer k-independence domination number.
• We have shown that the problem of finding the total outer k-independent domination number of a graph is NP-hard.

In order to continue with this new line of research, we propose some open problems, which we consider to be interesting.

(a)

Characterize the graphs G of order n such that ${\gamma }_{t,oi}^k\left(G\right)={\gamma }_t\left(G\right)$ and ${\gamma }_{t,oi}^k\left(G\right)=n-{\beta }_k\left(G\right)$.

(b)

Since the problem of finding ${\gamma }_{t,oi}^k\left(G\right)$ is NP-hard, is there a polynomial-time algorithm for finding ${\gamma }_{t,oi}^k\left(T\right)$ for any tree T?

(c)

To find possible practical applications to the parameter ${\gamma }_{t,oi}^k\left(G\right)$ studied.
