# Analysis of Structure-Preserving Discrete Models for Predator-Prey Systems with Anomalous Diffusion

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Preliminaries

**Definition**

**1**

**.**Assume that $f:\mathbb{R}\to \mathbb{R}$, and suppose that $n\in \mathbb{N}\cup \left\{0\right\}$ and $\alpha \in \mathbb{R}$ are such that $n-1<\alpha <n$. If it exists, we introduce the fractional derivative in the sense of Riesz of the function f of order α at the point $x\in \mathbb{R}$ as:

**Definition**

**2.**

**Definition**

**3**

**.**Let $f:\mathbb{R}\to \mathbb{R}$, and assume that $h>0$ and $\alpha >-1$. The centered difference of fractional order α of the function f at x is given (when it exists) as:

**Lemma**

**1**

- (a)
- The following iterative formulas hold:$$\begin{array}{cc}\hfill {g}_{0}^{(\alpha )}& {\displaystyle =\frac{\Gamma (\alpha +1)}{{[\Gamma (\frac{\alpha}{2}+1)]}^{2}},}\hfill \end{array}$$$$\begin{array}{cc}\hfill {g}_{k+1}^{(\alpha )}& {\displaystyle =\left(1-\frac{\alpha +1}{\alpha /2+k+1}\right){g}_{k},\phantom{\rule{2.em}{0ex}}\forall k\in \mathbb{N}\cup \left\{0\right\}.}\hfill \end{array}$$
- (b)
- ${g}_{0}^{(\alpha )}>0$.
- (c)
- ${g}_{k}^{(\alpha )}={g}_{-k}^{(\alpha )}<0$for all$k\ne 0$.
- (d)
- $\sum _{k=-\infty}^{\infty}{g}_{k}^{(\alpha )}=0$.

**Lemma**

**2**

**.**Let $0<\alpha \le 2$ and $\alpha \ne 1$, and suppose that $f\in {\mathcal{C}}^{5}(\mathbb{R})$ is a function whose derivatives up to order five are all integrable. For almost all $x\in \mathbb{R}$,

## 3. Numerical Models

**Definition**

**4.**

#### 3.1. Explicit Method

**Definition**

**5.**

#### 3.2. Implicit Method

**Definition**

**6.**

## 4. Structural Properties

**Definition**

**7.**

**Theorem**

**1**

**.**Let $k\in {I}_{K-1}$. Assume that F is a bounded function with domain $[0,1]$ and that ${G}^{u}$ and ${G}^{v}$ are positive and bounded on $[0,1]\times [0,1]$. If $0\le {u}^{k}\le 1$, $0\le {v}^{k}\le 1$, and:

**Proof.**

**Definition**

**8.**

**Definition**

**9.**

- (i)
- A is a Z-matrix,
- (ii)
- all the diagonal components of A are positive, and
- (iii)
- A is strictly diagonally dominant.

**Lemma**

**3.**

**Proof.**

**Theorem**

**2**

**.**Let $k\in {I}_{K-1}$, and suppose that ${u}^{k}>0$ and ${v}^{k}>0$. If $a\tau F({u}_{m,n}^{k})<1$, $c\tau {G}^{v}({u}_{m,n}^{k},{v}_{m,n}^{k})<1$, and ${G}^{u}({u}_{m,n}^{k},{v}_{m,n}^{k})\ge 0$ for each $m\in {\overline{I}}_{M}$ and $n\in {\overline{I}}_{N}$, then the recursive system (42) has a unique solution.

**Proof.**

**Theorem**

**3**

**.**Let $k\in {I}_{K-1}$. Suppose that F is a bounded function over $[0,1]$ and that ${G}^{u}$ and ${G}^{v}$ are positive and bounded on the set $[0,1]\times [0,1]$. If $0\le {u}^{k}\le 1$, $0\le {v}^{k}\le 1$, and

**Proof.**

## 5. Numerical Properties

**Definition**

**10.**

**Lemma**

**4**

**.**Let $M=({m}_{ij})$ be an M-matrix, and let $N=({n}_{ij})$ be a nonnegative matrix of the same size as M. If M is strictly diagonally dominant by rows, then $\rho ({M}^{-1}N)$ satisfies:

#### 5.1. Explicit Method

**Theorem**

**4**

**.**Let $u,v\in {\mathcal{C}}^{5}({\overline{\Omega}}_{T})$. If $\tau <1$, then there are constants $C>0$ and ${C}^{\prime}>0$ that are independent of τ, ${h}_{{x}_{1}}$, and ${h}_{{x}_{2}}$, with the property that for all $m\in {\overline{I}}_{M}$, $n\in {\overline{I}}_{N}$, and $k\in {I}_{K-1}$,

**Proof.**

**Theorem**

**5**

**.**Let ${({u}^{k})}_{k=0}^{K}$, ${({v}^{k})}_{k=0}^{K}$ and ${({\mathfrak{u}}^{k})}_{k=0}^{K}$, ${({\mathfrak{v}}^{k})}_{k=0}^{K}$ be two sets of positive and bounded solutions of (20) corresponding to the initial conditions $({\varphi}_{u}^{0},{\varphi}_{v}^{0})$ and $({\varphi}_{\mathfrak{u}}^{0},{\varphi}_{\mathfrak{v}}^{0})$, respectively. If the matrices ${A}_{u}^{k}$ and ${A}_{\mathfrak{u}}^{k}$ are identical to some constant matrix ${A}_{1}^{k}$ and the matrices ${A}_{v}^{k}$ and ${A}_{\mathfrak{v}}^{k}$ are identical to some constant matrix ${A}_{2}^{k}$ for each $k\in {\overline{I}}_{K}$, then there exist constants ${C}_{1},{C}_{2}>0$ such that:

**Proof.**

**Theorem**

**6**

**Proof.**

#### 5.2. Implicit Method

**Theorem**

**7**

**.**Let $u,v\in {\mathcal{C}}^{5}({\overline{\Omega}}_{T})$. If $\tau <1$, then there exist constants $C>0$ and ${C}^{\prime}>0$ that are independent of τ, ${h}_{{x}_{1}}$ and ${h}_{{x}_{2}}$ such that for all $m\in {\overline{I}}_{M}$, $n\in {\overline{I}}_{N}$, and $k\in {I}_{K-1}$,

**Proof.**

**Lemma**

**5**

**.**Suppose that A is a matrix of size $m\times m$ and real components, which satisfies:

**Lemma**

**6.**

**Proof.**

**Lemma**

**7.**

**Proof.**

**Theorem**

**8**

**.**Let ${({u}^{k})}_{k=0}^{K}$, ${({v}^{k})}_{k=0}^{K}$, and ${({\mathfrak{u}}^{k})}_{k=0}^{K}$, ${({\mathfrak{v}}^{k})}_{k=0}^{K}$ be positive and bounded solutions of (42) corresponding to the initial conditions $({\varphi}_{u}^{0},{\varphi}_{u}^{1},{\varphi}_{v}^{0},{\varphi}_{v}^{1})$ and $({\varphi}_{\mathfrak{u}}^{0},{\varphi}_{\mathfrak{u}}^{1},{\varphi}_{\mathfrak{v}}^{0},{\varphi}_{\mathfrak{v}}^{1})$, respectively. Suppose that the inequalities (71)–(74) hold for each $k\in {\overline{I}}_{K}$. If the matrices ${A}_{1}^{k}={A}_{u}^{k}={A}_{\mathfrak{u}}^{k}$, ${E}_{1}^{k}={E}_{u}^{k}={E}_{\mathfrak{u}}^{k}$, ${A}_{2}^{k}={A}_{v}^{k}={A}_{\mathfrak{v}}^{k}$, and ${E}_{2}^{k}={E}_{v}^{k}={E}_{\mathfrak{v}}^{k}$ for each $k\in {\overline{I}}_{K}$, then:

**Proof.**

**Theorem**

**9**

**Proof.**

**Theorem**

**10**

**.**Suppose that $\mathfrak{u},\mathfrak{v}\in {\mathcal{C}}^{5}({\overline{\Omega}}_{T})$ are positive and bounded solutions of (14). Let $\tau <1$, and suppose that ${({u}^{k})}_{k=0}^{K}$ and ${({v}^{k})}_{k=0}^{K}$ are positive and bounded solutions of (43). If (71)–(74) are satisfied for all $k\in {\overline{I}}_{K}$, then there are constants ${\kappa}_{u},{\kappa}_{v}\in {\mathbb{R}}^{+}$ that are independent of τ and h, such that:

**Proof.**

## 6. Applications

**Example**

**1.**

**Example**

**2.**

**Example**

**3.**

## 7. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A. MATLAB Code

function [U,V]=fpde a=0.8; c=0.3; d=0.1; D1=0.01; D2=0.6; alpha=1.2; beta=1.2; T=2000; L=100; h=1/3; tau=0.02; Ru=tau*D1/h^alpha; Rv=tau*D2/h^beta; x=0:h:L; M=length(x); N=floor(T/tau); ga=zeros(1,M); gb=zeros(1,M); ga(1)=gamma(alpha+1)/gamma((alpha/2)+1)^2; gb(1)=gamma(beta+1)/gamma((beta/2)+1)^2; for k=1:(M-1) ga(k+1)=(1-(1+alpha)/((alpha/2)+k))*ga(k); gb(k+1)=(1-(1+beta)/((beta/2)+k))*gb(k); end Ha=zeros(M); Hb=zeros(M); for j=1:M for i=1:M Ha(j,i)=ga(abs(i-j)+1); Hb(j,i)=gb(abs(i-j)+1); end end x0=(a*c-c+d)/a/c; y0=(c-d)*x0/d; U=zeros(M); U(130:170,130:170)=0.2*ones(length(130:170)); V=normrnd(y0,0.01,M,M); for i=1:N W=a.*U.*(1-U)-U.*V./(U+V); Z=c.*U.*V./(U+V)-d*V; U=U+tau.*W-Ru.*Ha*U-Ru.*U*Ha; V=V+tau.*Z-Rv.*Hb*V-Rv.*V*Hb; end end

## References

- Xiao, Y.; Chen, L. Modeling and analysis of a predator–prey model with disease in the prey. Math. Biosci.
**2001**, 171, 59–82. [Google Scholar] [CrossRef] - Ji, C.; Jiang, D.; Shi, N. Analysis of a predator–prey model with modified Leslie–Gower and Holling-type II schemes with stochastic perturbation. J. Math. Anal. Appl.
**2009**, 359, 482–498. [Google Scholar] [CrossRef] [Green Version] - Deng, H.; Chen, F.; Zhu, Z.; Li, Z. Dynamic behaviors of Lotka–Volterra predator–prey model incorporating predator cannibalism. Adv. Differ. Equ.
**2019**, 2019, 1–17. [Google Scholar] [CrossRef] - Song, Q.; Yang, R.; Zhang, C.; Tang, L. Bifurcation analysis in a diffusive predator–prey system with Michaelis–Menten-type predator harvesting. Adv. Differ. Equ.
**2018**, 2018, 329. [Google Scholar] [CrossRef] [Green Version] - Balagaddé, F.K.; Song, H.; Ozaki, J.; Collins, C.H.; Barnet, M.; Arnold, F.H.; Quake, S.R.; You, L. A synthetic Escherichia coli predator–prey ecosystem. Mol. Syst. Biol.
**2008**, 4, 187. [Google Scholar] [CrossRef] - Gourley, S.A.; Kuang, Y. A stage structured predator–prey model and its dependence on maturation delay and death rate. J. Math. Biol.
**2004**, 49, 188–200. [Google Scholar] [CrossRef] - Wang, L.L.; Li, W.T. Periodic solutions and permanence for a delayed nonautonomous ratio-dependent predator–prey model with Holling type functional response. J. Comput. Appl. Math.
**2004**, 162, 341–357. [Google Scholar] [CrossRef] [Green Version] - Banerjee, M.; Mukherjee, N.; Volpert, V. Prey-predator model with a nonlocal bistable dynamics of prey. Mathematics
**2018**, 6, 41. [Google Scholar] [CrossRef] [Green Version] - Yousef, A.; Yousef, F.B. Bifurcation and Stability Analysis of a System of Fractional-Order Differential Equations for a Plant–Herbivore Model with Allee Effect. Mathematics
**2019**, 7, 454. [Google Scholar] [CrossRef] [Green Version] - Shabbir, M.S.; Din, Q.; Safeer, M.; Khan, M.A.; Ahmad, K. A dynamically consistent nonstandard finite difference scheme for a predator–prey model. Adv. Differ. Equ.
**2019**, 2019, 1–17. [Google Scholar] [CrossRef] [Green Version] - Garvie, M.R. Finite-Difference Schemes for Reaction–Diffusion Equations Modeling Predator–Prey Interactions in MATLAB. Bull. Math. Biol.
**2007**, 69, 931–956. [Google Scholar] [CrossRef] [PubMed] - Dimitrov, D.T.; Kojouharov, H.V. Positive and elementary stable nonstandard numerical methods with applications to predator–prey models. J. Comput. Appl. Math.
**2006**, 189, 98–108. [Google Scholar] [CrossRef] [Green Version] - Nindjin, A.; Aziz-Alaoui, M.; Cadivel, M. Analysis of a predator–prey model with modified Leslie–Gower and Holling-type II schemes with time delay. Nonlinear Anal. Real World Appl.
**2006**, 7, 1104–1118. [Google Scholar] [CrossRef] - Dimitrov, D.T.; Kojouharov, H.V. Nonstandard finite-difference methods for predator–prey models with general functional response. Math. Comput. Simul.
**2008**, 78, 1–11. [Google Scholar] [CrossRef] - Yu, Y.; Deng, W.; Wu, Y. Positivity and boundedness preserving schemes for space–time fractional predator–prey reaction–diffusion model. Comput. Math. Appl.
**2015**, 69, 743–759. [Google Scholar] [CrossRef] [Green Version] - Kochubei, A.N.; Kondratiev, Y. Growth Equation of the General Fractional Calculus. Mathematics
**2019**, 7, 615. [Google Scholar] [CrossRef] [Green Version] - Macías-Díaz, J.E. Persistence of nonlinear hysteresis in fractional models of Josephson transmission lines. Commun. Nonlinear Sci. Numer. Simul.
**2017**, 53, 31–43. [Google Scholar] [CrossRef] - Macías-Díaz, J.E. Numerical simulation of the nonlinear dynamics of harmonically driven Riesz-fractional extensions of the Fermi–Pasta–Ulam chains. Commun. Nonlinear Sci. Numer. Simul.
**2018**, 55, 248–264. [Google Scholar] [CrossRef] - Koeller, R. Applications of fractional calculus to the theory of viscoelasticity. ASME Trans. J. Appl. Mech.
**1984**, 51, 299–307. [Google Scholar] [CrossRef] - Povstenko, Y. Theory of thermoelasticity based on the space-time-fractional heat conduction equation. Phys. Scr.
**2009**, 2009, 014017. [Google Scholar] [CrossRef] - Scalas, E.; Gorenflo, R.; Mainardi, F. Fractional calculus and continuous-time finance. Phys. A Stat. Mech. Its Appl.
**2000**, 284, 376–384. [Google Scholar] [CrossRef] [Green Version] - Glöckle, W.G.; Nonnenmacher, T.F. A fractional calculus approach to self-similar protein dynamics. Biophys. J.
**1995**, 68, 46–53. [Google Scholar] [CrossRef] [Green Version] - Namias, V. The fractional order Fourier transform and its application to quantum mechanics. IMA J. Appl. Math.
**1980**, 25, 241–265. [Google Scholar] [CrossRef] - Singh, J.; Kumar, D.; Baleanu, D. On the analysis of fractional diabetes model with exponential law. Adv. Differ. Equ.
**2018**, 2018, 231. [Google Scholar] [CrossRef] [Green Version] - Yusuf, A.; Aliyu, A.I.; Baleanu, D. Conservation laws, soliton-like and stability analysis for the time fractional dispersive long-wave equation. Adv. Differ. Equ.
**2018**, 2018, 319. [Google Scholar] [CrossRef] [Green Version] - Ghanbari, B.; Yusuf, A.; Baleanu, D. The new exact solitary wave solutions and stability analysis for the (2+1) (2+1)-dimensional Zakharov–Kuznetsov equation. Adv. Differ. Equ.
**2019**, 2019, 49. [Google Scholar] [CrossRef] [Green Version] - Li, H.L.; Muhammadhaji, A.; Zhang, L.; Teng, Z. Stability analysis of a fractional-order predator–prey model incorporating a constant prey refuge and feedback control. Adv. Differ. Equ.
**2018**, 2018, 325. [Google Scholar] [CrossRef] - Huang, C.; Cao, J.; Xiao, M.; Alsaedi, A.; Alsaadi, F.E. Controlling bifurcation in a delayed fractional predator–prey system with incommensurate orders. Appl. Math. Comput.
**2017**, 293, 293–310. [Google Scholar] [CrossRef] - Wang, J.; Cheng, H.; Liu, H.; Wang, Y. Periodic solution and control optimization of a prey-predator model with two types of harvesting. Adv. Differ. Equ.
**2018**, 2018, 41. [Google Scholar] [CrossRef] - Rihan, F.; Lakshmanan, S.; Hashish, A.; Rakkiyappan, R.; Ahmed, E. Fractional-order delayed predator–prey systems with Holling type-II functional response. Nonlinear Dyn.
**2015**, 80, 777–789. [Google Scholar] [CrossRef] - Macías-Díaz, J.E. Sufficient conditions for the preservation of the boundedness in a numerical method for a physical model with transport memory and nonlinear damping. Comput. Phys. Commun.
**2011**, 182, 2471–2478. [Google Scholar] [CrossRef] - Macías-Díaz, J.E. An explicit dissipation-preserving method for Riesz space-fractional nonlinear wave equations in multiple dimensions. Commun. Nonlinear Sci. Numer. Simul.
**2018**, 59, 67–87. [Google Scholar] [CrossRef] - Alikhanov, A.A. A new difference scheme for the time fractional diffusion equation. J. Comput. Phys.
**2015**, 280, 424–438. [Google Scholar] [CrossRef] [Green Version] - Bhrawy, A.H.; Abdelkawy, M.A. A fully spectral collocation approximation for multi-dimensional fractional Schrödinger equations. J. Comput. Phys.
**2015**, 294, 462–483. [Google Scholar] [CrossRef] - El-Ajou, A.; Arqub, O.A.; Momani, S. Approximate analytical solution of the nonlinear fractional KdV–Burgers equation: A new iterative algorithm. J. Comput. Phys.
**2015**, 293, 81–95. [Google Scholar] [CrossRef] - Liu, F.; Zhuang, P.; Turner, I.; Anh, V.; Burrage, K. A semi-alternating direction method for a 2-D fractional FitzHugh–Nagumo monodomain model on an approximate irregular domain. J. Comput. Phys.
**2015**, 293, 252–263. [Google Scholar] [CrossRef] [Green Version] - Baleanu, D.; Petras, I.; Asad, J.H.; Velasco, M.P. Fractional Pais–Uhlenbeck Oscillator. Int. J. Theor. Phys.
**2012**, 51, 1253–1258. [Google Scholar] [CrossRef] - Chen, B. The influence of commensalism on a Lotka–Volterra commensal symbiosis model with Michaelis–Menten type harvesting. Adv. Differ. Equ.
**2019**, 2019, 43. [Google Scholar] [CrossRef] [Green Version] - Tarasov, V.E. Partial fractional derivatives of Riesz type and nonlinear fractional differential equations. Nonlinear Dyn.
**2016**, 86, 1745–1759. [Google Scholar] [CrossRef] - Tarasov, V.E. Continuous limit of discrete systems with long-range interaction. J. Phys. A Math. Gen.
**2006**, 39, 14895. [Google Scholar] [CrossRef] [Green Version] - Ortigueira, M.D. Riesz potential operators and inverses via fractional centred derivatives. Int. J. Math. Math. Sci.
**2006**, 2006. [Google Scholar] [CrossRef] - Podlubny, I. Fractional Differential Equations: An Introduction to Fractional Derivatives, Fractional Differential Equations, to Methods of Their Solution and Some of Their Applications; Elsevier: Amsterdam, The Netherlands, 1998; Volume 198. [Google Scholar]
- Rao, F.; Kang, Y. The complex dynamics of a diffusive prey–predator model with an Allee effect in prey. Ecol. Complex.
**2016**, 28, 123–144. [Google Scholar] [CrossRef] - Wang, X.; Liu, F.; Chen, X. Novel second-order accurate implicit numerical methods for the Riesz space distributed-order advection-dispersion equations. Adv. Math. Phys.
**2015**. [Google Scholar] [CrossRef] - Plemmons, R.J. M-matrix characterizations. I—Nonsingular M-matrices. Linear Algebra Its Appl.
**1977**, 18, 175–188. [Google Scholar] [CrossRef] [Green Version] - Tian, G.X.; Huang, T.Z. Inequalities for the minimum eigenvalue of M-matrices. ELA Electron. J. Linear Algebra
**2010**, 20, 21. [Google Scholar] [CrossRef] - Chen, S.; Liu, F.; Turner, I.; Anh, V. An implicit numerical method for the two-dimensional fractional percolation equation. Appl. Math. Comput.
**2013**, 219, 4322–4331. [Google Scholar] [CrossRef] - Cutolo, A.; Piccoli, B.; Rarità, L. An upwind-Euler scheme for an ODE-PDE model of supply chains. SIAM J. Sci. Comput.
**2011**, 33, 1669–1688. [Google Scholar] [CrossRef] [Green Version] - Cascone, A.; Marigo, A.; Piccoli, B.; Rarità, L. Decentralized optimal routing for packets flow on data networks. Discret. Contin. Dyn. Syst. Ser. B (DCDS-B)
**2010**, 13, 59–78. [Google Scholar] - Ervin, V.; Macías-Díaz, J.; Ruiz-Ramírez, J. A positive and bounded finite element approximation of the generalized Burgers–Huxley equation. J. Math. Anal. Appl.
**2015**, 424, 1143–1160. [Google Scholar] [CrossRef] - Macías-Díaz, J.E.; Villa-Morales, J. A deterministic model for the distribution of the stopping time in a stochastic equation and its numerical solution. J. Comput. Appl. Math.
**2017**, 318, 93–106. [Google Scholar] [CrossRef] - Morales-Hernández, M.D.; Medina-Ramírez, I.E.; Avelar-González, F.J.; Macías-Díaz, J.E. An efficient recursive algorithm in the computational simulation of the bounded growth of biological films. Int. J. Comput. Methods
**2012**, 9, 1250050. [Google Scholar] [CrossRef] - Macías-Díaz, J.E.; Puri, A. A boundedness-preserving finite-difference scheme for a damped nonlinear wave equation. Appl. Numer. Math.
**2010**, 60, 934–948. [Google Scholar] [CrossRef] - Macías-Díaz, J.E.; Puri, A. An explicit positivity-preserving finite-difference scheme for the classical Fisher–Kolmogorov–Petrovsky–Piscounov equation. Appl. Math. Comput.
**2012**, 218, 5829–5837. [Google Scholar] [CrossRef] - Cascone, A.; D’Apice, C.; Piccoli, B.; Rarità, L. Circulation of car traffic in congested urban areas. Commun. Math. Sci.
**2008**, 6, 765–784. [Google Scholar] [CrossRef] [Green Version] - Manzo, R.; Piccoli, B.; Rarita, L. Optimal distribution of traffic flows in emergency cases. Eur. J. Appl. Math.
**2012**, 23, 515–535. [Google Scholar] [CrossRef]

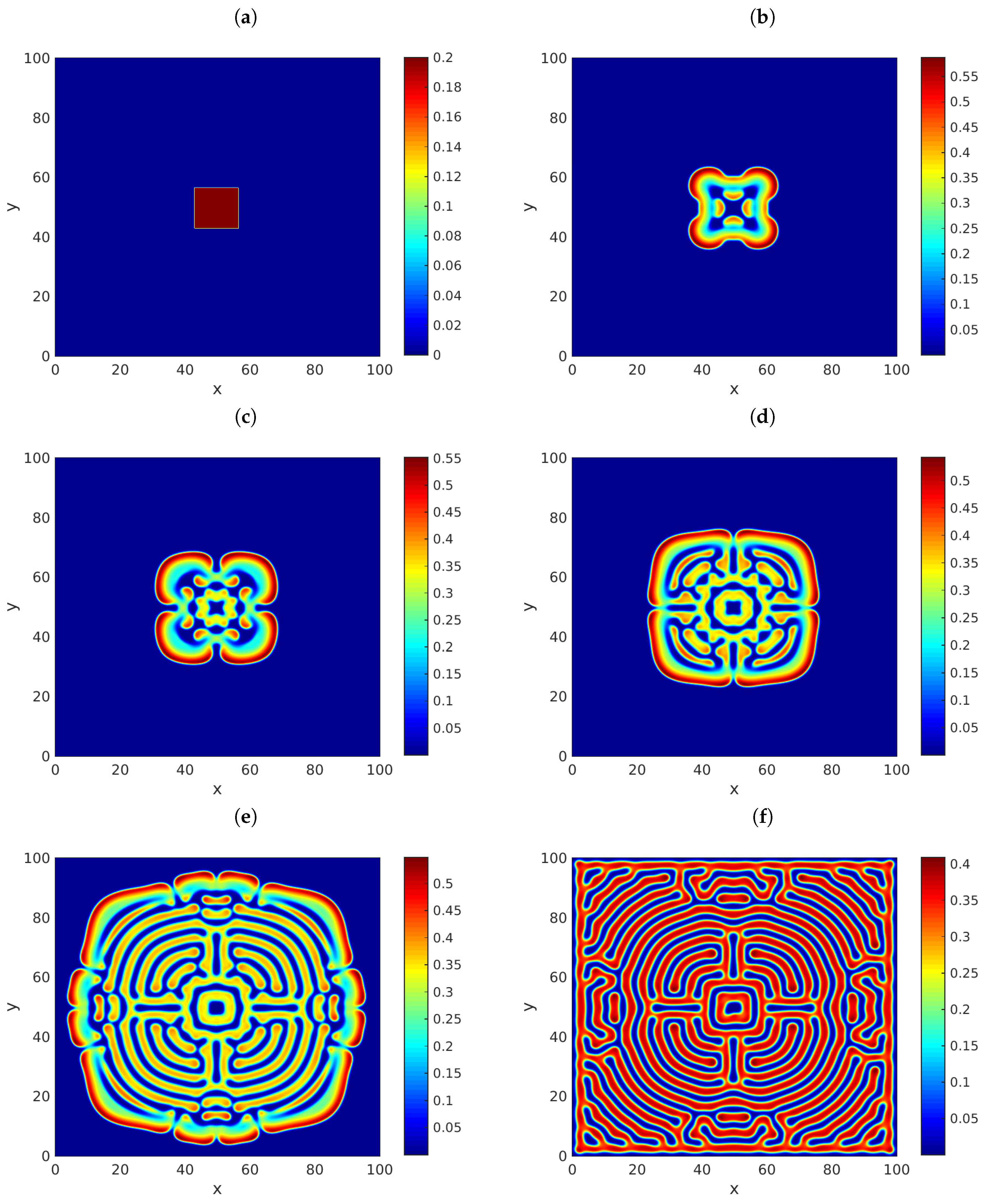

**Figure 1.**Snapshots of the approximate solution u in (118) versus x and y. The parameters employed are $a=0.8$, $c=0.3$, $d=0.1$, ${D}_{1}=0.01$, ${D}_{2}=0.6$, and $\alpha =\beta =2$. Meanwhile, we considered the times (

**a**) $t=0$, (

**b**) $t=160$, (

**c**) $t=290$, (

**d**) $t=500$, (

**e**) $t=1010$, and (

**f**) $t=3000$. We let ${\varphi}_{v}(x)$ be a random sample from a normally distributed random variable with the mean equal to ${v}^{\ast}$ and the standard deviation equal to $0.01$, and ${\varphi}_{u}$ is the function depicted in (a). The approximations were calculated using our implementation of (20) shown in Appendix A, with $\tau =0.02$ and ${h}_{{x}_{1}}={h}_{{x}_{2}}=1/3$.

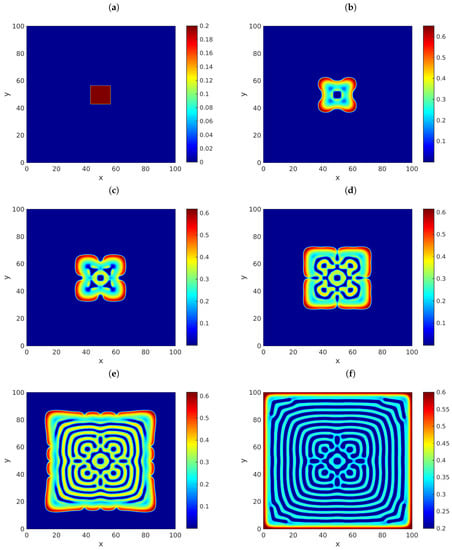

**Figure 2.**Snapshots of the approximate solution u in (118) versus x and y. The parameters employed are $a=0.8$, $c=0.3$, $d=0.1$, ${D}_{1}=0.01$, ${D}_{2}=0.6$, and $\alpha =\beta =1.6$. Meanwhile, we considered the times (

**a**) $t=0$, (

**b**) $t=160$, (

**c**) $t=290$, (

**d**) $t=500$, (

**e**) $t=1010$, and (

**f**) $t=3000$. We let ${\varphi}_{v}(x)$ be a random sample from a normally distributed random variable with the mean equal to ${v}^{\ast}$ and the standard deviation equal to $0.01$, and ${\varphi}_{u}$ is the function depicted in (a). The approximations were calculated using our implementation of (20) shown in Appendix A, with $\tau =0.02$ and ${h}_{{x}_{1}}={h}_{{x}_{2}}=1/3$.

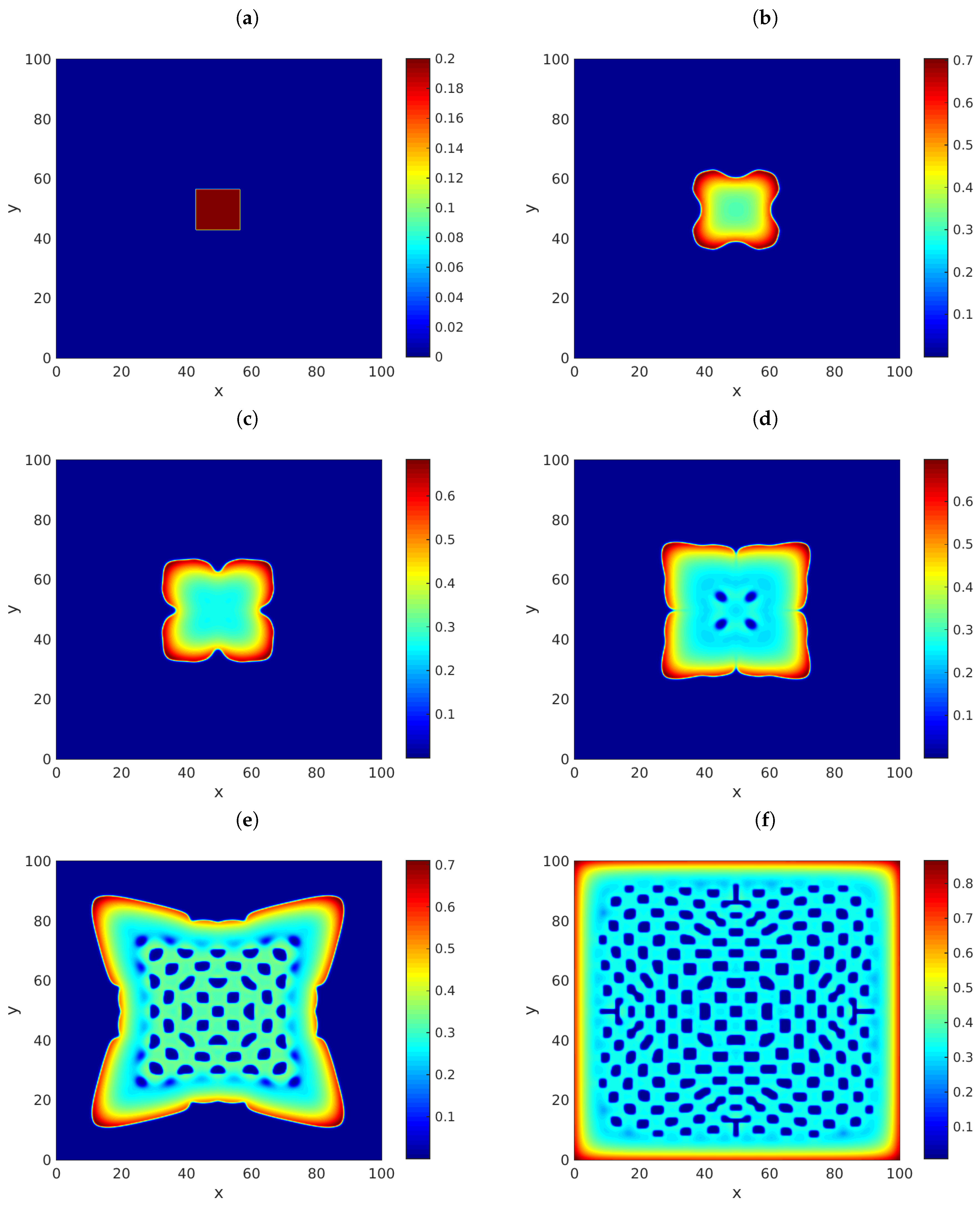

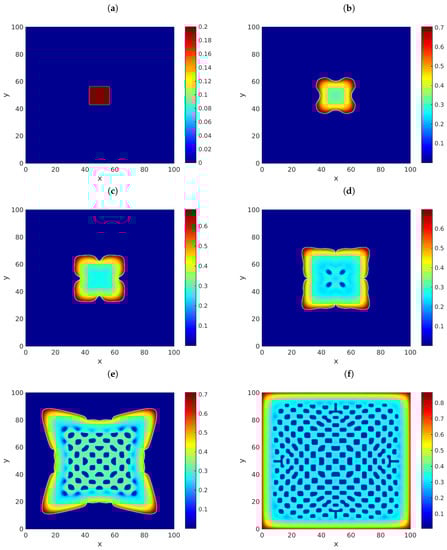

**Figure 3.**Snapshots of the approximate solution u in (118) versus x and y. The parameters employed are $a=0.8$, $c=0.3$, $d=0.1$, ${D}_{1}=0.01$, ${D}_{2}=0.6$, and $\alpha =\beta =1.2$. Meanwhile, we considered the times (

**a**) $t=0$, (

**b**) $t=160$, (

**c**) $t=290$, (

**d**) $t=500$, (

**e**) $t=1010$, and (

**f**) $t=3000$. We let ${\varphi}_{v}(x)$ be a random sample from a normally distributed random variable with the mean equal to ${v}^{\ast}$ and the standard deviation equal to $0.01$, and ${\varphi}_{u}$ is the function depicted in (a). The approximations were calculated using our implementation of (20) shown in Appendix A, with $\tau =0.02$ and ${h}_{{x}_{1}}={h}_{{x}_{2}}=1/3$.

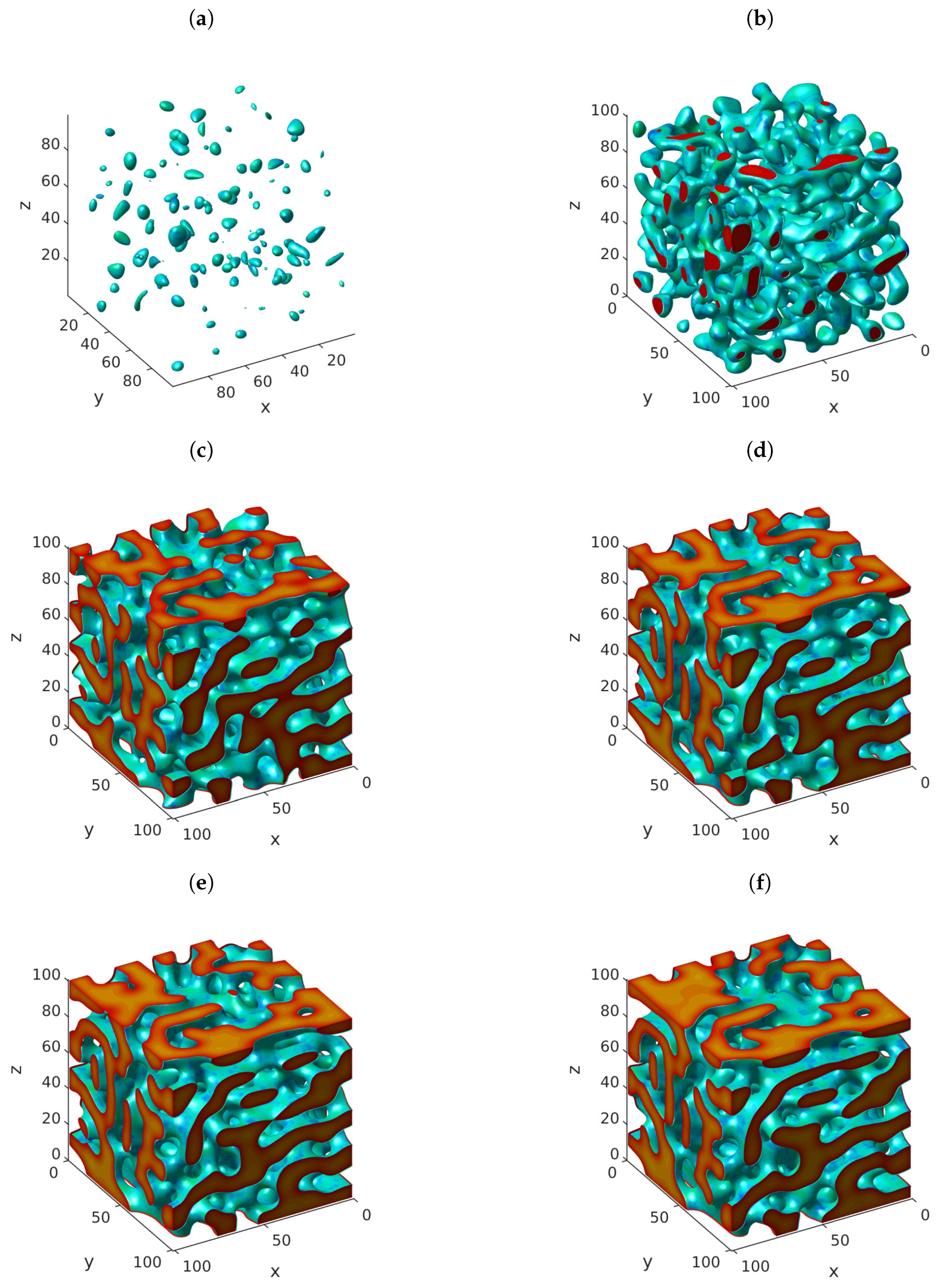

**Figure 4.**Snapshots of the approximate solution u in (118) versus x, y, and z. The parameters employed are $a=0.8$, $c=0.3$, $d=0.1$, ${D}_{1}=0.01$, ${D}_{2}=0.6$, and $\alpha =\beta =1.6$. Meanwhile, we considered the times (

**a**) $t=0$, (

**b**) $t=160$, (

**c**) $t=290$, (

**d**) $t=500$, (

**e**) $t=1010$, and (

**f**) $t=3000$. The initial data are random samples of a uniform distribution on $[0,1]$. The approximations were calculated using our implementation of (20), with $\tau =0.02$ and ${h}_{{x}_{1}}={h}_{{x}_{2}}={h}_{{x}_{3}}=1$.

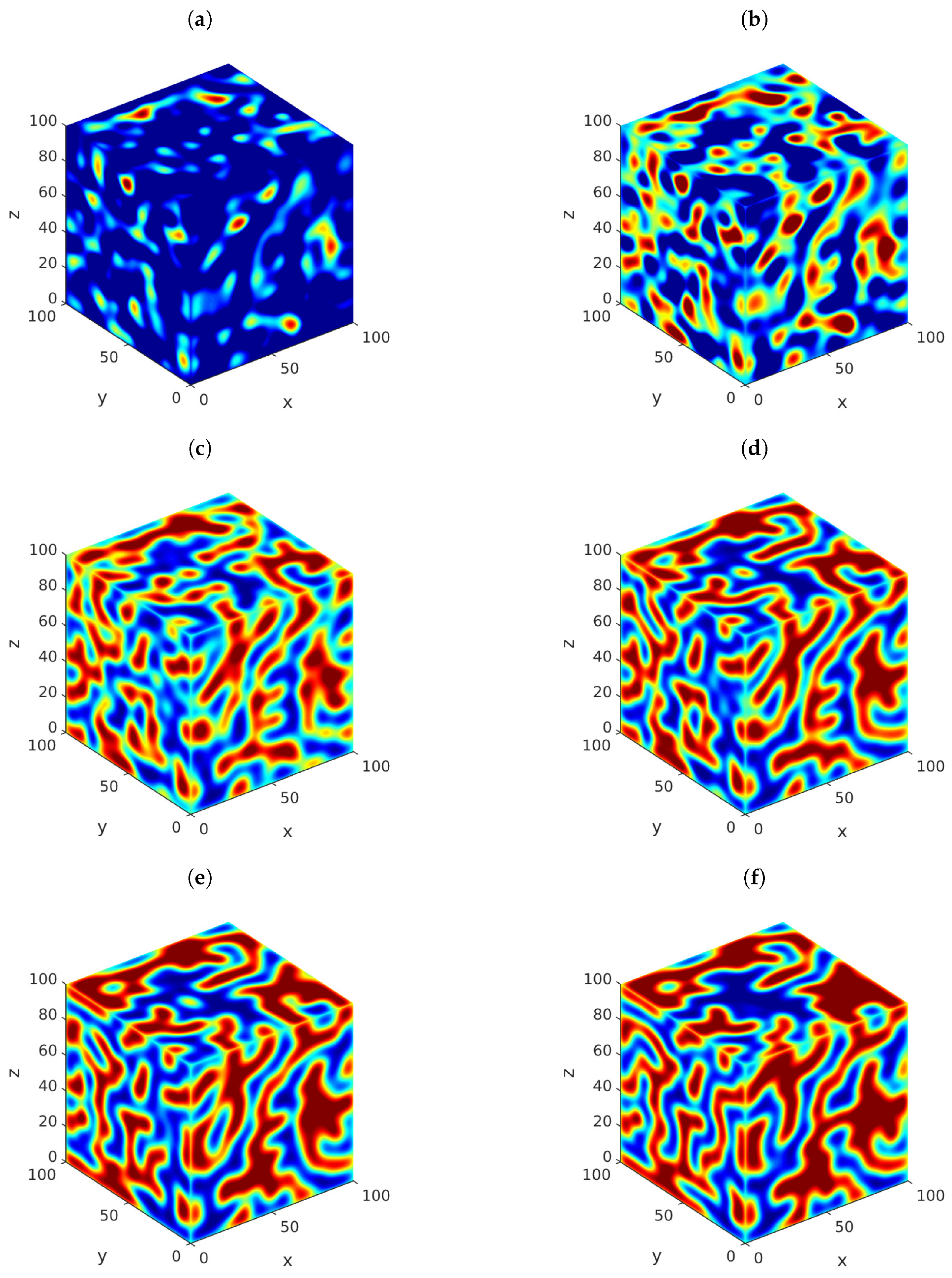

**Figure 5.**Snapshots of x-, y-, and z-cross-sections of the approximate solution u of (118) versus x, y, and z. The parameters employed are $a=0.8$, $c=0.3$, $d=0.1$, ${D}_{1}=0.01$, ${D}_{2}=0.6$, and $\alpha =\beta =1.6$. Meanwhile, we considered the times (

**a**) $t=0$, (

**b**) $t=160$, (

**c**) $t=290$, (

**d**) $t=500$, (

**e**) $t=1010$, and (

**f**) $t=3000$. The initial data are random samples of a uniform distribution on $[0,1]$. The approximations were calculated using our implementation of (20), with $\tau =0.02$ and ${h}_{{x}_{1}}={h}_{{x}_{2}}={h}_{{x}_{3}}=1$.

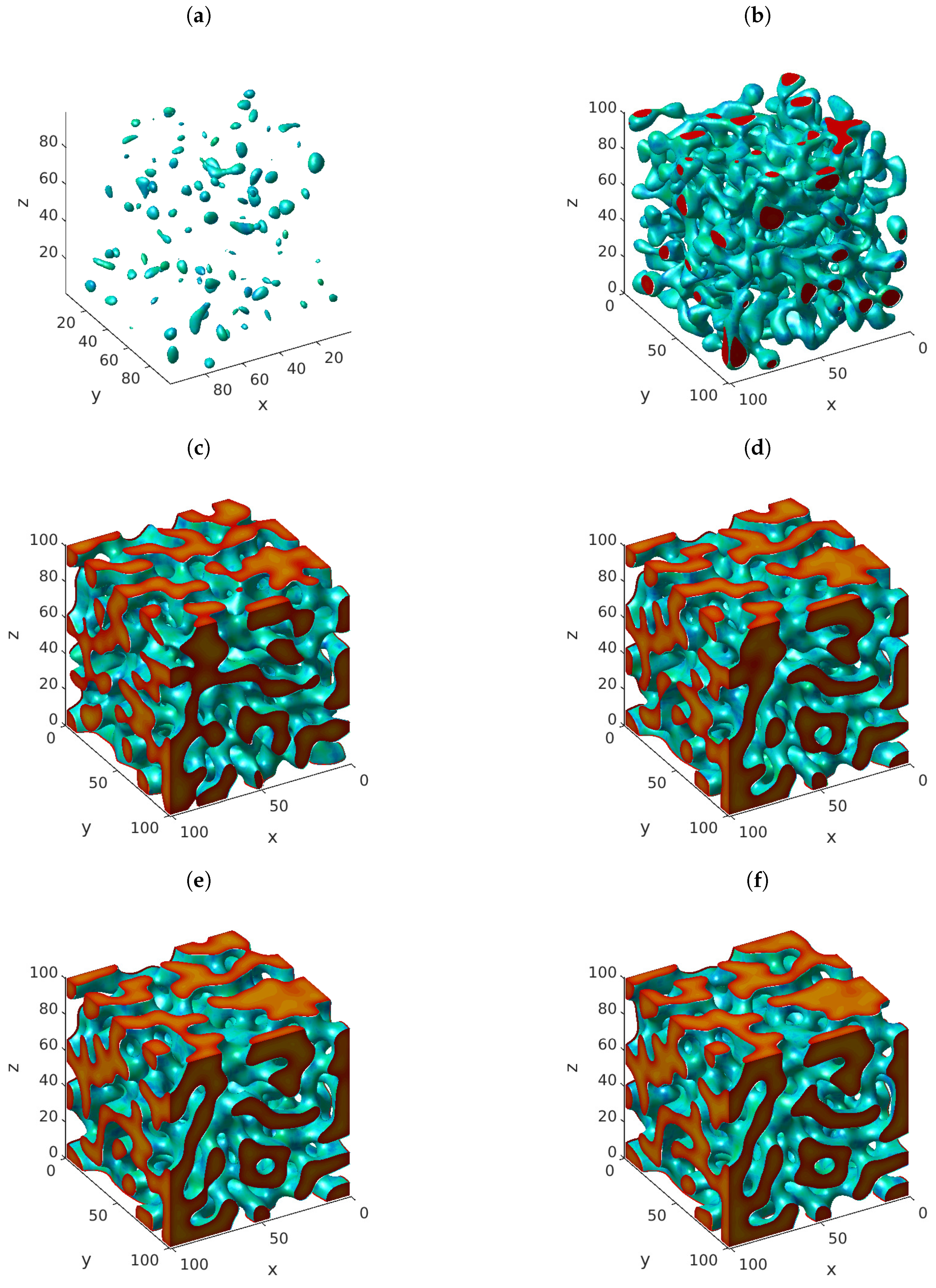

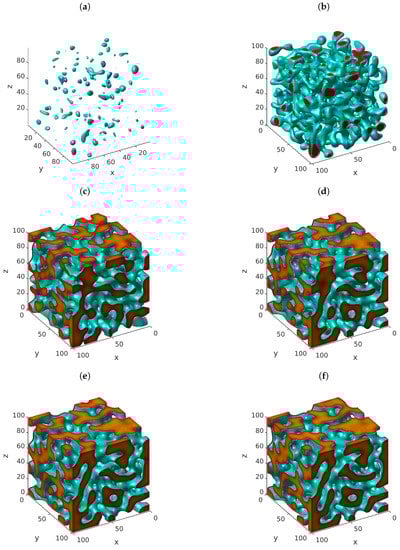

**Figure 6.**Snapshots of the approximate solution u of (118) versus x, y, and z. The parameters employed are $a=0.8$, $c=0.3$, $d=0.1$, ${D}_{1}=0.01$, ${D}_{2}=0.6$, and $\alpha =\beta =1.2$. Meanwhile, we considered the times (

**a**) $t=0$, (

**b**) $t=160$, (

**c**) $t=290$, (

**d**) $t=500$, (

**e**) $t=1010$, and (

**f**) $t=3000$. The initial data are random samples of a uniform distribution on $[0,1]$. The approximations were calculated using our implementation of (20), with $\tau =0.02$ and ${h}_{{x}_{1}}={h}_{{x}_{2}}={h}_{{x}_{3}}=1$.

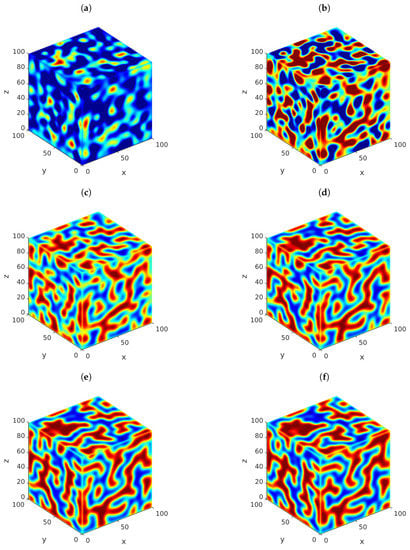

**Figure 7.**Snapshots of x-, y-, and z-cross-sections of the approximate solution u of (118) versus x, y, and z. The parameters employed are $a=0.8$, $c=0.3$, $d=0.1$, ${D}_{1}=0.01$, ${D}_{2}=0.6$, and $\alpha =\beta =1.2$. Meanwhile, we considered the times (

**a**) $t=0$, (

**b**) $t=160$, (

**c**) $t=290$, (

**d**) $t=500$, (

**e**) $t=1010$, and (

**f**) $t=3000$. The initial data are random samples of a uniform distribution on $[0,1]$. The approximations were calculated using our implementation of (20), with $\tau =0.02$ and ${h}_{{x}_{1}}={h}_{{x}_{2}}={h}_{{x}_{3}}=1$.

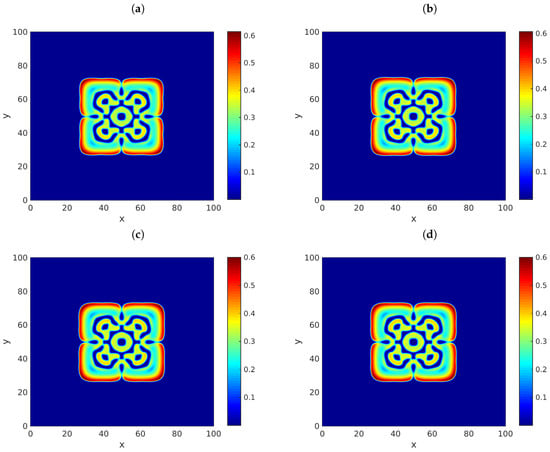

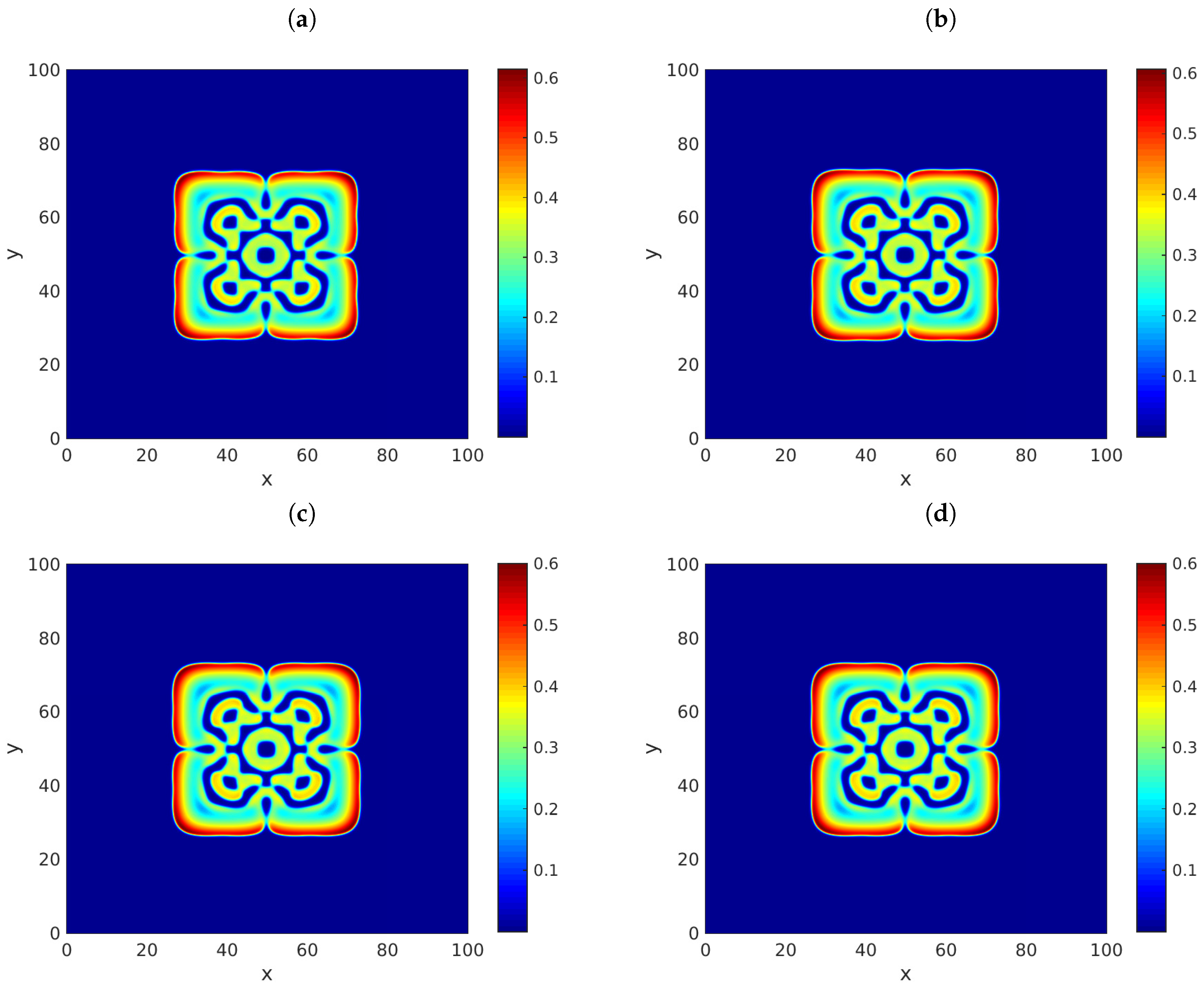

**Figure 8.**Snapshots of the approximate solution u in (118) versus x and y, at the time $T=500$. The parameters employed are $a=0.8$, $c=0.3$, $d=0.1$, ${D}_{1}=0.01$, ${D}_{2}=0.6$, and $\alpha =\beta =1.6$. We let ${\varphi}_{v}(x)$ be a random sample from a normally distributed random variable with the mean equal to ${v}^{\ast}$ and the standard deviation equal to $0.01$, and ${\varphi}_{u}$ is the function depicted in (

**a**). The approximations were calculated using our implementation of (20) shown in Appendix A, with $\tau =0.02$ and $h={h}_{{x}_{1}}={h}_{{x}_{2}}$ satisfying (

**a**) $h=1/3$, (

**b**) $h=1/4$, (

**c**) $h=1/5$, and (

**d**) $h=1/8$.
