Non-Unitary Neutrino Mixing in the NOνA Near Detector Data

Abstract

The ${\nu }_{\mu }\to {\nu }_e$ oscillation probability over a short baseline (≲1 km) would be negligible for the case when the mixing matrix for three active neutrinos is unitary. However, in the case of a non-unitary mixing of three neutrinos, this probability would be non-negligible due to the so-called “zero distance” effect. Hence, the near detector of accelerator experiments such as NO$\nu$A can provide strong constraints on the parameters of the non-unitary mixing with very large statistics. By analyzing the NO$\nu$A near-detector data, we find that the non-unitary mixing does not improve fits to the ${\nu }_e$ or ${\nu }_{\mu }$ events over the standard unitary mixing. This leads to constraints on the non-unitary parameters: ${\alpha }_{00}>0.911$, $|{\alpha }_{10}|<0.020$, and ${\alpha }_{11}>0.952$ at 90% C.L. A combined analysis with the near- and far-detector data does not change these constraints significantly.

1. Introduction

The latest results from the NO$\nu$A [1,2] and T2K [3] show that there exists a tension between the two experiments. Their best-fit points in the ${sin}^2{\theta }_{23}-{\delta }_{\mathrm{CP}}$ plane, with a unitary mixing hypothesis, are far apart from each other and without any overlap between their respective $1\sigma$ confidence regions. Moreover, while separate analyses of the NO$\nu$A and T2K data prefers a normal hierarchy (NH), the combined analysis prefers an inverted hierarchy (IH) over a NH [4]. Several papers have tried to resolve this tension with the help of beyond-the-standard-model (BSM) physics. Refs. [5,6] considered a neutral current non-standard interaction during propagation, while Ref. [7] considered a CP-violating Lorentz invariance violation during propagation. However, the new physics signatures are not stronger than $1\sigma$ significance in these analyses and no other neutrino oscillation experiments have observed these signatures yet. Ref. [8] instead considered non-unitary $3\times 3$ mixing as a solution to the tension between the NO$\nu$A and T2K data. Non-unitary mixing implies the presence of extra neutrino generations, which is in accordance with the LSND [9] and MiniBooNe [10] results. However, a recent analysis [11] shows that the data from the short baseline reactor neutrino experiments strongly disfavors non-unitary mixing. Therefore, further analyses of additionally available data are needed to search for signatures of non-unitary mixing in long baseline neutrino oscillation experiments. Here, we analyze the NO$\nu$A near-detector (ND) data with the non-unitary neutrino mixing hypothesis for the first time.

The accelerator neutrino energy is in the 1–10 GeV range. Since the neutrino oscillation probability depends on ${\mathsf{\Delta }}_{31}L/E$, where ${\mathsf{\Delta }}_{31}=m_3^2-m_1^2$ is the mass-squared difference between the neutrinos of masses $m_3$ and $m_1$, L is the length of the baseline, and E is the neutrino energy, the oscillation probability for the standard unitary mixing, driven by ${\mathsf{\Delta }}_{31}$ at this energy range, is negligible at $L\sim 1$ km. This is not true, however, in the case of non-unitary mixing. The non-unitary $3\times 3$ mixing matrix is defined as [12]:

$$N=N_{\mathrm{NP}}{U}_{\mathrm{PMNS}}=\left[\begin{array}{ccc}{\alpha }_{00}& 0& 0\\ {\alpha }_{10}& {\alpha }_{11}& 0\\ {\alpha }_{20}& {\alpha }_{21}& {\alpha }_{22}\end{array}\right]U_{\mathrm{PMNS}},$$

(1)

where $U_{\mathrm{PMNS}}$ is the unitary PMNS mixing matrix. In the $N_{\mathrm{NP}}$ matrix, the diagonal term(s) must deviate from unity and/or the off-diagonal term(s) must deviate from zero to allow for the non-unitary effect. Non-unitary mixing leads to a zero-distance oscillation effect due to interactions of the active neutrinos with extra-heavy fermions at production. The ${\nu }_{\mu }\to {\nu }_e$ oscillation probability at $L=0$, in this case, is given by [12]:

$$P_{\mu e}^{\mathrm{NU}}(L=0)={\alpha }_{00}^2{|{\alpha }_{10}|}^2.$$

(2)

Therefore, in the case of non-unitary mixing, it is possible to observe neutrino oscillations even over a very short distance, which is called the “zero distance” effect. This effect can be tested with data from the short baseline neutrino oscillation experiments, as well as the near detector of long baseline experiments such as NO$\nu$A and T2K. Although the analysis in Ref. [11] shows that short baseline neutrino experiments such as NOMAD [13] and NuTeV [14] strongly disfavor non-unitary mixing, the reactor neutrino fluxes have large uncertainties [15]. Accelerator neutrino fluxes are better known. In this paper, we have looked for the signal of non-unitary mixing in the NO$\nu$A ND data. We also perform a combined analysis of the NO$\nu$A ND and far-detector (FD) data to test the two mixing schemes, which is unique for the same experiment. A similar analysis with the T2K near and far detectors would be equally interesting; however, T2K ND data is not publicly available [16].

The NO$\nu$A ND is a 290 ton totally active scintillator detector, placed 100 m underground (to minimize background fluxes) and 1.9 mrad off-axis, approximately 1 km away from the source at the Fermilab [17]. In the case of unitary mixing, the ND will not observe any ${\nu }_{\mu }\to {\nu }_e$ oscillations at such a short distance, and the observed electron events will come from the contamination in the ${\nu }_{\mu }$ beam. However, as explained in Equation (2), there will be an excess of electron events due to the ${\nu }_{\mu }\to {\nu }_e$ conversion in the case of non-unitary mixing. Effects of non-unitary mixing at the ND will be sensitive to the parameters ${\alpha }_{00}$ and $|{\alpha }_{10}|$, and also on ${\alpha }_{11}$, because of the condition $|{\alpha }_{10}|\le \sqrt{(1-{\alpha }_{00}^2)(1-{\alpha }_{11}^2)}$ [18,19]. There is essentially no dependence on the phase ${\varphi }_{10}$ associated with $|{\alpha }_{10}|$ in the ND data. For our analyses, we have used $1.10\times {10}^{21}$ ($1.18\times {10}^{21}$) protons-on-target (POTs) data in the neutrino (antineutrino) mode for the ND, and $1.36\times {10}^{21}$ ($12.5\times {10}^{20}$) POTs data for the FD [1,2].

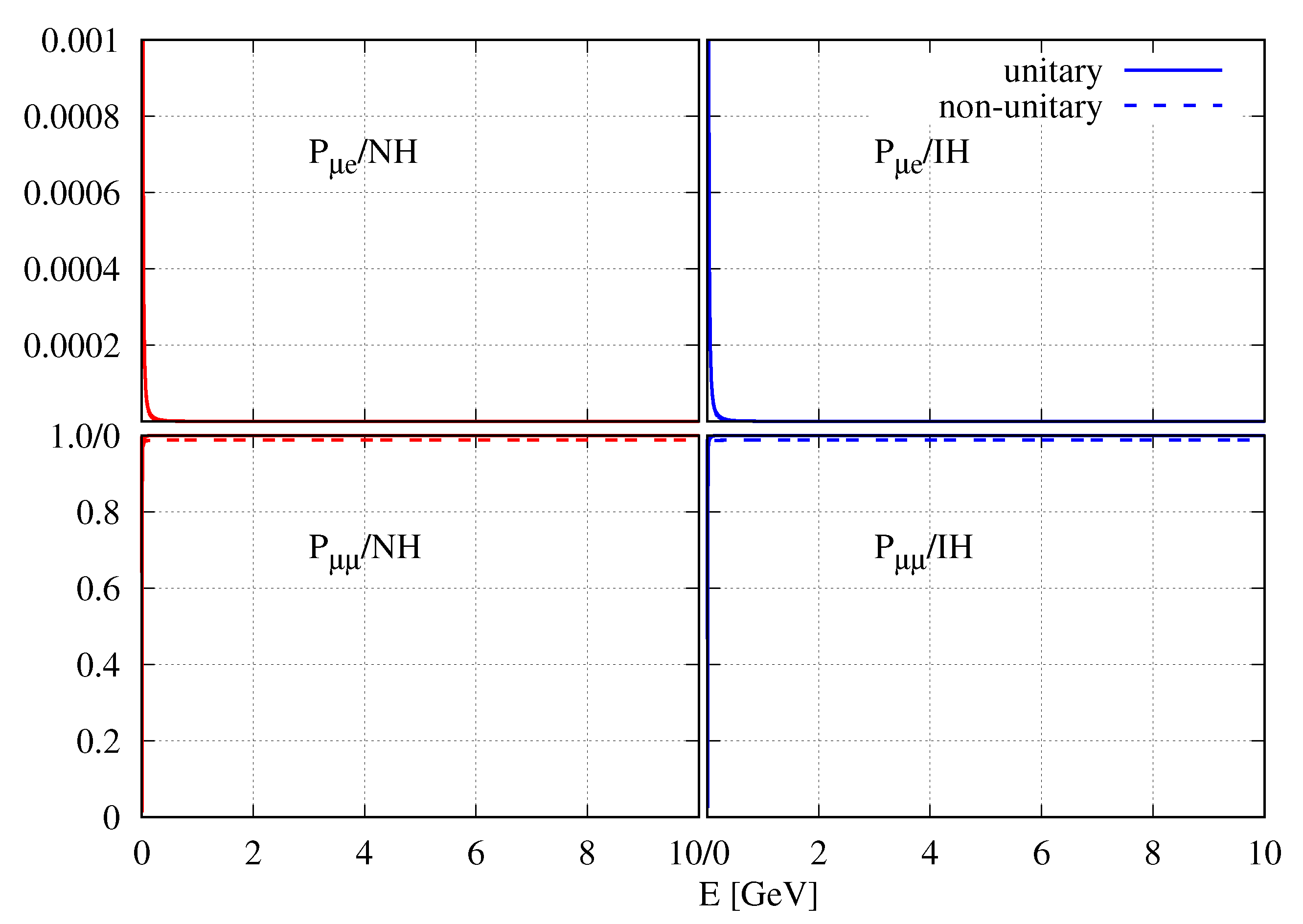

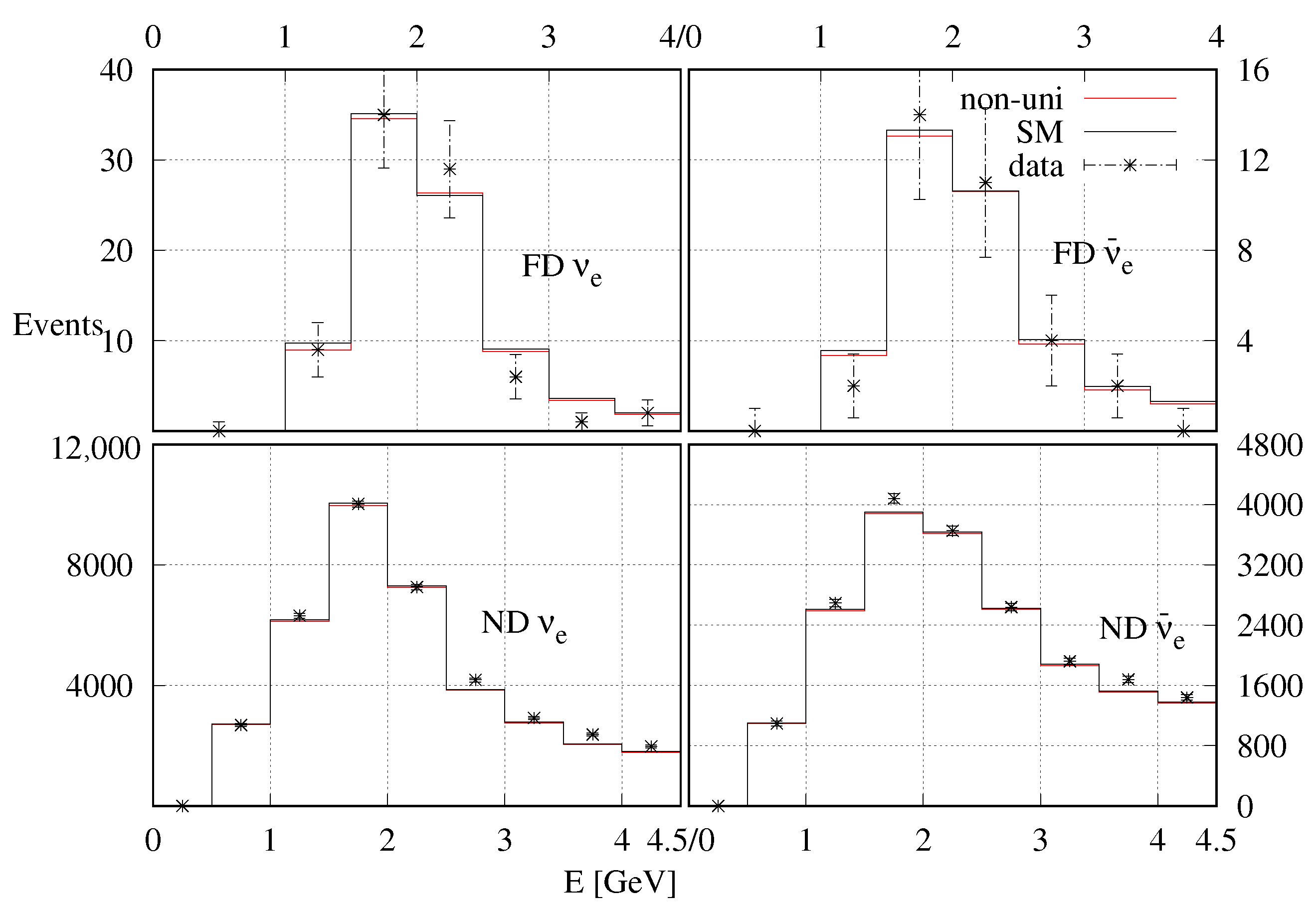

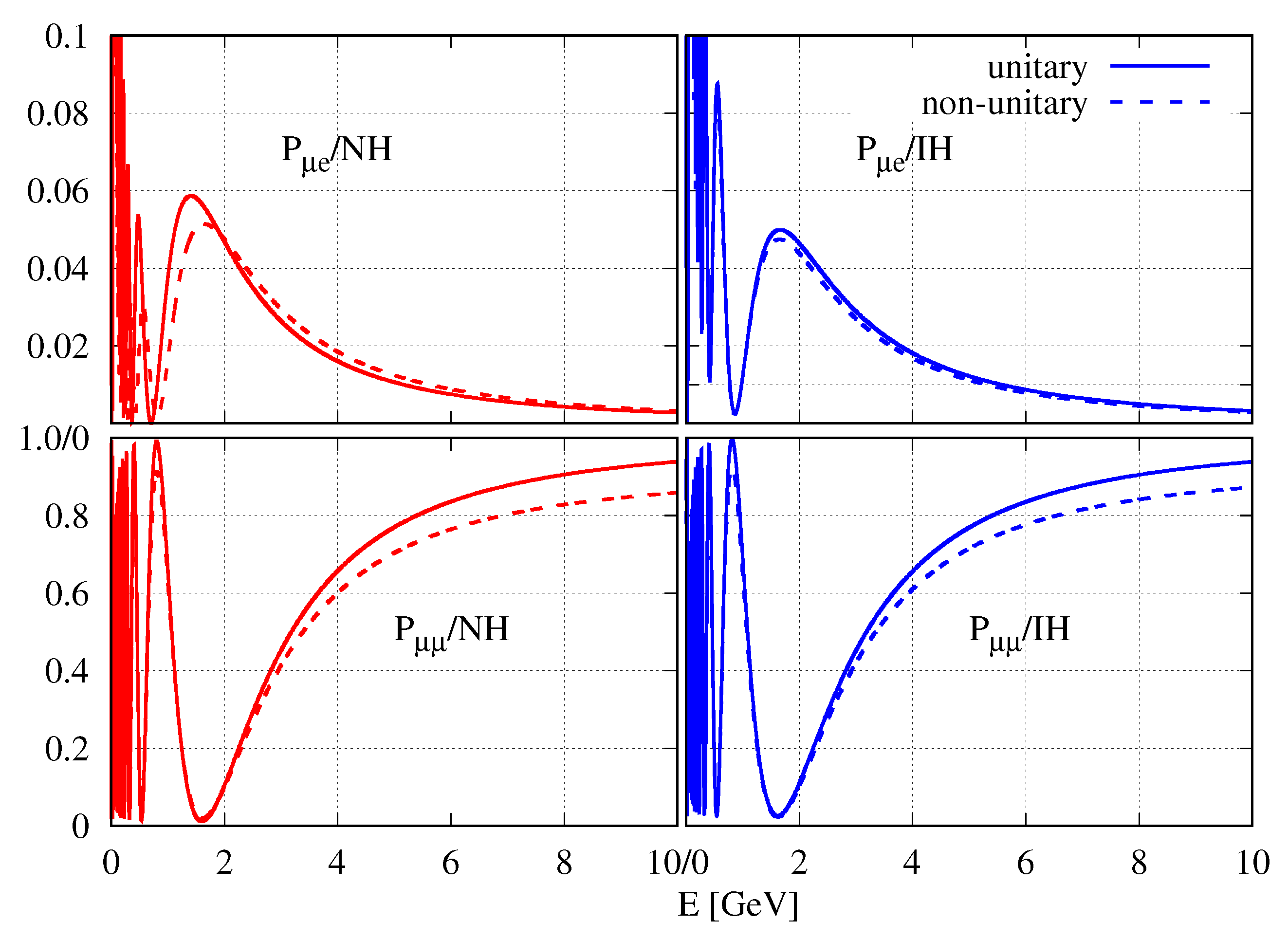

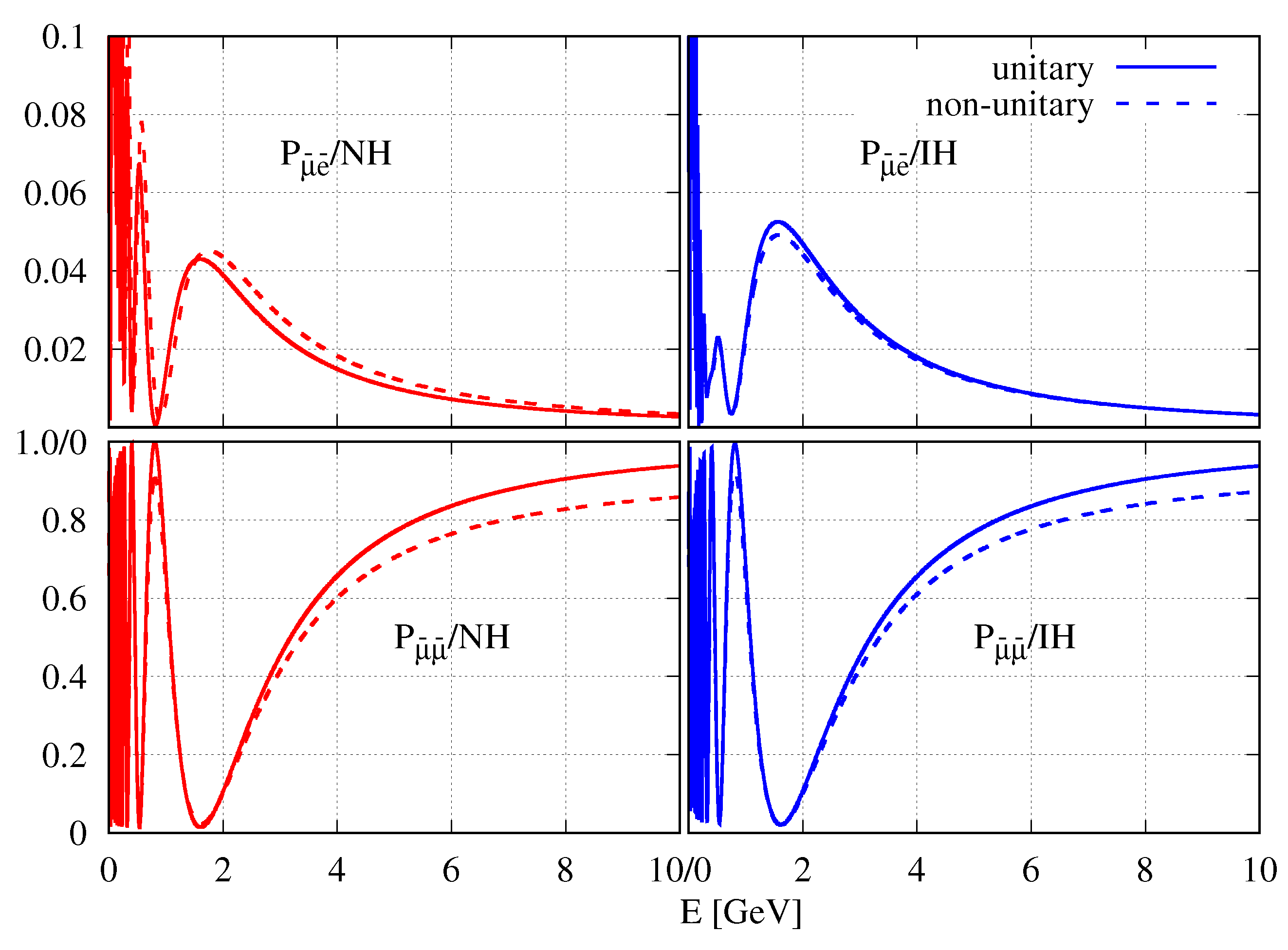

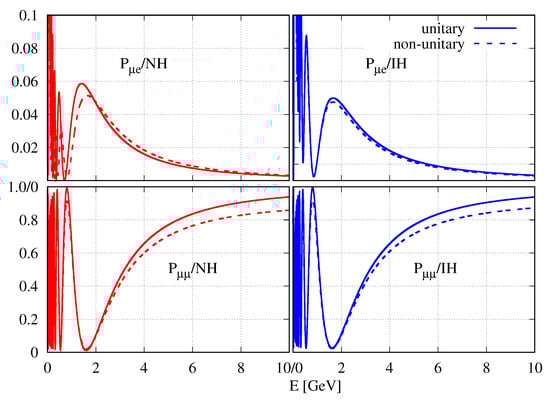

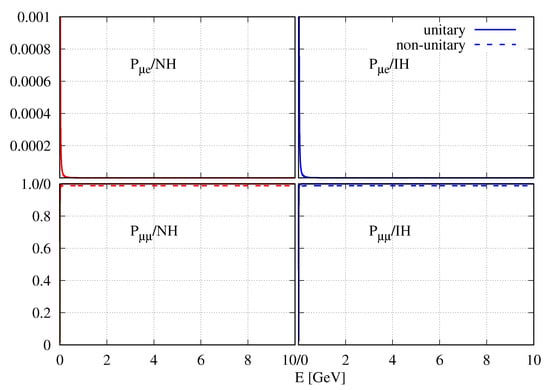

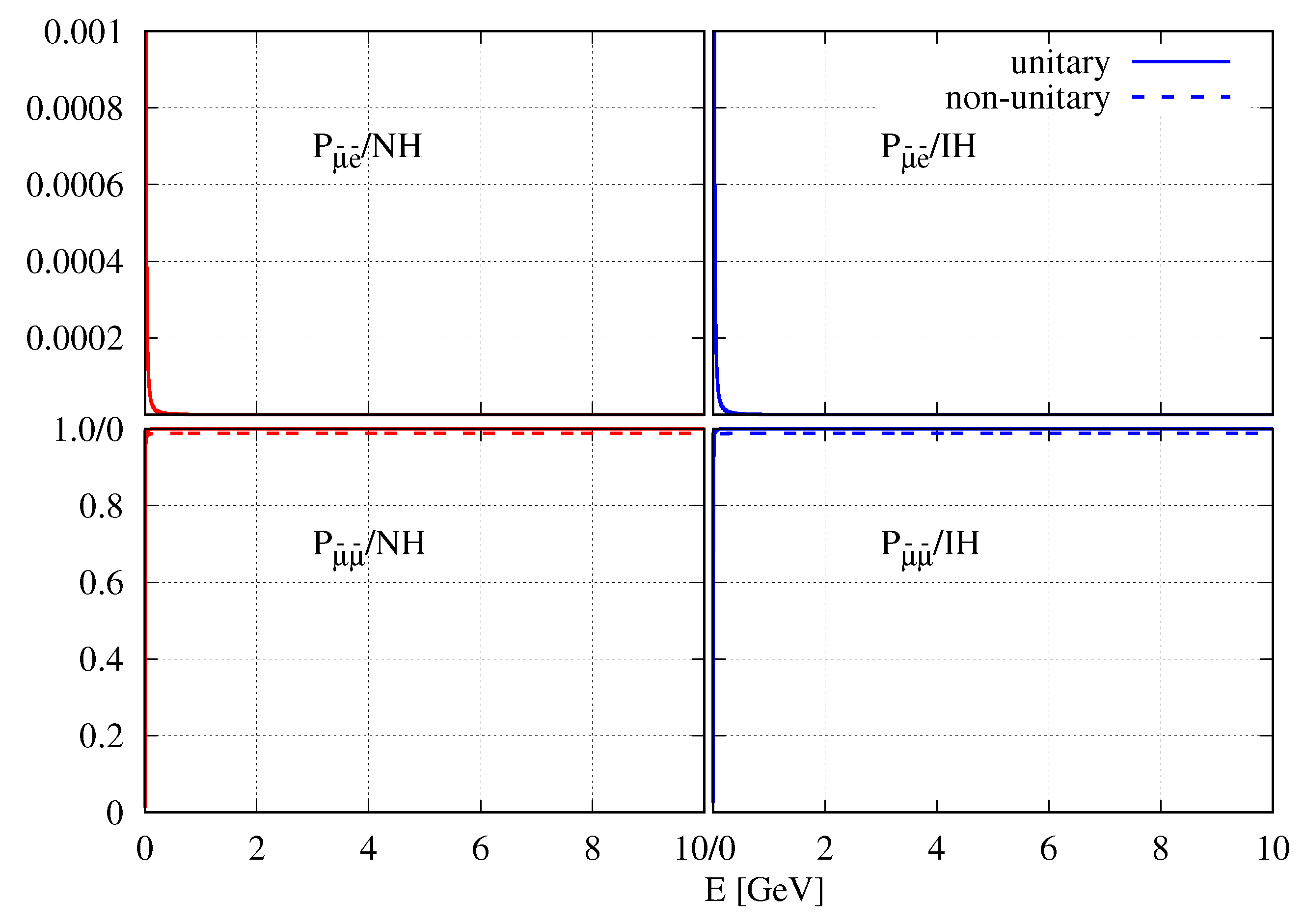

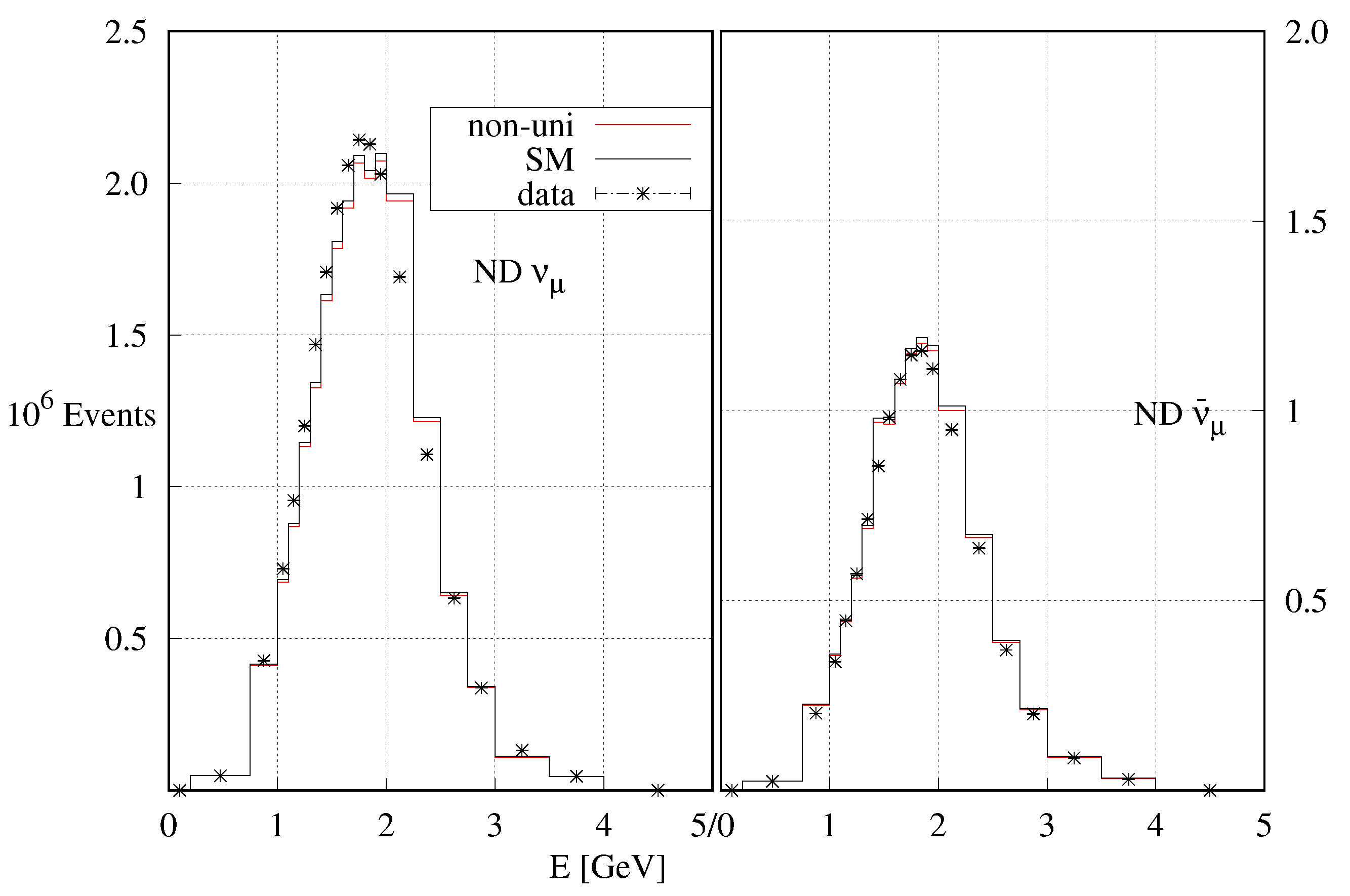

In this paper, we have discussed the analysis in Section 2, and presented the results in Section 3. Our conclusion has been drawn in Section 4. We show the oscillation probabilities and fits to the event distributions in the Appendix A.

2. Analysis of NO$\mathbf{\nu }$A  Data

We calculate the theoretical muon and electron event rates and the ${\chi }^2$ between the theoretical and experimental data by using the software GLoBES [20,21]. We have modified the probability code of GLoBES so that it can handle non-unitary mixing for simulating theoretical events. A detailed algorithm used for the probability calculation with non-unitary mixing has been given in Ref. [8]. We have also fixed the efficiencies of the electron and muon events for each energy bin according to the expected event rates at the ND and FD, which are provided by the NO$\nu$A collaboration [2]. For the ${\chi }^2$ analyses, we have kept ${sin}^2{\theta }_{12}$ and ${\mathsf{\Delta }}_{21}$, where ${\mathsf{\Delta }}_{21}=m_2^2-m_1^2$, at their best-fit values of $0.304$ and $7.42\times {10}^{-5}{\mathrm{eV}}^2$, respectively [22]. We have varied ${sin}^2{\theta }_{13}$ and ${sin}^2{\theta }_{23}$ in their respective $3\sigma$ ranges, as given in Ref. [22]. We have also varied $|{\mathsf{\Delta }}_{\mu \mu }|$ in its $3\sigma$ range, around the MINOS best-fit value $2.32\times {10}^{-3}{\mathrm{eV}}^2$ with $3\%$ uncertainty [23], where ${\mathsf{\Delta }}_{\mu \mu }$ is related to ${\mathsf{\Delta }}_{31}$ by the following relation [24]:

$$\begin{array}{ccc}\hfill {\mathsf{\Delta }}_{\mu \mu }& =& {sin}^2{\theta }_{23}{\mathsf{\Delta }}_{31}+{cos}^2{\theta }_{12}{\mathsf{\Delta }}_{32}\hfill \\ & & +cos{\delta }_{\mathrm{CP}}sin2{\theta }_{12}sin{\theta }_{13}tan{\theta }_{12}{\mathsf{\Delta }}_{21}.\hfill \end{array}$$

(3)

We have varied the CP-violating phase ${\delta }_{\mathrm{CP}}$ in its complete range [$-{180}^{°}$:${180}^{°}$]. For the non-unitary parameters, we have varied ${\alpha }_{00}$ and ${\alpha }_{11}$ in the range [0.7:1] and $|{\alpha }_{10}|$ in the range [0:0.2]. We have varied the phase ${\varphi }_{10}$, where ${\alpha }_{10}=|{\alpha }_{10}|e^{i{\varphi }_{10}}$, in its complete range [$-{180}^{°}$:${180}^{°}$]. We have also implemented the condition $|{\alpha }_{10}|\le \sqrt{(1-{\alpha }_{00}^2)(1-{\alpha }_{11}^2)}$ throughout the analysis. We have kept the other non-unitary parameters fixed at their unitary values, as their effects are negligible.

We have implemented automatic bin-based energy smearing for generated theoretical events, as described in the GLoBES manual [20,21]. For this purpose, we have used a Gaussian smearing function for the true neutrino energy E:

$$R^c(E,E^{\prime })=\frac{1}{\sqrt{2\pi }}{e}^{-\frac{{(E-E^{\prime })}^2}{2{\sigma }^2\left(E\right)}},$$

(4)

where $E^{\prime }$ is the reconstructed energy. The energy resolution function is given by:

$$\sigma \left(E\right)=\alpha E+\beta \sqrt{E}+\gamma .$$

(5)

For the NO$\nu$A FD, we have used $\alpha =0.09\left(0.08\right)$, and $\beta =\gamma =0$ for ${\nu }_{\mu }$ (${\overline{\nu }}_{\mu }$) charged-current (CC) events. For ${\nu }_e$ (${\overline{\nu }}_e$) CC events, values for the FD are $\alpha =0.11\left(0.09\right)$, $\beta =\gamma =0$. For the ND, we have used $\alpha =0.118$, $\beta =\gamma =0$, for both the muon and electron events as well as for both neutrinos and anti-neutrinos. For the FD, we have used $8.5\%$ normalization and $5\%$ energy calibration systematic uncertainties for both the e-like and $\mu$-like events [17]. We calculated the systematic uncertainties at the ND using the following method: we assumed the normalization and energy calibration systematic uncertainties at ND to be $0.085+s_1$ and $0.05+s_2$, respectively, for both the e-like and the $\mu$-like events. We then analyzed both the ND and FD data together with the standard three-flavor oscillation hypothesis, while both $s_1$ and $s_2$ were varied in the range [0:0.3]. For this purpose, we kept the standard oscillation parameters ${sin}^2{\theta }_{13}$, ${sin}^2{\theta }_{23}$, ${\delta }_{\mathrm{CP}}$, and ${\mathsf{\Delta }}_{31}$ fixed at their best-fit values for the NH taken from the analysis of the NO$\nu$A collaboration [1,2]. ${sin}^2{\theta }_{12}$ and ${\mathsf{\Delta }}_{21}$ were fixed at their best-fit values, as taken from Ref. [25]. We calculated the ${\chi }^2$ between theory and experiment and found that the minimum ${\chi }^2$ occurs at $s_1=s_2=0.30$. Thus, we fixed the normalization and energy calibration uncertainties at $38.5\%$ and $30\%$, respectively.

We calculated ${\chi }^2$ for both the NH and IH of the neutrino masses. The minimum ${\chi }^2$ obtained by varying parameters is subtracted from the other ${\chi }^2$ values to calculate $\mathsf{\Delta }{\chi }^2$. During the ${\chi }^2$ calculation, Gaussian priors have been added to the ${sin}^2{\theta }_{13}$. Further details of the ${\chi }^2$ analysis are given in Ref. [8]. Before proceeding to analyze the data with the non-unitary mixing, we have analyzed data with the standard mixing hypothesis and found that the NO$\nu$A ND data does not have any sensitivity to the unitary oscillation parameters. This complies with the physics of standard oscillations. In Refs. [7,8], we presented results from analyzing the FD data with the standard unitary mixing. We matched these results to the standard analyses published by the NO$\nu$A collaboration to validate our analyses. We present results of our analyses with non-unitary mixing in the next section.

3. Results and Discussion

After fitting the NO$\nu$A ND data with both the standard unitary and non-unitary mixing schemes, we found that the best-fit point occurs at ${\alpha }_{00}=0.998$, $|{\alpha }_{10}|=0.002$, and ${\alpha }_{11}=0.997$. In Figure 1, we show the $\mathsf{\Delta }{\chi }^2$ values for the non-unitary parameters. The standard unitary oscillation gives as good a fit as the non-unitary mixing to the data with $\mathsf{\Delta }{\chi }^2=0.09$ and with four degrees of freedom (d.o.f.) fewer. Therefore, it can be stated that the NO$\nu$A ND data does not have any signature of non-unitary mixing. As mentioned earlier, the ND data from NO$\nu$A does not have any sensitivity to the phase ${\varphi }_{10}$, nor does it have any sensitivity to hierarchy. The $90\%$ C.L. ($5\sigma$) limits on the non-unitary parameters from the ND data of NO$\nu$A are:

$${\alpha }_{00}>0.911\left(0.804\right),|{\alpha }_{10}|<0.020\left(0.035\right),{\alpha }_{11}>0.952\left(0.866\right).$$

(6)

Fitting the combined data from the ND and FD, the best-fit points were found to be ${\alpha }_{00}=0.991$, $|{\alpha }_{10}|=0.0009$, and ${\alpha }_{11}=0.978$. In this case also, the standard oscillation gives as good a fit to the data as non-unitary mixing with $\mathsf{\Delta }{\chi }^2=0.44$. Thus, just like the ND data alone, the combined fit of the data from both ND and FD of NO$\nu$A does not show any signature of non-unitary mixing (see Figure 1). The $90\%$ C.L. ($5\sigma$) limits on the non-unitary parameters from the ND and FD data of NO$\nu$A are:

$${\alpha }_{00}>0.910\left(0.804\right),|{\alpha }_{10}|<0.018\left(0.035\right),{\alpha }_{11}>0.945\left(0.885\right).$$

(7)

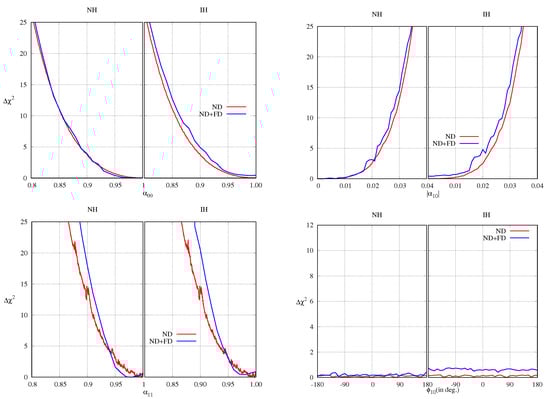

Figure 1. $\mathsf{\Delta }{\chi }^2$ as a function of individual non-unitary parameters for the NO$\nu$A ND (red lines) and ND + FD (blue lines) data.

Although, as mentioned earlier, the ND data is not sensitive to the standard oscillation parameters, the combined ND and FD data are sensitive to those parameters. In Figure 2, we show the $1\sigma$ and $3\sigma$ allowed regions in the ${sin}^2{\theta }_{23}-{\delta }_{\mathrm{CP}}$ plane after the combined analysis. It is important to note that the best-fit points and the allowed regions are very close to each other for the non-unitary and standard unitary mixing. This is precisely because the sensitivity to the standard oscillation parameters is dominated by the FD data, and the deviation from the unitarity is very small. In Ref. [8], we did not include the NO$\nu$A ND data; thus, the deviation from non-unitarity at the FD data was large. Hence, the shift in the values of the standard unitary parameters with non-unitary mixing was large. It should also be noted, in Figure 2, that the IH cannot be ruled out, even at $1\sigma$ C.L., and the hierarchy-${\delta }_{\mathrm{CP}}$ degeneracy is present in the data when analyzed with non-unitary mixing.

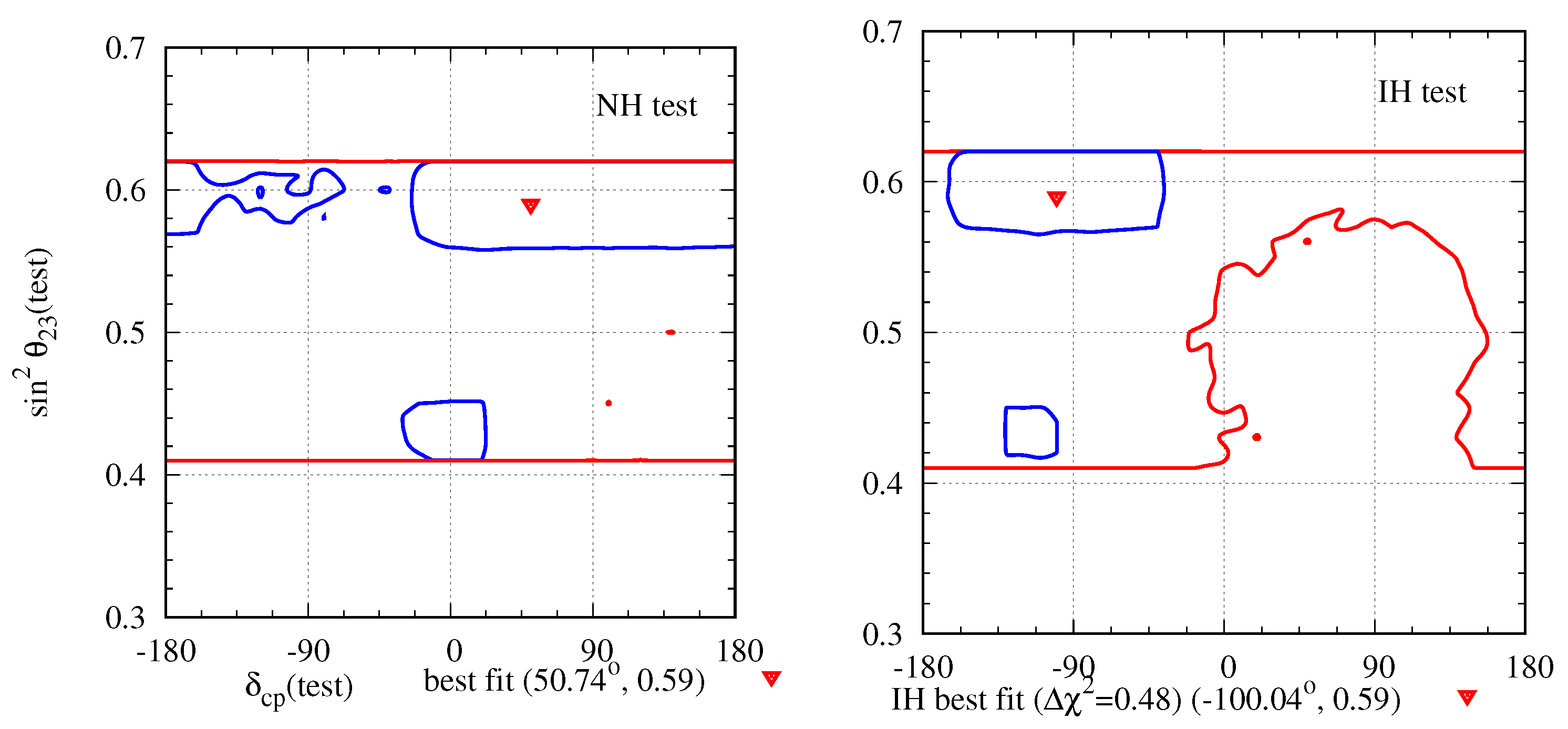

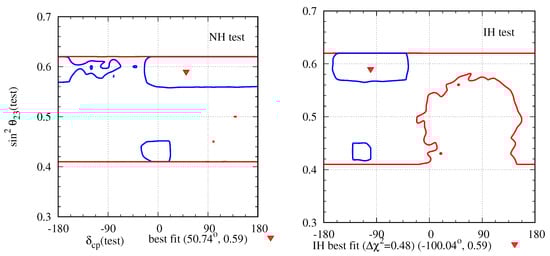

Figure 2. Allowed regions in the ${sin}^2{\theta }_{23}-{\delta }_{\mathrm{CP}}$ plane after a combined analysis of the NO$\nu$A ND and FD data. The blue (red) lines represent the boundary of $1\sigma$ ($3\sigma$) C.L.

4. Conclusions

The NO$\nu$A ND data does not show any signature of non-unitary mixing. At the best-fit point, the deviation from the unitary mixing is negligible. Although the deviation from unitary mixing at the best-fit point is larger after combining the ND and FD data, the unitary mixing continues to give as good a fit to the data as the non-unitary mixing. The limits obtained on the non-unitary parameters ${\alpha }_{00}$, $|{\alpha }_{10}|$, and ${\alpha }_{11}$ are consistent with the limits obtained in Ref. [11] from analyzing short baseline neutrino data. The addition of the FD data gives a sensitivity to the standard oscillation parameters. However, since the ND data allows only a small deviation from the unitary mixing, the results in the ${sin}^2{\theta }_{23}-{\delta }_{\mathrm{CP}}$ plane are almost similar to those obtained with the unitary mixing using only the FD data.

The results obtained from the ND data of NO$\nu$A are in tension with the analysis of FD data alone, as presented in Ref. [8]. The FD data of NO$\nu$A prefers non-unitary mixing over unitary mixing at $1\sigma$ C.L., and also the deviation from unitarity at the best-fit point is quite large. Thus, it is important to fit the ND data of T2K, as well as future experiments such as DUNE [26] and T2HK [27], to the non-unitary mixing scheme to investigate if a similar trend persists in them as well.
