A Ka-Band Cylindrical Paneled Reflectarray Antenna

DIMES—Department Computer, Modeling, Electronics, and Systems Engineering, University of Calabria, 87036 Rende (CS), Italy
*
Author to whom correspondence should be addressed.
Electronics 2019, 8(6), 654; https://doi.org/10.3390/electronics8060654
Received: 13 May 2019 / Revised: 30 May 2019 / Accepted: 3 June 2019 / Published: 10 June 2019
(This article belongs to the Section Microwave and Wireless Communications)

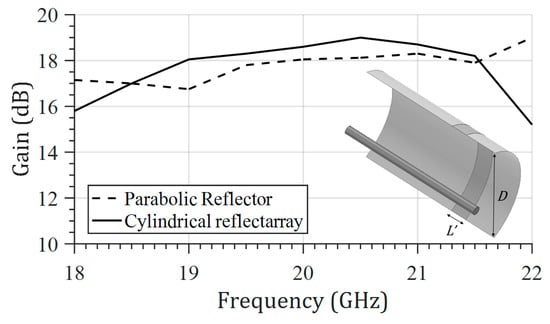

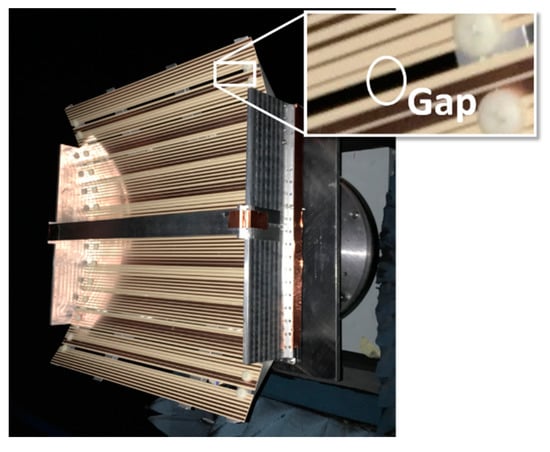

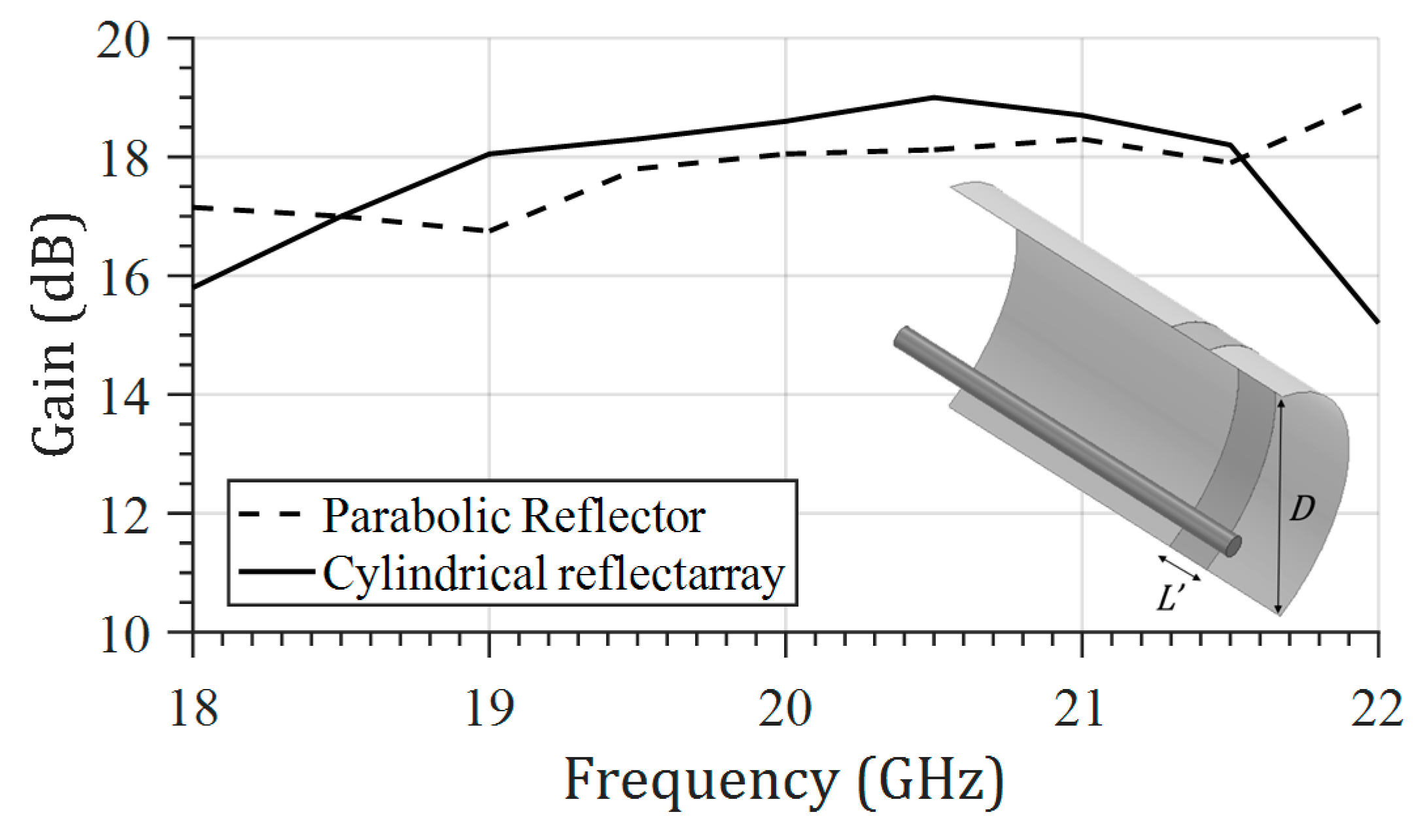

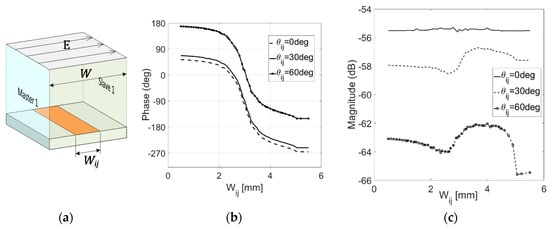

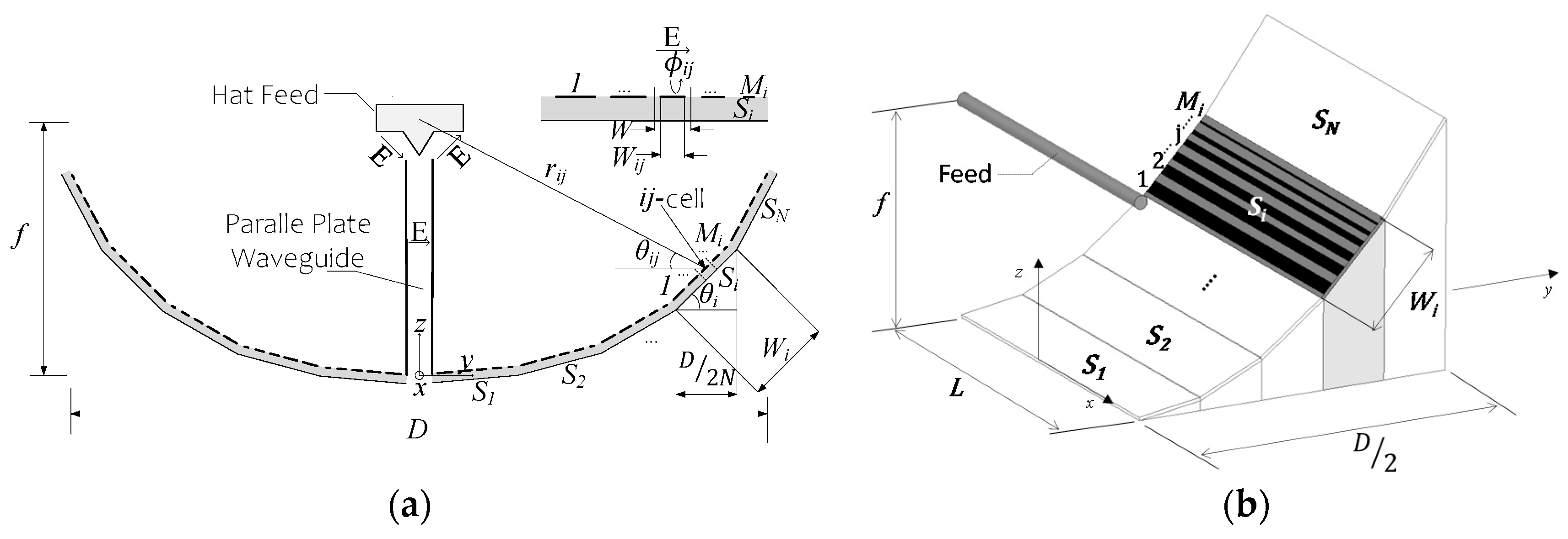

Cylindrical parabolic reflectors have been widely used in those applications requiring high gain antennas. Their design is dictated by the geometric relation of the parabola, which relate the feed location, f, to the radiating aperture, D. In this work, the use of reflectarrays is proposed to increase D without changing the feed location. In the proposed approach, the reflecting surface is loaded with dielectric panels where the phase of the reflected field is controlled using continuous metal strips of variable widths. This solution is enabled by the cylindrical symmetry and, with respect to rectangular patches or to other discrete antennas, it provides increased gain. The proposed concept has been evaluated by designing a Ka-band antenna operating in the Rx SatCom band (19–21 GHz). A prototype has been designed and the results compared with the ones of a parabolic cylindrical reflector using the same feed architecture. Simulated results have shown how this type of antenna can provide higher gain in comparison to the parabolic counterpart, reaching a radiation efficiency of 65%. View Full-Text
Keywords: reflectarray; Ka-band; reflector antennas reflectarray; Ka-band; reflector antennas
Show Figures

Figure 1

MDPI and ACS Style

Greco, F.; Boccia, L.; Arnieri, E.; Amendola, G. A Ka-Band Cylindrical Paneled Reflectarray Antenna. Electronics 2019, 8, 654.
