# Real-Time Particle Swarm Optimization on FPGA for the Optimal Message-Chain Structure

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Optimization Problem of Message-Chain Structures

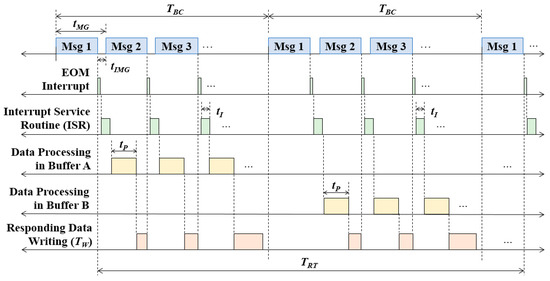

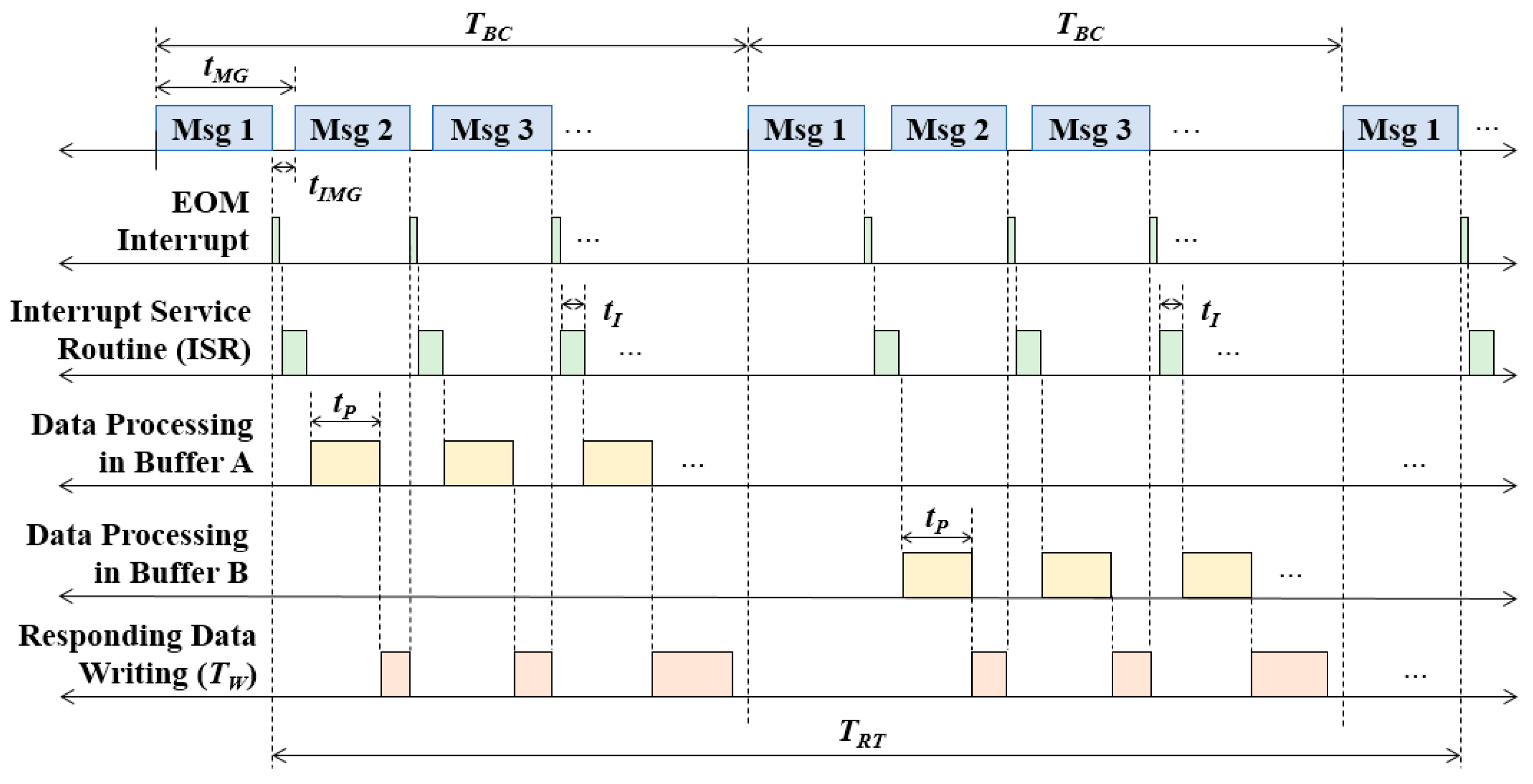

_{BC}), the BC transmits an MC, which consists of a certain number of messages, N

_{BC}. In each MC, the time assigned to each message is called the message gap time (t

_{MG}), including the inter-message gap time (t

_{IMG}), which separates messages.

_{RT}) is analyzed with the following factors: the processing time for an interrupt service routine (t

_{I}) and the received data (t

_{P}), the total writing time for responding to messages (T

_{W}), and the total processing time for high-priority tasks (T

_{H}). The most important point in the RT is to design a structure for MC, which can finish the whole processing for the current MC before receiving the next MC at the same buffer. Since T

_{W}is considered to be of two types—t

_{W}

_{1}and t

_{W}

_{2}, which are the average writing times before and after completing the data reception from the BC—it can be computed as follows:

_{RD}is the number of response messages that should be written at the buffers in the RT for each message from the BC, and ${N}_{W1}=\lceil {t}_{MG}({N}_{BC}-1)/({t}_{P}+{t}_{W1}{N}_{RD})\rceil $, which is the number of messages on processing in the RT before completing the data reception from the BC. Then, the total required time in the RT, T

_{RT}, can be obtained as follows:

_{RT}and T

_{BC}is established as follows:

_{BC}and N

_{BC}are determined according to system requirements and applied to the PSO algorithm.

## 3. Real-Time PSO on FPGA

#### 3.1. Particle and Swarm Definition

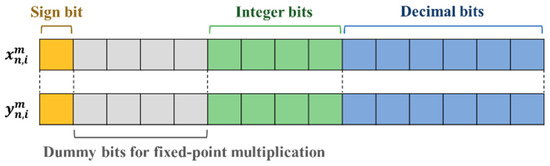

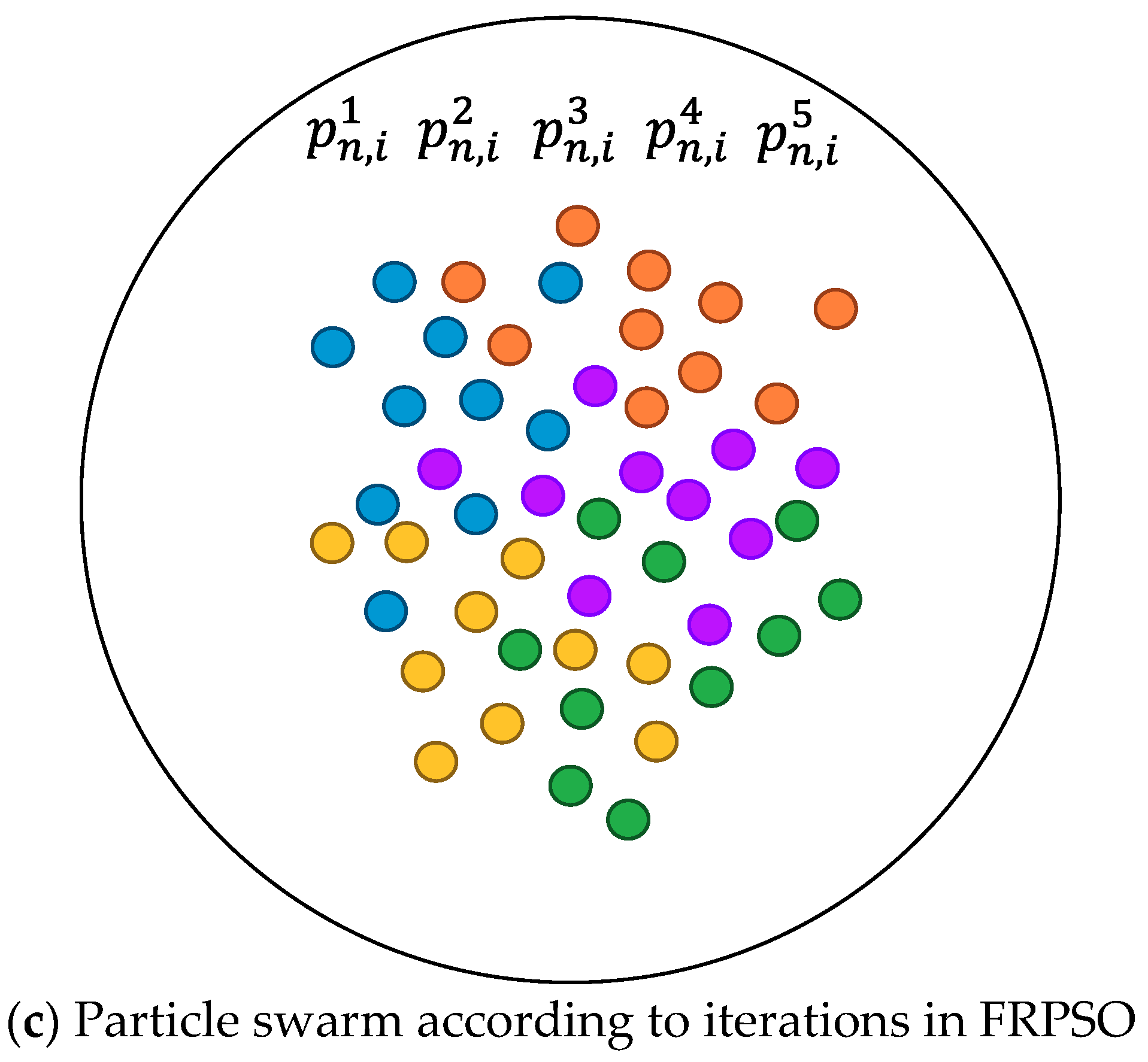

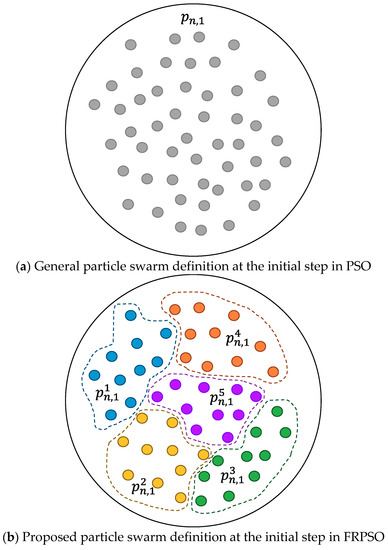

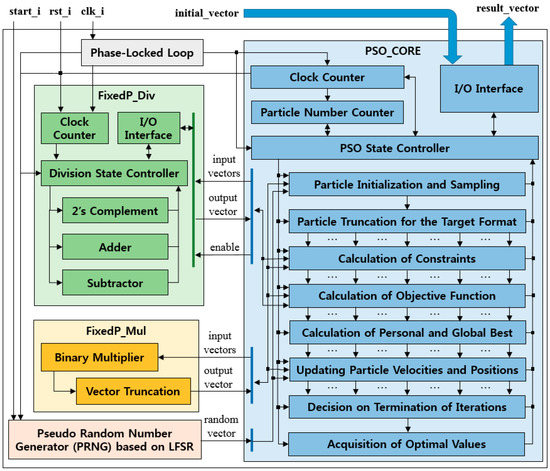

#### 3.2. FPGA Structure

_{G}groups of particles in parallel. The multiplication and division are conducted by FixedP_Mul and FixedP_Div, respectively. The core algorithm of FRPSO is conducted in PSO_CORE, which consists of more logic blocks than the original PSO. This is because FRPSO should be implemented with the consideration of avoiding the data loss caused by clock sharing for variable updates among logic blocks with data dependency. For example, if a logic block has variables, which may be rewritten for updates in the same clock, it should be divided by multiple logic blocks and processed independently.

#### 3.3. Core Algorithm

_{P}particles are initialized and randomly sampled by the pseudo random number generator (PRNG) based on the linear feedback shift register (LFSR) within the defined search space. As PRNG produces an 8-bit random vector at every clock, the position of each particle is acquired by combining with multiple vectors and truncated for the target format. Next, the particle evaluation state is conducted by three separate states to avoid wrong updates of errors and best particles. The two constraints, (3) and (4), for each ${p}_{n,i}$ can be rewritten by:

## 4. Implementation, Simulations, and Evaluations

#### 4.1. Implementation

#### 4.2. Simulation Results

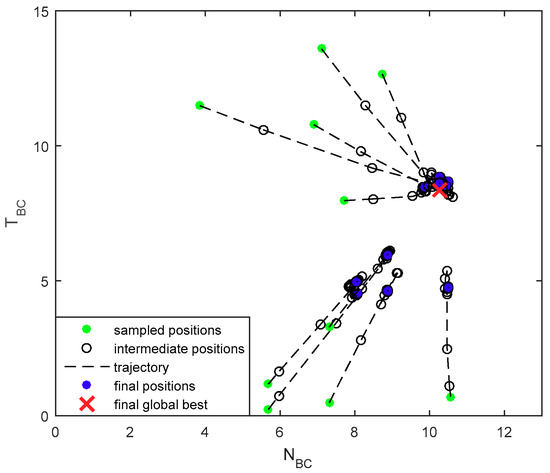

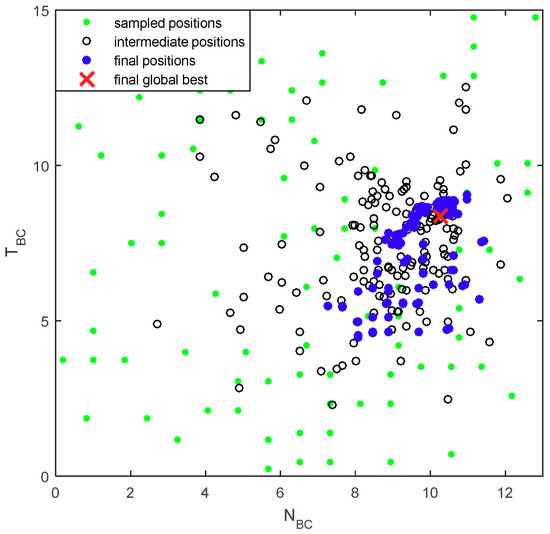

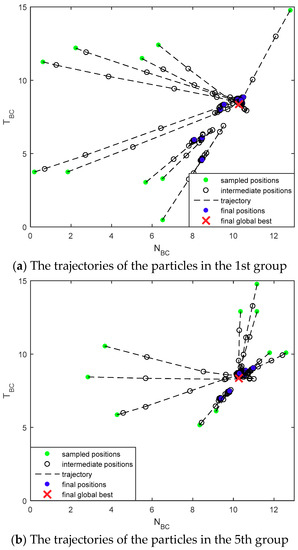

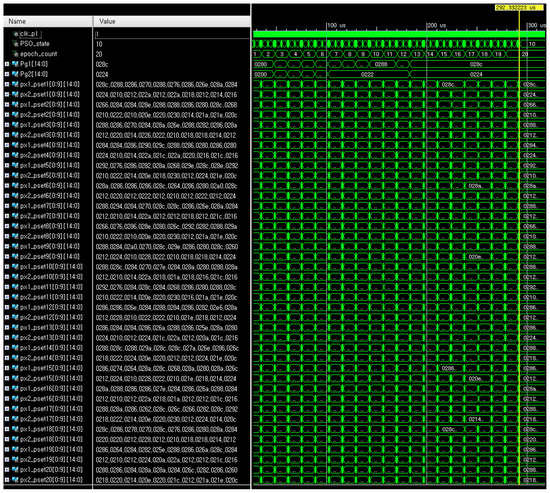

_{g}

_{1}and P

_{g}

_{2}, respectively, indicate N

_{BC}and T

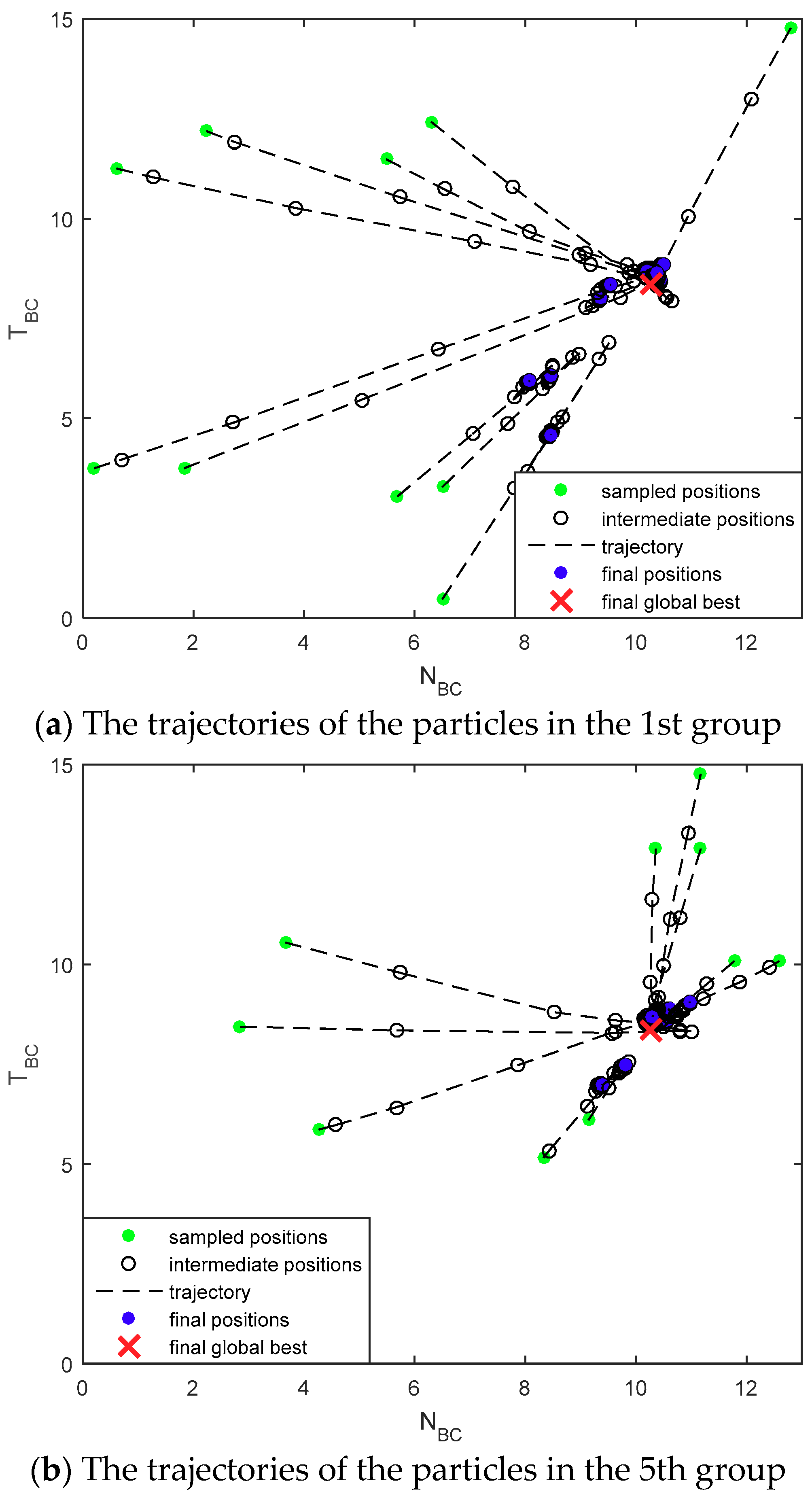

_{BC}and successfully converge the optimal configuration of fixed-point binary vectors. px1_psetm and px2_psetm represent the two-dimensional positions of the particles in the m-th group, respectively. The whole particle positions according to iterations and the final global best position are shown in Figure 6. The particles were successfully converged to the final global best.

#### 4.3. Evaluations

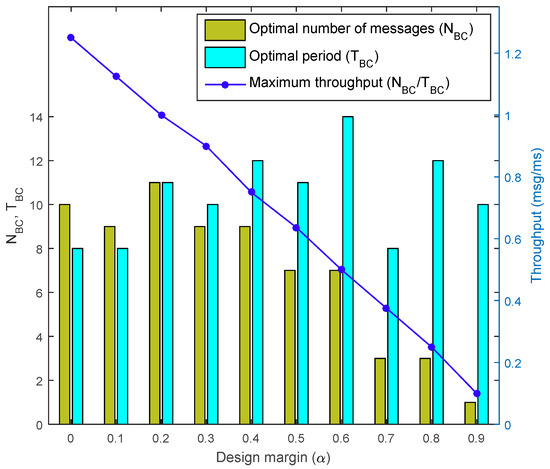

_{BC}and T

_{BC}even though the number of particles varies between 200 and 440. Under 200 particles, the optimization results of FRPSO were not consistent. Over 440 particles, FRPSO could not be implemented on Xilinx FPGA Kintex-7 due to the lack of LUTs. If FPGAs with more LUTs are used, FRPSO will be successfully implemented.

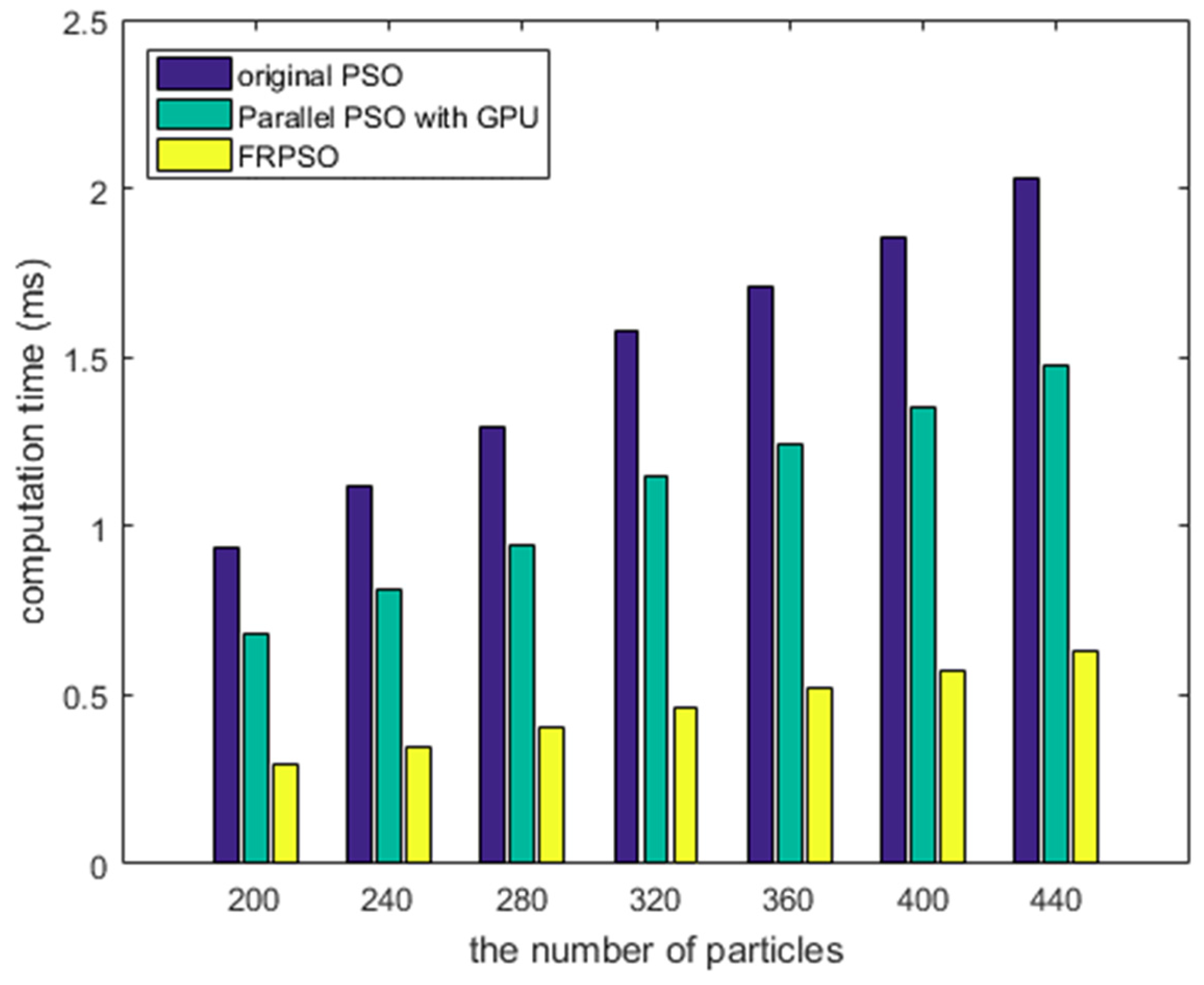

_{P}, as shown in Figure 9. The processing time of the original PSO and its parallelized version with the GPU were acquired by a desktop computer with 2.3 GHz CPU clocks and NVIDIA GeForce GTX 750. The parallelized PSO with the GPU was implemented with NVIDIA CUDA Toolkit 10.0, which was mainly conducted on CPU. Obviously, the processing time of FRPSO were smaller than those of both the original PSO and its parallelized version with the GPU with the same optimization results. The increase amounts of processing time for FRPSO according to N

_{P}were also smaller than those of the original PSO and its parallelized version with the GPU. This is because FRPSO is designed to be conducted in parallel, using the resources of FPGAs. Moreover, if the number of particles is fixed, the computation time of FRPSO is consistent because the processing lines on FPGAs are physically allocated and connected, while the original PSO is affected by other communication tasks on CPU. Therefore, FRPSO benefits task scheduling in real-time systems because of fast computation time and independency from other tasks.

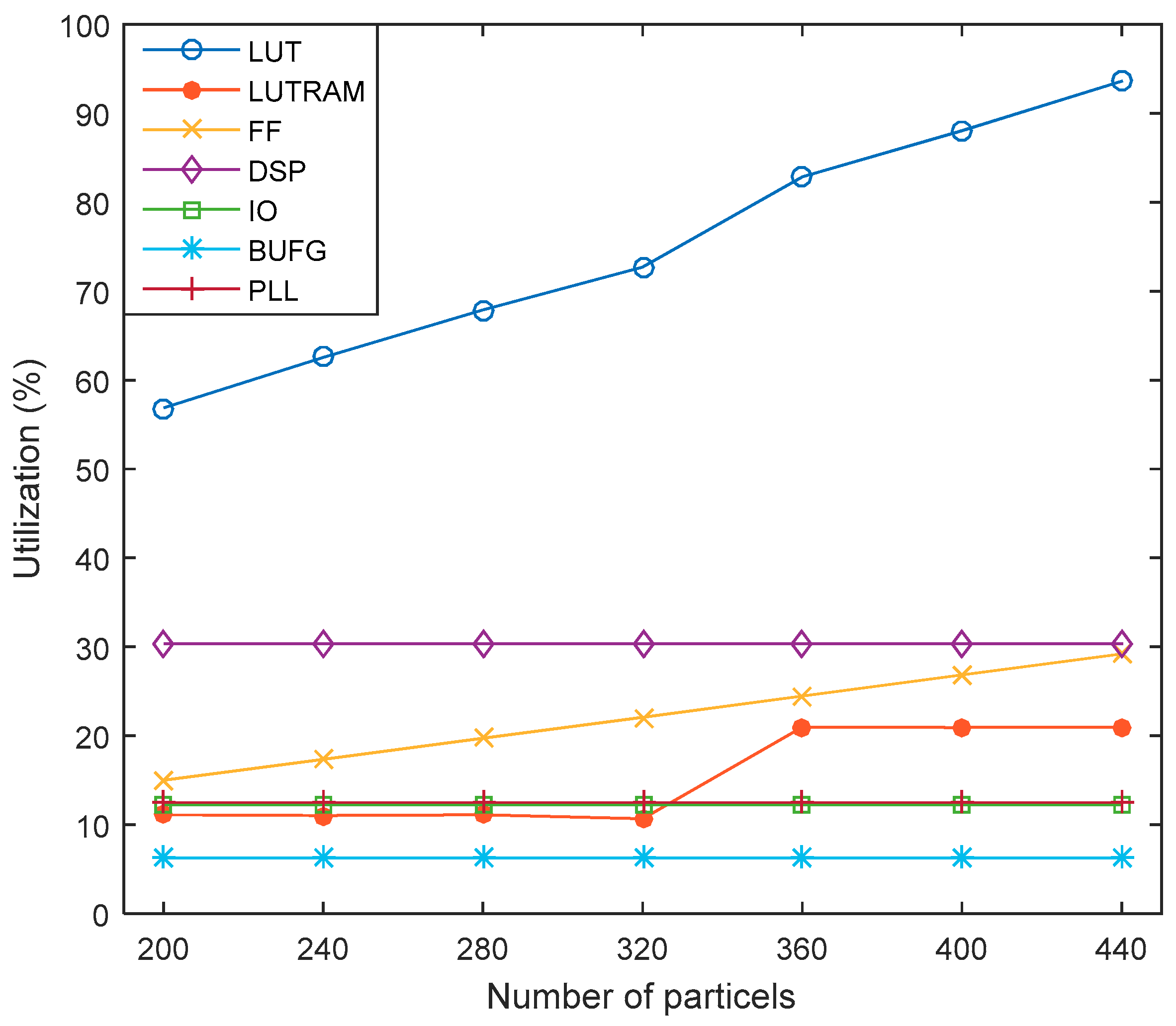

_{P}are shown in Figure 10. When FRPSO used 440 particles, the utilization result of the LUTs, which are the critical hardware resource in FPGA, was 93.61%, as described in Figure 10, and the computation time of the proposed method was about 0.6307 ms, as described in Figure 9. This means that FRPSO is fast enough to be conducted in real time, even though critical hardware resources are considerably utilized. The LUT was the main factor to affect the implementation availability of FRPSO. The LUTRAM and the FF also increase as N

_{P}increases, but they were not significant to affect the implementation availability of FRPSO. The DSP, BUFG, IO, and PLL were consistent regardless of N

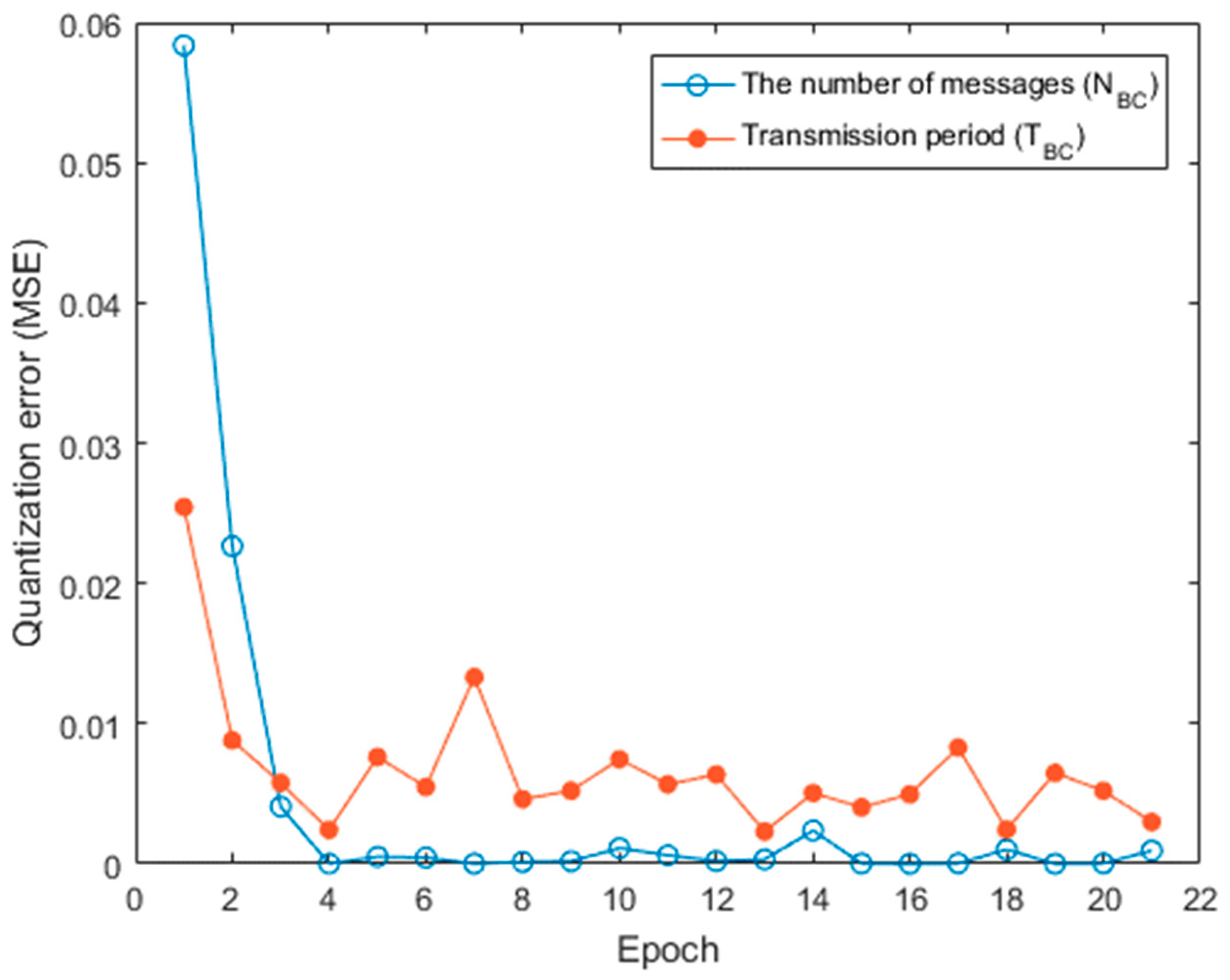

_{P}. The utilization results of FPGA resources can be affected by variable definitions, algorithm structures, and logics. Note that the variable definitions, structure, and logic of FRPSO was designed to be parallelized and applied to real-time optimization by reducing computation time with FPGA resources. Because particle positions in FRPSO were defined and calculated with 15-bit fix-point vectors, quantization errors occurred between the particle positions in the original PSO and FRPSO; they were evaluated by mean squared errors according to epochs as shown in Figure 11, which was not significant. Besides, in this work, since the final results were used as rounded values, small quantization errors did not affect FRPSO’s performance.

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References
