Robust Federated Learning Against Data Poisoning Attacks: Prevention and Detection of Attacked Nodes

Abstract

Federated learning (FL) enables collaborative model building among a large number of participants without sharing sensitive data to the central server. Because of its distributed nature, FL has limited control over local data and the corresponding training process. Therefore, it is susceptible to data poisoning attacks where malicious workers use malicious training data to train the model. Furthermore, attackers on the worker side can easily manipulate local data by swapping the labels of training instances, adding noise to training instances, and adding out-of-distribution training instances in the local data to initiate data poisoning attacks. And local workers under such attacks carry incorrect information to the server, poison the global model, and cause misclassifications. So, the prevention and detection of such data poisoning attacks is crucial to build a robust federated training framework. To address this, we propose a prevention strategy in federated learning, namely confident federated learning, to protect workers from such data poisoning attacks. Our proposed prevention strategy at first validates the label quality of local training samples by characterizing and identifying label errors in the local training data, and then excludes the detected mislabeled samples from the local training. To this aim, we experiment with our proposed approach on both the image and audio domains, and our experimental results validated the robustness of our proposed confident federated learning in preventing the data poisoning attacks. Our proposed method can successfully detect the mislabeled training samples with above 85% accuracy and exclude those detected samples from the training set to prevent data poisoning attacks on the local workers. However, our prevention strategy can successfully prevent the attack locally in the presence of a certain percentage of poisonous samples. Beyond that percentage, the prevention strategy may not be effective in preventing attacks. In such cases, detection of the attacked workers is needed. So, in addition to the prevention strategy, we propose a novel detection strategy in the federated learning framework to detect the malicious workers under attack. We propose to create a class-wise cluster representation for every participating worker by utilizing the neuron activation maps of local models and analyze the resulting clusters to filter out the workers under attack before model aggregation. We experimentally demonstrated the efficacy of our proposed detection strategy in detecting workers affected by data poisoning attacks, along with the attack types, e.g., label-flipping or dirty labeling. In addition, our experimental results suggest that the global model could not converge even after a large number of training rounds in the presence of malicious workers, whereas after detecting the malicious workers with our proposed detection method and discarding them from model aggregation, we ensured that the global model achieved convergence within very few training rounds. Furthermore, our proposed approach stays robust under different data distributions and model sizes and does not require prior knowledge about the number of attackers in the system.

1. Introduction

Distributed machine learning has been a topic of interest for many years. Distributed machine learning offers the advantage of processing large amounts of data by distributing the workload among multiple machines [1,2]. It can train models faster and more efficiently, mainly when dealing with large-scale datasets. However, it raises data privacy concerns and requires additional resources for data management and coordination. So, maintaining use privacy and data security is always a critical research problem to solve, and research in this area has been accelerated significantly with the advent of federated learning [3,4,5]. With the rapid increase in the computational capacity of edge devices and advancements in efficient communication technologies with low power consumption, FL is being applied nowadays in many fields [6,7].

The concept of federated machine learning involves collaborative machine learning model building across multiple workers while ensuring data privacy, where the raw data remain locally across numerous local devices. Despite recent progress in federated learning on privacy preservation, FL is still vulnerable to poisoning attacks. Based on the attacker’s goal, it has been possible to categorize the attacks into targeted poisoning attacks [8,9] and an untargeted poisoning attacks [10,11]. A targeted attack is a deliberate attempt by the client to manipulate a model’s behavior by altering classification decisions or data. Targeted attacks affect only the subset of classes that are under attack, while having no impact on the remaining classes. In data poisoning attacks, a malicious FL participant alters their training data by adding poison to the instances or changing existing instances in an adversarial manner. Moreover, attackers can dominate a certain number of participants and inject poisonous data directly into the model’s training data to degrade the model’s performance. Also, due to the server’s limited authority over the activities and local data of each client involved in the process, any of them can deflect from normal behavior and poison the global model.

Existing prevention methods of data poisoning attacks are primarily designed for centralized data collection scenarios, and their effectiveness in federated learning settings needs further investigation. Recent research on poisoning attacks and their defense strategies in FL often relies on unfeasible assumptions. In particular, these assumptions encompass aspects such as the percentage of compromised clients, the proportion of poisoned samples, the number of manipulated labels, prior knowledge about the number of adversaries, and the type of FL system. Therefore, there is a need for further research to make federated learning more resistant to poisoning attacks, specifically to data poisoning attacks. The authors in [12] pointed out that dirty-label data poisoning attacks tend to cause a lot of misclassifications, up to 90%, when an attacker adds a small number of dirty-label samples to the training dataset. And the authors in [13] pointed out data poisoning attacks in FL as an issue that needs immediate addressing. This severe issue can compromise the accuracy and reliability of the machine learning model.

To address the issues mentioned above, we first focus on the vulnerability of FL systems to malicious participants who aim to poison the global model. We attempt to analyze the effect of data poisoning attacks in federated training. In data poisoning attacks, it is assumed that attackers/malicious participants manipulate the local training data on their local devices. The label-flipping attack is the most attractive among all data poisoning attacks due to its simplicity and significant impact. It allows even non-expert attackers to carry out data poisoning attacks without knowing the model type, parameters, or FL process. Label-flipping attacks are already shown to be effective against traditional, centralized ML models [14]. This paper focuses on the targeted label-flipping attack, where the adversaries maliciously alter the true labels of training samples with the chosen class labels.

In this paper, we first focus on developing a prevention strategy utilizing the concept of confident learning [15] to validate the quality of the data label and propose a confident federated learning (CFL) framework to prevent label-flipped data poisoning attacks. We also demonstrate the potential of our proposed approach in preventing workers from label-flipped data poisoning attacks. Secondly, we found that our prevention strategy can prevent the attack when the percentage of label-flipped samples is under a certain threshold. In certain cases, the prevention strategy may not be effective. So in addition to the prevention strategy, we also propose a clustering-based detection strategy to detect the attacked poisonous workers. So, we divided this paper into two parts: the first part is on developing a prevention strategy against attacks (Section 2) and the second part is on developing a detection strategy (Section 3).

2. Prevention Strategy of Data Poisoning Attacks

We first conduct experiments to showcase the effect of label-flipped data poisoning attacks in the federated learning setup. Our findings reveal that the effectiveness of the attack, measured by the decrease in model utility, depends on the percentage of malicious users involved. Even when only a small percentage of users are malicious, the attack can still be effective. Additionally, we found that such attacks are targeted, which means that attacks have a significantly negative impact on the subset of classes which are under attack while having little to no impact on the remaining classes. This is advantageous for adversaries who want to poison only a specific subset of classes while avoiding the detection of a completely corrupted global model. Finally, we utilize the concept of confident learning [15] to validate the label quality of the data and propose a confident federated learning (CFL) framework to prevent label-flipped data poisoning attacks. We also demonstrate the potential of our proposed approach in protecting workers from label-flipped data poisoning attacks. Our approach typically involves estimating label noise probabilities and a confidence threshold to identify potentially mislabeled instances and then excluding them from the local training on the workers’ side.

The major contributions we have included in this section are as follows:

• Effect of Compromised Workers on Performance: In the federated training setup, we first showed how compromised clients under data poisoning attacks affect the performance of the global model. Experimental results suggested that data poisoning attacks could be targeted, and even a small number of malicious clients cause the global model to misclassify instances belonging to targeted classes while other classes remain relatively intact.
• Proposed Prevention Approach Against Data Poisoning Attacks: We propose a confident federated learning (CFL) framework to prevent data poisoning attacks during local training on the workers’ side. Along with ensuring data privacy and confidentiality, our proposed approach can successfully detect mislabeled samples, discard them from local training, and ensure prevention against data poisoning attacks.

2.1. Background Literature

By nature, deep learning models necessitate a substantial amount of data to make good predictions. This specific requirement gives rise to the potential problem of a data breach. Moreover, numerous adversarial attacks have been launched to target machine learning and deep learning models. However, most research has focused on poisoning the models in the traditional setting, where a centralized party collects the training data. So, many of the attacks and defenses designed for traditional machine learning do not apply to FL because the server only observes local updates from FL participants, not their instances.

The growing usage of federated learning has prompted research into different types of attacks, such as backdoor attacks [16,17], gradient leakage attacks [18,19,20,21,22], poisoning attacks [8,23,24,25], and membership inference attacks [26]. The type of attack that is relevant to this chapter is poisoning attacks, which can be classified into two categories: model poisoning and data poisoning. Model poisoning can be effective in specific scenarios, whereas data poisoning may be preferable due to the fact that it does not require malicious manipulation of the model learning software on participant devices, making it efficient and accessible for non-expert poisoning participants. Our research explicitly investigates data poisoning attacks in the context of federated learning. The authors in [12] launched targeted backdoor attacks using data poisoning and pointed out that using only a small number of poisonous samples achieves an attack success rate of above 90%. A backdoor poisoning attack was proposed in [16,27], in which the attacker injects backdoored inputs into local data to modify specific features of training data and implant backdoors in the global model. An aggregation-agnostic attack, which continuously adds noises to the model parameters to introduce backdoors and restrict the global model from converging, was developed in [28]. Data poisoning attacks can cause substantial drops in classification [8]. In data poisoning attacks [8], the adversary can introduce a number of data samples it wishes to misclassify with the desired target label into the training set. This data-centric poisoning can be of two types: label-flipping [29] and dirty labeling. An attacker can easily manipulate its local data by directly swapping the labels of honest training instances of one class (the source class) to a specific target class while keeping the features of the training data unchanged. This is known as a label-flipping attack [30], which can cause significant drops in the performance of the global model even with a small percentage of malicious clients [8]. And in dirty labeling, the attacker aims to add some out-of-box samples (irrelevant samples for training) to the training dataset and mislabels them. For example, the server wants the global model to be trained on handwritten digits, but the attacker adds some samples to the training set which are not even digits (e.g., animal images, but labeled as the digit class). This type of labeling is known as dirty labeling.

Several methods have been suggested to address poisoning attacks in FL [31,32,33,34]. These defense strategies are designed to identify malicious updates that deviate from benign updates. For instance, Auror [31] attempts to cluster model updates into two classes, in which the smaller class will be identified as the malicious class and filtered out. Furthermore, other researchers have introduced Byzantine-robust FL methods: Krum [32], in which the client with the smallest sum of distances to other clients will be selected as the global model. However, in the presence of a large number of malicious participants, these approaches were found to be ineffective in defending against the attacks. The authors in [8] presented a defense mechanism that leverages parameter extraction combined with PCA for dimensionality reduction to differentiate malicious and legitimate participants in model updates.

Researchers have introduced an adaptive federated aggregation technique [35], which involved comparing gradients against medians and adjusting their weights accordingly. This method is particularly effective in detecting and mitigating malicious gradients. Their experiments, focusing on label-flipping and backdoor attacks with a network of 51 clients, demonstrated efficacy, especially in scenarios where less than 50% of the participants were malicious. Researchers have also advocated the defense mechanism CONTRA in FL [36]. This system employs cosine similarity, an adaptive learning rate, and a reputation-based scheme. It works by assessing the credibility of clients, adjusting local learning rates, and evaluating client contributions based on their historical contribution, irrespective of the data distribution being IID or non-IID. In [37], the authors introduced a novel defense approach which involves extracting and clustering the parameter gradients from the output layer’s neurons during local updates. This method enables the identification and removal of undesirable updates within the clusters. In [38], the authors proposed an enhanced defense mechanism, building upon previous work [8]. Their approach uses an improved variant of the dimensionality reduction algorithm, PCA, and subsequently applied k-means clustering on IID data. The authors in [39] evaluated the impact of unreliable clients on the system by deriving a convergence upper bound on the loss function based on the gradient descent updates.

Moreover, these defenses are designed for untargeted model poisoning attacks. In contrast, in respect to data poisoning attacks, a very few research studies have [12,24] pointed out the effect of data poisoning on the performance of the global model. However, the research gap lies in developing prevention strategies for data poisoning attacks that can effectively prevent such data manipulation on the training set.

2.2. Methodology: Proposed Prevention Strategy

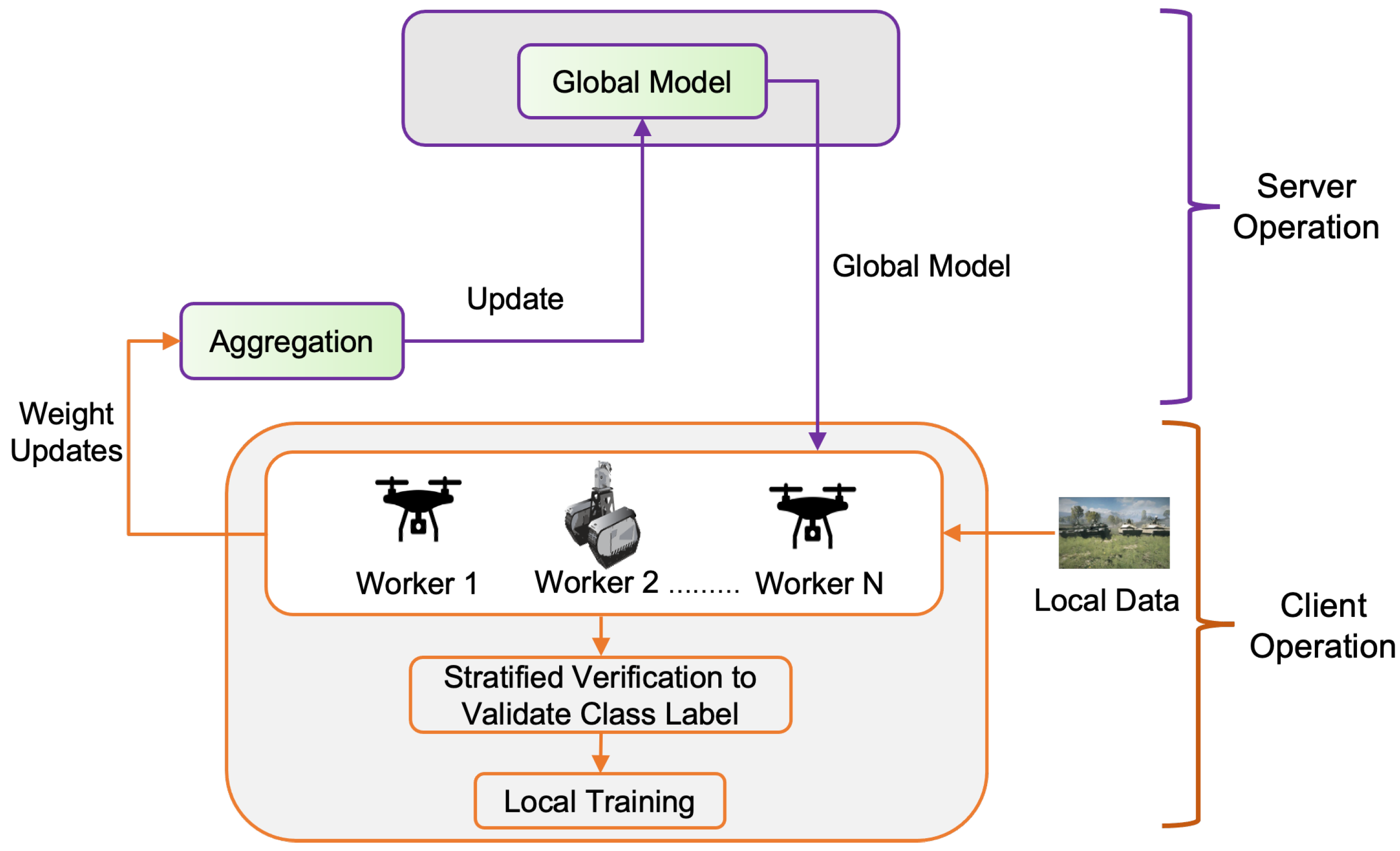

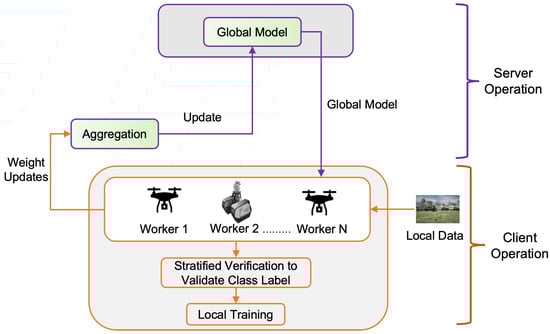

In this section, we describe the detailed architecture and work flow of our proposed federated training. Our proposed framework is built on top of the FedAvg [3] algorithm, where some of the notations used in this description are $\mathcal{N}=\{1,\dots ,N\}$, which signifies the set of N clients, each of which has its own dataset $D_{k\in \mathcal{N}}.$ Each client trains a local model on its local dataset and only shares the weight updates of local model with the server. Then, the global model formation, ${\mathbf{w}}_G$, takes place with all the local model updates, which can denoted by $\mathbf{w}={\cup }_{k\in \mathcal{N}}{\mathbf{w}}_k$. The proposed federated framework is depicted in Figure 1. The process based on the workload of the server and the client is described below:

(1)

Executed in server

• Weight initialization: The server determines the type of application and how the user will be trained. Based on the application, the global model is built in the server. The server then distributes the global model ${\mathbf{w}}_G^0$ to selected clients.
• Aggregation and global update: The server aggregates the local model updates from the participants and then sends the updated global model ${\mathbf{w}}_G^{t+1}$ back to the clients. The server wants to minimize the global loss function [13] $L\left({\mathbf{w}}_G^t\right)$, i.e.,

  $$L\left({\mathbf{w}}_G^t\right)={\displaystyle \frac{1}{N}}\sum _{k=1}^{N}L\left({\mathbf{w}}_k^t\right)$$

  (1)
  This process is repeated until the global loss function converges or a desirable training accuracy is achieved. The Global Updater function runs on the SGD [40] formula for weight updates. The formal equation of the global loss minimization formula by the averaged aggregation at the $t^{th}$ iteration is given below:

  $${\mathbf{w}}_G^t={\displaystyle \frac{1}{{\sum }_{k\in \mathcal{N}}{D}_k}}\sum _{k=1}^N{D}_k{\mathbf{w}}_i^t$$

  (2)

(2)

Executed at the client level

• Validate label quality: Each client will first validate the label quality of local dataset after receiving the global model ${\mathbf{w}}_G^0$ from the server. To detect the mislabeled samples in the local dataset, every participant needs to compute the out-of-sample predictions for every data point of its local dataset. Then, the out-of-sample prediction and the given labels will be utilized to estimate the joint distribution of the given and latent true labels. Finally, the label errors for each pair of true and noisy classes are estimated, with details given in Section 2.3. After validating the class labels of every data point in the local dataset, the overall health score for the local dataset can be calculated to track label quality.
• Local training: Each client will utilize ${\mathbf{w}}_G^t$ from the server, where t stands for each iteration index, to start local training on the verified local training samples, where detected mislabeled samples are discarded from the local training. The client tries to minimize the loss function [13] $L\left({\mathbf{w}}_k^t\right)$ and searches for optimal parameters ${\mathbf{w}}_k^t$.

  $${\mathbf{w}}_k^{t^{*}}=\underset{{\mathbf{w}}_k^t}{argmin}L\left({\mathbf{w}}_k^t\right)$$

  (3)
• Local updates transmission: After each round of training, updated local model weights are sent to the server. In addition, each client may send the health score of local data so that the server may monitor the label validation process by tracking the health score.

2.3. Stratified Training to Validate Label Quality

To identify label errors across the local dataset, out-of-sample predicted probabilities for each data point needs to be computed first with K-fold cross-validation. Out-of-sample predicted probabilities refer to the model’s probabilistic predictions made only on data points not shown to the model during training. For example, in a traditional train–test split of the data, the predicted probabilities generated for the test set can thus be considered out-of-sample. K-fold cross-validation can be used to generate out-of-sample predicted probabilities for every data point in the training set.

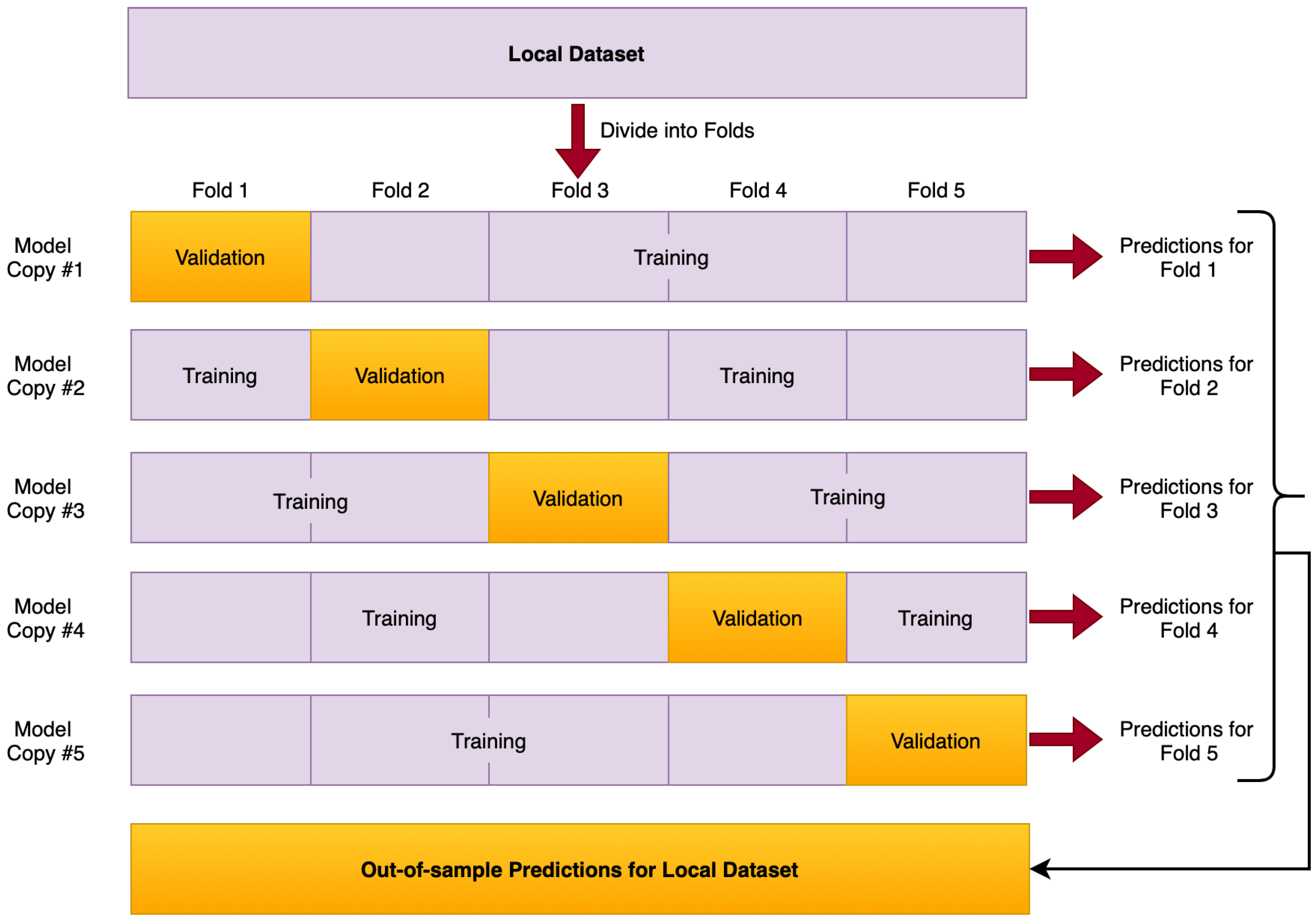

The diagram in Figure 2 depicts K-fold cross-validation with K = 5. K independent copies of our model are trained, where for each model copy, one fold of the data is held out from its training (the data in this fold may be viewed as a validation set for this copy of the model). Each copy of the model has a different validation set for which we can obtain out-of-sample predicted probabilities from this copy of the model. Since each data point is held-out from one copy of the model, this process allows us to obtain out-of-sample predicted probabilities for every data point. We recommend applying stratified cross-validation, which tries to ensure the proportions of data from each class match across different folds. Then the out-of-sample predicted probabilities and noisy (given) labels will be used to estimate the joint distribution of noisy (given) and true labels, and find the incorrectly labeled samples in the local dataset, following the steps described below:

Threshold calculation for label validation: The first step in the label validation process involves calculating a confidence threshold for each class, as described in Equation (4). This threshold, denoted as $t_j$, represents the average self-confidence of the model for samples with a given label j. It is computed by averaging the predicted probabilities assigned to the observed class label j across all instances labeled as j:

$$t_j={\displaystyle \frac{1}{\left|{\mathit{X}}_{\tilde{y}=j}\right|}}\sum _{\mathit{x}\in {\mathit{X}}_{\tilde{y}=j}}\widehat{p}(\tilde{y}=j;\mathit{x},\mathit{\theta })$$

(4)

Confident joint estimation and label error identification: Once the class-wise confidence thresholds $t_j$ are computed, the next step in confident learning is to estimate the joint distribution between noisy labels $\tilde{y}$ and the unknown true labels $y^{*}$. This is achieved by identifying instances that are likely mislabeled, i.e., those whose model predictions strongly indicate a different class than their observed label. And we define the set ${\widehat{\mathit{X}}}_{\tilde{y}=i,y^{*}=j}$, as in Equation (5).

$${\widehat{\mathit{X}}}_{\tilde{y}=i,y^{*}=j}=\left\{\mathit{x}\in {\mathit{X}}_{\tilde{y}=i}:\widehat{p}(\tilde{y}=j;\mathit{x},\mathit{\theta })\ge t_j\right\}$$

(5)

Here, $\tilde{y}$ is the discrete random variable which takes a given noisy label, $y^{*}$ is the discrete random variable which takes the unknown, true latent label, the threshold $t_j$ is the expected (average) self-confidence for each class, and ${\widehat{\mathit{X}}}_{\tilde{y}=i,y^{*}=j}$ is the set of examples of x labeled $\tilde{y}=i$ with large enough $\widehat{p}(\tilde{y}=j;\mathit{x},\mathit{\theta })$ to likely belong to class $y^{*}=j$, determined by a per-class threshold $t_j$. This set contains examples originally labeled as class i, but whose model-predicted class is j with a confidence greater than the threshold $t_j$ for class j. Using these sets, we estimate the confident joint matrix $C_{\tilde{y},y^{*}}$, formally defined in Equation (6). The confident joint $C_{\tilde{y},y^{*}}$ estimates ${\mathit{X}}_{\tilde{y}=i,y^{*}=j}$, the set of examples with the noisy label i that actually should have the true label j, by partitioning X into estimate bins ${\widehat{\mathit{X}}}_{\tilde{y}=i,y^{*}=j}$. When ${\widehat{\mathit{X}}}_{\tilde{y}=i,y^{*}=j}$ = ${\mathit{X}}_{\tilde{y}=i,y^{*}=j}$, then $C_{\tilde{y},y^{*}}$ exactly finds the label errors. This matrix approximates the count of samples that were labeled as class i, but whose true label is likely class j, based on the model’s confident predictions. Diagonal entries (i.e., i=j) correspond to likely correctly labeled samples, while off-diagonal entries indicate potential label errors.

$$\begin{array}{cc}\hfill {\mathit{C}}_{\tilde{y},y^{*}}\left[i\right]\left[j\right]& :=\left|{\widehat{\mathit{X}}}_{\tilde{y}=i,y^{*}=j}\right|,\mathrm{where}\hfill \\ \hfill {\widehat{\mathit{X}}}_{\tilde{y}=i,y^{*}=j}& :=\left\{\mathit{x}\in {\mathit{X}}_{\tilde{y}=i}:\widehat{p}(\tilde{y}=j;\mathit{x},\mathit{\theta })\ge t_j,\right.\hfill \\ \hfill & \left.j=arg\underset{l\in \left[m\right],\widehat{p}(\tilde{y}=l;\mathit{x},\mathit{\theta })\ge t_l}{max}\widehat{p}(\tilde{y}=l;\mathit{x},\mathit{\theta })\right\}\hfill \end{array}$$

(6)

2.4. Experiment Setup and Results Analysis

This section will step through the detailed experiment setup and results analysis.

Federated Training Setup: Experiments were conducted on a system with an Intel(R) Core(TM) i9-11900K CPU (8 cores) and an NVIDIA GeForce RTX 3090 GPU. The federated learning framework was implemented using Keras with a TensorFlow backend. The server controlled the training pace, including the number of epochs per round and the overall number of rounds. The server sets the pace of the training, determines the number of epochs per round, and how many rounds of overall training are to be conducted. We utilized the LeNet-5 CNN architecture as the global model and simulated FL training with 15 clients. For each round, 1 epoch of local training is conducted on the client side. We used the SGD optimizer and set the learning rate $\eta$ to 0.01 during training. And the datasets we used in this experiment are pre-divided into training and testing subsets. The test set is kept on the sever and used for model evaluation only and is therefore not included in any participants’ local training data.

Datasets: To demonstrate the attack effect and evaluate the performance of our proposed approach, we conducted experiments on the MNIST, Fashion-MNIST, and CIFAR-10 datasets.

MNIST: This dataset comprises handwritten digit images showing individual digits (0 to 9). The training set has $\mathrm{60,000}$ samples and the test set has $\mathrm{10,000}$ samples, with images of size $28\times 28$.

Fashion-MNIST: This dataset includes grayscale images of ten clothing categories, with $\mathrm{60,000}$ training set samples and $\mathrm{10,000}$ test set samples, all with an image size of $28\times 28$.

CIFAR-10: This dataset encompasses color images of ten classes, each with $\mathrm{50,000}$ training set samples (5000 images per class) and $\mathrm{10,000}$ test set samples (1000 images per class) at a pixel resolution of $32\times 32$.

Label-Flipping Process: We randomly chose N × m% of the participants as malicious to explore the impact of a label-flipping attack on the federated learning system containing N participants, where a particular percentage (m%) of them are malicious. The remaining participants are considered honest. To account for the impact of the random selection of malicious participants, we repeat the experiment multiple times and report the average results. We explore label-flipping attack scenarios for the MNIST, Fashion-MNIST, and CIFAR-10 datasets by flipping the label of the source class to a specific target class, denoted as a source class → target class pairing. For MNIST, we experiment with the following pairings: 0: digit_0 → 2: digit_2 and 1: digit_1 → 5: digit_5. For Fashion-MNIST, we evaluated the pairings of 1: trouser → 3: dress and 0: t-shirt/top → 4: coat. For CIFAR-10, we experiment with the following pairings: 6: frog → 7: horse and 1: automobile → 3: cat.

Attack Effects Analysis: Label flipping denoted by src → target class indicates that ground truth labels of the source class samples have been flipped with the target class label. If we train a machine learning model on a dataset in which the ground-truth labels of some examples from the source class have been flipped with those of the target class, some samples from the source class will be predicted as belonging to the target class during testing. This implies that the source class will have some false negatives, which will ultimately impact its recall. On the other hand, the target class will have some false positives, which will affect its precision. Label-flipping attacks are targeted attacks, meaning they have a significant negative impact on a subset of classes that are under attack while having no impact on the remaining classes. So, to evaluate the attack effects with varying percentages of malicious participants, we utilize recall for the source class and precision for the target class as the evaluation metrics.

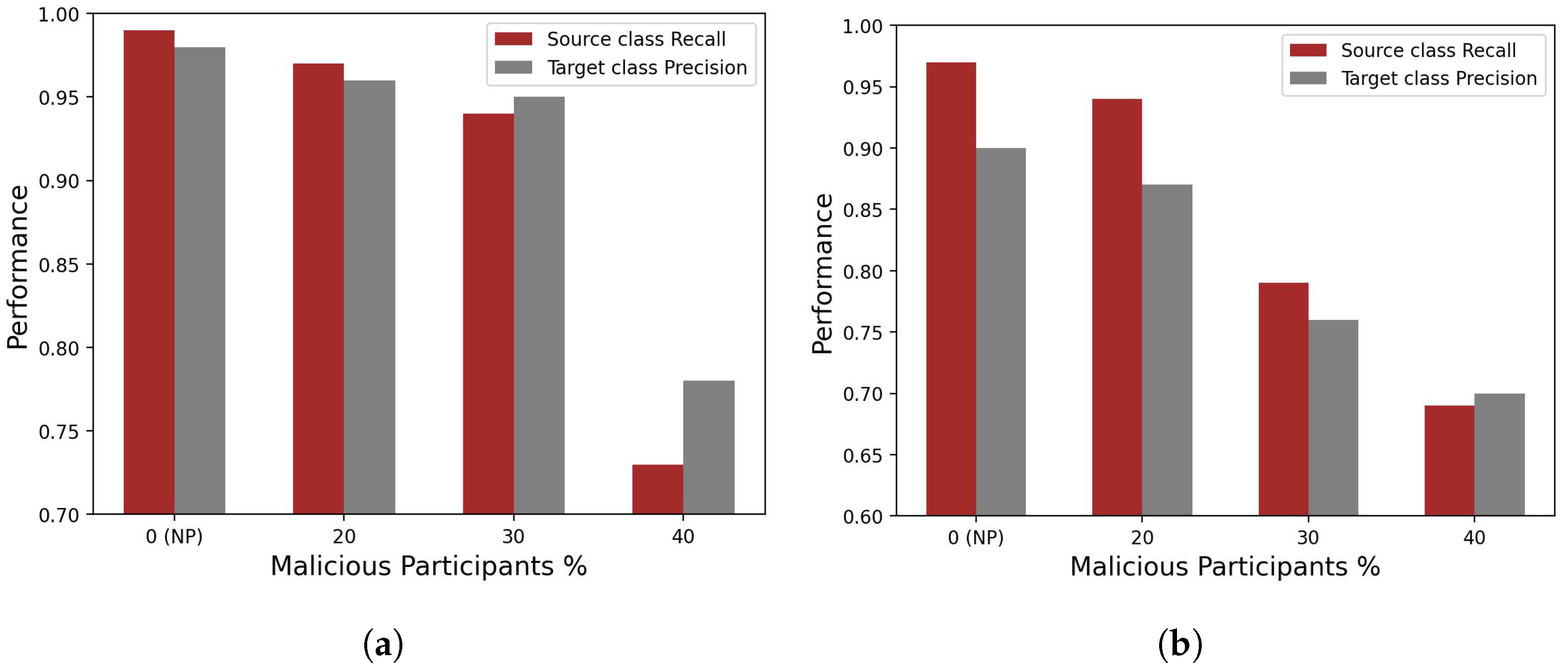

Figure 3 illustrates the degradation of the recall of the source class and precision of the target class when the percentage of malicious participants (m) varies from 0% to 40%. The value 0% signifies that none of the participants are malicious, and therefore, there is no poisoning (NP) in the considered scenario. The findings reveal that with the increase in malicious participants, the global model’s potential to predict the source and target classes declines. Even with a small percentage of malicious participants, both the source class recall and the target class precision deteriorate in comparison to a non-poisoned scenario (NP) for both MNIST and Fashion-MNIST, as depicted in Figure 3a and Figure 3b, respectively. For example, when malicious participants reach 40%, recall drops from $0.99$ to $0.73$ and precision drops from $0.98$ to $0.78$ for MNIST. A similar trend is observed for the Fashion-MNIST dataset as well.

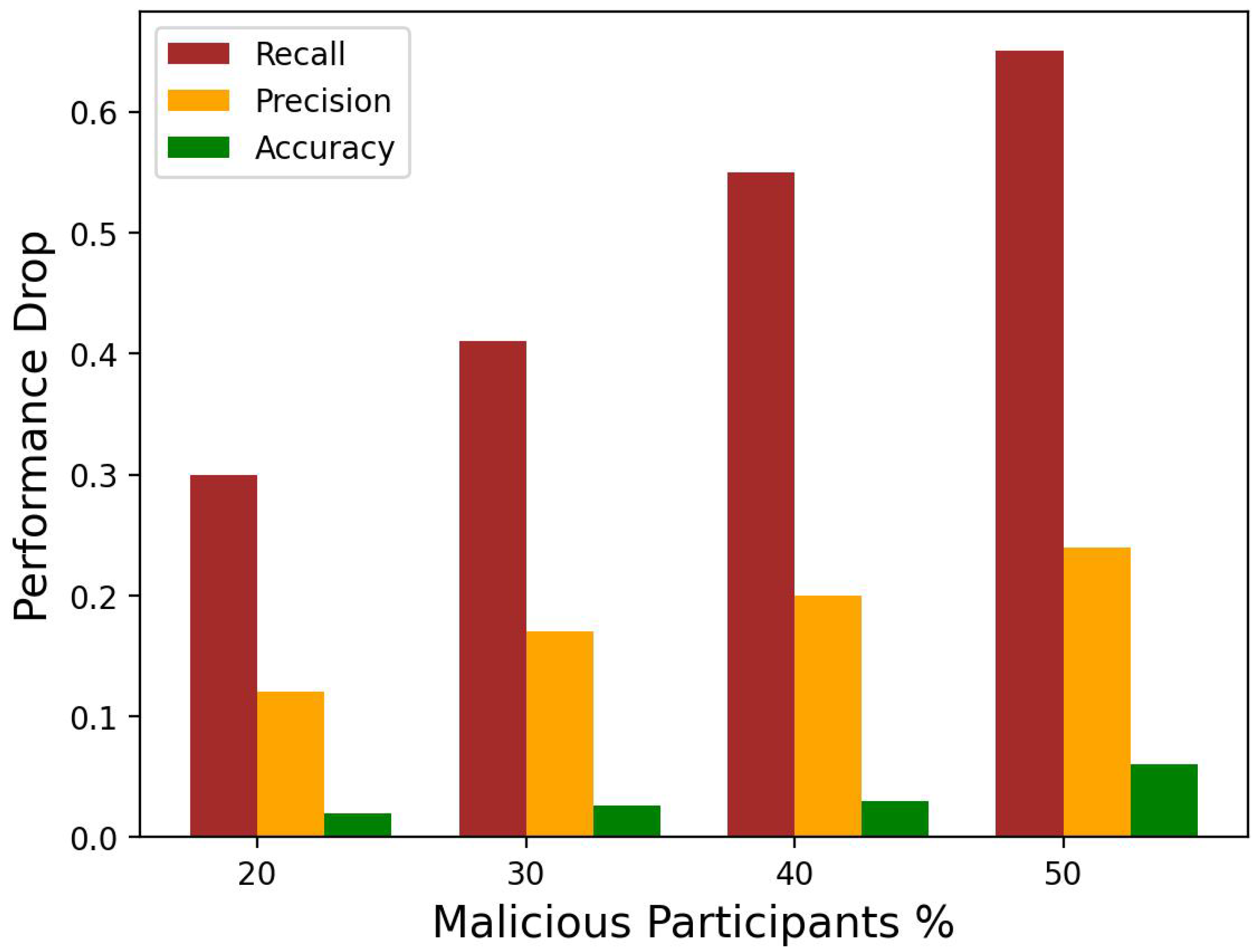

Furthermore, in Figure 4, we depict the global model’s performance drop (accuracy, source class recall, and target class precision) for the CIFAR-10 data with an increasing percentage of malicious participants. It is clear from the figure that the higher the percentage of malicious participants, the more the performance drop can be. In the experiments, once the malicious percentage reaches 50%, the precision and recall of the targeted classes drop around $0.24$ and $0.65$, respectively, while the overall accuracy of the global model declines only by $0.06$. This result indicates the targeted nature of label-flipping attacks where the attack degrades the global model’s potential in predicting the instances belonging to the source and target classes while the performance for other classes remains relatively the same. And so, the overall accuracy of the global model deteriorates less in comparison with the drop in precision and recall of the target and source class, respectively. Therefore, it is evident that an attacker who controls even a small proportion of the total participants can significantly affect the global model’s utility.

Performance Evaluation of Proposed Approach: Based on the analysis presented above, it is clear that preventing data poisoning attacks is crucial in the context of federated training. Our proposed FL framework involves validating the local dataset of each client to identify label-flipped samples prior to the commencement of local training. To evaluate the effectiveness of our approach for detecting mislabeled training samples and preventing them from affecting the local training process, we conducted experiments wherein we deliberately manipulated the local dataset of a few clients to initiate data poisoning attacks. Specifically, we altered the class labels of a few samples in the MNIST dataset (digit 0 and digit 2 images were changed to class label 1). Similarly, in Fashion-MNIST, t-shirt/top images were assigned to class label 0, and ankle boot images were assigned to class label 9. We intentionally altered the label of some ankle boot samples to class label 0. Experimental results using both datasets demonstrate that our proposed approach can successfully detect the poisoned samples of local workers, shown in Figure 5, with an accuracy of over 88% for MNIST and 86% for Fashion-MNIST, albeit with a small number of false positives (approximately 5%).

3. Detection Strategy of Data Poisoning Attacks

The proposed prevention strategy can prevent the attack when the percentage of label-flipped samples is under a certain threshold (around 35%). So, for any worker, if the incorrectly labeled samples are higher in percentage than the correctly labeled samples and/or the training set of a worker is entirely poisoned, the prevention strategy fails to prevent attacks. So, in addition to prevention, we propose a class-wise cluster-based detection strategy to detect the workers affected by data poisoning attacks.

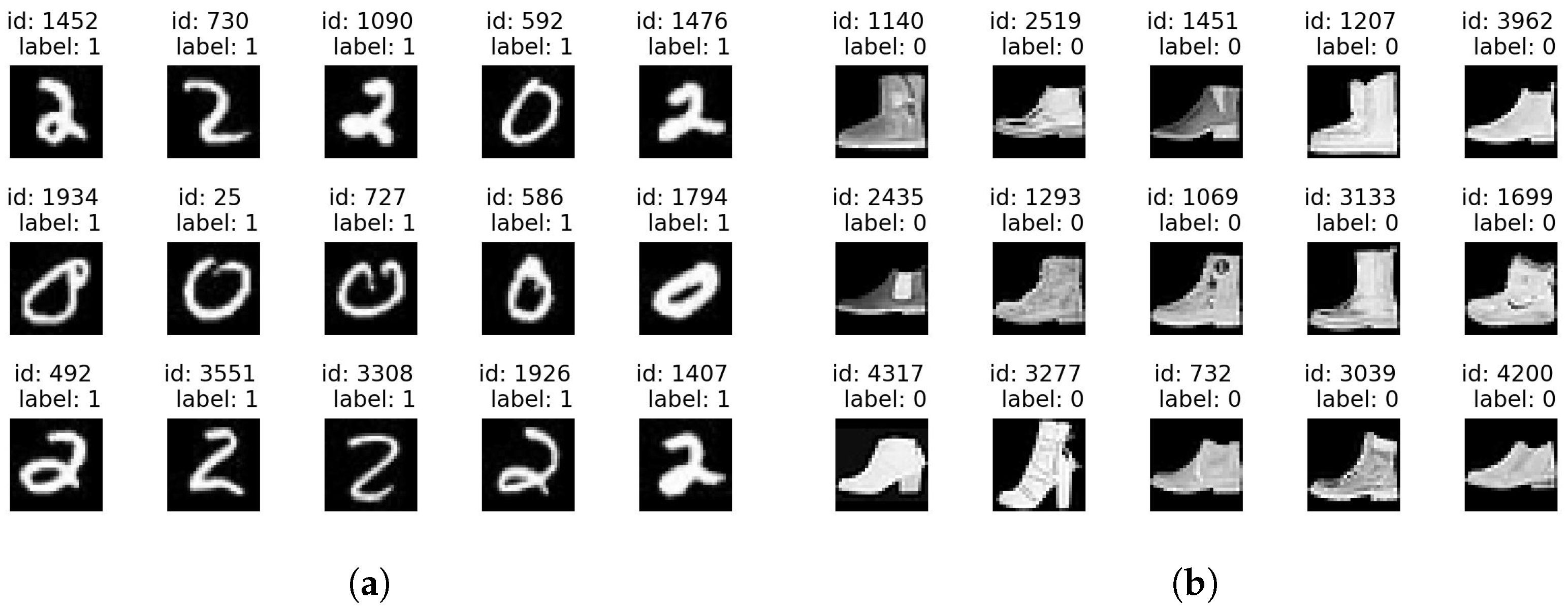

This data poisoning can be of two types–label-flipping and dirty labeling. The label-flipping attack is swapping the source label with the target label while keeping the features of the training data unchanged. On the other hand, in dirty labeling, the attackers/poisoned workers add out-of-distribution samples as training instances and mislabel them. Numerous strategies have been developed to counteract poisoning attacks, particularly label flipping, yet they often fall short because they are either impractical or have strong assumptions regarding the distribution of local training data. For example, research study [41] assumes the server has some data examples representing the distribution of the workers’ data, which is not always a realistic assumption in FL. Some of the defense approaches assume data to be independent and identically distributed (IID) among workers, which causes degradation in performance when the data are non-IID [36]. Some research studies [30,36] detect untrustworthy workers by auditing the model behavior, e.g., local gradient/weight updates. However, the existing approaches of auditing model behavior may be effective for detecting the worker affected by model poisoning attacks but cannot guarantee the detection of the worker affected by label-flipped data poisoning attacks because malicious workers under label-flipped attacks can have similar local updates as trustworthy local workers. Additionally, methods like multi-Krum (MKrum) [32] and trimmed mean (TMean) [42] require prior knowledge about the ratio of attackers in the system, which is impractical. Beyond data distribution or behavioral assumptions, model dimensionality plays a crucial role in these defense mechanisms. High-dimensional models are particularly susceptible to poisoning, as attackers can make minor yet impactful alterations in their local updates that go undetected [43].

Here, we introduce an innovative method to identify attacked workers by examining the activation of the neurons of second-last layer, which is linked to the neurons of the source and target classes in the SoftMax output layer. Specifically, we find that the discrepancies between the honest workers and compromised workers due to data poisoning attacks are reflected in the activation of the neurons of second-last layer, which is connected to the final output layer. And this activation serves as a more effective discriminative feature for attack detection. And so, our approach involves a cluster-based representation technique to create a distinct cluster representation for each worker that leverages the activation maps of the second-last layers for each of the local training samples and their associated class labels. This clustering-based strategy enables determining whether a worker has been attacked with data poisoning attacks. So, we propose to create a class-wise cluster representation for every worker by utilizing the activation maps of the neurons of the local model and analyze the resulting clusters to filter out the workers under attack before model aggregation.

3.1. Related Literature

The defenses proposed in the current literature to counter poisoning attacks (label-flipping attacks in particular) against FL are based on one of the following types:

• Representative dataset based: Approaches within this category exclude or penalize a local update if it has a negative impact on the evaluation metrics of the validation dataset of the global model, e.g., accuracy metrics. Specifically, studies [41,44] have used a validation dataset on the server to compute the loss on a designated metric caused by the local updates of each worker. Subsequently, updates that detrimentally influence this metric are omitted from the aggregation process of the global model. However, the efficacy of this method hinges on the availability of realistic validation data, which implies a necessity for the server to have insights into the distribution of workers’ data. This requirement poses a fundamental conflict with the principle of federated learning (FL), where the server typically may not have the representative dataset that workers do.
• Clustering based: Methods categorized under this approach involve clustering updates into two groups, with the smaller subset being identified as potentially malicious and consequently excluded from the model’s learning process. Notably, techniques such as Auror [31] and multi-Krum (MKrum) [32] operate under the assumption that data across peers are independent and identically distributed (IID). This assumption, however, leads to increased rates of both false positives and negatives in scenarios where data are not IID [36]. Additionally, these methods necessitate prior knowledge regarding either the characteristics of the training data distribution [31] or an estimation of the anticipated number of attackers within the system [32].
• Model behavior monitoring based: Methods under this category operate under the assumption that malicious workers tend to exhibit similar behaviors, which means that their updates will be more similar to each other than to those of honest workers. Consequently, updates are subjected to penalties based on their degree of similarity. For example, FoolsGold (FGold) [30] and CONTRA [36] limit the contribution of potential attackers with similar updates by reducing their learning rates or preventing them from being selected. However, it is worth noting that these approaches can inadvertently penalize valuable updates that exhibit similarities, ultimately resulting in substantial reductions in model performance [45,46].
• Update aggregation: This approach employs resilient update aggregation techniques that are sensitive to outliers at the coordinate level. Such techniques encompass the use of statistical measures like the median [42], the trimmed mean (Tmean) [42], or the repeated median (RMedian) [47]. By adopting these methods, bad updates will have little to no influence on the global model after aggregation. It is worth noting, however, that while these methods yield commendable performance when dealing with updates originating from independent and identically distributed (IID) data, their effectiveness diminishes when handling updates from non-IID data sources. This is primarily due to their tendency to discard a significant portion of information during the model aggregation process. Additionally, the estimation error associated with these techniques grows proportionally to the square root of the model’s size [43]. Furthermore, the utilization of RMedian [47] entails substantial computational overhead due to the regression procedure it performs, while Tmean [42] demands explicit knowledge regarding the fraction of malicious workers within the system.

In contrast, our proposed cluster based detection technique stays robust under different data distributions and model sizes, and does not require prior knowledge about the number of attackers in the system.

3.2. Methodology: Proposed Cluster-Based Detection Strategy

Federated learning is designed to protect the privacy of data across different workers. And our proposed method ensures that it does not compromise this privacy. The following is a step-by-step breakdown of how this works:

Layer selection: Identifying the layer in the neural network that effectively captures the characteristics of each class is crucial. Typically, layers closer to the output are more class-specific. We find that the contradiction between the honest workers and compromised workers due to data poisoning attacks is reflected in the activation of the neurons of the second-last layer. Specifically, we find the activation of the neurons of the second-last layer, which is connected to the final output layer, is a better discriminative feature for attack detection as it can effectively capture the characteristics of each class.

Feature extraction: For each data point in a worker’s local dataset, we extract the feature vector from the selected layer. These feature vectors represent the data in a high-dimensional space where similar items (from the same class) are expected to be closer together. As feature maps are high-dimensional, each client will perform a dimension reduction technique, e.g., Principal Component Analysis (PCA), on its activation value to convert it to a lower dimension. Then, each worker will share the converted lower dimensional feature maps for each local data point and its associated label with the server. Crucially, as this process involves sharing only the transformed (lower dimensional) activation maps from a single selected layer, it does not reveal any information about the private training data, and so, preserves the privacy of the data. This approach does not violate the privacy-preserving principles of federated learning protocols.

Class-wise cluster representation: Upon receiving the activation maps and class labels for every local data point from participating workers, the server employs a cluster-based representation for each worker. The clustering is performed separately for each class, and training samples from the same class label are also expected to be in the same feature space in cluster-based representation. This results in distinct clusters for each class within each worker’s dataset.

Cluster comparison and attack detection: Finally, the server compares the class-wise cluster position among the workers to detect the workers affected by data-level poisoning. By looking for workers whose clusters for a particular class significantly deviate from the clusters of the same class of other workers, we can use statistical tests, in addition to visualization, to determine if the deviations are beyond the threshold. Workers with anomalous class-wise clusters are flagged for potential data poisoning attack. This detection process can be considered as a periodic check during the federated learning cycles. If a worker is flagged, it will be considered as a malicious worker affected by a data poisoning attack, and its contributions will be discarded and excluded from the federated training.

3.3. Results Analysis of Proposed Detection Approach

We conducted federated training on the MNIST handwritten digit dataset, where a number of workers participated in the training process to build the model. We simulated a federated training set where two workers were affected by data poisoning attacks. Among the two poisoned workers, one worker was attacked with label flipping and other one was attacked with dirty labeling. To launch the label-flipped data poisoning attack, we intentionally trained one worker (worker_3) on MNIST data, but with label-flipped samples (flipping the labels of digit 0 and digit 1). So, worker_3 manipulates its local data by swapping the labels of the training instances of class label 0 and class label 1 while keeping the training instances unchanged. And another worker (worker_4) is trained on the dirty labeled data where, images of public transport, e.g., bus, metro, airport, and battlefield vehicles, e.g., helicopter and tank, have been labeled as digit classes. So, worker_4 utilizes out-of-distribution samples (irrelevant samples), mislabels them (labels them as digit classes), and is trained on the manipulated data to launch the dirty label data poisoning attack.

Here, we employed a cluster-based representation for each worker and compared the class-wise cluster among the workers to detect the data-level poisoning. The assumption is that a worker trained on poisoned data produces clusters that significantly differ from the majority, indicating a potential data poisoning attack. For simplicity and easy visualization, we visualized only a few digit classes instead of all digit classes to visually inspect the clusters. Figure 6 demonstrates that worker_1 and worker_2 are honest workers and trained on their local MNIST digit data. And they are honest, which is evidenced by the nearly identical positions of class-wise clusters in the 3D feature space for the majority of workers. However, in the same Figure 6 (lower left), a notable difference is observed for worker_3. Here, the blue and orange clusters, which represent digit classes 0 and 1, have swapped positions in the feature space compared to the honest workers. This cluster swap is a result of a label-flipping attack, where the labels for digit classes 0 and 1 have been flipped, leading to the altered cluster positions for worker_3. It is important to note that the cluster positions for the other digit classes in worker_3 remain largely unchanged and are almost identical to those of the honest workers due to accurate labeling for these other digit classes.

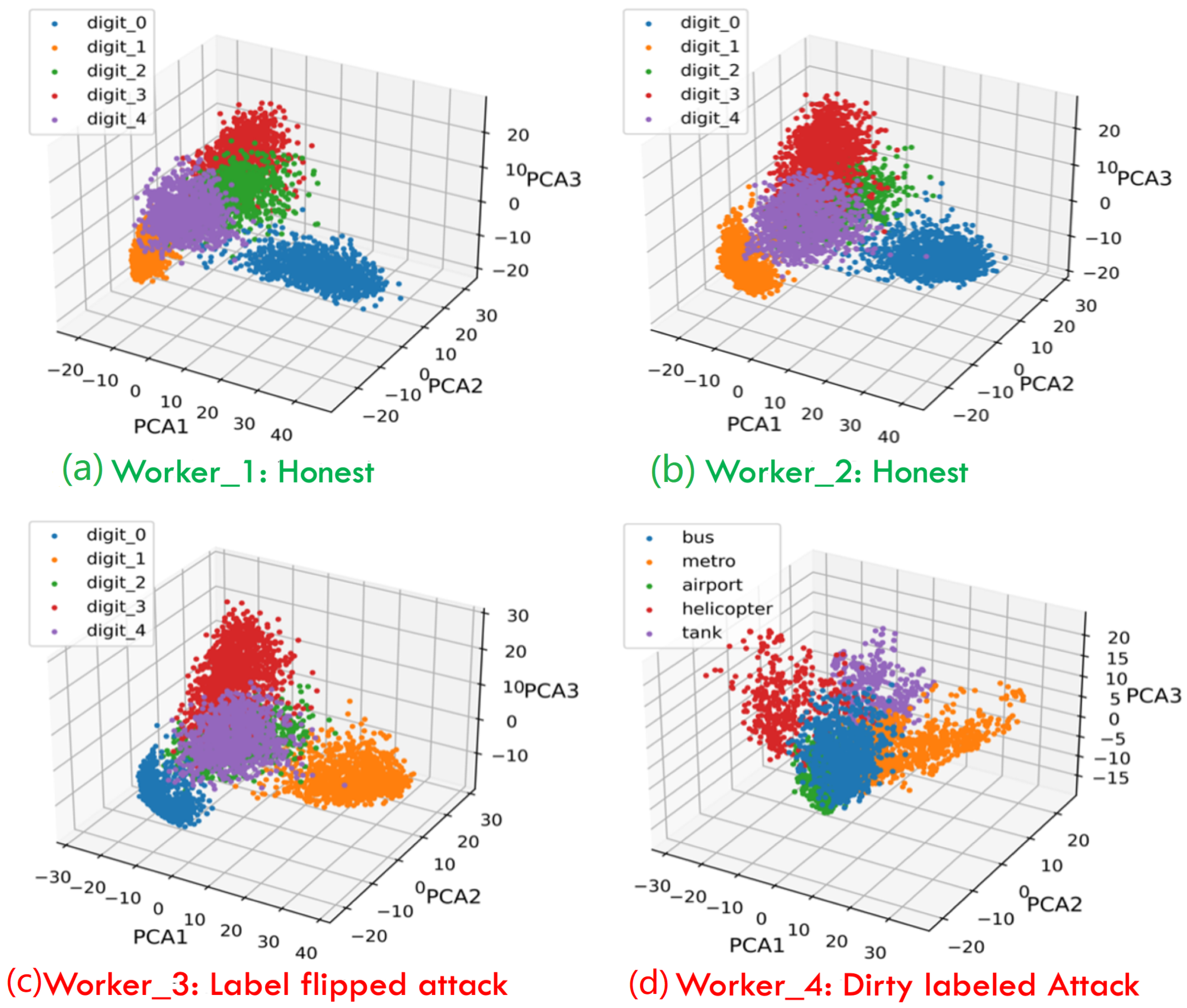

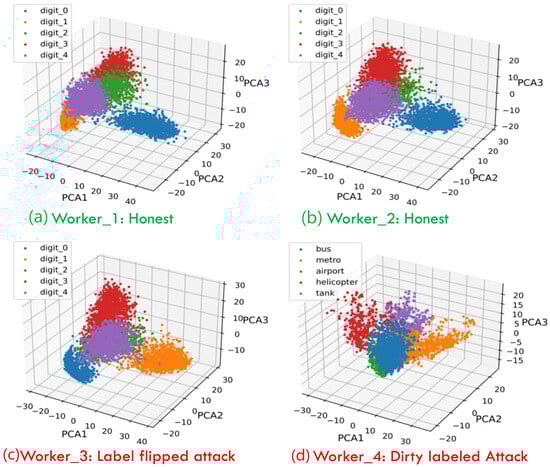

As depicted in Figure 6 (lower right), for worker_4, the class-wise cluster positions in the feature space for all classes are completely different from those of the honest workers. This discrepancy arises because worker_4 was trained on dirty labeled data, where images of buses, metros, airports, helicopters, and tanks were labeled as digit classes. Consequently, our cluster-based approach successfully identified both workers who were impacted by label-flipping and dirty labeling data poisoning attacks.

3.4. Effect of Attack on Model’s Convergence

In our experiment, we simulated a federated learning (FL) environment with 25 local workers, among which 5 were intentionally compromised with data poisoning attacks. The presence of these malicious workers hindered the convergence of the global model. As shown in Figure 7a, the global model fails to converge even after 75 communication rounds when trained in the presence of such adversarial participants.

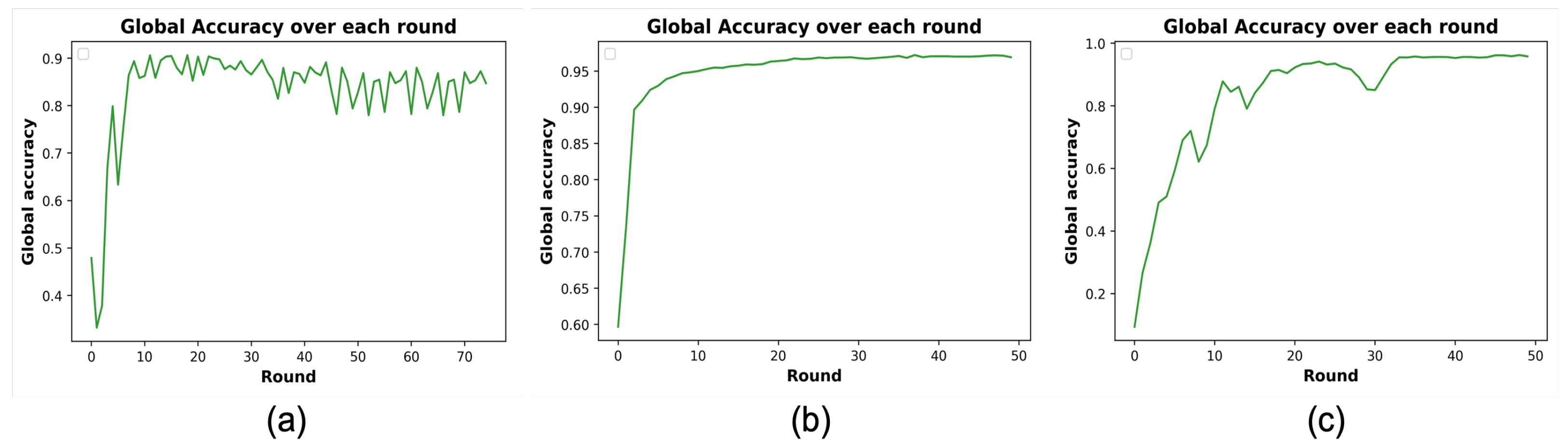

After detecting the malicious workers with our proposed detection method and discarding them from training, we evaluated the convergence behavior of the global model under two data distribution settings: independent and identically distributed (IID) and non-independent and identically distributed (non-IID). In the IID setting, each worker received a relatively balanced class distribution of training samples. In contrast, the non-IID setting was configured by assigning imbalanced class distributions to different workers. As in Figure 7, convergence in the IID and non-IID scenarios required only 25 and 40 rounds, respectively. So, by detecting the malicious workers and discarding them in model building, we found that the global model achieved convergence in significantly fewer training rounds. These findings highlight the detrimental impact of data poisoning on convergence and demonstrate that once malicious workers are effectively detected and discarded from training, convergence of the global model becomes stable.

4. Ablation Study

Thus far, we have evaluated our proposed prevention and detection approach on the image modality using the MNIST, Fashion-MNIST, and CIFAR-10 datasets. In this section, we demonstrate the effectiveness of our approach in the audio domain. Specifically, we conducted experiments using the AudioMNIST and UrbanSound8K audio datasets.

To assess robustness, we performed label-flipping attacks by altering a diverse percentage (ranging from 10% to 35%) of the training data, using several combinations of sources and target classes. The label-flipping configuration is denoted as a source class → target class pairing. For AudioMNIST, we considered the following pairings: 0: digit_0 → 2: digit_2, 0: digit_0 → 3: digit_3, 1: digit_1 → 5: digit_5, and 2: digit_2 → 4: digit_4. And for the UrbanSound8K dataset, we evaluated the pairings: car_horn → dog_bark, children_playing → drilling.

Our experimental results demonstrate that the proposed prevention mechanism effectively identifies and filters out label-flipped samples from local training. The approach achieved an average detection accuracy of 93% on the AudioMNIST and 90% on the UrbanSound8K datasets.

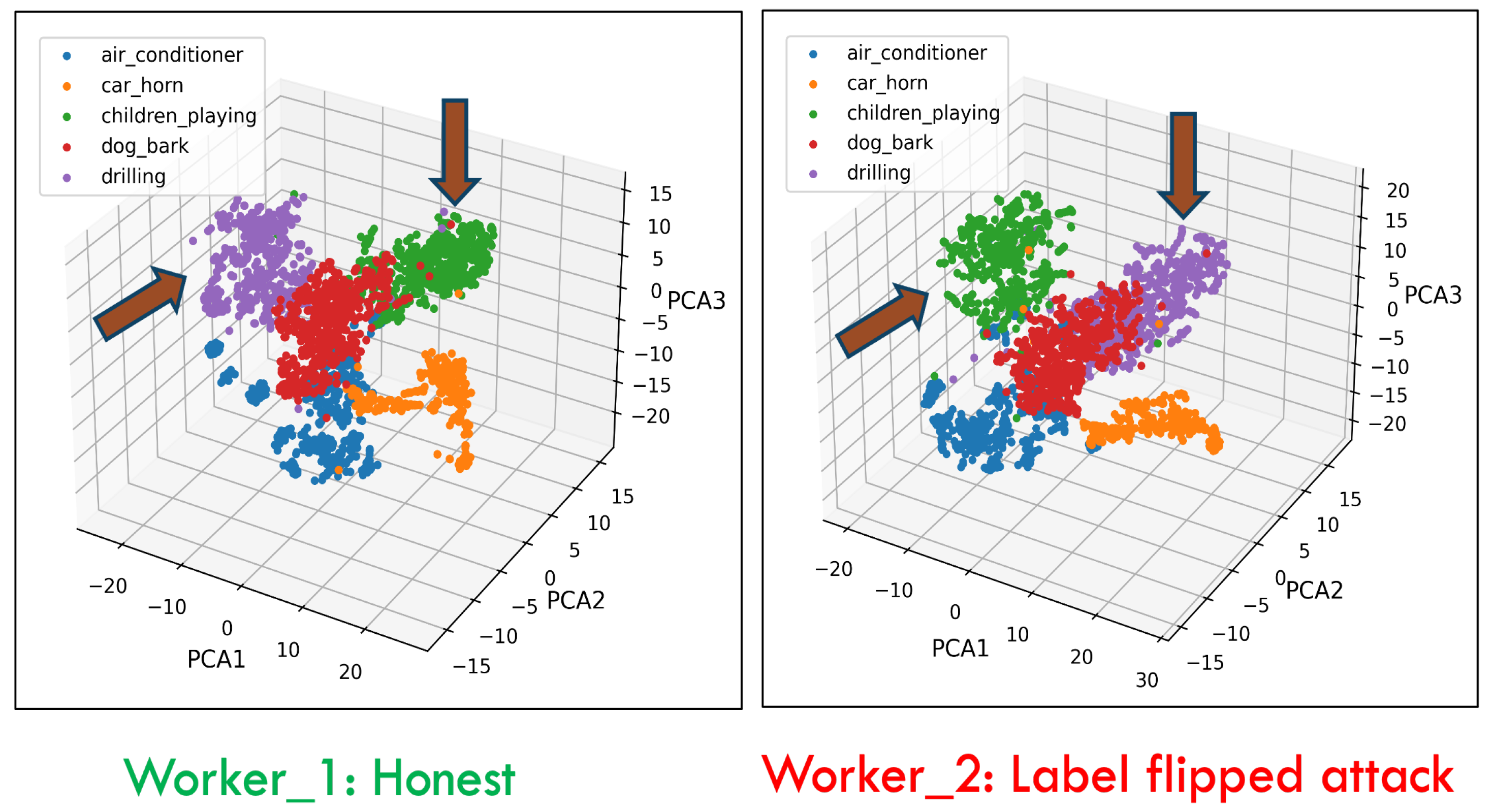

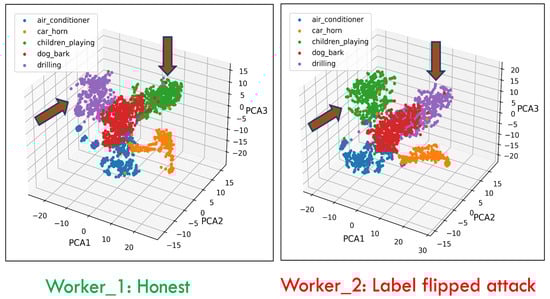

Furthermore, we evaluated the performance of our class-wise cluster representation-based detection approach for identifying compromised workers in the audio domain, using the UrbanSound8K dataset. In this setup, label flipping was applied to audio samples corresponding to the “Children_playing” and “Drilling” classes for Worker_2 (attacked worker). Consequently, in the cluster-based representation, the green and violet clusters—representing “Children_playing” and “Drilling”—were visibly swapped for Worker_2 in comparison with Worker_1 (honest worker), as shown in Figure 8. This behavior confirms the effectiveness of our detection strategy in the audio modality.

5. Discussions

Our framework assumes a trusted server and secure communication channels between clients and the server. The server is assumed to be a centralized coordinator with sufficient computational and storage resources to perform aggregation and clustering-based analyses. The clients represent generic edge devices—such as mobile phones, IoT nodes, or embedded systems—with a moderate local compute capacity sufficient for model training and feature extraction. The server is considered trustworthy, and communication between the server and clients is assumed to be authenticated and secure. The scope of this study is limited to resilience against data poisoning attacks and does not extend to privacy leakage from gradient inversion. Although we do not address gradient privacy in this work, our approach remains orthogonal to existing privacy-preserving mechanisms (e.g., differential privacy, secure aggregation) and can be integrated with such techniques without modifying the core detection pipeline.

Our current experiments were intentionally designed with 25 or fewer clients and moderate non-IID partitioning to provide a controlled yet meaningful environment for validating the core functionality of our proposed confident federated learning and cluster-based detection mechanisms. These design choices allowed for a clearer observation of system behavior under targeted data poisoning attacks. We fully agree that real-world FL deployments pose additional challenges, e.g., scalability to large numbers of clients. Although our current study did not simulate large-scale or heterogeneous settings, we emphasize that our framework is conceptually agnostic to the number of clients and model topologies and does not rely on uniform architectures or strict synchronization assumptions. Our method operates at the data and activation levels, rather than requiring structural homogeneity. Moreover, our method is not inherently dependent on class cardinality, network depth, or the number of cross-validation folds, K. These factors may influence the stability or resolution of noise detection in practice, but the methodology itself—rooted in estimating the joint distribution of noisy and true labels via out-of-sample predictions—remains agnostic to such architectural or hyperparameter choices.

6. Conclusions

In this paper, we first investigated the feasibility and impact of data poisoning attacks in federated learning, demonstrating that as the number of malicious participants increases, the performance of the global model significantly deteriorates, particularly in terms of precision, recall, and overall accuracy. To counteract this, we evaluated the proposed method for detecting and excluding poisonous samples from local training to prevent label-flipped data poisoning attacks. Our strategy capitalizes on the local nature of FL, where workers retain access to their own data but not others’. By leveraging correctly labeled local data, our approach can identify mislabeled samples within a worker’s dataset. However, when a local dataset is entirely or predominantly poisoned, this strategy becomes ineffective, underscoring the need for broader detection mechanisms to identify compromised participants.

We then proposed a robust detection mechanism that constructs class-wise cluster representations based on neuron activation maps from local models. These clusters are analyzed to identify and filter out malicious workers prior to model aggregation. Our experiments confirm the effectiveness of this method not only in detecting compromised workers but also in distinguishing between different types of attacks, such as label-flipping and dirty-labeling. Importantly, our approach remains resilient across varying data distributions and model complexities. Overall, our findings establish the robustness and adaptability of the proposed federated learning framework in mitigating data poisoning threats.
