Joint Resource Allocation in a TwoWay Relaying Simultaneous Wireless Information and Power Transfer System
Abstract
:1. Introduction
1.1. Background and Motivation
1.2. Related Work
1.3. Contributions

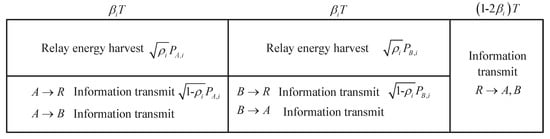

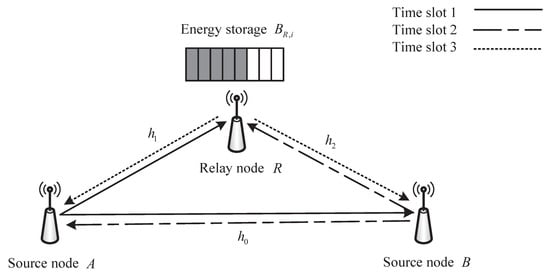

 First, we construct a twoway singlerelay communication system (SRTWRS), in which the relay assists the source node in multiple twoway communications while collecting energy in conjunction with a TS broadcast transmission scheme. The relay uses the collected energy to assist in forwarding and accumulates and stores some of the energy for subsequent communications.

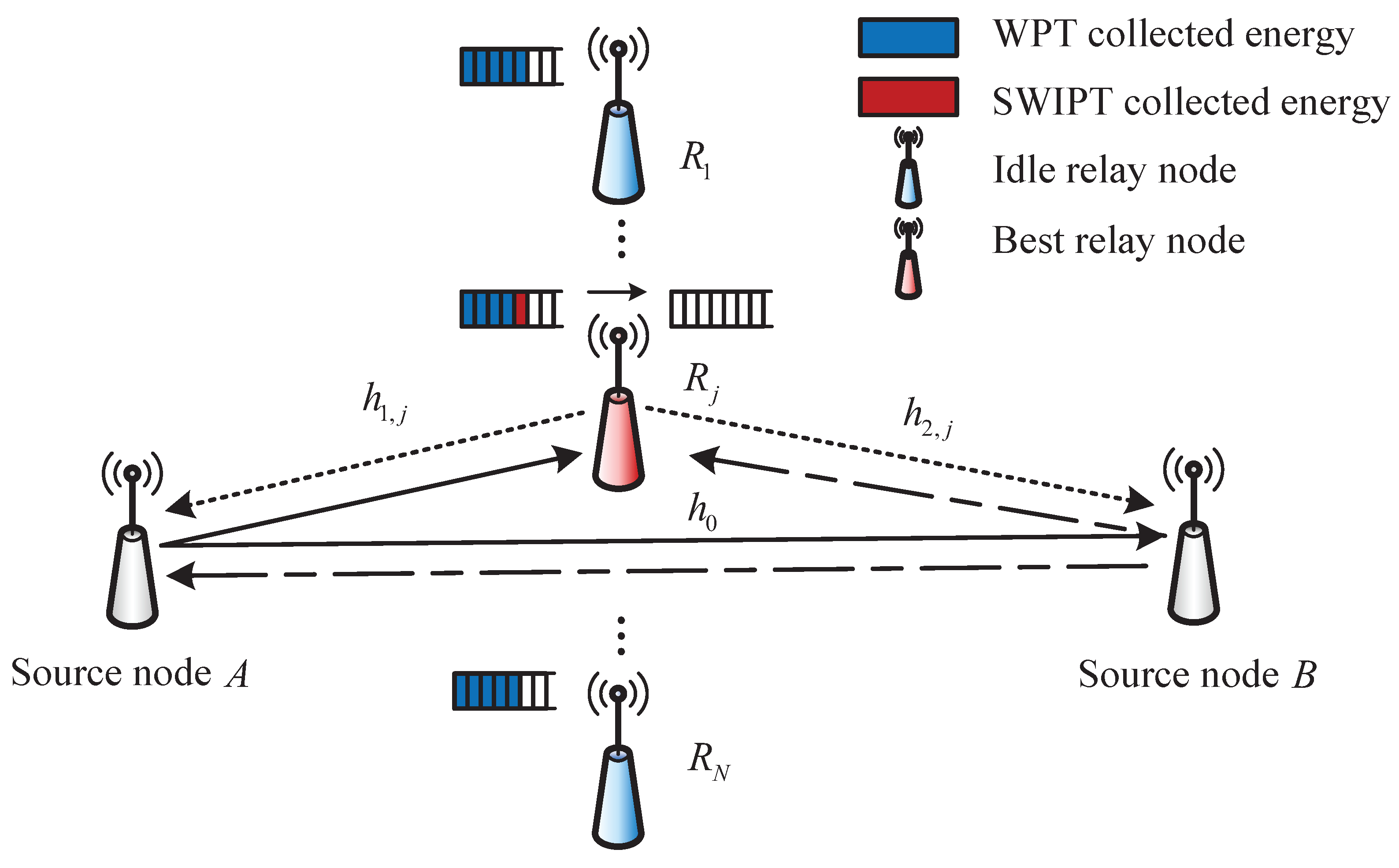

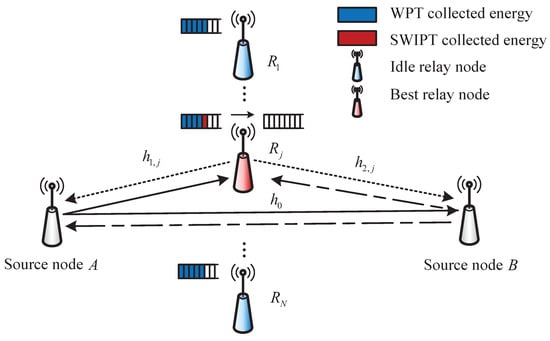

 Second, the model is further extended to a twoway multirelay communication system (MRTWRS) by defining the system’s equivalent profitability. Only one optimal relay is selected to participate in collaborative communication at a time, and the relay selection is based on maximizing the system’s equivalent profit.
 Finally, the optimal optimization problem for the instantaneous transmission rate in a twoway singlerelay communication system is solved by the Lagrange dual method. Furthermore, based on this, the outage probability of a single node in the system is analysed theoretically, and the expression of outage probability is derived. The proposed joint optimization algorithm is demonstrated to have a significant improvement in the instantaneous transmission rate compared with the traditional comparison algorithm by simulation. In the twoway multirelay communication system, our proposed accumulative energy based on SWIPT enhances the system equivalence profit significantly compared to the comparison algorithm
2. SWIPT in TwoWay SingleRelay Communication

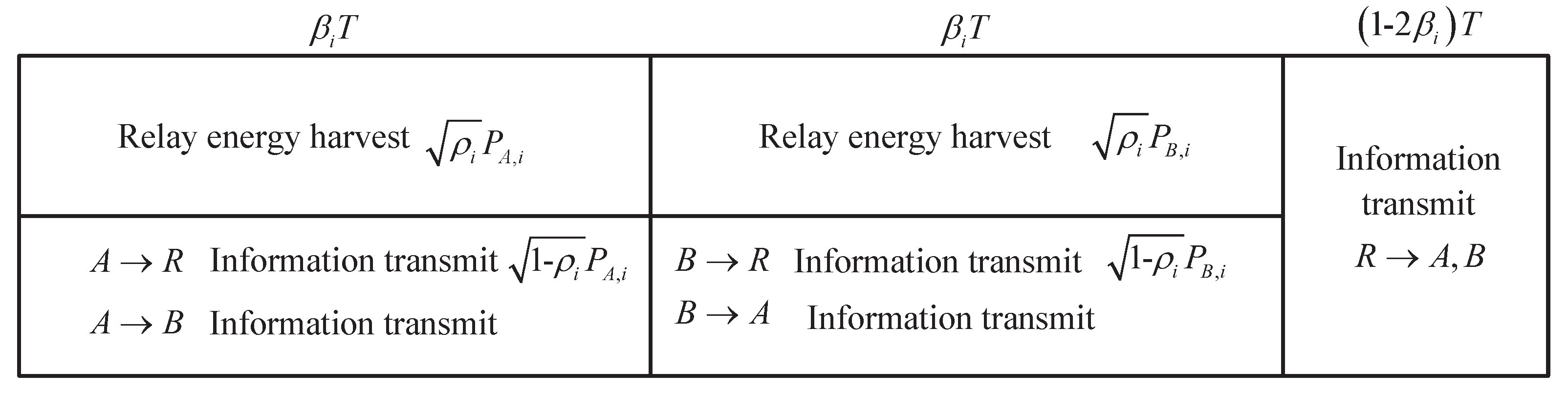

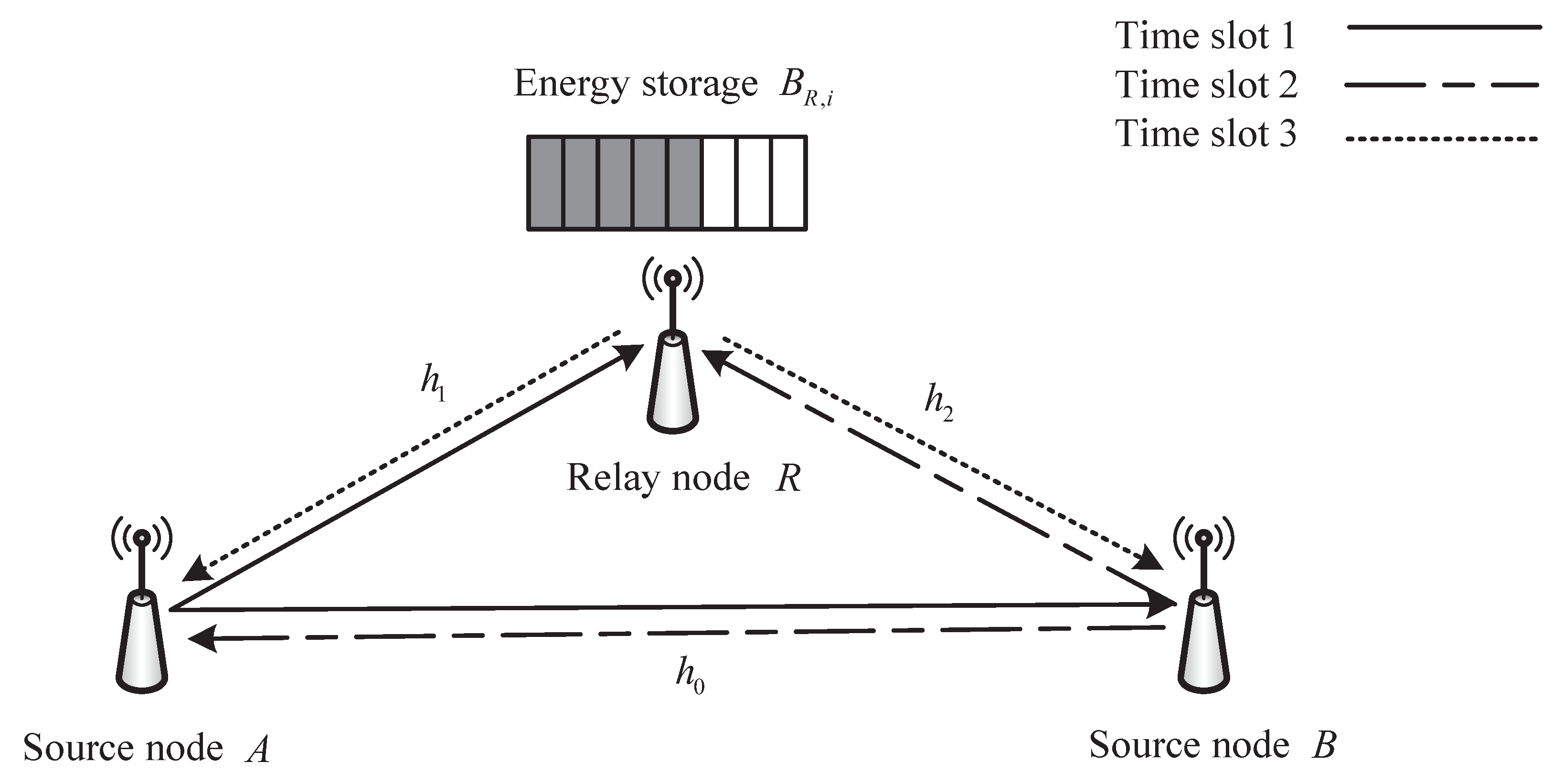

2.1. System Model
2.2. Problem Formulation
2.3. Joint Optimization Algorithm
2.3.1. Power Optimization
2.3.2. Time Slot Optimization
Algorithm 1 Proposed algorithm for the joint optimization problem in the SRTWRS scenario.
Initialize: Given the dual variables $\mathbf{\alpha}\left(t\right)$, the iteration step size $\tau $, convergence parameter $\u03f5$ and time slot allocation factor ${\beta}_{i}\left(1\right)$. Let $t=1$.

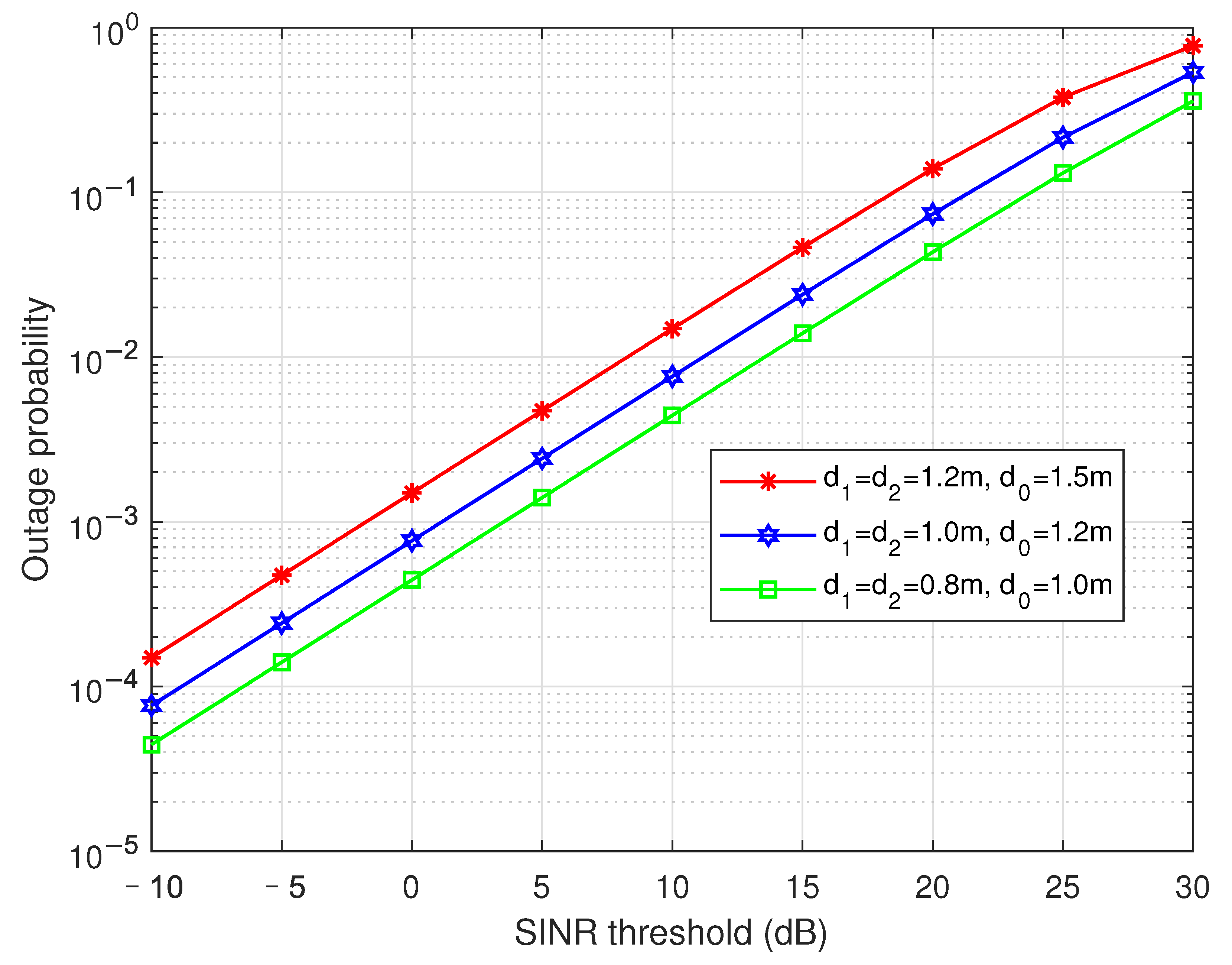

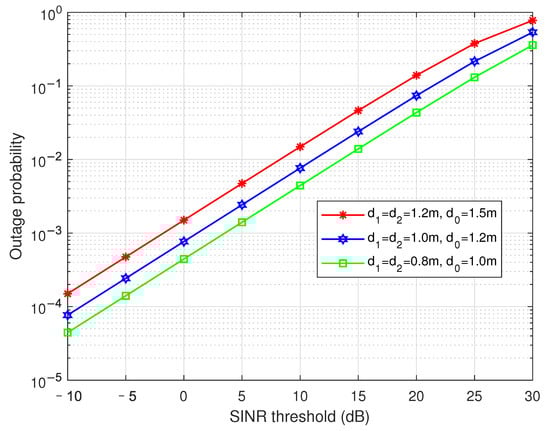

2.4. Outage Probability Analysis
3. SWIPT in TwoWay MultiRelay Communication

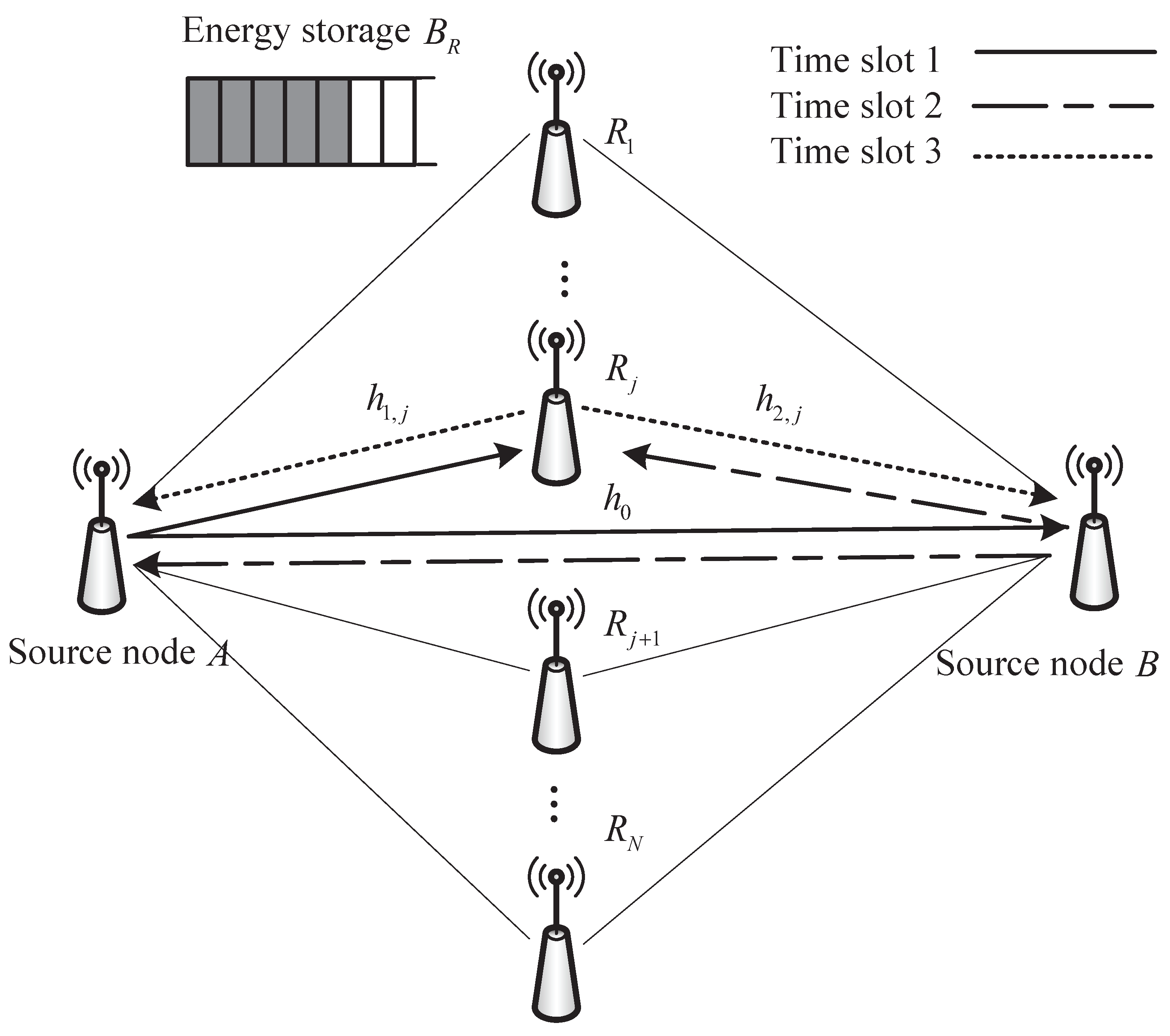

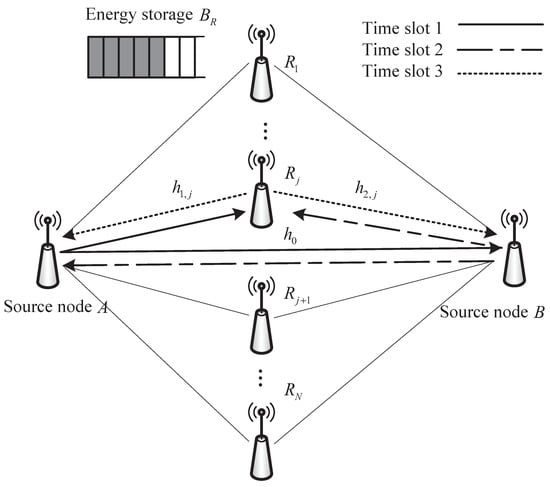

3.1. System Model
3.2. Problem Formulation
3.2.1. Power Optimization
3.2.2. Time Slot Optimization
3.2.3. Dual Variable Update
Algorithm 2 Proposed algorithm for the joint optimization problem in the MRTWRS scenario.
Initialize: Given the dual variable $\lambda \left(t\right)$, the iteration step size $\tau $, convergence parameter $\u03f5$ and time slot allocation factor ${\beta}_{i}\left(1\right)$. Let $t=1$.

4. Simulation Results

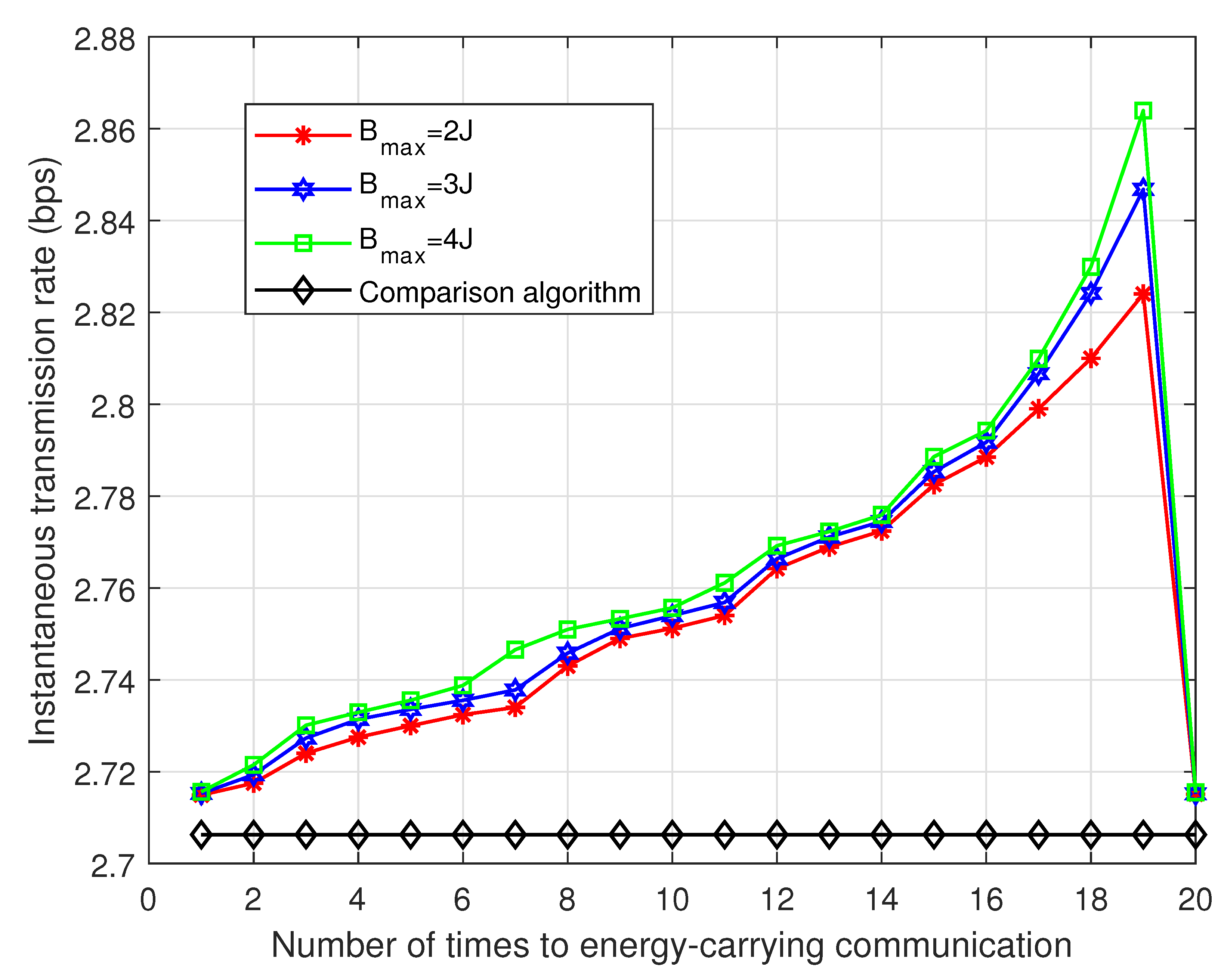

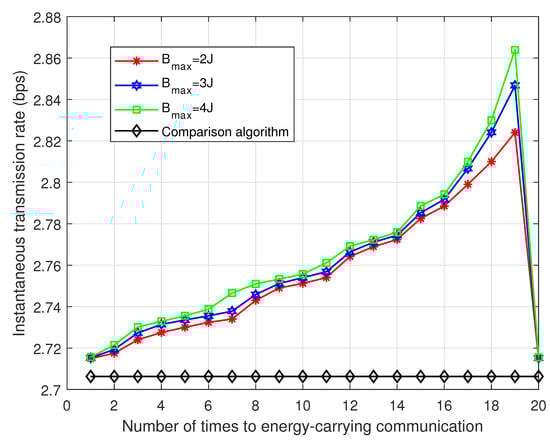

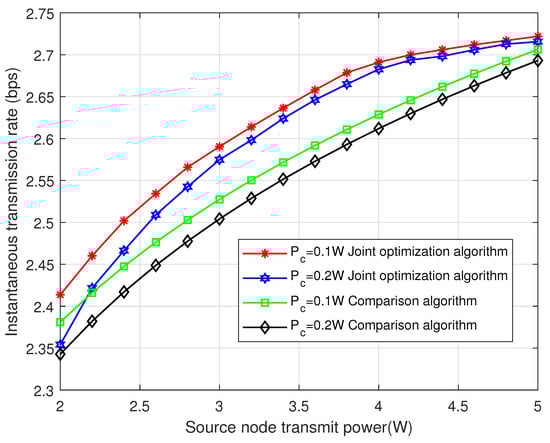

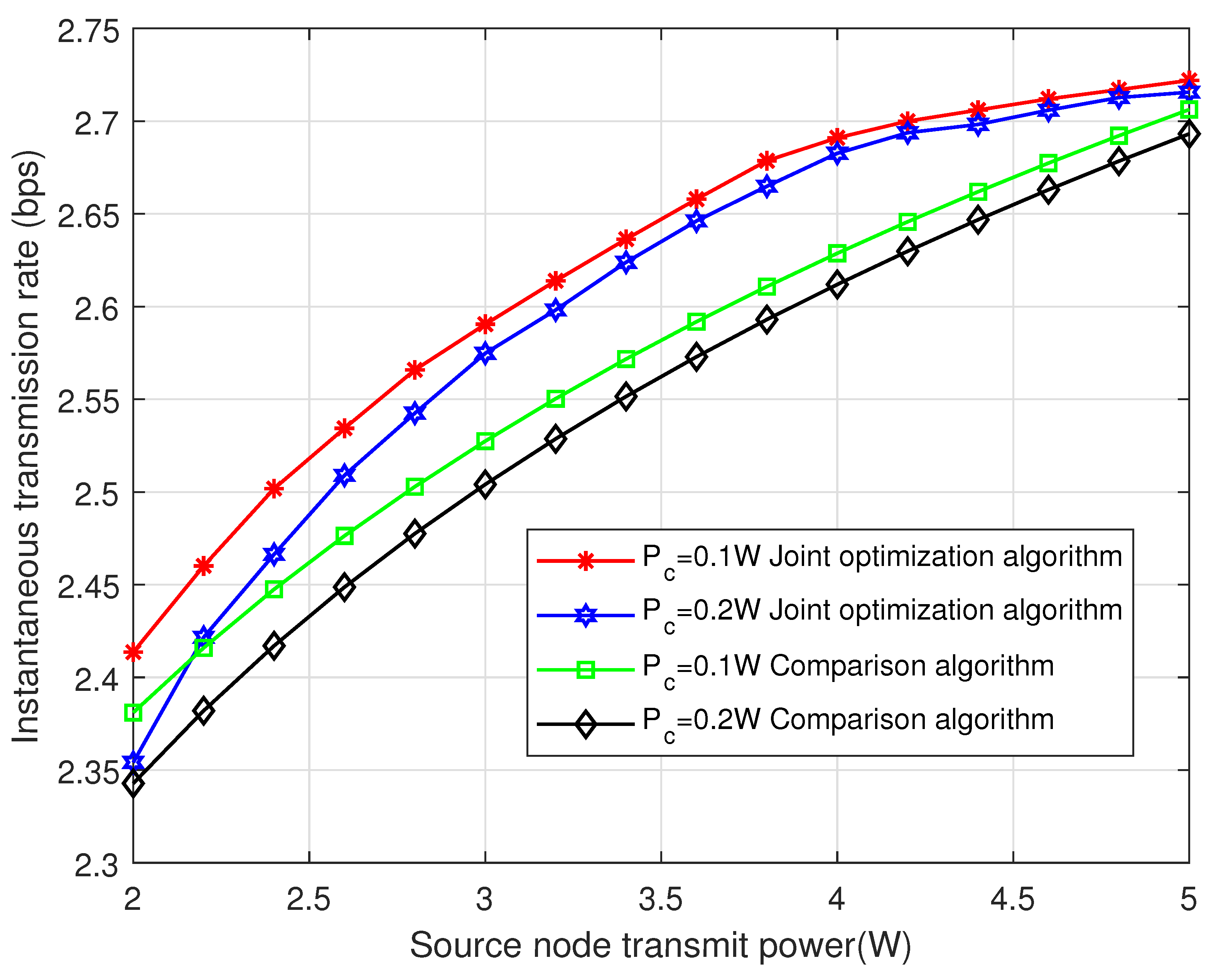

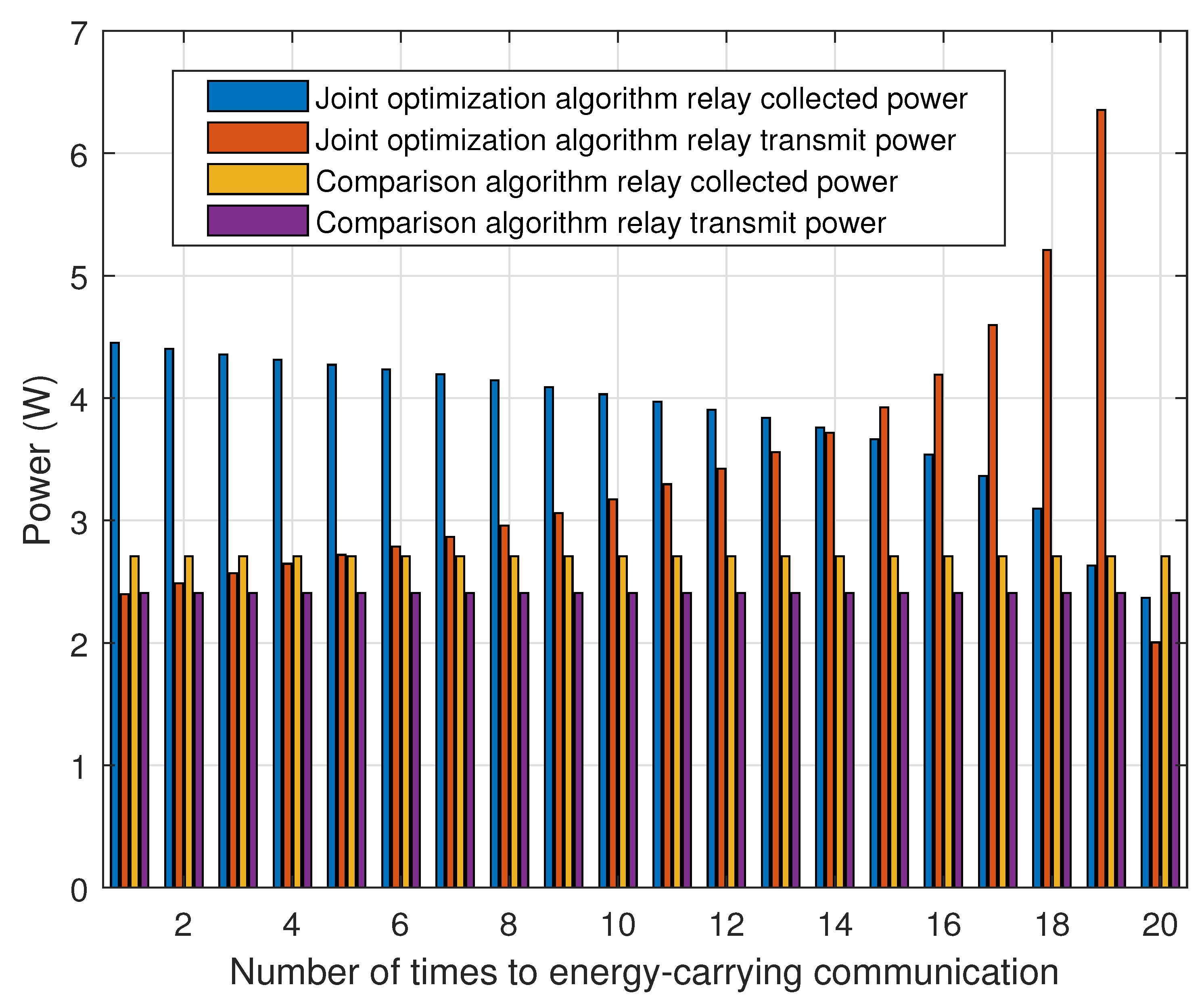

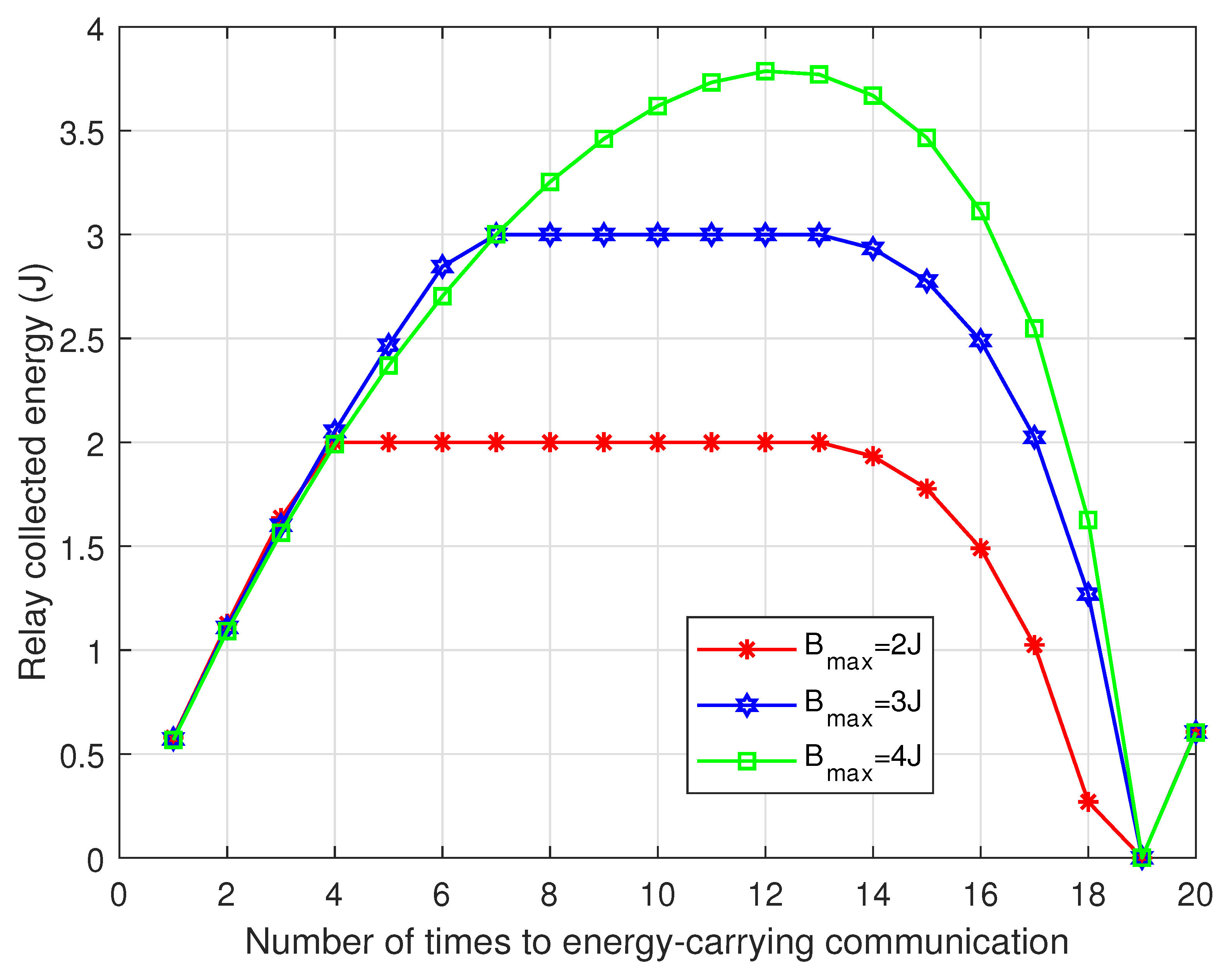

4.1. SRTWRS Scenario Analysis

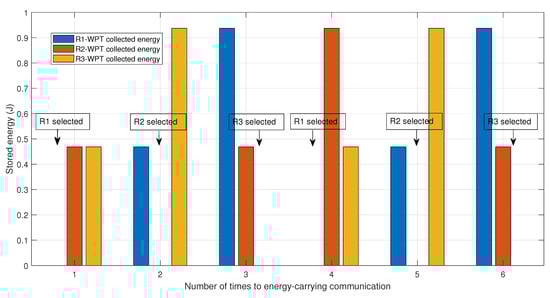

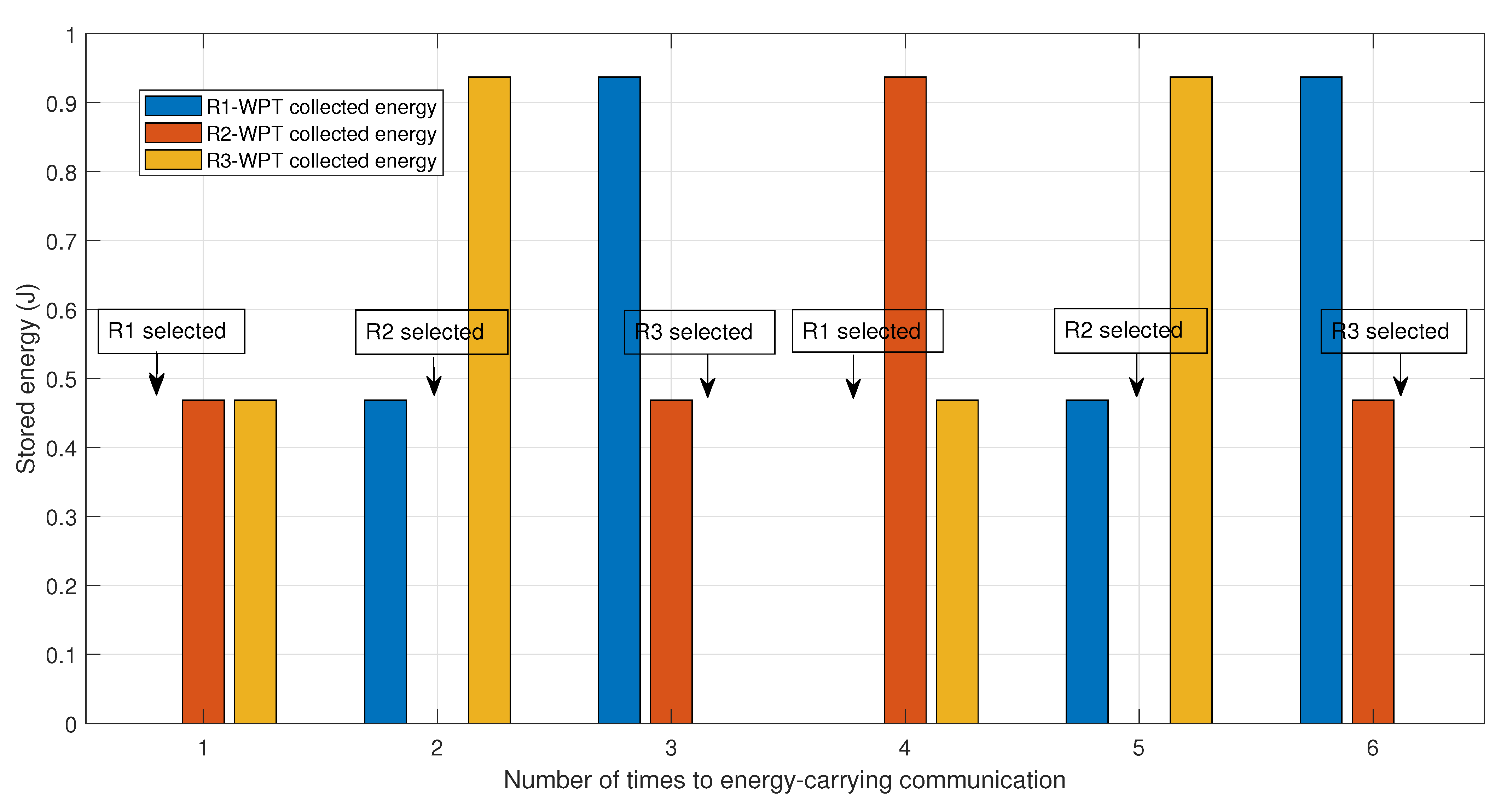

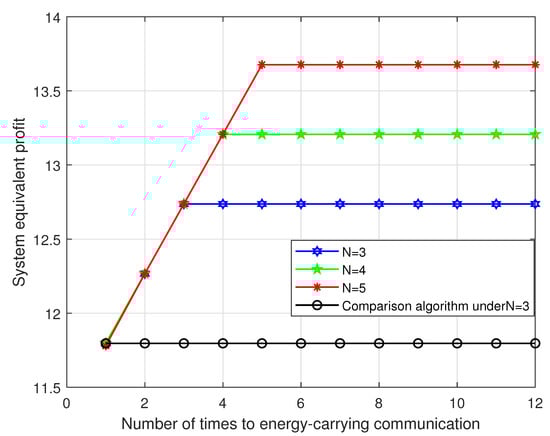

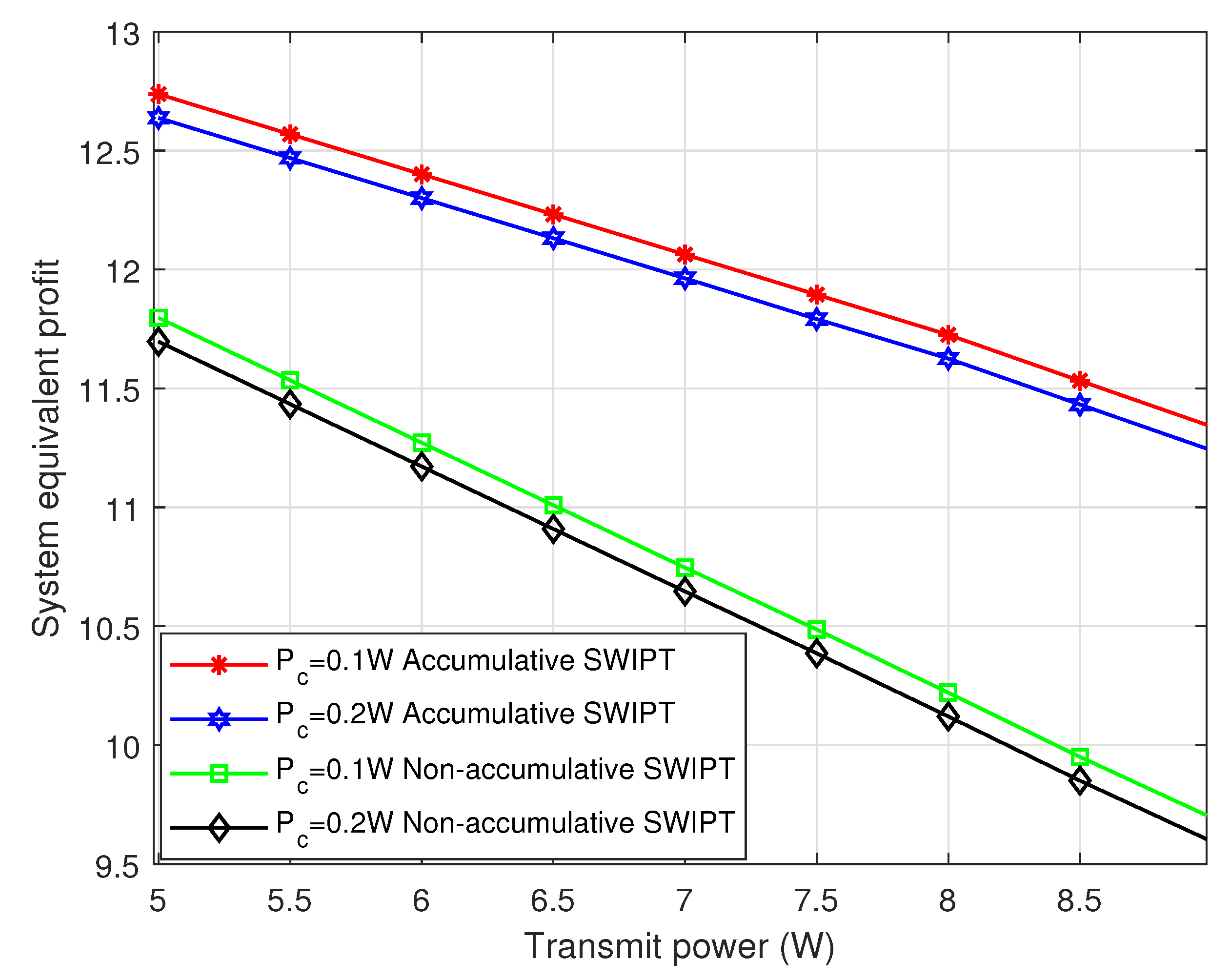

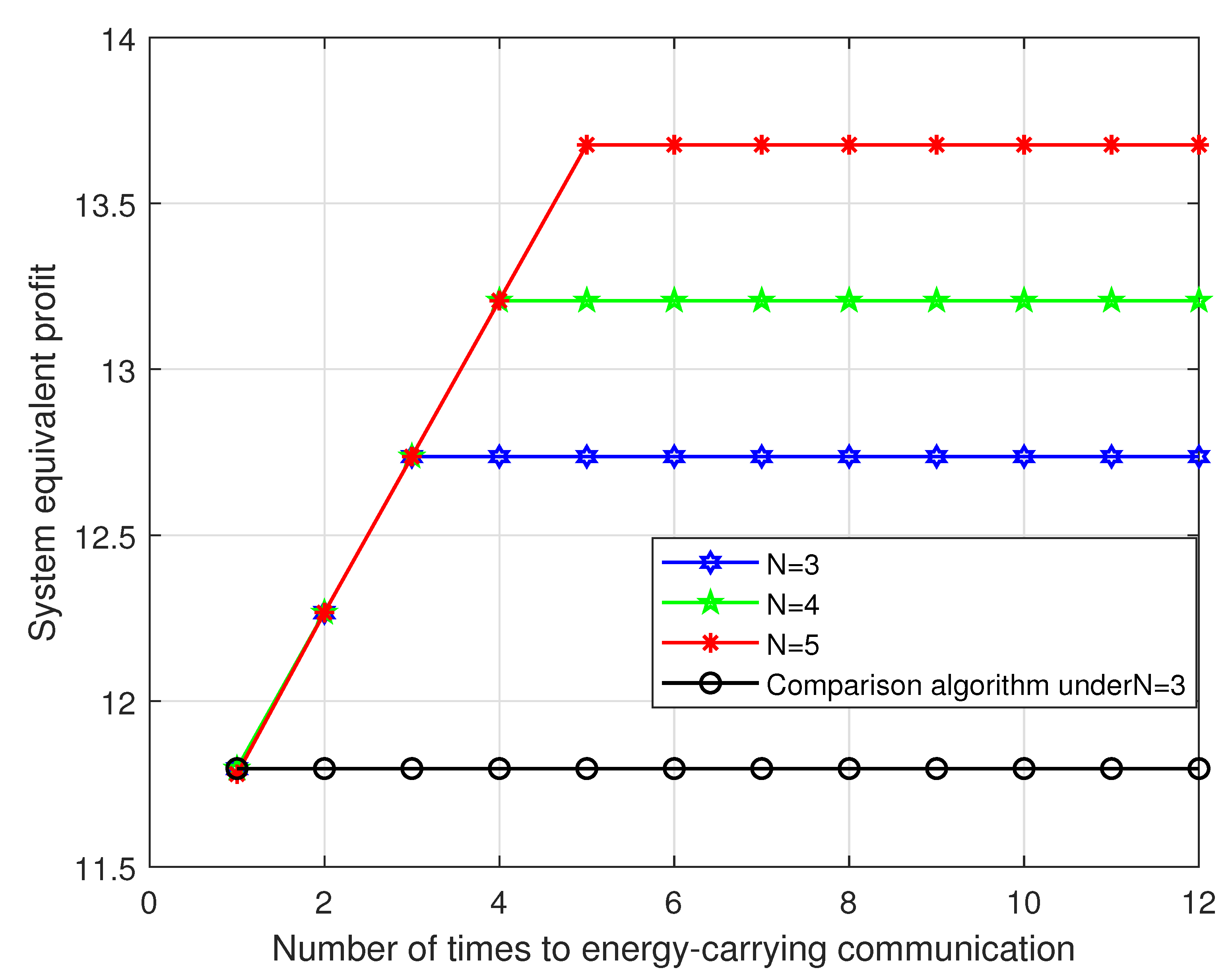

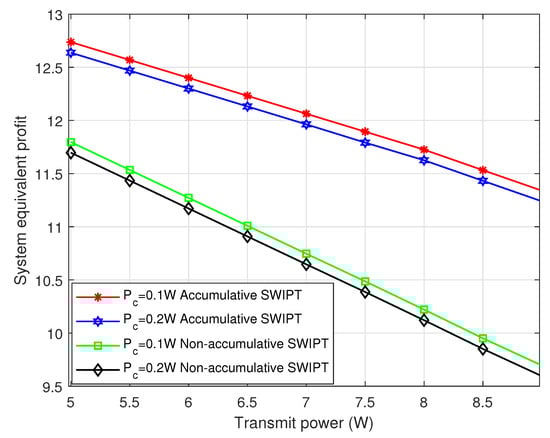

4.2. MRTWRS Scenario Analysis
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
 Ruan, T.; Chew, Z.J.; Zhu, M. Energyaware approaches for energy harvesting powered wireless sensor nodes. IEEE Sens. J. 2017, 17, 2165–2173. [Google Scholar] [CrossRef]
 Zhang, Y.; Lu, T.; Zhao, Z.; He, F.; Chen, K.; Yuan, L. Selective wireless power transfer to multiple loads using receivers of different 480 resonant frequencies. IEEE Trans. Power Electron. 2015, 30, 6001–6005. [Google Scholar] [CrossRef]
 Khan, T.A.; Yazdan, A.; Heath, R.W. Optimization of power transfer efficiency and energy efficiency for wirelesspowered systems with massive MIMO. IEEE Trans. Wirel. Commun. 2018, 17, 7159–7172. [Google Scholar] [CrossRef]
 Zhang, R.; Ho, C.K. MIMO broadcasting for simultaneous wireless information and power transfer. IEEE Trans. Wirel. Commun. 2013, 12, 1989–2001. [Google Scholar] [CrossRef]
 Alsharoa, A.; Ghazzai, H.; Kamal, A.E.; Kadri, A. Wireless RFbased energy harvesting for twoway relaying systems. In Proceedings of the 2016 IEEE Wireless Communications and Networking Conference, Doha, Qatar, 3–6 April 2016; IEEE: Piscataway, NJ, USA, 2016. [Google Scholar]
 Do, T.P.; Song, I.; Kim, Y.H. Simultaneous wireless transfer of power and information in a decodeandforward twoway relaying network. IEEE Trans. Wirel. Commun. 2017, 16, 1579–1592. [Google Scholar] [CrossRef]
 Pelechrinis, K.; Yan, G.; Eidenbenz, S. Detection of Selfish Manipulation of Carrier Sensing in 802.11 Networks. IEEE Trans. Mob. Comput. 2012, 11, 1086–1101. [Google Scholar] [CrossRef]
 Liu, L.; Zhang, R.; Chua, K.C. Wireless information and power transfer: A dynamic power splitting approach. IEEE Trans. Commun. 2013, 61, 3990–4001. [Google Scholar] [CrossRef]
 Shi, Q.; Liu, L.; Xu, W.; Zhang, R. Joint transmit beamforming and receive power splitting for MISO SWIPT systems. IEEE Trans. Wirel. Commun. 2014, 13, 3269–3280. [Google Scholar] [CrossRef]
 Khandaker, M.R.A.; Masouros, C.; Wong, K.K.; Timotheou, S. Secure SWIPT by exploiting constructive interference and artificial noise. IEEE Trans. Commun. 2018, 67, 1326–1340. [Google Scholar] [CrossRef]
 Zhang, J.; Tao, X.; Wu, H.; Zhang, X. Secure transmission in SWIPTpowered twoway untrusted relay networks. IEEE Access 2018, 6, 10508–10519. [Google Scholar] [CrossRef]
 Zhang, H.; Li, C.; Huang, Y.; Yang, L. Secure beamforming for SWIPT in multiuser MISO broadcast channel with confidential messages. IEEE Commun. Lett. 2015, 19, 1347–1350. [Google Scholar] [CrossRef]
 Li, Q.; Zhang, Q.; Qin, J. Secure relay beamforming for SWIPT in amplifyandforward twoway relay networks. IEEE Trans. Veh. Technol. 2016, 65, 9006–9019. [Google Scholar] [CrossRef]
 Gao, R.; Xu, L.; Xu, D.; Bao, J. TrustDegreeBased Secure Relay Selection in SWIPTEnabled Relay Networks. Electronics 2023, 12, 429. [Google Scholar]
 Lee, K.; Lee, W. Deep Learning Framework for TwoWay MISO WirelessPowered Interference Channels. IEEE Trans. Wirel. Commun. 2023; in press. [Google Scholar] [CrossRef]
 Nasir, A.A.; Zhou, X.; Durrani, S.; Kennedy, R.A. Relaying protocols for wireless energy harvesting and information processing. IEEE Trans. Wirel. Commun. 2013, 12, 3622–3636. [Google Scholar] [CrossRef]
 Nasir, A.A.; Zhou, X.; Durrani, S.; Kennedy, R.A. Throughput and ergodic capacity of wireless energy harvesting based DF relaying network. In Proceedings of the 2014 IEEE International Conference on Communications (ICC), Sydney, Australia, 10–14 June 2014; IEEE: Piscataway, NJ, USA, 2014. [Google Scholar]
 Zhong, K.; Fu, L. Throughput Maximization for the FullDuplex TwoWay Relay System with Energy Harvesting. Electronics 2023, 12, 16. [Google Scholar] [CrossRef]
 Singh, D.; Ouamri, M.A.; Muthanna, M.S.A.; Adam, A.B.M.; Muthanna, A.; Koucheryavy, A.; ElLatif, A.A.A. A Generalized Approach on Outage Performance Analysis of DualHop Decode and Forward Relaying for 5G and beyond Scenarios. Sustainability 2022, 14, 12870. [Google Scholar] [CrossRef]
 Singh, D.; Ouamri, M.A.; Alzaidi, M.S.; Alharbi, T.E.A.; Ghoneim, S.S.M. Performance Analysis of Wireless Power Transfer Enabled Dual Hop Relay System Under Generalised Fading Scenarios. IEEE Access 2022, 10, 114364–114373. [Google Scholar] [CrossRef]
 Minh Nam, P.; Hung, H.D.; Tu, L.T.; Tuan, P.V.; Duy, T.T.; Hanh, T. Outage Performance of Interference CancellationAided TwoWay Relaying Cognitive Network with Primary TAS/SC Communication and Secondary Partial Relay Selection. Electronics 2022, 11, 3645. [Google Scholar] [CrossRef]
 Kumar, D.; Singya, P.K.; Bhatia, V. Performance Analysis of SWIPT Enabled DecodeandForward based Cooperative Network. In Proceedings of the 2022 IEEE International Conference on Internet of Things and Intelligence Systems (IoTaIS), Bali, Indonesia, 24–26 November 2022; IEEE: Piscataway, NJ, USA, 2014. [Google Scholar]
 Ghosh, S.; Acharya, T.; Maity, S.P. Outage Analysis in SWIPT Enabled Cooperative AF/DF Relay Assisted TwoWay Spectrum Sharing Communication. IEEE Trans. Cogn. Commun. Netw. 2022, 8, 1434–1443. [Google Scholar] [CrossRef]
 Liu, Z.; Ye, Y.; Lu, G.; Hu, R.Q. System Outage Performance of SWIPT Enabled FullDuplex TwoWay Relaying With Residual Hardware Impairments and SelfInterference. IEEE Syst. J. 2022; in press. [Google Scholar] [CrossRef]
 Boyd, S.; Boyd, S.P.; Vandenberghe, L. Convex Optimization; Cambridge University Press: Cambridge, UK, 2004; pp. 215–231. [Google Scholar]
Ref.  Network Structure  EH Mechanisms  Relay Properties  Stored Energy or Not  Research Interests

[8]  $S\to D$  Dynamic power splitting  No relay  No  Rateenergy performance tradeoff
[9]  MISO  PS  No relay  No  Transmit power minimization
[13]  Twoway relay  Energy receiver  AF  No  System secrecy transmission rate maximization
[14]  $S\to R\to D$  TS  DF FD  No  Throughput maximization
[15]  Twoway MISO  TS PS  No relay  No  Sum spectral efficiency maximization
[16]  $S\to R\to D$  TS PS  AF  No  Throughput maximization
[17]  $S\to R\to D$  TS PS  DF  No  Throughput maximization
[18]  Twoway relay  TS  DF FD  No  Throughput maximization
[19]  $S\to R\to D$  No SWIPT  DF  No  Outage probability minimization
[20]  $S\to R\to D$  TS  AF DF  No  Outage probability minimization
[21]  Twoway relay  No SWIPT  Partial relay selection  No  Outage probability minimization
Notation  Physical Meaning

${h}_{x}$  channel gains of the twoway links
${d}_{x}$  distance between nodes
$\theta $  channel fading factor
${\beta}_{i}$  time slot allocation factor
${\rho}_{i}$  power splitting factor
T  the total communication time
${x}_{1,i}$, ${x}_{2,i}$, ${x}_{R,i}$  normalized signals transmitted by source nodes and the relay node
${n}_{x,i}$  noise at the relay node due to power splitting
${P}_{x,i}$, ${P}_{R,i}$  transmitted power of the two source nodes and the relay
$\eta $  relay energy conversion efficiency
${B}_{R,i}$  the accumulated stored energy of the relay node
${P}_{c}$  the inherent consumption of the relay circuit
${B}_{max}$  the inherent consumption of the relay circuit
${\gamma}_{th}$  SINR threshold
Parameters  Values

Distance between nodes  ${d}_{1}=1m$, ${d}_{2}=1m$, ${d}_{3}=1.5m$
Path loss factor  $\theta =3$
Channel Gain  ${h}_{1}=1.2$, ${h}_{2}=1$, ${h}_{0}=0.8$
AWGN Power  ${\sigma}_{1}^{2}={\sigma}_{2}^{2}={\sigma}_{0}^{2}={10}^{3}W$
Inherent consumption of relay  ${P}_{c}=0.1W$
Source nodes transmit power  ${P}_{A,i}={P}_{B,i}={P}_{i}$
Relay energy conversion efficiency  $\eta =0.6$
