Ensemble-Based Out-of-Distribution Detection
Abstract
1. Introduction
2. Related Work
2.1. OOD Detection Methods

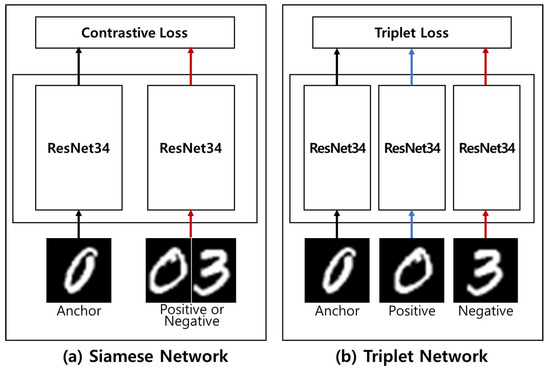

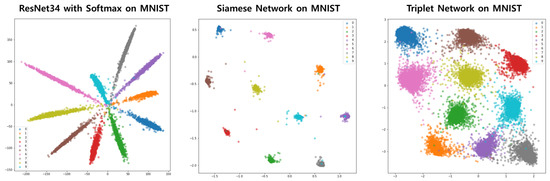

2.2. Networks Based on Distance Metric Learning (DML)

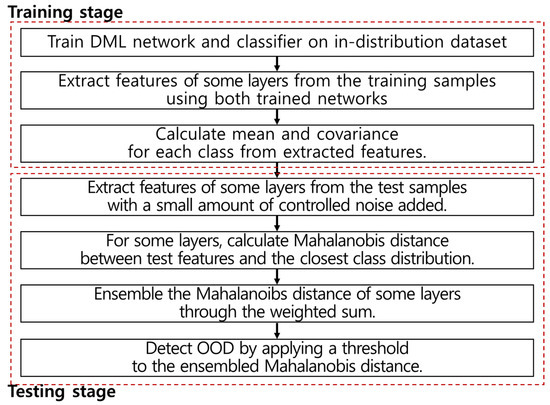

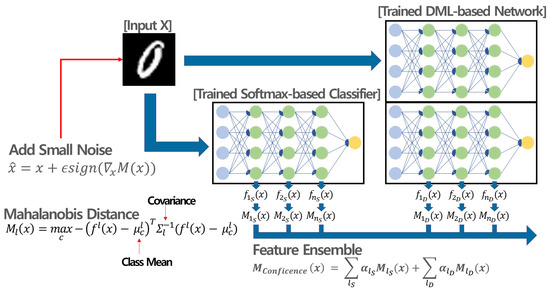

3. Methodology
4. Experiments
4.1. Experimental Setup

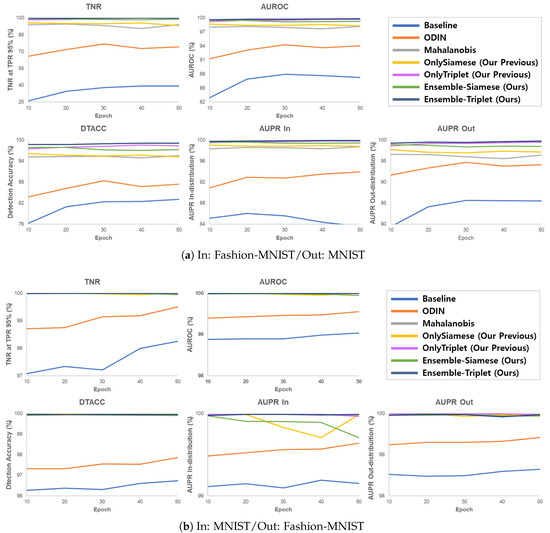

4.2. Experimental Results on 1-Channel Image Datasets
4.3. Experimental Results on 3-Channel Image Datasets
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Hannun, A.; Case, C.; Casper, J.; Catanzaro, B.; Diamos, G.; Elsen, E.; Prenger, R.; Satheesh, S.; Sengupta, S.; Coates, A.; et al. Deep speech: Scaling up end-to-end speech recognition. arXiv 2014, arXiv:1412.5567. [Google Scholar]
- Bahdanau, D.; Cho, K.; Bengio, Y. Neural machine translation by jointly learning to align and translate. arXiv 2014, arXiv:1409.0473. [Google Scholar]
- He, K.; Zhang, X.; Ren, S.; Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 770–778. [Google Scholar]
- Krizhevsky, A.; Hinton, G. Learning Multiple Layers of Features from Tiny Images. Master’s Thesis, University of Toronto, Toronto, ON, Canada, 2009. [Google Scholar]
- Villegas, R.; Yang, J.; Zou, Y.; Sohn, S.; Lin, X.; Lee, H. Learning to generate long-term future via hierarchical prediction. In Proceedings of the International Conference on Machine Learning, Sydney, Australia, 6–11 August 2017; pp. 3560–3569. [Google Scholar]
- Tulyakov, S.; Liu, M.Y.; Yang, X.; Kautz, J. Mocogan: Decomposing motion and content for video generation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 18–23 June 2018; pp. 1526–1535. [Google Scholar]
- Caruana, R.; Lou, Y.; Gehrke, J.; Koch, P.; Sturm, M.; Elhadad, N. Intelligible models for healthcare: Predicting pneumonia risk and hospital 30-day readmission. In Proceedings of the 21th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, Sydney, Australia, 10–13 August 2015; pp. 1721–1730. [Google Scholar]
- Wu, N.; Phang, J.; Park, J.; Shen, Y.; Huang, Z.; Zorin, M.; Jastrzębski, S.; Févry, T.; Katsnelson, J.; Kim, E.; et al. Deep neural networks improve radiologists’ performance in breast cancer screening. IEEE Trans. Med. Imaging 2019, 39, 1184–1194. [Google Scholar] [CrossRef] [PubMed]
- Hsu, Y.C.; Shen, Y.; Jin, H.; Kira, Z. Generalized ODIN: Detecting out-of-distribution image without learning from out-of-distribution data. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Seattle, WA, USA, 13–19 June 2020; pp. 10951–10960. [Google Scholar]
- Amodei, D.; Olah, C.; Steinhardt, J.; Christiano, P.; Schulman, J.; Mané, D. Concrete problems in AI safety. arXiv 2016, arXiv:1606.06565. [Google Scholar]
- Nguyen, A.; Yosinski, J.; Clune, J. Deep neural networks are easily fooled: High confidence predictions for unrecognizable images. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Boston, MA, USA, 7–12 June 2015; pp. 427–436. [Google Scholar]
- Hendrycks, D.; Gimpel, K. A baseline for detecting misclassified and out-of-distribution examples in neural networks. arXiv 2016, arXiv:1610.02136. [Google Scholar]
- Davis, J.; Goadrich, M. The relationship between Precision-Recall and ROC curves. In Proceedings of the 23rd International Conference on Machine Learning, Pittsburgh, PA, USA, 25–29 June 2006; pp. 233–240. [Google Scholar]
- Szegedy, C.; Vanhoucke, V.; Ioffe, S.; Shlens, J.; Wojna, Z. Rethinking the inception architecture for computer vision. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 2818–2826. [Google Scholar]
- Liang, S.; Li, Y.; Srikant, R. Enhancing the reliability of out-of-distribution image detection in neural networks. arXiv 2017, arXiv:1706.02690. [Google Scholar]
- Lee, K.; Lee, H.; Lee, K.; Shin, J. Training confidence-calibrated classifiers for detecting out-of-distribution samples. arXiv 2017, arXiv:1711.09325. [Google Scholar]
- Papadopoulos, A.A.; Rajati, M.R.; Shaikh, N.; Wang, J. Outlier exposure with confidence control for out-of-distribution detection. arXiv 2019, arXiv:1906.03509. [Google Scholar]
- Hendrycks, D.; Mazeika, M.; Dietterich, T. Deep anomaly detection with outlier exposure. arXiv 2018, arXiv:1812.04606. [Google Scholar]
- Lee, K.; Lee, K.; Lee, H.; Shin, J. A simple unified framework for detecting out-of-distribution samples and adversarial attacks. In Proceedings of the 32nd International Conference on Neural Information Processing Systems, Montreal, QC, Canada, 3–8 December 2018; pp. 7167–7177. [Google Scholar]
- Yang, D.; Shin, I.; Ngoc, K.M.; Kim, H.; Yu, C.; Hwang, M. Out-of-Distribution Detection Based on Distance Metric Learning. In Proceedings of the 9th International Conference on Smart Media and Applications (SMA 2020), Jeju Island, Korea, 17–19 September 2020. [Google Scholar]
- Koch, G.; Zemel, R.; Salakhutdinov, R. Siamese Neural Networks for One-Shot Image Recognition. Master’s Thesis, University of Toronto, Toronto, ON, Canada, 2015. Available online: http://www.cs.toronto.edu/~gkoch/files/msc-thesis.pdf (accessed on 27 February 2021).
- Hoffer, E.; Ailon, N. Deep metric learning using triplet network. In International Workshop on Similarity-Based Pattern Recognition; Springer: Berlin/Heidelberg, Germany, 2015; pp. 84–92. [Google Scholar]
- Suárez, J.L.; García, S.; Herrera, F. A Tutorial on Distance Metric Learning: Mathematical Foundations, Algorithms, Experimental Analysis, Prospects and Challenges. Neurocomputing 2021, 425, 300–322. [Google Scholar] [CrossRef]
- Xiao, H.; Rasul, K.; Vollgraf, R. Fashion-mnist: A novel image dataset for benchmarking machine learning algorithms. arXiv 2017, arXiv:1708.07747. [Google Scholar]
- LeCun, Y. The MNIST Database of Handwritten Digits. 1998. Available online: http://yann.lecun.com/exdb/mnist/ (accessed on 27 February 2021).
- Netzer, Y.; Wang, T.; Coates, A.; Bissacco, A.; Wu, B.; Ng, A. Reading Digits in Natural Images with Unsupervised Feature Learning. NIPS 2011. Available online: http://ufldl.stanford.edu/housenumbers/ (accessed on 27 February 2021).
- Deng, J.; Dong, W.; Socher, R.; Li, L.J.; Li, K.; Li, F.-F. Imagenet: A large-scale hierarchical image database. In Proceedings of the 2009 IEEE Conference on Computer Vision and Pattern Recognition, Miami, FL, USA, 20–25 June 2009; pp. 248–255. [Google Scholar]
- Yu, F.; Seff, A.; Zhang, Y.; Song, S.; Funkhouser, T.; Xiao, J. Lsun: Construction of a large-scale image dataset using deep learning with humans in the loop. arXiv 2015, arXiv:1506.03365. [Google Scholar]
- Loshchilov, I.; Hutter, F. Sgdr: Stochastic gradient descent with warm restarts. arXiv 2016, arXiv:1608.03983. [Google Scholar]
- Prechelt, L. Early stopping-but when. In Neural Networks: Tricks of the Trade; Springer: Berlin/Heidelberg, Germany, 1998; pp. 55–69. [Google Scholar]
(a) In: Fashion-MNIST/Out: MNIST | |||||||
Metric | Baseline | ODIN | Mahal. | OnlySiamese (Our Previous) | OnlyTriplet (Our Previous) | Ensemble-Siamese (Ours) | Ensemble-Triplet (Ours) |
TNR at TPR 95%. | 43.08 ± 8.45 | 76.84 ± 7.16 | 94.53 ± 2.84 | 97.22 ± 3.61 | 99.90 ± 0.10 | 99.37 ± 0.50 | 99.96 ± 0.04 |
AUROC. | 86.75 ± 5.32 | 93.87 ± 1.85 | 98.18 ± 0.53 | 98.97 ± 0.63 | 99.76 ± 0.09 | 99.48 ± 0.21 | 99.82 ± 0.11 |
DTACC. | 83.23 ± 3.45 | 87.71 ± 3.01 | 95.23 ± 1.00 | 96.57 ± 1.27 | 98.63 ± 0.28 | 97.85 ± 0.69 | 99.03 ± 0.34 |
AUPRin. | 79.74 ± 9.23 | 92.12 ± 4.59 | 98.57 ± 0.47 | 99.22 ± 0.46 | 99.80 ± 0.08 | 99.58 ± 0.19 | 99.87 ± 0.08 |
AUPRout. | 86.18 ± 4.03 | 94.64 ± 1.48 | 98.74 ± 1.01 | 98.04 ± 1.15 | 99.62 ± 0.13 | 98.92 ± 0.34 | 99.61 ± 0.35 |
(b) In: MNIST/Out: Fashion-MNIST | |||||||
Metric | Baseline | ODIN | Mahal. | OnlySiamese (Our Previous) | OnlyTriplet (Our Previous) | Ensemble-Siamese (Ours) | Ensemble-Triplet (Ours) |
TNR at TPR 95%. | 98.42 ± 1.07 | 99.51 ± 0.25 | 100.0 ± 0.00 | 100.0 ± 0.00 | 100.0 ± 0.00 | 99.99 ± 0.03 | 100.0 ± 0.00 |
AUROC. | 99.04 ± 0.18 | 99.55 ± 0.14 | 100.0 ± 0.00 | 100.0 ± 0.01 | 100.0 ± 0.00 | 99.99 ± 0.03 | 99.99 ± 0.00 |
DTACC. | 96.92 ± 0.64 | 97.86 ± 0.40 | 99.98 ± 0.01 | 99.94 ± 0.03 | 99.94 ± 0.03 | 99.95 ± 0.03 | 99.94 ± 0.02 |
AUPRin. | 98.71 ± 0.45 | 99.64 ± 0.10 | 99.99 ± 0.00 | 99.99 ± 0.00 | 99.99 ± 0.00 | 99.91 ± 0.24 | 99.99 ± 0.00 |
AUPRout. | 98.74 ± 0.26 | 99.42 ± 0.20 | 99.99 ± 0.04 | 99.95 ± 0.05 | 99.99 ± 0.00 | 99.96 ± 0.04 | 99.98 ± 0.03 |
In-Dist. | Out-Dist. | Metric | Baseline | ODIN | Mahal. | OnlySiamese (Our Previous) | OnlyTriplet (Our Previous) | Ensemble-Siamese (Ours) | Ensemble-Triplet (Ours) |
---|---|---|---|---|---|---|---|---|---|
SVHN | CIFAR-10 | TNR at TPR 95%. | 78.26 | 79.83 | 97.63 | 82.46 ± 6.17 | 91.12 ± 3.72 | 98.45 ± 0.28 | 99.00 ± 0.45 |
AUROC. | 92.92 | 92.09 | 99.04 | 96.34 ± 1.31 | 98.08 ± 0.59 | 99.20 ± 0.08 | 99.46 ± 0.19 | ||
DTACC. | 90.03 | 89.44 | 96.37 | 91.10 ± 1.87 | 93.80 ± 1.20 | 96.85 ± 0.17 | 97.42 ± 0.66 | ||
AUPRin. | 95.06 | 93.96 | 99.58 | 98.38 ± 0.91 | 99.26 ± 0.24 | 99.65 ± 0.11 | 99.79 ± 0.10 | ||
AUPRout. | 85.66 | 86.83 | 96.15 | 89.04 ± 3.10 | 93.85 ± 1.75 | 96.55 ± 0.13 | 97.59 ± 0.78 | ||
SVHN | Tiny ImageNet | TNR at TPR 95%. | 79.02 | 82.10 | 99.78 | 99.34 ± 0.34 | 99.76 ± 0.11 | 99.90 ± 0.04 | 99.94 ± 0.02 |
AUROC. | 93.51 | 91.99 | 99.82 | 99.73 ± 0.12 | 99.89 ± 0.04 | 99.87 ± 0.04 | 99.94 ± 0.03 | ||
DTACC | 90.44 | 89.35 | 98.70 | 98.18 ± 0.42 | 99.00 ± 0.26 | 98.98 ± 0.13 | 99.21 ± 0.14 | ||
AUPRin. | 95.68 | 93.88 | 99.87 | 99.88 ± 0.07 | 99.95 ± 0.03 | 99.92 ± 0.03 | 99.97 ± 0.03 | ||
AUPRout. | 86.18 | 88.12 | 99.06 | 98.99 ± 0.46 | 99.31 ± 0.33 | 99.23 ± 0.17 | 99.48 ± 0.31 | ||
SVHN | LSUN | TNR at TPR 95%. | 74.29 | 77.34 | 99.77 | 99.75 ± 0.18 | 99.93 ± 0.04 | 99.94 ± 0.06 | 99.98 ± 0.01 |
AUROC. | 91.58 | 89.43 | 99.75 | 99.81 ± 0.16 | 99.93 ± 0.03 | 99.87 ± 0.05 | 99.95 ± 0.02 | ||
DTACC. | 88.96 | 87.19 | 99.28 | 98.89 ± 0.39 | 99.41 ± 0.26 | 99.23 ± 0.19 | 99.58 ± 0.13 | ||
AUPRin. | 94.19 | 92.12 | 99.64 | 99.84 ± 0.25 | 99.97 ± 0.02 | 99.92 ± 0.07 | 99.98 ± 0.01 | ||
AUPRout. | 83.95 | 85.47 | 99.05 | 99.27 ± 0.33 | 99.22 ± 0.33 | 98.93 ± 0.43 | 99.38 ± 0.37 |
In-Dist. | Out-Dist. | Metric | Baseline | ODIN | Mahal. | OnlySiamese (Our Previous) | OnlyTriplet (Our Previous) | Ensemble-Siamese (Ours) | Ensemble-Triplet (Ours) |
---|---|---|---|---|---|---|---|---|---|
CIFAR-10 | SVHN | TNR at TPR 95%. | 32.47 | 86.60 | 96.93 | 50.69 ± 5.69 | 51.77 ± 7.84 | 96.94 ± 0.18 | 97.01 ± 0.26 |
AUROC. | 89.88 | 96.65 | 99.23 | 90.75 ± 1.29 | 90.39 ± 2.01 | 99.21 ± 0.05 | 99.22 ± 0.04 | ||
DTACC. | 85.06 | 91.09 | 95.99 | 84.41 ± 1.58 | 84.24 ± 2.30 | 96.04 ± 0.11 | 96.06 ± 0.17 | ||
AUPRin. | 85.40 | 92.53 | 98.44 | 81.68 ± 3.18 | 79.35 ± 6.11 | 98.23 ± 0.15 | 98.29 ± 0.24 | ||
AUPRout. | 93.96 | 98.52 | 99.65 | 95.01 ± 0.54 | 95.01 ± 0.95 | 99.65 ± 0.04 | 99.65 ± 0.03 | ||
CIFAR-10 | Tiny ImageNet | TNR at TPR 95%. | 44.72 | 72.51 | 97.10 | 72.86 ± 3.98 | 78.92 ± 4.18 | 97.69 ± 0.11 | 97.51 ± 0.10 |
AUROC. | 91.02 | 94.04 | 99.47 | 91.82 ± 1.50 | 93.90 ± 1.22 | 99.51 ± 0.04 | 99.48 ± 0.02 | ||
DTACC. | 85.05 | 86.48 | 96.32 | 86.08 ± 1.51 | 88.28 ± 1.48 | 96.60 ± 0.09 | 96.52 ± 0.09 | ||
AUPRin. | 92.49 | 94.21 | 99.48 | 87.99 ± 2.37 | 90.71 ± 1.78 | 99.47 ± 0.07 | 99.41 ± 0.12 | ||
AUPRout. | 88.40 | 94.09 | 99.48 | 92.82 ± 1.32 | 94.67 ± 1.13 | 99.51 ± 0.04 | 99.44 ± 0.08 | ||
CIFAR-10 | LSUN | TNR at TPR 95%. | 45.44 | 73.83 | 98.57 | 80.09 ± 4.99 | 82.73 ± 3.93 | 99.01 ± 0.07 | 98.94 ± 0.07 |
AUROC. | 91.04 | 94.14 | 99.70 | 94.32 ± 1.42 | 95.40 ± 0.91 | 99.65 ± 0.02 | 99.67 ± 0.03 | ||
DTACC. | 85.26 | 86.69 | 97.41 | 88.95 ± 1.93 | 90.08 ± 1.32 | 97.89 ± 0.10 | 97.78 ± 0.11 | ||
AUPRin. | 92.45 | 94.21 | 99.70 | 91.97 ± 1.75 | 93.52 ± 1.25 | 99.18 ± 0.13 | 99.33 ± 0.18 | ||
AUPRout. | 88.55 | 94.34 | 99.70 | 94.84 ± 1.33 | 95.74 ± 0.95 | 99.69 ± 0.04 | 99.71 ± 0.02 |
In-Dist. | Out-Dist. | Metric | Baseline | ODIN | Mahal. | OnlySiamese (Our Previous) | OnlyTriplet (Our Previous) | Ensemble-Siamese (Ours) | Ensemble-Triplet (Ours) |
---|---|---|---|---|---|---|---|---|---|
CIFAR-100 | SVHN | TNR at TPR 95%. | 20.25 | 62.76 | 91.94 | 45.91 ± 5.15 | 48.11 ± 7.16 | 93.60 ± 0.94 | 93.80 ± 0.54 |
AUROC. | 79.45 | 93.94 | 98.36 | 88.43 ± 1.48 | 88.91 ± 2.13 | 98.47± 0.10 | 98.46 ± 0.10 | ||
DTACC. | 73.20 | 88.04 | 93.66 | 82.12 ± 1.60 | 82.22 ± 2.12 | 94.44 ± 0.40 | 94.54 ± 0.20 | ||
AUPRin. | 64.83 | 88.97 | 96.41 | 74.74 ± 3.90 | 76.63 ± 6.01 | 96.57 ± 0.38 | 96.63 ± 0.38 | ||
AUPRout. | 89.02 | 96.91 | 99.34 | 94.19 ± 0.79 | 94.61 ± 0.89 | 99.24 ± 0.09 | 99.21 ± 0.06 | ||
CIFAR-100 | Tiny ImageNet | TNR at TPR 95%. | 20.40 | 49.19 | 90.12 | 63.45 ± 8.59 | 65.20 ± 6.86 | 92.24 ± 0.30 | 92.22 ± 0.35 |
AUROC. | 77.17 | 87.62 | 98.06 | 88.32 ± 2.62 | 88.98 ± 2.12 | 98.43 ± 0.08 | 98.39 ± 0.10 | ||
DTACC. | 70.82 | 80.11 | 93.02 | 82.86 ± 2.60 | 82.99 ± 2.16 | 93.79 ± 0.17 | 93.77 ± 0.14 | ||
AUPRin. | 79.74 | 87.06 | 98.11 | 82.67 ± 3.14 | 84.41 ± 2.80 | 98.39 ± 0.15 | 98.21 ± 0.29 | ||
AUPRout. | 73.30 | 87.39 | 98.02 | 89.89 ± 2.63 | 90.43 ± 2.17 | 98.42 ± 0.07 | 98.42 ± 0.08 | ||
CIFAR-100 | LSUN | TNR at TPR 95%. | 18.78 | 45.59 | 90.71 | 75.23 ± 8.88 | 72.73 ± 7.13 | 97.21 ± 0.39 | 97.08 ± 0.28 |
AUROC. | 75.75 | 85.64 | 98.13 | 92.36 ± 2.53 | 92.10 ± 2.16 | 99.20 ± 0.09 | 99.17 ± 0.06 | ||
DTACC. | 69.89 | 78.26 | 93.47 | 87.06 ± 3.03 | 86.40 ± 2.55 | 96.26 ± 0.23 | 96.24 ± 0.24 | ||
AUPRin. | 77.62 | 84.49 | 98.34 | 89.58 ± 2.90 | 89.49 ± 2.46 | 98.89 ± 0.11 | 98.81 ± 0.12 | ||
AUPRout. | 71.98 | 85.70 | 97.74 | 93.13 ± 2.61 | 92.64 ± 2.24 | 99.22 ± 0.10 | 99.20 ± 0.10 |
