# A New Optimization Algorithm Based on the Fungi Kingdom Expansion Behavior for Antenna Applications

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Fungi Kingdom Expansion Behavior

- (a)
- Immobile biomass expansion: which represents the materials that are used to build the hyphae and the tubes inside them.
- (b)
- Mobile biomass expansion: this part represents the material flowing through the tubes of the hyphae to provide nutrition to the terminal of the hyphae.

## 3. Implementation of the Fungi Kingdom Expansion (FKE) Algorithm

**i**-th fungus where $i=\left[1,\text{}2,\text{}\dots ,\text{}Pop\right]$, and $Pop$ represents the population size of the fungi kingdom. The initial population distribution can be determined by randomly ($Rand$) spreading spores within the maximum allowed distance (${x}_{max}$) and the minimum allowed distance (${x}_{min}$) as given below:

**Mode 1:**Chaotic Expansion Mode

**Mode 2:**Deterministic Expansion Mode

**Mode 3:**Random Dispersion

Algorithm 1 Fungi kingdom Expansion |

1: Set the moisture-temperature range and the location range. |

2: Set the number of hyphae |

3: Set the fungi kingdom size and the dimension. |

4: Set the random dispersion number (DIS). |

5: Initialize the location of each fungus from Equation (1). |

6: Subject the locations to a certain fitness function. |

7: Determine the current best location. |

8: Apply Equation (3) for the entire population and entire iterations. |

9: While (iter < itermax) |

10: % The immobile mass expansion |

11: For i = 1: fungi kingdom size |

12: For j = 1: number of hyphae |

13: Apply Equation (2) with the aid of Equation (3) |

14: End j |

15: Subject the hyphae to a fitness function then pick the best hyphen only. |

16: % The mobile mass expansion |

17: Compute (MT) from Equation (6) |

18: Compute (cond) from Equation (5) |

19: Apply Equation (4) |

20: End i |

21: Subject the new locations to the fitness function |

22: If the new best location is better than the older one |

23: The new best is the global best |

24: End If |

25: Randomly spread the worst (DIS) locations |

26: Subject the new population to the fitness function to determine the global best. |

27: End While |

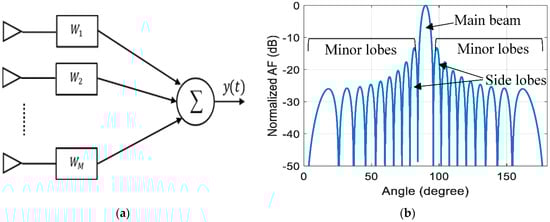

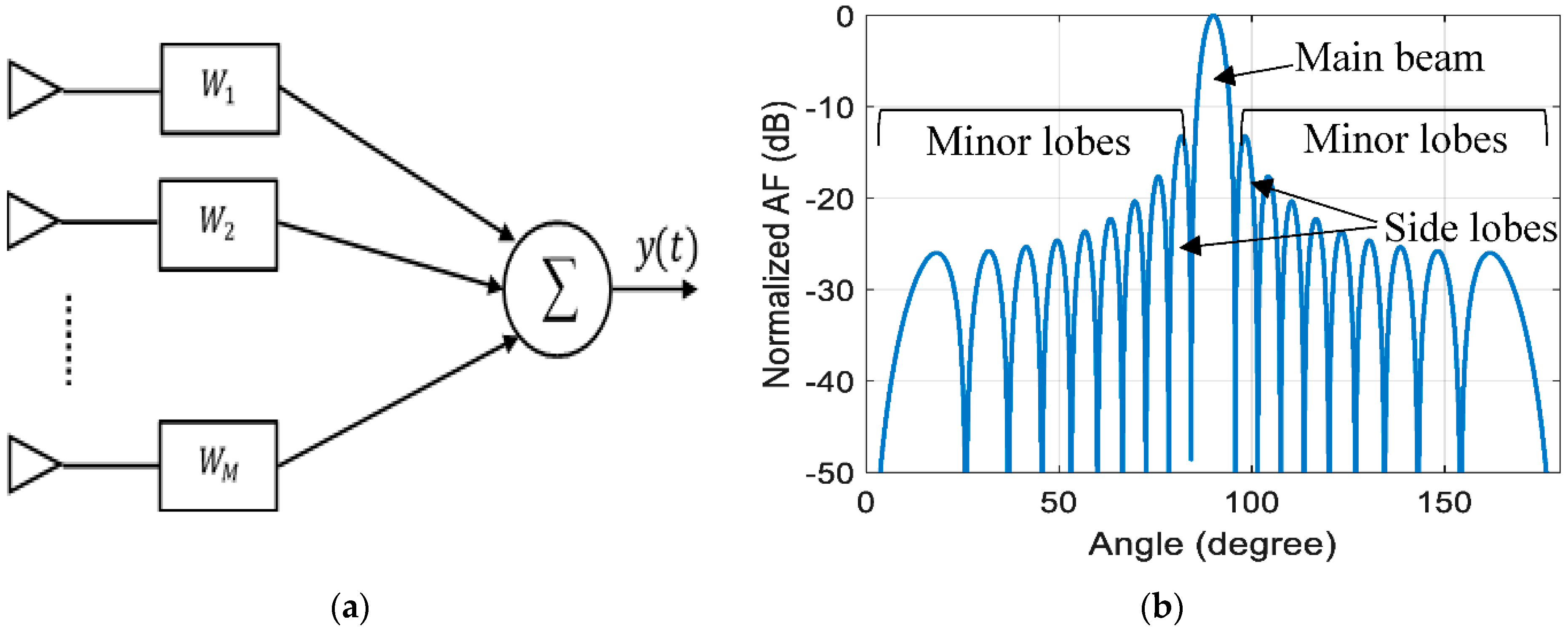

## 4. Engineering Applications: Antenna Array Beamforming

**H**denotes the Hermitian transpose, and $\mathit{a}\left(\mathsf{\Phi}\right)$ represents the steering vector of the antenna at any azimuth angle ($\mathsf{\Phi}$):

- Array size is 20-element.
- Fungi population size is 50.
- $M{T}_{min}=20$ and $M{T}_{max}=60$.
- Immobile expansion factor $IEF=0.01$.
- Number of hyphae $hyp=10$.
- Fungi dispersion = 5.
- Number of runs = 30.

- Linear Optimization: by optimizing the magnitude of the weight vector.
- Nonlinear optimization: by optimization the inter-element spacing d.

#### 4.1. Side Lobe Reduction

#### 4.1.1. Side Lobe Reduction by Optimizing the Excitation Magnitude

#### 4.1.2. Side Lobe Reduction by Optimizing the Enter Element Spacing

#### 4.2. Flat-Top Pattern

#### 4.2.1. Step 1: Flat-Top Pattern Regardless the SLR

#### 4.2.2. Step 2: Flat-Top Pattern with Reduced Side Lobes

#### 4.3. Triangular Beam Pattern

#### 4.3.1. Step 1: Triangular Beam Regardless the Side Lobe Level

#### 4.3.2. Step 2: Triangular Pattern with Reduced Side Lobes

#### 4.4. Anti-Jamming System

## 5. Results Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Mirjalili, S.; Lewis, A. The Whale Optimization Algorithm. Adv. Eng. Softw.
**2016**, 95, 51–67. [Google Scholar] [CrossRef] - Abualigah, L.; Diabat, A.; Mirjalili, S.; Abd Elaziz, M.; Gandomi, A.H. The Arithmetic Optimization Algorithm. Comput. Methods Appl. Mech. Eng.
**2021**, 376, 113609. [Google Scholar] [CrossRef] - Sattar, D.; Salim, R. A smart metaheuristic algorithm for solving engineering problems. Eng. Comput.
**2021**, 37, 2389–2417. [Google Scholar] [CrossRef] - Holland, J.H. Adaptation in Natural and Artificial Systems: An Introductory Analysis with Applications to Biology, Control, and Artificial Intelligence; MIT Press: Cambridge, MA, USA, 1992. [Google Scholar]
- Mirjalili, S.; Mirjalili, S.M.; Lewis, A. Grey Wolf Optimizer. Adv. Eng. Softw.
**2014**, 69, 46–61. [Google Scholar] [CrossRef] [Green Version] - Ali, R.S.; Alnahwi, F.M.; Abdullah, A.S.J.A.J.o.E.; Engineering, E. A modified camel travelling behaviour algorithm for engineering applications. Aust. J. Electr. Electron. Eng.
**2019**, 16, 176–186. [Google Scholar] [CrossRef] - Naruei, I.; Keynia, F. Wild horse optimizer: A new meta-heuristic algorithm for solving engineering optimization problems. Eng. Comput.
**2021**. [Google Scholar] [CrossRef] - Mirjalili, S.; Gandomi, A.H.; Mirjalili, S.Z.; Saremi, S.; Faris, H.; Mirjalili, S.M. Salp Swarm Algorithm: A bio-inspired optimizer for engineering design problems. Adv. Eng. Softw.
**2017**, 114, 163–191. [Google Scholar] [CrossRef] - Dorigo, M.; Birattari, M.; Stutzle, T.J.I.C.I.M. Ant colony optimization. IEEE Comput. Intell. Mag.
**2006**, 1, 28–39. [Google Scholar] [CrossRef] - Lalbakhsh, P.; Zaeri, B.; Lalbakhsh, A. An Improved Model of Ant Colony Optimization Using a Novel Pheromone Update Strategy. IEICE Trans. Inf. Syst.
**2013**, 96, 2309–2318. [Google Scholar] [CrossRef] [Green Version] - Wang, G.-G.J.M.C. Moth search algorithm: A bio-inspired metaheuristic algorithm for global optimization problems. Memetic Comput.
**2018**, 10, 151–164. [Google Scholar] [CrossRef] - Kennedy, J.; Eberhart, R. Particle swarm optimization. In Proceedings of the ICNN’95-International Conference on Neural Networks, Perth, Australia, 27 November–1 December 1995; pp. 1942–1948. [Google Scholar]
- Lalbakhsh, A.; Afzal, M.U.; Esselle, K.P.; Smith, S. Design of an artificial magnetic conductor surface using an evolutionary algorithm. In Proceedings of the 2017 International Conference on Electromagnetics in Advanced Applications (ICEAA), Verona, Italy, 11–15 September 2017; pp. 885–887. [Google Scholar]
- Lalbakhsh, A.; Esselle, K.P. Directivity improvement of a Fabry-Perot cavity antenna by enhancing near field characteristic. In Proceedings of the 2016 17th International Symposium on Antenna Technology and Applied Electromagnetics (ANTEM), Montreal, QC, Canada, 10–13 July 2016; pp. 1–2. [Google Scholar]
- Yang, X.S.; Hossein Gandomi, A. Bat algorithm: A novel approach for global engineering optimization. Eng. Comput.
**2012**, 29, 464–483. [Google Scholar] [CrossRef] [Green Version] - Abdollahzadeh, B.; Gharehchopogh, F.S.; Mirjalili, S. African vultures optimization algorithm: A new nature-inspired metaheuristic algorithm for global optimization problems. Comput. Ind. Eng.
**2021**, 158, 107408. [Google Scholar] [CrossRef] - Akyol, S.; Alatas, B. Plant intelligence based metaheuristic optimization algorithms. Artif. Intell. Rev.
**2017**, 47, 417–462. [Google Scholar] [CrossRef] - Li, M.D.; Zhao, H.; Weng, X.W.; Han, T. A novel nature-inspired algorithm for optimization: Virus colony search. Adv. Eng. Softw.
**2016**, 92, 65–88. [Google Scholar] [CrossRef] - Al-Betar, M.A.; Alyasseri, Z.A.A.; Awadallah, M.A.; Abu Doush, I. Coronavirus herd immunity optimizer (CHIO). Neural Comput. Appl.
**2021**, 33, 5011–5042. [Google Scholar] [CrossRef] [PubMed] - Hatamlou, A. Heart: A novel optimization algorithm for cluster analysis. Prog. Artif. Intell.
**2014**, 2, 167–173. [Google Scholar] [CrossRef] - Jaddi, N.S.; Alvankarian, J.; Abdullah, S. Kidney-inspired algorithm for optimization problems. Commun. Nonlinear Sci. Numer. Simul.
**2017**, 42, 358–369. [Google Scholar] [CrossRef] - Hashim, F.A.; Hussain, K.; Houssein, E.H.; Mabrouk, M.S.; Al-Atabany, W. Archimedes optimization algorithm: A new metaheuristic algorithm for solving optimization problems. Appl. Intell.
**2021**, 51, 1531–1551. [Google Scholar] [CrossRef] - Azizi, M. Atomic orbital search: A novel metaheuristic algorithm. Appl. Math. Model.
**2021**, 93, 657–683. [Google Scholar] [CrossRef] - Alatas, B. ACROA: Artificial Chemical Reaction Optimization Algorithm for global optimization. Expert Syst. Appl.
**2011**, 38, 13170–13180. [Google Scholar] [CrossRef] - Abdechiri, M.; Meybodi, M.R.; Bahrami, H. Gases Brownian Motion Optimization: An Algorithm for Optimization (GBMO). Appl. Soft Comput.
**2013**, 13, 2932–2946. [Google Scholar] [CrossRef] - Mirjalili, S. SCA: A sine cosine algorithm for solving optimization problems. Knowl. Based Syst.
**2016**, 96, 120–133. [Google Scholar] [CrossRef] - Das, B.; Mukherjee, V.; Das, D. Student psychology based optimization algorithm: A new population based optimization algorithm for solving optimization problems. Adv. Eng. Softw.
**2020**, 146, 102804. [Google Scholar] [CrossRef] - Geem, Z.W.; Kim, J.H.; Loganathan, G.V.J.S. A new heuristic optimization algorithm: Harmony search. Simulation
**2001**, 76, 60–68. [Google Scholar] [CrossRef] - Fadakar, E.; Ebrahimi, M. A new metaheuristic football game inspired algorithm. In Proceedings of the 2016 1st Conference on Swarm Intelligence and Evolutionary Computation (CSIEC), Bam, Iran, 9–11 March 2016; pp. 6–11. [Google Scholar]
- Kaveh, A.; Khanzadi, M.; Rastegar Moghaddam, M. Billiards-inspired optimization algorithm; a new meta-heuristic method. Structures
**2020**, 27, 1722–1739. [Google Scholar] [CrossRef] - Lalbakhsh, A.; Afzal, M.U.; Hayat, T.; Esselle, K.P.; Mandal, K. All-metal wideband metasurface for near-field transformation of medium-to-high gain electromagnetic sources. Sci. Rep.
**2021**, 11, 9421. [Google Scholar] [CrossRef] - Lalbakhsh, A.; Afzal, M.U.; Esselle, K.P.; Smith, S.L. Low-Cost Nonuniform Metallic Lattice for Rectifying Aperture Near-Field of Electromagnetic Bandgap Resonator Antennas. IEEE Trans. Antennas Propag.
**2020**, 68, 3328–3335. [Google Scholar] [CrossRef] - Afzal, M.U.; Esselle, K.P.; Lalbakhsh, A. A Methodology to Design a Low-Profile Composite-Dielectric Phase-Correcting Structure. IEEE Antennas Wirel. Propag. Lett.
**2018**, 17, 1223–1227. [Google Scholar] [CrossRef] - Hayat, T.; Afzal, M.U.; Lalbakhsh, A.; Esselle, K.P. Additively Manufactured Perforated Superstrate to Improve Directive Radiation Characteristics of Electromagnetic Source. IEEE Access
**2019**, 7, 153445–153452. [Google Scholar] [CrossRef] - Bento, C.R.d.C.; Wille, E.C.G. Bio-inspired routing algorithm for MANETs based on fungi networks. Ad Hoc Networks
**2020**, 107, 102248. [Google Scholar] [CrossRef] - Wolpert, D.H.; Macready, W.G. No free lunch theorems for optimization. IEEE Trans. Evol. Comput.
**1997**, 1, 67–82. [Google Scholar] [CrossRef] [Green Version] - Godara, L.C. Smart Antennas; CRC press: Boca Raton, FL, USA, 2004. [Google Scholar]
- Balanis, C.A. Antenna Theory and Design; John Wiley & Sons: Hoboken, NJ, USA, 2016. [Google Scholar]
- Singh, J.; Pal, A. A Smart Antenna Beamforming Using LMS Adaptive Filter Algorithm. Semant. Scholar.
**2014**, 1, 1–3. [Google Scholar] [CrossRef]

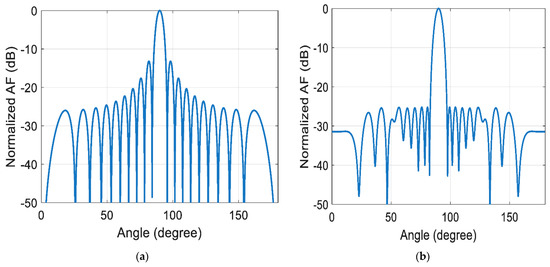

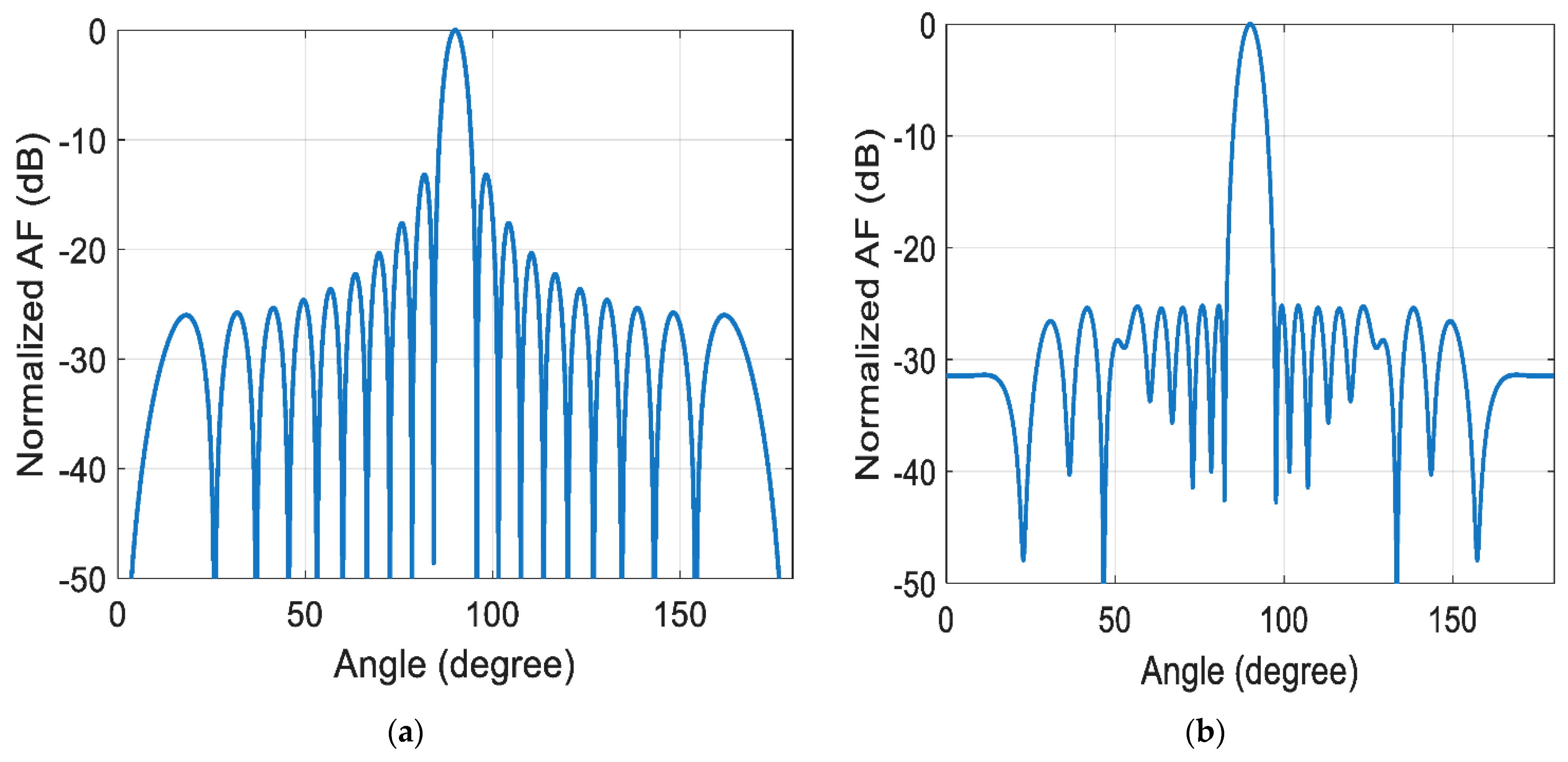

**Figure 3.**The normalized array factor for 2- element array antenna (

**a**) using uniform distribution and (

**b**) using FKE optimization.

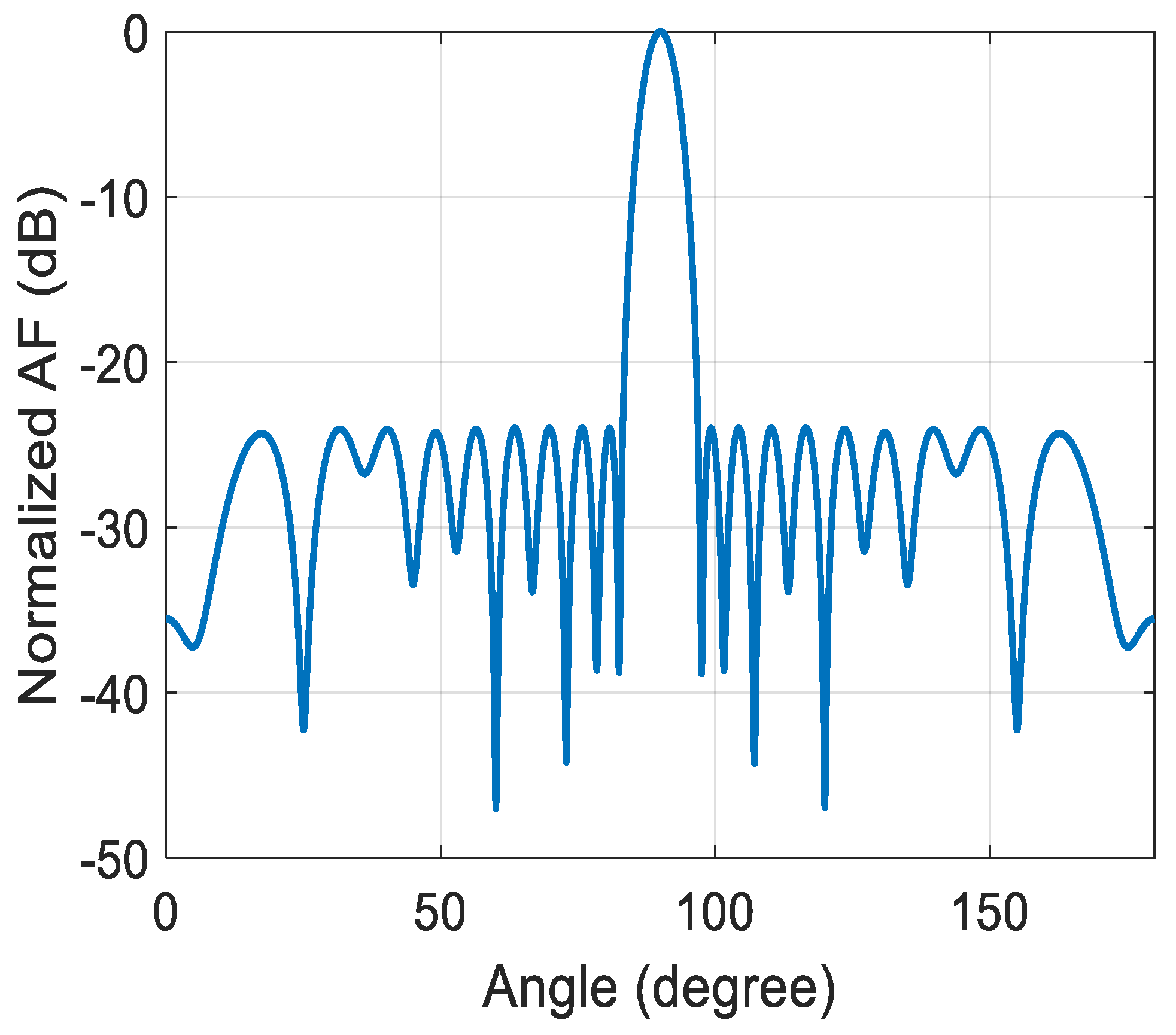

**Figure 4.**The normalized array factor for 20 element array antenna by optimizing the inter-element spacing of the array antenna using FKE algorithm.

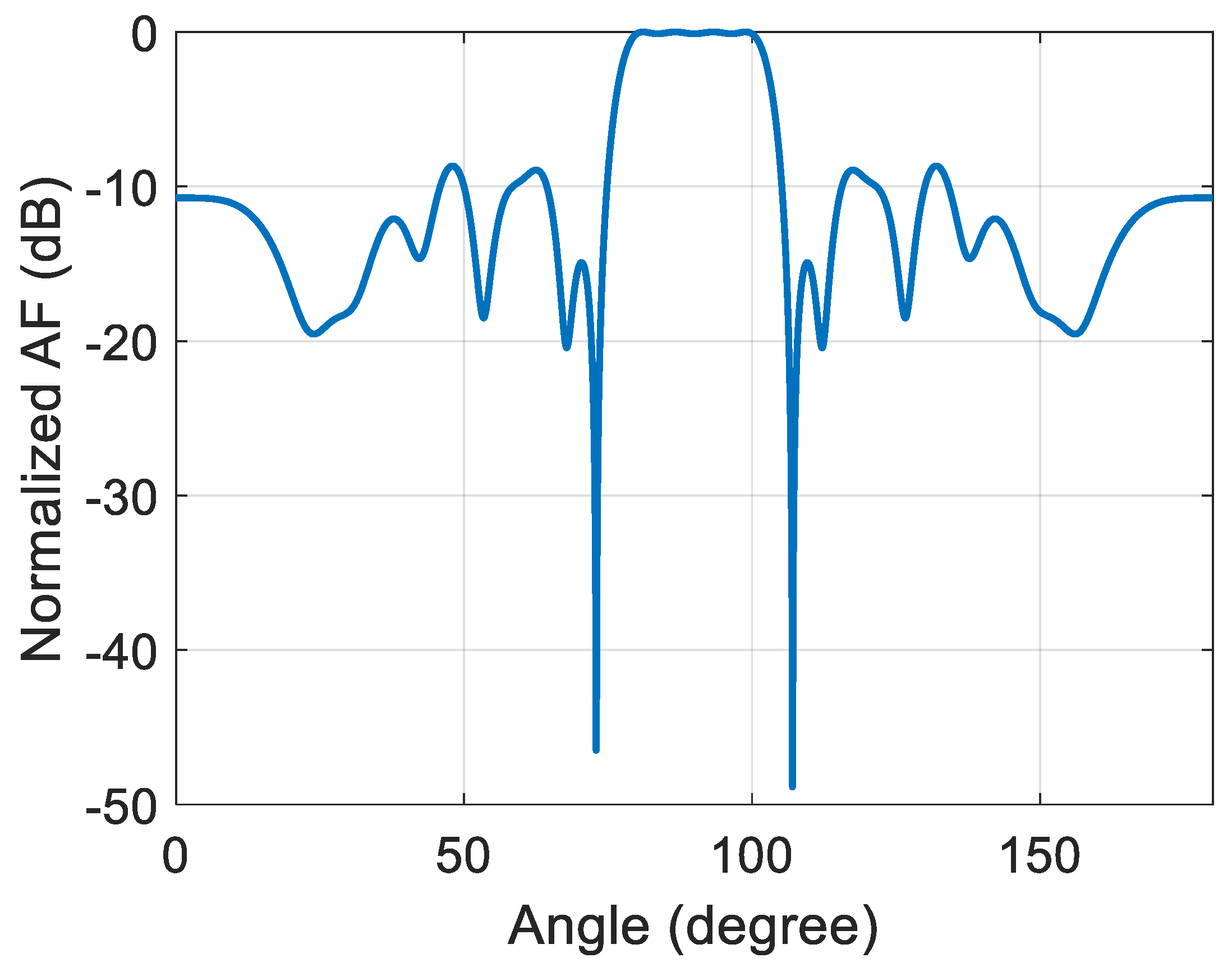

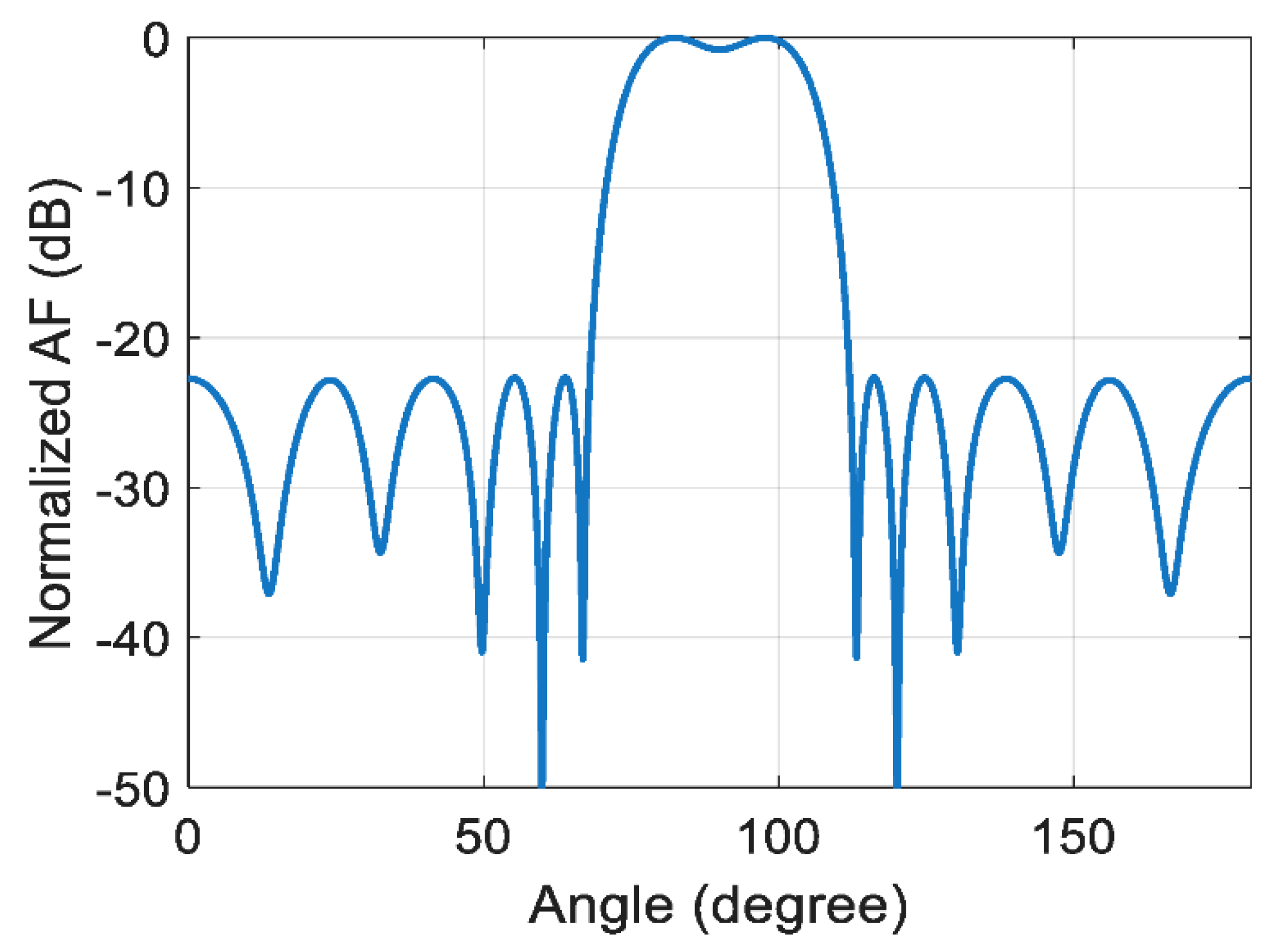

**Figure 5.**The normalized flat-top array factor for 20 element array antenna by modifying the excitation amplitude of the array antenna using FKE algorithm.

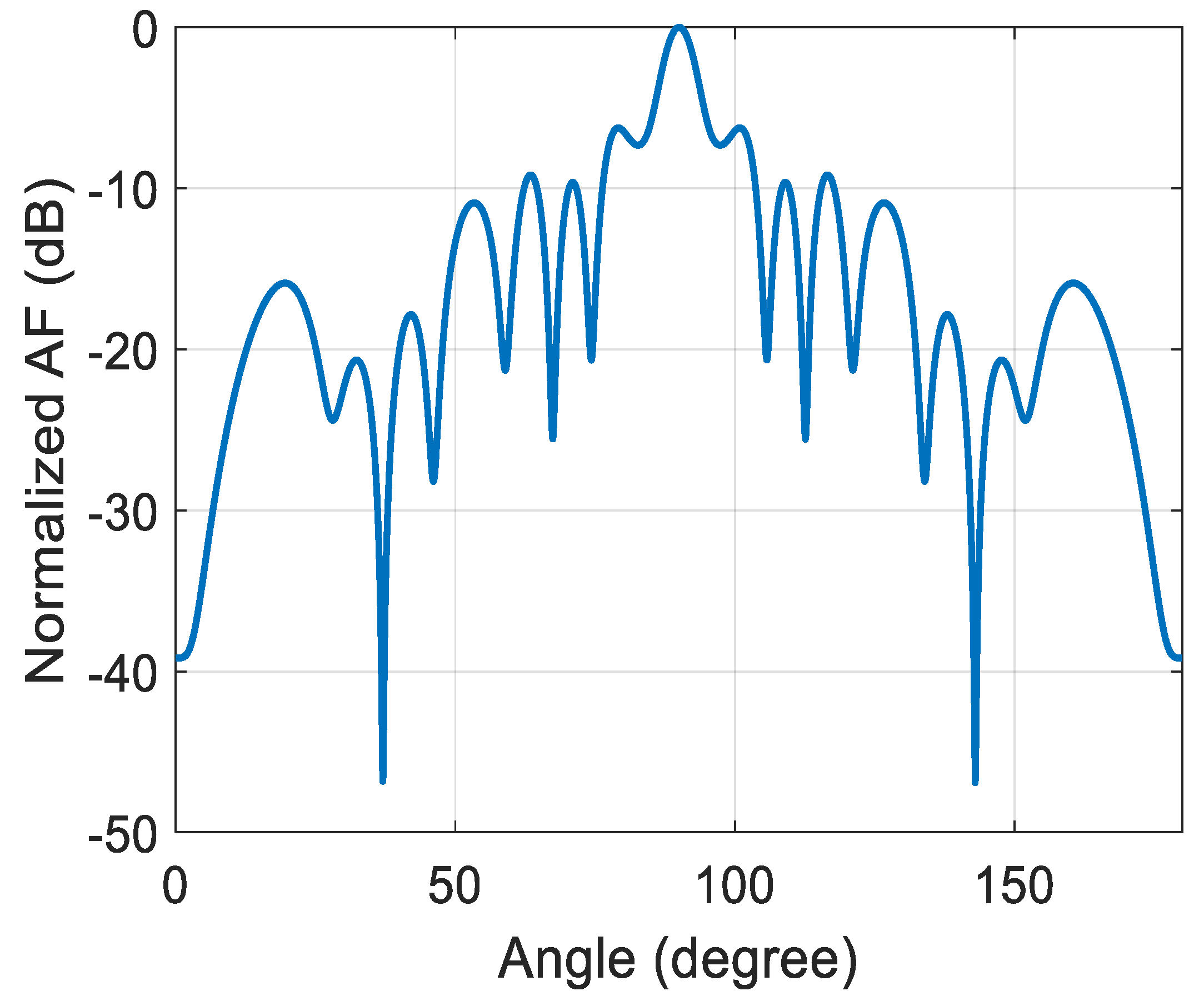

**Figure 6.**The normalized array factor for 20 element array antenna by modifying the inter-element spacing of the array antenna using FKE.

**Figure 7.**The normalized triangular-shaped array factor for 20 element array antenna by modifying the excitation amplitude of the array antenna using FKE.

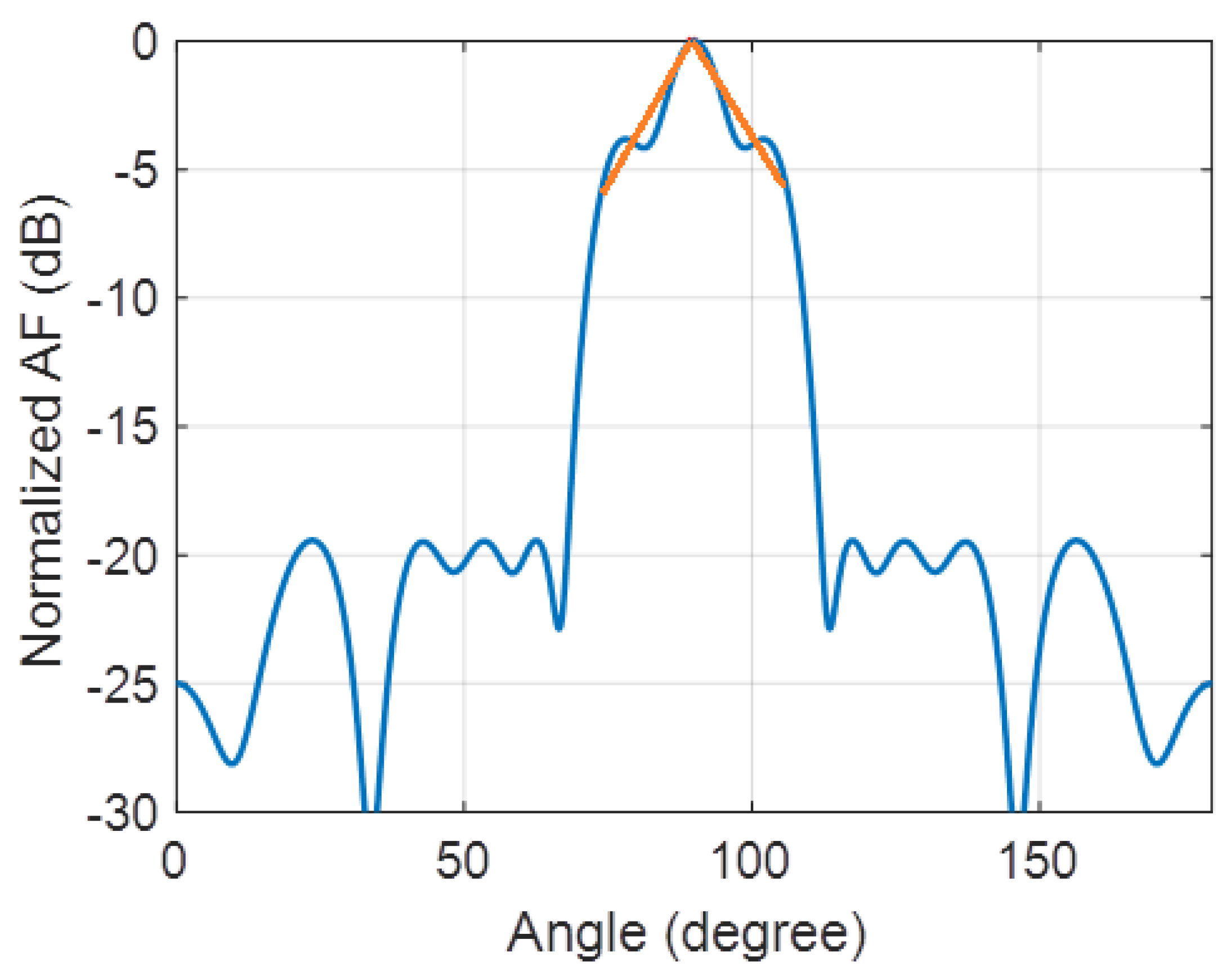

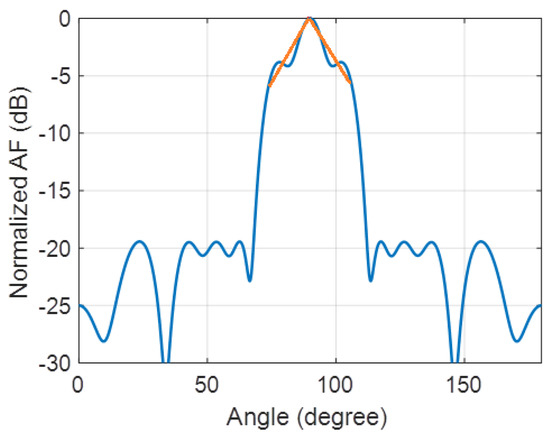

**Figure 8.**The normalized triangular array factor for 20 element array antenna by modifying the inter-element spacing of the array antenna using FKE algorithm.

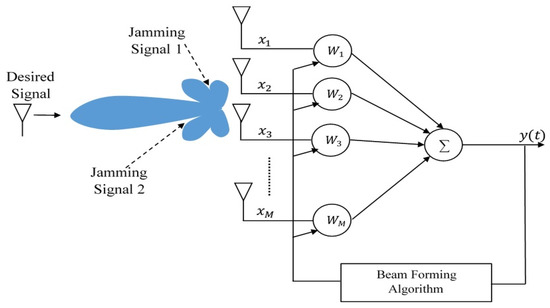

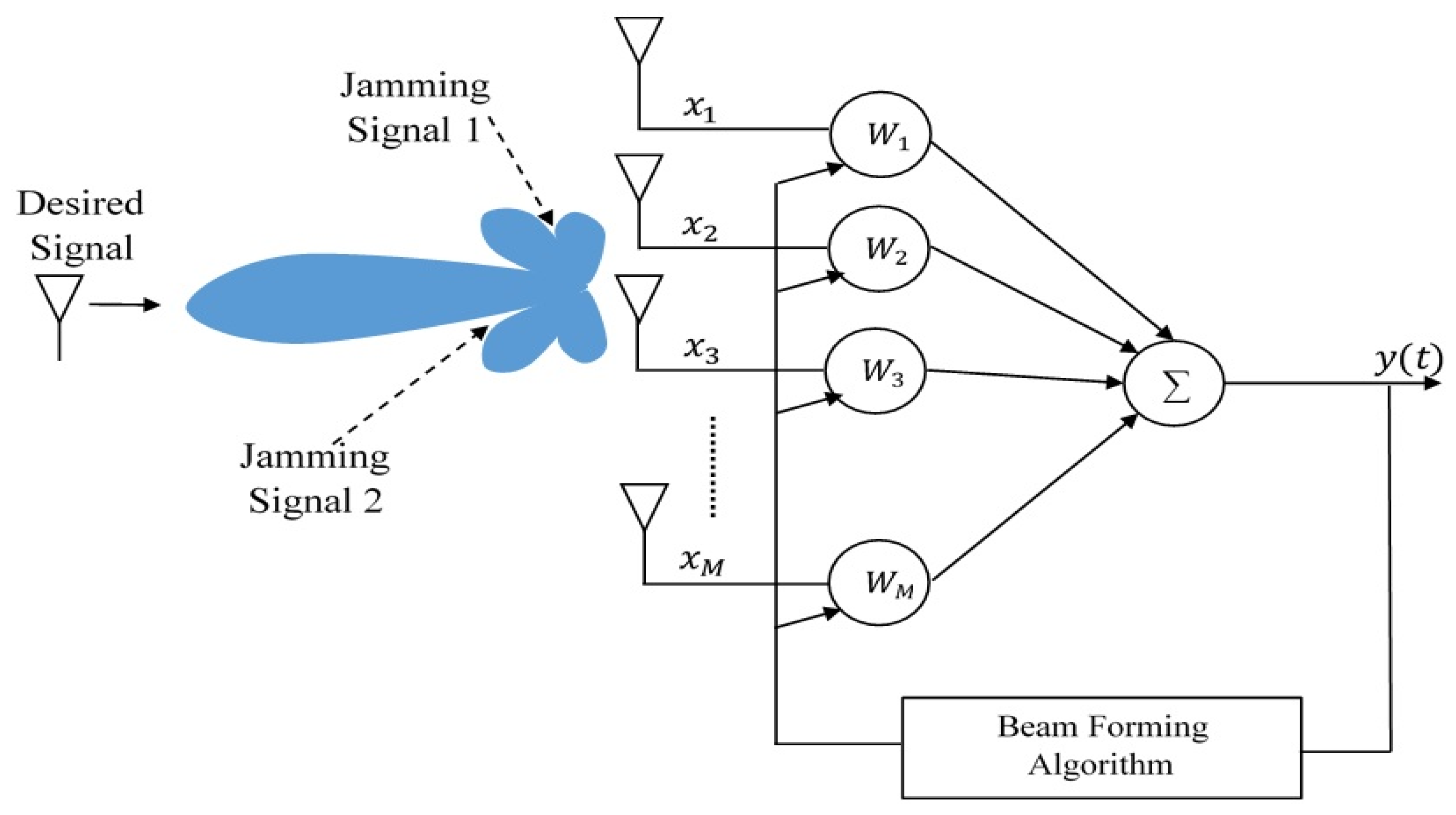

**Figure 9.**Smart antenna system with M-antenna elements [39].

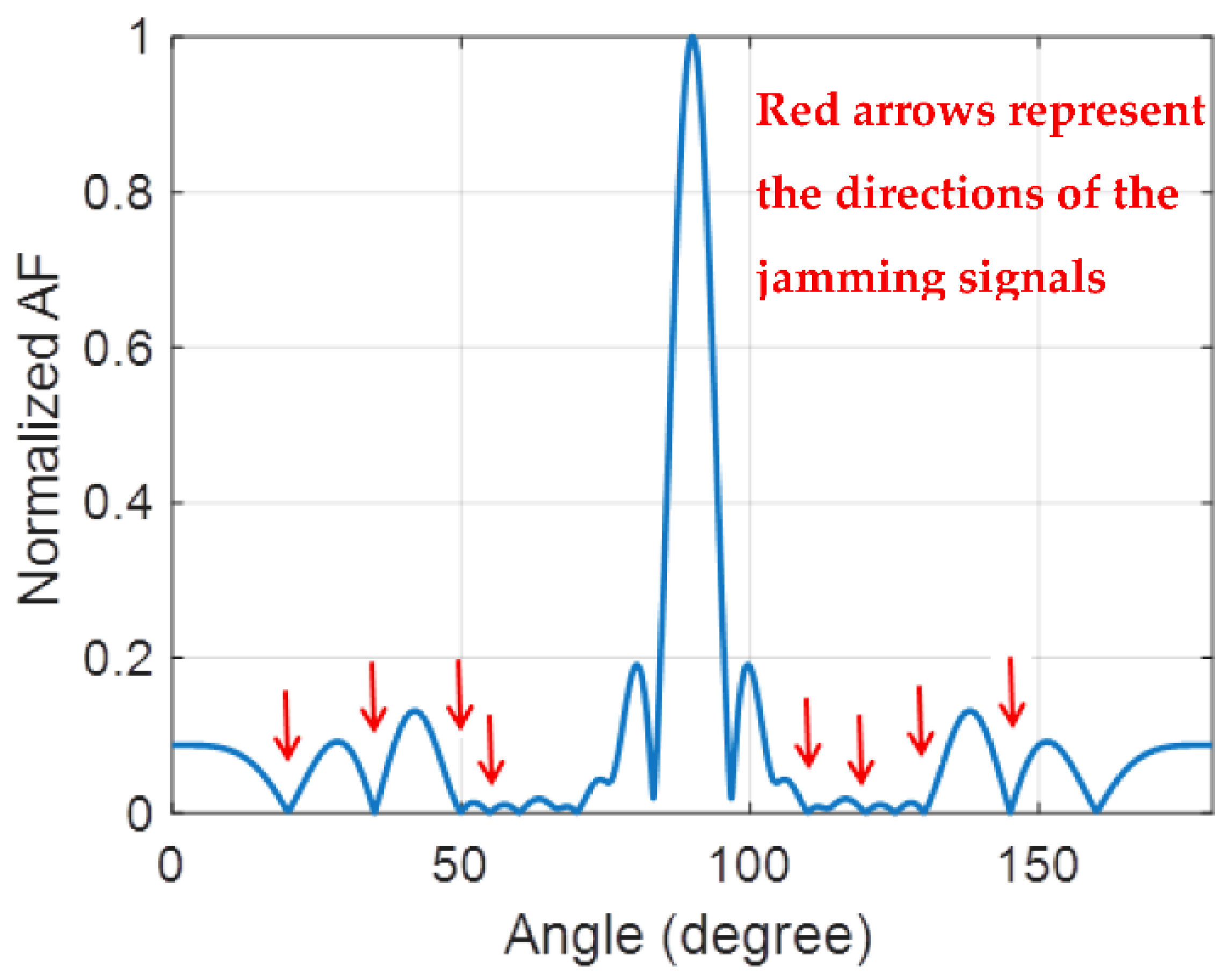

**Figure 10.**The normalized array factor for 20-element anti-jamming antenna by optimizing the excitation amplitude of the array antenna using FKE algorithm.

**Table 1.**The success rate (SR) of the proposed FKE algorithm, PSO, and GA for the sidelobe reduction using the magnitude of the excitation current (No. of runs = 30).

Algorithm | Best SLR (dB) | SR % |
---|---|---|

FKE (30 iterations) | 25.6023 | 100 |

PSO (300 iterations) | 24.6177 | 73.33 |

GA (300 iterations) | 24.8263 | 66.67 |

Element No. | Excitation Magnitude |
---|---|

1 | 0.3963 |

2 | 0.3788 |

3 | 0.4980 |

4 | 0.4905 |

5 | 0.5334 |

6 | 0.7778 |

7 | 0.8593 |

8 | 0.8714 |

9 | 0.9791 |

10 | 0.9578 |

11 | 0.9376 |

12 | 1.0000 |

13 | 0.9482 |

14 | 0.7375 |

15 | 0.8107 |

16 | 0.6890 |

17 | 0.6734 |

18 | 0.3582 |

19 | 0.4529 |

20 | 0.4590 |

**Table 3.**The success rate (SR) of the proposed FKE algorithm, PSO, and GA for the sidelobe reduction using the inter-element spacing (No. of runs = 30).

Algorithm | Best SLR (dB) | SR % |
---|---|---|

FKE (30 iterations only) | 24.0017 | 100 |

PSO (300 iterations) | 22.5721 | 40 |

GA (300 iterations) | 22.3245 | 33.33 |

**Table 4.**The best normalized value of inter-element spacing with respect to the wavelength (λ) using FKE.

Element No. | Normalized Element Spacing |
---|---|

1–2 | 0.8138 |

2–3 | 0.7410 |

3–4 | 0.5958 |

4–5 | 0.3971 |

5–6 | 0.4453 |

6–7 | 0.4016 |

7–8 | 0.3914 |

8–9 | 0.3398 |

9–10 | 0.4283 |

10–11 | 0.2739 |

11–12 | 0.3961 |

12–13 | 0.3602 |

13–14 | 0.3708 |

14–15 | 0.3773 |

15–16 | 0.4626 |

16–17 | 0.5098 |

17–18 | 0.4441 |

18–19 | 0.6857 |

19–20 | 0.7318 |

**Table 5.**The success rate (SR) of the proposed FKE algorithm, PSO, and GA for the flat-top pattern. (No. of runs = 30).

Flat-Top Regardless SLR | Flat-Top with Reduced Side Lobes | ||||
---|---|---|---|---|---|

Algorithm | Best Flat-Top Ripple (dB) | SR % | Algorithm | Best SLR (dB) | SR % |

FKE 50 iterations only | 0.1044 | 100 | FKE 30 iterations only | 23.4612 | 100 |

PSO 500 iterations | 0.2785 | 56.67 | PSO 300 iterations | 21.6342 | 43.33 |

GA 500 iterations | 0.2255 | 46.67 | GA 300 iterations | 20.8564 | 30 |

**Table 6.**The best normalized value of the amplitude of the excitation current and element spacing with respect to λ using FKE for flat-top pattern.

Flat-Top Regardless SLR | Flat-Top with Reduced Side Lobes | ||
---|---|---|---|

Element No. | Excitation Amplitude | Element No. | Normalized Element Spacing |

1 | −0.0126 | 1–2 | 0.3906 |

2 | −0.3447 | 2–3 | 0.6579 |

3 | −0.0309 | 3–4 | 0.6475 |

4 | 0.6800 | 4–5 | 0.4998 |

5 | 0.8999 | 5–6 | 0.2645 |

6 | 0.7992 | 6–7 | 0.3324 |

7 | 1.0000 | 7–8 | 0.3306 |

8 | 0.9985 | 8–9 | 0.4204 |

9 | 0.9001 | 9–10 | 0.4749 |

10 | 0.2385 | 10–11 | 0.4494 |

11 | −0.1494 | 11–12 | 0.4343 |

12 | −0.2813 | 12–13 | 0.2418 |

13 | 0.0128 | 13–14 | 0.2037 |

14 | −0.3478 | 14–15 | 0.6407 |

15 | −0.2256 | 15–16 | 0.3431 |

16 | 0.3540 | 16–17 | 0.5052 |

17 | 0.1807 | 17–18 | 0.1562 |

18 | −0.1175 | 18–19 | 0.4494 |

19 | 0.3787 | 19–20 | 0.1466 |

20 | −0.3687 |

**Table 7.**The success rate (SR) of the proposed FKE algorithm, PSO, and GA for the triangular pattern. (No. of runs = 30).

Triangular Pattern Regardless SLR | Triangular Pattern with Reduced Side Lobes | ||||
---|---|---|---|---|---|

Algorithm | Best Triangular Pattern Ripple (dB) | SR % | Algorithm | Best SLR (dB) | SR % |

FKE (50 iterations only) | 0.6345 | 100 | FKE 30 iterations only | 19.0123 | 100 |

PSO (500 iterations) | 0.7353 | 96.67 | PSO 300 iterations | 20.2093 | 30 |

GA (500 iterations) | 0.6453 | 93.33 | GA 300 iterations | 19.5364 | 36.67 |

**Table 8.**The best normalized value of the amplitude of the excitation current and element spacing with respect to λ using FKE for triangular pattern.

Triangular Pattern Regardless SLR | Triangular Pattern with Reduced Side Lobes | ||
---|---|---|---|

Element No. | Excitation Amplitude | Element No. | Normalized Element Spacing |

1 | 0.8004 | 1–2 | 0.3906 |

2 | 0.2412 | 2–3 | 0.6579 |

3 | −0.2876 | 3–4 | 0.6475 |

4 | −0.2911 | 4–5 | 0.4998 |

5 | 0.1939 | 5–6 | 0.2645 |

6 | 0.0115 | 6–7 | 0.3324 |

7 | −0.0081 | 7–8 | 0.3306 |

8 | 0.3175 | 8–9 | 0.4204 |

9 | 0.4632 | 9–10 | 0.4749 |

10 | 0.6449 | 10–11 | 0.4494 |

11 | 0.9564 | 11–12 | 0.4343 |

12 | 1.0000 | 12–13 | 0.2418 |

13 | 0.6030 | 13–14 | 0.2037 |

14 | 0.8111 | 14–15 | 0.6407 |

15 | 0.4692 | 15–16 | 0.3431 |

16 | −0.1326 | 16–17 | 0.5052 |

17 | −0.0892 | 17–18 | 0.1562 |

18 | 0.3432 | 18–19 | 0.4494 |

19 | 0.3022 | 19–20 | 0.1466 |

20 | 0.3836 |

**Table 9.**The success rate (SR) of the proposed FKE algorithm, PSO, and GA for the anti-jamming smart antenna system (No. of runs = 30).

Algorithm | SR % |
---|---|

FKE (30 iterations only) | 100 |

PSO (300 iterations) | 100 |

GA (300 iterations) | 100 |

**Table 10.**The best normalized value of the magnitude of the excitation current using FKE algorithm for anti-jamming optimization.

Element No. | Excitation Amplitude |
---|---|

1 | 0.2876 |

2 | 0.5281 |

3 | 0.7154 |

4 | 1.0000 |

5 | 0.6386 |

6 | 0.7782 |

7 | 0.5270 |

8 | 0.5188 |

9 | 0.5191 |

10 | 0.3633 |

11 | 0.3661 |

12 | 0.3836 |

13 | 0.4718 |

14 | 0.4543 |

15 | 0.7104 |

16 | 0.7682 |

17 | 0.9019 |

18 | 0.9885 |

19 | 0.4997 |

20 | 0.4370 |

**Table 11.**The average CPU time, average memory size, and the average SR of FKE algorithm compared to that of the PSO and GA.

Algorithm | Average CPU Time (s) | Average Memory Size (byte) | Average SR % |
---|---|---|---|

FKE (30 iterations) | 30.863 | 4,046,848 | 100 |

PSO (300 iterations) | 31.387 | 2,072,576 | 62.857 |

GA (300 iterations) | 28.614 | 1,975,724 | 58.906 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Alnahwi, F.M.; Al-Yasir, Y.I.A.; Sattar, D.; Ali, R.S.; See, C.H.; Abd-Alhameed, R.A.
A New Optimization Algorithm Based on the Fungi Kingdom Expansion Behavior for Antenna Applications. *Electronics* **2021**, *10*, 2057.
https://doi.org/10.3390/electronics10172057

**AMA Style**

Alnahwi FM, Al-Yasir YIA, Sattar D, Ali RS, See CH, Abd-Alhameed RA.
A New Optimization Algorithm Based on the Fungi Kingdom Expansion Behavior for Antenna Applications. *Electronics*. 2021; 10(17):2057.
https://doi.org/10.3390/electronics10172057

**Chicago/Turabian Style**

Alnahwi, Falih M., Yasir I. A. Al-Yasir, Dunia Sattar, Ramzy S. Ali, Chan Hwang See, and Raed A. Abd-Alhameed.
2021. "A New Optimization Algorithm Based on the Fungi Kingdom Expansion Behavior for Antenna Applications" *Electronics* 10, no. 17: 2057.
https://doi.org/10.3390/electronics10172057
