Next Article in Journal
Investigation of Element Effect on High-Temperature Oxidation of HVOF NiCoCrAlX Coatings
Previous Article in Journal
Effects of Long-Term Static Bending Deformation on a Barrier Thin Film for Flexible Organic Optoelectronic Devices
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle
Coatings 2018, 8(4), 128; https://doi.org/10.3390/coatings8040128

Thickness-Dependent Bioelectrochemical and Energy Applications of Thickness-Controlled Meso-Macroporous Antimony-Doped Tin Oxide

1
School of Molecular Sciences, Arizona State University, Tempe, AZ 85287-1604, USA
2
Biodesign Center for Innovation in Medicine at Biodesign Institute, Arizona State University, Tempe, AZ 85287, USA
*
Author to whom correspondence should be addressed.
Received: 31 December 2017 / Revised: 17 March 2018 / Accepted: 28 March 2018 / Published: 2 April 2018
Full-Text   |   PDF [5070 KB, uploaded 3 May 2018]   |

Abstract

Coatings of hierarchically meso-macroporous antimony-doped tin oxide (ATO) enable interfacing adsorbed species, such as biomacromolecules, with an electronic circuit. The coating thickness is a limiting factor for the surface coverage of adsorbates, that are electrochemically addressable. To overcome this challenge, a carbon black-based templating method was developed by studying the composition of the template system, and finding the right conditions for self-standing templates, preventing the reaction mixture from flowing out of the mask. The thicknesses of as-fabricated coatings were measured using stylus profilometry to establish a relationship between the mask thickness and the coating thickness. Cyclic voltammetry was performed on coatings with adsorbed cytochrome c to check whether the entire coating thickness was electrochemically addressable. Further, bacterial photosynthetic reaction centers were incorporated into the coatings, and photocurrent with respect to coating thickness was studied. The template mixture required enough of both carbon black and polymer, roughly 7% carbon black and 6% poly(ethylene glycol). Coatings were fabricated with thicknesses approaching 30 µm, and thickness was shown to be controllable up to at least 15 µm. Under the experimental conditions, photocurrent was found to increase linearly with the coating thickness, up to around 12 µm, above which were diminished gains. View Full-Text
Keywords: thick coatings; hierarchically porous; meso-macroporous; biomacromolecule; TCO; ATO; nanomaterials; carbon black thick coatings; hierarchically porous; meso-macroporous; biomacromolecule; TCO; ATO; nanomaterials; carbon black

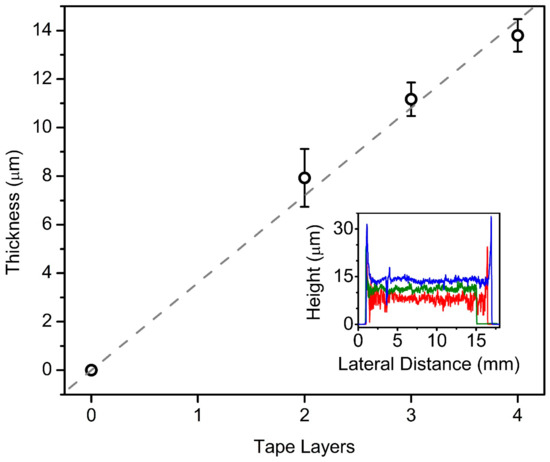

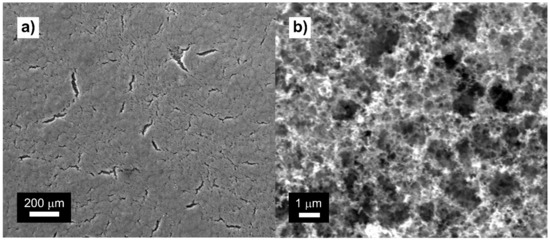

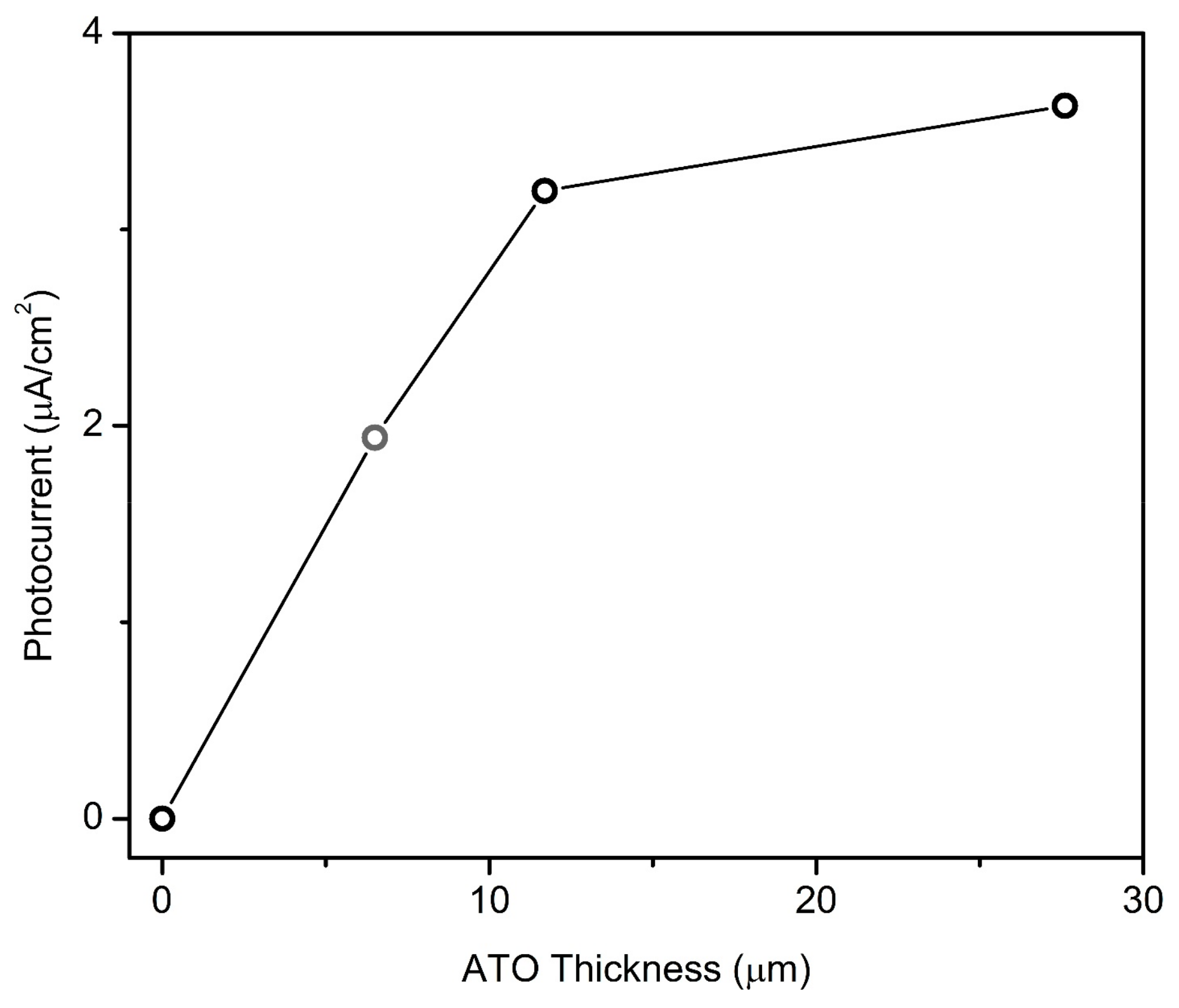

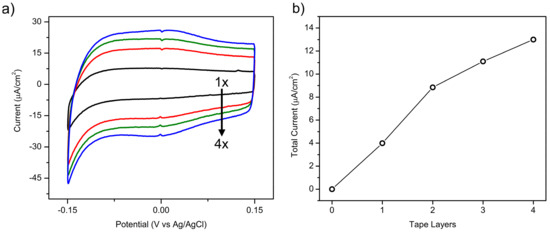

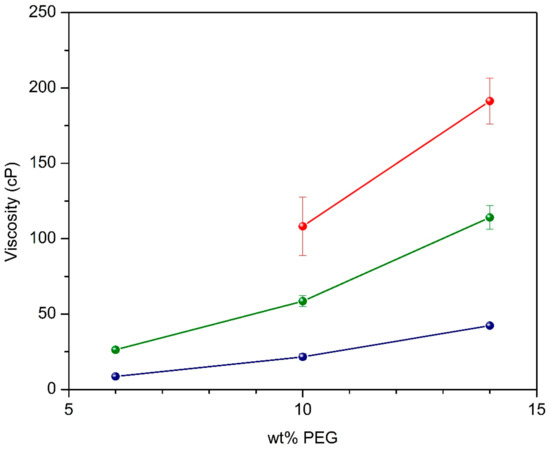

Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Mieritz, D.; Liang, R.; Zhang, H.; Carey, A.-M.; Chen, S.; Volosin, A.; Lin, S.; Woodbury, N.; Seo, D.-K. Thickness-Dependent Bioelectrochemical and Energy Applications of Thickness-Controlled Meso-Macroporous Antimony-Doped Tin Oxide. Coatings 2018, 8, 128.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
