Next Article in Journal
Influence of Cu Content on the Structure, Mechanical, Friction and Wear Properties of VCN–Cu Films
Previous Article in Journal
Bacterial Biofilm Characterization and Microscopic Evaluation of the Antibacterial Properties of a Photocatalytic Coating Protecting Building Material
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Coatings 2018, 8(3), 94; https://doi.org/10.3390/coatings8030094

Study of Topography and Distribution State of the Nanoscale Passivation Film on a Rough Tinplate Surface

School of Chemistry and Chemical Engineering, Harbin Institute of Technology, Harbin 150001, China
*
Author to whom correspondence should be addressed.
Received: 10 January 2018 / Revised: 20 February 2018 / Accepted: 1 March 2018 / Published: 6 March 2018
Full-Text   |   PDF [5559 KB, uploaded 6 March 2018]   |

Abstract

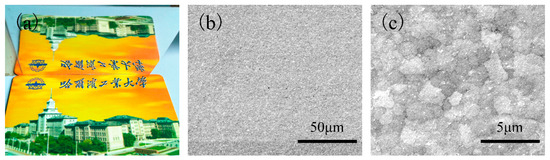

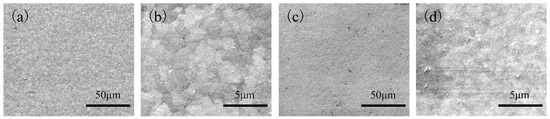

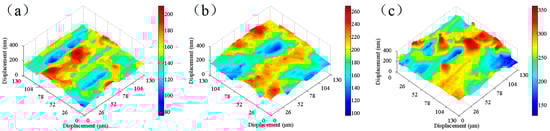

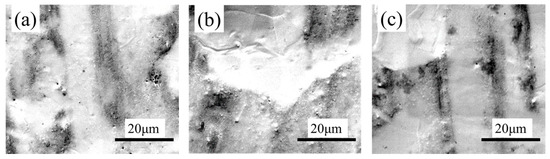

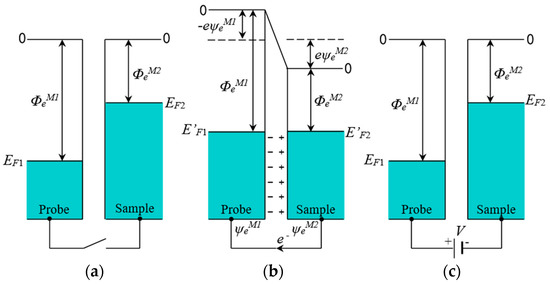

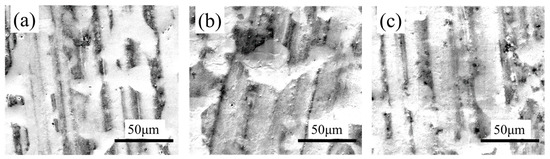

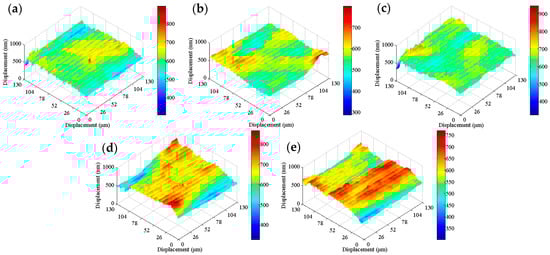

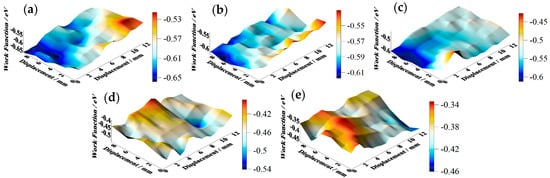

Topography observation of the nanoscale passivation film on tinplate using a scanning electron microscope and an electro-optical surface profilometer showed that it was difficult to observe the true topography because of the high surface roughness of the tinplate. Topography observation using a profilometer on bright tin plating with low surface roughness and work function measurement on tinplate surface using a Scanning Kelvin Probe Microscope (SKPM) were then carried out to solve the problem. The results indicated that there was a thin chemical passivation film distributed uniformly in different areas of microscopic bulges and valleys on the tinplate surface, and the film became more uniform with longer passivation time. In comparison, the electrolytic passivation film was thick, and the distribution uniformity was poorer. Specifically, the film was thicker on microscopic bulges and thinner in microscopic valleys, and this was worse with longer passivation time. Thus, the difference in performances of the corrosion and paint adhesion of the tinplate treated with different passivation processes can be explained in terms of the topography and distribution state of the passivation film. View Full-Text
Keywords: tinplate; passivation film; surface topography; distribution state; roughness; work function tinplate; passivation film; surface topography; distribution state; roughness; work function
Figures

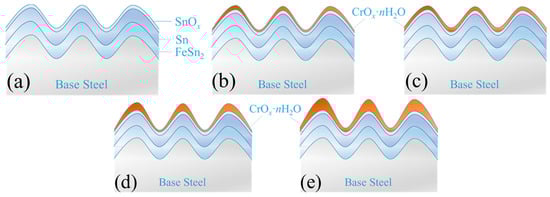

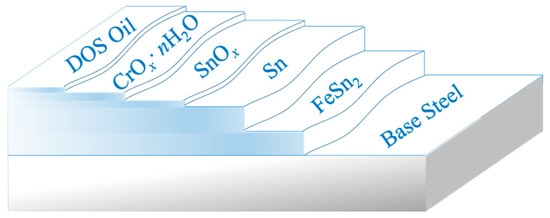

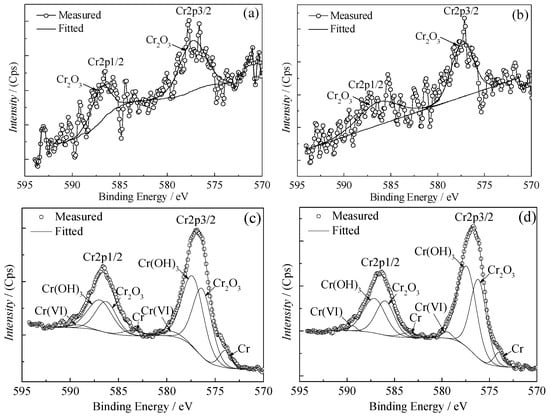

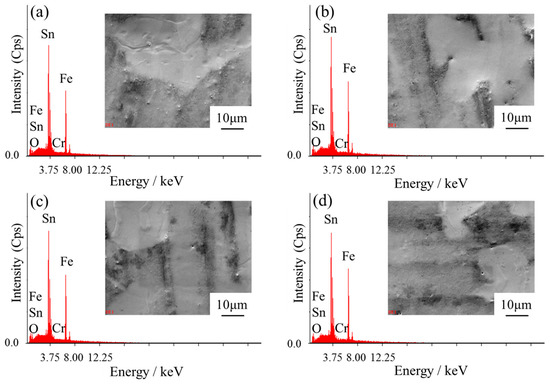

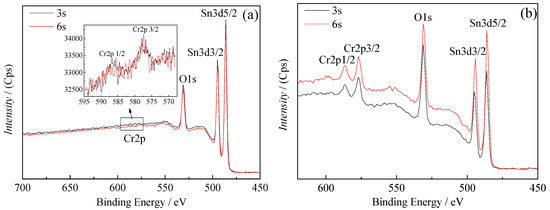

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, M.; Wang, Z.; Li, D.; Li, N. Study of Topography and Distribution State of the Nanoscale Passivation Film on a Rough Tinplate Surface. Coatings 2018, 8, 94.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
