Effects of V and Cr on Laser Cladded Fe-Based Coatings

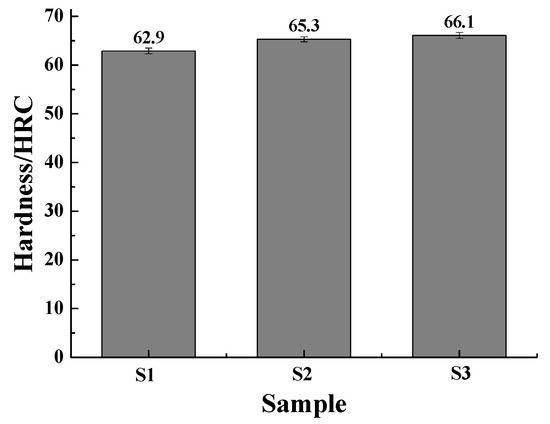

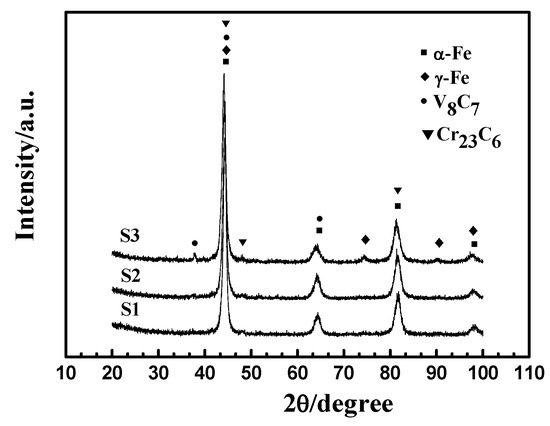

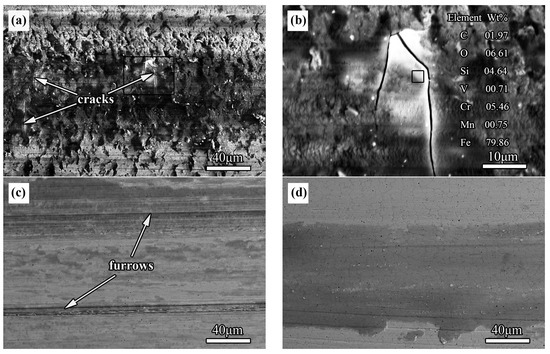

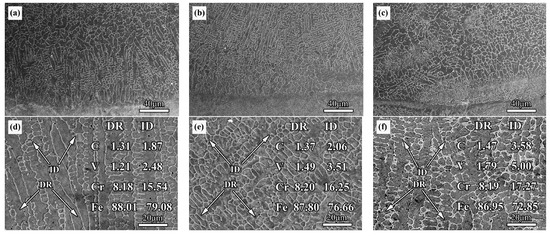

AbstractFe-based coatings with high V and Cr content were obtained by laser cladding using Fe-based powder with different Cr3C2 and FeV50 content. The results showed that Fe-based coatings were uniform and dense. The constituent phases were mainly composed of α-Fe solid solution with the increase of Cr3C2 and FeV50, γ-Fe and V8C7 phases were achieved. The microstructure of the coatings exhibited a typical dendrite structure. The concentration of C, V and Cr were saturated in dendritic areas, and the other alloying elements were mainly dissolved in the interdendritic areas. The hardness and wear resistance of Fe-based coatings were enhanced with the Cr3C2 and FeV50 addition. The specimen with 15% Cr3C2 and 16% FeV50 had the highest hardness of 66.1 ± 0.6 HRC, which was 1.05 times higher than the sample with 4.5% Cr3C2 and 5% FeV50, and the wear resistance of the former was three times greater than the latter. View Full-Text
Share & Cite This Article
Wang, H.; Zhang, S.; Zhang, C.; Wu, C.; Zhang, J.; Abdullah, A.O. Effects of V and Cr on Laser Cladded Fe-Based Coatings. Coatings 2018, 8, 107.
Wang H, Zhang S, Zhang C, Wu C, Zhang J, Abdullah AO. Effects of V and Cr on Laser Cladded Fe-Based Coatings. Coatings. 2018; 8(3):107.Chicago/Turabian Style
Wang, Haiyang; Zhang, Song; Zhang, Chunhua; Wu, Chenliang; Zhang, Jingbo; Abdullah, Adil O. 2018. "Effects of V and Cr on Laser Cladded Fe-Based Coatings." Coatings 8, no. 3: 107.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
