Next Article in Journal
Improved Corrosion Resistance of 5XXX Aluminum Alloy by Homogenization Heat Treatment
Next Article in Special Issue
Thermal Growth of Graphene: A Review
Previous Article in Journal
Effect of Al-B2O3-TiO2 Exothermic System on Performances of Fly Ash Glass/Ceramic Composite Coating
Previous Article in Special Issue
Photovoltaic Effect in Graphene/MoS2/Si Van der Waals Heterostructures
Article Menu
Issue 1 (January) cover image

Export Article

Open AccessArticle

Synthesis, Characterization, and Application of Novel Ni-P-Carbon Nitride Nanocomposites

Center for Advanced Materials, Qatar University, Doha 2713, Qatar
Department of Metallurgical and Materials Engineering, Faculty of Petroleum and Mining Engineering, Suez University, Suez 43721, Egypt
Department of Mechanical Engineering, Dalhousie University, Halifax, NS B3J 2X4, Canada
Author to whom correspondence should be addressed.
Permanent address: Physical Chemistry Department, National Research Center, Dokki, Giza 12622, Egypt.
Coatings 2018, 8(1), 37;
Received: 28 November 2017 / Revised: 10 January 2018 / Accepted: 15 January 2018 / Published: 17 January 2018
PDF [4490 KB, uploaded 18 January 2018]

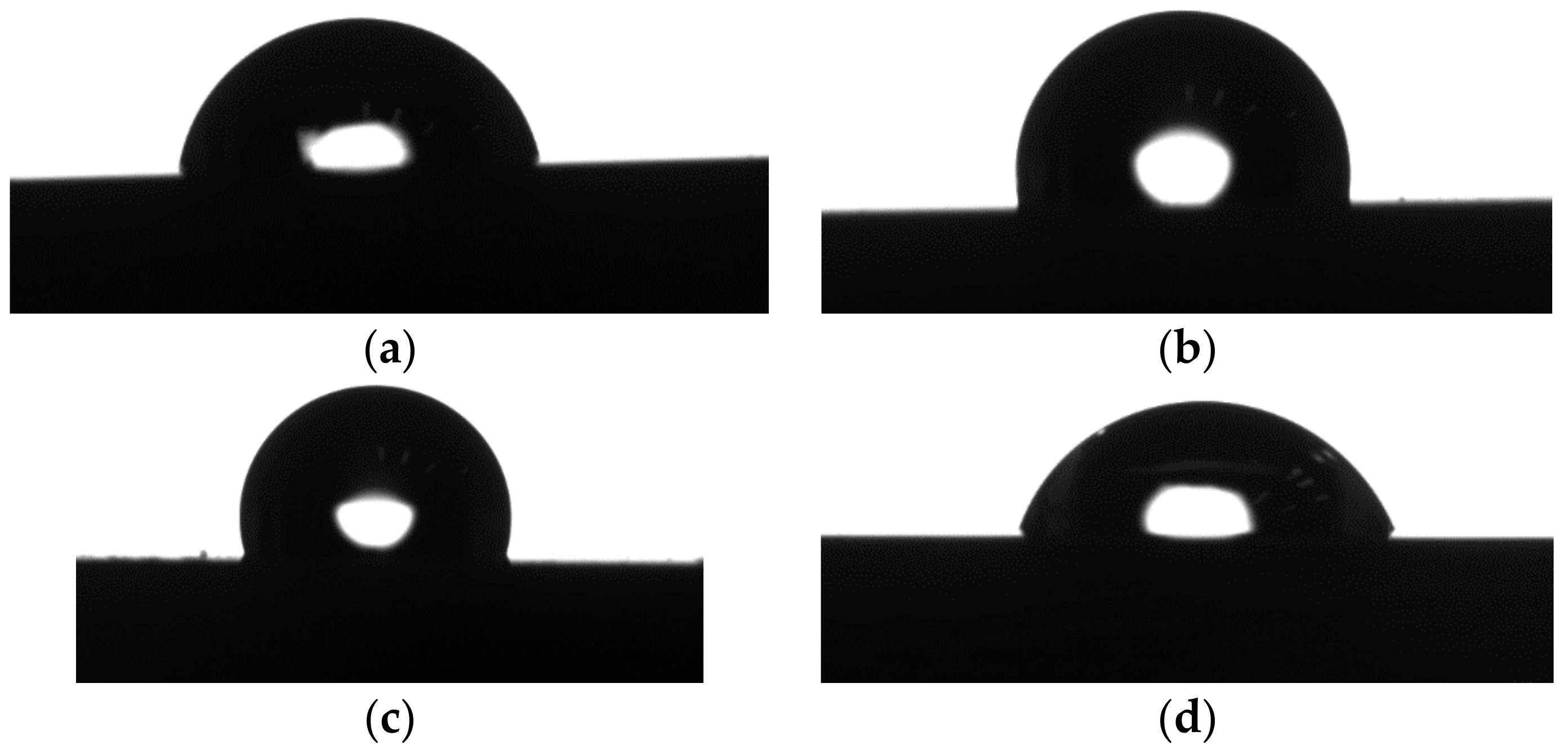

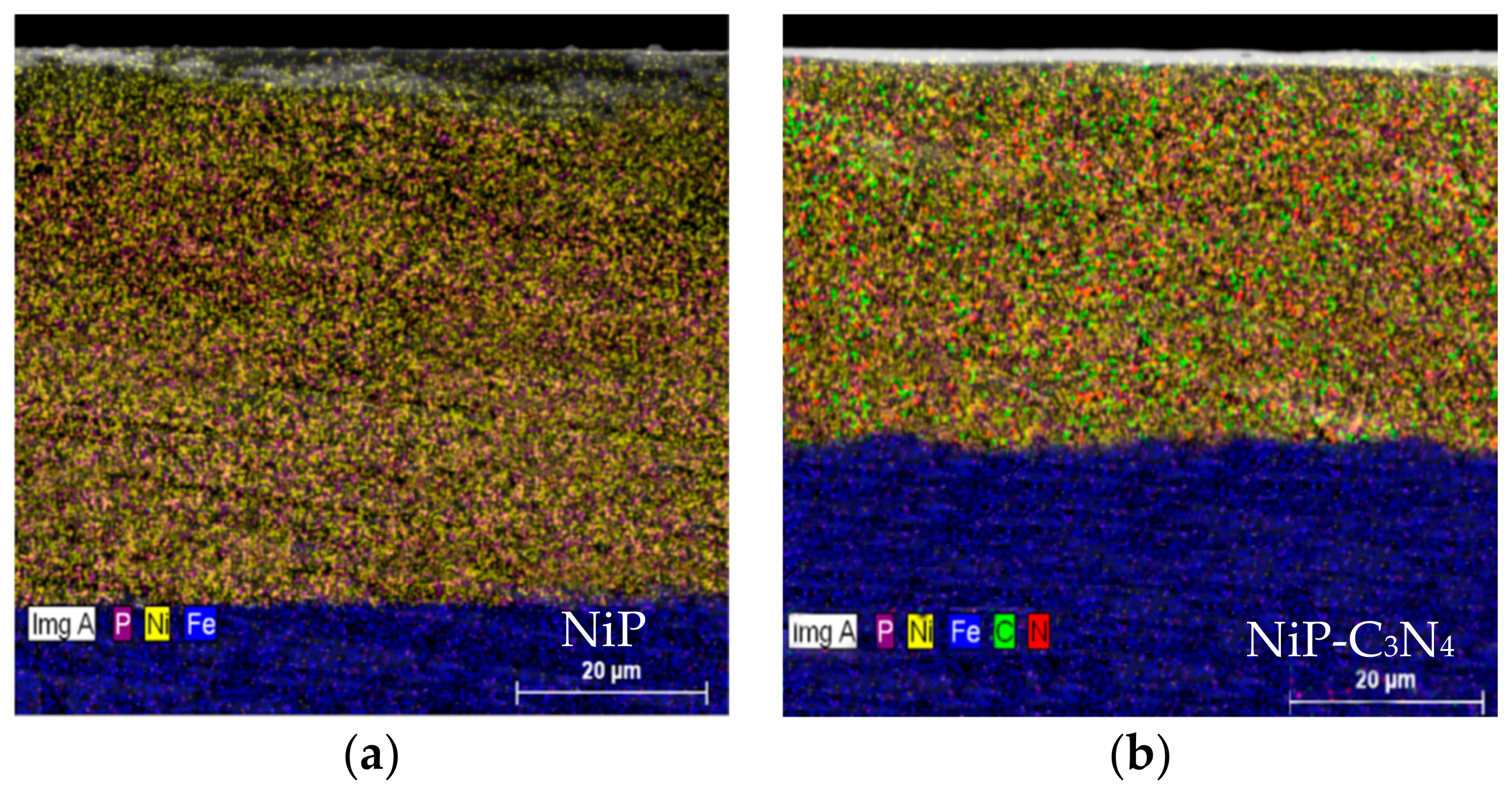

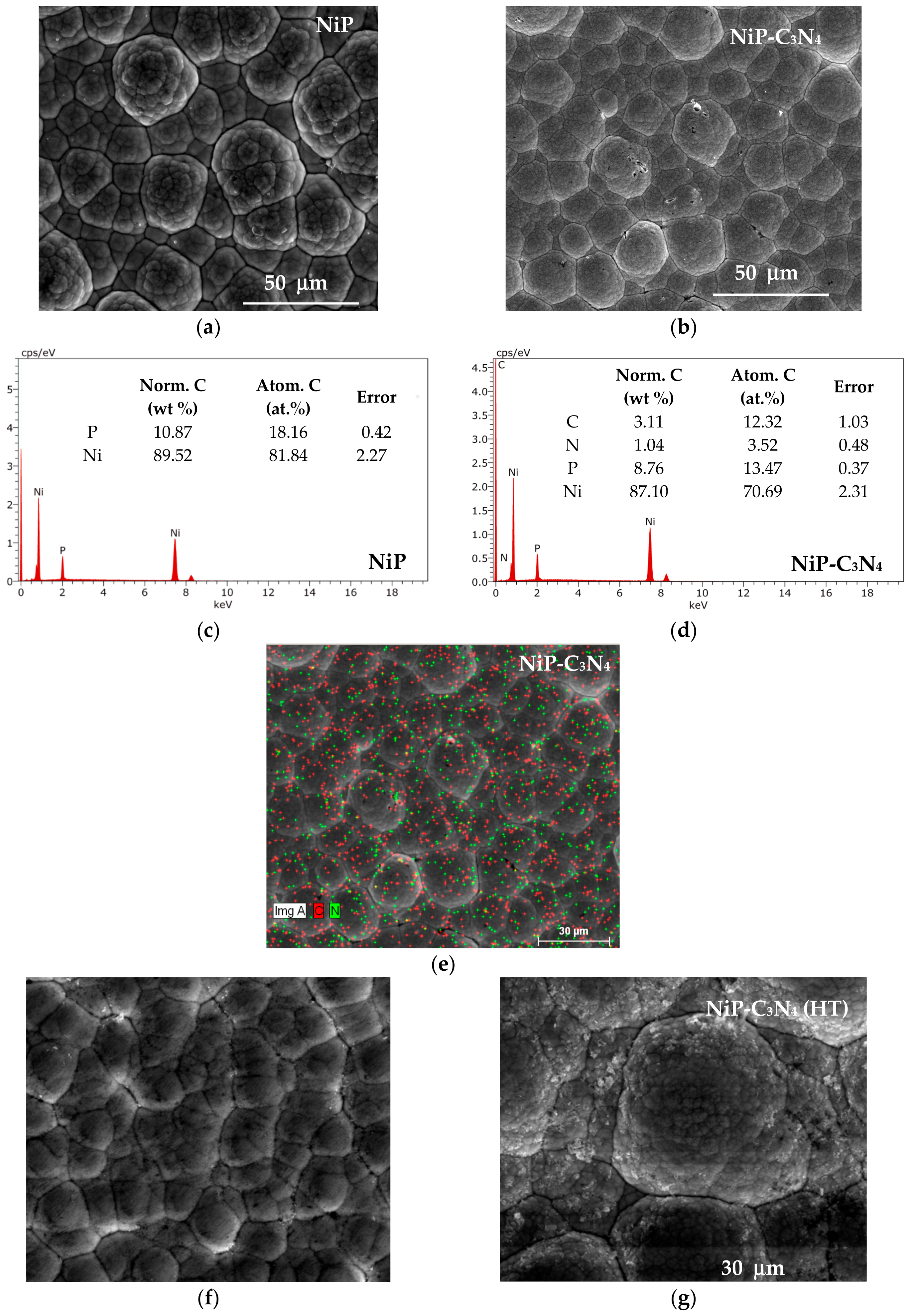

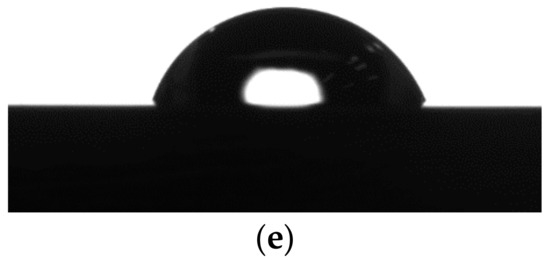

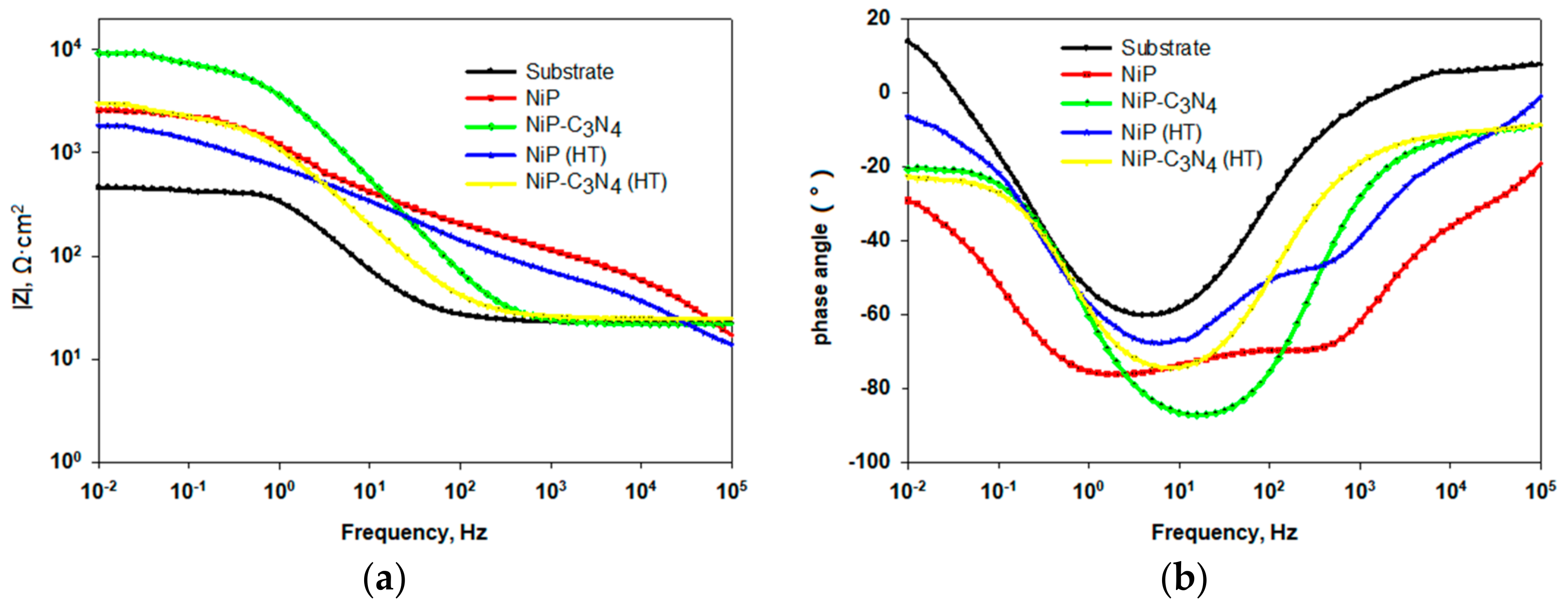

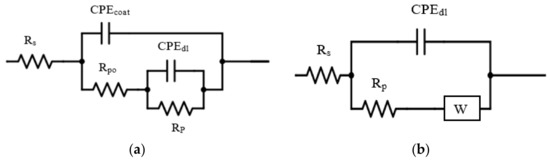

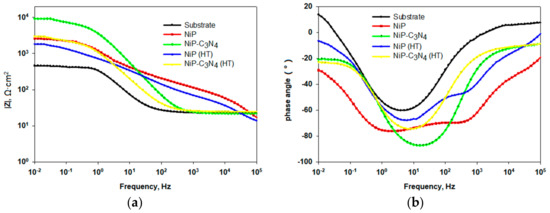

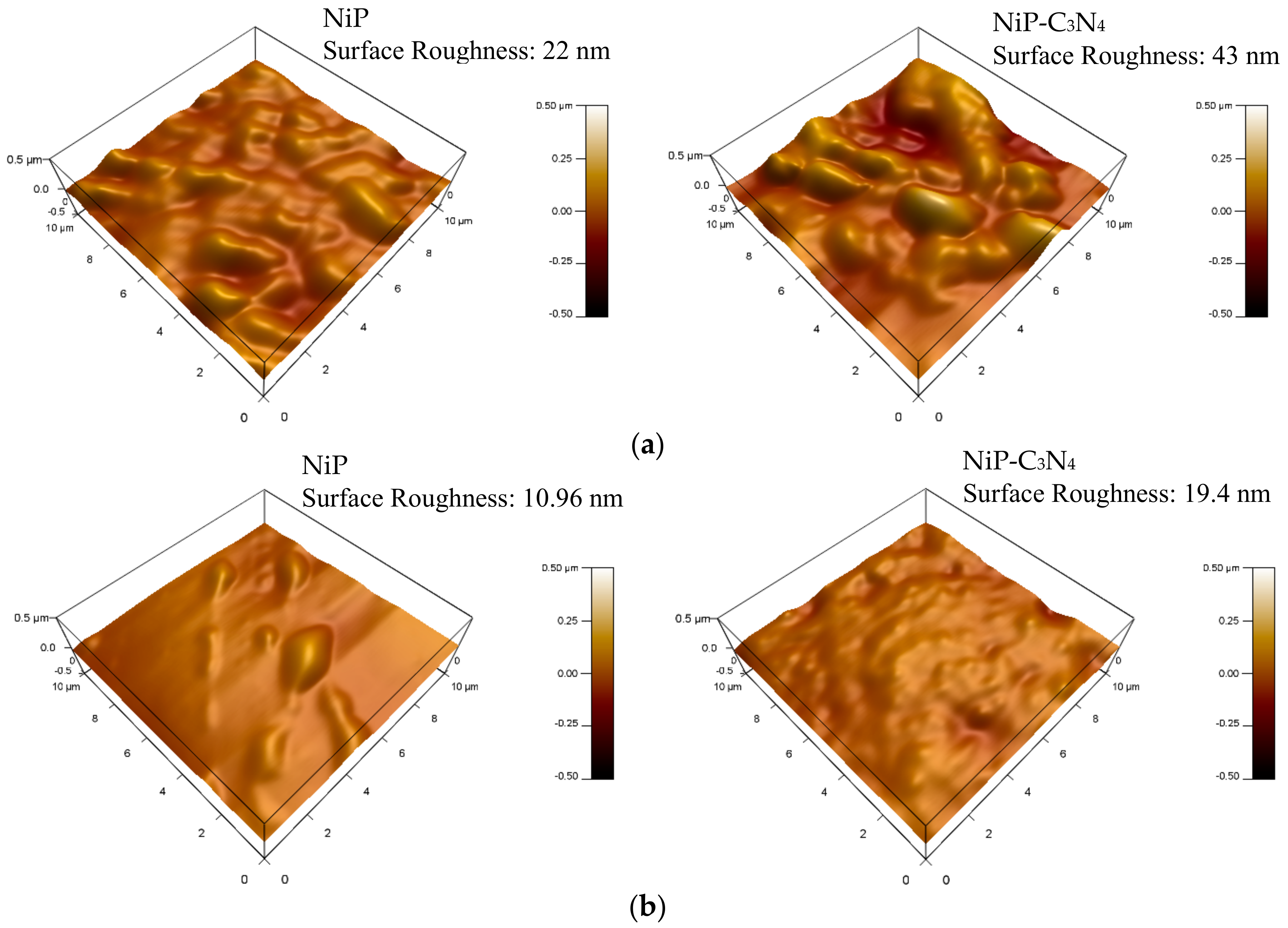

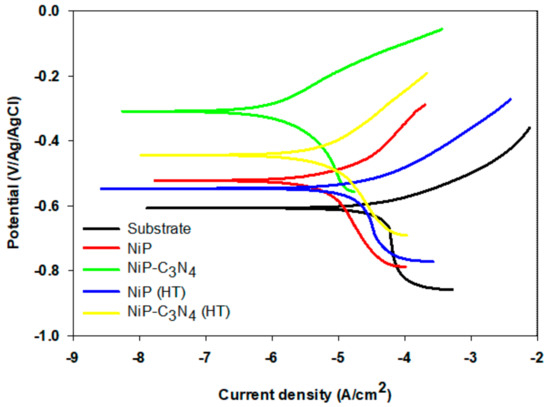

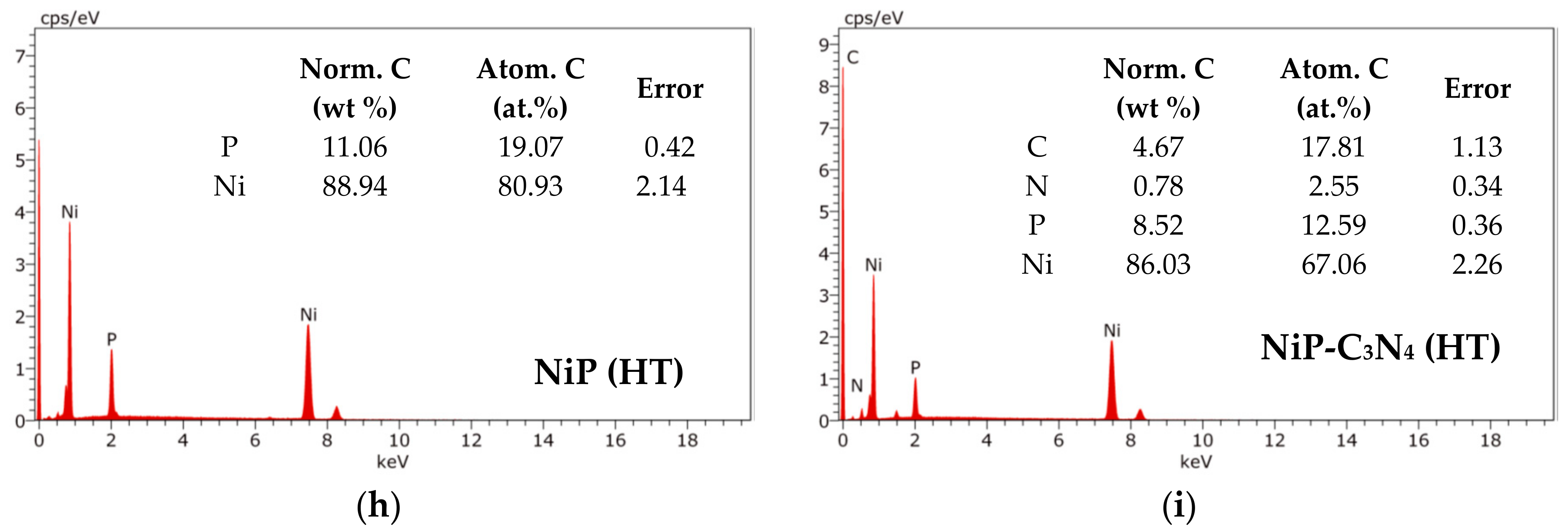

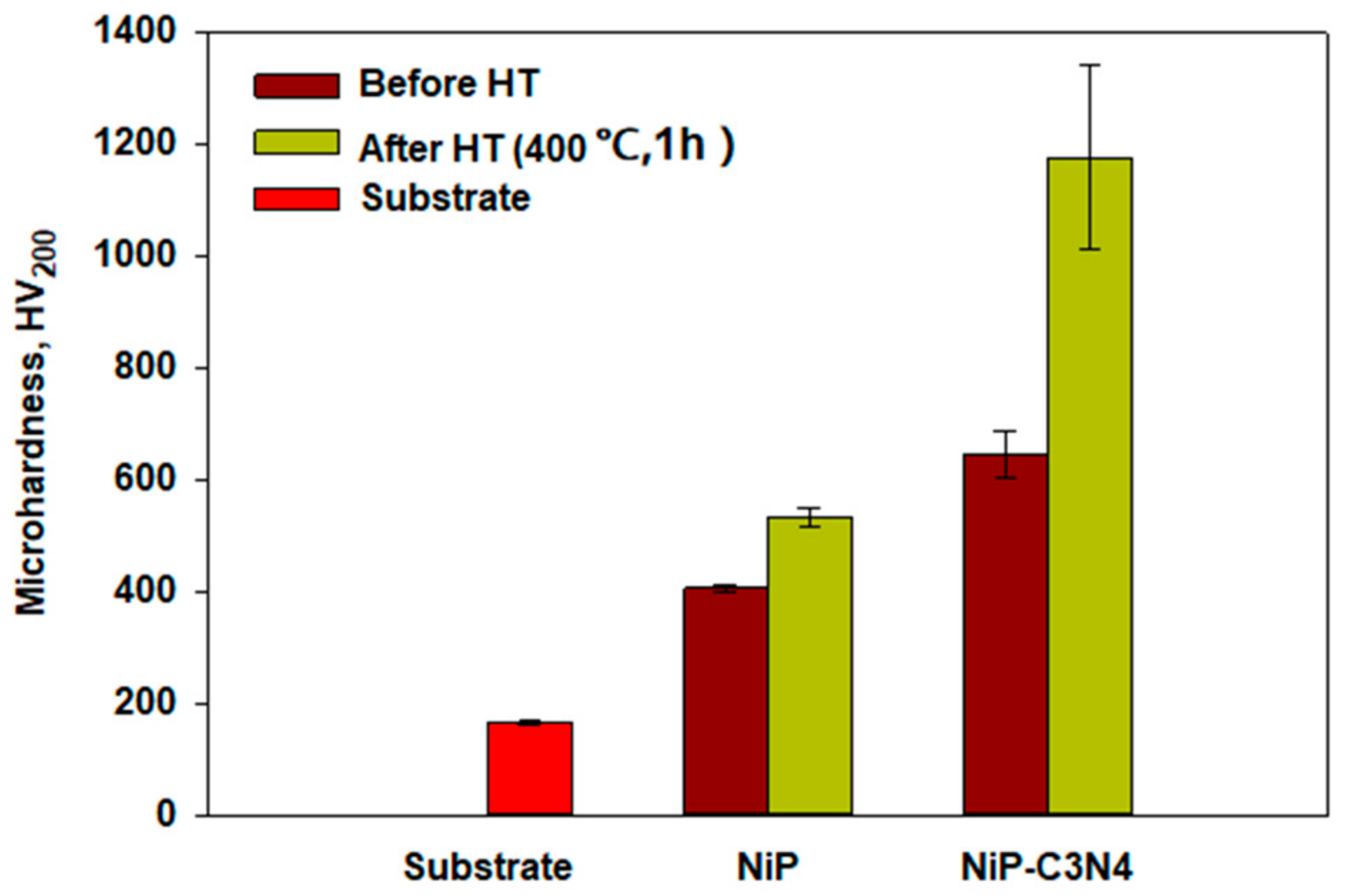

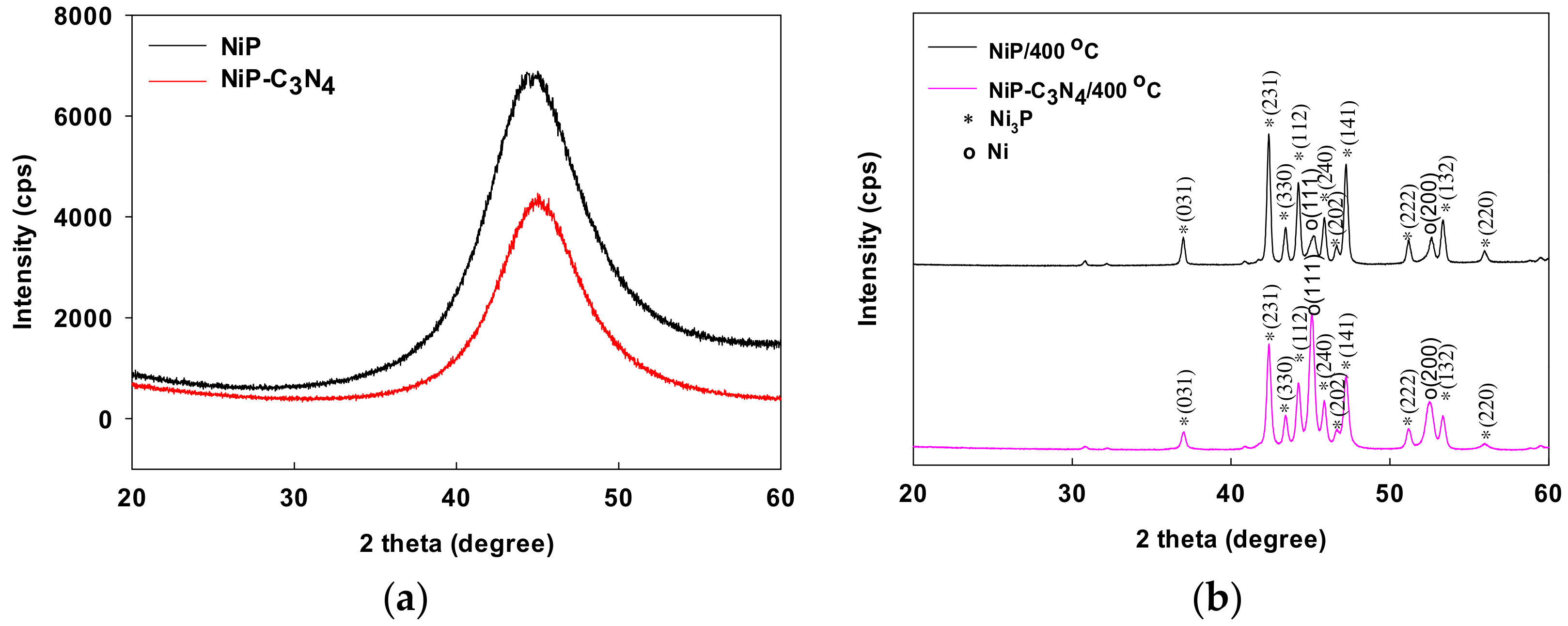

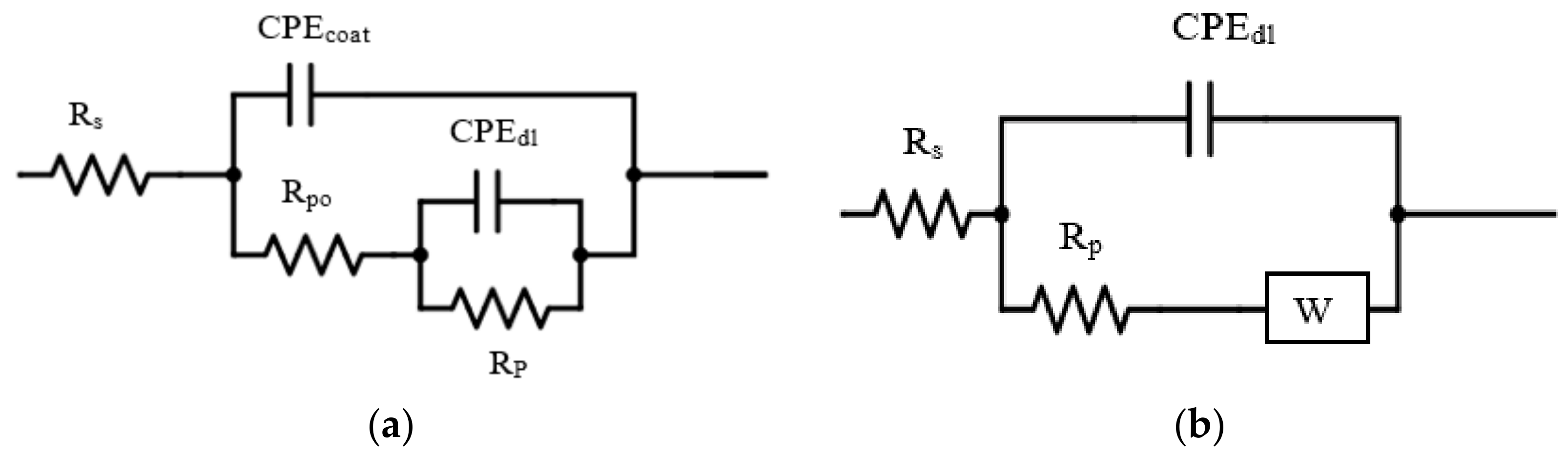

Dispersion of 2D carbon nitride (C3N4) nanosheets into a nickel phosphorous (NiP) matrix was successfully achieved by ultrasonication during the electroless plating of NiP from an acidic bath. The morphology and thickness, elemental analysis, phases, roughness, and wettability for as-plated and heat-treated nanocomposite were determined by scanning electron microscopy, energy-dispersive X-ray spectroscopy, X-ray diffraction, atomic force microscopy, and contact angle measurements, respectively. C3N4 showed a homogeneous distribution morphology in the nanocomposite that changed from amorphous in case of the NiP to a mixed crystalline-amorphous structure in the NiP-C3N4 nanocomposite. The microhardness and corrosion resistance of the as-plated nanocomposite and the heat-treated nanocomposite coating were significantly enhanced compared to the Ni-P. The nanocomposite showed a superior corrosion protection efficiency of ~95%, as observed from the electrochemical impedance spectroscopy (EIS) measurements. On the other hand, the microhardness of the nanocomposite was significantly increased from 780 to reach 1175 HV200 for NiP and NiP-C3N4, respectively. View Full-Text
Keywords: electroless NiP alloy; carbon nitride; composites coating; corrosion; microhardness electroless NiP alloy; carbon nitride; composites coating; corrosion; microhardness

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Fayyad, E.M.; Abdullah, A.M.; Hassan, M.K.; Mohamed, A.M.; Wang, C.; Jarjoura, G.; Farhat, Z. Synthesis, Characterization, and Application of Novel Ni-P-Carbon Nitride Nanocomposites. Coatings 2018, 8, 37.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
