Open AccessArticle
Nanomaterials 2019, 9(4), 617; https://doi.org/10.3390/nano9040617

Graphene/Glycerin Solution-Based Multifunctional Stretchable Strain Sensor with Ultra-High Stretchability, Stability, and Sensitivity

School of Mechanical and Electrical Engineering, Central South University, Changsha 410083, China
*
Author to whom correspondence should be addressed.
Received: 25 March 2019 / Revised: 11 April 2019 / Accepted: 13 April 2019 / Published: 16 April 2019
  |
PDF [2890 KB, uploaded 16 April 2019]
  |

Abstract

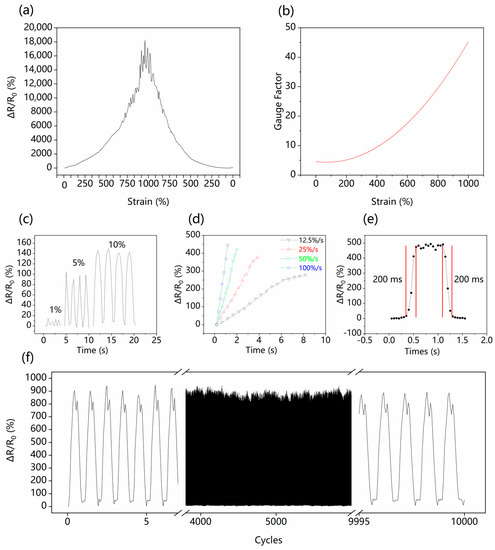

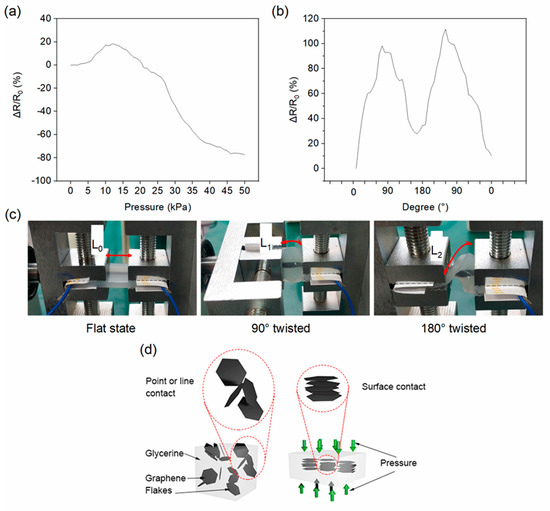

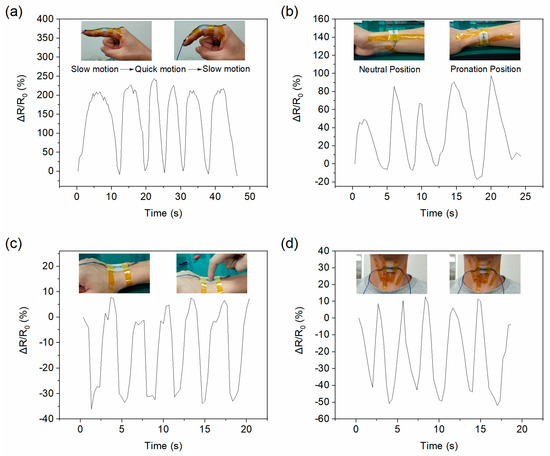

Highly stretchable, flexible, and sensitive strain sensors have promising applications in motion detection—especially multifunctional strain sensors that can detect stretching, bending, compression and twisting. Herein, this study presents a graphene and glycerol solution-based multifunctional sensor with ultra-high stretchability and sensitivity. Owing to the self-lubrication and fluidity of the graphene-glycerol solution, the strain sensors display super stretchability up to 1000%, a maximum gauge factor up to 45.13, and excellent durability for over 10,000 cycles. In addition, the sensor can also rapidly respond to small strains (1%, 5%, 10%) and different stretching rates (12.5%/s, 25%/s, 50%/s, and 100%/s). More impressively, the sensors can measure up to 50 kPa pressure and 180° twisting without any damage. Furthermore, the strain sensors demonstrate their applicability in scenarios involving motion detection, such as that for finger bending, wrist rotating, touching, and drinking water. View Full-Text
Keywords: stretchable sensor; conductive liquid; graphene; glycerol; motion detect stretchable sensor; conductive liquid; graphene; glycerol; motion detect
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Qi, Z.; Bian, H.; Yang, Y.; Nie, N.; Wang, F. Graphene/Glycerin Solution-Based Multifunctional Stretchable Strain Sensor with Ultra-High Stretchability, Stability, and Sensitivity. Nanomaterials 2019, 9, 617.
