Correction: Zhang et al. Modulation of Ferroelectric and Optical Properties of La/Co-Doped KNbO₃ Ceramics. Nanomaterials 2021, 11, 2273

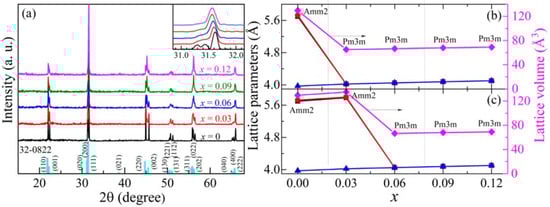

In the original publication [1], there was an error in Figure 1 as it was published. The lattice cell volume in Figure 1b was marked incorrectly, and the lattice parameter and volume of x = 0.03 with different phases (Amm2 or Pm3m) to make a comparison were missing. The corrected Figure 1 appears below.

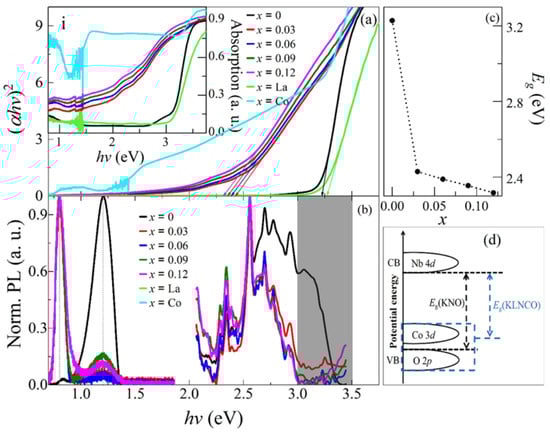

In the original publication [1], there was an error in Figure 4 as it was published. The curve color of x = 0.09 and x = 0.12 in the inset in Figure 4a was reversed. The corrected Figure 4 appears below.

There was an error in the original publication [1], which involved a lack of instrument details provided. A correction has been made to 2. Materials and Methods, Paragraph 2, and should read:

The XRD (Bruker D8 Advance, Karlsruhe, Germany) patterns and Raman (Horiba LabRam 800, Kyoto, Japan) spectra were used to investigate the crystalline structure characteristics of the prepared ceramics. The surface morphologies were observed by SEM (Zeiss Gemini 450, Oberkochen, Germany). The optical absorption was measured with an ultraviolet-visible-near infrared spectrophotometer (Varian Cary500, Palo Alto, CA, USA) equipped with an integrating sphere. The photoluminescence spectra were recorded on a Bruker Vertex 80v (Karlsruhe, Germany) for the near infrared waveband and PerkinElmer LS55 (Waltham, MA, USA) for the UV–Vis waveband, with the excitation wavelengths of 532 nm and 325 nm, respectively. The hysteresis loops were measured by a ferroelectric tester (Radiant Precision Premier II, Albuquerque, NM, USA) at an alternating frequency f = 1 kHz.

In the original publication, Reference [21] “MOSS, T.S. Theory of the Spectral Distribution of Recombination Radiation from InSb. Proc. Phys. Soc. Sect. B 1957, 70, 247–250” was wrongly cited. This reference has been replaced with reference [14] “Zhou, W.; Deng, H.; Yang, P.; Chu, J. Structural phase transition, narrow band gap, and room-temperature ferromagnetism in [KNbO₃]_1−x[BaNi_1/2Nb_1/2O_3−δ]_x ferroelectrics. Appl. Phys. Lett. 2014, 105, 111904” in 3. Results and Discussion, 3.1. Structure, Paragraph 3, and should read:

Raman spectra are further measured for confirming the local lattice distortion by analyzing the structural and lattice vibration. From the group theory analysis [17], it exhibits 12 optical modes of 4A₁ + 4B₁ + 3B₂ + A₂ symmetries for space group $C_{2v}^{14}$ (Amm2). In these 12 models, A₂ is Raman-active, and the rest of the models are both Raman- and infrared-active. Figure 3 shows the room-temperature Raman spectra of xKLNCO (0.0 ≤ x ≤ 0.12) ceramics, where nine characteristic vibration modes appear. Among them, TO₁, TO₃, TO₄, LO₃ and LO₄ are the transverse/longitudinal optical (TO/LO) phonon modes, reflecting the NbO₆ octahedral polarization lattice vibration. The A₁(TO₁) mode is at ∼281 cm⁻¹, of which the shoulders on both sides are the B₁(TO₁) and A₁(TO₄, LO₄) modes. The A₁(TO₃) mode appears at ∼602 cm⁻¹, the A₁(LO₃) mode is found at ∼834 cm⁻¹ with a low intensity and the (B₁ + B₂)(TO₃) mixed mode at ∼535 cm⁻¹ is associated with the vibration of the octahedral [18]. Two modes (B₁, B₂)(TO₂) degenerated at ∼195 cm⁻¹ are associated with the vibration of the Nb-O bonds in the octahedral. In the Raman spectrum of KNO, the low-wavenumber region below ~500 cm⁻¹ is mainly related to the BO₆ bending vibration mode A₁(TO₁) and the two spike modes TO₂ and TO₄, which confirm the orderly existence of long-range polarization [19]. Beyond ~500 cm⁻¹, the vibration mode at ~834 cm⁻¹ is related to the perovskite structure of KNO [20]. For the Raman spectrum of xKLNCO, it is observed that the vibration mode in the high-wavenumber range (>500 cm⁻¹) red-shifts, and the relative intensity of the vibration peak increases. With the increase in the doping level, a vibration at ~163 cm⁻¹ appears, which is related to the vibrational change in the Nb-O bond in the oxygen octahedron. This indicates that excess cations appear in the nano-regional lattice, replacing K⁺ with La³⁺, which is equivalent to adding two +1 valent ions at the A site [14]. In addition, a weaker vibration appeared at ~879 cm⁻¹, the A₁(TO₁) mode gradually expanded and the two modes at 263 cm⁻¹ and 296 cm⁻¹ gradually disappeared. The relative intensity of the vibration modes at 535 cm⁻¹ and 602 cm⁻¹ also changed, and the (B₁ + B₂)(TO₃) mode gradually increased. These modes are all related to the expansion and flexural vibration of the NbO₆ octahedron. Theoretically, the vibration of the NbO₆ octahedron consists of 1A_1g (υ₁) + 1E_g (υ₂) + 2F_1u (υ₃, υ₄) + F_2g (υ₅) + F_2u (υ₆) modes. Among them, 1A_1g (υ₁) + 1E_g (υ₂) + 2F_1u (υ₃) is the stretching vibration mode, and the rest are bending modes [21]. Therefore, based on the changes in the υ₁, υ₂, and υ₅ modes, it is inferred that the increase in the doping level will reduce the degree of distortion along the polar axis; that is, the ferroelectric polarization strength of xKLNCO ceramics will be weakened.

With this correction, the order of some references has been adjusted accordingly. The authors state that the scientific conclusions are unaffected. This correction was approved by the Academic Editor. The original publication has also been updated.
