Liquid-Phase Exfoliation of Ta2NiS5 and Its Application in Near-Infrared Mode-Locked Fiber Lasers with Evanescent Field Interactions and Passively Q-Switched Bulk Laser

by
Shunxiang Liu
†,
Hongfu Huang
†,
Jinsheng Lu
†,
Ning Xu
,
Junle Qu
and
Qiao Wen
*
Key Laboratory of Optoelectronic Devices and Systems of Ministry of Education and Guangdong Province, College of Physics and Optoelectronic Engineering, Shenzhen University, Shenzhen 518060, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2022, 12(4), 695; https://doi.org/10.3390/nano12040695
Submission received: 21 January 2022 / Revised: 7 February 2022 / Accepted: 9 February 2022 / Published: 19 February 2022
Browse Figures
Versions Notes

Abstract

:
We report on the application of a 1 μm solid-state passively Q-switched (PQS) laser and 1, 1.5 μm mode-locked (ML) fiber lasers based on ternary chalcogenide Ta2NiS5 saturable absorber (SA), which were successfully fabricated by liquid-phase exfoliation method (LPE). The nonlinear absorption of the Ta2NiS5-SA was characterized by 0.32 GW/cm2 and 0.25 GW/cm2 saturation intensities with 7.3% and 5.1% modulations depths at 1 μm and 1.5 μm, respectively. A PQS solid-state laser operating at 1.0 μm has been realized with the Ta2NiS5-SA. The maximum average output power, shortest pulse width, pulse energy, and pulse peak power from the PQS laser are 0.257 W, 180 ns, 1.265 μJ, and 7 W. Moreover, highly stable femtosecond laser centered at 1.5 μm, and picosecond centered at 1 μm, ML fiber lasers were obtained using the Ta2NiS5-SA. A 70 dB signal-to-noise ML laser with a pulse duration of 781 fs was observed in the telecommunication window, which is better than the duration of the previously reported lasers based on Ta2NiS5. The corresponding maximum single pulse energy and peak power are 0.977 nJ and 1251 W, respectively. The Ta2NiS5-SA fabricated by the LPE method was applied in near-infrared (NIR) ML fiber lasers (evanescent field interactions) and PQS bulk lasers. The results indicate that Ta2NiS5-SA prepared by the LPE method can be applied in a 1 μm bulk PQS laser and improved by the new combination mode (evanescent field interactions) for better output performance of the fiber laser.

1. Introduction

Near-infrared (NIR) pulse lasers have been most commonly applied in the fields of material processing, biomedical research, laser processing, and lidar due to their special wavelength, high peak power, and short pulse width [1,2,3,4]. Passively Q-switched (PQS) and mode-locked (ML) techniques are the main ways to generate pulse lasers, and the saturable absorber (SA) is the key element. Since graphene was first discovered in 2004 [5], the study of two-dimensional (2D) materials has attracted much attention because of their unique structures and excellent photoelectric properties [6,7,8]. These properties endow these materials with tremendous potential in optoelectronic applications. Graphene [9,10,11], black phosphorus (BP) [12,13,14], transition metal dichalcogenides (TMDs, including MoS2 [15], WS2 [16], NbS2 [17], TiS2 [18], and SnS2 [19]) and topological insulators (TIs, including Bi2Te3 [20] and Sb2Te3 [21]) have been used as basic components of photonic devices, including all-optical modulators and optical switches, in ultrafast laser generation. However, some inherent defects of these materials limit their application and further development. For example, graphene has a zero bandgap and a weak electronic switching ratio, resulting in low photon absorption efficiency. BP [22], with a tunable bandgap ranging from 0.3 eV (bulk) to 1.5 eV (monolayer), has broadband saturable absorption characteristics from the visible to mid-infrared region. Regrettably, it is unstable and easily oxidized. Although the high absorption efficiency and optical response of TMDs are satisfactory, the large bandgap limits their application [23]. TIs are electronic materials with a bulk bandgap similar to an ordinary insulator, but they require a complicated preparation process [24]. This limits the efficient use of photonic equipment based on 2D materials. Thus, exploring a new type of SA with superior performance is a long-term goal.
As new members of the 2D material family, ternary chalcogenides are more attractive because of the stoichiometric variation and synergistic effect arising from the third additional element introduced. Due to their novel physical and chemical properties, ternary chalcogenides have been applied in electronics, optoelectronics, and biosensors [25,26,27]. Ta2NiS5, as a typical example of the ternary chalcogenide family, has an unusual structure that displays 2D characteristics via a layered crystal structure stacked through weak van der Waals interactions and one-dimensional characteristics of a single-layer chain structure [28]. Moreover, the interesting, layered structure possesses considerable in-plane anisotropy, and each sublayer is three atoms thick. The Ni and Ta atoms of the middle sheet are tetrahedrally and octahedrally coordinated with S atoms, forming NiS4 and TaS6 units, respectively [29]. Bulk Ta2NiS5 and few-layer Ta2NiS5 have been certified to be direct bandgap semiconductors with a bandgap of 0.36 eV, which heralds potential applications in photonics [29]. In 2019, Ta2NiS5 nanosheets were fabricated by the liquid-phase exfoliation (LPE) method and used as an SA in a PQS all-solid-state laser at 1.9 μm by Yan et al. [30]. Compared with mid-infrared 1.9 μm PQS lasers, the NIR 1 μm PQS lasers are more widely used in various kinds of fields [31,32]. However, no reports about Ta2NiS5 applied in 1 μm PQS solid-state lasers have been presented. Recently, Ma et al. reported the preparation of Ta2NiS5 nanosheets by mechanical exfoliation method (ME) and achieved pulsed fiber laser based on a Ta2NiS5 SA by depositing on the fiber connector end facets as a film [33]. To date, there is no research about fiber lasers based on Ta2NiS5 with evanescent field interactions. There are two ways to apply the SAs into the fiber laser cavity. One way is to deposit the SA material on the fiber connector end facets as a film. The other (evanescent field interactions) is that the material might be deposited on tapered or side-polished fibers [34]. The combination method using side-polished fibers appears to have advantages over the method of depositing materials on the end face of the fiber connector. Due to the interaction with the evanescent field propagating in the fiber cladding, these SA materials will not be exposed to high optical power. In addition, the length of the interaction between light and the SA is on the order of millimeters (instead of nanometers, when the material is deposited on the connector) [35,36,37].
In this paper, we prepared Ta2NiS5-SA using the liquid-phase exfoliation method. The LPE is a proficient and effective method for fabricating materials. Compared with techniques such as ME, magnetron sputtering (MS), pulsed laser deposition (PLD), chemical vapor transport (CVT), hydrothermal intercalation/exfoliation (HI/E), and chemical vapor deposition (CVD), this method has the advantages of convenience and practicality [38]. The layers of the prepared Ta2NiS5-SA nanosheets were 19~23, more than the layers of Ta2NiS5-SA nanosheets fabricated by the ME method (~2 layers) [33], and our saturation intensity is significantly higher than them. The nonlinear absorption of the Ta2NiS5-SA at 1 μm and 1.5 μm was measured by Z-scan and P-scan measurements, respectively. 1 μm PQS bulk laser and 1, 1.5 μm ML fiber lasers based on Ta2NiS5-SA were achieved. In a 1 μm PQS bulk laser, the maximum average output power and minimum pulse width are 0.275 W and 180 ns, respectively. For the ML fiber lasers, femtosecond erbium-doped (EDF) and picosecond ytterbium-doped (YDF) ML fiber lasers with evanescent field interactions were achieved using side-polished fibers. A stable ML fiber laser was achieved at 1557 nm with a pulse duration of 781 fs, shorter than the previous record for Ta2NiS5 [33]. The results indicate that Ta2NiS5-SA prepared by the LPE method can be applied in a 1 μm bulk PQS laser and improved by the new combination mode (evanescent field interactions) for better output performance of the fiber laser.

2. Experimental

2.1. Fabrication and Characterization of the Ta2NiS5-SA

Ternary chalcogenide Ta2NiS5 powder was purchased from Shenzhen Six Carbon Technology Development Co., Ltd. (Shenzhen, China). The preparation process of the Ta2NiS5-SA is shown in Figure 1. In detail, 0.3 g Ta2NiS5 powder was dissolved in 30 mL isopropyl alcohol (IPA, Macklin, Shanghai, China) solution under uniform stirring for 3 h. The dispersion was sonicated at 300 W for 12 h and a temperature below 20 °C. The solution was centrifuged at 6000 rpm for 20 min, and few-layer nanosheets were obtained from the supernatant liquid. Then the supernatant liquid with Ta2NiS5 nanosheets was spun onto a glass sheet and a (side-polished) D-shaped fiber (drying for 24 h at room temperature) to achieve Ta2NiS5-SA. 2D materials with different layer numbers have unique optical performances [39]. In the characterization of Ta2NiS5 nanosheets, the solution material was dropped on the silicon wafer and dried naturally for 24 h firstly to avoid impurity elements from the solution. To investigate the morphology of the fabricated Ta2NiS5 nanosheets, atomic force microscopy (AFM, MFP-3D Infinity, Asylum Research, Oxford, UK) was used. The 3D and 2D results are shown in Figure 2a,b, the average thickness of the fabricated multi-layer Ta2NiS5 nanosheets was 12~15 nm throughout the thickness profile as displayed in Figure 2c, corresponding to about 19~23 layers thick (the layer thickness of Ta2NiS5 is approximately 0.63 nm) [30]. Scanning electron microscopy (SEM, JSM-5910LV, JEOL, Tokyo, Japan) and energy-dispersive X-ray spectroscopy (EDS, Oxford Instruments, Oxford, UK) were used to investigate the micro surface topography and elemental composition of a Ta2NiS5 nanosheet, where the impurity of C, O, and other elements in the air was excluded, as displayed in Figure 2d. Three elements (S, Ni, Ta) were identified with a weight ratio of 27.29:10.06:62.65, and the corresponding atomic ratio was 62.49:12.38:25.13 (~5:1:2), illustrating the purity of the Ta2NiS5 nanosheets. Raman measurement of the Ta2NiS5 nanosheet was conducted by Raman spectroscopy (excitation wavelength: 532 nm, inVia, Renishaw, New Mills, UK), and the result was shown in Figure 2e. Three peaks located at 62.6, 124.9, and 146.2 cm−1 are observed in the detection range of Figure 2e, corresponding to one twisting motion for mode B2g and two stretching motions for 2Ag and 3Ag [29]. Compared with the result in [29], the Raman peaks of the three modes in our results show a little red-shifted and slightly different peak intensities. The first phenomenon results from the thermal anharmonicity of the Ta2NiS5 nanosheets. The latter occurs mainly due to the thickness-dependent light absorption capacity, optical interference, and band structure with a layer thickness of layer materials [29]. A UV/VIS/NIR spectrophotometer measured the linear transmission spectrum from 1000 nm to 1600 nm was measured by a UV/VIS/NIR spectrophotometer (LAMBDA, Pekin Elmer Inc., Waltham, MA, USA). As shown in Figure 2f, the transmittance of Ta2NiS5 nanosheets solutions was 73.2%@1036 nm, 72.6%@1064 nm, and 54.2%@1550 nm. All the characterization procedures for Ta2NiS5 nanosheets solutions were performed at room temperature.

2.2. Saturable Absorption Characteristics of the Ta2NiS5-SA

Due to the limitation of experimental conditions, P-scan [34] and Z-scan [40] methods were used to measure the saturable absorption of the Ta2NiS5-SA. To investigate the nonlinear optical characteristics of the as-fabricated Ta2NiS5-SA at 1.5 μm, a balanced twin-detector measurement system was employed (1550 nm, 600 fs, 7.36 MHz). Figure 3a shows the P-scan curves of Ta2NiS5-SA. When only the single-photon absorption is considered, the following formula can be obtained [40,41,42]:
T ( I ) = 1 − Δ T × e x p ( − I I s a t ) − T n s
where T(I) is the transmission, ∆T is the modulation depth (MD), I is the input intensity, Isat is the saturation intensity, and Tns is the non-saturable loss (NL).
As shown in Figure 3a, by fitting the curve with the equation, the values of ∆T, Isat, and NL at 1.5 μm were calculated to be ~5.1%, ~0.25 GW/cm2, and ~8%, respectively. Besides, the nonlinear optical characteristics of the as-fabricated Ta2NiS5-SA at 1 μm were measured by an open-aperture Z-scan measuring system (1064 nm, 100 fs, 1 kHz). Figure 3b shows the Z-scan experimental data and fitting curves by the same Formula (1) of Ta2NiS5-SA. The ∆T, Isat, and NL of the Ta2NiS5-SA at 1 μm were calculated to be ~7.3%, ~0.32 GW/cm2, and ~11.6%, respectively. Compared to the results of the P-scan, the data results of the Z-scan are a little larger. The possible reason is that there are differences in the measurement results of different wavelengths (1 μm, 1.5 μm), and the measurement principles of the P-scan and Z-scan are different. In Z-scan measurement, different incident light intensities are obtained by changing the position of the material behind the lens. Generally, the optical path behind the lens is defined as the z-axis. Besides, the position of the sample is fixed in the P-scan, and the incident light intensity is changed by changing the incident light power to ensure the response of the same sample area under different intensities. All results in either way show the saturable absorption characteristics of the Ta2NiS5-SA in 1 μm and 1.5 μm.

2.3. NIR Solid-State and Fiber Pulse Lasers Based on Ta2NiS5-SA

A compact 25 mm plane-concave system was designed to investigate the saturable absorption of Ta2NiS5-SA applied in an all-solid-state laser, as shown in Figure 4a. The pump source was a commercially available 808 nm diode laser (Dilas, Mainz, Germany) with a coupling fiber (core diameter: 200 μm, NA: 0.22). The pump beam was focused into the laser gain medium by a collimating focusing system (1:0.8) consisting of two lenses. The laser gain medium was a coated 1.2 at% Nd: YAG crystal with a size of 3 × 3 × 4 mm3. The laser gain medium (wrapped with indium foils) was embedded in a copper block cooled by circulating water (17 °C) to dissipate the heat. The coated film S1 (HT@808 nm, HR@1064 nm) near the pump side was used as an input mirror; another film S2 (HT@1064 nm, HR@808 nm) was coated to ensure that the gain medium fully absorbs the pump light and protect Ta2NiS5-SA from the pump light. A concave mirror (partial transmission of 15% at 1064 nm) with a curvature radius of 50 mm was used as an output coupler (OC).
To further research the optical performance of the Ta2NiS5-SA, two all-fiber lasers were assembled; two fiber laser systems (EDF and YDF) with different operating wavelengths were constructed. A 4 m EDF (4.45 dB/m@980 nm) was used to generate a pulse laser in the NIR telecommunication window (1.5 μm). In addition, a one-meter long YDF (250 dB/m@980 nm) was used to generate a pulse laser at 1 μm. An experimental schematic diagram of the ring cavity design is shown in Figure 4b. The fiber laser system consists of a 980/1550 nm (or 980/1060 nm) wavelength division multiplexer (WDM), a 980 nm laser diode (LD), a polarization-independent isolator (PI-ISO), a polarization controller (PC), an optical coupler (OC), a doped fiber and a D-shaped fiber. The interaction length of the D-shaped fiber is 10 mm, and the distance from the fiber core boundary to the lowest point of the D-shaped region is ~1 μm. The Ta2NiS5 nanosheets solution was dropped onto the side-polished part of the D-shaped fiber to form SAs inserted between the PC and PI-ISO.

3. Results and Discussion

3.1. 1 μm PQS Solid-State Nd: YAG Laser-Based on Ta2NiS5-SA

CW laser operation was first investigated before carrying out the PQS laser experiment. As shown in Figure 5a, the CW laser started when the pump power reached 1 W. The CW output power increased linearly (the slope efficiency and optical conversion efficiency were 20.5% and 16.8%) with increasing pump power. The starting threshold of the PQS laser based on Ta2NiS5-SA was 2.5 W. At the pump power of 5.5 W, a maximum PQS laser output power of 0.275 W with optical conversion efficiency and slope efficiency of 5% and 9%was obtained. The difference in starting thresholds is due to the loss of saturable absorbers. And experiments were carried out with a power of less than 5.5 W to protect Ta2NiS5-SA from damage. The center wavelengths of the CW and PQS lasers were 1064.93 nm and 1065.17 nm, as displayed in Figure 5b. The relationships between the single pulse energy, peak power, and pump power are illustrated in Figure 5c. The maximum single pulse energy and peak power were 1.265 μJ and 7 W, respectively. The pulse duration and repetition rate versus pump power are shown in Figure 5d. The pulse width decreased (600–180 ns), but the repetition rate increased (166.7–217.4 kHz) with the increasing power (2.5–5.5 W). The pulse train and the single pulse profile at the highest pump power (5.5 W) are shown in Figure 6a. Figure 6b displays the beam profiles of the PQS laser at the pump power of 5.5 W; the output transverse modes of the PQS Nd: YAG laser is TEM00 mode, and the spot energy distribution presents a Gaussian distribution, which means that the output laser beams have high quality.
In laser application, short pulse width and high optical efficiency are both important to a PQS bulk laser [43]. Table 1 summarizes the laser performances of PQS solid-state lasers with different new 2D material-SAs. The corresponding data (pulse width versus repetition rate) are shown in Figure 7; the different marks represent different new 2D materials. Compared with the Ta2NiS5-SA applied in 1.9 μm PQS bulk laser [30], the 1 μm PQS bulk laser based on Ta2NiS5-SA in this letter shows a shorter pulse width (approximately 57.5%). The different optical efficiency may be due to the different linear absorption (1.9 μm: ~19%, 1.0 μm: ~27.4%) and nonlinear absorption properties (1.9 μm: ∆T = 12.2%, Isat = ~5.1 MW/cm2, NL = 6.9%, 1.0 μm: ∆T = 7.3%, Isat = ~0.32 GW/cm2, NL = 11.6%) of Ta2NiS5 materials in 1.9 μm [30] and 1 μm. But compared with new 2D material SAs applied at the same NIR region (1 μm), narrower pulse width and relatively high optical efficiency were both obtained based on Ta2NiS5-SA. Notably, an optimized cavity design and an excellent SA are essential to achieving a high-quality PQS laser [44]. During the experiments, the Ta2NiS5-SA possessed good characteristics, which could still maintain good modulation performance after placing in air for many days or after a long period of high-power excitation. Thus, the as-prepared Ta2NiS5 -SA would be a good candidate for PQS solid-state lasers in the NIR region.

3.2. Ultrafast Fiber Pulsed Lasers

3.2.1. ML YDF Laser Operating at 1 μm

ML operation of the YDF laser was obtained when the pump power reached 155 mW by adjusting the PC in the cavity Figure 8 illustrates the characteristics of the ML fiber laser. Figure 8a shows the ML pulse train. The time interval between each pulse was 54.1 ns, which well matches the laser cavity length of 16.9 m. Figure 8b displays the optical spectrum of the ML pulses. The obtained central wavelength was located at 1036.6 nm, and the 3 dB spectral bandwidth was 1.1 nm. The trace of an ML laser pulse measured with the high-speed oscilloscope is shown in Figure 8c. The FWHM of the laser pulse duration was 270 ps. A strong signal peak with an ML repetition rate of 18.5 MHz was observed, and the signal-to-noise ratio (SNR) was measured to be approximately 64 dB, as displayed in Figure 8d, indicating that the obtained laser pulses have relatively high stability. The relationship between pump power and output power is recorded in Figure 8e, and the slanting efficiency is 2.7% by fitting a straight line. As shown in Figure 8f, the spectra were very stable with a small change within 8 h according to continuous monitoring of the output spectra of the YDF laser. In Table 2, we compared output characteristics of fiber lasers based on various 2D material SAs, and our results are similar to those based on other 2D materials.

3.2.2. ML EDF Laser Operating at 1.5 μm

To prove that Ta2NiS5 can work over a wider range of wavelengths, the fabricated Ta2NiS5-SA was used in the EDF laser cavity to generate an ultrafast laser pulse at approximately 1.5 μm. When the pump power reached 125 mW, stable ML laser pulses were observed by rotating the PC in the intracavity. Figure 9 shows the characteristics of the EDF ML laser. Figure 9a displays the time trace of the oscilloscope with an interval of 135 ns, corresponding to a repetition rate of 7.36 MHz. The illustration in Figure 9a illustrates the ML laser’s uniform intensity pulses, confirming the ML laser’s stability. As displayed in Figure 9b, the optical spectrum of the ML laser was centered at 1557.7 nm with a 3 dB spectral width of 3.5 nm. The autocorrelation trace for the soliton ML fiber laser is displayed in Figure 9c. The pulse autocorrelation trace’s full width at half maximum (FWHM) was 1.205 ps. The hyperbolic sech2 function is used to fit the autocorrelation trace curve measured in the experiment. Through the deconvolution factor of the sech2 pulse model of 1.543, the actual pulse width can be calculated as 781 fs. The calculated time-bandwidth product is 0.338.
Table 2 presents an output performance comparison of ML fiber lasers based on various 2D material SAs, including graphene, BP, TIs, and TMDs. Figure 10 shows the corresponding pulse width and repetition rate. Notably, the pulse width in our results is approximately 85.6% shorter than those of other Ta2NiS5-SA fiber lasers. Figure 9d presents the radio frequency (RF) spectrum of ML pulses with a basic repetition rate of 7.36 MHz, consistent with the cavity length of 27.1 m. The SNR of the fundamental frequency was shown to be 70 dB, indicating a highly stable ML operation. The dependence between the average output power of the ML pulses and the pump power was measured, as shown in Figure 9e, with good linearity and a slope efficiency of 2.5%. The spectra were recorded every one hour. Figure 9f shows the optical spectral evolution of the pulse over 8 h, indicating the good stability of the ML EDF laser.

4. Conclusions

In summary, two kinds of high-quality Ta2NiS5-SA were successfully fabricated by the LPE method and applied in NIR bulk and fiber pulse lasers. The nonlinear absorption of the Ta2NiS5-SA was characterized by Z-scan and P-scan measurements at 1 μm and 1.5 μm, respectively. A 1 μm PQS bulk laser with a pulse width of 180 ns based on Ta2NiS5-SA was realized and demonstrated. A 70 dB signal-to-noise ML fiber laser based on Ta2NiS5-SA with evanescent field interactions was achieved at 1.5 μm with a pulse duration of 781 fs, which is shorter than the previous record for Ta2NiS5. Similarly, the output characteristics of the ML pulse in the YDF laser include a duration of 270 ps. The Ta2NiS5-SA made by the LPE method was applied in the ML fiber lasers (evanescent field interactions) and PQS bulk lasers in the NIR wavelength region. The results indicate that Ta2NiS5-SA prepared by the LPE method can be applied in 1 μm bulk PQS laser and improved by the new combination mode (evanescent field interactions) for better output performance of the fiber lasers.

Author Contributions

Conceptualization, Q.W. and J.Q.; methodology, N.X. and S.L.; software, H.H.; validation, S.L., J.L. and H.H.; formal analysis, N.X. and S.L.; investigation, N.X., H.H. and J.L.; resources, S.L.; data curation, S.L.; writing—original draft preparation, S.L. and H.H.; writing—review and editing, S.L. and H.H.; visualization, S.L. and H.H.; supervision, Q.W.; project administration, Q.W.; funding acquisition, Q.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partly supported by the National Natural Science Foundation of China (NSFC, 6217030813), Guangdong Basic and Applied Basic Research Foundation (2021A1515010964), and Science and Technology Innovation Commission of Shenzhen Municipality (SGDX20190919094803949, JCYJ20200109105810074, and JCYJ20170412111625378).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Keller, U. Recent developments in compact ultrafast lasers. Nature 2003, 424, 831–838. [Google Scholar] [CrossRef] [PubMed]
  2. Letokhov, V.S. Laser biology and medicine. Nature 1985, 316, 325–330. [Google Scholar] [CrossRef] [PubMed]
  3. Sohn, I.-B.; Kim, Y.; Noh, Y.-C.; Ryu, J.-C.; Kim, J.-T. Microstructuring of Optical Fibers Using a Femtosecond Laser. J. Opt. Soc. Korea 2009, 13, 33–36. [Google Scholar] [CrossRef]
  4. Xu, B.; Cheng, Y.; Wang, Y.; Huang, Y.; Peng, J.; Luo, Z.; Xu, H.; Cai, Z.; Weng, J.; Moncorgé, R. Passively Q-switched Nd: YAlO3 nanosecond laser using MoS2 as saturable absorber. Opt. Express 2014, 22, 28934–28940. [Google Scholar] [CrossRef] [PubMed]
  5. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [Green Version]
  6. Lee, W.H.; Park, J.; Kim, Y.; Kim, K.S.; Hong, B.H.; Cho, K. Control of Graphene Field-Effect Transistors by Interfacial Hydrophobic Self-Assembled Monolayers. Adv. Mater. 2011, 23, 3460–3464. [Google Scholar] [CrossRef]
  7. Acerce, M.; Voiry, D.; Chhowalla, M. Metallic 1T phase MoS2 nanosheets as supercapacitor electrode materials. Nat. Nanotechnol. 2015, 10, 313–318. [Google Scholar] [CrossRef]
  8. Acharya, S.; Das, B.; Thupakula, U.; Ariga, K.; Sarma, D.; Israelachvili, J.; Golan, Y. A bottom-up approach toward fabrication of ultrathin PbS sheets. Nano Lett. 2013, 13, 409–415. [Google Scholar] [CrossRef]
  9. Bao, Q.L.; Zhang, H.; Wang, Y.; Ni, Z.H.; Yan, Y.L.; Shen, Z.X.; Loh, K.P.; Tang, D.Y. Atomic-Layer Graphene as a Saturable Absorber for Ultrafast Pulsed Lasers. Adv. Funct. Mater. 2009, 19, 3077–3083. [Google Scholar] [CrossRef]
  10. Sun, Z.; Hasan, T.; Torrisi, F.; Popa, D.; Privitera, G.; Wang, F.; Bonaccorso, F.; Basko, D.M.; Ferrari, A.C. Graphene mode-locked ultrafast laser. Acs. Nano. 2010, 4, 803–810. [Google Scholar] [CrossRef] [Green Version]
  11. Bao, Q.L.; Loh, K.P. Graphene Photonics, Plasmonics, and Broadband Optoelectronic Devices. Acs. Nano. 2012, 6, 3677–3694. [Google Scholar] [CrossRef] [PubMed]
  12. Luo, Z.C.; Liu, M.; Guo, Z.N.; Jiang, X.F.; Luo, A.P.; Zhao, C.J.; Yu, X.F.; Xu, W.C.; Zhang, H. Microfiber-based few-layer black phosphorus saturable absorber for ultrafast fiber laser. Opt. Express 2015, 23, 20030. [Google Scholar] [CrossRef]
  13. Lu, S.B.; Miao, L.L.; Guo, Z.N.; Qi, X.; Zhao, C.J.; Zhang, H.; Wen, S.C.; Tang, D.Y.; Fan, D.Y. Broadband nonlinear optical response in multi-layer black phosphorus: An emerging infrared and mid-infrared optical material. Opt. Express 2015, 23, 11183–11194. [Google Scholar] [CrossRef] [PubMed]
  14. Lu, L.; Liang, Z.M.; Wu, L.M.; Chen, Y.X.; Song, Y.F.; Dhanabalan, S.C.; Ponraj, J.S.; Dong, B.Q.; Xiang, Y.J.; Xing, F.; et al. Few-layer Bismuthene: Sonochemical Exfoliation, Nonlinear Optics and Applications for Ultrafast Photonics with Enhanced Stability. Laser Photon. Rev. 2018, 12, 1700221. [Google Scholar] [CrossRef]
  15. Liu, H.; Luo, A.P.; Wang, F.Z.; Tang, R.; Liu, M.; Luo, Z.C.; Xu, W.C.; Zhao, C.J.; Zhang, H. Femtosecond pulse erbium-doped fiber laser by a few-layer MoS2 saturable absorber. Opt. Lett. 2014, 39, 4591–4594. [Google Scholar] [CrossRef] [PubMed]
  16. Wu, K.; Zhang, X.Y.; Wang, J.; Li, X.; Chen, J.P. WS2 as a saturable absorber for ultrafast photonic applications of mode-locked and Q-switched lasers. Opt. Express 2015, 23, 11453–11461. [Google Scholar] [CrossRef]
  17. Li, L.; Pang, L.H.; Zhao, Q.Y.; Wang, Y.G.; Liu, W.J. Niobium disulfide as a new saturable absorber for an ultrafast fiber laser. Nanoscale 2020, 12, 4537–4543. [Google Scholar] [CrossRef]
  18. Ge, Y.; Zhu, Z.; Xu, Y.; Chen, Y.; Chen, S.; Liang, Z.; Song, Y.; Zou, Y.; Zeng, H.; Xu, S. Broadband Nonlinear Photoresponse of 2D TiS2 for Ultrashort Pulse Generation and All-Optical Thresholding Devices. Adv. Opt. Mater. 2018, 6, 1701166. [Google Scholar] [CrossRef]
  19. Niu, K.D.; Sun, R.Y.; Chen, Q.Y.; Man, B.Y.; Zhang, H.N. Passively mode-locked Er-doped fiber laser based on SnS2 nanosheets as a saturable absorber. Photonics Res. 2018, 6, 72–76. [Google Scholar] [CrossRef]
  20. Luo, Z.C.; Liu, M.; Liu, H.; Zheng, X.W.; Luo, A.P.; Zhao, C.J.; Zhang, H.; Wen, S.C.; Xu, W.C. 2 GHz passively harmonic mode-locked fiber laser by a microfiber-based topological insulator saturable absorber. Opt. Lett. 2013, 38, 5212–5215. [Google Scholar] [CrossRef]
  21. Sotor, J.; Sobon, G.; Macherzynski, W.; Paletko, P.; Grodecki, K.; Abramski, K.M. Mode-locking in Er-doped fiber laser based on mechanically exfoliated Sb2Te3 saturable absorber. Opt. Mater. Express 2014, 4, 1–6. [Google Scholar] [CrossRef]
  22. Li, L.K.; Yu, Y.J.; Ye, G.J.; Ge, Q.Q.; Ou, X.D.; Wu, H.; Feng, D.L.; Chen, X.H.; Zhang, Y.B. Black phosphorus field-effect transistors. Nat. Nanotechnol. 2014, 9, 372–377. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Wang, Q.H.; Kalantar-Zadeh, K.; Kis, A.; Coleman, J.N.; Strano, M.S. Electronics and optoelectronics of two-dimensional transition metal dichalcogenides. Nat. Nanotechnol. 2012, 7, 699–712. [Google Scholar] [CrossRef] [PubMed]
  24. Hasan, M.Z.; Kane, C.L. Colloquium: Topological insulators. Rev. Mod. Phys. 2010, 82, 3045–3067. [Google Scholar] [CrossRef] [Green Version]
  25. Gao, T.; Zhang, Q.; Li, L.; Zhou, X.; Li, L.G.; Li, H.Q.; Zhai, T.Y. 2D Ternary Chalcogenides. Adv. Opt. Mater. 2018, 6, 1800058. [Google Scholar] [CrossRef]
  26. Zhu, H.J.; Lai, Z.C.; Fang, Y.; Zhen, X.; Tan, C.L.; Qi, X.Y.; Ding, D.; Chen, P.; Zhang, H.; Pu, K.Y. Ternary Chalcogenide Nanosheets with Ultrahigh Photothermal Conversion Efficiency for Photoacoustic Theranostics. Small 2017, 13, 1604139. [Google Scholar] [CrossRef]
  27. Tan, C.L.; Yu, P.; Hu, Y.L.; Chen, J.Z.; Huang, Y.; Cai, Y.Q.; Luo, Z.M.; Li, B.; Lu, Q.P.; Wang, L.H.; et al. High-Yield Exfoliation of Ultrathin Two-Dimensional Ternary Chalcogenide Nanosheets for Highly Sensitive and Selective Fluorescence DNA Sensors. J. Am. Chem. Soc. 2015, 137, 10430–10436. [Google Scholar] [CrossRef] [PubMed]
  28. Mu, K.J.; Chen, H.P.; Li, Y.L.; Zhang, Y.Y.; Wang, P.D.; Zhang, B.; Liu, Y.; Zhang, G.B.; Song, L.; Sun, Z. Electronic structures of layered Ta2NiS5 single crystals revealed by high-resolution angle-resolved photoemission spectroscopy. J. Mater. Chem. C. 2018, 6, 3976–3981. [Google Scholar] [CrossRef]
  29. Li, L.; Gong, P.L.; Wang, W.K.; Deng, B.; Pi, L.J.; Yu, J.; Zhou, X.; Shi, X.Q.; Li, H.Q.; Zhai, T.Y. Strong In-Plane Anisotropies of Optical and Electrical Response in Layered Dimetal Chalcogenide. Acs. Nano. 2017, 11, 10264–10272. [Google Scholar] [CrossRef]
  30. Yan, B.Z.; Zhang, B.T.; He, J.L.; Nie, H.K.; Li, G.R.; Liu, J.T.; Shi, B.N.; Wang, R.H.; Yang, K.J. Ternary chalcogenide Ta2NiS5 as a saturable absorber for a 1.9 μm passively Q-switched bulk laser. Opt. Lett. 2019, 44, 451–454. [Google Scholar] [CrossRef]
  31. Ma, Y.; Li, X.; Yu, X.; Fan, R.; Yan, R.; Peng, J.; Xu, X.; Sun, R.; Chen, D. A novel miniaturized passively Q-switched pulse-burst laser for engine ignition. Opt. Express 2014, 22, 24655–24665. [Google Scholar] [CrossRef] [PubMed]
  32. Xu, D.; Wang, Y.; Li, H.; Yao, J.; Tsang, Y.H. 104 W high stability green laser generation by using diode laser pumped intracavity frequency-doubling Q-switched composite ceramic Nd: YAG laser. Opt. Express 2007, 15, 3991–3997. [Google Scholar] [CrossRef] [PubMed]
  33. Ma, M.Y.; Zhang, J.T.; Zhang, Y.; Wang, X.L.; Wang, J.L.; Yu, P.; Liu, Z.; Wei, Z.Y. Ternary chalcogenide Ta2NiS5 nanosheets for broadband pulse generation in ultrafast fiber lasers. Nanophotonics 2020, 9, 2341–2349. [Google Scholar] [CrossRef]
  34. Liu, S.X.; Lu, J.S.; Huang, H.F.; Xu, N.; Qu, J.L.; Wen, Q. Ultrafast photonics applications based on evanescent field interactions with 2D molybdenum carbide (Mo2C). J. Mater. Chem. C 2021, 9, 6187–6192. [Google Scholar] [CrossRef]
  35. Sotor, J.; Sobon, G.; Grodecki, K.; Abramski, K.M. Mode-locked erbium-doped fiber laser based on evanescent field interaction with Sb2Te3 topological insulator. Appl. Phys. Lett. 2014, 104, 251112. [Google Scholar] [CrossRef]
  36. Kieu, K.; Mansuripur, M. Femtosecond laser pulse generation with a fiber taper embedded in carbon nanotube/polymer composite. Opt. Lett. 2007, 32, 2242–2244. [Google Scholar] [CrossRef] [PubMed]
  37. Jung, M.; Koo, J.; Debnath, P.; Song, Y.-W.; Lee, J.H. A Mode-Locked 1.91 μm Fiber Laser Based on Interaction between Graphene Oxide and Evanescent Field. Appl. Phys. Express 2012, 5, 112702. [Google Scholar] [CrossRef]
  38. Nicolosi, V.; Chhowalla, M.; Kanatzidis, M.G.; Strano, M.S.; Coleman, J.N. Liquid Exfoliation of Layered Materials. Science 2013, 340, 1226419. [Google Scholar] [CrossRef] [Green Version]
  39. Gu, H.; Song, B.; Fang, M.; Hong, Y.; Chen, X.; Jiang, H.; Ren, W.; Liu, S. Layer-dependent dielectric and optical properties of centimeter-scale 2D WSe2: Evolution from a single layer to few layers. Nanoscale 2019, 11, 22762–22771. [Google Scholar] [CrossRef] [Green Version]
  40. Xu, N.; Wen, Q. Single element material sulfur quantum dots nonlinear optics and ultrafast photonic applications. Opt. Laser Technol. 2021, 138, 106858. [Google Scholar] [CrossRef]
  41. Lee, J.; Koo, J.; Jhon, Y.M.; Lee, J.H. A femtosecond pulse erbium fiber laser incorporating a saturable absorber based on bulk-structured Bi2Te3 topological insulator. Opt. Express 2014, 22, 6165–6173. [Google Scholar] [CrossRef] [PubMed]
  42. Park, K.; Lee, J.; Lee, Y.T.; Choi, W.K.; Lee, J.H.; Song, Y.W. Black phosphorus saturable absorber for ultrafast mode-locked pulse laser via evanescent field interaction. Ann. Der Phys. 2016, 527, 770–776. [Google Scholar] [CrossRef]
  43. Qiao, H.; Zhao, J.; Yang, H. Study and development of high peak power short pulse Nd:YAG laser for peening applications. Sci. China-Technol. Sci. 2015, 58, 1154–1161. [Google Scholar] [CrossRef]
  44. Degnan, J.J. Optimization of passively Q-switched lasers. IEEE J. Quantum Electron. 1995, 31, 1890–1901. [Google Scholar] [CrossRef]
  45. Zhang, R.; Zhang, Y.; Yu, H.; Zhang, H.; Yang, R.; Yang, B.; Liu, Z.; Wang, J. Broadband Black Phosphorus Optical Modulator in the Spectral Range from Visible to Mid-Infrared. Adv. Opt. Mater. 2015, 3, 1787–1792. [Google Scholar] [CrossRef]
  46. Li, P.X.; Zhang, G.J.; Zhang, H.; Zhao, C.J.; Chi, J.J.; Zhao, Z.Q.; Yang, C.; Hu, H.W.; Yao, Y.F. Q-Switched Mode-Locked Nd:YVO4 Laser by Topological Insulator Bi2Te3 Saturable Absorber. IEEE Photonics Technol. Lett. 2014, 26, 1912–1915. [Google Scholar] [CrossRef]
  47. Yu, H.; Zhang, H.; Wang, Y.; Zhao, C.; Wang, B.; Wen, S.; Zhang, H.; Wang, J. Topological insulator as an optical modulator for pulsed solid-state lasers. Laser Photonics Rev. 2013, 7, L77–L83. [Google Scholar] [CrossRef]
  48. Feng, X.Y.; Ding, B.Y.; Liang, W.Y.; Zhang, F.; Ning, T.Y.; Liu, J.; Zhang, H. MXene Ti3C2Tx absorber for a 1.06 mu m passively Q-switched ceramic laser. Laser Phys. Lett 2018, 15, 085805. [Google Scholar] [CrossRef]
  49. Huang, H.; Wang, J.; Xu, N.; Liu, S.; Liang, G.; Wen, Q. Ti2CTx MXene as a Saturable Absorber for Passively Q-Switched Solid-State Lasers. Polymers 2021, 13, 247. [Google Scholar] [CrossRef]
  50. Tang, C.Y.; Cheng, P.K.; Tao, L.; Long, H.; Zeng, L.H.; Wen, Q.; Tsang, Y.H. Passively Q-Switched Nd: YVO4 Laser Using WS2 Saturable Absorber Fabricated by Radio Frequency Magnetron Sputtering Deposition. J. Lightwave Technol. 2017, 35, 4120–4124. [Google Scholar] [CrossRef]
  51. Zhang, H.; Lu, S.B.; Zheng, J.; Du, J.; Wen, S.C.; Tang, D.Y.; Loh, K.P. Molybdenum disulfide (MoS2) as a broadband saturable absorber for ultra-fast photonics. Opt. Express 2014, 22, 7249–7260. [Google Scholar] [CrossRef] [PubMed]
  52. Ma, Y.F.; Zhang, S.C.; Din, S.J.; Liu, X.X.; Yu, X.; Peng, F.; Zhang, Q.L. Passively Q-switched Nd:GdLaNbO4 laser based on 2D PdSe2 nanosheet. Opt. Laser Technol. 2020, 124, 105959. [Google Scholar] [CrossRef]
  53. Yan, B.; Guo, H.; He, G.; Mao, J.; Wang, F.; Yang, K.; Zhang, B.; He, J. Ta2NiSe5 nanosheets as a novel broadband saturable absorber for solid-state pulse laser generation. Sci. China-Mater. 2021, 64, 1468–1476. [Google Scholar] [CrossRef]
  54. Huang, S.; Wang, Y.; Yan, P.; Zhao, J.; Li, H.; Lin, R. Tunable and switchable multi-wavelength dissipative soliton generation in a graphene oxide mode-locked Yb-doped fiber laser. Opt. Express 2014, 22, 11417–11426. [Google Scholar] [CrossRef]
  55. Song, H.; Wang, Q.; Zhang, Y.; Li, L. Mode-locked ytterbium-doped all-fiber lasers based on few-layer black phosphorus saturable absorbers. Opt. Commun. 2017, 394, 157–160. [Google Scholar] [CrossRef]
  56. Yan, P.; Lin, R.; Chen, H.; Zhang, H.; Liu, A.; Yang, H.; Ruan, S. Topological Insulator Solution Filled in Photonic Crystal Fiber for Passive Mode-Locked Fiber Laser. IEEE Photonics Technol. Lett. 2015, 27, 264–267. [Google Scholar] [CrossRef]
  57. Kowalczyk, M.; Boguslawski, J.; Zybala, R.; Mars, K.; Mikula, A.; Sobon, G.; Sotor, J. Sb2Te3-deposited D-shaped fiber as a saturable absorber for mode-locked Yb-doped fiber lasers. Opt. Mater. Express 2016, 6, 2273–2282. [Google Scholar] [CrossRef]
  58. Guoyu, H.; Song, Y.; Li, K.; Dou, Z.; Tian, J.; Zhang, X. Mode-locked ytterbium-doped fiber laser based on tungsten disulphide. Laser Phys. Lett. 2015, 12, 125102. [Google Scholar] [CrossRef]
  59. Mao, D.; Zhang, S.; Wang, Y.; Gan, X.; Zhang, W.; Mei, T.; Wang, Y.; Wang, Y.; Zeng, H.; Zhao, J. WS2 saturable absorber for dissipative soliton mode locking at 1.06 and 1.55 mu m. Opt. Express 2015, 23, 27509–27519. [Google Scholar] [CrossRef]
  60. Wang, R.F.; Zhao, M.; Sun, Z.L.; Zhang, X.G.; Li, L.; Pang, L.H.; Wu, R.Q.; Lv, Y. MoxTa(1-x)Se2 ultrafast fiber laser. Opt. Laser Technol. 2022, 146. [Google Scholar] [CrossRef]
  61. Dou, C.; Wen, W.; Wang, J.; Ma, M.; Xie, L.; Ho, C.-H.; Wei, Z. Ternary ReS2(1-x)Se2x alloy saturable absorber for passively Q-switched and mode-locked erbium-doped all-fiber lasers. Photonics Res. 2019, 7, 283–288. [Google Scholar] [CrossRef]
  62. Duan, Q.W.; Yang, L.L.; He, Y.; Chen, L.L.; Li, J.; Miao, L.L.; Zhao, C.J. Layered Ta2NiS5 Q-Switcher for Mid-Infrared Fluoride Fiber Laser. IEEE Photonics J. 2021, 13, 1–4. [Google Scholar] [CrossRef]
Nanomaterials 12 00695 g001 550
Figure 1. Illustration of the Ta2NiS5-SA preparation process.
Figure 1. Illustration of the Ta2NiS5-SA preparation process.
Nanomaterials 12 00695 g001
Nanomaterials 12 00695 g002 550

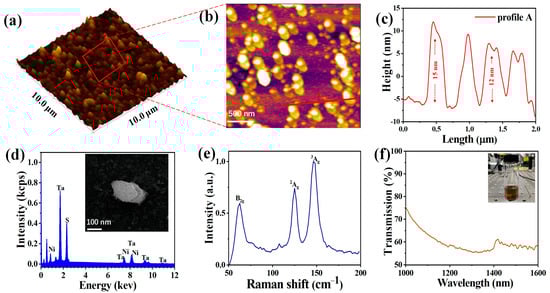

Figure 2. (a) 3D Morphology image of Ta2NiS5 nanosheets. (b) 2D Morphology image of Ta2NiS5 nanosheets. (c) Corresponding thickness distribution of Ta2NiS5 nanosheets. (d) EDS image and SEM image (Inset). (e) Raman spectrum of the Ta2NiS5 nanosheet. (f) Transmission spectrum of the Ta2NiS5 nanosheets solution (IPA).
Figure 2. (a) 3D Morphology image of Ta2NiS5 nanosheets. (b) 2D Morphology image of Ta2NiS5 nanosheets. (c) Corresponding thickness distribution of Ta2NiS5 nanosheets. (d) EDS image and SEM image (Inset). (e) Raman spectrum of the Ta2NiS5 nanosheet. (f) Transmission spectrum of the Ta2NiS5 nanosheets solution (IPA).
Nanomaterials 12 00695 g002
Nanomaterials 12 00695 g003 550

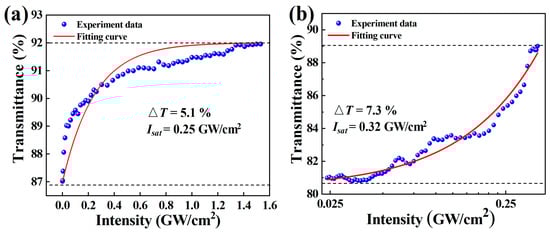

Figure 3. (a) Corresponding nonlinear saturable absorption curve in 1.5 μm. (b) Corresponding nonlinear saturable absorption curve in 1 μm.
Figure 3. (a) Corresponding nonlinear saturable absorption curve in 1.5 μm. (b) Corresponding nonlinear saturable absorption curve in 1 μm.
Nanomaterials 12 00695 g003
Nanomaterials 12 00695 g004 550

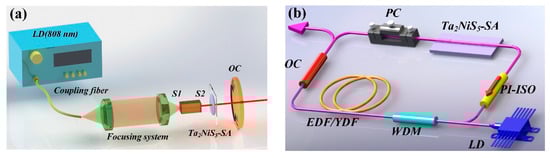

Figure 4. (a) Schematic setup of the diode-pumped Ta2NiS5-SA-based PQS Nd: YAG laser. (b) Cavity schematic for the ML fiber laser.
Figure 4. (a) Schematic setup of the diode-pumped Ta2NiS5-SA-based PQS Nd: YAG laser. (b) Cavity schematic for the ML fiber laser.
Nanomaterials 12 00695 g004
Nanomaterials 12 00695 g005 550

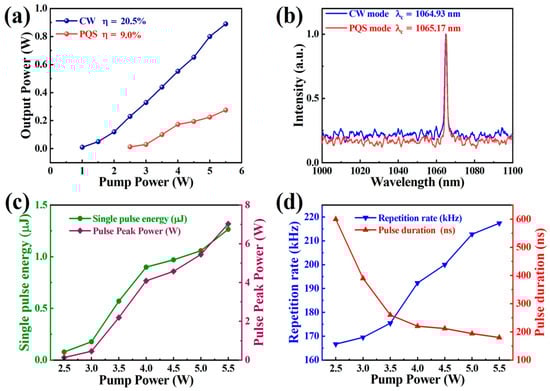

Figure 5. (a) Average output power of CW and PQS Nd: YAG lasers versus pump power; (b) output spectra of the CW and PQS Nd: YAG lasers; (c) single pulse energy and pulse peak power versus pump power; (d) pulse repetition rate and pulse duration versus pump power.
Figure 5. (a) Average output power of CW and PQS Nd: YAG lasers versus pump power; (b) output spectra of the CW and PQS Nd: YAG lasers; (c) single pulse energy and pulse peak power versus pump power; (d) pulse repetition rate and pulse duration versus pump power.
Nanomaterials 12 00695 g005
Nanomaterials 12 00695 g006 550

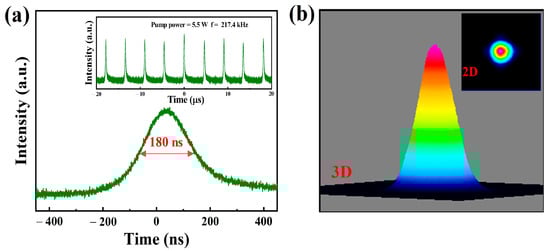

Figure 6. (a) Stable pulse train at the highest repetition rate and shortest pulse profile and (b) 2D, 3D beam profiles of the PQS Nd: YAG laser at the highest pump power (5.5 W).
Figure 6. (a) Stable pulse train at the highest repetition rate and shortest pulse profile and (b) 2D, 3D beam profiles of the PQS Nd: YAG laser at the highest pump power (5.5 W).
Nanomaterials 12 00695 g006
Nanomaterials 12 00695 g007 550

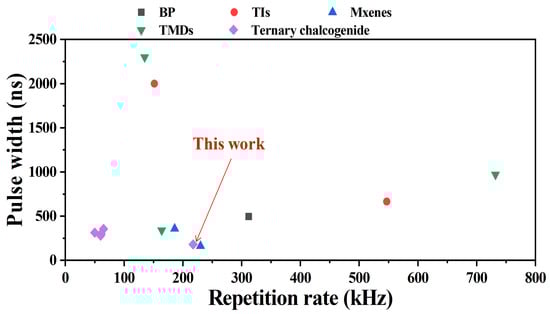

Figure 7. Pulse width versus repetition rate of PQS solid-state lasers based on different new 2D materials.
Figure 7. Pulse width versus repetition rate of PQS solid-state lasers based on different new 2D materials.
Nanomaterials 12 00695 g007
Nanomaterials 12 00695 g008 550

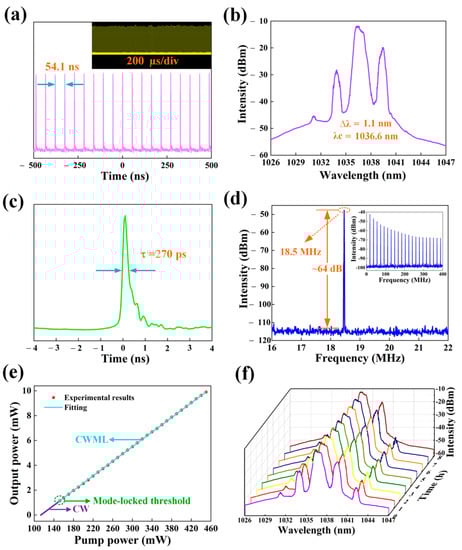

Figure 8. Typical ML YDF pulse characteristics. (a) Pulse train. (b) Optical spectrum. (c) Measurement of the laser pulse width. (d) RF spectrum (inset: wideband RF spectrum) of the ML pulses. (e) Variation in the output power with the pump power. (f) Optical spectra measurements at 1 h intervals over 8 h.
Figure 8. Typical ML YDF pulse characteristics. (a) Pulse train. (b) Optical spectrum. (c) Measurement of the laser pulse width. (d) RF spectrum (inset: wideband RF spectrum) of the ML pulses. (e) Variation in the output power with the pump power. (f) Optical spectra measurements at 1 h intervals over 8 h.
Nanomaterials 12 00695 g008
Nanomaterials 12 00695 g009 550

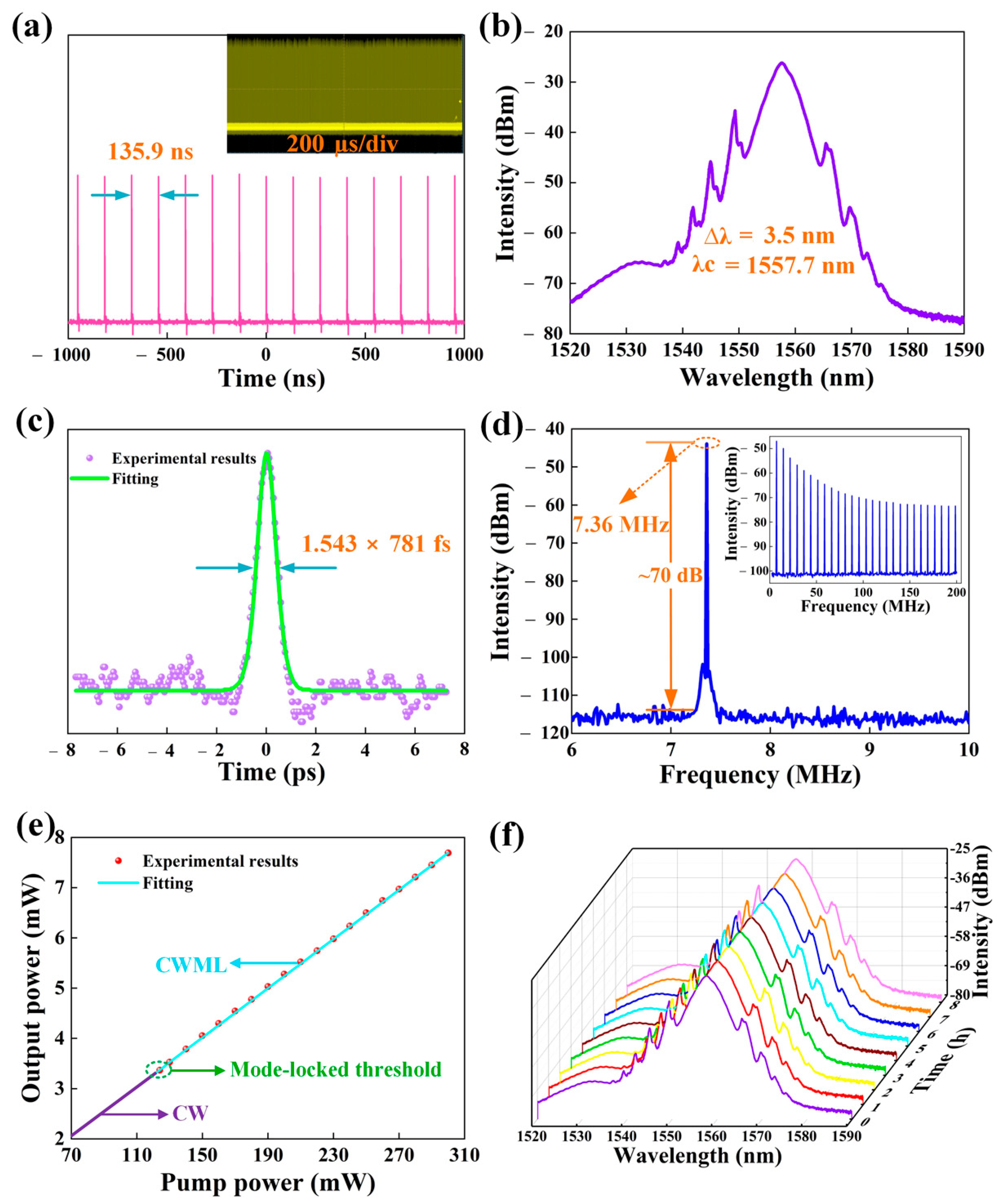

Figure 9. Typical ML EDF pulse characteristics. (a) Pulse train. (b) Optical spectrum. (c) Measurement of the laser pulse width. (d) RF spectrum (inset: wideband RF spectrum) of the ML pulses. (e) Variation in the output power with the pump power. (f) Optical spectra measurements at 1 h intervals over 8 h of operation.
Figure 9. Typical ML EDF pulse characteristics. (a) Pulse train. (b) Optical spectrum. (c) Measurement of the laser pulse width. (d) RF spectrum (inset: wideband RF spectrum) of the ML pulses. (e) Variation in the output power with the pump power. (f) Optical spectra measurements at 1 h intervals over 8 h of operation.
Nanomaterials 12 00695 g009
Nanomaterials 12 00695 g010 550

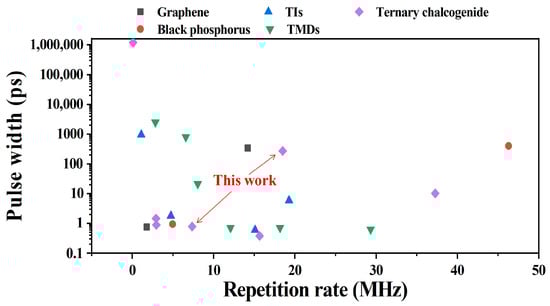

Figure 10. Pulse width versus repetition rate of PQS solid-state lasers based on different new 2D materials.
Figure 10. Pulse width versus repetition rate of PQS solid-state lasers based on different new 2D materials.
Nanomaterials 12 00695 g010
Table
Table 1. Comparison of PQS solid-state lasers with different new 2D Materials-SAs.
Table 1. Comparison of PQS solid-state lasers with different new 2D Materials-SAs.
MaterialsIncorporation MethodSAsλ (μm)Pulse Width (ns)Repetition Rate (KHz)Optical Efficiency (%)Ref
BPMEBP1.04953123.7[45]
TIsHI/EBi2Te31.02000151.53.2[46]
Bi2Se31.06665471.7[47]
MXenesLPETi3C2Tx1.03591862.3[48]
Ti2CTx1.016323021[49]
TMDsMSWS21.023001352.9[50]
PLDMoS21.09707328.3[51]
CVDPdSe21.03401644.6[52]
Ternary chalcogenideLPETa2NiSe52.828060/[53]
2.030261/
1.035565/
Ta2NiS51.93135043.2[30]
1.0180217.45This work
Table
Table 2. Output performance comparison of ML fiber lasers based on various new 2D material-SAs.
Table 2. Output performance comparison of ML fiber lasers based on various new 2D material-SAs.
MaterialsIncorporation MethodSAPulse Width (ps)Wavelength (nm)Repetition Rate (MHz)Pulse Energy (nJ)SNR (dB)Ref
GrapheneLPEGR3401059.714.20.14865[54]
CVD0.75615651.791.1265[9]
Black phosphorusLPEBP4001030.646.30.749[55]
0.941566.54.961.1350[12]
TIsLPEBi2Te39601064.471.111.0860[56]
ME0.6154715.110.05365[41]
MSSb2Te35.91047.119.280.2171[57]
ME1.81558.64.750.10560[21]
TMDsLPEWS225001030.32.842.8248[58]
21.11565.58.050.22NA[59]
HI/EMoS28001054.36.581.4150[51]
0.711569.512.090.14760[15]
LPENbS20.7091559.3618.181.28NA[17]
SnS20.6231562.0129.330.04145[19]
Ternary chalcogenideCVTMoxTa(1−x)Se20.377153215.6590.672/[60]
ReS2(1−x)Se2x0.8881561.152.950.27553[61]
METa2NiS510.15102937.271.01762[33]
1.4515692.926.3767
LPE1.2 × 106
(PQS)		2803.70.11.6442.4[62]
2701036.618.50.53564This work
0.7811557.77.360.97770
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Liu, S.; Huang, H.; Lu, J.; Xu, N.; Qu, J.; Wen, Q. Liquid-Phase Exfoliation of Ta2NiS5 and Its Application in Near-Infrared Mode-Locked Fiber Lasers with Evanescent Field Interactions and Passively Q-Switched Bulk Laser. Nanomaterials 2022, 12, 695. https://doi.org/10.3390/nano12040695

AMA Style

Liu S, Huang H, Lu J, Xu N, Qu J, Wen Q. Liquid-Phase Exfoliation of Ta2NiS5 and Its Application in Near-Infrared Mode-Locked Fiber Lasers with Evanescent Field Interactions and Passively Q-Switched Bulk Laser. Nanomaterials. 2022; 12(4):695. https://doi.org/10.3390/nano12040695

Chicago/Turabian Style

Liu, Shunxiang, Hongfu Huang, Jinsheng Lu, Ning Xu, Junle Qu, and Qiao Wen. 2022. "Liquid-Phase Exfoliation of Ta2NiS5 and Its Application in Near-Infrared Mode-Locked Fiber Lasers with Evanescent Field Interactions and Passively Q-Switched Bulk Laser" Nanomaterials 12, no. 4: 695. https://doi.org/10.3390/nano12040695

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
