# CFM-RFM: A Cascading Failure Model for Inter-Domain Routing Systems with the Recovery Feedback Mechanism

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

#### 2.1. Optimal Valid Path Prediction Method for Inter-Domain Networks

#### 2.2. Types of Attacks and Costs

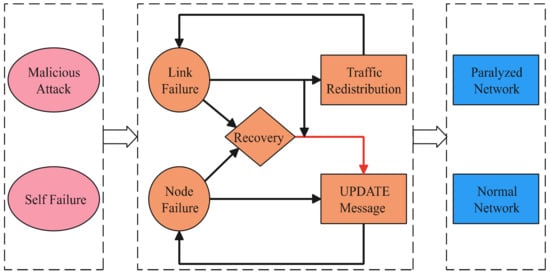

## 3. Analysis of the Cascading Failure Principle for the Inter-Domain Routing System

## 4. CFM-RFM

#### 4.1. Notations

#### 4.1.1. The Load and Capacity of Nodes

#### 4.1.2. The Load and Capacity of Links

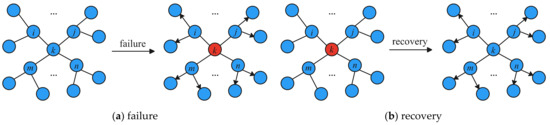

#### 4.2. Propagation Mechanism of UPDATE Messages

#### 4.2.1. Failure of the Node Causes the Propagation Process of the UPDATE Message

#### 4.2.2. Re-Triggered UPDATE Message Propagation

#### 4.2.3. Pseudocode

Algorithm 1. The propagation algorithm. |

Input:G, LoadNode, InvalidNodeSet, RecoverNodeSet |

Output: The updated state of the node |

1: While InvalidNodeSet $\ne \mathsf{\Phi}$ do |

2: Find all the neighbors (NeighborSet) of the node in the InvalidNode; |

3: NeighborSet sends UPDATE messages to reachable ${v}_{p}$,${v}_{p}\in \mathbb{R}$; |

4: LoadNode [${v}_{p}$] ← LoadNode [${v}_{p}$] + 1; |

5: IF LoadNode [${v}_{p}$] > R, InvalidNodeSet.add (${v}_{p}$), RecoverNodeSet.add (${v}_{p}$); |

6: End while |

7: While RecoverNodeSet $\ne \mathsf{\Phi}$ and $t=\Delta T$ do |

8: Find all the neighbors (NeighborSet) of the node in the RecoverNodeSet; |

9: NeighborSet sends UPDATE messages to reachable ${v}_{q}$,${v}_{q}\in \mathbb{R}$; |

10: LoadNode [${v}_{q}$] ← LoadNode [${v}_{q}$] + 1; |

11: IF LoadNode [${v}_{q}$] > R, InvalidNodeSet.add (${v}_{q}$), RecoverNodeSet.add (${v}_{q}$); |

12: End while |

#### 4.3. Traffic Redistribution

Algorithm 2. Traffic redistribution algorithm. |

Input: G, LoadLink, InvalidLinkSet, OptimalValidPaths,$\alpha $ |

Output: The updated state of the link |

1: Check p in OptimalValidPaths; |

2: While ${e}_{mn}\in p\mathrm{and}{e}_{mn}\in InvalidLinkSet$ do |

3: For ${e}_{ij}\in p$ do |

4: LoadLink [${e}_{ij}$] ← LoadLink [${e}_{ij}$] − $\alpha $; |

5: End for |

6: OptimalValidPaths.delete (p); |

7: End while |

8: Find the new optimal valid path ${p}_{ab}$; |

9: OptimalValidPaths.add (${p}_{ab}$); |

10: For ${e}_{ij}\in {p}_{ab}$ do |

11: LoadLink [${e}_{ij}$] ← LoadLink [${e}_{ij}$] + $\alpha $; |

12: IF LoadLink [${e}_{ij}$] > ${C}_{ij}$, InvalidLinkSet.add (${e}_{ij}$); |

13: End for |

#### 4.4. Modeling the Process of Cascading Failure

## 5. Experiments and Analysis

#### 5.1. Data and Parameter Setup

#### 5.2. Metric of Evaluation for Cascading Failure

#### 5.3. Impact of Recovery Feedback Mechanism

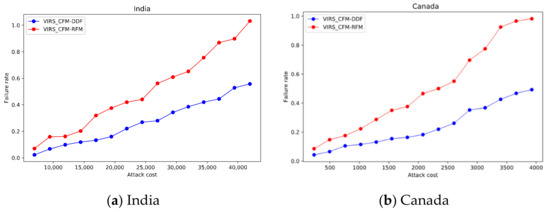

#### 5.4. Analysis of Attack Costs

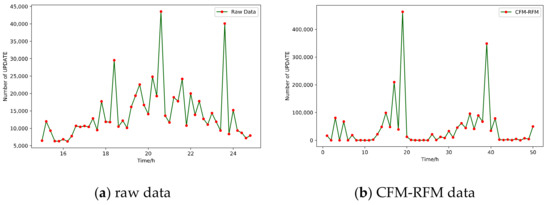

#### 5.5. Validity of CFM-RFM

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Butler, K.; Farley, T.R.; Mcdaniel, P.; Rexford, J. A Survey of BGP Security Issues and Solutions. Proc. IEEE
**2009**, 98, 100–122. [Google Scholar] [CrossRef] - Li, S.; Zhuge, J.W.; Li, X. Study on BGP Security. J. Softw.
**2013**, 24, 121–138. [Google Scholar] [CrossRef] - Goldberg, S. Why is it taking so long to secure internet routing? Queue
**2014**, 12, 20–33. [Google Scholar] [CrossRef] - Vervier, P.A.; Thonnard, O.; Dacier, M. Mind Your Blocks: On the Stealthiness of Malicious BGP Hijacks. In Proceedings of the Network & Distributed System Security Symposium, San Diego, CA, USA, 8–11 February 2015. [Google Scholar]
- Murphy, S. BGP Security Vulnerabilities Analysis. 2006. Available online: https://datatracker.ietf.org/doc/rfc4272 (accessed on 17 May 2021).
- Zou, C.; Gong, W.; Towsley, D. Code red worm propagation modeling and analysis. In Proceedings of the 9th ACM Conference on Computer and Communications Security, CCS 2002, Washington, DC, USA, 18–22 November 2002; pp. 138–147. [Google Scholar] [CrossRef] [Green Version]
- Hakimi, R.; Saputra, Y.M.; Nugraha, B. Case Studies Analysis on BGP: Prefix Hijacking and Transit AS. In Proceedings of the IEEE International Conference on Telecommunication Systems Services and Applications (TSSA’16), Denpasar, Indonesia, 6–7 October 2016; pp. 1–8. [Google Scholar] [CrossRef]
- Schuchard, M.; Mohaisen, A.; Foo Kune, D.; Hopper, N.; Kim, Y.; Vasserman, E.Y. Losing control of the internet: Using the data plane to attack the control plane. In Proceedings of the 17th ACM Conference on Computer and Communications Security, Chicago, IL, USA, 4–18 October 2010; pp. 726–728. [Google Scholar]
- Deng, W.; Zhu, P.; Lu, X.; Plattner, B. On Evaluating BGP Routing Stress Attack. J. Commun.
**2010**, 5, 13–22. [Google Scholar] [CrossRef] [Green Version] - Li, H.; Zhu, J.; Qiu, H.; Wang, Q.; Zhou, T.; Li, H. The new threat to internet: DNP attack with the attacking flows strategizing technology. Int. J. Commun. Syst.
**2015**, 28, 1126–1139. [Google Scholar] [CrossRef] - Motter, A.E.; Lai, Y.C. Cascade-based Attacks on Complex Networks. Phys. Rev. E
**2003**, 66, 065102. [Google Scholar] [CrossRef] [Green Version] - Guo, Y.; Wang, Z.; Luo, S.; Wang, Y. A cascading failure model for interdomain routing system. Int. J. Commun. Syst.
**2012**, 25, 1068–1076. [Google Scholar] [CrossRef] - Liu, Y.; Wei, P.; Su, J.; Wang, Z. Assessing the Impact of Cascading Failures on the Interdomain Routing System of the Internet. New Gener. Comput.
**2014**, 32, 237–255. [Google Scholar] [CrossRef] - Gao, L. On inferring autonomous system relationships in the Internet. IEEE/ACM Trans. Netw.
**2001**, 9, 733–745. [Google Scholar] [CrossRef] - Lu, Y.; Yang, B. Analyzing and modeling cascading failures for inter-domain routing system. J. Syst. Eng. Electron.
**2016**, 38, 172–178. [Google Scholar] - Zhu, H.; Qiu, H.; Wang, Q. Double Damage Factor Based Inter-Domain Routing System Cascading Failure Model. Comput. Eng. Appl.
**2019**, 55, 92–99. [Google Scholar] - Zhang, J.; Zhang, J.; Xiong, X.; Wang, Y. Optimal valid path prediction method for inter-domain networks considering commercial relationships. J. Phys. Conf. Ser.
**2020**, 1693, 012023. [Google Scholar] [CrossRef] - Bonacich, P.F. Factoring and weighting approaches to status scores and clique identification. J. Math. Sociol.
**1972**, 2, 113–120. [Google Scholar] [CrossRef] - Zhang, L.; Xia, J.; Cheng, F.; Qiu, J.; Zhang, X. Multi-Objective Optimization of Critical Node Detection Based on Cascade Model in Complex Networks. IEEE Trans. Netw. Sci. Eng.
**2020**, 7, 2052–2066. [Google Scholar] [CrossRef] - Zhang, Y.; Mao, Z.M.; Wang, J. Low-Rate TCP-Targeted DoS Attack Disrupts Internet Routing. In Proceedings of the NDSS, San Diego, CA, USA, 28 February–2 March 2007. [Google Scholar] [CrossRef]
- Wang, L.; Zhao, X.; Pei, D.; Bush, R.; Massey, D.; Mankin, A.; Wu, S.F.; Zhang, L. Observation and analysis of BGP behavior under stress. In Proceedings of the 2nd ACM SIGCOMM Workshop on Internet Measurement, Marseille, France, 6–8 November 2002; pp. 183–195. [Google Scholar]
- Chang, D.F.; Govindan, R.; Heidemann, J. An empirical study of router response to large BGP routing table load. In Proceedings of the 2nd ACM SIGCOMM Workshop on Internet Measurement, Marseille, France, 6–8 November 2002; pp. 203–208. [Google Scholar] [CrossRef] [Green Version]
- CAIDA. Available online: https://www.caida.org (accessed on 17 May 2021).
- RIPE’s Routing Information Service. Available online: https://www.ripe.net (accessed on 17 May 2021).
- Coffman, E.G.; Ge, Z.; Misra, V.; Towsley, D. Network Resilience: Exploring Cascading Failures within BGP. In Proceedings of the 40th Annual Allerton Conference on Communications, Computing and Control, Allerton House, IL, USA, 27–29 September 2002. [Google Scholar]

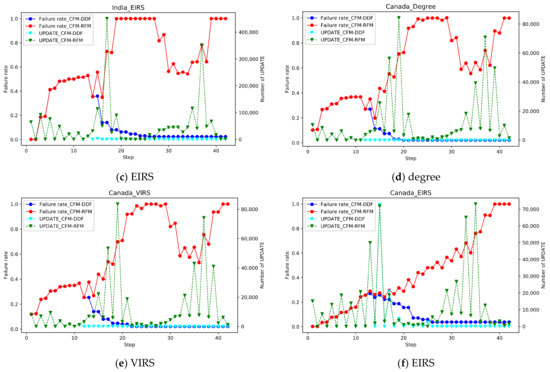

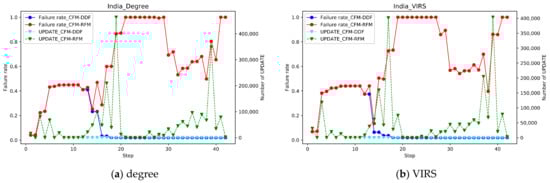

**Figure 3.**Under the three attack strategies, the top 1% nodes or links of the two networks were removed to observe the change in failure rate and number of UPDATE as step increases by different models. The solid blue line refers to the CFM-DDF, and the solid red line refers to the CFM-RFM. The dotted line indicates the number of UPDATE. The types of attacks and countries have been indicated in the figure.

Notations | Descriptions |
---|---|

$G=(V,E)$ | Topology of inter-domain routing network. |

V | The set of nodes. |

E | The set of links. |

${v}_{i}$ | A node ${v}_{i}\in V$. |

${e}_{ij}$ | A link ${e}_{ij}\in E$. |

${L}_{i}$/${L}_{ij}$ | The load of ${v}_{i}$ or ${e}_{ij}$. |

${R}_{i}$ | The capacity of ${v}_{i}$. |

${C}_{ij}$ | The capacity of ${e}_{ij}$. |

$\beta $ | Tolerance parameter. |

$\Delta {T}_{i}$ | Recovery delay of ${v}_{i}$. |

$\Delta {T}_{ij}$ | Recovery delay of ${e}_{ij}$. |

$\gamma $ | Basic unit flow. |

VIRS | Betweenness. |

EIRS | Betweenness of links. |

${\mathbb{R}}_{i}$ | The set of reachable nodes of ${v}_{i}$. |

Parameter | Value_India | Value_Canada |
---|---|---|

Num_V | 2406 | 1523 |

Num_E | 4052 | 2508 |

Step | 50 | 50 |

$\gamma $ | 1 | 1 |

$\beta $ | 0.3 | 0.3 |

${R}_{i}$ | 250 | 150 |

$\Delta {T}_{i}$ | 5 | 5 |

$\Delta {T}_{ij}$ | 5 | 5 |
