# Analysis of the Discrete Theory of Radiative Transfer in the Coupled “Ocean–Atmosphere” System: Current Status, Problems and Development Prospects

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Boundary Value Problems of the Radiation Transfer Theory

## 3. Architecture of the Boundary Value Problems in Radiative Transfer

**r**) is the reflection coefficient of the surface. The inelastic scattering processes changing the wavelength of the light are not included. The BVP (1) is defined in the Cartesian coordinate system OXYZ, in which the OZ axis is directed downward perpendicular to the layer boundary, $\hat{z}$ is a unit vector along OZ. The upper boundary of the layer is located at $z=0$. Throughout the paper, the unit vectors are denoted with a “^” sign, while column vectors, row vectors and matrices are marked with the right arrows, left arrows and double arrows respectively.

**r**and defines the radiance of the surface, which is due to the multiple reflection events from the surface $\overline{\mathsf{\rho}}$ as well as multiple scattering events in the medium.

## 4. The Boundary Value Problem for the Radiative Transfer Equation for a Slab

## 5. Discretization of the Radiative Transfer Equation

_{j}are the Gaussian quadrature points of the N/2 order. For the sake of simplicity, index m is further omitted. Such discretization allows substituting the integral with a finite sum. The BVP is transformed into the matrix nonlinear differential equation of the first order with constant coefficients:

_{j}are the Gaussian quadrature weights, ${\mathrm{P}}_{l}^{n}(\mathsf{\mu})$ are the associated Legendre polynomials, and ${\mathrm{P}}_{l}^{0}(\mathsf{\mu})\equiv {\mathrm{P}}_{l}(\mathsf{\mu})$ are the Legendre polynomials, $\overleftrightarrow{\mathrm{A}}\equiv {\displaystyle \sum _{k=0}^{K}(2k+1){\mathrm{P}}_{k}^{m}({\mathsf{\mu}}_{i}^{\pm}){x}_{k}{\mathrm{P}}_{k}^{m}({\mathsf{\mu}}_{j}^{\pm})},$ $\overleftrightarrow{\mathrm{W}}\equiv \frac{\Lambda}{4}\left[\begin{array}{cc}{w}_{i}& 0\\ 0& {w}_{i}\end{array}\right]$, $\overleftrightarrow{\mathrm{M}}\equiv \left[\begin{array}{cc}{\mathsf{\mu}}_{i}^{-}& 0\\ 0& {\mathsf{\mu}}_{i}^{+}\end{array}\right]$, $x(\gamma )={\displaystyle \sum _{k=0}^{\infty}\frac{2k+1}{4\mathsf{\pi}}{x}_{k}{\mathrm{P}}_{k}(\mathrm{cos}\gamma )}$.

## 6. Propagators and Scatters

## 7. Invariance Property of the Solution

## 8. The Anisotropic Part of the Solution

_{0}= 0° and 70° for different sight angles is shown in Figure 1. The observation scheme is adopted, in which the direction to the Nadir ϑ = 180°. As one can see, the error does not exceed 10

^{−5}in almost the entire range of sight angles.

## 9. Reflection and Refraction at the Ocean–Atmosphere Interface

_{o}> 1. The discrete ordinates in the atmosphere are related to those in the ocean through Snell’s law as follows:

_{t}points per hemisphere. Consequently, we obtain the two column-vectors ${\overrightarrow{\mathrm{C}}}_{+}^{t},{\overrightarrow{\mathrm{C}}}_{-}^{t}$ of downwelling and upwelling radiance values, respectively, in the Fourier space along discrete ordinate directions. Note that in the case of the flat oceanic surface ${\overrightarrow{\mathrm{C}}}_{+}^{t}$ and ${\overrightarrow{\mathrm{C}}}_{-}^{t}$ are related to each other by the law of specular reflection. For the first and last integrals in Equation (47) we perform the change of variables according to Equation (46):

## 10. Synthetic Iteration Method

_{i}are the roots of P

_{N}

_{+1}(μ). Substituting Equation (52) into Equation (51) gives:

_{m}(τ,μ). These relations can be regarded as analogous to the Nyquist-Shannon-Kotelnikov sampling theorem. The following comments are in order:

- 1)
- Since the separation of the anisotropic part of the solution provides the most accurate discrete representation of the scattering integral, the MDOM determines the mean convergence;
- 2)
- The convergence of the solution in the uniform metric is determined by the features of the angular distribution of the scattering phase function, then the convergence here of any method for isolating anisotropy will be equivalent;
- 3)
- To achieve good convergence in a uniform metric, the sampling interval must correspond to the angular size of the finest detail of the radiance distribution necessary to solve a practical problem.

## 11. Polarized Radiation Transfer

## 12. Three-Dimensional Radiative Transfer Models

## 13. Inverse Models

## 14. Numerical Aspects

^{th}digit has been obtained. The computations have been performed for the coupled model with the flat oceanic surface. The ocean has been modeled as a two-layer system with the dissolved organic matter in the upper oceanic layer. The atmosphere was modeled as a 14-layer system containing the trace gases (O

_{3}, NO

_{2}) as well as the urban aerosol.

## 15. Conclusions

- 1)
- The synthetic iteration techniques equipped with the small-angle approximation, DOM or SHM or;
- 2)
- MOM with various degrees of assumptions.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Apresyan, L.A.; Kravtsov, Y.A. Radiation Transfer: Statistical and Wave Aspects; CRC Press: Boca Raton, FL, USA, 2019. [Google Scholar]
- Budak, V.P.; Veklenko, B.A. Boson peak, flickering noise, backscattering processes and radiative transfer in random media. J. Quant. Spectrosc. Radiat. Transf.
**2011**, 112, 864–875. [Google Scholar] [CrossRef] - Kolmogorov, A.N. Combinatorial foundations of information theory and the calculus of probabilities. Russ. Math. Surv.
**1983**, 38, 29–40. [Google Scholar] [CrossRef] - Kokhanovsky, A.A.; Budak, V.P.; Cornet, C.; Duan, M.; Emde, C.; Katsev, I.L.; Kiyukov, D.A.; Korkin, S.V.; Mayer, B.; Min, Q.; et al. Benchmark results in vector atmospheric radiative transfer. J. Quant. Spectrosc. Radiat. Transf.
**2010**, 111, 1931–1946. [Google Scholar] [CrossRef] [Green Version] - Kelvin, L. Lord Kelvin Nineteenth century clouds over the dynamical theory of heat and light. Philos. Mag. Ser.
**1901**, 2, 1–40. [Google Scholar] [CrossRef] [Green Version] - Gabriel, P.M.; Tsay, S.-C.; Stephens, G.L. A Fourier-Riccati approach to radiative transfer. Part I: Foundations. J. Atmos. Sci.
**1993**, 50, 3125–3147. [Google Scholar] [CrossRef] [Green Version] - Kokhanovsky, A.A.; Mayer, B.; Rozanov, V.V.; Wapler, K.; Burrows, J.P.; Schumann, U. The influence of broken cloudiness on cloud top height retrievals using nadir observations of backscattered solar radiation in the oxygen a-band. J. Quant. Spectrosc. Radiat. Transf.
**2007**, 103, 460–477. [Google Scholar] [CrossRef] [Green Version] - Doicu, A.; Efremenko, D.S.; Loyola, D.; Trautmann, T. Discrete ordinate method with matrix exponential for stochastic radiative transfer in broken clouds. J. Quant. Spectrosc. Radiat. Transf.
**2014**, 138, 1–16. [Google Scholar] [CrossRef] - Lazarev, A.; Sevastianov, V. Face-to-face, you can’t see the face. Sci. life
**1987**, 9, 27–32. [Google Scholar] - Ioltukhovskii, A.A.; Mishin, I.V.; Sushkhvic, T.A. Solution of the transport equation in a three-dimensionally inhomogeneous scattering layer by the method of characteristic. USSR Comput. Math. Phys.
**1984**, 24, 57–67. [Google Scholar] [CrossRef] - Case, K.M.; Zweifel, P.F. Linear Transport Theory; Addison-Wesley: Reading, MA, USA, 1967. [Google Scholar]
- Germogenova, T.A. Local Properties of Solutions of the Transport Equation; Izdatel’stvo Nauka: Moscow, USSR, 1986. [Google Scholar]
- Budak, V.P.; Klyuykov, D.A.; Korkin, S.V. Convergence acceleration of radiative transfer equation solution at strongly anisotropic scattering. In Light Scattering Reviews 5. Single Light Scattering and Radiative Transfer; Kokhanovsky, A.A., Ed.; Springer: Berlin/Heidelberg, Germany, 2010; pp. 147–204. [Google Scholar]
- Milne, E.A. The reflection effect of the eclipse binaries. Mon. Not. R. Astrophys. Soc.
**1926**, LXXXVII, 43–49. [Google Scholar] [CrossRef] [Green Version] - Mie, G. Beiträge zur Optik trüber Medien, speziell kolloidaler Metallösungen. Ann. Phys.
**1908**, 330, 377–445. [Google Scholar] [CrossRef] - Krylov, V.I. Approximate Calculation of Integrals, 3rd ed.; Dover Publication: Mineola, NY, USA, 2005. [Google Scholar]
- Wick, G.C. Über ebene Diffusionsprobleme. Z. Phys.
**1943**, 121, 702–718. [Google Scholar] [CrossRef] - Karp, A.H.; Greenstadt, J.; Fillmore, J.A. Radiative transfer through an arbitrarily thick, scattering atmosphere. J. Quant. Spectrosc. Radiat. Transf.
**1980**, 24, 391–406. [Google Scholar] [CrossRef] - Flatau, P.J.; Stephens, G.L. On the Fundamental Solution of the Radiative Transfer Equation. J. Geophys. Res.
**1988**, 93, 11037–11050. [Google Scholar] [CrossRef] - Redheffer, R.M. Inequalities for a matrix Riccati Equation. J. Math. Mech.
**1959**, 8, 349–367. [Google Scholar] [CrossRef] - Fryer, G.J.; Frazer, L.N. Seismic waves in stratified anisotropic media. Geophys. J. Int.
**1984**, 78, 691–698. [Google Scholar] [CrossRef] [Green Version] - Ambartsumian, V.A. On the problem of diffuse reflection of light. J. Phys. USSR
**1944**, 8, 65–75. [Google Scholar] - Plass, G.N.; Kattawar, G.W.; Catchings, F.E. Matrix Operator Theory of Radiative Transfer. Appl. Opt.
**1973**, 12, 314–326. [Google Scholar] [CrossRef] - Budak, V.P.; Korkin, S.V. On the solution of a vectorial radiative transfer equation in an arbitrary three-dimensional turbid medium with anisotropic scattering. J. Quant. Spectrosc. Radiat. Transf.
**2008**, 109, 220–234. [Google Scholar] [CrossRef] - Chandrasekhar, S. Radiative Transfer; Dover Publications: New York, NY, USA, 1960. [Google Scholar]
- Sweigart, A.V. Radiative transfer in atmospheres scattering according to the Rayleigh phase function with absorption. Astrophys. J. Suppl. Ser.
**1970**, 182, 1–80. [Google Scholar] [CrossRef] - Rogovtsov, N.N.; Borovik, F. Application of general invariance relations reduction method to solution of radiation transfer problems. J. Quant. Spectrosc. Radiat. Transf.
**2016**, 183, 128–153. [Google Scholar] [CrossRef] - Tanaka, M.; Nakajima, T. Effects of oceanic turbidity and index refraction of hydrosols on the flux of solar radiation in the atmosphere-ocean system. J. Quant. Spectrosc. Radiat. Transf.
**1977**, 18, 93–111. [Google Scholar] [CrossRef] - Budak, V.P.; Zheltov, V.S.; Lubenchenko, A.V.; Freidlin, K.S.; Shagalov, O.V. A fast and accurate synthetic iteration-based algorithm for numerical simulation of radiative transfer in a turbid medium. Atmos. Ocean. Opt.
**2017**, 30, 70–78. [Google Scholar] [CrossRef] - Budak, V.P.; Kaloshin, G.A.; Shagalov, O.V.; Zheltov, V.S. Numerical modeling of the radiative transfer in a turbid medium using the synthetic iteration. Opt. Exp.
**2015**, 23, A829–A840. [Google Scholar] [CrossRef] - Adams, M.L.; Larsen, E.W. Fast iterative methods for discrete-ordinates particle transport calculations. Prog. Nucl. Energy
**2002**, 40, 3–159. [Google Scholar] [CrossRef] - Kuščer, I.; Ribarič, M. Matrix Formalism in the Theory of Diffusion of Light. Opt. Acta
**1959**, 6, 42–51. [Google Scholar] - Gelfand, I.M.; Minlos, R.A.; Shapiro, Z.Y. Representations of the Rotation and Lorentz Groups and Their Applications; Pergamon Press: Oxford, UK, 1963. [Google Scholar]
- Budak, V.P.; Efremenko, D.S.; Shagalov, O.V. Efficiency of algorithm for solution of vector radiative transfer equation in turbid medium slab. J. Phys. Conf. Ser.
**2012**, 369, 012021. [Google Scholar] [CrossRef] - Gol’din, V.Y. A quasi-diffusion method of solving the kinetic equation. USSR Comput. Math. Math. Phys.
**1964**, 4, 136–149. [Google Scholar] [CrossRef] - Pomraning, G.C. Radiative transfer and transport phenomena in stochastic media. Int. J. Eng. Sci.
**1998**, 36, 1595–1621. [Google Scholar] [CrossRef] - Spurr, R.J.D. LIDORT and VLIDORT linearized pseudo-spherical scalar and vector discrete ordinate radiative transfer models for use in remote sensing retrieval problems. In Light Scattering Reviews 3. Single Light Scattering and Radiative Transfer; Kokhanovsky, A.A., Ed.; Springer: Berlin/Heidelberg, Germany, 2008; pp. 229–275. [Google Scholar]
- Sokoletsky, L.G.; Budak, V.P.; Shen, F.; Kokhanovsky, A.A. Comparative analysis of radiative transfer approaches for calculation of plane transmittance and diffuse attenuation coefficient of plane-parallel light scattering layers. Appl. Opt.
**2014**, 53, 459–468. [Google Scholar] [CrossRef] - Doicu, A.; Efremenko, D.S. Linearizations of the spherical harmonic discrete ordinate method (SHDOM). Atmosphere
**2019**, 10, 292. [Google Scholar] [CrossRef] [Green Version] - Efremenko, D.S.; Doicu, A.; Loyola, D.; Trautmann, T. Fast stochastic radiative transfer models for trace gas and cloud property retrievals under cloudy conditions. In Springer Series in Light Scattering; Springer: Berlin/Heidelberg, Germany, 2018; pp. 231–277. [Google Scholar]
- del Águila, A.; Efremenko, D.S.; Trautmann, T. A review of dimensionality reduction techniques for processing hyper-spectral optical signal. Light Eng.
**2019**, 27, 85–98. [Google Scholar] [CrossRef] [Green Version] - del Águila, A.; Efremenko, D.; Molina Garcá, V.; Xu, J. Analysis of two dimensionality reduction techniques for fast simulation of the spectral radiances in the Hartley-Huggins band. Atmosphere
**2019**, 10, 142. [Google Scholar] [CrossRef] [Green Version]

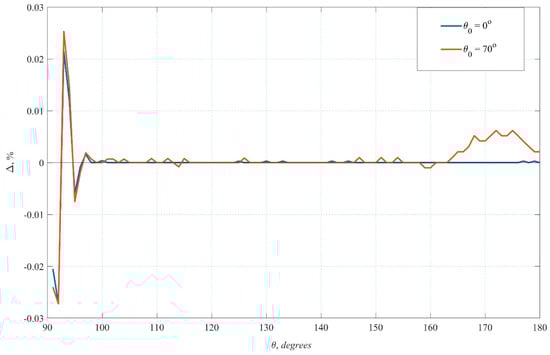

**Figure 1.**The relative error of the MDOM to the exact RTE solution for a semi-infinite layer of a cloudy medium with Rayleigh scattering.

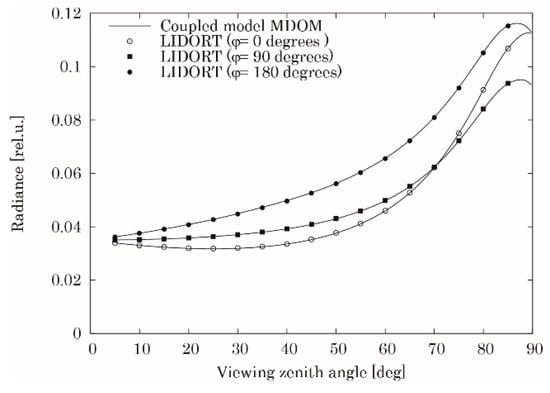

**Figure 2.**Validation of the coupled MDOM model against the coupled LIDORT model. The solar zenith angle is 35 degrees.
