# A Quantitative Parametric Study on Output Time Delays for Autonomous Underwater Cleaning Operations

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Cleaning Mission

- A near-structure operation, where the ROV cleans underwater structures, such as risers, wells, or mono-piles.
- A off-structure navigation, where the ROV should navigate from one operation area to another, could be the vessel and the riser.

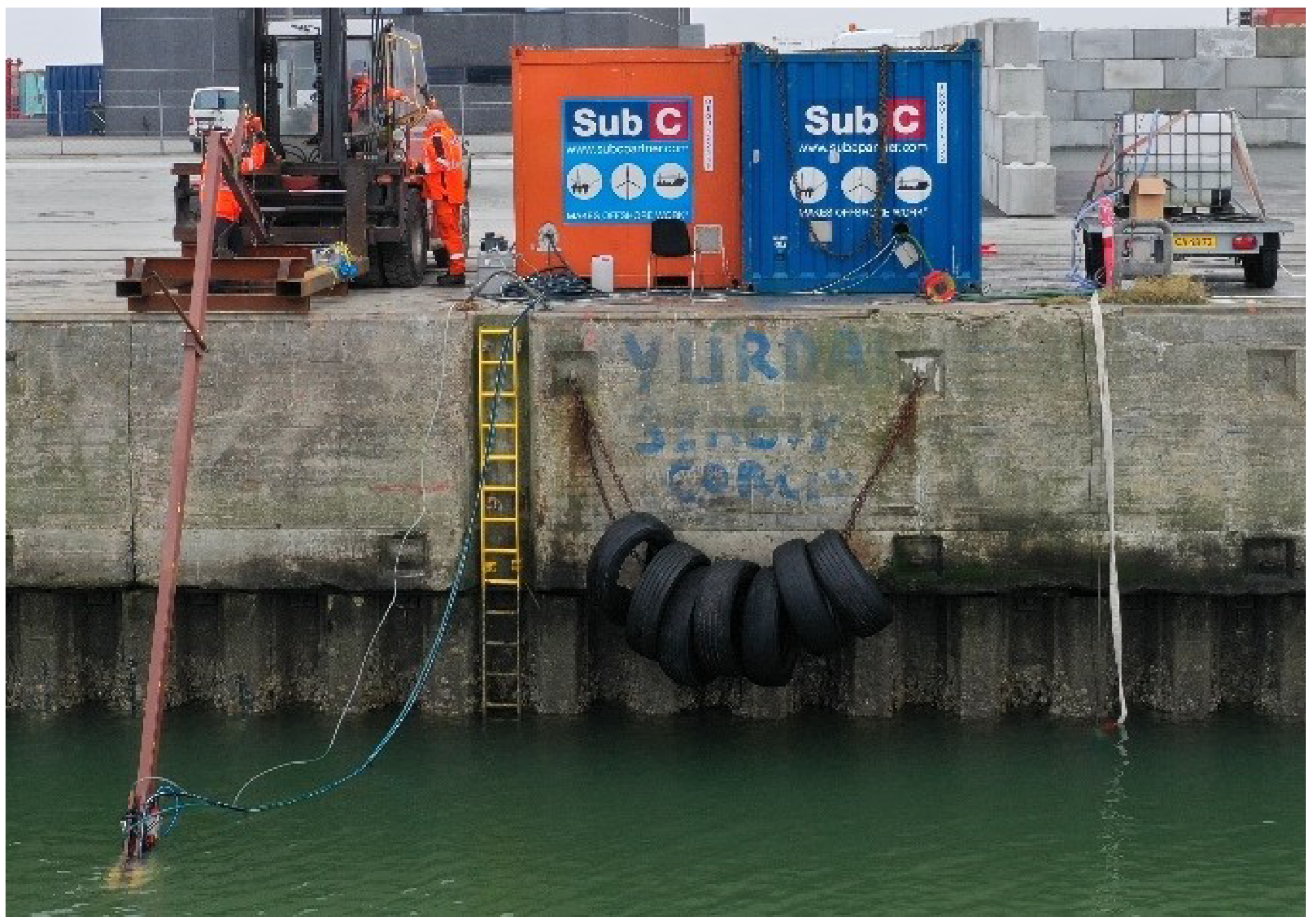

#### 2.1. Near-Structure Operation

#### 2.2. Off-Structure Navigation

#### 2.3. Sensor Properties

- Inertial/Dead reckoning
- Acoustic transponders/Absolute position
- Geophysical/Relative position

#### 2.3.1. Near-Structure Operation Sensors

#### 2.3.2. Off-Structure Navigation Operation Sensors

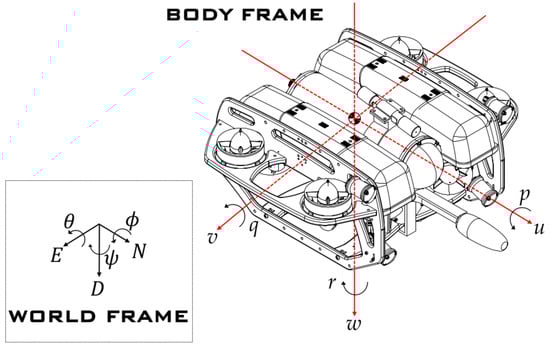

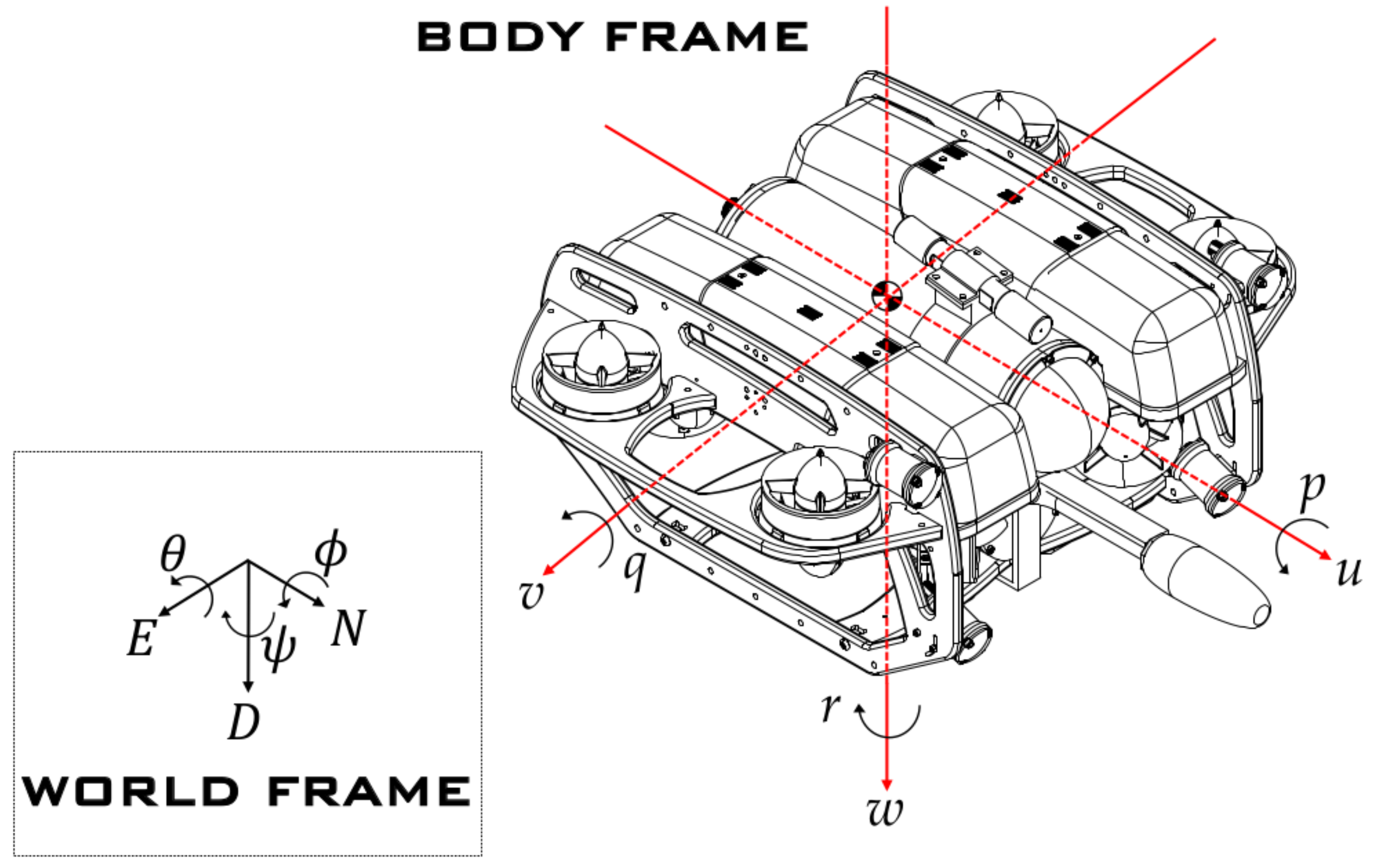

## 3. Modeling and Assumptions

## 4. Linearization and Reformulation

#### 4.1. Rewriting to Single-Input Single-Output Systems

#### 4.2. Coupling Effect Analysis

#### 4.3. Padé Approximation

#### 4.4. Nominal Closed-Loop System

#### 4.5. Scaling

## 5. Model Analysis

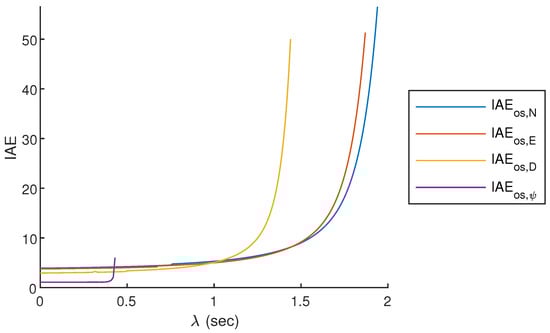

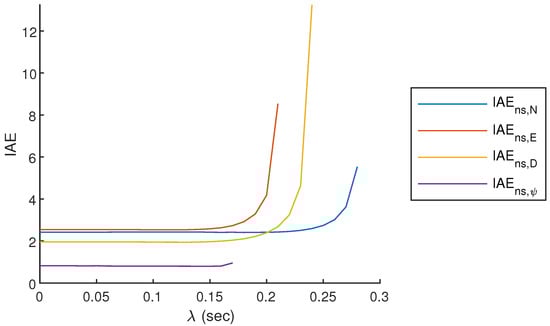

#### 5.1. Performance Analysis on Stable Region

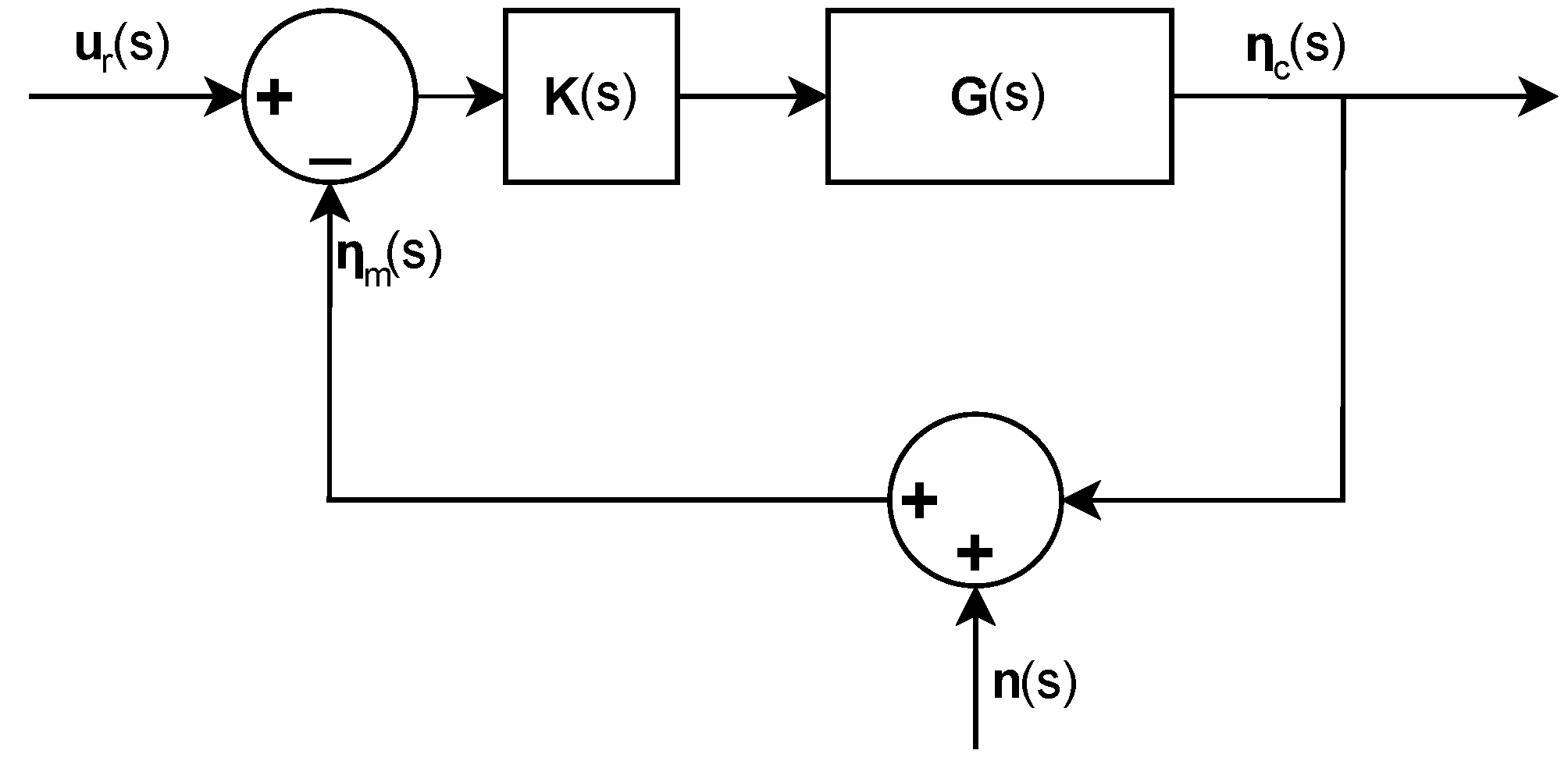

#### 5.2. Input-Output Controllability Analysis

#### 5.2.1. Lower Bound on S

#### 5.2.2. Lower Bound on KS

#### 5.2.3. Lower Bound on SG

#### 5.3. Analytical Results

#### 5.3.1. Lower Bound for S

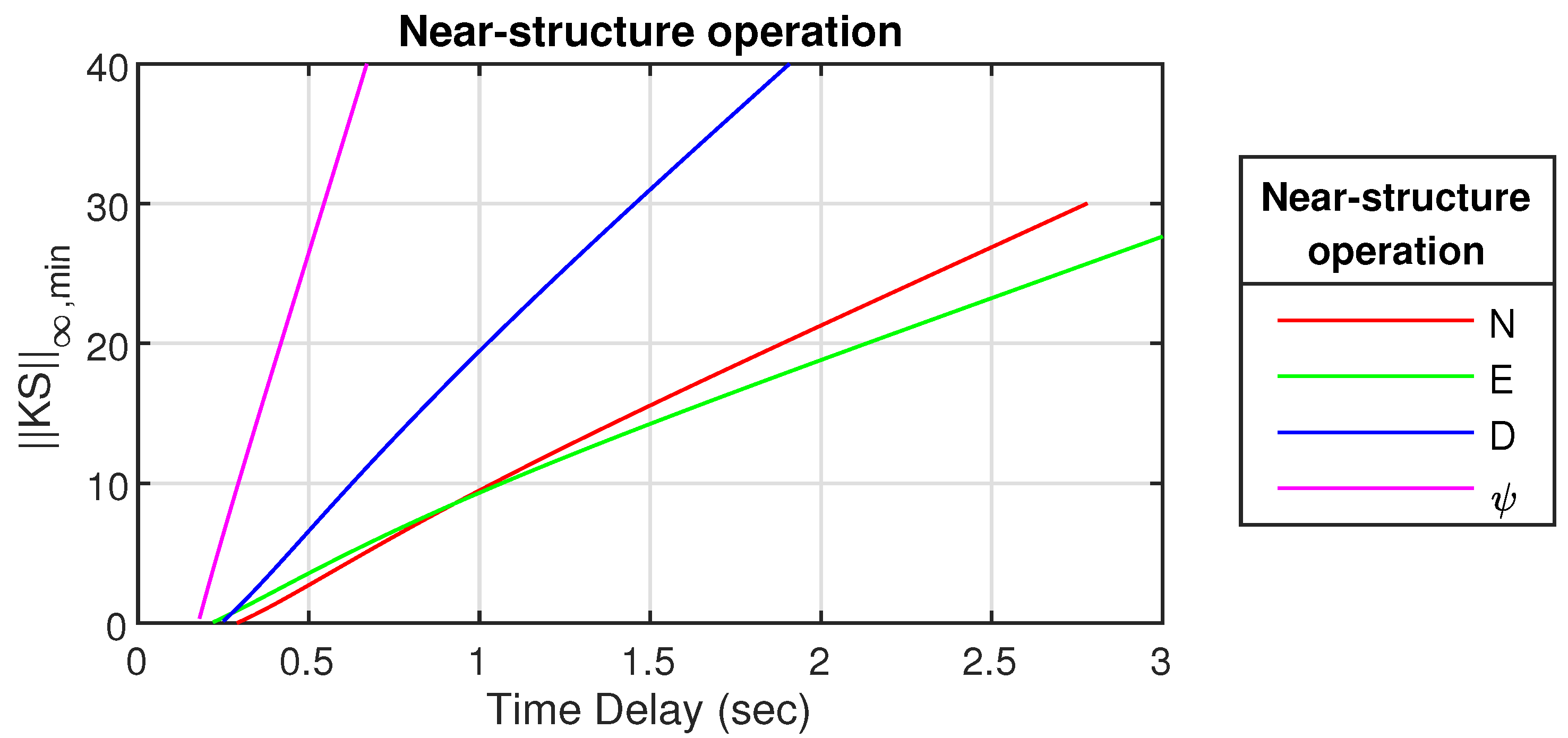

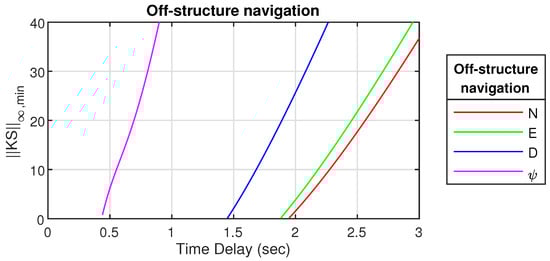

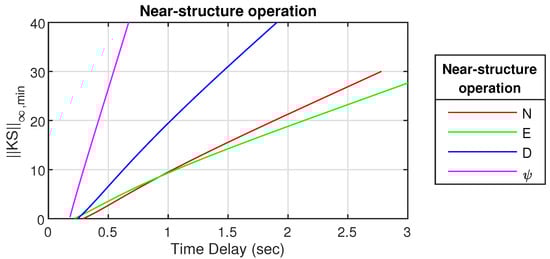

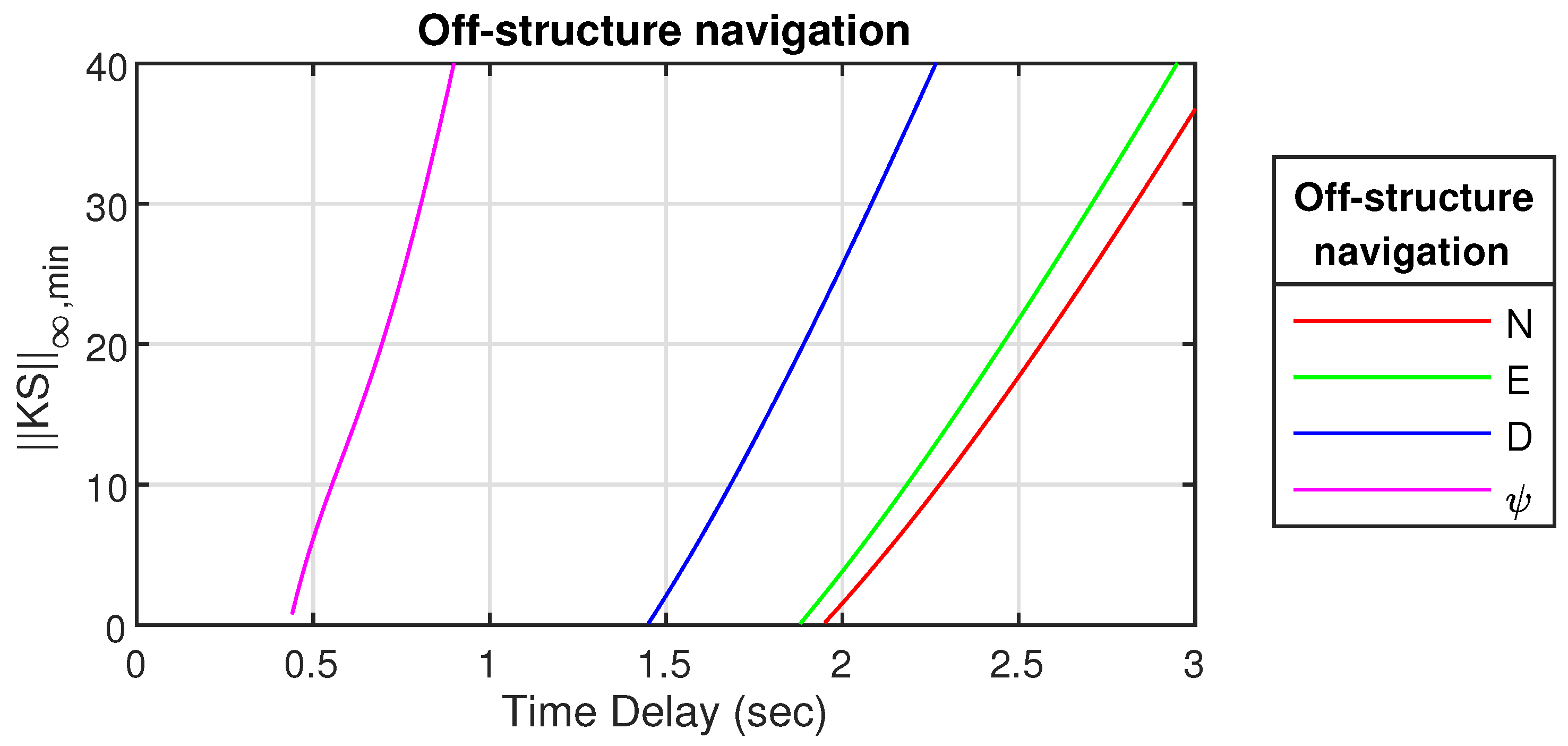

#### 5.3.2. Lower Bound for KS

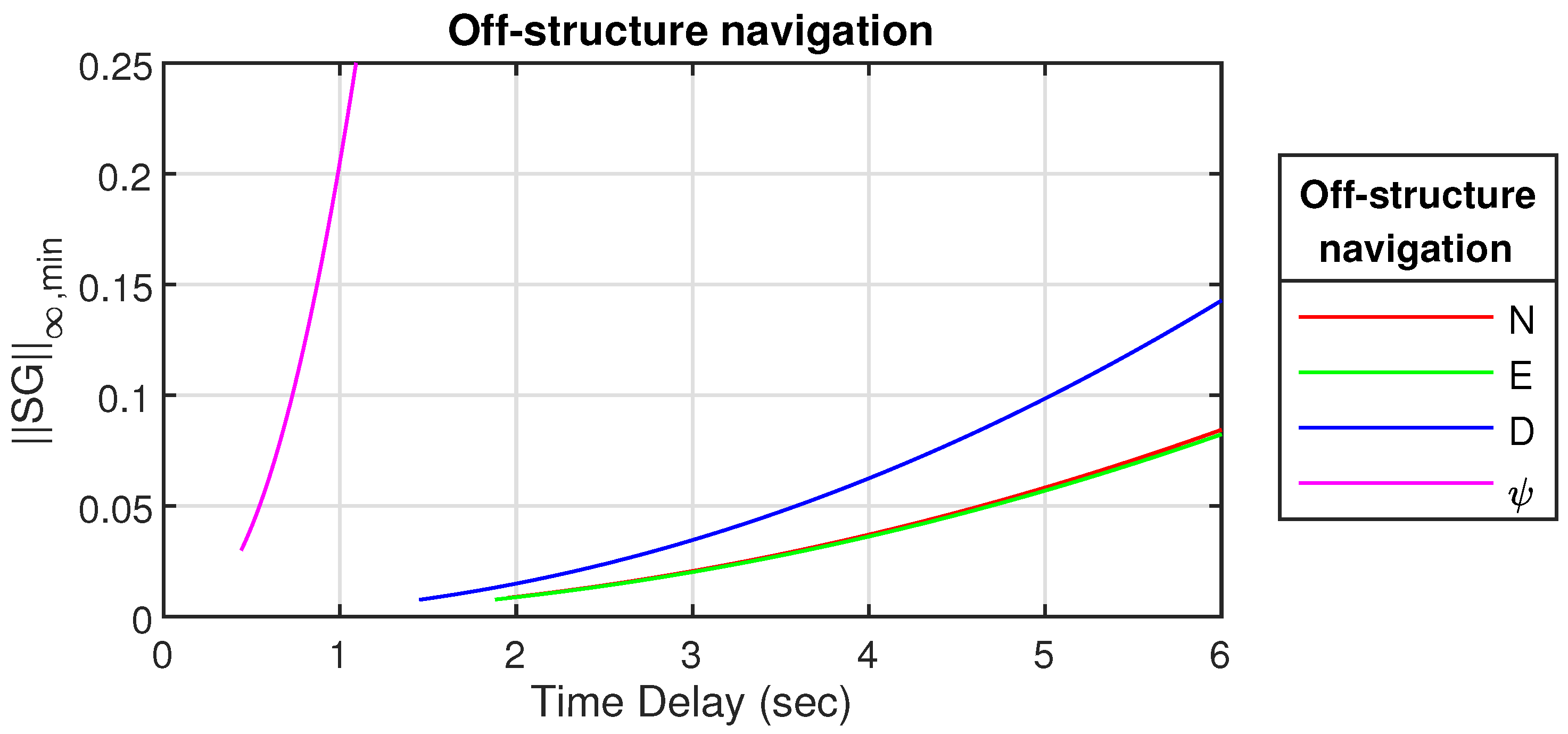

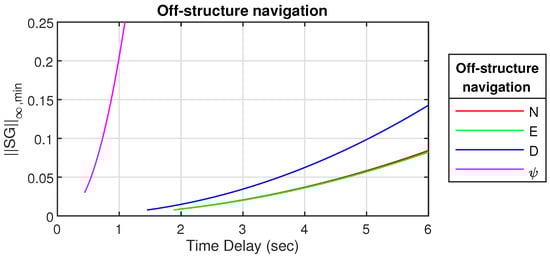

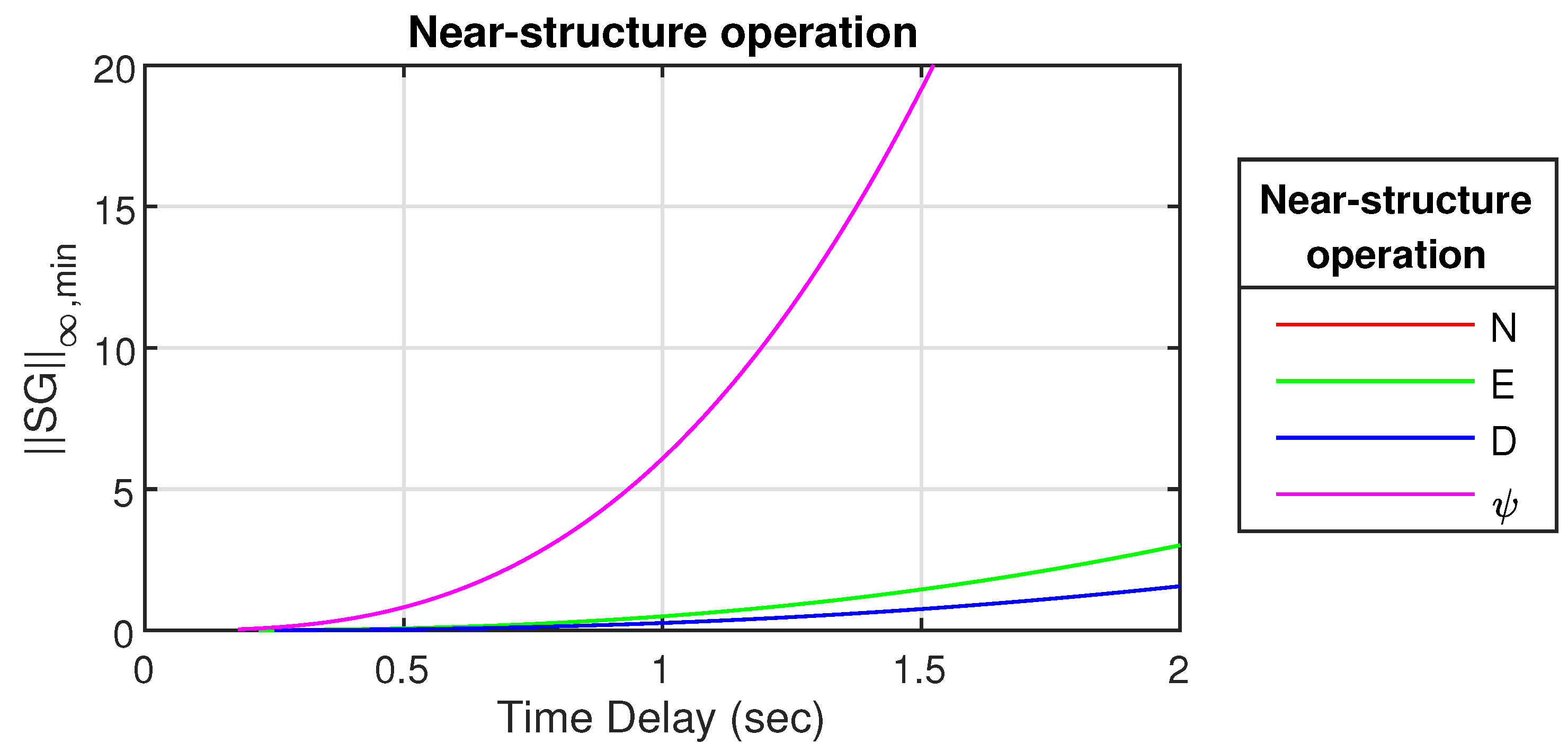

#### 5.3.3. Lower Bound for SG

## 6. Motion Sensor Evaluation

## 7. Conclusions and Future Work

- The IO Controllability is only applicable for linear systems; therefore, the non-linear system has to be linearized, resulting in inaccuracies of the results depending on the grade non-linearity. The drag contains non-linear terms, which depend on the velocity of the ROV. The linear model will differ from the non-linear model when the velocities differ from the operation points. Multiple operation points have been chosen to remedy large deviations depending on the type of operation.
- Time delays are infinite-dimensional systems, which have to be approximated into a proper transfer function. The approximation can be made by using the Padé approximation; however, this results in some inaccuracies. The approximation introduces inverse responses, larger delays introduce larger inverse responses, and therefore, the approximation is more accurate at low time delays.
- The IO Controllability benefits from being an open-loop analysis proving theoretical bound for the closed-loop system. This means that the system can be evaluated in terms of control performance while being controller agnostic. This is especially beneficial when choosing various sensor technologies for the feedback system. The analysis can then be used to find the maximum tolerated time delay, at which it will no longer be possible to control the UUV.
- The IO Controllability analysis also shows that input disturbances and pole uncertainties have a greater impact on the heading motion than on the linear motions.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Mai, C.; Pedersen, S.; Hansen, L.; Jepsen, K.; Yang, Z. Modeling and Control of Industrial ROV’s for Semi-Autonomous Subsea Maintenance Services. IFAC PapersOnLine
**2017**, 50, 13686–13691. [Google Scholar] [CrossRef] - Mai, C.; Pedersen, S.; Hansen, L.; Jepsen, K.L.; Yang, Z. Subsea infrastructure inspection: A review study. In Proceedings of the 2016 IEEE International Conference on Underwater System Technology: Theory and Applications (USYS), Penang, Malaysia, 13–14 December 2016; pp. 71–76. [Google Scholar] [CrossRef]
- Huvenne, V.A.; Robert, K.; Marsh, L.; Lo Iacono, C.; Le Bas, T.; Wynn, R.B. ROVs and AUVs. In Submarine Geomorphology; Springer International Publishing: Cham, Switzerland, 2018; pp. 93–108. [Google Scholar] [CrossRef]
- Cleveland, C.J. Section 6—Oil. In Handbook of Energy Volume II: Chronologies Top Ten Lists and Word Clouds; Elsevier: Amsterdam, The Netherlands, 2014. [Google Scholar] [CrossRef]
- Pedersen, S.; Løhndorf, P.; Yang, Z. Challenges in Slug Modeling and Control for Offshore Oil and Gas Productions: A Review Study. Int. J. Multiph. Flow
**2017**, 88, 270–284. [Google Scholar] [CrossRef] - Anderson, M. Nondestructive testing of offshore structures. NDT Int.
**1987**, 20, 17–21. [Google Scholar] [CrossRef] - Riquer, F.W.; Gronemeyer, M.; Horn, J. Finding stability bounds for delayed systems with uncertain parameters. In Proceedings of the 2021 European Control Conference (ECC), Delft, The Netherlands, 29 June–2 July 2021. [Google Scholar]
- Ribas, D.; Ridao, P.; Mallios, A.; Palomeras, N. Delayed state information filter for USBL-Aided AUV navigation. In Proceedings of the 2012 IEEE International Conference on Robotics and Automation, Saint Paul, MN, USA, 14–18 May 2012; pp. 4898–4903. [Google Scholar] [CrossRef]
- Pedersen, S.; Liniger, J.; Sørensen, F.F.; Schmidt, K.; von Benzon, M.; Klemmensen, S.S. Stabilization of a ROV in Three-dimensional Space Using an Underwater Acoustic Positioning System. IFAC PapersOnLine
**2019**, 52, 117–122. [Google Scholar] [CrossRef] - Bardakov, R.N.; Kistovich, A.V.; Chashechkin, Y.D. Calculation of the sound velocity in stratified seawater based on a set of fundamental equations. Oceanology
**2010**, 50, 297–305. [Google Scholar] [CrossRef] - Chen, Y.; Jiang, N. Robust H∞ control of nonlinear time-varying delay systems with polytopic uncertainty. In Proceedings of the 2013 25th Chinese Control and Decision Conference (CCDC), Guiyang, China, 25–27 May 2013; pp. 3308–3313. [Google Scholar] [CrossRef]
- Olgac, N.; Sipahi, R. An exact method for the stability analysis of time-delayed linear time-invariant (LTI) systems. IEEE Trans. Autom. Control.
**2002**, 47, 793–797. [Google Scholar] [CrossRef] - Olgac, N.; Sipahi, R. An improved procedure in detecting the stability robustness of systems with uncertain delay. IEEE Trans. Autom. Control.
**2006**, 51, 1164–1165. [Google Scholar] [CrossRef] - Skogestad, S.; Postlethwaite, I.; Wiley, J.; New, C.; Brisbane, Y. Toronto. In Analysis and Design, 2nd ed.; Wiley and Sons: Hoboken, NJ, USA, 2006. [Google Scholar]
- Von Benzon, M.; Sørensen, F.; Liniger, J.; Pedersen, S.; Klemmensen, S.; Schmidt, K. Integral sliding mode control for a marine growth removing ROV with water jet disturbance. In Proceedings of the 2021 European Control Conference (ECC), Delft, The Netherlands, 29 June–2 July 2021; pp. 2265–2270. [Google Scholar] [CrossRef]
- Liniger, J.; Jensen, A.L.; Pedersen, S.; Sørensen, H.; Mai, C. On the autonomous inspection and classification of marine growth on subsea structures. In Proceedings of 2022 OCEANS Conference & Exposition, Oceans 2022, Chennai, China, 21–24 February 2022. [Google Scholar]
- Paull, L.; Saeedi, S.; Seto, M.; Li, H. AUV Navigation and Localization: A Review. IEEE J. Ocean. Eng.
**2014**, 39, 131–149. [Google Scholar] [CrossRef] - Amarasinghe, C.; Ratnaweera, A.; Maitripala, S. Monocular Visual SLAM for Underwater Navigation in Turbid and Dynamic Environments. Am. J. Mech. Eng.
**2020**, 8, 76–87. [Google Scholar] [CrossRef] - Kinsey, J.C.; Eustice, R.M.; Whitcomb, L.L. A Survey Of Underwater Vehicle Navigation: Recent Advances And New Challenges. IFAC Conf. Manoeuvering Control. Mar. Craft
**2006**, 88, 1–12. [Google Scholar] - Vickery, K. Acoustic positioning systems. A practical overview of current systems. In Proceedings of the 1998 Workshop on Autonomous Underwater Vehicles (Cat. No.98CH36290), Cambridge, MA, USA, 21–21 August 1998; pp. 5–17. [Google Scholar] [CrossRef]
- Fossen, T.I. Handbook of Marine Craft Hydrodynamics and Motion Control, 1st ed.; Wiley: Hoboken, NJ, USA, 2011. [Google Scholar]
- Jepsen, K.L.; Hansen, L.; Yang, Z. Control parings of a de-oiling membrane process. IFAC PapersOnLine
**2018**, 51, 126–131. [Google Scholar] [CrossRef] - Jepsen, K.L.; Pedersen, S.; Yang, Z. Control pairings of a deoiling membrane crossflow filtration process based on theoretical and experimental results. J. Process Control
**2019**, 81, 98–111. [Google Scholar] [CrossRef] - Hanta, V.; Procházka, A. Rational approximation of time delay. Inst. Chem. Technol. Prague. Dep. Comput. Control Eng. Tech.
**2009**, 5, 28. [Google Scholar] - Skogestad, S.; Grimholt, C. The SIMC method for smooth PID controller tuning. Adv. Ind. Control.
**2012**, 147–175. [Google Scholar] [CrossRef] - Jahanshahi, E.; Skogestad, S.; Helgesen, A.H. Controllability analysis of severe slugging in well-pipeline-riser systems. IFAC Proc. Vol.
**2012**, 45, 101–108. [Google Scholar] [CrossRef] [Green Version] - Karmozdi, A.; Hashemi, M.; Salarieh, H. Design and practical implementation of kinematic constraints in Inertial Navigation System-Doppler Velocity Log (INS-DVL)-based navigation. Navigation
**2018**, 65, 629–642. [Google Scholar] [CrossRef] - Kebkal, K.G.; Mashoshin, A.I. AUV acoustic positioning methods. Gyroscopy Navig.
**2017**, 8, 80–89. [Google Scholar] [CrossRef] - Snyder, J. Doppler Velocity Log (DVL) navigation for observation-class ROVs. In Proceedings of the OCEANS 2010 MTS/IEEE SEATTLE, Seattle, WA, USA, 20–23 September 2010; pp. 1–9. [Google Scholar] [CrossRef]
- Jian, M.; Liu, X.; Luo, H.; Lu, X.; Yu, H.; Dong, J. Underwater image processing and analysis: A review. Signal Process. Image Commun.
**2021**, 91, 116088. [Google Scholar] [CrossRef] - Balavalad, K.B.; Sheeparamatti, B.G. A Critical Review of MEMS Capacitive Pressure Sensors. Sens. Transducers
**2015**, 187, 120–128. [Google Scholar] - Passaro, V.M.N.; Cuccovillo, A.; Vaiani, L.; Carlo, M.D.; Campanella, C.E. Gyroscope Technology and Applications: A Review in the Industrial Perspective. Sensors
**2017**, 17, 2284. [Google Scholar] [CrossRef] [PubMed] [Green Version] - O’Byrne, M.; Ghosh, B.; Pakrashi, V.; Schoefs, F. Effects of turbidity and lighting on the performance of an image processing based damage detection technique. Safety, reliability, risk and life-cycle performance of structures and infrastructures. In Proceedings of the 11th International Conference on Structural Safety and Reliability, ICOSSAR 2013, New York, NY, USA, 16–20 June 2013; pp. 2645–2650. [Google Scholar] [CrossRef]
- Troni, G.; Whitcomb, L.L. Experimental evaluation of a MEMS inertial measurements unit for Doppler navigation of underwater vehicles. In Proceedings of the 2012 Oceans, Hampton Roads, VA, USA, 14–19 October 2012; pp. 1–7. [Google Scholar] [CrossRef]

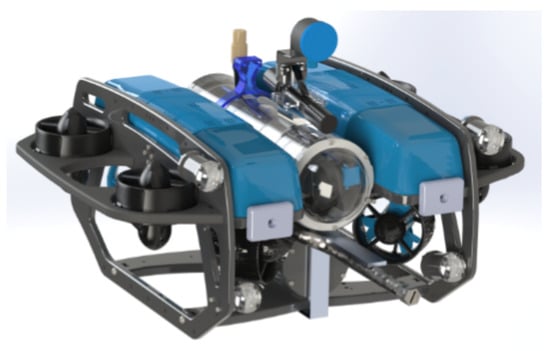

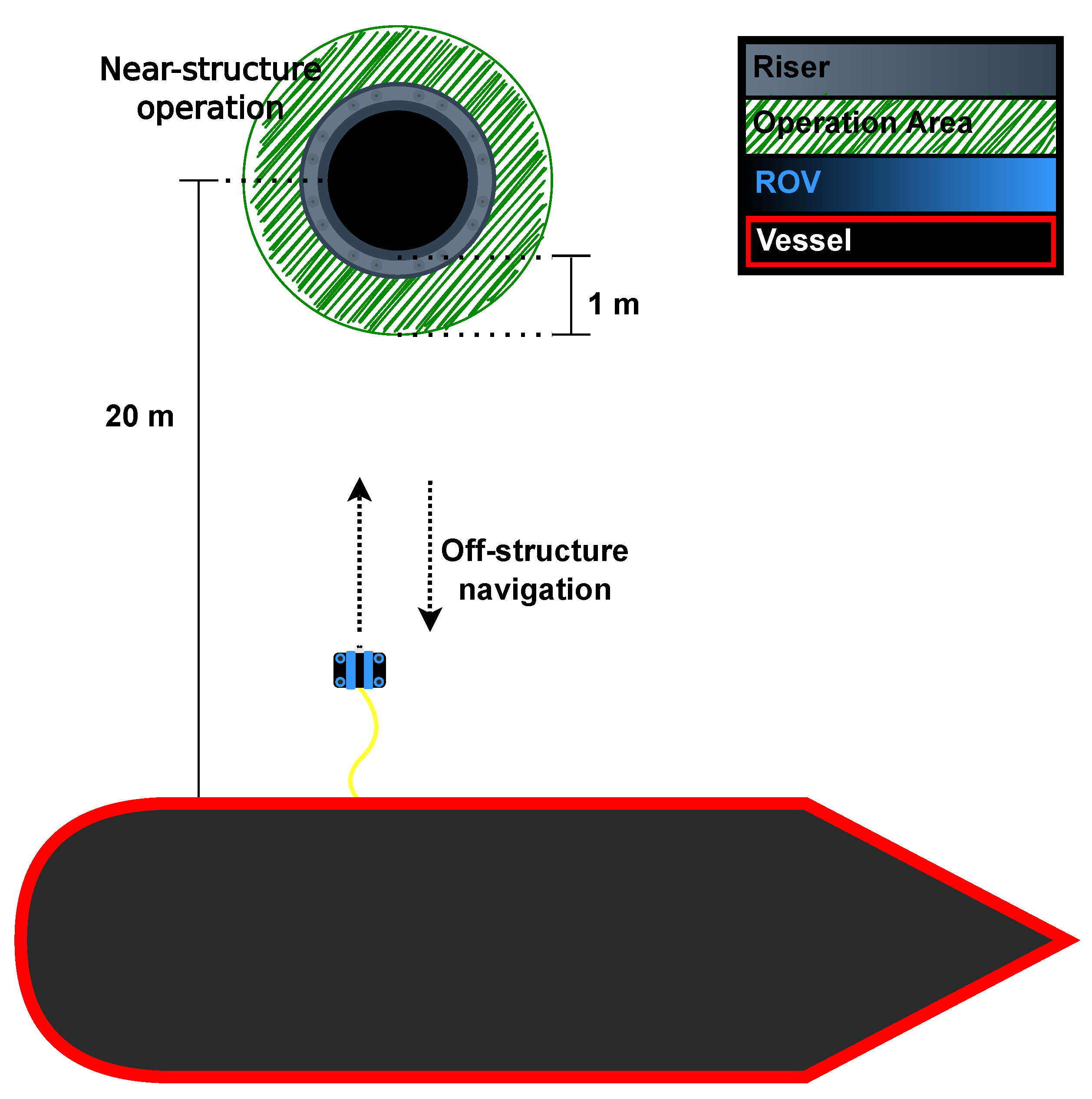

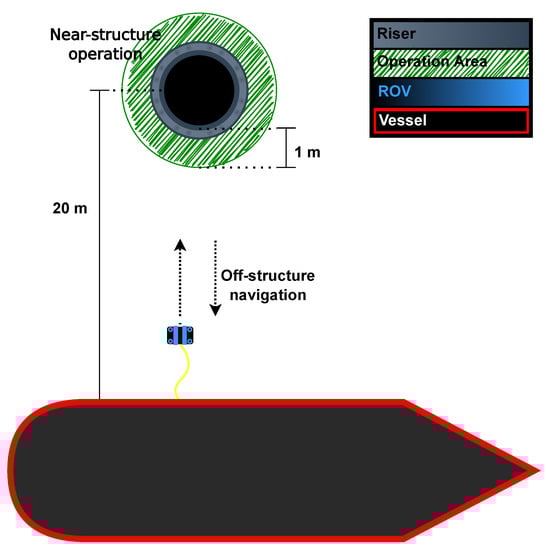

**Figure 2.**Cleaning mission example. The shaded green area is the operation area where a near-structure operation is performed.

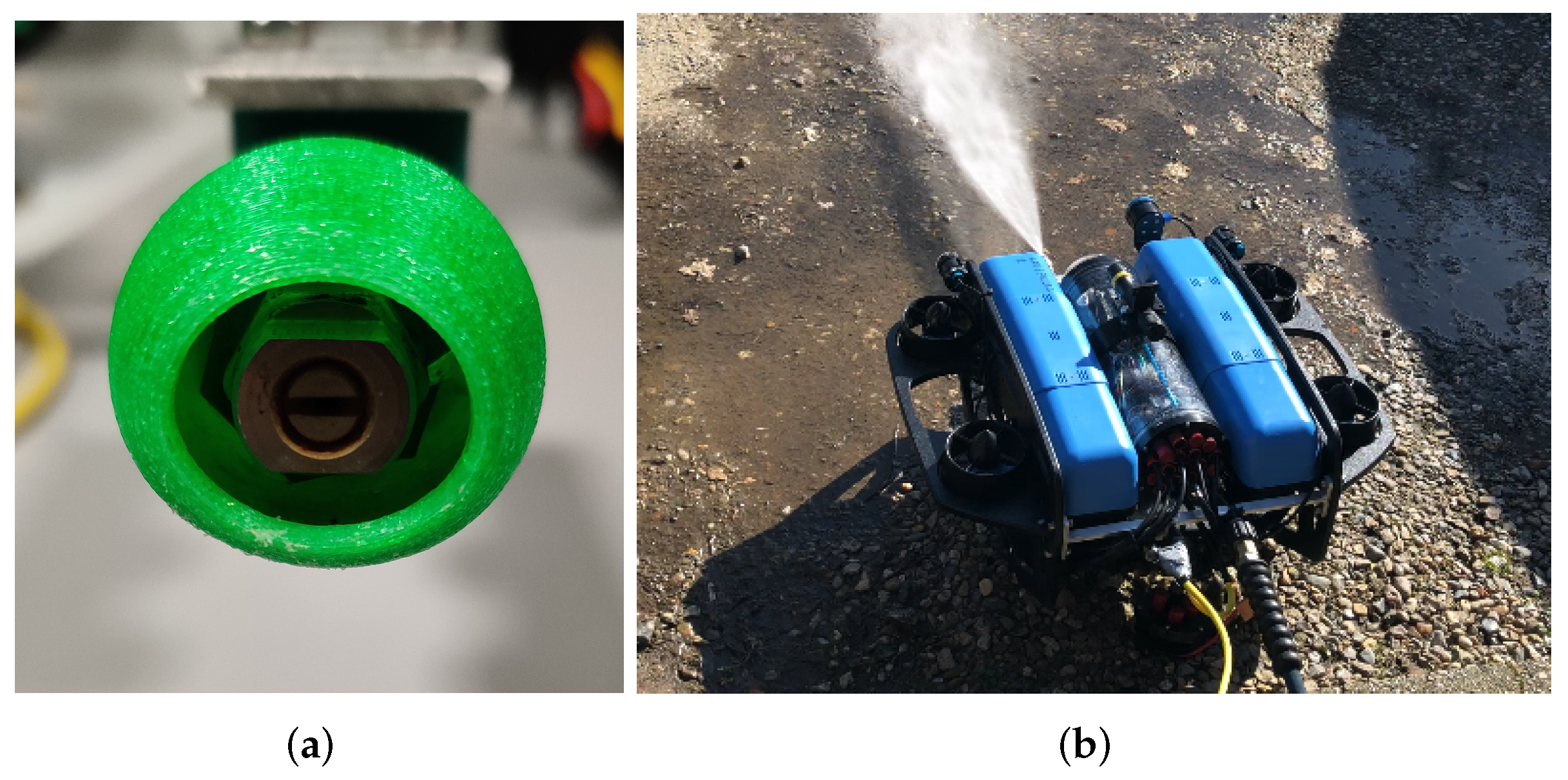

**Figure 3.**Photos of water jet nozzle used on BlueROV2. (

**a**) Photo of the applied high-pressure water jet nozzle. (

**b**) Photo of the BlueROV2 while the water jet is utilized.

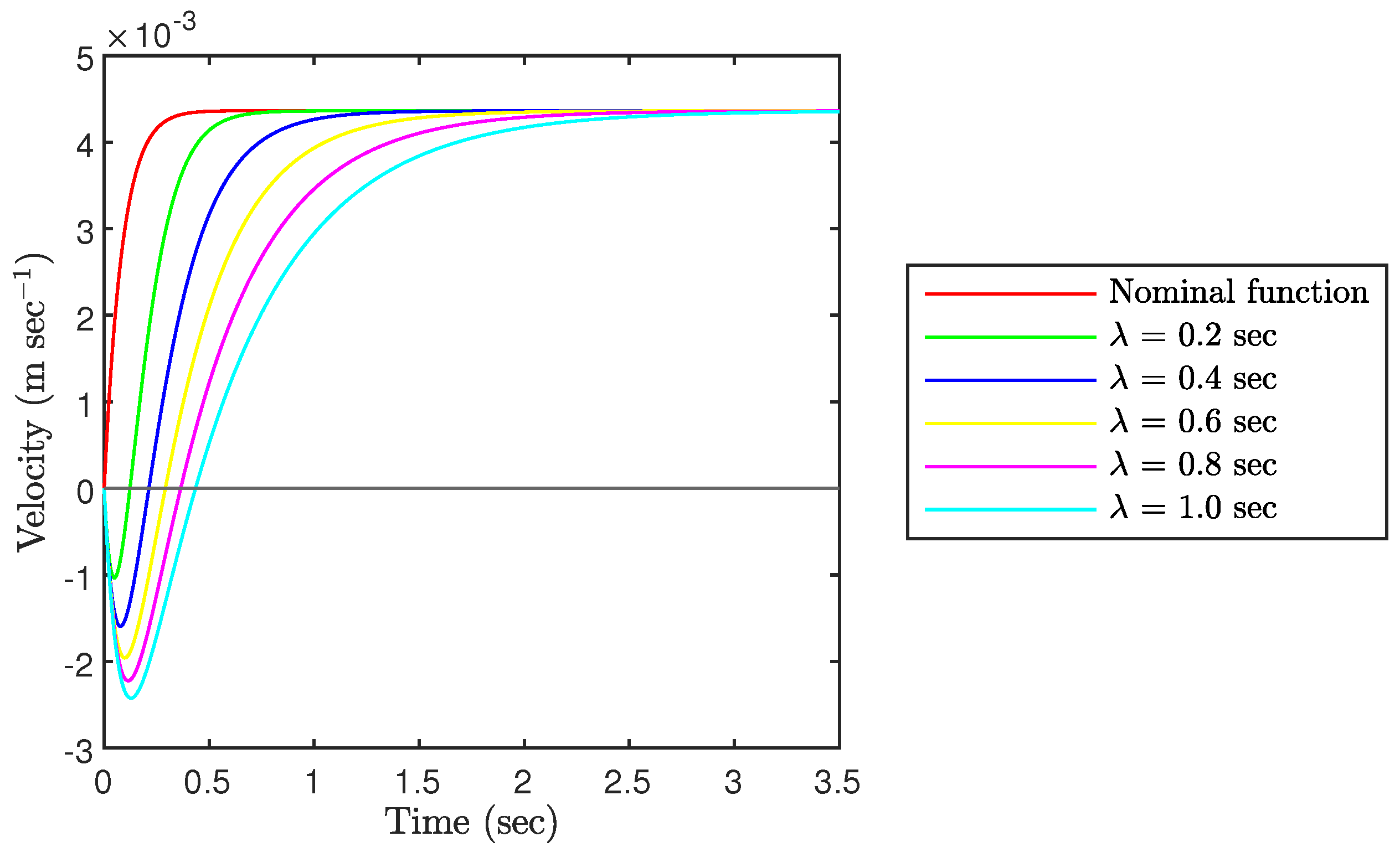

**Figure 8.**Analysis on the behavior of 1st order Padé approximation for ${G}_{ol,u,{\mathit{\tau}}_{1}}$.

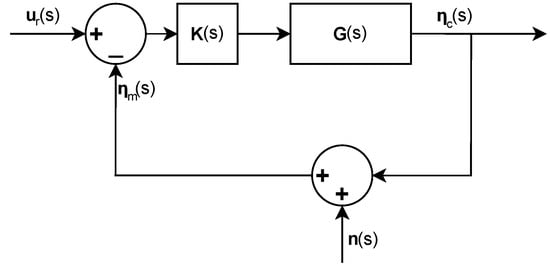

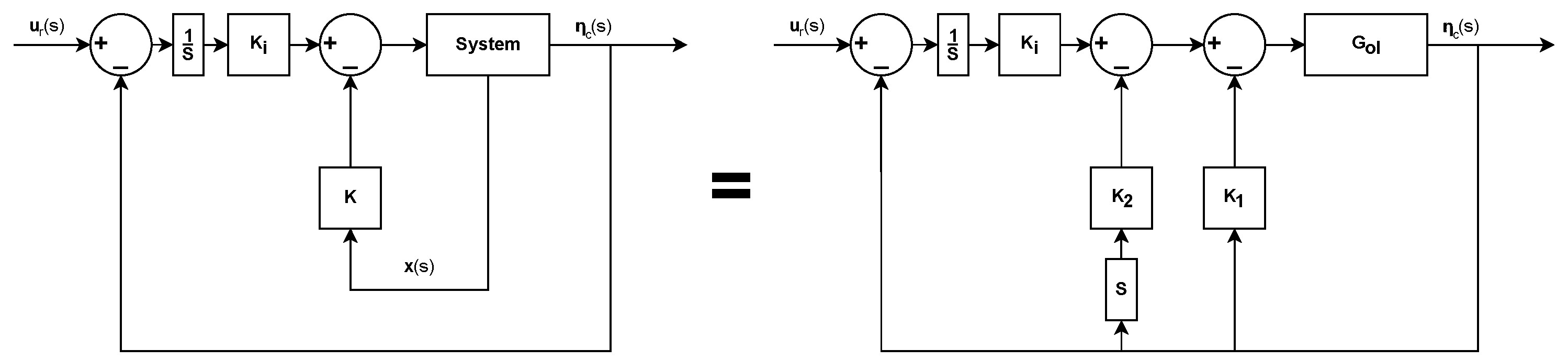

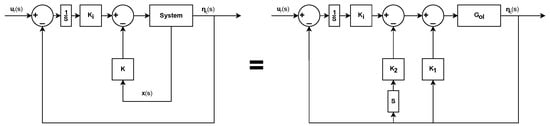

**Figure 9.**System diagram showing the nominal closed-loop system as state space and linear time-invariant system.

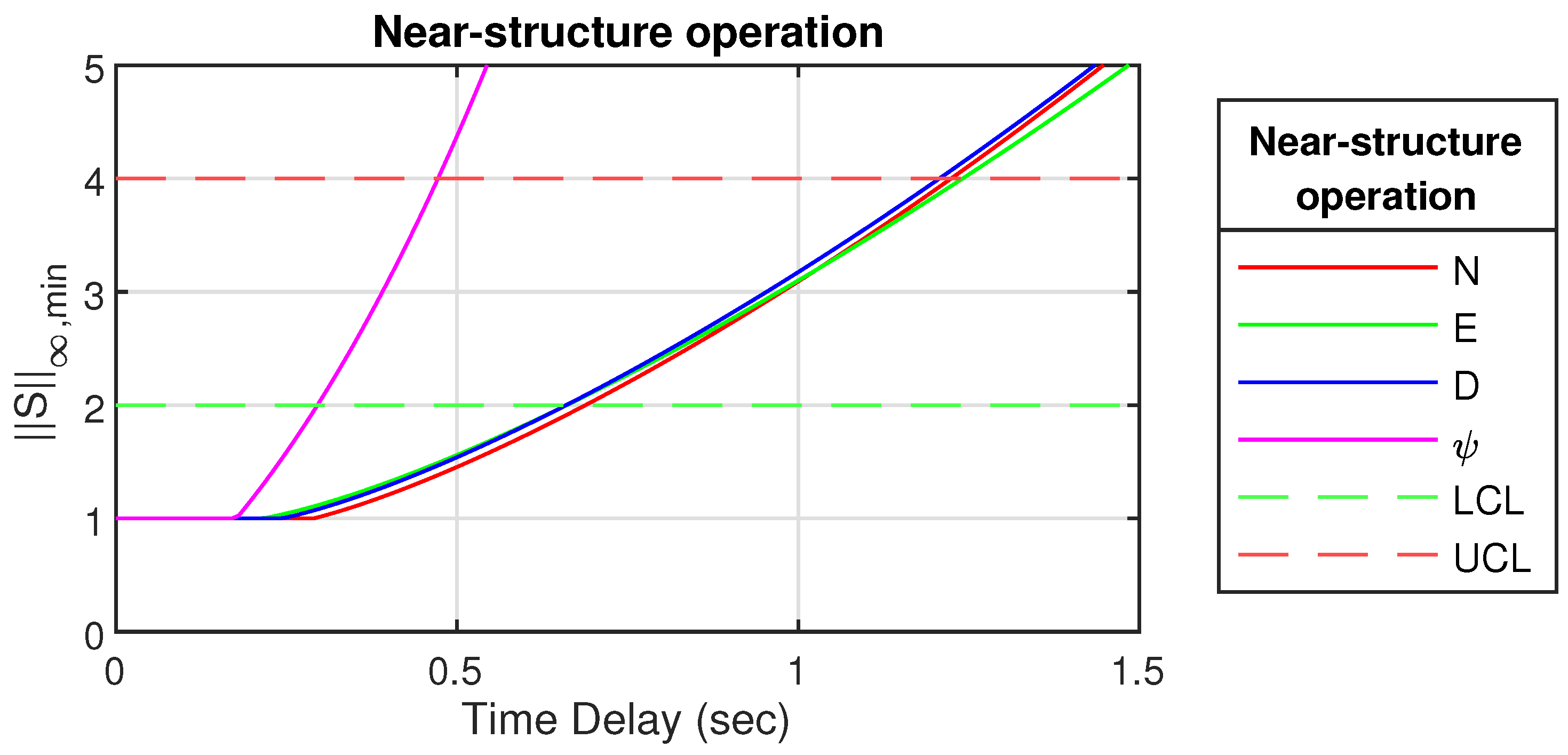

**Figure 13.**${\parallel S\parallel}_{\infty ,min}$ for Near-structure operation with upper and lower control bound.

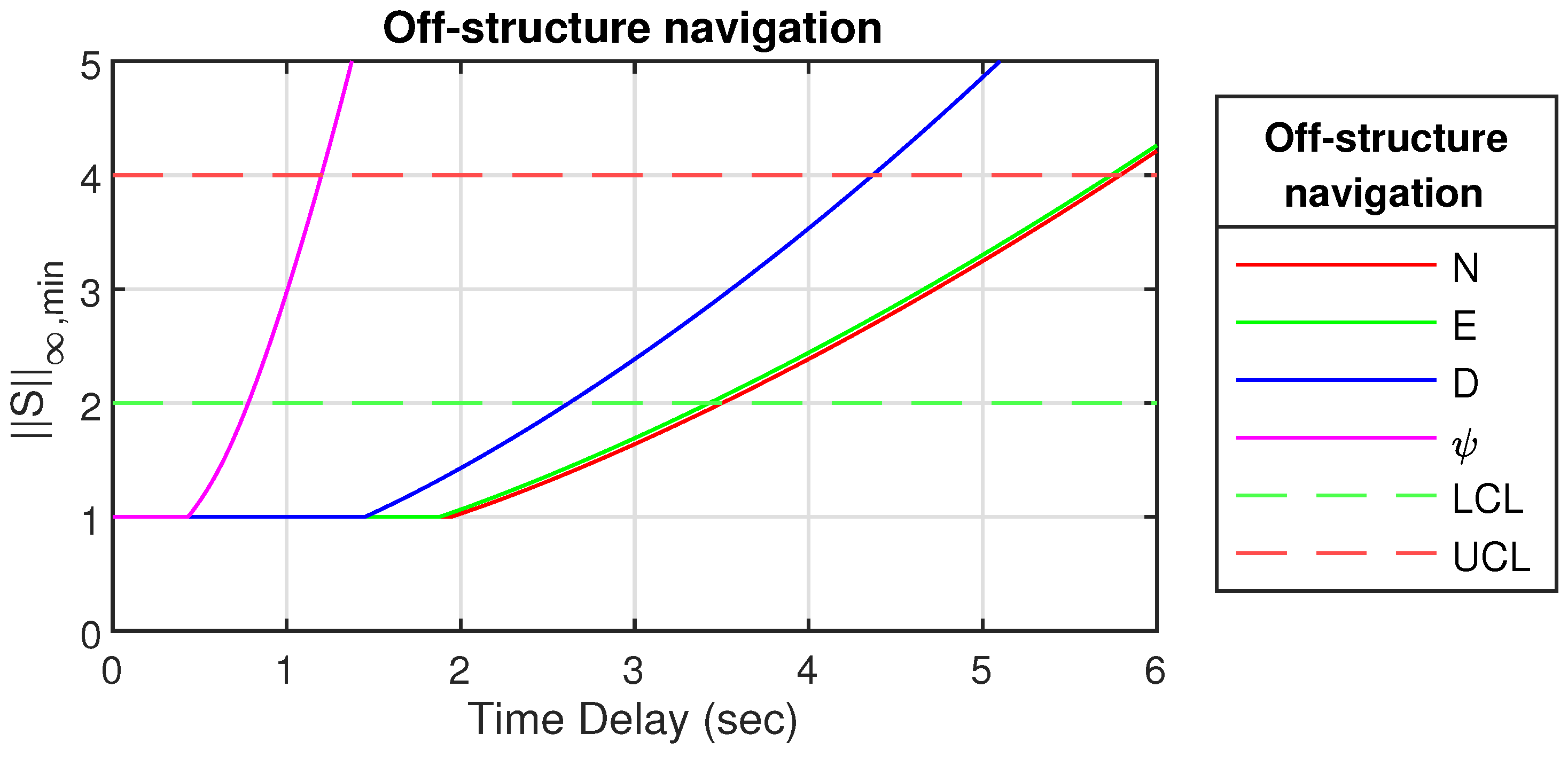

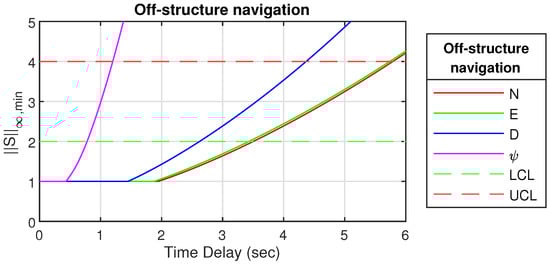

**Figure 14.**${\parallel S\parallel}_{\infty ,min}$ for off-structure navigation with upper and lower control bound.

Description | Parameter |
---|---|

Speed | ${v}_{cleaning}$ m/s |

Water Pressure | ${P}_{jet}$ = 200 $\mathrm{bar}$ |

Distance to Structure where $\u03f5$ is cleaning efficiency | ${d}_{cleaning}\in [0;0.1)m,\phantom{\rule{4pt}{0ex}}\u03f5=50\pm 10\%$ * |

${d}_{cleaning}\in [0.1;0.2)\mathrm{m},\phantom{\rule{4pt}{0ex}}\u03f5=90\pm 5\%$ * | |

${d}_{cleaning}\in [0.2;0.3)\mathrm{m},\phantom{\rule{4pt}{0ex}}\u03f5=30\pm 10\%$ * | |

${d}_{cleaning}\in [0.3;\infty )m,\phantom{\rule{4pt}{0ex}}\u03f5=0\%$ * |

^{*}The cleaning efficiency is based on visual observations, therefore these parameters are uncertain, however the values give a good impression on how the different distances impact the efficiency.

Parameter | Near-Structure Operation | Off-Structure Navigation |
---|---|---|

${e}_{\mathit{max}}$ | ${\left[\phantom{\rule{-0pt}{0ex}}\begin{array}{cccc}0.2\phantom{\rule{3.33333pt}{0ex}}\mathrm{m}& 0.2\phantom{\rule{3.33333pt}{0ex}}\mathrm{m}& 0.5\phantom{\rule{3.33333pt}{0ex}}\mathrm{m}& 0.35\phantom{\rule{3.33333pt}{0ex}}\mathrm{rad}\end{array}\phantom{\rule{-0pt}{0ex}}\right]}^{T}$ | ${\left[\phantom{\rule{-0pt}{0ex}}\begin{array}{cccc}1\phantom{\rule{3.33333pt}{0ex}}\mathrm{m}& 1\mathrm{m}& 1\phantom{\rule{3.33333pt}{0ex}}\mathrm{m}& \frac{\pi}{2}\phantom{\rule{3.33333pt}{0ex}}\mathrm{rad}\end{array}\phantom{\rule{-0pt}{0ex}}\right]}^{T}$ |

${r}_{\mathit{max}}$ | ${\left[\phantom{\rule{-0pt}{0ex}}\begin{array}{cccc}1\mathrm{m}& 1\mathrm{m}& 1\mathrm{m}& \frac{\pi}{2}\phantom{\rule{3.33333pt}{0ex}}\mathrm{rad}\end{array}\phantom{\rule{-0pt}{0ex}}\right]}^{T}$ | ${\left[\phantom{\rule{-0pt}{0ex}}\begin{array}{cccc}20\phantom{\rule{3.33333pt}{0ex}}\mathrm{m}& 20\phantom{\rule{3.33333pt}{0ex}}\mathrm{m}& 20\phantom{\rule{3.33333pt}{0ex}}\mathrm{m}& \pi \phantom{\rule{3.33333pt}{0ex}}\mathrm{rad}\end{array}\phantom{\rule{-0pt}{0ex}}\right]}^{T}$ |

Notation | Components |
---|---|

$\mathit{M}$ | ${\mathit{M}}_{\mathit{RB}}+{\mathit{M}}_{\mathit{A}}$ |

${\mathit{M}}_{\mathit{RB}}$ | diag($m,m,m,{I}_{x},{I}_{y},{I}_{z}$) |

${\mathit{M}}_{\mathit{A}}$ | -diag(${X}_{\dot{u}},{Y}_{\dot{v}},{Z}_{\dot{w}},{K}_{\dot{p}},{\mathit{M}}_{\dot{q}},{N}_{\dot{r}}$) |

$\mathit{C}$($\mathit{\nu}$) | $\left(\right)$ |

${\mathit{C}}_{1}$($\mathit{\nu}$) | $\left(\right)$ |

${\mathit{C}}_{2}$($\mathit{\nu}$) | $\left(\right)$ |

$\mathit{D}$($\mathit{\nu}$) | -diag$\left(\right)$ |

$\mathit{g}$($\mathit{\eta}$) | $\left(\right)$ |

W | $mg$ |

B | $\rho g\nabla $ |

${\mathit{J}}_{1}\left(\mathit{\eta}\right)$ | ${\left(\right)}^{\begin{array}{ccc}c\left(\psi \right)c\left(\theta \right)& c\left(\psi \right)s\left(\varphi \right)s\left(\theta \right)-c\left(\varphi \right)s\left(\psi \right)& s\left(\varphi \right)s\left(\psi \right)+c\left(\varphi \right)c\left(\psi \right)s\left(\theta \right)\\ c\left(\theta \right)s\left(\psi \right)& c\left(\varphi \right)c\left(\psi \right)+s\left(\varphi \right)s\left(\psi \right)s\left(\theta \right)& c\left(\varphi \right)s\left(\psi \right)s\left(\theta \right)-c\left(\psi \right)s\left(\varphi \right)\\ -s\left(\theta \right)& c\left(\theta \right)s\left(\varphi \right)& c\left(\varphi \right)c\left(\theta \right)\end{array}}$ |

${\mathit{J}}_{2}\left(\mathit{\eta}\right)$ | ${\left(\right)}^{\begin{array}{ccc}1& s\left(\varphi \right)t\left(\theta \right)& c\left(\varphi \right)t\left(\theta \right)\\ 0& c\left(\varphi \right)& -s\left(\varphi \right)\\ 0& \frac{s\left(\varphi \right)}{c\left(\theta \right)}& \frac{c\left(\varphi \right)}{c\left(\theta \right)}\end{array}}$ |

$\mathit{J}\left(\mathit{\eta}\right)$ | $\left(\right)$ |

^{*}c = cos, s = sin, t = tan.

**Table 4.**Parameters used for the model, adapted from [15] with changed drag values.

Notation | Values/Term | Unit |
---|---|---|

g | 9.82 | m/s${}^{2}$ |

$\rho $ | 1000 | $\mathrm{k}$$\mathrm{g}$/$\mathrm{m}$${}^{3}$ |

m | 13.5 | $\mathrm{k}\mathrm{g}$ |

∇ | 0.0133 | ${\mathrm{m}}^{3}$ |

$({I}_{x},{I}_{y},{I}_{z})$ | (0.26, 0.23, 0.37) | $\mathrm{k}\mathrm{g}\text{}{\mathrm{m}}^{2}$ |

$({x}_{b},{y}_{b},{z}_{b})$ | (0, 0, −0.01) | $\mathrm{m}$ |

${X}_{\dot{u}}$ | 6.36 | $\mathrm{k}\mathrm{g}$ |

${Y}_{\dot{v}}$ | 7.12 | $\mathrm{k}\mathrm{g}$ |

${Z}_{\dot{w}}$ | 18.68 | $\mathrm{k}\mathrm{g}$ |

${K}_{\dot{p}}$ | 0.189 | $\mathrm{k}\mathrm{g}\text{}{\mathrm{m}}^{2}$ |

${\mathit{M}}_{\dot{q}}$ | 0.135 | $\mathrm{k}\mathrm{g}\text{}{\mathrm{m}}^{2}$ |

${N}_{\dot{r}}$ | 0.222 | $\mathrm{k}\mathrm{g}\text{}{\mathrm{m}}^{2}$ |

${X}_{u}\left(u\right)$ | $141\left|u\right|+13.7$ | N s/m |

${Y}_{v}\left(v\right)$ | $184\left|v\right|+20.0$ * | N s/m |

${Z}_{w}\left(w\right)$ | $190\left|w\right|+33.0$ | N s/m |

${K}_{p}\left(p\right)$ | $0.95\left|p\right|+0.15$ * | N s |

${\mathit{M}}_{q}\left(q\right)$ | $0.47\left|q\right|+0.8$ | N s |

${N}_{r}\left(r\right)$ | $1.173\left|r\right|+0.2$ * | N s |

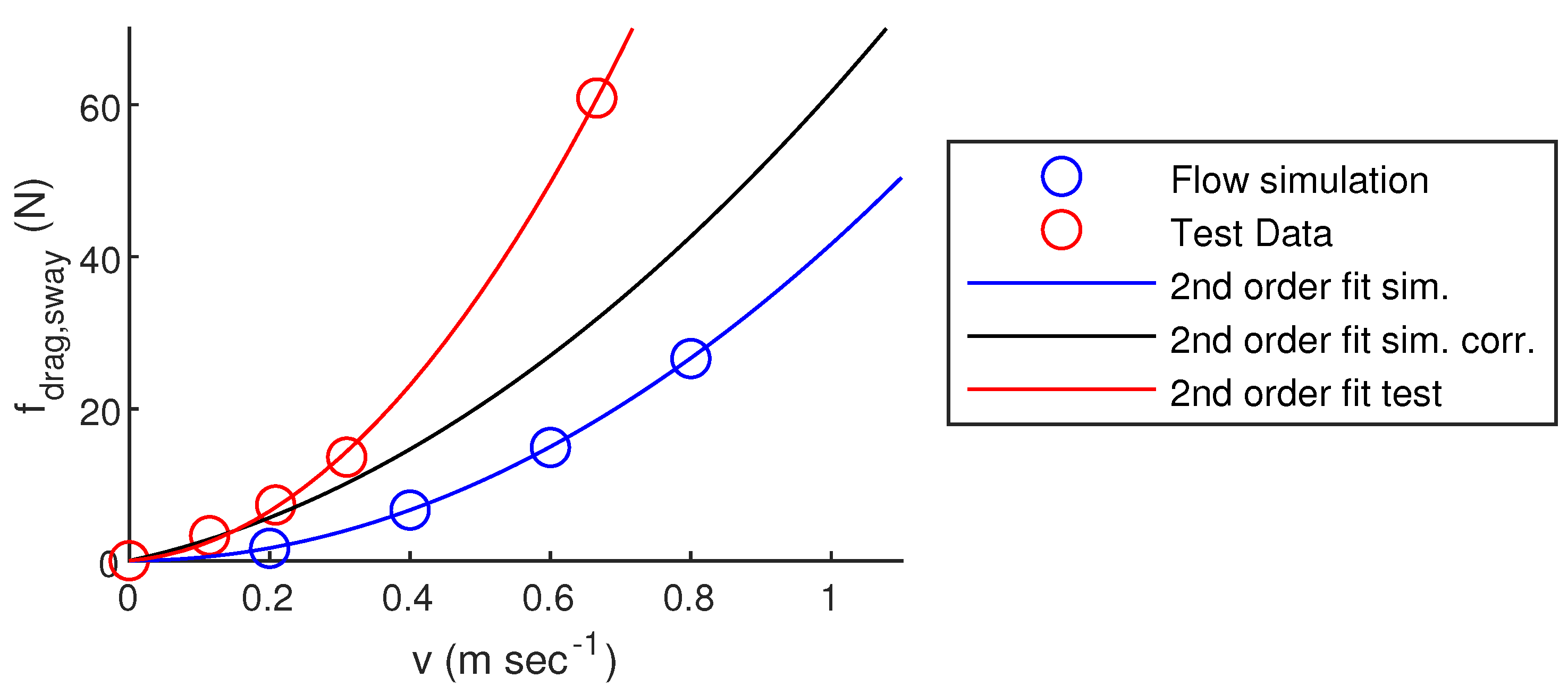

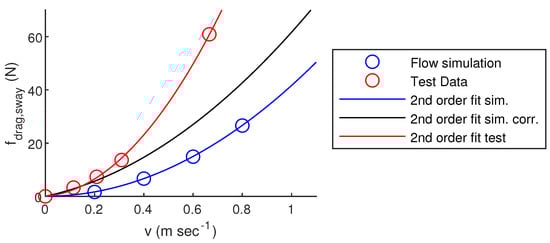

Data for Used for Fit | Polynomial |
---|---|

Simulation | $41.66\left|v\right|v$ |

Test | $\left(125.9\right|v|+7.364)v$ |

Simulation Corrected | $\left(41.66\right|v|+20)v$ |

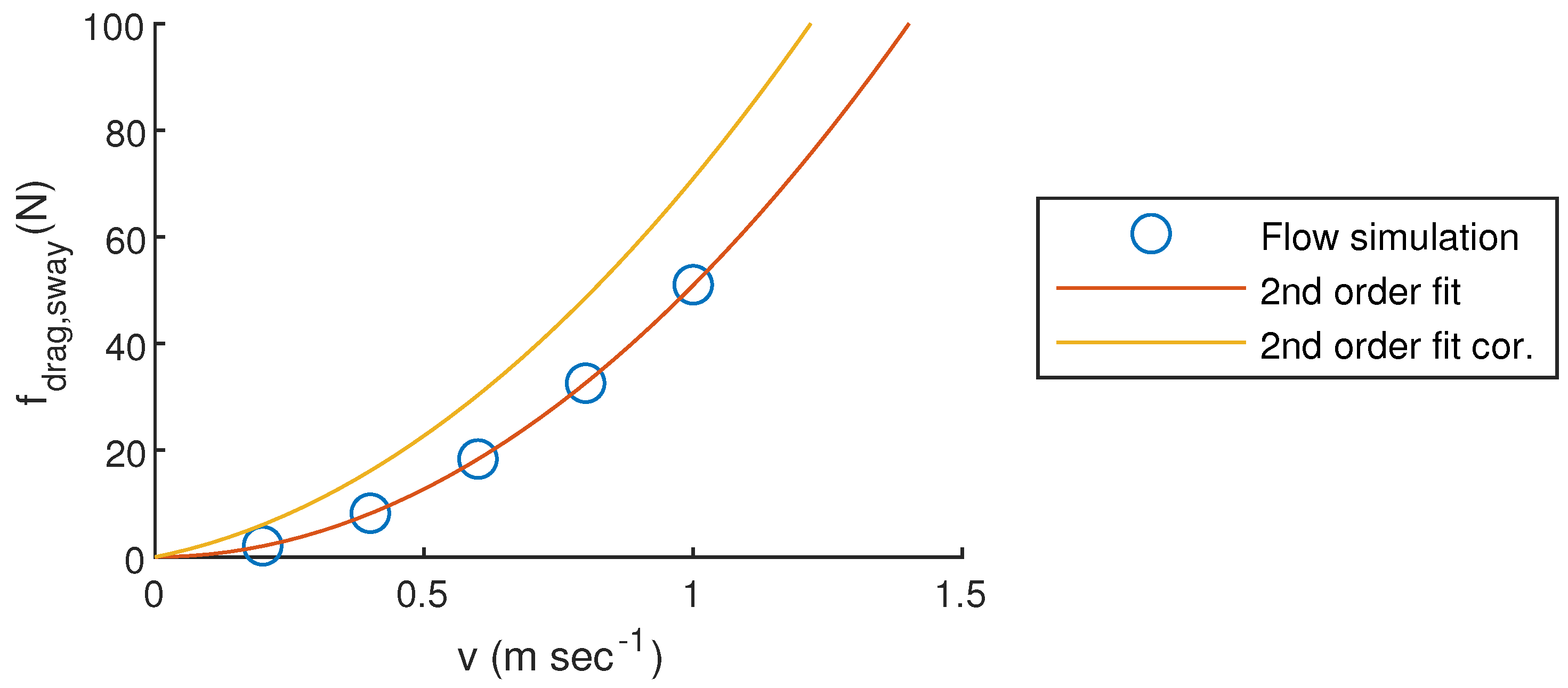

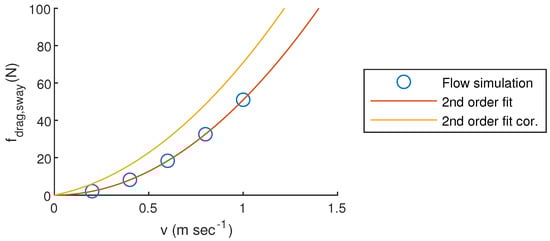

**Table 6.**Drag terms used in this study, with refitted ${Y}_{v}\left(v\right)$, ${K}_{p}\left(p\right)$ and ${N}_{r}\left(r\right)$.

Notation | Values/Term | Unit |
---|---|---|

${X}_{u}\left(u\right)$ | $141\left|u\right|+13.7$ | N s/m |

${Y}_{v}\left(v\right)$ | $184.3\left|v\right|+20.0$ | N s/m |

${Z}_{w}\left(w\right)$ | $190\left|w\right|+33.0$ | N s/m |

${K}_{p}\left(p\right)$ | $0.95\left|p\right|+0.15$ | N s |

${\mathit{M}}_{q}\left(q\right)$ | $0.47\left|q\right|+0.8$ | N s |

${N}_{r}\left(r\right)$ | $1.173\left|r\right|+0.2$ | N s |

**Table 7.**Entries for state matrix (${A}_{os}$ and ${A}_{ns}$ and input matrix (${B}_{os}$ and ${B}_{ns}$).

Entry | A_{os} | A_{ns} | Entry | A_{os} | A_{ns} | Entry | A_{os} | A_{ns} | Entry | A_{os} | A_{ns} | Entry | B_{os} & B_{ns} |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

${a}_{1,1}$ | −11.11 | −0.69 | ${a}_{2,2}$ | −12.22 | −0.97 | ${a}_{3,3}$ | −9.59 | −1.03 | ${a}_{5,4}$ | 0.54 | 0.00 | ${b}_{1,1}$ | 0.05 |

${a}_{1,2}$ | 2.20 | 0.00 | ${a}_{2,3}$ | 0.63 | 0.00 | ${a}_{3,4}$ | −0.39 | 0.00 | ${a}_{5,5}$ | −4.47 | −2.19 | ${b}_{2,2}$ | 0.05 |

${a}_{1,3}$ | −0.92 | 0.00 | ${a}_{2,4}$ | 0.70 | 0.00 | ${a}_{3,5}$ | 0.47 | 0.00 | ${a}_{5,6}$ | 0.26 | 0.00 | ${b}_{3,3}$ | 0.03 |

${a}_{1,5}$ | −0.75 | 0.00 | ${a}_{2,6}$ | −1.15 | 0.00 | ${a}_{4,4}$ | −3.11 | −0.34 | ${a}_{6,4}$ | 0.12 | 0.00 | ${b}_{4,4}$ | 2.24 |

${a}_{1,6}$ | 1.02 | 0.00 | ${a}_{3,1}$ | 0.57 | 0.00 | ${a}_{4,5}$ | −0.69 | 0.00 | ${a}_{6,5}$ | 0.09 | 0.00 | ${b}_{5,5}$ | 2.74 |

${a}_{2,1}$ | −2.11 | 0.00 | ${a}_{3,2}$ | −0.40 | 0.00 | ${a}_{4,6}$ | −0.45 | 0.00 | ${a}_{6,6}$ | −5.71 | −0.34 | ${b}_{6,6}$ | 1.69 |

Direction | Near-Structure Operation | Off-Structure Navigation |
---|---|---|

${G}_{scaled,N,{u}_{N}}^{delayed}\left(s\right)$ | 0.28 s | 1.94 s |

${G}_{scaled,E,{u}_{E}}^{delayed}\left(s\right)$ | 0.21 s | 1.87 s |

${G}_{scaled,D,{u}_{D}}^{delayed}\left(s\right)$ | 0.24 s | 1.44 s |

${G}_{scaled,\psi ,{u}_{\psi}}^{delayed}\left(s\right)$ | 0.17 s | 0.43 s |

$\mathit{\lambda}\phantom{\rule{4pt}{0ex}}\left[\mathbf{s}\right]$ | 0.00 | 0.60 | 1.20 | 1.80 | 2.40 | 3.00 | 3.60 | 4.20 | 4.80 | 5.40 | 6.00 |
---|---|---|---|---|---|---|---|---|---|---|---|

Near-structure operation | |||||||||||

N [$\mathrm{m}$] | 1.00 | 1.73 | 3.90 | 6.77 | 10.28 | 14.41 | 19.15 | 24.49 | 30.43 | 36.96 | 44.08 |

E [$\mathrm{m}$] | 1.00 | 1.83 | 3.84 | 6.43 | 9.51 | 13.08 | 17.12 | 21.61 | 26.56 | 31.97 | 37.82 |

D [$\mathrm{m}$] | 1.00 | 1.82 | 3.97 | 6.79 | 10.22 | 14.24 | 18.84 | 24.00 | 29.74 | 36.04 | 42.91 |

$\psi $ [$\mathrm{rad}$] | 1.00 | 5.86 | 19.74 | 43.44 | 78.37 | 125.61 | 185.96 | 260.05 | 348.36 | 451.28 | 569.11 |

Off-structure navigation | |||||||||||

N [$\mathrm{m}$] | 1.00 | 1.00 | 1.00 | 1.00 | 1.25 | 1.64 | 2.07 | 2.55 | 3.07 | 3.62 | 4.21 |

E [$\mathrm{m}$] | 1.00 | 1.00 | 1.00 | 1.00 | 1.30 | 1.69 | 2.13 | 2.61 | 3.12 | 3.67 | 4.26 |

D [$\mathrm{m}$] | 1.00 | 1.00 | 1.00 | 1.26 | 1.79 | 2.39 | 3.05 | 3.78 | 4.58 | 5.44 | 6.36 |

$\psi $ [$\mathrm{rad}$] | 1.00 | 1.39 | 4.00 | 7.80 | 12.61 | 18.42 | 25.23 | 33.03 | 41.82 | 51.59 | 62.36 |

$\mathit{\lambda}\phantom{\rule{4pt}{0ex}}\left[\mathit{s}\right]$ | 0.00 | 0.60 | 1.20 | 1.80 | 2.40 | 3.00 | 3.60 | 4.20 | 4.80 | 5.40 | 6.00 |
---|---|---|---|---|---|---|---|---|---|---|---|

Near-structure operation | |||||||||||

N [$\mathrm{m}$] | - | 4.11 | 11.98 | 19.02 | 25.77 | - | - | - | - | - | - |

E [$\mathrm{m}$] | - | 4.80 | 11.36 | 17.01 | 22.36 | 27.65 | - | - | - | - | - |

D [$\mathrm{m}$] | - | 9.28 | 24.18 | 37.65 | 50.72 | - | - | - | - | - | - |

$\psi $ [$\mathrm{rad}$] | - | 34.41 | - | - | - | - | - | - | - | - | - |

Off-structure navigation | |||||||||||

N [$\mathrm{m}$] | - | - | - | - | 14.19 | 36.74 | 61.79 | 88.26 | 115.64 | 143.67 | 172.22 |

E [$\mathrm{m}$] | - | - | - | - | 17.95 | 42.15 | 68.27 | 95.43 | 123.23 | 151.48 | 180.11 |

D [$\mathrm{m}$] | - | - | - | 15.55 | 47.61 | 83.02 | 120.06 | 158.08 | 196.85 | 236.26 | 276.29 |

$\psi $ [$\mathrm{rad}$] | - | 13.14 | 78.89 | - | - | - | - | - | - | - | - |

$\mathit{\lambda}\phantom{\rule{4pt}{0ex}}\left[\mathit{s}\right]$ | 0.00 | 0.60 | 1.20 | 1.80 | 2.40 | 3.00 | 3.60 | 4.20 | 4.80 | 5.40 | 6.00 |
---|---|---|---|---|---|---|---|---|---|---|---|

Near-structure operation | |||||||||||

N [$\mathrm{m}$] | - | 0.12 | 0.85 | 2.50 | 5.26 | 9.22 | 14.46 | 21.03 | 28.94 | 38.23 | 48.90 |

E [$\mathrm{m}$] | - | 0.12 | 0.81 | 2.31 | 4.74 | 8.16 | 12.61 | 18.10 | 24.65 | 32.28 | 40.98 |

D [$\mathrm{m}$] | - | 0.07 | 0.42 | 1.20 | 2.45 | 4.21 | 6.49 | 9.30 | 12.65 | 16.54 | 20.98 |

$\psi $ [$\mathrm{rad}$] | - | 1.39 | 10.22 | 31.80 | 69.95 | 127.42 | 206.30 | 308.16 | 434.24 | 585.50 | 762.71 |

Off-structure navigation | |||||||||||

N [$\mathrm{m}$] | - | - | - | - | 0.01 | 0.02 | 0.03 | 0.04 | 0.05 | 0.07 | 0.08 |

E [$\mathrm{m}$] | - | - | - | - | 0.01 | 0.02 | 0.03 | 0.04 | 0.05 | 0.07 | 0.08 |

D [$\mathrm{m}$] | - | - | - | 0.01 | 0.02 | 0.03 | 0.05 | 0.07 | 0.09 | 0.12 | 0.14 |

$\psi $ [$\mathrm{rad}$] | - | 0.06 | 0.31 | 0.75 | 1.39 | 2.23 | 3.27 | 4.51 | 5.95 | 7.59 | 9.42 |

Motion | Delay at LCL and UCL for ${\left|\right|\mathit{S}\left|\right|}_{\mathit{\infty},\mathbf{min}}$ | Sensor Technology | Time Delay | |
---|---|---|---|---|

Near-Structure Operation | Off-Structure Navigation | |||

N | LCL: 0.69 s | LCL: 3.44 s | LBL [19] | 10 s [19] |

UCL: 1.22 s | UCL: 5.68 s | SBL [9,28] | 1.50–2.50 s [9] | |

E | LCL: 0.66 s | LCL: 3.36 s | DVL [19,27,29] | 0.03–0.20 s [19] ** |

UCL: 1.24 s | UCL: 5.63 s | Visual SLAM [18,30] | 0.10–0.20 s [18] | |

D | LCL: 0.66 s | LCL: 2.61 s | Pressure [31] *** | 0.00 s * |

UCL: 1.21 s | UCL: 4.35 s | |||

$\psi $ | LCL: 0.30 s | LCL: 0.78 s | FOG [32] | 0.00 s * |

UCL: 0.47 s | UCL: 1.2 s | MEMS Gyroscope [32] | 0.00 s * | |

Compass | 0.00 s * |

^{*}do have a small delay, as signal transition and data processing always results in small delays; however, relative to the other sensors, the delay can be neglected.

^{**}For the DVL, the delay is impacted by the distance to the seabed, as sound waves have a limited propagation in water [19].

^{***}The sensor technologies used for N and E directions can also be used for D. However, pressure transmitters are almost always applied as the primary sensor for D.

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Sørensen, F.F.; von Benzon, M.; Liniger, J.; Pedersen, S.
A Quantitative Parametric Study on Output Time Delays for Autonomous Underwater Cleaning Operations. *J. Mar. Sci. Eng.* **2022**, *10*, 815.
https://doi.org/10.3390/jmse10060815

**AMA Style**

Sørensen FF, von Benzon M, Liniger J, Pedersen S.
A Quantitative Parametric Study on Output Time Delays for Autonomous Underwater Cleaning Operations. *Journal of Marine Science and Engineering*. 2022; 10(6):815.
https://doi.org/10.3390/jmse10060815

**Chicago/Turabian Style**

Sørensen, Fredrik Fogh, Malte von Benzon, Jesper Liniger, and Simon Pedersen.
2022. "A Quantitative Parametric Study on Output Time Delays for Autonomous Underwater Cleaning Operations" *Journal of Marine Science and Engineering* 10, no. 6: 815.
https://doi.org/10.3390/jmse10060815
