Review

Chimney vs. Fenestrated Endovascular vs. Open Repair for Juxta/Pararenal Abdominal Aortic Aneurysms: Systematic Review and Network Meta-Analysis of the Medium-Term Results

1
Clinic for Vascular and Endovascular Surgery, University Clinical Centre of Serbia, 11000 Belgrade, Serbia
2
Institute of Epidemiology, Faculty of Medicine, University of Belgrade, 11000 Belgrade, Serbia
3
Vascular Surgery Division, Hospital Clinic Universitari Sagrat Cor, University of Barcelona, 08007 Barcelona, Spain
4
Faculty of Medicine, University of Belgrade, 11000 Belgrade, Serbia
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2022, 11(22), 6779; https://doi.org/10.3390/jcm11226779
Submission received: 23 October 2022 / Revised: 10 November 2022 / Accepted: 14 November 2022 / Published: 16 November 2022

Abstract

:
Introduction: This systematic review with network meta-analysis aimed at comparing the medium-term results of open surgery (OS), fenestrated endovascular repair (FEVAR), and chimney endovascular repair (ChEVAR) in patients with juxta/pararenal abdominal aortic aneurysms (JAAAs/PAAAs). Materials and methods: MEDLINE, SCOPUS, and Web of Science were searched from inception date to 1st July 2022. Any studies comparing the results of two or three treatment strategies (ChEVAR, FEVAR, or OS) on medium-term outcomes in patients with JAAAs/PAAAs were included. Primary outcomes were all-cause mortality, aortic-related reintervention, and aortic-related mortality, while secondary outcomes were visceral stent/bypass occlusion/occlusion, major adverse cardiovascular events (MACEs), new onset renal replacement therapy (RRT), total endoleaks, and type I/III endoleak. Results: FEVAR (OR = 1.53, 95%CrI 1.03–2.11) was associated with higher medium-term all-cause mortality than OS. Sensitivity analysis including only studies that analysed JAAA showed that FEVAR (OR = 1.65, 95%CrI 1.08–2.33) persisted to be associated with higher medium-term mortality than OS. Both FEVAR (OR = 8.32, 95%CrI 3.80–27.16) and ChEVAR (OR = 5.95, 95%CrI 2.23–20.18) were associated with a higher aortic-related reintervention rate than OS. No difference between different treatment options was found in terms of aortic-related mortality. FEVAR (OR = 13.13, 95%CrI 2.70–105.2) and ChEVAR (OR = 16.82, 95%CrI 2.79–176.7) were associated with a higher rate of medium-term visceral branch occlusion/stenosis compared to OS; however, there was no difference found between FEVAR and ChEVAR. Conclusions: An advantage of OS compared to FEVAR and ChEVAR after mid-term follow-up aortic-related intervention and vessel branch/bypass stenosis/occlusion was found. This suggests that younger, low-surgical-risk patients might benefit from open surgery of JAAA/PAAA as a first approach.

1. Introduction

The complexity of abdominal aortic aneurysm (AAA) repair depends mainly on anatomical detail relating to the segment of non-dilated aorta between renal arteries and the aneurysm, referred to as the aneurysm ‘neck’. Some 40–60% of aneurysms fall within the category of infrarenal AAA with adequate neck characteristics [1,2], and there is a wealth of comparative effectiveness evidence relating to such patients [3]. Aneurysms that have a neck that is too short or otherwise unsuitable for standard endovascular aneurysm repair (EVAR) within instructions for use (IFUs) are referred to as “complex aneurysms”.
Juxta/pararenal abdominal aortic aneurysms (JAAAs/PAAAs) are a frequent variation of complex abdominal aortic aneurysms (AAAs). JAAA is defined by European Society for Vascular Surgery guidelines and Society for Vascular Surgery reporting standards as “AAA which extends up to renal arteries but does not involve them”, while PAAA is defined as “AAA where at least one or both renal arteries derive from AAA itself, but does not involve the superior mesenteric artery” [4,5,6].
Recent systematic reviews and meta-analyses have demonstrated the short-term benefit of fenestrated and chimney endovascular aneurysm repair (FEVAR/ChEVAR) in comparison with open surgery (OS) [7]; however, medium/long-term results are scarce. Previous reviews performed on the subject were either scoping in nature and lacked an analytical approach, or incorporated studies contributing data from only a single approach [8,9]. Others included also patients with suprarenal and paravisceral AAAs and thoracoabdominal AAAs [10].
This systematic review and network meta-analysis aimed at comparing the medium-term results of OS, FEVAR, and ChEVAR for patients with juxta/pararenal abdominal aortic aneurysms.

2. Methods

We performed a systematic review following the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) and assessing the methodological quality of systematic reviews (AMSTAR) guidelines [11,12]. MEDLINE, SCOPUS, and Web of Science were searched from their inception to 1 July 2022 for studies reporting comparative outcomes for patients with JAAAs/PAAAs undergoing two or more treatment modalities: OS, FEVAR, OR ChEVAR. No restrictions were placed in terms of publication type. Grey literature was not searched. The full search strategy is available in Appendix SA. The study was registered on PROSPERO on 11 August 2021 (record number CRD42021267189).

2.1. Screening and Study Selection

We included studies comparing the results of two or three treatment strategies (OS, FEVAR, and ChEVAR) on medium-term clinical outcomes for patients with JAAAs/PAAAs. Medium-term was defined as a follow-up period of at least 6 months, ranging up to 60 months. Studies with standard infrarenal AAAs, AAAs with long but hostile neck characteristics (excessive thrombus, excessive angulation, conical shape, or calcifications) where standard infrarenal EVAR outside instructions for use has been performed, infected AAAs, ruptured AAA patients, thoracoabdominal aortic aneurysms (ThAAAs), suprarenal AAAs involving visceral segment at the level of the superior mesenteric artery and celiac trunk, connective-tissue-related aneurysms, studies containing less than 10 patients per treatment arm (to ensure enough experience in the treatment of this complex AAA pathology), performed before 2010 (to reduce the number of different stent graft generations in the comparison), and those having less than 6 months of follow-up were excluded from the analysis. Systematic reviews with or without meta-analysis, traditional reviews, comments, editorials and letters, and case reports were excluded, as well as any animal studies. A hand search of systematic reviews was also performed. Non-English articles were excluded unless they had an English abstract with extractable data. Two reviewers (P.Z. and P.T.) independently screened titles and abstracts as well as full texts of potentially eligible studies. Disagreements were resolved by discussion or consulting the third and fourth authors (A.J. and L.D.). The Rayyan systematic review web application (Available from www.rayyan.ai, accessed on 12 August 2022) was used for abstract screening.

2.2. Data Extraction and Definitions

Two authors independently extracted data, and any disagreements were resolved by the third and fourth authors. The following data were extracted from each study: study characteristics, study demographics, and periprocedural data (Appendix SB).

2.3. Outcomes Measures

Outcome measures were decided a priori. The mean follow-up time point was 31.4 months and was considered to be a medium-term interval.
Primary medium-term outcomes:
All-cause mortality, aortic-related reintervention, and aortic-related mortality.
Secondary medium-term outcomes:
Visceral stent/bypass occlusion/occlusion; major adverse cardiovascular events (MACEs) that were defined as a composite endpoint of cardiac death, myocardial infarction, coronary artery revascularisation, stroke, and hospitalisation because of heart failure; new onset renal replacement therapy (RRT); total endoleaks; and type I/III endoleak (including persistent gutter type Ia endoleak in ChEVAR group).

2.4. Quality Assessment

No RCTs that fulfilled the inclusion criteria were found after the screening of the manuscripts. The Risk of Bias in Non-randomized Studies—of Interventions (ROBINS-I) tool was used to assess the quality of included observational studies [13]. The Grading of Recommendation Assessment, Development, and Evaluation (GRADE) system was used to analyse the overall quality of evidence and strength of recommendation for each of the outcomes [14]. The quality of evidence can be rated as “high”, “moderate”, “low”, or “very low”. Two reviewers (P.Z. and A.J.) independently performed the methodological quality assessment using the GRADEpro GDT software (available from gradepro.org) and risk of bias summaries generated using the robvis web tool [15].

2.5. Statistical Analysis

A network meta-analysis (NMA) within a Bayesian framework was performed using WinBUGS14 software, with codes adapted from Dias et al. [16]. The parameters were estimated using the Markov Chain Monte Carlo (MCMC) method. Results are based on 50,000 iterations using three chains, with an initial (burn-in) chain of 20,000. Model fit was assessed using posterior mean residual deviances and deviance information criteria (DIC). The transitivity assumption was assessed by observing the distribution of pre-operative characteristics in the studies, as well as the study designs. Odds ratios (ORs) with 95% credible intervals (95%CrI) were computed. Sensitivity analysis was performed for all primary outcomes—including studies reporting exclusively on JAAA.

3. Results

A total of 1723 publications were identified, and after abstract screening, 63 were deemed relevant and read in full text. The network meta-analysis included 16 studies [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32]. The PRISMA flow diagram for study selection is presented in Figure 1.

3.1. Study Characteristics

The characteristics of the studies included in the network meta-analysis are presented in Table 1. A total of 4369 patients were included, with 2581 undergoing OS, 1498 FEVAR, and 290 undergoing ChEVAR. Most studies included patients with JAAAs [17,18,19,20,22,23,24,25,26,28,29,30,31,32]—only one study reported on patients with JAAAs/PAAAs [21], and one reported outcomes for PAAA [27].
Table 2 shows the procedural data of the included studies. Most patients had suprarenal proximal clamp position in the OS group, while the proximal clamping time ranged from 22 to 48 min. Zenith (Cook Medical, Bloomington, IN, USA) was the most frequent stent graft manufacturer in the studies where FEVAR was performed, while it was Endurant (Medtronic, Minneapolis, MN, USA) for ChEVAR. The most commonly used bridging stent graft in FEVAR and chimney graft in the ChEVAR group was Advanta V12 (Atrium Medical, Hudson, NH, USA). The most commonly present design for FEVAR/ChEVAR was with two fenestrations/chimney stent grafts, while the mean number of fenestrations or chimney stent grafts in endovascular interventions ranged from 1.4 to 2.8. The range of the duration of follow-up was 6–60 months.

3.2. Quality of Included Studies and Choice of Model

The overall quality of studies, as assessed by the ROBINS-I tool, was deemed “low”, with 10 studies (62%) having being deemed as having either serious or critical risk of bias in one or more domains [17,18,20,21,22,24,25,26,27,31], and 6 (38%) assessed as having moderate risk of bias [19,23,28,29,30,32] (Figure 2). The GRADE quality of evidence for all outcomes is presented in Appendix SC and ranged from “very low” to “moderate”.
Values of the deviance information criteria (DIC) were similar in both models for all primary outcomes. However, lower values of residual deviance (Dres) were observed for the random-effects (RE) model compared with the fixed-effect model (FE) in all analyses. Seeing how both the values of Dres and the fact that studies were observational and heterogeneous were an indication for using the RE model, it was chosen in order for the estimate to be more conservative (Appendix SD).

3.3. Primary Outcomes

Fourteen studies reported on all-cause medium-term mortality. This NMA included 4229 patients, and 417 deaths were reported (9.8%) (Figure 3a). The unweighted pooled medium-term mortality rate was 8.1% for OS, 12.3% for FEVAR, and 14.3% for ChEVAR. The NMA results indicated that FEVAR (OR = 1.53, 95%CrI 1.03–2.11) was associated with higher medium-term mortality compared with OS (Table 3). The sensitivity analysis in which only studies with JAAA patients were included showed that FEVAR (OR = 1.65, 95%CrI 1.08–2.33) persisted to be associated with higher medium-term mortality when compared with OS (Appendixes SE and SF).
Eleven studies reported on aortic-related reintervention as an outcome. A total of 1497 patients were included in this NMA, with 146 patients who underwent aortic-related reintervention (11.2%) (Figure 3b). The unweighted pooled aortic-related reintervention rate was 3.6% for OS, 17.1% for FEVAR, and 16.1% for ChEVAR. The NMA results showed that both FEVAR (OR = 8.32, 95%CrI 3.80–27.16) and ChEVAR (OR = 5.95, 95%CrI 2.23–20.18) were associated with a higher aortic-related reintervention rate than OS (Table 3), and this association persisted after sensitivity analysis including only JAAA (OR = 9.61, 95%CrI 3.44–44.22 for FEVAR; OR = 7.11, 95%CrI 2.06–32.67 for ChEVAR) (Appendixes SE and SF). There was no difference between FEVAR and ChEVAR in terms of aortic-related reintervention rates, not even after sensitivity analysis for JAAA (Table 3, Appendix SE).
Ten studies reported on aortic-related mortality. A total of 1150 patients were included in NMA, with 12 patients contributing to aortic-related mortality (1.1%) (Figure 3c). The unweighted pooled aortic-related mortality rate was 0.9% for OS, 0.8% for FEVAR, and 1.7% for ChEVAR. Results from NMA as well as from sensitivity analysis including only JAAA showed no difference between different treatment options in terms of aortic-related mortality (Table 3, Appendixes SE and SF).

3.4. Secondary Outcomes

Results from NMA showed that FEVAR (OR = 13.13, 95%CrI 2.70–105.2) and ChEVAR (OR = 16.82, 95%CrI 2.79–176.7) were associated with a higher rate of medium-term visceral branch occlusion/stenosis compared to OS; however, there was no difference between FEVAR and ChEVAR in terms of this complication. No difference was found between the three treatment options in terms of renal replacement therapy and MACEs. When comparing FEVAR and ChEVAR, no difference was found regarding the total number of endoleaks and more malignant ones such as type I/III (Table 4).

4. Discussion

This NMA found only observational studies comparing medium-term outcomes of interventions for JAAA/PAAA, mostly of low quality. The results of this NMA showed that FEVAR had a higher mid-term mortality compared to OS. Both endovascular procedures had higher rates of aortic-related reintervention and side branch occlusion/stenosis compared to the OS group. When making a comparison between the endovascular techniques, no significant preferences for either FEVAR or ChEVAR were found for any of the outcomes.
In this meta-analysis, several attempts were made to ameliorate the limitations of the existing literature. Firstly, it is difficult to interpret the results of the existing meta-analyses due to anatomical heterogeneity of the patients [10,33]. We focused our attention on studies reporting outcomes for only JAAA/PAAA, thus excluding more complex AAAs such as suprarenal and ThAAAs. Secondly, meta-analyses usually focus their attention on two most commonly used treatment options, i.e., FEVAR vs. OS, neglecting ChEVAR as the treatment option that is often used in some centres as the first-line endovascular option for the treatment of JAAA/PAAA [33]. This has only limited value. Thirdly, most of the published meta-analyses included studies published earlier than 2010 [7,34]. This NMA included more updated publications, with 11/16 published after 2015. Fourthly, NMA has an advantage that it allows both direct and indirect comparison; thus, more data are incorporated in the final analysis, and a bigger scope of the picture is tackled, whereas a single pairwise sometimes offers a very fragmented picture due to its failure to incorporate indirect data in the comparison.
Current guidelines recommend that the choice of different techniques and options for the management of JAAA/PAAA in the elective setting should be considered based on patient status, anatomy, local routines, team expertise, and patient preference [4,5]. The findings of this NMA reconfirm the widely accepted observation that endovascular techniques are associated with a higher incidence of aortic-related reintervention and a higher incidence of branch stenosis/occlusion. Recommendation 96 in the ESVS guidelines states that “In complex endovascular repair of juxtarenal abdominal aortic aneurysm, endovascular repair with fenestrated stent grafts should be considered the preferred treatment option when feasible”. Current guidelines favour the advantage of endovascular techniques (FEVAR and ChEVAR) over OS in terms of short-term outcomes [4,5].
According to recommendation 97 from the latest ESVS guidelines [4], FEVAR is preferred over ChEVAR in the elective setting, while recommendation 98 says that ChEVAR might be used in the emergent setting as a bailout procedure. However, this recommendation is based on expert opinion, and there are no high-quality data that might support these two recommendations. One of the major concerns with ChEVAR in the elective setting is that it is associated with a high rate of type Ia endoleak, especially with more than two chimneys [35]. Furthermore, gutters created between the main graft and chimneys may limit the durability of the technique.
This NMA showed one interesting finding that FEVAR patients had worse medium-term all-cause mortality compared to the OS group. A similar tendency was found for ChEVAR patients compared to OS, but this did not reach the level of statistical significance. Due to the non-randomised nature of all studies included in this NMA, it is possible that this reflects a confounding from the variations in baseline clinical characteristics between the groups, but it is an important finding and an indication for future RCTs regardless. It is also possible that a confounding due to indication is present, i.e., that surgeons tend to choose endovascular solutions for less fit patients, and therefore, these solutions have worse medium-term outcomes. A general observation from Table 1 is that patients from the endovascular group were older, with the presence of other cardiovascular risk factors. Although the inclusion criteria are somewhat different, focusing also on patients with adverse neck characteristics, a recently published NMA from Patel et al. [36] showed no differences in overall mid-term mortality between three groups of patients.
A significantly higher rate of mid-term reinterventions in both the FEVAR and ChEVAR group compared to OS was demonstrated in this NMA. A recent NMA [36] showed that only FEVAR patients had a higher mid-term reintervention rate. It must be noted that details about OS reintervention are often lacking. One good example is the rate of postincisial hernia repair, which was reported only in one study, and it is unclear whether it was counted as reintervention. Another contributing factor could be reintervention due to persistent type II endoleak (seven studies) in the FEVAR group without mentioning specific reasons. Additionally, FEVAR nowadays for JAAA repair usually has four vessel fenestrations, and this more proximal/extensive repair predisposes patients for mid-term complications [6]. Nevertheless, more frequent reinterventions coupled with the higher costs of endovascular devices could raise an additional concern. The results from Michel M. et al. [37] showed that FEVAR is more expensive and not a cost-effective option for JAAA/PAAA at 2 years. Since this study was performed, new devices from different companies have been developed, which will hopefully decrease the cost of these stent grafts in the future. It is, however, important to emphasise that the majority of reports failed to report data adequately, thus introducing difficulties in data interpretation. Unlike rigid reporting systems in RCTs and prospective observational trials, retrospective studies do not provide an insight into the variability of surgeon preferences and department policies. One of the explanations why the reintervention rate was higher in the endovascular groups could be the higher incidence of branch vessel stenosis/occlusion and the presence of the non-negligible overall unweighted pooled 6.6% rate of type I/III (malignant) endoleak for FEVAR/ChEVAR groups.
The branch vessel occlusion/stenosis rate was lower in OSR. However, the interpretation of results should be taken with caution since most of the patients had juxtarenal AAA, and only 11.5% of all patients undergoing OSR had renal artery bypass/reattachment, which makes comparison to FEVAR/ChEVAR difficult. Surprisingly, there was no difference between FEVAR and ChEVAR in terms of incidence of new onset endoleaks and branch vessel patency. Most of the trials used company-manufactured stent grafts from Zenith Cook (Cook Medical, Bloomington, IN, USA) for FEVAR and from Endurant (Medtronic, Minneapolis, MN, USA) for ChEVAR. In the meta-analysis of Katsargyris et al. [8], no difference was observed for target vessel patency and short-term mortality for the treatment of JAAA. Additionally, no difference was observed regarding new onset RRT. However, the absence of difference in terms of these outcomes could be due to the lack of papers with sufficient power to highlight any statistical difference.
One important factor that should not be neglected is the impact of centre volume on patient outcomes. As reported in a previous registry, centres with high (>14) volume of open JAAA repair demonstrated significant adjusted lower perioperative mortality (3.9%) compared to centres with low volume of open repair [38]. Possibly, a broad implementation of centralisation of treatment of JAAA/PAAA could further improve these results, especially in OS.

5. Limitations and Implications for Research

There are several concerns in this NMA. Our study included only observational studies and registries with significant differences in terms of baseline clinical characteristics. No RCTs have been performed comparing JAAA/PAAA repair. The GRADE rating for evidence was “low” for the majority of pairwise comparisons, reflecting the inherited bias. Data veracity is the Achilles’ heel of all retrospective analyses. Such nuances were most apparent in big registries [22]. Another issue when analysing cohort studies as opposed to randomised controlled trials is confounding by indication. It is possible that frailer patients received endovascular treatment, while patients with better pre-operative conditions received OS. This confounding was impossible to account for in our analysis. Another cause of concern is the “learning curve bias” and the use of older generations of devices. We tried to avoid this issue by excluding studies that reported less than 10 patients per treatment arm and by only including studies that treated patients after 2010, but since the endovascular techniques have been further improved since then, it is possible that this bias is still present in our analysis. Furthermore, the role of physician-modified grafts and outside-of-use EVAR in the elective setting have not been investigated due to unstandardised use of these two techniques in the setting of JAAA/PAAA repair. There was a lack of standardisation of definitions and reporting of the anatomy. For example, some studies defined JAAA as a neck less than 10 mm, and others used the anticipated clamp site with no specific mention of whether the aneurysms had involved the renal artery ostia, i.e., PAAA. Although the analysis was focused on JAAA/PAAA, the majority of studies provide no detail on the AAA anatomy, such as neck length and other adverse features. Cost-effectiveness analysis and quality of life assessment were not performed and could be important outcomes that could help in the decision-making process between these patient groups.

6. Conclusions

The results of this NMA found an advantage for OS regarding aortic-related intervention and vessel branch/bypass stenosis/occlusion compared to FEVAR and ChEVAR after medium-term follow-up. This suggests that younger, low-surgical-risk patients might benefit from open surgery of JAAA/PAAA; however, this insight should be interpreted with caution due to the low quality of the included studies in the analysis and the possibility of confounding by indication, bearing in mind the observational design of the included studies. Further larger studies including experienced and high-volume AAA centres in patients with similar baseline patient characteristics are needed to adequately determine medium and long-term results of all three used treatment options.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jcm11226779/s1, Appendix SA. Search strategy. Appendix SB. Extracted data from each study with a pre-specified proforma. Appendix SC (1). Summary of findings table showing comparison FEVAR vs open surgery for JAAA/PAAA treatment. Appendix SC (2). Summary of findings table showing comparison Chimney EVAR vs open surgery for JAAA/PAAA treatment. Appendix SC (3). Summary of findings table showing comparison Chimney EVAR vs FEVAR for JAAA/PAAA treatment. Appendix SD. Model comparison of fixed-effect vs. random-effects models for the primary outcomes. Appendix SE. Sensitivity analysis including studies which included only patients with juxtarenal abdominal aortic aneurysms. Appendix SF. The probability of each treatment being the best, second best, and worst for primary outcomes. Appendix SG. Definitions of JAA/PAAA patients in included studies.

Author Contributions

P.Z.: conceptualisation, methodology, software, formal analysis, data curation, writing—original draft preparation, writing—review and editing, visualization, project administration. A.J.: conceptualisation, methodology, software, formal analysis, data curation, writing—original draft preparation, writing—review and editing, visualization. P.T.: conceptualisation, methodology, data curation, writing—original draft preparation, writing—review and editing, visualization. L.D.: conceptualisation, resources, writing—original draft preparation, writing—review and editing, supervision, project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gimenez-Gaibar, A.; Gonzalez-Canas, E.; Solanich-Valldaura, T.; Herranz-Pinilla, C.; Rioja-Artal, S.; Ferraz-Huguet, E. Could preoperative neck anatomy influence follow-up of EVAR? Ann. Vasc. Surg. 2017, 43, 127–133. [Google Scholar] [CrossRef] [PubMed]
  2. Marone, E.M.; Freyrie, A.; Ruotolo, C.; Michelagnoli, S.; Antonello, M.; Speziale, F.; Veroux, P.; Gargiulo, M.; Gaggiano, A. Expert Opinion on Hostile Neck Definition in Endovascular Treatment of Abdominal Aortic Aneurysms (a Delphi Consensus). Ann. Vasc. Surg. 2019, 62, 173–182. [Google Scholar] [CrossRef] [Green Version]
  3. Powell, J.; Sweeting, M.; Ulug, P.; Blankensteijn, J.; Lederle, F.; Becquemin, J.-P.; Greenhalgh, R.; Evar-1, D. Meta-analysis of individual-patient data from EVAR-1, DREAM, OVER and ACE trials comparing outcomes of endovascular or open repair for abdominal aortic aneurysm over 5 years. Br. J. Surg. 2017, 104, 166–178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Wanhainen, A.; Verzini, F.; Van Herzeele, I.; Allaire, E.; Bown, M.; Cohnert, T.; Dick, F.; van Herwaarden, J.; Karkos, C.; Koelemay, M.; et al. Editor’s Choice—European Society for Vascular Surgery (ESVS) 2019 Clinical Practice Guidelines on the Management of Abdominal Aorto-iliac Artery Aneurysms. Eur. J. Vasc. Endovasc. Surg. 2019, 57, 8–93. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Chaikof, E.L.; Dalman, R.L.; Eskandari, M.K.; Jackson, B.M.; Lee, W.A.; Mansour, M.A.; Mastracci, T.M.; Mell, M.; Murad, M.H.; Nguyen, L.L.; et al. The Society for Vascular Surgery practice guidelines on the care of patients with an abdominal aortic aneurysm. J. Vasc. Surg. 2018, 67, 2–77.e2. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Oderich, G.S.; Forbes, T.L.; Chaer, R.; Davies, M.G.; Lindsay, T.F.; Mastracci, T.; Singh, M.J.; Timaran, C.; Woo, E.Y. Reporting standards for endovascular aortic repair of aneurysms involving the renal-mesenteric arteries. J. Vasc. Surg. 2020, 73, 4S–52S. [Google Scholar] [CrossRef]
  7. Doonan, R.J.; Girsowicz, E.; Dubois, L.; Gill, H.L. A systematic review and meta-analysis of endovascular juxtarenal aortic aneurysm repair demonstrates lower perioperative mortality compared with open repair. J. Vasc. Surg. 2019, 70, 2054–2064. [Google Scholar] [CrossRef] [PubMed]
  8. Katsargyris, A.; Oikonomou, K.; Klonaris, C.; Topfel, I.; Verhoeven, E. Comparison of outcomes with open, fenestrated, and chimney graft repair of juxtarenal aneurysms: Are we ready for a paradigm shift? J. Endovasc. Ther. 2013, 20, 159–169. [Google Scholar] [CrossRef]
  9. Končar, I.B.; Jovanović, A.L.; Dučič, S.M. The role of fEVAR, chEVAR and open repair in treatment of juxtarenal aneurysms: A systematic review. J. Cardiovasc. Surg. 2020, 61, 24–36. [Google Scholar] [CrossRef]
  10. Antoniou, G.A.; Juszczak, M.T.; Antoniou, S.A.; Katsargyris, A.; Haulon, S. Editor’s Choice - Fenestrated or Branched Endovascular versus Open Repair for Complex Aortic Aneurysms: Meta-Analysis of Time to Event Propensity Score Matched Data. Eur. J. Vasc. Endovasc. Surg. 2021, 61, 228–237. [Google Scholar] [CrossRef]
  11. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. Int. J. Surg. 2021, 88, 105906. [Google Scholar] [CrossRef] [PubMed]
  12. Shea, B.J.; Reeves, B.C.; Wells, G.; Thuku, M.; Hamel, C.; Moran, J.; Moher, D.; Tugwell, P.; Welch, V.; Kristjansson, E.; et al. AMSTAR 2: A critical appraisal tool for systematic reviews that include randomised or non-randomised studies of healthcare interventions, or both. BMJ 2017, 358, j4008. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Sterne, J.A.C.; Hernán, M.A.; Reeves, B.C.; Savović, J.; Berkman, N.D.; Viswanathan, M.; Henry, D.; Altman, D.G.; Ansari, M.T.; Boutron, I.; et al. ROBINS-I: A tool for assessing risk of bias in non-randomised studies of interventions. BMJ 2016, 355, i4919. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Guyatt, G.H.; Oxman, A.D.; Kunz, R.; Atkins, D.; Brozek, J.; Vist, G.; Alderson, P.; Glasziou, P.; Falck-Ytter, Y.; Schünemann, H.J. GRADE guidelines: 2. Framing the question and deciding on important outcomes. J. Clin. Epidemiology 2011, 64, 395–400. [Google Scholar] [CrossRef]
  15. McGuinness, L.A.; Higgins, J.P.T. Risk-of-bias VISualization (robvis): An R package and Shiny web app for visualizing risk-of-bias assessments. Res. Synth. Methods. 2021, 12, 55–61. [Google Scholar] [CrossRef]
  16. Dias, S.; Ades, A.E.; Welton, N.J.; Jansen, J.P.; Sutton, A.J. Network Meta-Analysis for Decision Making; John Wiley & Sons Ltd.: Hoboken, NJ, USA, 2018. [Google Scholar] [CrossRef]
  17. Donas, K.P.; Eisenack, M.; Panuccio, G.; Austermann, M.; Osada, N.; Torsello, G. The role of open and endovascular treatment with fenestrated and chimney endografts for patients with juxtarenal aortic aneurysms. J. Vasc. Surg. 2012, 56, 285–290. [Google Scholar] [CrossRef] [Green Version]
  18. Wei, G. GW24-e3928 Endovascular chimney technique versus fenestrated endovascular aneurysm repair of juxtarenal abdominal aortic aneurysms. Heart 2013, 99, A257.3–A258. [Google Scholar] [CrossRef]
  19. Lee, J.T.; Lee, G.K.; Chandra, V.; Dalman, R.L. Comparison of fenestrated endografts and the snorkel/chimney technique. J. Vasc. Surg. 2014, 60, 849–857. [Google Scholar] [CrossRef] [Green Version]
  20. Barilla’, D.; Sobocinski, J.; Stilo, F.; Maurel, B.; Spinelli, F.; Haulon, S. Juxtarenal aortic aneurysm with hostile neck anatomy: Midterm results of minilaparotomy versus f-EVAR. Int Angiol 2014, 33. [Google Scholar]
  21. Banno, H.; Cochennec, F.; Marzelle, J.; Becquemin, J.-P. Comparison of fenestrated endovascular aneurysm repair and chimney graft techniques for pararenal aortic aneurysm. J. Vasc. Surg. 2014, 60, 31–39. [Google Scholar] [CrossRef]
  22. Shahverdyan, R.; Majd, M.; Thul, R.; Braun, N.; Gawenda, M.; Brunkwall, J. F-EVAR does not Impair Renal Function more than Open Surgery for Juxtarenal Aortic Aneurysms: Single Centre Results. Eur. J. Vasc. Endovasc. Surg. 2015, 50, 432–441. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Saratzis, A.; Bath, M.F.; Harrison, S.C.; Sayers, R.D.; Bown, M.J. Impact of Fenestrated Endovascular Abdominal Aortic Aneurysm Repair on Renal Function. J. Endovasc. Ther. 2015, 22, 889–896. [Google Scholar] [CrossRef] [PubMed]
  24. Maeda, K.; Ohki, T.; Kanaoka, Y.; Baba, T.; Kaneko, K.; Shukuzawa, K. Comparison between Open and Endovascular Repair for the Treatment of Juxtarenal Abdominal Aortic Aneurysms: A Single-Center Experience with Midterm Results. Ann. Vasc. Surg. 2017, 41, 96–104. [Google Scholar] [CrossRef] [PubMed]
  25. Wooster, M.; Tanious, A.; Patel, S.; Moudgill, N.; Back, M.; Shames, M. Concomitant Parallel Endografting and Fenestrated Experience in a Regional Aortic Center. Ann. Vasc. Surg. 2017, 38, 54–58. [Google Scholar] [CrossRef]
  26. Caradu, C.; Morin, J.; Poirier, M.; Midy, D.; Ducasse, E. Monocentric Evaluation of Chimney Versus Fenestrated Endovascular Aortic Repair for Juxtarenal Abdominal Aortic Aneurysm. Ann. Vasc. Surg. 2017, 40, 28–38. [Google Scholar] [CrossRef]
  27. Fiorucci, B.; Speziale, F.; Kölbel, T.; Tsilimparis, N.; Sirignano, P.; Capoccia, L.; Simonte, G.; Verzini, F. Short- and Midterm Outcomes of Open Repair and Fenestrated Endografting of Pararenal Aortic Aneurysms in a Concurrent Propensity-Adjusted Comparison. J. Endovasc. Ther. 2018, 26, 105–112. [Google Scholar] [CrossRef]
  28. Chinsakchai, K.; Prapassaro, T.; Salisatkorn, W.; Hongku, K.; Moll, F.L.; Ruangsetakit, C.; Wongwanit, C.; Puangpunngam, N.; Hahtapornsawan, S.; Sermsathanasawadi, N.; et al. Outcomes of Open Repair, Fenestrated Stent Grafting, and Chimney Grafting in Juxtarenal Abdominal Aortic Aneurysm: Is It Time for a Randomized Trial? Ann. Vasc. Surg. 2019, 56, 114–123. [Google Scholar] [CrossRef]
  29. Soler, R.; Bartoli, M.; Faries, C.; Mancini, J.; Sarlon-Bartoli, G.; Haulon, S.; Magnan, P.E. Fenestrated endovascular aneurysm repair and open surgical repair for the treatment of juxtarenal aortic aneurysms. J. Vasc. Surg. 2019, 70, 683–690. [Google Scholar] [CrossRef]
  30. O’Donnell, T.F.X.; Boitano, L.T.; Deery, S.E.; Schermerhorn, M.L.; Schanzer, A.; Beck, A.W.; Green, R.M.; Takayama, H.; Patel, V.I. Open Versus Fenestrated Endovascular Repair of Complex Abdominal Aortic Aneurysms. Ann. Surg. 2020, 271, 969–977. [Google Scholar] [CrossRef]
  31. Menegolo, M.; Xodo, A.; Penzo, M.; Piazza, M.; Squizzato, F.; Colacchio, E.C.; Grego, F.; Antonello, M. Open repair versus EVAR with parallel grafts in patients with juxtarenal abdominal aortic aneurysm excluded from fenestrated endografting. J. Cardiovasc. Surg. 2021, 62. [Google Scholar] [CrossRef]
  32. Bootun, R.; Carey, F.; Al-Thaher, A.; Al-Alwani, Z.; Crawford, M.; Delbridge, M.; Ali, T.; Al-Jundi, W. Comparison between open repair with suprarenal clamping and fenestrated endovascular repair for unruptured juxtarenal abdominal aortic aneurysms. J. Cardiovasc. Surg. 2021. [Google Scholar] [CrossRef] [PubMed]
  33. O’Donnell, T.F.; Patel, V.I.; Deery, S.E.; Li, C.; Swerdlow, N.J.; Liang, P.; Beck, A.W.; Schermerhorn, M.L. The state of complex endovascular abdominal aortic aneurysm repairs in the vascular quality initiative. J. Vasc. Surg. 2019, 70, 369–380. [Google Scholar] [CrossRef] [PubMed]
  34. Orr, N.T.; Davenport, D.L.; Minion, D.J.; Xenos, E.S. Comparison of perioperative outcomes in endovascular versus open repair for juxtarenal and pararenal aortic aneurysms: A propensity-matched analysis. Vascular 2016, 25, 339–345. [Google Scholar] [CrossRef] [PubMed]
  35. Donas, K.P.; Lee, J.T.; Lachat, M.; Torsello, G.; Veith, F.J. Collected world experience about the performance of the snorkel/chimney endovascular technique in the treatment of complex aortic pathologies: The PERICLES registry. J. Vasc. Surg. 2015, 262, 546–553. [Google Scholar] [CrossRef]
  36. Patel, S.R.; Ormesher, D.C.; Griffin, R.; Jackson, R.J.; Lip, G.Y.H.; Vallabhaneni, S.R.; UK-COMPASS Trial. Editor’s Choice-Comparison of Open, Standard, and Complex Endovascular Aortic Repair Treatments for Juxtarenal/Short Neck Aneurysms: A Systematic Review and Network Meta-Analysis. Eur. J. Vasc. Endovasc. Surg. 2022, 63, 696–706. [Google Scholar] [CrossRef]
  37. Michel, M.; Becquemin, J.P.; Marzelle, J.; Quelen, C.; Durand-Zaleski, I. Editor’s Choice e A study of the cost-effectiveness of fenestrated/ branched EVAR compared with open surgery for patients with complex aortic aneurysms at 2 years. Eur. J. Vasc Endovasc. Surg 2018, 56, 15–428. [Google Scholar] [CrossRef] [Green Version]
  38. O’Donnell, T.; Boitano, L.; Deery, S.; Lancaster, R.; Siracuse, J.; Schermerhorn, M. Hospital Volume Matters: The Volume-Outcome Relationship in Open Juxtarenal AAA Repair. J. Vasc. Surg. 2019, 69, 1323–1324. [Google Scholar] [CrossRef]

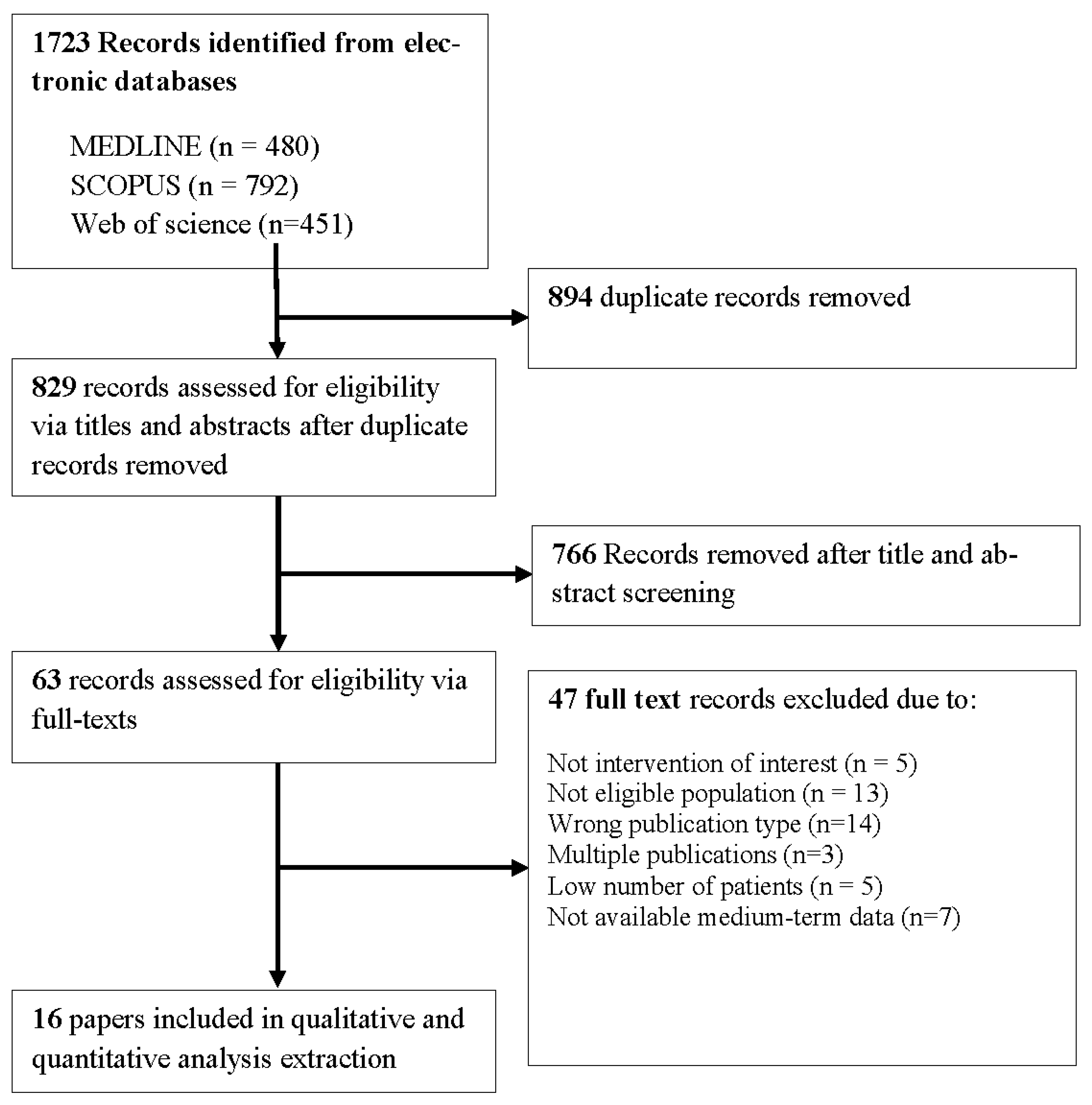

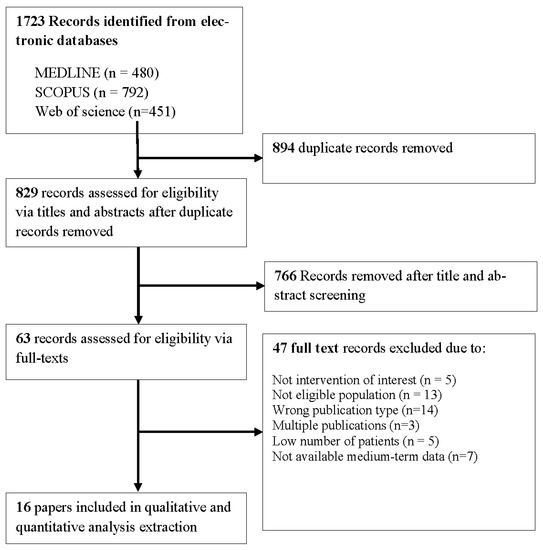

Figure 1. PRISMA flow diagram showing selection of included studies.
Figure 1. PRISMA flow diagram showing selection of included studies.
Jcm 11 06779 g001

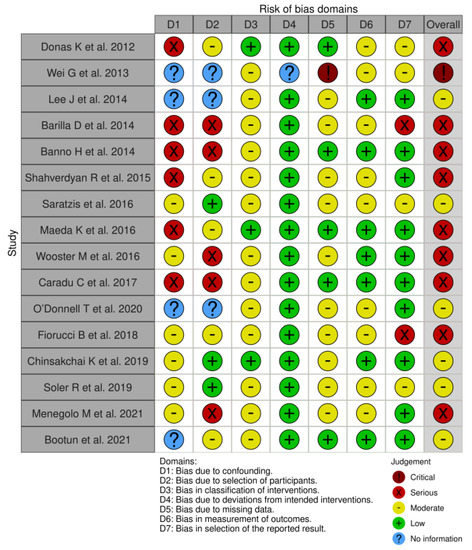

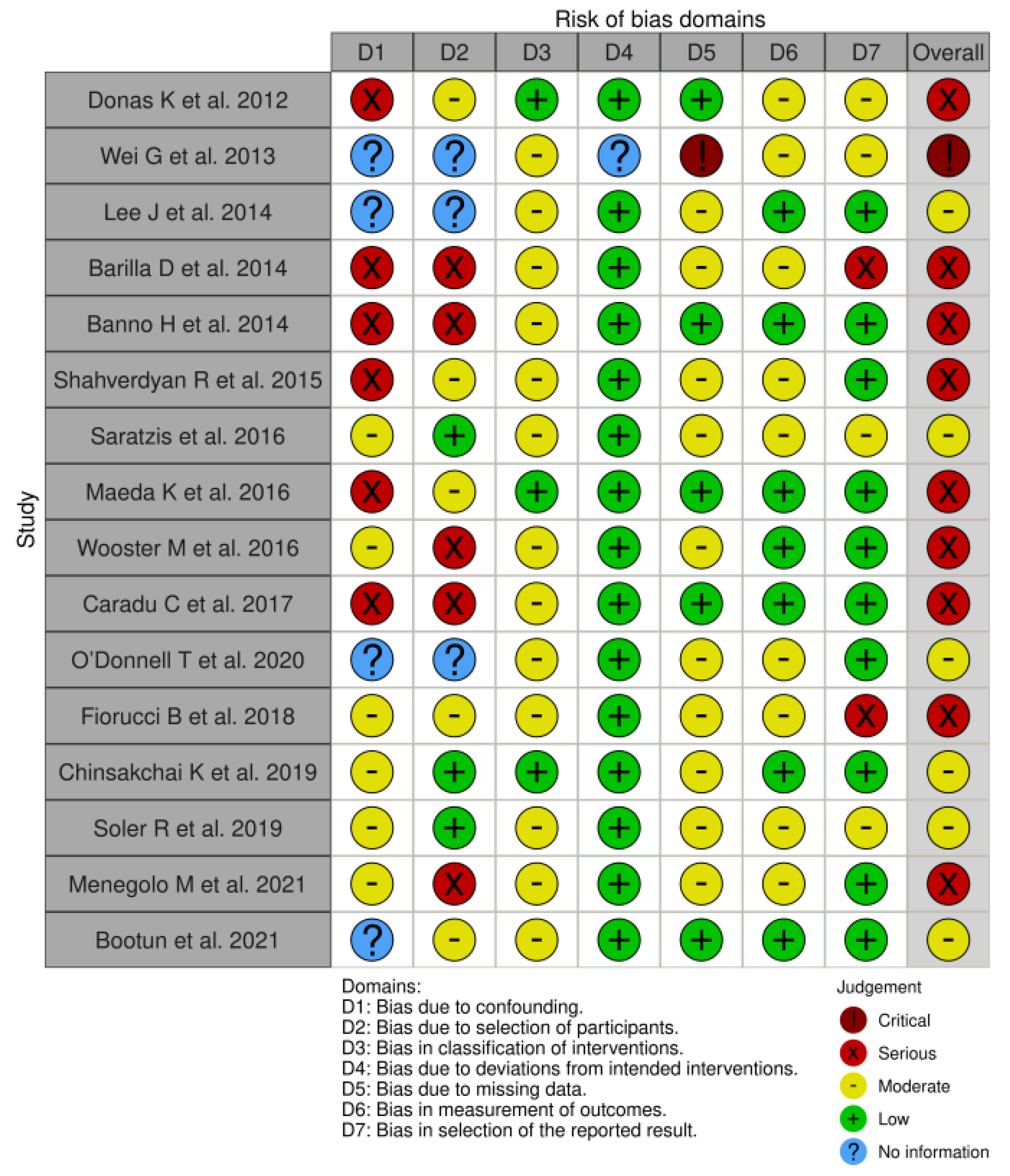

Figure 2. Risk of bias summary—judgments about each risk of bias item for each included study (for non-randomised studies using ROBINS-I tool) [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32].
Figure 2. Risk of bias summary—judgments about each risk of bias item for each included study (for non-randomised studies using ROBINS-I tool) [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32].
Jcm 11 06779 g002

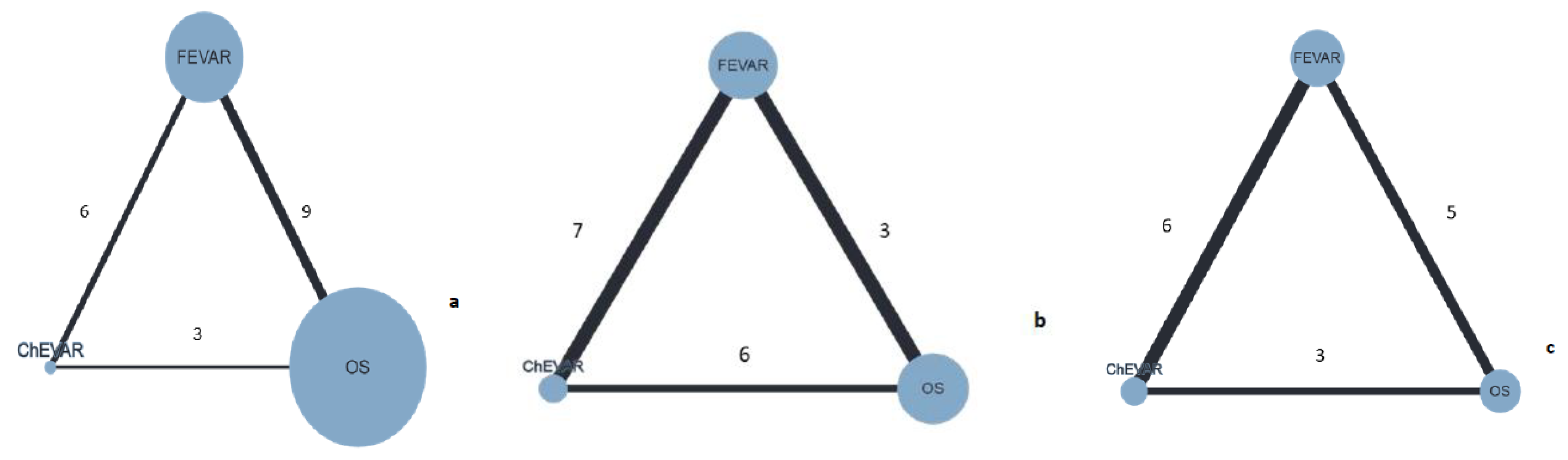

Figure 3. Network graph for mortality (a); aortic-related reintervention (b); and aortic-related mortality (c) (size of the node represents the sample size for the procedure, while the edge width represents the number of studies included in direct comparison).
Figure 3. Network graph for mortality (a); aortic-related reintervention (b); and aortic-related mortality (c) (size of the node represents the sample size for the procedure, while the edge width represents the number of studies included in direct comparison).
Jcm 11 06779 g003
Table 1. Baseline clinical characteristics of patients in included studies.
Table 1. Baseline clinical characteristics of patients in included studies.
First Author (Year of Publication)Study DesignAAA TypeFollow-Up Duration (Months)InterventionSample SizeMean AGE (years)Female Gender (%)Smoking (%)HTN
(%)
HLP
(%)
Diabetes (%)COPD
(%)
CAD
(%)
CVD
(%)
CKD
(%)
AAA Size
(mm)
Previous Aortic Intervention
Donas et al. (2012) [17]Retrospective observationalJuxtarenal14.2ChEVAR307410----33.333.3-23.36211
FEVAR29730----27.941.4-17.2658
Open surgery317112.9----19.312.9-6.4602
Wei et al. (2013) [18]Retrospective observationalJuxtarenal12ChEVAR37------------
FEVAR13------------
Lee et al. (2014) [19]Retrospective observationalJuxtarenal6ChEVAR157626.693.3100-6.633.3---66-
FEVAR157733.373.393.3-33.313.3---61-
Barilla et al. (2014) [20]Retrospective observationalJuxtarenal60Open surgery50786167556224454820--
FEVAR50714227550244858616--
Banno et al. (2014) [21]Retrospective observationalJuxta/pararenal24FEVAR807410-705117.532.55516.215584
ChEVAR387410.5-795826.32939.510.523.7669
Shahverdyan et al. (2015) [22]Retrospective observationalJuxtarenal24Open surgery347223.5-76.5-14.738.253-5.9--
FEVAR357214.3-85.7-5.72045.7-11.4--
Saratzis et al. (2015) [23]Retrospective observationalJuxtarenal20FEVAR5875128163.867.231-318.6-52
Open surgery5874128163.867.231-25.48.6-53-
Maeda et al. (2015) [24]Retrospective observationalJuxtarenal33Open surgery817114.872.874.140.724.723.454.324.722.258-
FEVAR347711.758.882.35017.620.626.520.623.555-
ChEVAR377710.859.481.148.618.921.62718.921.656-
Wooster et al. (2016) [25]Retrospective observationalJuxtarenal15ChEVAR547811.5878770.320.431.5639.2-62-
FEVAR397212.879.58266.615.438.553.817.9-68-
Caradu et al. (2017) [26]Retrospective observationalJuxtarenal24FEVAR90712.2708061.112.226.6-1014.458-
ChEVAR317516.167.777.467.79.735.5-6.438.767-
Fiorucci et al. (2018) [27]Retrospective observationalPararenal50FEVAR92759.8-84.832.611.941.357.610.818.5--
Open surgery108705.5-88.939.814.851.830.5130.5--
Chinsakchai et al. (2019) [28]Retrospective observationalJuxtarenal37Open surgery327021.915.681.246.915.63.146.9 63-
FEVAR207215158515201530 55-
ChEVAR237634.84.365.230.48.78.730.4 68-
Soler et al. (2019) [29]Retrospective observationalJuxtarenal27Open surgery134697.486.567.961.214.233.640.3-20.9595
FEVAR57745.284.278.959.612.356.149.1-22.8559
O’Donnell et al. (2020) [30]Retrospective observationalJuxtarenal36Open surgery189470214785-163337-34-0
FEVAR82273203486-193845-42-6
Menegolo et al. (2021) [31]Retrospective observationalJuxtarenal43ChEVAR257728-100-253240-40678
Open surgery61713.3-82-14.79.829.5-22.9650
Bootun et al. (2021) [32]Retrospective observationalJuxtarenal60Open surgery987419-19.4-11.222.432.64.116.367-
FEVAR64764-6.2-9.42545.320.318.776-
AAA: abdominal aortic aneurysm;; FEVAR: fenestrated EVAR; ChEVAR: chimney EVAR; HTN: Hypertension; HLP: hyperlipidaemia; COPD: chronic obstructive pulmonary disease; CAD: coronary artery disease; CVD: cerebrovascular disease; CKD: chronic kidney disease.
Table 2. Procedural data of included studies.
Table 2. Procedural data of included studies.
First Author (Year of Publication)AAA TypeInterventionSample SizeStent Graft ManufacturerChimney/Bridging Stent Graft ManufacturerFEVAR/ChEVAR ConfigurationOpen SurgeryOperation Duration (min)Blood Loss (ml)ICU Stay (Days)Hospital Stay (Days)
One Fenestration/One ChimneyTwo Fenestrations/Two ChimneysThree Fenestrations/One ChimneysFour Fenestrations/One ChimneysMean Number of Fenestrations/ChimneysInfrarenal ClampInterrenal ClampSuprarenal ClampSupraceliac ClampMean Proximal Clamp Duration (min)
Donas et al. (2012) [17]Juxtarenal AAAChimney EVAR30MedtronicAdvanta balloon expandable225301.4-----90--3
FEVAR29Cook Zenith-029002-----290--3
Open surgery31-----------23---7
Wei et al. (2013) [18]Juxtarenal AAAChimney EVAR37----------------
FEVAR13----------------
Lee et al. (2014) [19]Juxtarenal AAAChimney EVAR15Medtronic/Gore/Cook ZenithiCAST and Viabahn----------21840014
FEVAR15Cook ZenithiCAST----------28265014
Barilla et al. (2014) [20]Juxtarenal AAAOpen surgery50-------35-15048--512
FEVAR50--248001.9-------312
Banno et al. (2014) [21]Juxta/pararenal AAAFEVAR60Cook Zenith, AnacondaBECSs: Advanta V12 Fluency3442942.4-----191--8
Chimney EVAR38-BECSs, Advanta V12 Fulency2014401.6-----183--2
Shahverdyan et al. (2015) [22]Juxtarenal AAAOpen surgery34-------015145-171--11
FEVAR35Cook Zenith, AnacondaAdvanta V122191132.3-----188--7
Saratzis et al. (2016) [23]Juxtarenal AAAFEVAR58Cook Zenith-3232752.6--------6
Open surgery58---------------7
Maeda et al. (2016) [24]Juxtarenal AAAOpen surgery81-------028476353133120-15
FEVAR34Cook ZenithAdvanta V12----------282550-8
Chimney EVAR37Gore ExcluderAdvanta V12----------198440-8
Wooster et al. (2016) [25]Juxtarenal AAAChimney EVAR54Medtronic, Gore Excluder, Cook Zenith-2721421.6-----23363426
FEVAR39Cook Zenith-1162112.5-----23840826
Caradu et al. (2017) [26]Juxtarenal AAAFEVAR90Cook Zenith, AnacondaAdvanta 120721442.2-----182-17
Chimney EVAR31Cook Zenith, MedtronicFluency----1.3-----139-17
Fiorucci et al. (2018) [27]Pararenal AAAFEVAR92Cook Zenith-83029252.8-----218344-10
Open surgery108------------237758-9
Chinsakchai et al. (2019) [28]Juxtarenal AAAOpen surgery32- -----391010-242-18
FEVAR20Cook ZenithAdvanta V12----2.4-----262-17
Chimney EVAR23-Advanta V12, BeGraft, Viabahn----1.8-----270-19
Soler et al. (2019) [29]Juxtarenal AAAOpen surgery134-------010913323--111
FEVAR57Cook ZenithBlue Genesis, Advanta V123252272.6-------28
O’Donnell et al. (2020) [30]Juxtarenal AAAOpen surgery1894----------------
FEVAR822----------------
Menegolo M et al. (2021) [31]Juxtarenal AAAChimney EVAR25Medtronic, Gore Excluder, Cook ZenithAdvanta V12, Viabahn, Fluency168011.4-----244-110
Open surgery61-------028211222214-38
Bootun et al. (2021) [32]Juxtarenal AAAOpen surgery98-------04355024-1600310
FEVAR64--42223152.7-------16
AAA: abdominal aortic aneurysm; EVAR: endovascular aneurysm repair; FEVAR: fenestrated EVAR; ChEVAR: chimney EVAR.
Table 3. Network meta-analysis of major long-term outcomes in patients undergoing repair of JAAA/PAAA.
Table 3. Network meta-analysis of major long-term outcomes in patients undergoing repair of JAAA/PAAA.
FEVAR vs. OSChEVAR vs. OSChEVAR vs. FEVARHeterogeneity
Mortality1.53 (1.03–2.11)1.35 (0.74–2.40)0.89 (0.50–1.58)0.23 (0.01–0.71)
Aortic-related reintervention8.32 (3.80–27.16)5.95 (2.23–20.18)0.72 (0.28–1.55)0.63 (0.04–1.63)
Aortic-related mortality *0.65 (0.06–5.67)0.99 (0.07–9.76)1.55 (0.20–11.06)0.89 (0.04–1.93)
Legend: values are presented as OR (95% CrI), the treatment stated first is the reference treatment, OR < 1 favours the first treatment; OS—open surgery; FEVAR—fenestrated endovascular repair; ChEVAR—chimney endovascular repair; JAAA—juxtarenal abdominal aortic aneurysm; PAAA—pararenal abdominal aortic aneurysm. * The studies by Donas K et al. [17], and Wei G et al. [18], and Soler R et al. [29] were excluded from the quantitative analysis, as they had 0 outcomes in both groups.
Table 4. Network meta-analysis of secondary long-term outcomes in patients undergoing repair of JAAA/PAAA.
Table 4. Network meta-analysis of secondary long-term outcomes in patients undergoing repair of JAAA/PAAA.
FEVAR vs. OSChEVAR vs. OSChEVAR vs. FEVARHeterogeneity
Long-term branch/bypass occlusion/stenosis13.13 (2.701–105.2)16.82 (2.79–176.7)1.28 (0.34–5.11)1.44 (0.39–1.97)
Renal replacement therapy1.27 (0.13–13.87)1.09 (0.02–48.97)0.82 (0.02–32.71)1.43 (0.13–1.98)
MACEs1.57 (0.52–5.88)6.96 (0.70–103.0)4.39 (0.49–51.21)0.49 (0.02–1.81)
Total endoleaks//1.14 (0.44–3.51)0.84 (0.06–1.88)
Type I/III endoleaks//1.59 (0.52–5.43)0.77 (0.05–1.88)
Legend: values are presented as OR (95% CrI), the treatment stated first is the reference treatment, OR < 1 favours the first treatment; OS—open surgery; FEVAR—fenestrated endovascular repair; ChEVAR—chimney endovascular repair; JAAA—juxtarenal abdominal aortic aneurysm; PAAA—pararenal abdominal aortic aneurysm.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zlatanovic, P.; Jovanovic, A.; Tripodi, P.; Davidovic, L. Chimney vs. Fenestrated Endovascular vs. Open Repair for Juxta/Pararenal Abdominal Aortic Aneurysms: Systematic Review and Network Meta-Analysis of the Medium-Term Results. J. Clin. Med. 2022, 11, 6779. https://doi.org/10.3390/jcm11226779

AMA Style

Zlatanovic P, Jovanovic A, Tripodi P, Davidovic L. Chimney vs. Fenestrated Endovascular vs. Open Repair for Juxta/Pararenal Abdominal Aortic Aneurysms: Systematic Review and Network Meta-Analysis of the Medium-Term Results. Journal of Clinical Medicine. 2022; 11(22):6779. https://doi.org/10.3390/jcm11226779

Chicago/Turabian Style

Zlatanovic, Petar, Aleksa Jovanovic, Paolo Tripodi, and Lazar Davidovic. 2022. "Chimney vs. Fenestrated Endovascular vs. Open Repair for Juxta/Pararenal Abdominal Aortic Aneurysms: Systematic Review and Network Meta-Analysis of the Medium-Term Results" Journal of Clinical Medicine 11, no. 22: 6779. https://doi.org/10.3390/jcm11226779

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
