Review

Extracorporeal Shock Wave Therapy Combined with Complex Decongestive Therapy in Patients with Breast Cancer-Related Lymphedema: A Systemic Review and Meta-Analysis

by
Yu Lin Tsai
1,
Ting Jie I
2,
Ya Chi Chuang
2,
Yuan Yang Cheng
1,3 and
Yu Chun Lee
1,*
1
Department of Physical Medicine and Rehabilitation, Taichung Veterans General Hospital, Taichung 40705, Taiwan
2
Department of Medical Education, Taichung Veterans General Hospital, Taichung 40705, Taiwan
3
School of Medicine, National Yang Ming Chiao Tung University, Taipei 11221, Taiwan
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2021, 10(24), 5970; https://doi.org/10.3390/jcm10245970
Submission received: 5 December 2021 / Revised: 14 December 2021 / Accepted: 16 December 2021 / Published: 19 December 2021
(This article belongs to the Collection Current Updates and Advances in Breast Cancer)
Browse Figures
Versions Notes

Abstract

:
Breast cancer-related lymphedema (BCRL) is one of the most significant complications seen after surgery. Several studies demonstrated that extracorporeal shock wave therapy (ESWT), in addition to conventional complex decongestive therapy (CDT), had a positive effect on BCRL in various aspects. The systematic review and meta-analysis aim to explore the effectiveness of ESWT with or without CDT on BRCL patients. We searched PubMed, Embase, PEDro, Cochrane Library Databases, and Google Scholar for eligible articles and used PRISMA2020 for paper selection. Included studies were assessed by the PEDro score, Modified Jadad scale, STROBE assessment, and GRADE framework for the risk of bias evaluation. The primary outcomes were the volume of lymphedema and arm circumference. Secondary outcome measures were skin thickness, shoulder joint range of motion (ROM), and an impact on quality-of-life questionnaire. Studies were meta-analyzed with the mean difference (MD). Eight studies were included in the systemic review and four in the meta-analysis. In summary, we found that adjunctive ESWT may significantly improve the volume of lymphedema (MD = −76.44; 95% CI: −93.21, −59.68; p < 0.00001), skin thickness (MD = −1.65; 95% CI: −3.27, −0.02; p = 0.05), and shoulder ROM (MD = 7.03; 95% CI: 4.42, 9.64; p < 0.00001). The evidence level was very low upon GRADE appraisal. ESWT combined with CDT could significantly improve the volume of lymphedema, skin thickness, and shoulder ROM in patients with BCRL. There is not enough evidence to support the use of ESWT as a replacement for CDT. This study was registered with PROSPERO: CRD42021277110.

1. Introduction

The worldwide prevalence rate of breast cancer has increased continuously since 1990, whereas the overall mortality rate has decreased in most high-income countries [1,2]. In other words, an increasing number of breast cancer survivors are suffering from complications brought on by surgery. Breast cancer-related lymphedema (BCRL) is one of the most significant complications seen after surgery. It could happen at any time post-operation with an overall incidence rate of 21.4% [3] but varies from 5% to 60% due to various diagnostic criteria [3,4]. Factors that can increase the risk of BCRL include the number of lymph nodes removed, axillary radiotherapy, a high body mass index, and cellulitis [5,6]. Since BCRL remains both incurable and debilitating [7], the excessive lymph fluid accumulation in the upper limb may cause lifelong functional, aesthetic, and psychological problems [8]. Conventionally, non-invasive complex decongestive treatments (CDT) for BCRL include manual lymph drainage, intermittent pneumatic compression, compression bandage or garments, regular exercise, and skin care [9]. Although a decrease of 50–70% in lymphedema volume through CDT has been reported [10], its effectiveness depends largely upon each therapist’s experience and overall patient compliance [10,11,12]. Furthermore, in patients diagnosed with stage two or three lymphedema, local fibrotic change may also alternate the effect of CDT [9,13] and force patients to seek additional treatment.
Extracorporeal shock wave therapy (ESWT) has been used as a physical therapy modality over the past decades [14,15]. Shockwave therapy can be delivered to tissues by two distinct mechanisms: focused shockwave therapy and radial shockwave therapy. The two types of shockwaves differ in their depth of tissue penetration, ability to focus the shockwave, and the rapidity of the rise and fall of pressure (shape of the shockwave). Generally, a focused shockwave is a single pulse with a wide frequency range (from approximately 150 kHz up to 100 MHz), high pressure amplitude (up to 150 MPa), low tensile wave (up to −25 MPa), small pulse width, and a short rise time of up to a few hundred nanoseconds [16,17]. On the other hand, in a radial shockwave, the energy is dissipated over a large area, which reaches maximal pressure at the source instead of selected depths in tissues. The intensity at the focal point of the focused shockwave, which is measured as energy flux density (EFD; mJ/mm2) per impulse, ranging from 0.001 to 0.5 mJ/mm2, could be further classified as low energy and high energy with 0.2 mJ/mm2 as the cutoff point [18]. As for the radial shockwave, the pressure unit (bar) is often mentioned instead of energy flux density, and the conversion from radial to focused type can be completed [19]. Plenty of available research has proved that low-energy ESWT helps tissue regeneration by increasing stem cell activity, promoting endothelial neoangiogenesis, regulating inflammation, relieving pain, and preventing soft tissue fibrosis [20,21,22]. Regarding lymphatic tissue, in vivo and in vitro studies have demonstrated that ESWT could change both gene regulation and mRNA expression in endothelial cells, ultimately leading to lymphangiogenesis [23,24]. Michelini et al. [25] first used ESWT as a form of treatment for primary and secondary lymphedema of the upper and lower limbs, and observed a 32% reduction in the circumference of the affected limbs, as well as less consistency in fibrotic areas.
More recently, several randomized controlled trials (RCTs) and clinical studies have been conducted to compare the effectiveness of low-energy ESWT together with CDT in patients with BCRL. Bae et al. [26] found that ESWT reduced the volume, circumference, and skin thickness of patients’ arms with lymphedema. Cebbici et al. [27] also demonstrated that ESWT improved both functional status and quality of life in breast cancer patients. Although most of these investigations affirmed ESWT as being an effective management tool for BCRL, because outcome measures and methods varied, it was difficult to assert the significance of ESWT’s therapeutic effect for BCRL.
Up until now, we had found only two narrative literature reviews [28,29] discussing the use of ESWT on BCRL, while comprehensive systemic review and meta-analysis are still lacking. As a result, the objectives of this article are to identify that:
  • Does adjunctive ESWT provide additional benefits for BCRL patients compared to CDT alone? If so, in what manner?
  • Can ESWT serve as a replacement for CDT in patients with BCRL? If so, in what aspect?

2. Materials and Methods

Our study was registered in the International System Review Prospective Register (PROSPERO) (CRD42021277110) and conducted according to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) statement published in 2020 [30]. Because this study did not involve any clinical intervention or processing of individual patient data, Institutional Review Board (IRB) approval was unnecessary.

2.1. Identification and Selection of Studies

We searched PubMed, Embase databases, Physiotherapy Evidence Database (PEDro), Cochrane Library Databases, and Google Scholar for any relevant publications up until September 2021. Different combinations of the following keywords and MeSH terms were used in our initial literature search: “breast cancer”, “lymphedema”, “edema”, “ESWT”, and “shockwave”. Standard Boolean operators (AND, OR) were applied to link the terms, as shown in Table S1. The reference lists of selected articles were also hand-searched for additional related studies.
Only titles and abstracts from the search results were reviewed by two co-authors (Y.L.T. and Y.C.C.), with the results, authors, and journal titles being blinded. Studies were considered eligible if they met the inclusion criteria in Table 1, with full texts being reviewed thoroughly, including the reference list for additional related articles. The two reviewers worked independently, and any discrepancies were resolved through discussion and consensus involving a third reviewer (Y.C.L.).

2.2. Assessment of the Characteristics of Studies

2.2.1. Quality

Reviewers (Y.L.T. and Y.C.C.) independently performed quality validity and critical appraisal of the included trials through the use of the Cochrane Risk of Bias Tool [31], PEDro scale score [32], and Modified Jadad Scale [33]. According to the Cochrane Risk of Bias Tool, trials were classified as being high risk if they met less than five of the eight criteria. The PEDro scale score consisted of 11 items, each valued at 1 point if qualified. The higher the total score, the better the methodological quality. Similarly, the Modified Jadad Scale had eight items/points, and studies with 4 to 8 points being considered good to excellent quality.
For non-randomized clinical trials, the Strengthening the Reporting of Observational studies in Epidemiology (STROBE) assessment tool [34] was applied. The number of qualified items was in proportion to the methodological quality of the corresponding study.

2.2.2. Participants

Participants in the included studies involved patients with BCRL.

2.2.3. Intervention

The protocol of ESWT was recorded as intervention: type of ESWT (focused or radial); treatment location, frequency, and intensity; the total number of treatment sessions. We also documented the use of CDT, with or without ESWT, in both the experimental and control groups.

2.2.4. Outcome Measures

The primary outcomes of our review were the decrease in volume of lymphedema and circumference of the affected limb. The secondary outcomes were the skin thickness at fibrotic areas, increase of shoulder joint range of motion (ROM), and the results from the quick Disability of the Arm, Shoulder, and Hand (qDASH) questionnaire [35]. Studies needed to consist of at least one of these results to be included.

2.2.5. Data Extraction and Data Analysis

Name of the author, year of publication, the country where the study was conducted, number of patients, characteristics of patients, therapeutic protocol, and outcomes mentioned above were all extracted if possible. We contacted the authors by email for any missing data and other uncertain issues, which would subsequently be marked as N/A or unclear if we received no response. A study would not be included in the meta-analysis if the necessary data were inaccessible. Based on the Cochrane Handbook [31], continuous data were expressed as the mean ± standard deviation and summarized as a Mean Difference (MD) or Standardized Mean Difference (SMD). We used Cochran’s chi-squared test (Q test) and the I-squared test to assess statistical heterogeneity. All results were reported with 95% confidence intervals (CIs), with p < 0.05 considered statistically significant. A fixed-effects model was used when no obvious statistical heterogeneity existed (I2 value < 50%); otherwise, a random-effects model was applied (I2 value > 50% and p < 0.01). Between-group comparison was conducted if enough data from the RCTs (≧2 studies) could be acquired. In case of high statistical heterogeneity (I2 value > 75%), sensitivity analysis or funnel plot would be performed if the number of trials sufficed. We performed the systemic review and meta-analysis with Review Manager software (version 5.4; Cochrane Collaboration, London, UK) for graphical representation of the pooled data.
We adopted the Grading of Recommendations Assessment, Development and Evaluation (GRADE) [36,37] framework to assess the intergroup certainty of evidence.

3. Results

3.1. Study Selection Process

One hundred and thirty (130) papers were initially identified using our search strategy. Publication titles were screened, and any duplicates taken from different databases were removed. Twenty-one (21) potentially eligible trials were retrieved for full-text article screening. Of these, only eight studies met all the established criteria and were thus assessed. The selection process is shown in a PRISMA flow chart (Figure 1). Search strategy and reason for exclusion are presented in Tables S1 and S2.

3.2. Characteristics of Selected Studies

Six studies were RCTs [38,39,40,41,42,43], of which four originated from Egypt [38,39,40,41], one from South Korea [42], and one from Turkey [43]. Notably, two studies were conducted by the same authors during the same period (El-Shazly et al., 2016 [39]; El-Shazly et al., 2016 [40]) with identical group sizes. We contacted the corresponding authors for clarification but received no reply. Because outcome measures differed, we still considered them as being different studies, but included only one for size pooling.
Another two eligible clinical trials were prospective pilot studies from Turkey [27] and Belgium [44]. One (Cebicci et al., 2016 [27]) was the pilot study of another RCT (Cebicci et al., 2021 [43]) and was therefore exempted from the meta-analysis.
The characteristics of these studies are summarized in Table 2.

3.2.1. Quality

One RCT was considered at low risk of bias [41], while the remaining five trials were rated as high risk, as shown in Figure 2. According to their PEDro scores, two [41,42] of the six included RCTs were considered to be of good methodological quality (33%, scored 6–7), with the rest being of fair quality (67%, scored 4–5). When using the Modified Jadad Scale involving eight items for quality appraisal, half [41,42,43] of the RCTs were considered high quality (50%, scored 5–6.5) while the others were of low quality (50%, scored 3).
We used STROBE assessment tools for the two non-RCT studies. They [27,44] both met the 65.6% (21/33) quality items threshold and were therefore considered to be of fair quality. Quality ratings for each study are presented in Tables S3–S5.

3.2.2. Participants

Of the six RCTs, the largest number of participants was 60 (El-Shazly et al., 2016 [39]), while the lowest was 20 (Cebicci et al., 2021 [43]). The pooled size total was 193 (CDT with ESWT, n = 86; CDT alone, n = 97; ESWT alone, n = 10), with one RCT (El-Shazly et al., 2016 [40]) excluded for reasons previously outlined. In prospective pilot studies, one study recruited 11 patients for ESWT, and the other involving 10 patients for ESWT plus CDT.

3.2.3. Intervention

While five RCTs [38,39,40,41,42] compared the effectiveness of ESWT plus CDT, only one (Cebicci et al., 2021 [43]) investigated the effect of ESWT versus CDT. Half of these studies used radial ESWT on the axillary and cubital lymph nodes and the whole affected upper limb, while the three remaining studies involved focused ESWT on the most fibrotic area and cubital lymph nodes. The treatment was performed two to three times per week for a maximum of 16 sessions. The therapeutic protocols of the included trials are summarized in Table 3.

3.2.4. Outcome Measures

Used in six trials, volume displacement was the most commonly used outcome measure. Five studies [27,38,39,42,43] used the water-displacement method to measure the volume of lymphedema; only one [44] used infrared perometry. Four studies [27,38,42,43] measured the difference in arm volume between the healthy and lymphedema sides; the remaining two studies [39,44] only measured the volume of the affected arm.
Arm circumference was the second most frequently used measure, as employed in five of the studies. Mahran et al. [38] compared the summation of each side arm circumference from multiple levels, while another two studies [41,43] measured the difference between the healthy and affected arms at multiple levels. The remaining two trials [42,44] measured several sites from only the lymphedema side.
Both skin thickness and the qDASH questionnaire were exploited in three of the studies. Two studies [41,42] used a skinfold caliper to measure skin thickness, while the other used sonography [40] as a measurement tool. Joint ROM was performed in two studies.
The outcome measures are summarized in Table 4. GRADE framework was used for intergroup outcome measure comparison, as shown in Table S6. Most studies indicated a positive effect resulting from ESWT, with none reporting any risks or adverse effects following the intervention.

3.3. Effect of Intervention

The summarized un-pooled data of primary outcomes can be found in Table 5 and Table 6. The summarized un-pooled data of secondary outcomes can be found in Tables S7 and S8.

3.3.1. Primary Outcome: Volume of Lymphedema

Three RCTs [38,39,42] narrated the significant effectiveness of the additional ESWT when compared with CDT alone. One RCT [43] showed the significant effect of both ESWT and CDT, although no significant intergroup difference was found. In the two prospective pilot studies, one [27] showed the significant effect of ESWT, while the other [44] revealed no significant effect of additional ESWT with CDT. The mean volume difference between baseline and post-treatment is shown in Figure 3.
Subjects from two RCTs [38,42], which consisted of four groups, were assessed for the effectiveness of ESWT on decreasing the volume of lymphedema (Figure 4). The difference in bilateral upper-limb size in the experimental groups (ESWT plus CDT) and control groups (CDT) was recorded after an intervention. Using a fixed-effect model, the result showed a significant reduction in post-intervention lymphedema volume in the experimental groups compared to the control groups (MD = −76.44; 95% CI: −93.21, −59.68; p < 0.00001; I2 = 36%). However, the certainty of the evidence was quite low.

3.3.2. Primary Outcome: Arm Circumference

Two RCTs [38,41] demonstrated significant effectiveness of employing additional ESWT when compared to CDT on its own. Lee et al. [42] revealed a reduction in the circumference at 10 cm below the elbow in their experimental group. Cebicci et al. [43] showed a significant reduction in arm circumference in both groups, except at 10 cm below the elbow and wrist in the control group, with no intergroup difference being found in either. On the contrary, results from Joos et al. [44] showed no obvious circumference decrease after using ESWT plus CDT. The mean arm circumference difference between baseline and post-treatment showed in Figure 5. Detailed data can be seen in Table S9.

3.3.3. Secondary Outcome: Skin Thickness

Three studies [40,41,42] showed a significant skin-thickness reduction in the experimental group (ESWT plus CDT) compared to the control group (CDT only).
The thickness of most fibrotic skin was measured using a skinfold caliper after the intervention. Subjects involved in two studies that included four groups [41,42] were recruited for meta-analysis (Figure 6) using a fixed-effect model. The results showed a significant reduction in post-intervention skin thickness in the experimental groups compared to the control groups (MD = −1.65; 95% CI: −3.27, −0.02; p = 0.05; I2 = 17%); however, the certainty of pooled data was very low.

3.3.4. Secondary Outcome: Shoulder Range of Motion

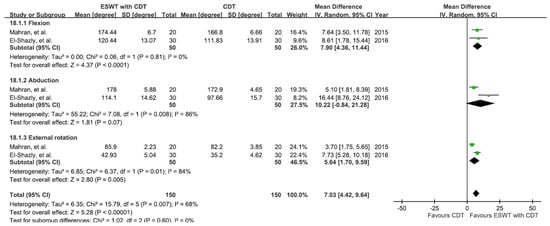

The results from two studies involving six groups [38,39] were analyzed to see the effects on both the experimental group (ESWT plus CDT) and control group (CDT alone) in improving shoulder joint ROM, as shown in Figure 7. The ROM of shoulder flexion, abduction, and external rotation were measured before and after the intervention.
A random-effect model was applied, showing a significant improvement (MD = 7.03; 95% CI: 4.42, 9.64; p < 0.00001; I2 = 68%) in shoulder joint ROM in the experimental groups compared to the control groups. Subgroup analysis further showed a significant ROM improvement in flexion (MD = 7.90; 95% CI: 4.36, 11.44; p < 0.0001; I2 = 0%) and external rotation (MD = 5.64; 95% CI: 1.70, 9.59; p = 0.005; I2 = 84%) in the experimental groups versus the control group. However, the certainty was very low, and sensitivity analysis could not be performed due to the lack of a sufficient number of trials.

3.3.5. Secondary Outcome: qDASH

In one study (Cebicci et al. [27]), patients reported a better qDASH score after receiving ESWT for BCRL. The following RCT also demonstrated that patients from both the experimental and the control groups had improved qDASH score after the intervention, with the former to a greater degree [43]. However, Lee et al. [42] found no difference between pre- and post-intervention qDASH scores in both groups. Detailed data were summarized in Table S10.
The meta-analysis of qDASH was not conducted due to insufficient data.

4. Discussion

According to our knowledge and data taken from literature searches, this article is the first formal systemic review and meta-analysis comparing the use of additional ESWT, versus only conventional CDT, on multiple outcomes for BCRL patients based upon RCTs and observational studies. In this study, we found a significant improvement in arm volume, skin thickness, and shoulder joint ROM between the experimental and control groups (Figure 4, Figure 6, and Figure 7), favoring the use of ESWT combined with CDT rather than CDT on its own.
The pathophysiology of lymphedema has become a vital issue in the medical community. The accumulation of protein-rich interstitial fluid hinders the lymphatic function, leading to heaviness, tightness, and chronic inflammation. These pathological changes promote tissue fibrosis and decrease lymphangiogenesis. The increase in cytokines also inhibits Lymphatic Endothelial Cell (LEC) proliferation and tubule formation, migration, and function [45]. Considering the mechanism resulting in the benefits of ESWT on BCRL, we have concluded several possible theories as follows. First, stretching the skin gives tension to the anchoring filaments, which pulls the LEC and opens the junctions between LEC. As the junctions open, the accumulated fluid can enter the lymphatic lumen and be collected [46]. We supposed that ESWT might have a similar stretching effect and thus improve the lymphatic drainage. Besides, several studies have discovered that ESWT reduces skin fibrosis [47]. These findings may also affect the fibrosis caused by the interstitial fluid accumulation in BCRL patients. Finally, ESWT affects the molecular aspects of lymphangiogenesis. Serizawa et al. created a rat model of tail lymphedema, showing up-regulation of VEFG-C in groups treated with ESWT [48]. In another study by Kubo et al., the author demonstrated an elevation of VEGF receptor 3 expression in rabbit ear treated with ESWT [23]. These effects may contribute to increased lymphangiogenesis, which improves the symptoms of BCRL.
Limited ROM was frequently reported due to BCRL, yet other factors such as surgical procedure and radiotherapy could also lead to a stiffened shoulder [49,50]. This occurrence could possibly be explained by subcutaneous scarring or connective tissue formation. For example, axillary web syndrome (AWS) is another common complication following breast cancer surgery. The cord-like connective tissue affected more than half of the patients receiving axillary lymph node dissection, causing pain, limited function, and impaired shoulder ROM [51,52]. Since we had identified that ESWT combined with CDT improved shoulder joint ROM in patients with BCRL, we assumed that ESWT could also be applied to patients with AWS. However, further studies are still required to confirm this hypothesis.
Based upon the latest guidelines regarding rehabilitation intervention for BCRL, CDT is the standard treatment for stage two and three (moderate-to-severe) patients [53]. Likewise, while most of our assessed studies explored the effect of ESWT in addition to CDT, only one (Cebicci et al., 2021 [43]) compared the effectiveness of ESWT with CDT. Being a relatively novel treatment, strong evidence for using ESWT rather than CDT is still lacking. As a result, we suggest seeing ESWT as a form of supplementary intervention to CDT before more research emerges.
All the assessed studies reported the immediate or short-term effect of ESWT, while long-term follow-up was lacking. Since lymphedema is considered a lifelong problem, it is important to follow up and compare the long-term effect of ESWT in patients with BCRL. Another noteworthy issue is the impact of ESWT on malignant cell regeneration. Malignant tumors and metastasis in the treatment area are considered contraindications for ESWT [54]. Although no adverse effects had been reported in those reviewed studies, concerning ESWT’s positive effect on endothelial neoangiogenesis and tissue growth, evaluation of both its safety and influence on breast cancer survivors is crucial.

Limitations

First, there were only a few available studies regarding the use of ESWT in patients with BCRL. The sample size was small, and the overall quality of evidence was quite low. Although meta-analysis could increase confidence and the level of evidence, results are inevitably influenced by the biases in the assessed trials. Nevertheless, we summarized the BCRL outcome parameters and ESWT treatment protocols used in the previous studies, which may help in designing further clinical trial of related topics. With more high-quality trials being performed, we may draw a more solid conclusion regarding the effects of ESWT on BCRL.
Second, variations in ESWT parameters among the studies were present, including the ESWT mode (focused or radial), treatment area, treatment frequency, and dosage. The heterogeneity restricted our attempt to determine an optimal therapeutic protocol. Additionally, the timing of intervention is also an import issue for patients and clinicians. None of the selected studies explored the relation between the duration of BCRL and the effectiveness of ESWT. Considering the expanding demand for more safe and efficient interventions for BCRL, the establishment of a standard ESWT protocol is thus imperative.

5. Conclusions

In summary, ESWT appears to have positive effects on certain BCRL symptoms. The combined use of ESWT and CDT could significantly improve the volume of lymphedema, skin thickness, and shoulder ROM as compared to CDT on its own. However, current evidence for these benefits is still of low methodological quality. In addition, there is still not enough evidence to support the use of ESWT as a replacement for CDT either.

Supplementary Materials

The followings are available online at https://www.mdpi.com/article/10.3390/jcm10245970/s1, Table S1: Search strategy; Table S2: Reasons for exclusion and reference of excluded studies; Table S3: Studies and methodological quality description according to the PEDro Scale Score; Table S4: Studies and methodological quality description according to the Modified Jadad Scale with eight items; Table S5: Summary of quality assessment (using STROBE assessment tools) of the included articles; Table S6: Appraisal of included studies, using the GRADE tool; Table S7: Skin thickness difference measurement of included studies; Table S8: ROM measurement of included studies; Table S9: Arm circumference measurement of included studies; Table S10: qDASH measurement of included studies.

Author Contributions

Conceptualization, Y.L.T. and Y.C.L.; methodology and formal analysis, Y.L.T. and Y.C.C.; software, Y.L.T. and T.J.I.; writing—original draft preparation, Y.L.T., Y.C.C. and T.J.I.; writing—review and editing, Y.C.L.; supervision, Y.C.L. and Y.Y.C.; project administration, Y.C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Ethical review and approval were waived for this article because it was a systemic review of published studies and did not involve any clinical intervention or processing of individual patient data.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in the study were obtained from the included trials and are openly available.

Acknowledgments

The authors are very grateful to Liang Jun Ou Yang and Yu Ning Peng for advising methodology and data analysis. The contribution of comprehensive databases searches from Shang Ming Hung also deserves all the credit.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fitzmaurice, C.; Allen, C.; Barber, R.M.; Barregard, L.; Bhutta, Z.A.; Brenner, H.; Dicker, D.J.; Chimed-Orchir, O.; Dandona, R.; Dandona, L.; et al. Global, Regional, and National Cancer Incidence, Mortality, Years of Life Lost, Years Lived with Disability, and Disability-Adjusted Life years for 32 Cancer Groups, 1990 to 2015: A Systematic Analysis for the Global Burden of Disease Study. JAMA Oncol. 2017, 3, 524–548. [Google Scholar] [PubMed]
  2. Azamjah, N.; Soltan-Zadeh, Y.; Zayeri, F. Global Trend of Breast Cancer Mortality Rate: A 25-Year Study. Asian Pac. J. Cancer Prev. 2019, 20, 2015–2020. [Google Scholar] [CrossRef] [PubMed]
  3. DiSipio, T.; Rye, S.; Newman, B.; Hayes, S. Incidence of unilateral arm lymphoedema after breast cancer: A systematic review and meta-analysis. Lancet Oncol. 2013, 14, 500–515. [Google Scholar] [CrossRef]
  4. Shah, C.; Vicini, F.A. Breast cancer-related arm lymphedema: Incidence rates, diagnostic techniques, optimal management and risk reduction strategies. Int. J. Radiat. Oncol. Biol. Phys. 2011, 81, 907–914. [Google Scholar] [CrossRef] [PubMed]
  5. Gillespie, T.C.; Sayegh, H.E.; Brunelle, C.L.; Daniell, K.M.; Taghian, A.G. Breast cancer-related lymphedema: Risk factors, precautionary measures, and treatments. Gland Surg. 2018, 7, 379–403. [Google Scholar] [CrossRef]
  6. McLaughlin, S.A.; Brunelle, C.L.; Taghian, A. Breast Cancer-Related Lymphedema: Risk Factors, Screening, Management, and the Impact of Locoregional Treatment. J. Clin. Oncol. 2020, 38, 2341–2350. [Google Scholar] [CrossRef]
  7. Chen, C.E.; Chiang, N.J.; Perng, C.K.; Ma, H.; Lin, C.H. Review of preclinical and clinical studies of using cell-based therapy for secondary lymphedema. J. Surg. Oncol. 2020, 121, 109–120. [Google Scholar] [CrossRef] [Green Version]
  8. Binkley, J.M.; Harris, S.R.; Levangie, P.K.; Pearl, M.; Guglielmino, J.; Kraus, V.; Rowden, D.P. Patient perspectives on breast cancer treatment side effects and the prospective surveillance model for physical rehabilitation for women with breast cancer. Cancer 2012, 118 (Suppl. 8), 2207–2216. [Google Scholar] [CrossRef] [PubMed]
  9. Korpan, M.I.; Crevenna, R.; Fialka-Moser, V. Lymphedema: A therapeutic approach in the treatment and rehabilitation of cancer patients. Am. J. Phys. Med. Rehabil. 2011, 90 (Suppl. 1), S69–S75. [Google Scholar] [CrossRef]
  10. Leduc, O.; Leduc, A.; Bourgeois, P.; Belgrado, J.P. The physical treatment of upper limb edema. Cancer 1998, 83 (Suppl. 12), 2835–2839. [Google Scholar] [CrossRef]
  11. Tiwari, P.; Coriddi, M.; Salani, R.; Povoski, S.P. Breast and gynecologic cancer-related extremity lymphedema: A review of diagnostic modalities and management options. World J. Surg. Oncol. 2013, 11, 237. [Google Scholar] [CrossRef] [Green Version]
  12. Ko, D.S.; Lerner, R.; Klose, G.; Cosimi, A.B. Effective treatment of lymphedema of the extremities. Arch. Surg. 1998, 113, 452–458. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Ezzo, J.; Manheimer, E.; McNeely, M.L.; Howell, D.M.; Weiss, R.; Johansson, K.I.; Bao, T.; Bily, L.; Tuppo, C.M.; Williams, A.F.; et al. Manual lymphatic drainage for lymphedema following breast cancer treatment. Cochrane Database Syst. Rev. 2015, 5, CD003475. [Google Scholar] [CrossRef] [Green Version]
  14. Valchanou, V.D.; Michailov, P. High energy shock waves in the treatment of delayed and nonunion of fractures. Int. Orthop. 1991, 15, 181–184. [Google Scholar] [CrossRef]
  15. Loew, M.; Jurgowski, W. Erste Erfahrungen mit der Extrakorporalen Stosswellen-Lithotripsie (ESWL) in der Behandlung der Tendinosis calcarea der Schulter [Initial experiences with extracorporeal shockwave lithotripsy (ESWL) in treatment of tendinosis calcarea of the shoulder]. Z. Orthop. Ihre Grenzgeb. 1993, 131, 470–473. [Google Scholar] [CrossRef] [PubMed]
  16. Wu, S.S.; Ericson, K.J.; Shoskes, D.A. Retrospective comparison of focused shockwave therapy and radial wave therapy for men with erectile dysfunction. Transl. Androl. Urol. 2020, 9, 2122–2128. [Google Scholar] [CrossRef]
  17. Ogden, J.A.; Tóth-Kischkat, A.; Schultheiss, R. Principles of shock wave therapy. Clin. Orthop. Relat. Res. 2001, 387, 8–17. [Google Scholar] [CrossRef]
  18. Rompe, J.D.; Furia, J.; Weil, L.; Maffulli, N. Shock wave therapy for chronic plantar fasciopathy. Br. Med. Bull. 2007, 81–82, 183–208. [Google Scholar] [CrossRef]
  19. Kwon, D.R. Regenerative Medicine in the Treatment of Sports Injuries: Prolotherapy and Extracorporeal Shock Wave Therapy. Korean J. Sports Med. 2016, 34, 1–9. [Google Scholar] [CrossRef]
  20. Mariotto, S.; Cavalieri, E.; Amelio, E.; Ciampa, A.R.; de Prati, A.C.; Marlinghaus, E.; Russo, S.; Suzuki, H. Extracorporeal shock waves: From lithotripsy to anti-inflammatory action by NO production. Nitric Oxide 2005, 12, 89–96. [Google Scholar] [CrossRef] [PubMed]
  21. Yan, X.; Zeng, B.; Chai, Y.; Luo, C.; Li, X. Improvement of blood flow, expression of nitric oxide, and vascular endothelial growth factor by low-energy shockwave therapy in random-pattern skin flap model. Ann. Plast. Surg. 2008, 61, 646–653. [Google Scholar] [CrossRef] [PubMed]
  22. Tinazzi, E.; Amelio, E.; Marangoni, E.; Guerra, C.; Puccetti, A.; Codella, O.M.; Simeoni, S.; Cavalieri, E.; Montagnana, M.; Adani, R.; et al. Effects of shock wave therapy in the skin of patients with progressive systemic sclerosis: A pilot study. Rheumatol. Int. 2011, 31, 651–656. [Google Scholar] [CrossRef] [Green Version]
  23. Kubo, M.; Li, T.S.; Kamota, T.; Ohshima, M.; Shirasawa, B.; Hamano, K. Extracorporeal shock wave therapy ameliorates secondary lymphedema by promoting lymphangiogenesis. J. Vasc. Surg. 2010, 52, 429–434. [Google Scholar] [CrossRef]
  24. Rohringer, S.; Holnthoner, W.; Hackl, M.; Weihs, A.M.; Rünzler, D.; Skalicky, S.; Karbiener, M.; Scheideler, M.; Pröll, J.; Gabriel, C.; et al. Molecular and cellular effects of in vitro shockwave treatment on lymphatic endothelial cells. PLoS ONE 2014, 9, e114806. [Google Scholar] [CrossRef]
  25. Michelini, S.; Failla, A.; Moneta, G.; Zinicola, V.; Macaluso, B.; Cardone, M.; Antonucci, D. Treatment of lymphedema with shockwave therapy: Preliminary study. Eur. J. Lymphology Relat. Probl. 2007, 17, 29. [Google Scholar]
  26. Bae, H.; Kim, H.J. Clinical outcomes of extracorporeal shock wave therapy in patients with secondary lymphedema: A pilot study. Ann. Rehabil. Med. 2013, 37, 229–234. [Google Scholar] [CrossRef]
  27. Cebicci, M.A.; Sutbeyaz, S.T.; Goksu, S.S.; Hocaoglu, S.; Oguz, A.; Atilabey, A. Extracorporeal Shock Wave Therapy for Breast Cancer-Related Lymphedema: A Pilot Study. Arch. Phys. Med. Rehabil. 2016, 97, 1520–1525. [Google Scholar] [CrossRef]
  28. Miccinilli, S.; Bravi, M.; Maselli, M.; Santacaterina, F.; Morrone, M.; Manco, D.; Toglia, R.; Sterzi, S.; Bressi, F. The effectiveness of extracorporeal shock wave therapy on breast cancer-related lymphedema: A literature review. Lymphology 2020, 53, 118–135. [Google Scholar] [CrossRef]
  29. Konrad, J.; Grygiel, M. Extracorporeal shock wave therapy as a potential therapeutic tool for breast cancer related lymphedema: Narrative review of intro, animal and clinical studies. Med. Sci. Pulse 2021, 15, 66–73. [Google Scholar] [CrossRef]
  30. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. BMJ 2021, 372, n71. [Google Scholar] [CrossRef] [PubMed]
  31. Higgins, J.P.T.; Thomas, J.; Chandler, J.; Cumpston, M.; Li, T.; Page, M.J.; Welch, V.A. Cochrane Handbook for Systematic Reviews of Interventions Version 6.2 (Updated February 2021). Available online: http://www.training.cochrane.org/handbook (accessed on 14 September 2021).
  32. de Morton, N.A. The PEDro scale is a valid measure of the methodological quality of clinical trials: A demographic study. Aust. J. Physiother. 2009, 55, 129–133. [Google Scholar] [CrossRef] [Green Version]
  33. Oremus, M.; Wolfson, C.; Perrault, A.; Demers, L.; Momoli, F.; Moride, Y. Interrater reliability of the modified Jadad quality scale for systematic reviews of Alzheimer’s disease drug trials. Dement. Geriatr. Cogn. Disord. 2001, 12, 232–236. [Google Scholar] [CrossRef]
  34. von Elm, E.; Altman, D.G.; Egger, M.; Pocock, S.J.; Gøtzsche, P.C.; Vandenbroucke, J.P. The Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) statement: Guidelines for reporting observational studies. Lancet 2007, 370, 1453–1457. [Google Scholar] [CrossRef]
  35. Martins da Silva, R.C.; Rezende, L.F. Assessment of impact of late postoperative physical functional disabilities on quality of life in breast cancer survivors. Tumori 2014, 100, 87–90. [Google Scholar] [CrossRef]
  36. Guyatt, G.H.; Oxman, A.D.; Kunz, R.; Vist, G.E.; Falck-Ytter, Y.; Schünemann, H.J. GRADE Working Group. What is “quality of evidence” and why is it important to clinicians? BMJ 2008, 336, 995–998. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Schünemann, H.; Brozek, J.; Guyatt, G.; Oxman, A. Handbook for Grading the Quality of Evidence and the Strength of Recommendations Using the GRADE Approach (Updated October 2013). Available online: https://gdt.gradepro.org/app/handbook/handbook.html (accessed on 16 September 2021).
  38. Mahran, H.G.; Thabet, A.A. Extracorporeal Shockwave Therapy for Post-Menopausal Patients with Breast Cancer-Related Lymphedema. Int. J. Cancer Res. 2015, 49, 1618–1625. [Google Scholar]
  39. El-Shazly, M.; Borhan, W.H.; Thabet, W.N.; Hassan, A. Response of Post-Mastectomy Lymphedema to Extracorporeal Shockwave Therapy. J. Surg. 2016, 4, 14–20. [Google Scholar] [CrossRef] [Green Version]
  40. El-Shazly, M.; Borhan, W.H.; Thabet, W.N.; Ashraaf, H. Response of Skin Thickness in Cases of Post-Mastectomy Lymphedema to Extracorporeal Shockwave Therapy. Med. J. Cairo. Univ. 2016, 84, 459–463. [Google Scholar]
  41. Abdelhalim, N.M.; Samhan, A.F. Comparison of Extracorporeal Shock Waves Therapy Versus Intermittent Pneumatic Compression Therapy in Breast Cancer-related Lymphedema. Int. J. Cancer Res. 2018, 14, 77–85. [Google Scholar]
  42. Lee, K.W.; Kim, S.B.; Lee, J.H.; Kim, Y.S. Effects of Extracorporeal Shockwave Therapy on Improvements in Lymphedema, Quality of Life, and Fibrous Tissue in Breast Cancer-Related Lymphedema. Ann. Rehabil. Med. 2020, 44, 386–392. [Google Scholar] [CrossRef] [PubMed]
  43. Cebicci, M.A.; Dizdar, M. A comparison of the effectiveness of complex decongestive therapy and extracorporeal shock wave therapy in the treatment of lymphedema secondary to breast cancer. Indian J. Surg. 2021, 83, 749–753. [Google Scholar] [CrossRef]
  44. Joos, E.; Vultureanu, I.; Nonneman, T.; Adriaenssens, N.; Hamdi, M.; Zeltzer, A. Low-Energy Extracorporeal Shockwave Therapy as a Therapeutic Option for Patients with a Secondary Late-Stage Fibro-Lymphedema After Breast Cancer Therapy: A Pilot Study. Lymphat. Res. Biol. 2021, 19, 175–180. [Google Scholar] [CrossRef] [PubMed]
  45. Dayan, J.H.; Ly, C.L.; Kataru, R.P.; Mehrara, B.J. Lymphedema: Pathogenesis and Novel Therapies. Annu. Rev. Med. 2018, 69, 263–276. [Google Scholar] [CrossRef] [PubMed]
  46. Planas-Paz, L.; Lammert, E. Mechanical forces in lymphatic vascular development and disease. Cell. Mol. Life Sci. 2013, 70, 4341–4354. [Google Scholar] [CrossRef] [PubMed]
  47. Cui, H.S.; Joo, S.Y.; Cho, Y.S.; Park, J.H.; Ro, Y.M.; Kim, J.B.; Seo, C.H. Effect of extracorporeal shock wave therapy on keratinocytes derived from human hypertrophic scars. Sci. Rep. 2021, 11, 17296. [Google Scholar] [CrossRef] [PubMed]
  48. Serizawa, F.; Ito, K.; Matsubara, M.; Sato, A.; Shimokawa, H.; Satomi, S. Extracorporeal shock wave therapy induces therapeutic lymphangiogenesis in a rat model of secondary lymphoedema. Eur. J. Vasc. Endovasc. Surg. 2011, 42, 254–260. [Google Scholar] [CrossRef] [Green Version]
  49. Deutsch, M.; Flickinger, J.C. Shoulder and arm problems after radiotherapy for primary breast cancer. Am. J. Clin. Oncol. 2001, 24, 172–176. [Google Scholar] [CrossRef] [PubMed]
  50. Lee, T.S.; Kilbreath, S.L.; Refshauge, K.M.; Herbert, R.D.; Beith, J.M. Prognosis of the upper limb following surgery and radiation for breast cancer. Breast Cancer Res. Treat. 2008, 110, 19–37. [Google Scholar] [CrossRef]
  51. Koehler, L.A.; Haddad, T.C.; Hunter, D.W.; Tuttle, T.M. Axillary web syndrome following breast cancer surgery: Symptoms, complications, and management strategies. Breast Cancer (Dove Med. Press) 2018, 11, 13–19. [Google Scholar] [CrossRef] [Green Version]
  52. Ryans, K.; Davies, C.C.; Gaw, G.; Lambe, C.; Henninge, M.; VanHoose, L. Incidence and predictors of axillary web syndrome and its association with lymphedema in women following breast cancer treatment: A retrospective study. Support Care Cancer 2020, 28, 5881–5888. [Google Scholar] [CrossRef] [PubMed]
  53. Davies, C.; Levenhagen, K.; Ryans, K.; Perdomo, M.; Gilchrist, L. Interventions for Breast Cancer-Related Lymphedema: Clinical Practice Guideline From the Academy of Oncologic Physical Therapy of APTA. Phys. Ther. 2020, 100, 1163–1179. [Google Scholar] [CrossRef] [PubMed]
  54. Crevenna, R.; Mickel, M.; Keilani, M. Extracorporeal shock wave therapy in the supportive care and rehabilitation of cancer patients. Support Care Cancer 2019, 27, 4039–4041. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Jcm 10 05970 g001 550

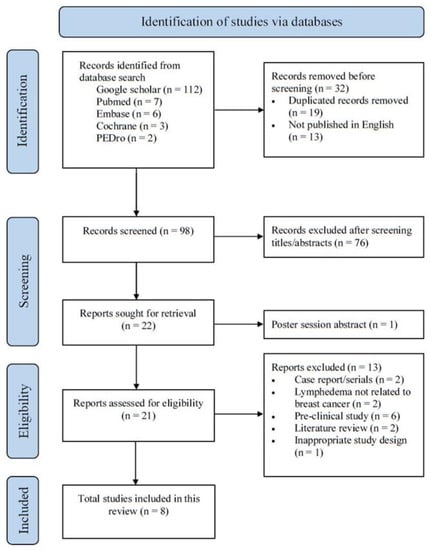

Figure 1. PRISMA2020 flow chart showing literature search and selection process.
Figure 1. PRISMA2020 flow chart showing literature search and selection process.
Jcm 10 05970 g001
Jcm 10 05970 g002 550

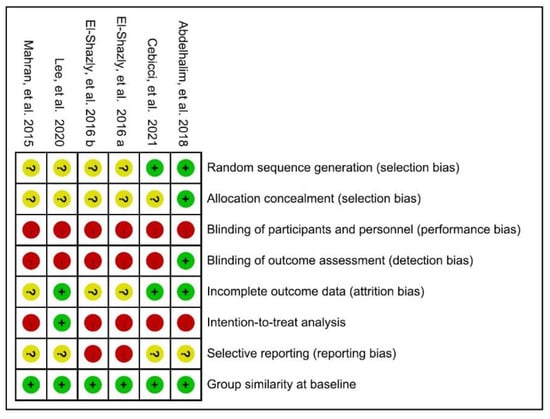

Figure 2. Cochrane risk of bias summary for the included articles. Mahran et al., 2015 [38]; Ely-Shazly et al., 2016 a [39] b [40]; Abdelhalim et al., 2018 [41]; Lee et al., 2020 [42]; Cebicci et al., 2021 [43].
Figure 2. Cochrane risk of bias summary for the included articles. Mahran et al., 2015 [38]; Ely-Shazly et al., 2016 a [39] b [40]; Abdelhalim et al., 2018 [41]; Lee et al., 2020 [42]; Cebicci et al., 2021 [43].
Jcm 10 05970 g002
Jcm 10 05970 g003 550

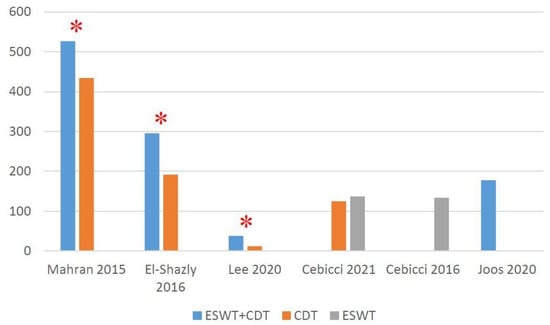

Figure 3. Absolute volume change (mL) from baseline at post-treatment. * Significant inter-group difference.
Figure 3. Absolute volume change (mL) from baseline at post-treatment. * Significant inter-group difference.
Jcm 10 05970 g003
Jcm 10 05970 g004 550
Figure 4. Mean difference (95%CI) in the effect of additional ESWT compared with CDT alone on the volume of BCRL.
Figure 4. Mean difference (95%CI) in the effect of additional ESWT compared with CDT alone on the volume of BCRL.
Jcm 10 05970 g004
Jcm 10 05970 g005 550

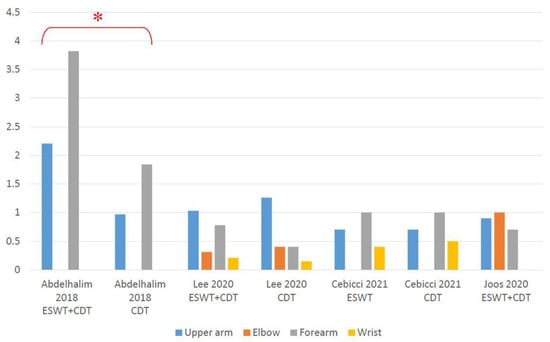

Figure 5. Absolute arm circumference change (cm) from baseline at post-treatment. * Significant inter-group difference.
Figure 5. Absolute arm circumference change (cm) from baseline at post-treatment. * Significant inter-group difference.
Jcm 10 05970 g005
Jcm 10 05970 g006 550
Figure 6. Mean difference (95%CI) in the effect of additional ESWT compared with CDT alone on the skin thickness of BCRL.
Figure 6. Mean difference (95%CI) in the effect of additional ESWT compared with CDT alone on the skin thickness of BCRL.
Jcm 10 05970 g006
Jcm 10 05970 g007 550
Figure 7. Mean difference (95%CI) in the effect of additional ESWT compared with CDT alone on the shoulder ROM of BCRL.
Figure 7. Mean difference (95%CI) in the effect of additional ESWT compared with CDT alone on the shoulder ROM of BCRL.
Jcm 10 05970 g007
Table
Table 1. Inclusion and exclusion criteria.
Table 1. Inclusion and exclusion criteria.
InclusionExclusion
DesignRandomized controlled trials
Cohort studies
Observational studies		Preclinical study
ParticipantsPeople with Breast-Cancer-Related LymphedemaLymphedema not related to breast cancer surgery
InterventionExtracorporeal shockwave therapy with or without other management
Outcomes measuresPrimary: volume or arm circumference
Secondary: shoulder joint ROM, other quantification of symptoms, impact on QOL
LanguageEnglish or Chinese with an abstract in EnglishOther languages
Abbreviations: ROM, range of motion; QOL, quality of life.
Table
Table 2. Patients’ characteristics of included studies.
Table 2. Patients’ characteristics of included studies.
StudyDesignParticipants
(Stage of LE)		No. of Patient
(ESWT/Control Group)		Age
(Mean ± SD, Year)		LE Duration
(Mean ± SD, Month)
Mahran et al., 2015 (Egypt) [38]RCTBCRL
(N/A)		ESWT + CDT: 20
CDT: 20		52.13 ± 4.0
53.80 ± 3.4		15.60 ± 2.82
14.73 ± 2.86
El-Shazly et al., 2016 (Egypt) [39]RCTBCRL
(Stage 2, 3)		ESWT + CDT: 30
CDT: 30		30–50
(Only range)		N/A
El-Shazly et al., 2016 (Egypt) [40]RCTBCRL
(Stage 2, 3)		ESWT + CDT: 30
CDT: 30		30–50
(Only range)		N/A
Abdelhalim et al., 2018 (Egypt) [41]RCTBCRL
(N/A)		ESWT + CDT: 21
CDT: 22		48.71 ± 3.07
49.55 ± 2.77		10.95 ± 1.59
11.17 ± 1.61
Lee et al., 2020 (South Korea) [42]RCTBCRL
(Stage 2)		ESWT + CDT: 15
CDT: 15		53.13 ± 10.85
52.24 ± 8.60		12.83 ± 8.21
14.40 ± 10.63
Cebicci et al., 2021 (Turkey) [43]RCTBCRL
(N/A)		ESWT: 10
CDT: 10		51.61 ± 6.6
57.90 ± 6.9		32.7 ± 31.1
31.6 ± 30.0
Cebicci et al., 2016 (Turkey) [27]Prospective
pilot study		BCRL
(N/A)		ESWT: 1150.63 ± 7.0312
(Range: 6–84)
Joos et al., 2020 (Belgium) [44]Prospective
pilot study		BCRL
(Stage 3)		ESWT + CDT: 1062.1 ± 8.2161.9 ± 17.55
Abbreviations: LE: Lymphedema; No.: Number; SD: Standard deviation; RCT: Randomized controlled trial; BCRL: Breast cancer-related lymphedema; N/A: not available; ESWT: Extracorporeal shock wave therapy; CDT: Complex decongestive therapy.
Table
Table 3. Therapeutic protocols of included studies.
Table 3. Therapeutic protocols of included studies.
StudyType of ESWTED
(mJ/mm2)		Impulse
Frequency		Dosage and LocationInterval and Sessions
Mahran et al., 2015 (Egypt) [38]rESWT2 bar4 Hz750
250
1500		Axillary LN
Cubital LN
Arm, Forearm, Hand		2/wk for 16 sessions
El-Shazly et al., 2016 (Egypt) [39]fEWST0.040–0.0695 Hz1000
1000		Most fibrotic tissue
Lesser fibrotic tissue		2/wk for 12 sessions
El-Shazly et al., 2016 (Egypt) [40]fEWST0.040–0.0694 Hz1000
1000		Most fibrotic tissue
Lesser fibrotic tissue		2/wk for 12 sessions
Abdelhalim et al., 2018 (Egypt) [41]rESWT2 bar4 Hz750
250
1500		Axillary LN
Cubital LN
Arm, Forearm, Hand		3/wk for 12 sessions
Lee et al., 2020 (South Korea) [42]fEWST0.056–0.068NA1000
1500		Most fibrotic areaCubital LN, forearm2/wk for 6 sessions
Cebicci et al., 2021 (Turkey) [43]rESWT2 bar4 Hz750
250
1500		Axillary LN
Cubital LN
Arm, Forearm, Hand		3/wk for 12 sessions
Cebicci et al., 2016 (Turkey) [27]rESWT2 bar4 Hz750
250
1500		Axillary LN
Cubital LN
Arm, Forearm, Hand		3/wk for 12 sessions
Joos et al., 2020 (Belgium) [44]fEWST0.14 Hz1800
800		Most fibrotic area Grid pattern around this area2/wk for 8 sessions
Abbreviations: ESWT: Extracorporeal shock wave therapy; ED: Energy flux density; rESWT: Radial extracorporeal shock wave therapy; LN: Lymph node;/wk: per week; fESWT: Focused extracorporeal shock wave therapy; N/A: not available.
Table
Table 4. Different methods were used to quantify symptoms of Breast cancer-related lymphedema in included trials.
Table 4. Different methods were used to quantify symptoms of Breast cancer-related lymphedema in included trials.
StudyStudy TypeVolumeArm CircumferenceSkin ThicknessqDASHROM
Mahran et al., 2015 (Egypt) [38]RCTYesYesNoNoYes
El-Shazly et al., 2016 (Egypt) [39]RCTYesNoNoNoYes
El-Shazly et al., 2016 (Egypt) [40]RCTNoNoYesNoNo
Abdelhalim et al., 2018 (Egypt) [41]RCTNoYesYesNoNo
Lee et al., 2020 (South Korea) [42]RCTYesYesYesYesNo
Cebicci et al., 2021 (Turkey) [43]RCTYesYesNoYesNo
Cebicci et al., 2016 (Turkey) [27]Prospective pilot studyYesNoNoYesNo
Joos et al., 2020 (Belgium) [44]Prospective pilot studyYesYesNoNoNo
Abbreviations: RCT: Randomized controlled trial; qDASH: quick Disabilities of the Arm, Shoulder, and Hand; ROM: Range of motion.
Table
Table 5. Outcome measurements of the volume of included studies for ESWT in BCRL.
Table 5. Outcome measurements of the volume of included studies for ESWT in BCRL.
StudyDesignNo. of Patients
(ESWT/Control Group)		MeasurementVolume (Mean ± SD, mL)Intragroup DifferenceIntergroup Difference
BaselinePost-Intervention
Mahran et al., 2015 (Egypt) [38]RCTESWT + CDT: 20Difference of healthy and affected arm
(15 cm above olecranon)		811.9 ± 68.18285.6 ± 30.06YesYes
CDT: 20797.7 ± 80.33363.7 ± 24.40Yes
El-Shazly et al., 2016 (Egypt) [39]RCTESWT + CDT: 30Affected arm
(N/A)		1219.33 ± 83.42924.04 ± 94.71YesYes
CDT: 301235.40 ± 84.121043.85 ± 90.32Yes
Lee et al., 2020 (South Korea) [42]RCTESWT + CDT: 15Difference of healthy and affected arm
(axillary level)		840.42 ± 181.33802.80 ± 149.70YesYes
CDT: 15822.00 ± 144.68810.00 ± 156.90No
Cebicci et al., 2021 (Turkey) [43]RCTESWT: 10Difference of healthy and affected arm
(axillary level)		932.0 ± 341.9795.0 ± 360.9YesNo
CDT: 10800.0 ± 402.7675.0 ± 345.8Yes
Cebicci et al., 2016 (Turkey) [27]Prospective pilot studyESWT: 11Difference of healthy and affected arm
(axillary level)		870.4 ± 115.1736.36 ± N/AYesN/A
Joos et al., 2020 (Belgium) [44]Prospective pilot studyESWT + CDT: 10Affected arm
(N/A)		3086.4 ± 539.472909.1 ± 471.60NoN/A
Abbreviations: ESWT: Extracorporeal shock wave therapy; BCRL: Breast cancer-related lymphedema; No.: Number; SD: Standard deviation; mL: milliliter; RCT: Randomized controlled trial; CDT: Complex decongestive therapy; N/A: Not available.
Table
Table 6. Outcome measurements of the arm circumference in included studies for ESWT in BCRL.
Table 6. Outcome measurements of the arm circumference in included studies for ESWT in BCRL.
StudyDesignNo. of Patients
(ESWT/Control Group)		MeasurementIntragroup DifferenceIntergroup Difference
Mahran et al., 2015 (Egypt) [38]RCTESWT + CDT: 20Total circumferential differences20 cm AE
15 cm AE
10 cm AE
10 cm BE
15 cm BE
20 cm BE		YesYes
CDT: 20Yes
Abdelhalim et al., 2018 (Egypt) [41]RCTESWT + CDT: 30Difference of healthy and affected arm10 cm below axilla
10 cm AE
7 cm BE
7 cm above wrist		YesYes
CDT: 30Yes
Lee et al., 2020 (South Korea) [42]RCTESWT + CDT: 15Affected arm10 cm AE
Elbow
10 cm BE
Wrist
MCP		Yes
(only 10 cm BE)		No
CDT: 15No
Cebicci et al., 2021 (Turkey) [43]RCTESWT: 10Difference of healthy and affected arm15 cm AE
10 cm BE
Wrist
MCP		YesNo
CDT: 10Yes
(only 10 cm BE and wrist)
Joos et al., 2020 (Belgium) [44]Prospectivepilot studyESWT + CDT: 10Affected arm10 cm AE
Elbow
10 cm BE		NoN/A
Abbreviations: ESWT: Extracorporeal shock wave therapy; BCRL: Breast cancer-related lymphedema; No.: Number; RCT: Randomized controlled trial; CDT: Complex decongestive therapy; cm: centimeter; AE: Above elbow; BE: Below elbow; MCP: Netacarpophalangeal joint; N/A: Not available.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tsai, Y.L.; I, T.J.; Chuang, Y.C.; Cheng, Y.Y.; Lee, Y.C. Extracorporeal Shock Wave Therapy Combined with Complex Decongestive Therapy in Patients with Breast Cancer-Related Lymphedema: A Systemic Review and Meta-Analysis. J. Clin. Med. 2021, 10, 5970. https://doi.org/10.3390/jcm10245970

AMA Style

Tsai YL, I TJ, Chuang YC, Cheng YY, Lee YC. Extracorporeal Shock Wave Therapy Combined with Complex Decongestive Therapy in Patients with Breast Cancer-Related Lymphedema: A Systemic Review and Meta-Analysis. Journal of Clinical Medicine. 2021; 10(24):5970. https://doi.org/10.3390/jcm10245970

Chicago/Turabian Style

Tsai, Yu Lin, Ting Jie I, Ya Chi Chuang, Yuan Yang Cheng, and Yu Chun Lee. 2021. "Extracorporeal Shock Wave Therapy Combined with Complex Decongestive Therapy in Patients with Breast Cancer-Related Lymphedema: A Systemic Review and Meta-Analysis" Journal of Clinical Medicine 10, no. 24: 5970. https://doi.org/10.3390/jcm10245970

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
