Appl. Sci. 2017, 7(1), 21; https://doi.org/10.3390/app7010021
Numerical Simulation of Multi-Crystalline Silicon Crystal Growth Using a Macro–Micro Coupled Method during the Directional Solidification Process
Hebei Engineering Laboratory of Photoelectronic Functional Crystals, School of Materials Science and Engineering, Hebei University of Technology, 8 DingZiGu 1st Road, Tianjin 300130, China
*
Authors to whom correspondence should be addressed.
Academic Editors: Paolo Minzioni and Totaro Imasaka
Received: 30 September 2016 / Revised: 20 November 2016 / Accepted: 15 December 2016 / Published: 26 December 2016
(This article belongs to the Special Issue Silicon Photonics Components and Applications)
Abstract

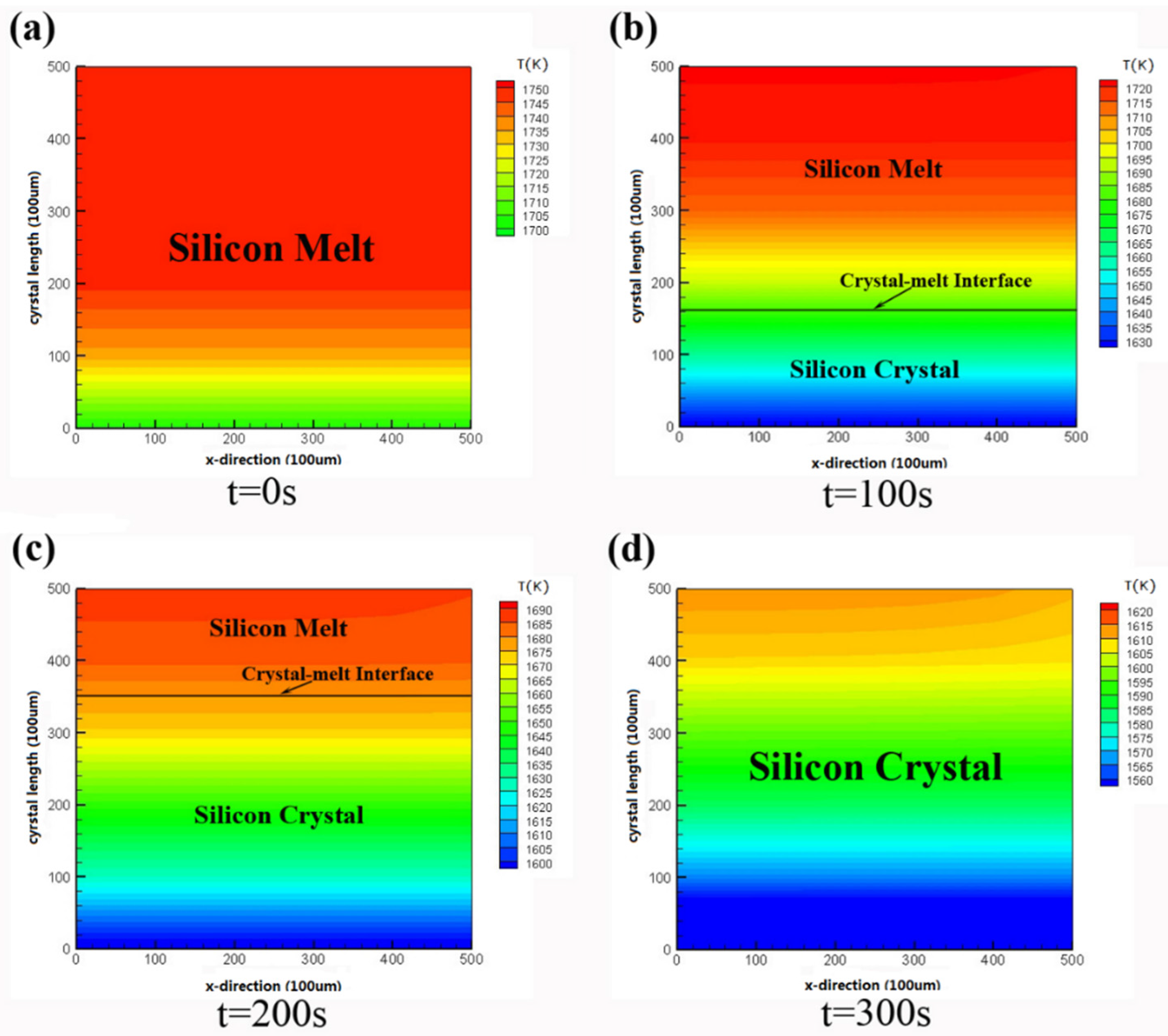

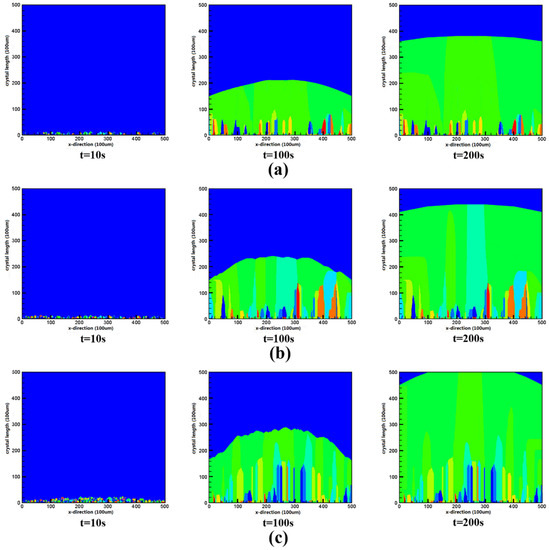

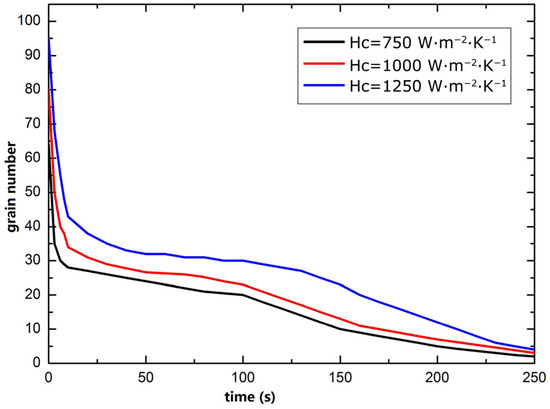

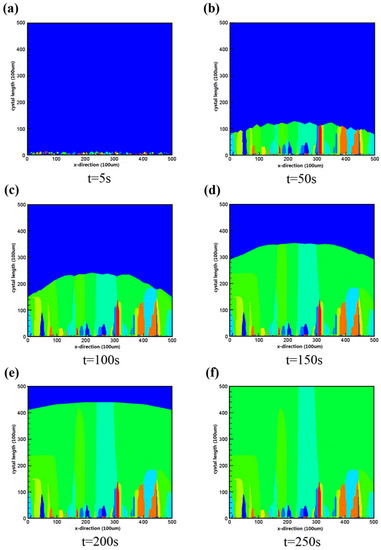

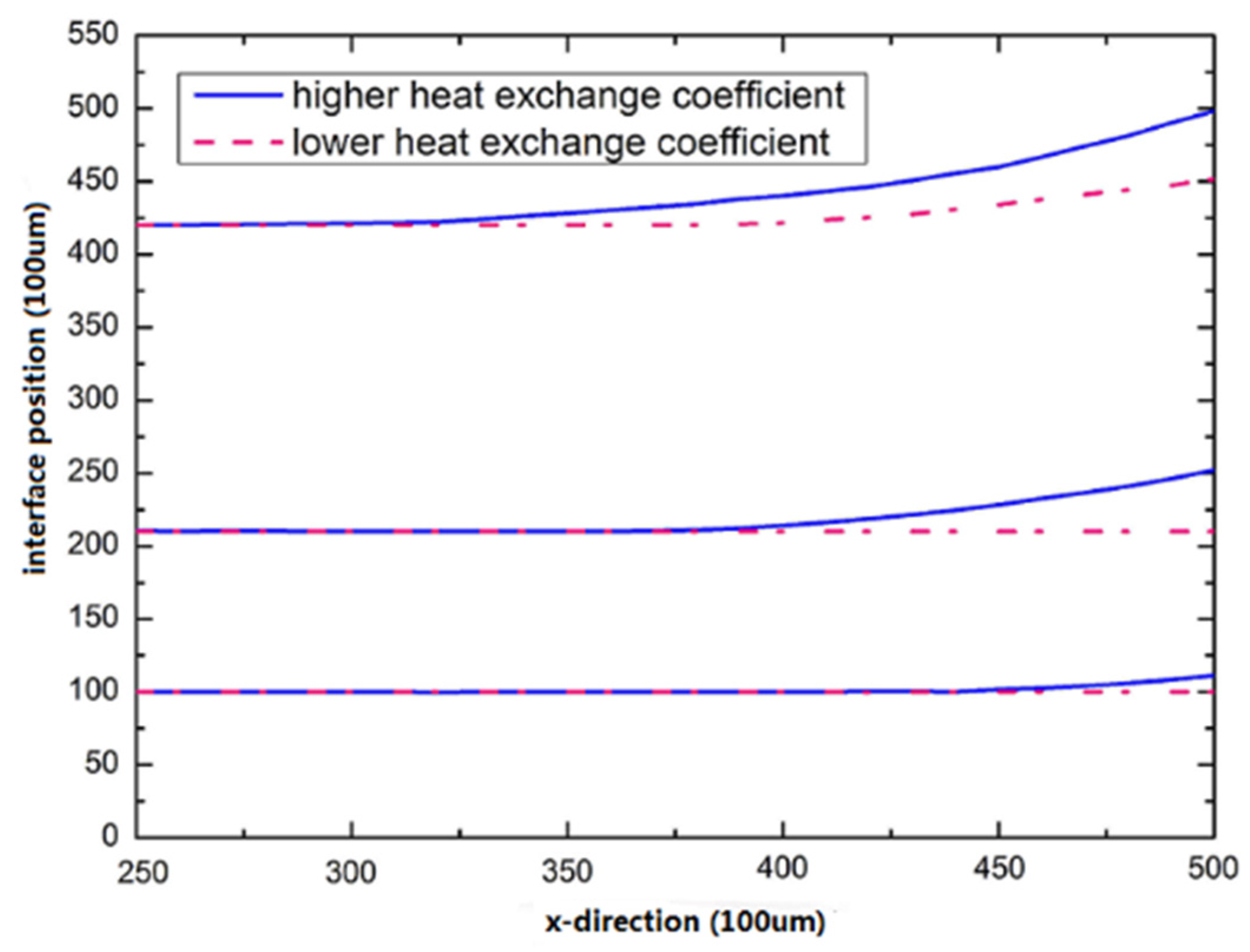

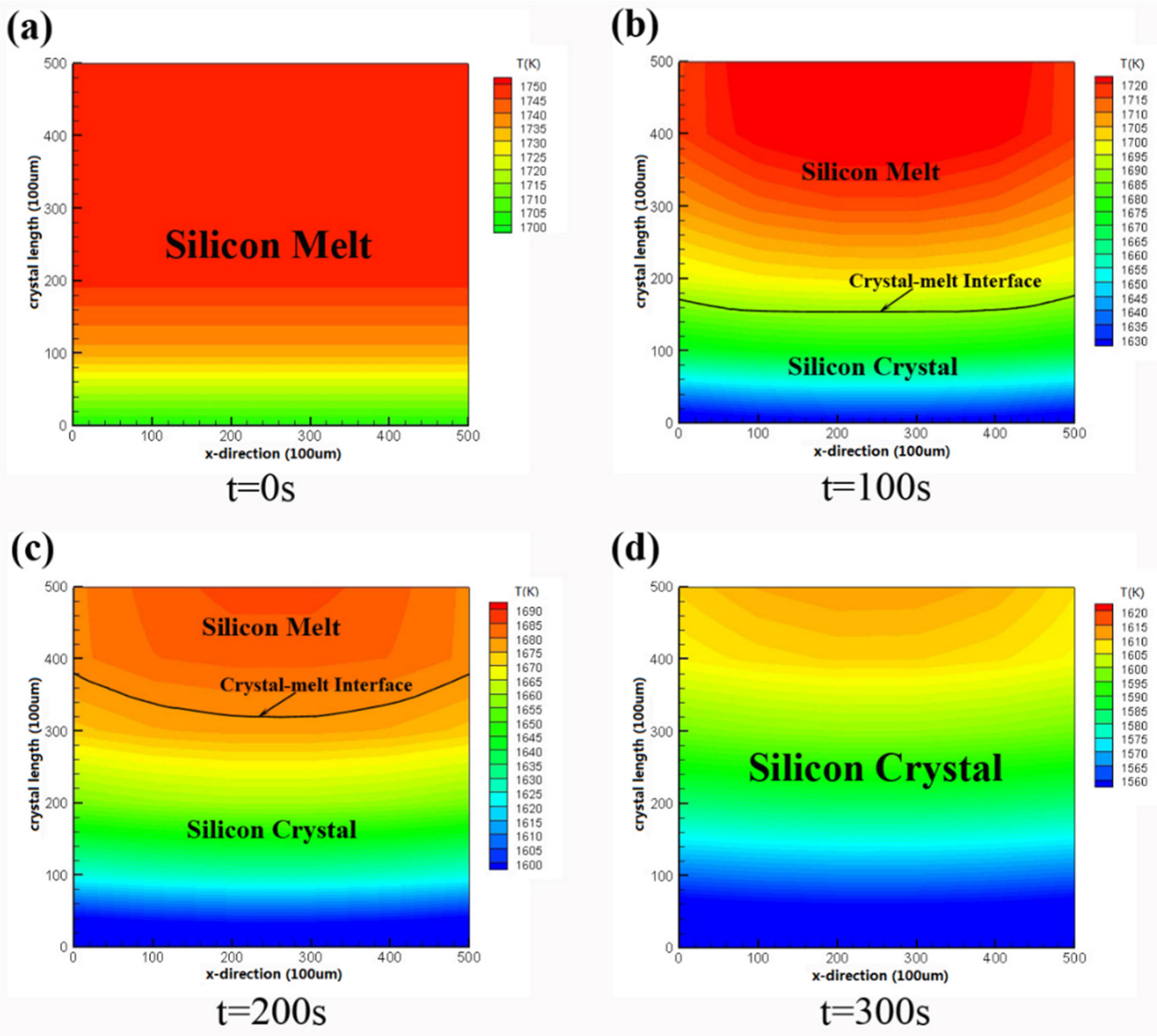

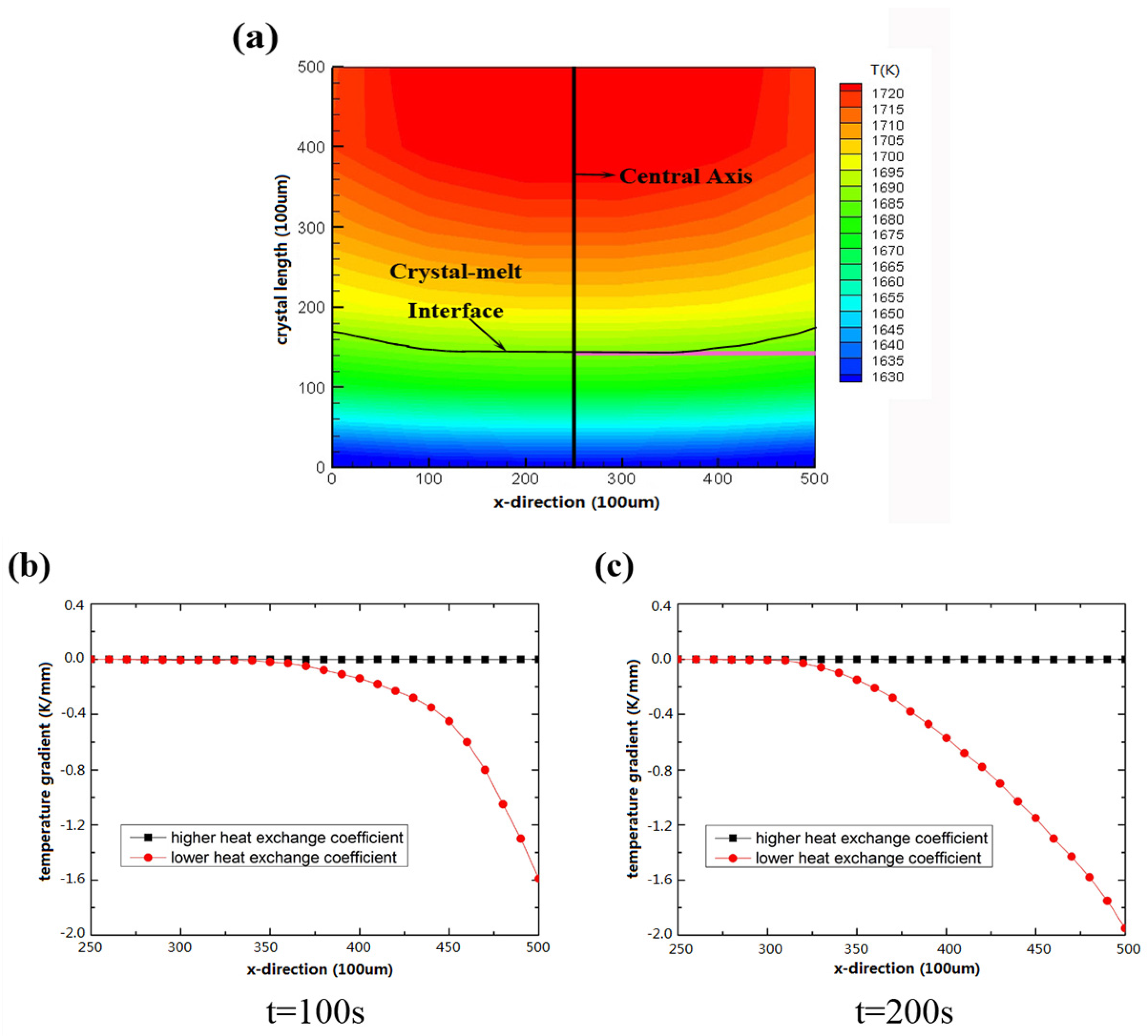

In this work, the crystal growth of multi-crystalline silicon (mc-Si) during the directional solidification process was studied using the cellular automaton method. The boundary heat transfer coefficient was adjusted to get a suitable temperature field and a high-quality mc-Si ingot. Under the conditions of top adiabatic and bottom constant heat flux, the shape of the crystal-melt interface changes from concave to convex with the decrease of the heat transfer coefficient on the side boundaries. In addition, the nuclei form at the bottom boundary while columnar crystals develop into silicon melt with amzigzag-faceted interface. The higher-energy silicon grains were merged into lower energy ones. In the end, the number of silicon grains decreases with the increase of crystal length. View Full-TextKeywords:
silicon; crystal growth; computer simulation; directional solidification; cellular automaton method
▼
Figures

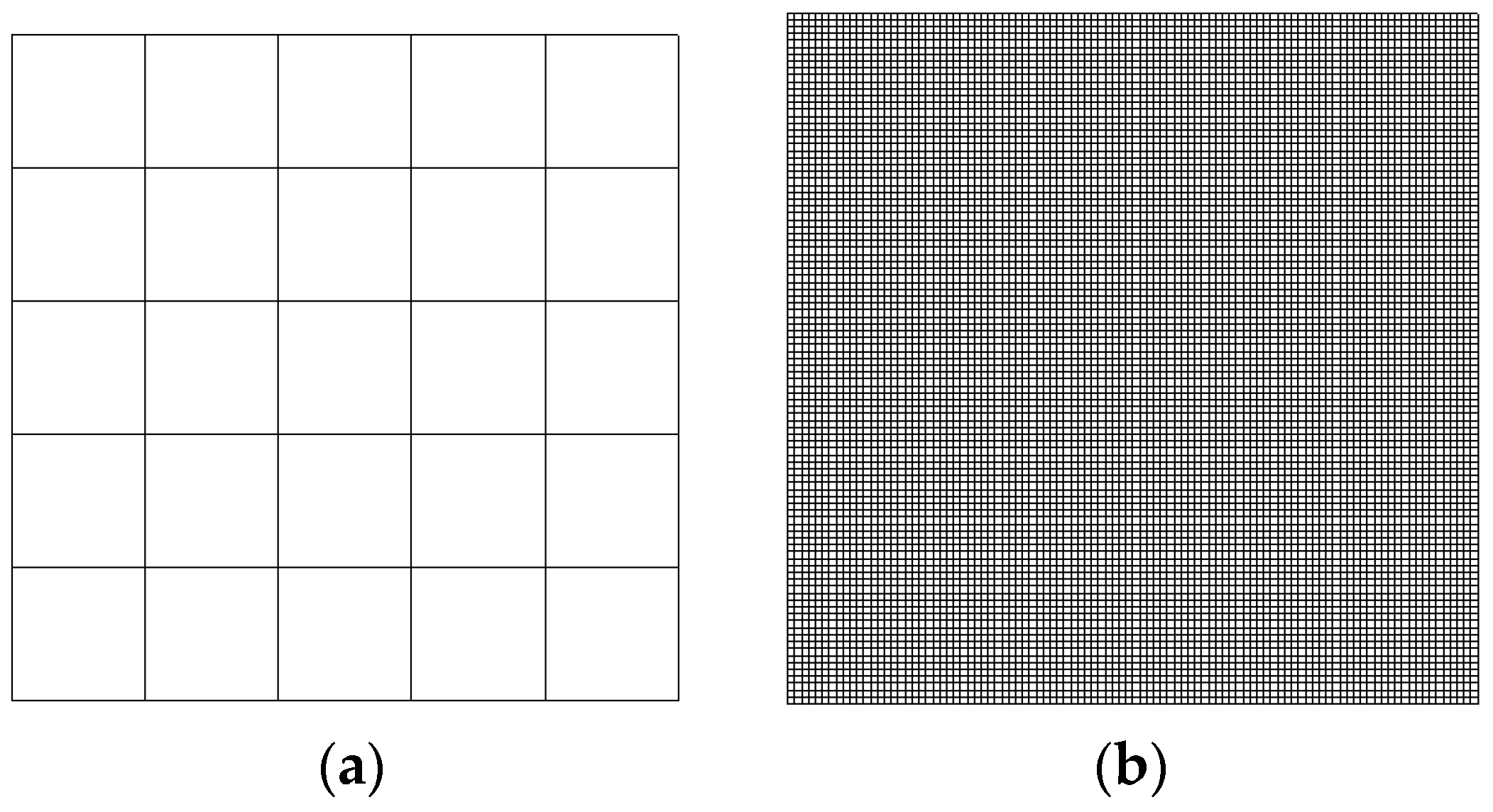

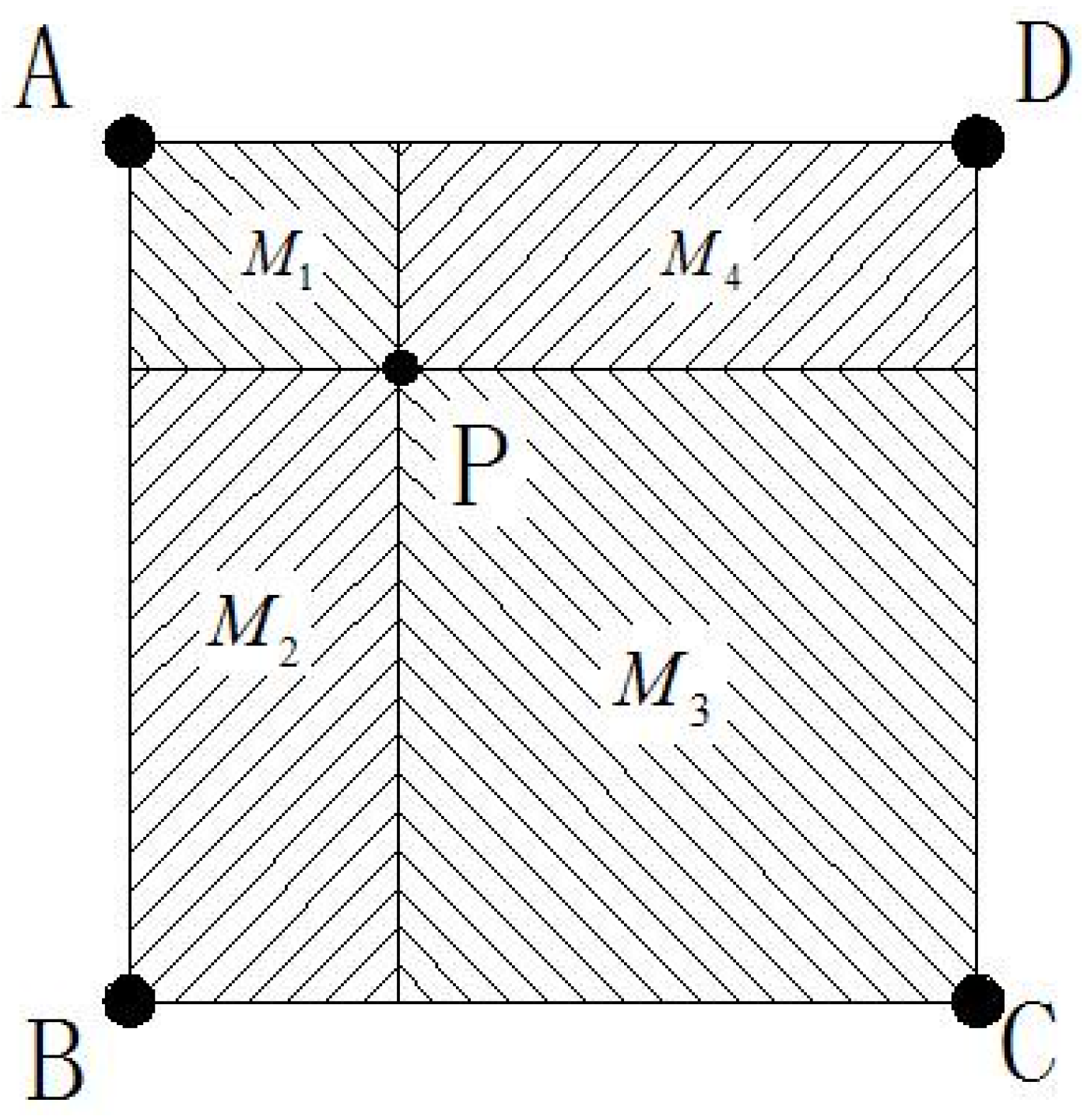

Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
Share & Cite This Article
MDPI and ACS Style
Lian, Q.; Liu, W.; Li, R.; Yan, W.; Liu, C.; Zhang, Y.; Wang, L.; Chen, H. Numerical Simulation of Multi-Crystalline Silicon Crystal Growth Using a Macro–Micro Coupled Method during the Directional Solidification Process. Appl. Sci. 2017, 7, 21.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
Related Articles
Article Metrics
Comments
[Return to top]
Appl. Sci.
EISSN 2076-3417
Published by MDPI AG, Basel, Switzerland
RSS
E-Mail Table of Contents Alert
