Synchronization of Surface Electromyography and 3D Electromagnetic Articulography Applied to Study the Biomechanics of the Mandible: Proof of Concept

Abstract

Background. The aim of this study was to propose and establish the proof of concept of an approach to synchronize 3D Electromagnetic Articulography (3D-EMA) with Surface Electromyography (SEMG) based on the standard components of this equipment. Methods. The appropriate equipment and instruments were selected according to specifications stablished for this study. Once the necessary equipment was gathered, the proper conditions to synchronize the signals were created. Thus, we selected a SEMG with a switch module incorporated to be able to achieve synchronization of the signals. After the system setup was stablished, chewing tasks were recorded on a healthy volunteer, collecting a proof-of-concept database. The variability among recordings of the database were analyzed in terms of its standard deviation in order to detect possible interferences. Results. The analysis of the chewing task recordings obtained with the synchronized 3D EMA and SEMG signals in the present study did not reveal significant distortions, and all values were within those that had been given by the manufacturers of both of the systems. The method presented the advantage of using only components that are already included with the equipment employed. Conclusion. The method of analysis described in this paper is an effective tool that facilitates the investigation of mandibular movements synchronized in two domains: articulatory movements and electromyographic activity. Thus, it seems promising that it can be applied in different clinical situations to improve the analysis of the complexity of masticatory activity in addition to being able to generate new insights on this topic.

1. Introduction

For a complete understanding of the kinesiology of the mandible, it is necessary to record muscle activity and movement pattern simultaneously as a strategy to relate the phases of chewing cycles to muscular contractions [1]. Neuromuscular analyses involving surface electromyography (SEMG) of the masticatory muscles and kinematics of the mandible have been widely employed in clinical practice and research. These techniques allow quantification of disharmony in pathological conditions as well as the outcome of given therapies [2]. Some studies involved simultaneous recordings of both kinds of signals [1,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18] but only a few achieve synchronization [1,3,4,5,15]. To synchronize signals from different acquisition systems is a challenging task, and the methodology employed by researchers is not always clearly reported.

Current advances in technology have allowed dentists precise methods to evaluate mandibular movements (MM) and muscle activity. Surface EMG is a non-invasive technique that provides information on muscle properties through electrodes located over the skin. The surface EMG is the sum of the electrical contributions of the active motor units and reflects both the muscle membrane properties and the central control strategies [19]. Many researchers apply surface EMG recordings in both basic research and clinical studies [20]. In controlled experimental conditions, surface EMG has been shown to be a powerful tool to study the jaw elevator muscles physiology and muscle impairments associated with different temporomandibular disorders (TMD), and also to detect muscle hyper- and hypo-activity, muscle imbalance, rest position, and fatigue [20].

Electromagnetic articulography (EMA) is a non-invasive technique that can be employed to analyze kinematics of the mandible [21]. It is based on the inductive measurement of distances, originally introduced to track the movement of articulators such as the tongue and lips during speech production [22]. EMA systems generate an alternating magnetic field of controlled frequency in the measurement area by the implementation of transmitter coils [22,23,24]. The magnetic field induces an alternating electric current in small receiver coils, which are also called sensors [22]. The induced current is analyzed to calculate the spatial position of the sensors [22]. Fuentes et al. employed the AG501 articulograph to assess cinematic characteristics of masticatory cycles in healthy participants with normal occlusion, tracking the position of an EMA sensor placed in the interincisal midline of the mandible [25,26,27,28,29]. Hoke et al. employed the Wave articulograph to analyse the micro-movement of dental prosthesis during mastication [30]. Compared with other methods employed to track MM, EMA systems allow more natural movements because they do not restrict the movement of body—including the head—and also achieves high spatial precision (up to 0.3 mm) and temporal precision (sample frequency of up to 1 kHz) [25,26,31].

Fusing electromagnetic articulography with surface electromyography provides new opportunities to analyze the biomechanics of the mandible. Our goal is to propose and establish the proof-of-concept of an approach to synchronize a 3D electromagnetic articulograph with a surface electromyograph based on the standard components of the equipment, showing that there is no significant interference between the systems.

2. Materials and Methods

At first, it was necessary to plan and gather the required equipment. The next step was to create the necessary conditions to register and synchronize the signals provided by the different systems. For this purpose, we selected a surface electromyograph with a switch module incorporated, which is usually employed to synchronize the EMGs’ signal with mechanical events. After the system setup was ready, a proof-of-concept database was collected for further analysis.

2.1. Equipment and System Setup

A 3D electromagnetic articulograph (AG501, Carstens Medizinelektronik, Bovenden, Germany) was selected to register MM [21]. This equipment is classified as a Low Power Communication Device Transmitter by the Federal Communications Commission of the United States (FCC ID 2AHFP-AG501). A surface electromyograph (SEMG VIII, ArtOficio, Santiago, Chile) was selected to register the electromyographic activity of the Temporal (anterior portion; right and left) and masseter (right and left) muscles. An essential accessory to achieve the proposed synchronization is the EMGs “switch”. When pressed, this accessory generates an electrical event on the SEMG signal and, at the same time, an acoustic signal that can be easily recorded using the EMA microphone. The audio recording is synchronized with the articulographic recordings. Therefore, when synchronizing SEMG and audio signals, all articulographic recordings will be synchronized, too.

The main characteristics of the equipment employed are summarized in

Table 1. Equipment characteristics.

Electromagnetic Articulograph	Surface Electromyograph
AG 501, Carstens Medizinelektronik, Bovenden, Germany Sampling frequency 250 Hz and 1250 Hz 16 channels Electromagnetic field frequencies from 7.5 to 13.75 kHz Sensors version HQ220-L120-B Notebook with dedicated software	SEMG VIII, ArtOficio, Santiago, Chile Sampling frequency 250 kHz 8 channels BW from 10 Hz to 500 Hz Bipolar sensors PC with dedicated software Switch Module to synchronize with mechanical event

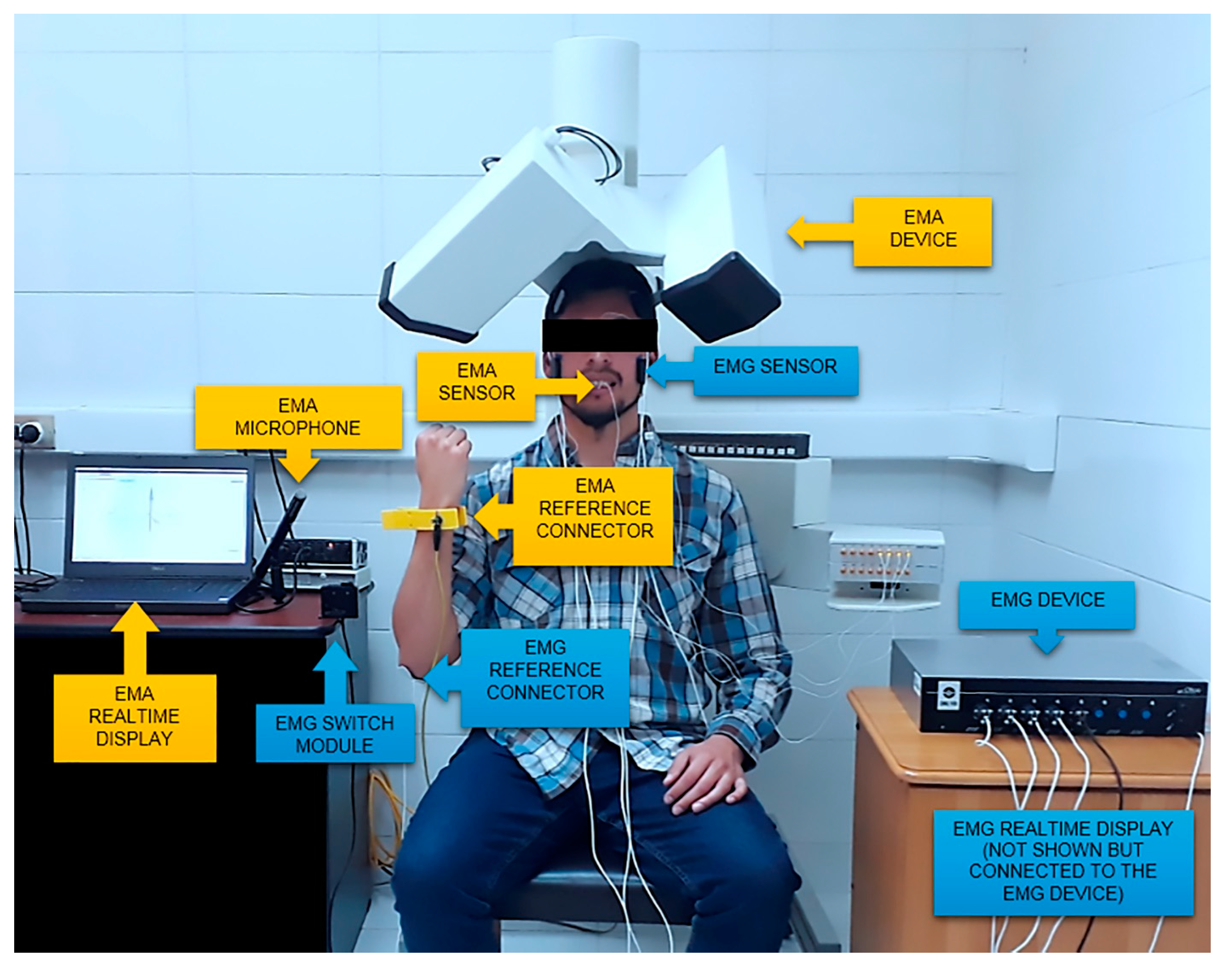

. The setup was arranged as shown in Figure 1. The EMA microphone and the EMG switch should be close to each other.

2.2. Recording Protocol

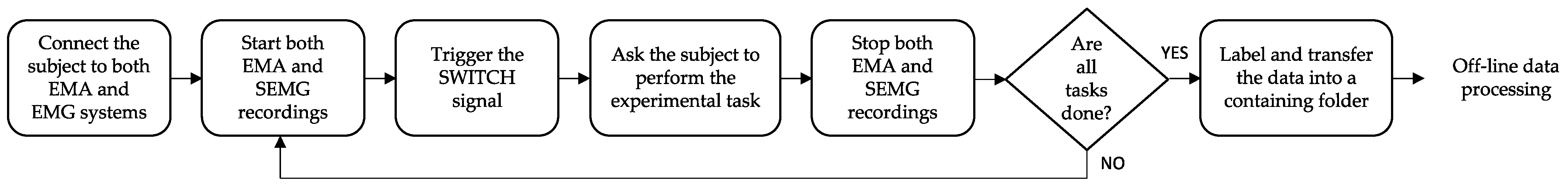

In order to conduct a simultaneous recording for posterior synchronization, the following sequence of steps (Figure 2) should be followed:

• The subject under study should be located and connected, as shown in Figure 1.
• To register an experimental task, both systems should start recording before conducting the task.
• The EMG switch is pressed to generate a visible event in the signals of both systems.
• The experimental task is carried out.
• Both systems stop recording.
• EMA and EMG data are saved as binary files or text files.
• Steps 1 to 5 are repeated until all experimental tasks are finished.
• All resulting files are organized within a folder containing all of the recordings made within the whole session.

2.3. Off-Line Signal Processing and Synchronization

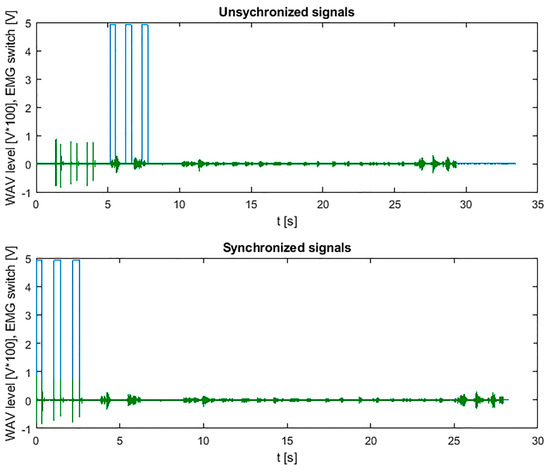

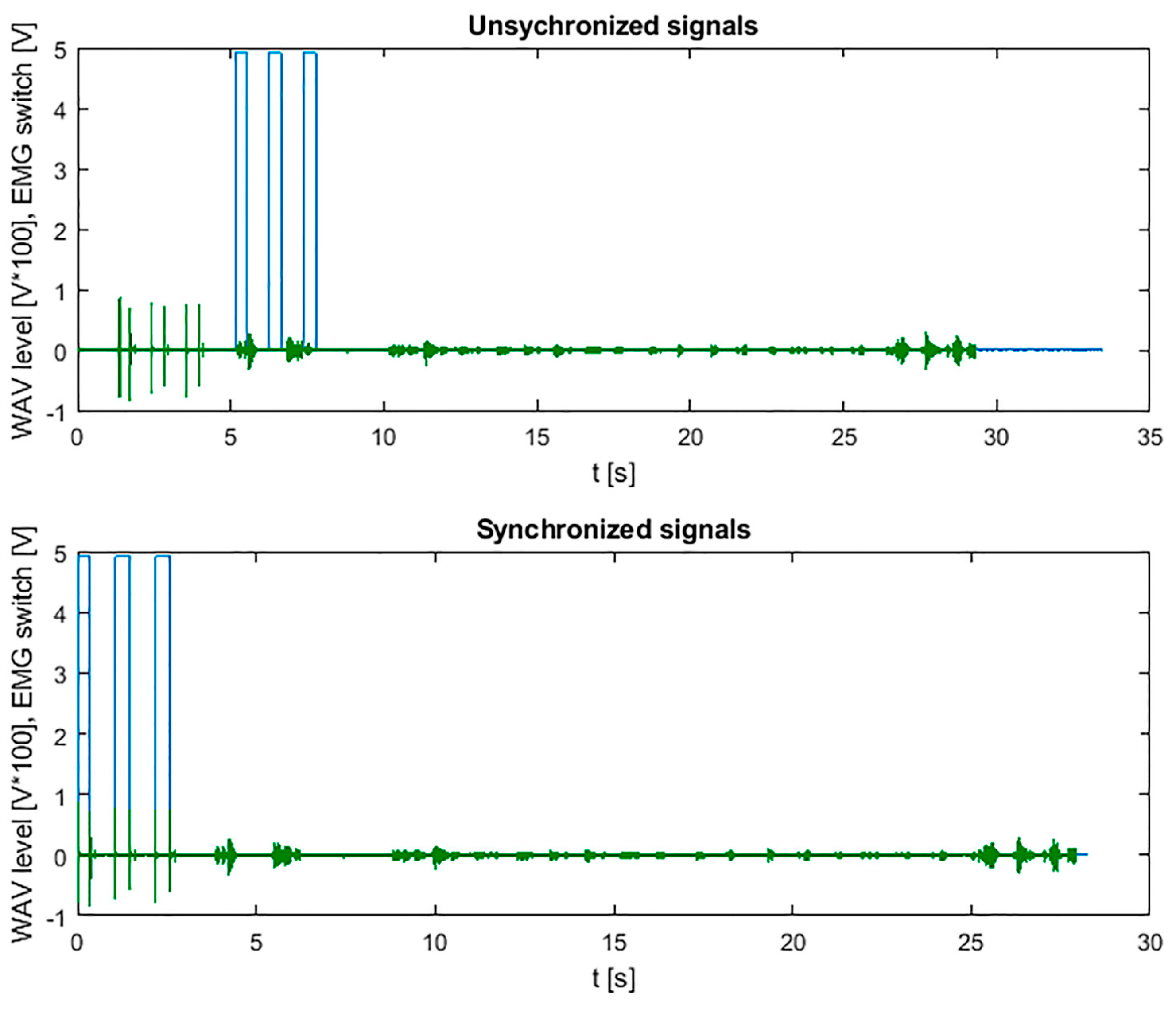

The recordings are processed off-line in order to achieve synchronization. The spikes in the audio signal and the square signal registered by the SEMG (with both events generated by the same switch) are employed to synchronize the signals of both systems, as shown in Figure 3. The switch was pressed three times at the beginning of the simultaneous recording. Three square pulses of 5 V of amplitude can be observed in the SEMG signal and six peeks can be observed in the audio recording. Both signals are synchronized when the spikes coincide with the flanks of the square pulses.

2.4. Proof-of-Concept Database

To prove the viability of the proposed methodology and to analyze possible interferences between the systems, the following recordings were made in one healthy volunteer (Ethics Committee Approval number 125/18, Comité Ético Científico, Universidad de La Frontera, Temuco, Chile):

-

Articulographic recording the chewing of 3.7 g of peanuts placing 3 active sensors on the jaw: in the interincisal midline, between first right molar and premolar, and between left molar and premolar.

-

Electromyographic recording of the chewing of 3.7 g of peanuts.

-

Simultaneous electromyographic and articulographic recording of the chewing of 3.7 g of peanuts.

Each chewing task was performed two times. First, chewing to the right side, and then to the left side. These recordings were labeled and stored, generating a proof-of-concept database.

2.5. Accuracy Analysis

The proof-of-concept database (EMA and EMG data) was processed to analyze the differences between simultaneous and individual recordings employing Matlab (R2019a, MathWorks, Natick, MA, USA). The following parameters were calculated:

-

Standard deviation of instantaneous measurements of Euclidean distance between pairs of sensors for each articulographic recording.

-

Average of the EMGrms (40 ms window) signal of each electromyographic recording.

The variation of both of the parameters between the different registration modalities (simultaneous and individual) were then analyzed.

3. Results

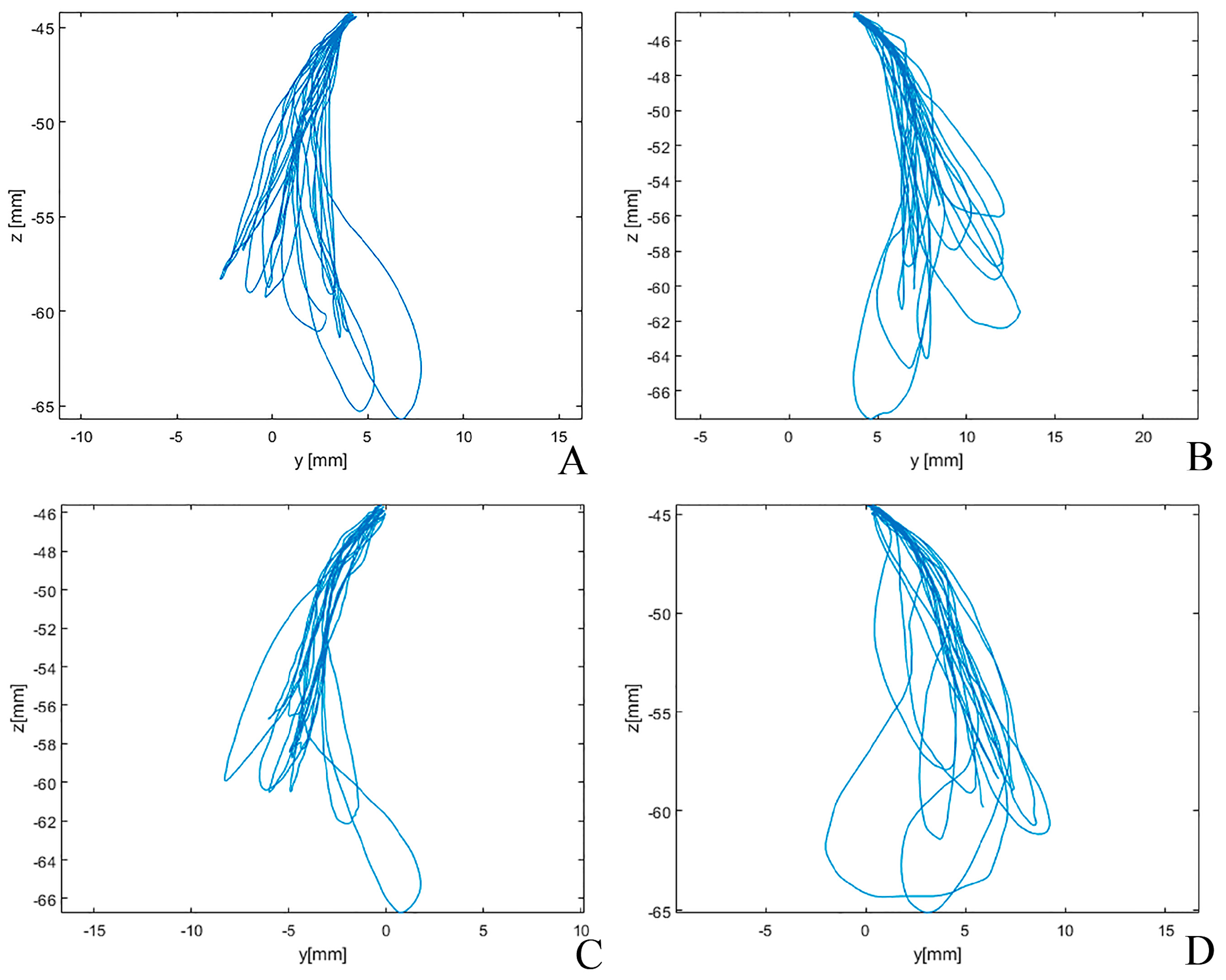

Regarding the analysis of the articulographic recordings of chewing, the standard deviation of the distance measurements between the sensors was 0.2 mm for the simultaneous registration of EMA with EMG and 0.3 mm for the individual registration of EMA. The values were within the limits indicated by the manufacturer. Figure 4 shows the trajectory of the mid-incisal point registered with EMA with and without connecting the SEMG device to register the muscle activity.

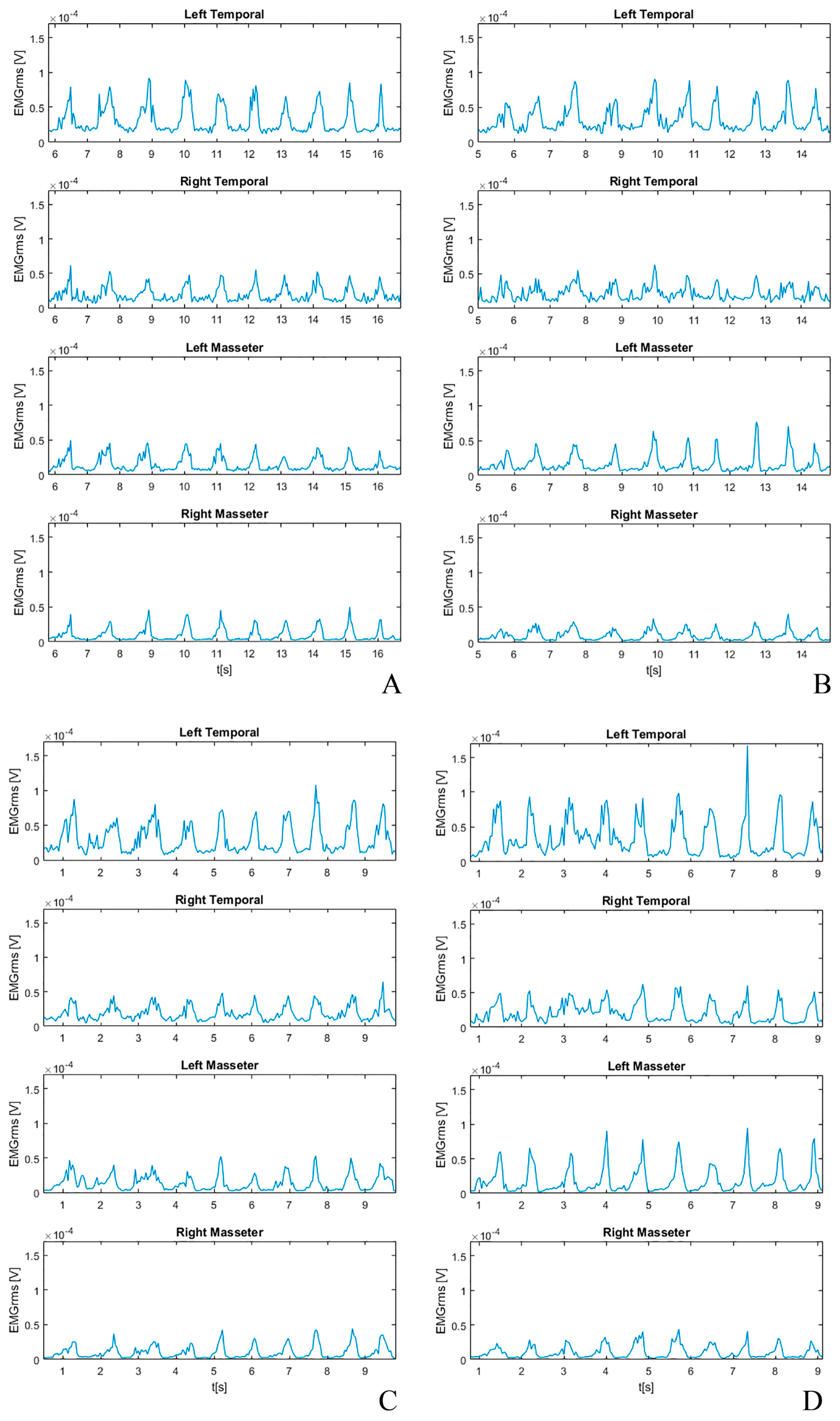

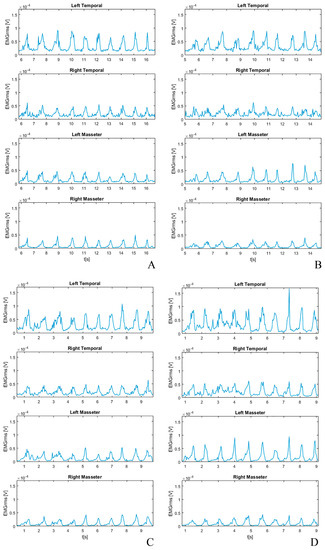

A difference between 1% and 10% was found between the means of the EMGrms (Figure 5) associated with the simultaneous EMG records with the EMA and individual EMG, respectively (

Table 2. EMGrms mean.

	Without EMA	With EMA	Difference
LT	31.6 μV	31.3 μV	1%
RT	19.6 μV	20.1 μV	3%
LM	15.8 μV	15.3 μV	3%
RM	10.2 μV	9.2 μV	10%

).

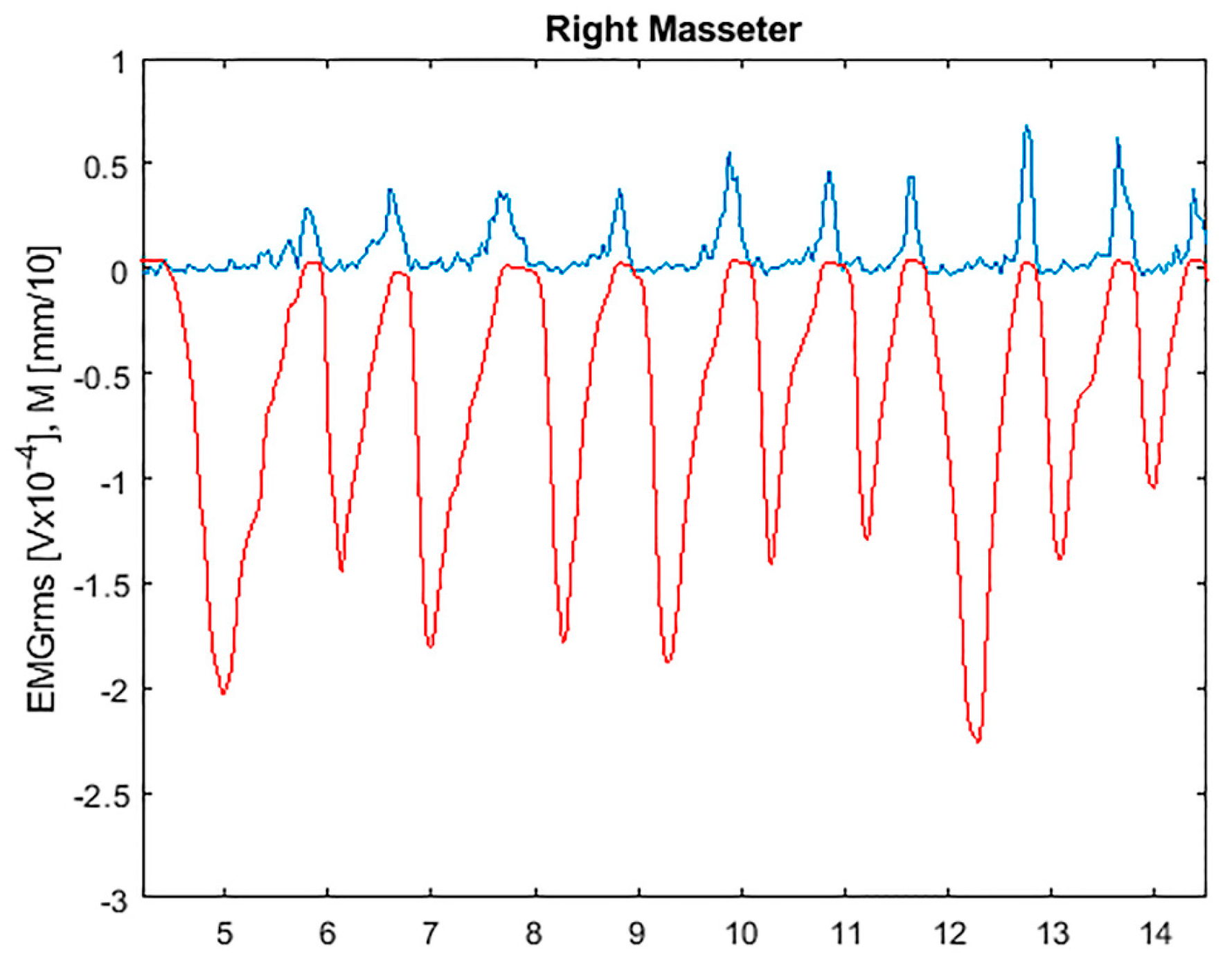

Finally, the achieved synchronization of EMGrms and MM signals is shown in Figure 6. Only the SEMG recording of chewing from the right masseter muscle is shown. Scales were adjusted to achieve a better representation of the relation of both signals.

4. Discussion

The present study proposed and established a proof-of-concept for the synchronization of two electromedical systems, 3D electromagnetic articulography, and surface electromyography, explaining it in detail so that it can be replicated by other research groups. No significant interferences between both systems were detected in the recordings. The implementation of the synchronization and further analysis aims to improve understanding of the complexity of mandibular functional movements, which may be applied to study different clinical situations.

The study of functional movements through analysis of kinematics and muscle activity is widely approached in various disciplines [32], including dentistry [1,2,3,5,7,8,9,11,13,14,16,33], which reveals the importance of analyzing these complex movements by various methods that complement each other.

Simultaneous measurements of different biomechanical variables of mandibular movements have been carried out for many years. Bigland measured the speed of contraction, the EMG activity, and the tension applied controlled by putting different weights [34]. More recent studies have also analyzed mandibular movements with simultaneous recordings of electromyographic activity and jaw movements in dentate individuals [8] and patients with maxillary and mandibular complete dentures [13] without synchronizing both recordings. These studies, even with clinical value, have limitations due to the lack of synchronization of their recordings or lack of more detailed explanation of the methodology employed. This limits the extrapolation of their results in the clinical understanding of mandibular movements, which reveals the need for a more complete analysis.

Other authors have developed studies demonstrating the concern to synchronize the signals recorded by different electromedical equipment related to mandibular movements with the electromyographic activity of the muscles of the stomatognathic system [6,7,9,10,11,14], but these studies did not provide enough information regarding the methods to be replicated.

Some studies have shown the synchronization between electromedical equipment applied to different analyses of the stomatognathic system, using arrangements or equipment specially developed for this purpose. Widmalm et al. designed and built a special device to combine recordings of vibration and EMG activity [35]. Nakazawa et al. performed a master-slave arrangement for palatal pressure, mandibular movement, and EMG recordings with 1 ms delay in the synchronization [36]. Some researchers used a specific synchronization module for EMG signal analysis and occlusal force distribution analyzed using the T-SCAN system [37,38,39,40], and Grigoriadis et al. synchronized EMG records of the masseter muscle and the mandibular movements using a commercial system with 2D magnetic sensors [16].

Other studies performed the synchronization of the recordings by generating an independent and identifiable event in the signals acquired by different systems. Ahlgren used a light signal to synchronize EMG and cinematography recordings [1]. A pulse generator was used to synchronize EMG activity and mandibular movements by videofluorography and cineradiography [3,4,5]. Freitas et al. synchronized the recordings of mandibular movements obtained by a Kinect sensor and EMG activity through a computational custom-made system [15]. More recently, Okawa et al. also used a synchronizing signal and post-processed the recordings to synchronize them [41].

Synchronization through the generation of a specific event was the method chosen by our research group to synchronize the EMG recordings of masticatory muscles and mandibular movements. In our case, we used a “switch” device that comes with EMG equipment and a sound recorder that comes with AG501 3D-EMA equipment. Activation of this switch generated an independent and distinguishable event in both registers, which in the case of EMG was recorded as a square electrical signal, and in the EMA was recorded as a peek in the acoustic signal that was used to synchronize both recordings.

Our recording method is a novelty in the scientific literature, and it has the advantage of the high accuracy of the movement-recording method demonstrated in previous articles from our research group [25,26,27]. In addition, this synchronization was performed using only the components that already accompany both pieces of equipment selected, a fact that besides facilitating its realization and replication, does not add costs to its realization.

In general, our results obtained during synchronized recordings showed no distortion/alteration outside the limit values informed by the manufacturers. Even though both instruments are very sensitive to electromagnetism, the EMA AG501 and the EMGs proposed in this methodology do not generate interferences between them during the simultaneous recording. This is probably because the bandwidths with which each system work do not overlap. This analysis could be improved by incrementing sample size and making a more complex experiment, e.g., determining the natural variability of EMG and EMA recordings for the application considered.

5. Conclusions

The present study was able to establish a detailed proof-of-concept of the synchronization of chewing muscle EMG activity related to mandibular movements, recorded by 3D-EMA, without generating significant distortion (within the values informed by the manufacturers), with the advantage of using components that are included with the equipment employed. The measurement system described in this paper is an effective tool that facilitates simultaneous investigation of mandibular movements in two domains: articulatory movements and electromyographic activity of muscles. Thus, it seems that is can be applied in different clinical situations in order to improve the analysis of the complexity of masticatory activity, thus generating new insights on this topic. The signal distortion analysis could be improved by incrementing sample size and making more complex experiment.
